To create a consistent Snapshot copy of a LUN without disruptions, it is necessary to quiesce I/O to the LUN. This process involves pausing or temporarily stopping the input/output operations to ensure that the data is in a consistent state when the snapshot is taken. This method is crucial for maintaining data integrity and consistency in the snapshot.

For further details, refer to:

NetApp Documentation on Snapshot Consistency

NetApp Best Practices for Snapshot Management

NetApp Windows Host Utilities are used to configure Windows hosts correctly for ONTAP SAN storage and include support for Microsoft Multipath I/O configuration. During Host Utilities installation, multipathing support can be selected when multiple paths exist between the Windows server and the storage system. The package also configures required Windows registry and storage parameters so the host correctly handles ONTAP pathing behavior. Device Mapper Multipathing is primarily associated with Linux and is therefore inappropriate for Windows Server. An iSCSI target represents the storage endpoint and does not itself configure host multipathing. ANA is the NVMe multipathing mechanism and does not apply to an iSCSI LUN. Relevant SAN ONTAP topics include Windows Host Utilities, Microsoft MPIO, iSCSI host configuration, ALUA, redundant SAN paths, and Windows Server interoperability.

For synchronous data replication between two sites with automatic failover in case of a site disaster for SAN workloads, the two NetApp features that provide these capabilities are SnapMirror Synchronous and MetroCluster IP.

SnapMirror Synchronous: This feature provides volume-granular, synchronous replication with zero RPO (Recovery Point Objective), ensuring that data is mirrored in real-time to a secondary site. This setup supports automatic failover, maintaining data availability even during site failures​

MetroCluster IP: This solution provides synchronous replication and combines high availability and disaster recovery capabilities. MetroCluster IP uses IP networking to extend the distance over which replication can occur and supports automatic failover and failback, making it suitable for critical SAN workloads

For enabling jumbo frames on Cisco Nexus switches for NVMe over TCP with tagged VLANs, the following changes are required:

Modify the Cisco Nexus switches to use an MTU of 9216: Setting the MTU to 9216 ensures that the network can handle jumbo frames, reducing the number of packets needed for large data transfers and thus improving performance.

Modify the appropriate broadcast domain in NetApp ONTAP software to use an MTU of 9216: This setting must match the network configuration to ensure end-to-end support for jumbo frames, which is essential for optimizing performance in NVMe over TCP environments.

For additional information, refer to:

NetApp Documentation on NVMe over TCP

Cisco Documentation on Jumbo Frames

Implementing VLANs for NVMe/TCP configurations provides several benefits, two of which are increased resiliency and increased security:

Increased Resiliency: VLANs help segment the network traffic, reducing the risk of a single point of failure. By isolating NVMe/TCP traffic into specific VLANs, network issues can be contained within a VLAN, preventing them from affecting other parts of the network. This isolation ensures that disruptions are minimized and network resiliency is enhanced.

Increased Security: VLANs provide an added layer of security by segregating traffic. This segregation ensures that NVMe/TCP traffic is isolated from other types of traffic, reducing the risk of unauthorized access or data breaches. VLANs help in enforcing stricter access controls and monitoring, thereby increasing the overall security of the network.

For more information on the benefits of VLANs in NVMe/TCP configurations, you can refer to NetApp ' s technical resources:

Implementing and Configuring Modern SANs with NVMe-oF ​ ( NetApp )​.

SAN Configuration Best Practices​ ( NetApp Community )​.

IP SAN redundancy requires independent storage paths between each host and both nodes of the HA pair. NetApp SAN networking guidance recommends creating multiple iSCSI paths from each node and specifically allows two data LIFs per node to provide connectivity through separate Ethernet networks. These networks should use separate IP subnets or ranges so that loss of one network, switch, port, or path does not eliminate host access to the storage. Host-side MPIO then uses the remaining paths during a failure. A node-management LIF provides administrative connectivity and is not a redundant data path. Selective LUN Mapping controls which cluster nodes report a LUN, while separate SVMs are not required merely to create network redundancy. Therefore, at least two data LIFs per node across separate IP networks provide the requested redundant Ethernet SAN configuration.

In a traditional AFF or FAS SAN configuration using ALUA, paths through the controller that owns the LUN are reported as Active/Optimized. Paths entering through another controller can be Active/Non-Optimized. When I/O arrives through an active, non-optimized path, ONTAP must forward that I/O internally to the node servicing the LUN. This indirect data path uses the ONTAP cluster interconnect, represented in the choices as the cluster network, and therefore introduces additional latency compared with a direct optimized path. The external FC fabric transports traffic only as far as the target LIF; the HA interconnect is associated primarily with HA-pair storage failover functions, and the peering network is used for intercluster communications and replication. Relevant SAN ONTAP topics include ALUA, optimized versus non-optimized paths, cluster interconnect forwarding, SLM, and FCP multipathing.

The correct available capacity is 20 GB. Both 20 GB LUNs are space-reserved, so ONTAP reserves their full provisioned capacity rather than only the 10 GB currently consumed in each LUN. The two LUN reservations therefore account for 40 GB. Because the volume uses a 100% fractional reserve and a Snapshot copy exists, ONTAP also reserves sufficient overwrite space for 100% turnover of the reserved objects. That represents another 40 GB. Consequently, 80 GB of the 100 GB volume is committed: 40 GB for the two space-reserved LUNs and 40 GB to guarantee their overwrites. This leaves 20 GB available. NetApp describes fractional reserve 100 as reserving 100% of the space necessary for overwrites of reserved objects. Relevant topics include LUN space reservation, fractional reserve, thick provisioning, and Snapshot overwrite guarantees.

The required controller-side FC adapter capability for the NVMe/FC configuration represented by this question is 32 Gbps. NetApp’s NVMe/FC implementation for the relevant ONTAP platforms uses supported 32 Gb FC target adapters, and NetApp platform specifications identify NVMe/FC connectivity through 32 Gbps FC ports. NetApp’s NVMe/FC documentation also identifies supported Linux host configurations using 32 Gb Fibre Channel adapters, with exact host adapter, firmware, driver, switch, and ONTAP combinations validated through the Interoperability Matrix Tool. Traditional 4, 8, or 16 Gbps FC adapters may support conventional FCP on applicable platforms, but they do not meet the NVMe/FC controller-adapter requirement tested here. Relevant SAN ONTAP topics include NVMe/FC, 32 Gb FC target adapters, HBAs, Fibre Channel fabrics, and IMT validation.

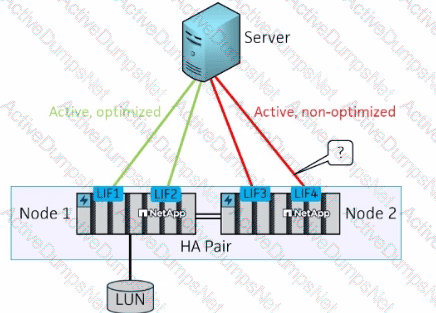

In the scenario where a storage failover is performed on Node 1 in an HA pair, the path marked in the exhibit would become Active/Nonoptimized. After the failover, the LIFs from Node 1 that were active and optimized will switch to Node 2. Paths that were previously optimized will become nonoptimized because they are now served through the partner node.

For more details, see:

NetApp Documentation on ALUA

The feature that enables simultaneous snapshots of multiple LUNs in different volumes is Consistency Groups. This feature ensures that snapshots taken across different LUNs and volumes are consistent with each other, making it possible to recover a consistent state across multiple storage objects.

For further information, refer to:

NetApp Documentation on Consistency Groups

To ensure that Snapshot copies of database files across multiple FCP LUNs are taken at the same point in time, the following configurations can be used:

Create a consistency group that uses FlexVol volumes: This setup ensures that snapshots of all volumes in the consistency group are taken simultaneously.

Create each LUN within the same FlexGroup volume: This configuration allows for a unified snapshot across multiple LUNs within the FlexGroup, ensuring data consistency.

For more details, see:

NetApp Documentation on Consistency Groups

NetApp FlexGroup Overview

ONTAP igroups can be created with an fcp, iscsi, or mixed protocol type. An iSCSI igroup is therefore valid for presenting the existing LUN specifically to the new iSCSI host. A mixed igroup is also valid because it permits both Fibre Channel and iSCSI initiators and can be used when access to a LUN involves both protocol types. ONTAP permits an igroup to be mapped to multiple LUNs and a LUN to be presented through appropriate SAN igroup mappings. Creating another FC-only igroup would not accommodate the new iSCSI initiator. A subsystem belongs to the NVMe architecture and is used to map NVMe namespaces to NVMe hosts; it is not used for FCP or iSCSI LUN presentation. Thus, both iSCSI and mixed igroups are valid configurations for the requirement.

To concurrently serve a namespace over NVMe/FC, a LUN over FCP, a LUN over iSCSI, and an NFS export, only one data SVM (Storage Virtual Machine) is required. NetApp ONTAP allows a single SVM to support multiple SAN and NAS protocols simultaneously, enabling efficient and consolidated management of storage resources.

For more information, refer to:

NetApp Documentation on SVM Configuration

NetApp SVM Best Practices

ALUA (Asymmetric Logical Unit Access) is a protocol used in SAN environments to manage paths between a host and its storage. It enables the host to recognize and manage paths to the LUNs more efficiently by designating paths as either " Active/Optimized " or " Active/Nonoptimized " . A significant event, such as shutting down all FC LIFs on the HA partner node, will trigger ALUA to change the path states. This action effectively causes the storage paths to transition from the HA partner node to the local node, switching the path states from Active/Nonoptimized to Active/Optimized on the paths that remain active.

For more information, you can refer to:

NetApp Community Discussion on ALUA

NetApp Documentation on ALUA

NetApp Hardware Universe is the authoritative resource for platform-specific hardware compatibility, supported adapter configurations, and slot priorities. When adding an FC adapter or another I/O module to an ONTAP controller, the administrator must verify that the adapter is supported by the specific controller model and determine the correct or preferred PCIe slot. NetApp installation documentation explicitly directs administrators to Hardware Universe when multiple slots are available so that the documented slot priorities are followed. The Interoperability Matrix Tool validates interoperability among ONTAP releases, hosts, HBAs, drivers, firmware, switches, and related components, but it is not the primary source for controller slot placement. Relevant SAN ONTAP topics include Hardware Universe, controller I/O architecture, FC adapters, PCIe slot priorities, hardware compatibility, and installation planning.

ONTAP defines the supported iSCSI authentication types as CHAP, deny, and none. Therefore, among the options provided, CHAP and deny are the two valid choices. CHAP authenticates an initiator by using a username and password. ONTAP supports inbound CHAP, where the storage system authenticates the initiator, and optional outbound CHAP for mutual authentication. The deny authentication type explicitly prevents the specified initiator from accessing the SVM. Certificates and SAML are not available values for ONTAP iSCSI initiator authentication. The vserver iscsi security create command exposes the authentication type as {CHAP|deny|none}. Consequently, the V9.02 supplied answer A, B is incorrect and has been corrected to A, C. Relevant topics include iSCSI security, CHAP, mutual CHAP, initiator credentials, and authentication policies.

A controlled storage takeover and giveback is the appropriate method for validating HA behavior without deliberately creating uncontrolled infrastructure failures. NetApp recommends testing an HA pair after configuration to verify uninterrupted access to storage during takeover and giveback. During takeover, the surviving HA partner assumes responsibility for the affected node ' s storage and continues serving its data. Host multipathing redirects SAN I/O through surviving paths. Giveback subsequently returns storage ownership and processing to the home node. Pulling cluster-interconnect cables, removing rack power, or disabling backend connectivity introduces unnecessary failure conditions and can affect more infrastructure than required for a controlled validation. Therefore, performing takeover and giveback on the nodes verifies both storage-controller failover and the host ' s redundant SAN path configuration.

When adding 40 more hosts to a two-node NetApp ONTAP cluster that is already hosting 64 SAN hosts, the following actions are necessary to avoid potential performance problems:

Configure additional FC target ports: Increasing the number of Fibre Channel (FC) target ports on the storage nodes will help distribute the I/O load more evenly, reducing the risk of bottlenecks.

Configure additional SAN LIFs: Adding more SAN Logical Interfaces (LIFs) will ensure that the increased number of hosts can connect efficiently, improving load balancing and path management.

These actions help maintain optimal performance and prevent congestion in the SAN environment.

For more detailed guidance, refer to:

NetApp SAN Host Configuration Overview

NetApp Best Practices for SAN​ ( NetApp )​​ ( NetApp )

To verify if jumbo frames have been configured correctly for an iSCSI workload, the command ping -lif < LIF > -vserver < SVM > -destination < IP > -disallow-fragmentation true -packet-size 9000 should be used. This command tests the network path with the jumbo frame size (9000 bytes) and ensures that the packets are not fragmented, confirming that jumbo frames are supported end-to-end.

For more details, you can check:

NetApp Documentation on iSCSI Configuration

NetApp Community Discussions on Jumbo Frames

For a small remote site with two ESXi servers requiring SAN storage and no switches, the recommended protocol is iSCSI. iSCSI allows for direct connectivity between the servers and the NetApp ONTAP storage system using standard Ethernet infrastructure, which is suitable for environments without Fibre Channel switches.

For more information, see:

NetApp iSCSI Configuration Guide

When moving a LUN between different HA pairs in the same SVM to prevent loss of connectivity, the reporting nodes must be modified. The reporting nodes configuration ensures that the initiator paths are properly updated to reflect the new physical location of the LUN. This prevents disruptions in connectivity by maintaining the correct pathing information for the host systems accessing the LUN.

For more details, refer to:

NetApp Documentation on LUN Management

The vserver fcp wwpn-alias set command is used to set or modify the World Wide Port Name (WWPN) aliases for Fibre Channel (FC) ports in a NetApp ONTAP environment. This command allows you to apply a company-wide naming policy to FC ports, ensuring consistent and easily identifiable naming conventions across your storage infrastructure.

For further details, you can refer to:

NetApp Documentation on FC Management

NetApp Community Discussion on WWPN Aliases

DH-HMAC-CHAP is the ONTAP mechanism for secure in-band NVMe authentication. NetApp documents that ONTAP supports both unidirectional and bidirectional authentication for NVMe/TCP and NVMe/FC by using DH-HMAC-CHAP. For bidirectional mode, a host secret and a controller secret are configured so that the controller authenticates the NVMe host and the host also authenticates the controller. The authentication configuration is associated with the NVMe subsystem host by its NQN. SAML, Kerberos, and an Active Directory domain tunnel are not NVMe transport authentication mechanisms and therefore do not satisfy this requirement. In current ONTAP releases, DH-HMAC-CHAP can be configured through System Manager or the CLI, depending on release. Relevant SAN ONTAP topics are NVMe subsystem host configuration, secure in-band authentication, host/controller secrets, and NVMe/TCP security.

ONTAP supports iSCSI LIF migration between nodes specifically on All-Flash SAN Array (ASA) platforms running ONTAP 9.11.1 or later. The migration is restricted to ports on the LIF’s home node or its HA partner, and the applicable CLI operation is network interface migrate. Standard AFF and FAS configurations do not provide the same cross-node iSCSI LIF migration capability described in this scenario. For those systems, an iSCSI LIF normally must be created on the required destination node rather than migrated between nodes. The ucadmin modify command changes unified adapter personality and is unrelated to LIF migration. Therefore, option D correctly combines the supported ASA platform with the appropriate ONTAP command. Relevant topics include ASA SAN networking, iSCSI LIF mobility, HA partners, LIF migration, and nondisruptive SAN operations.

Adding the selected hosts to the NVMe subsystem with high priority is the correct method because ONTAP host priority controls the NVMe I/O queue resources assigned to a host. NetApp’s NVMe subsystem model defines the host priority setting as allocating appropriate I/O queue counts and queue depths for the host to submit I/O commands. Therefore, demanding database hosts that require larger queue counts and deeper queues should receive the higher host-priority setting rather than changing a volume QoS policy. QoS governs workload throughput or performance limits and does not directly redefine the NVMe host submission-queue count and depth. Likewise, queue depth is not configured on an individual namespace in the manner described by option D. Relevant SAN ONTAP topics are NVMe subsystems, host priority, I/O queue count, I/O queue depth, and host performance configuration.

For a redundant two-node FC SAN configuration, NetApp requires two FC LIFs per node when redundancy must exist across both the node and fabric layers. Each node should have connectivity to both independent fabrics, normally through one FC LIF per fabric. With two controller nodes, this results in four SAN LIFs in total. Although ONTAP can technically support a minimum of one FC LIF per node for an SVM, that would provide only two LIFs and would not satisfy the stated requirement for redundant node-layer and fabric-layer connectivity. NetApp ' s FC SVM configuration guidance specifically states that two LIFs per node and two fabrics provide this redundancy. Relevant SAN ONTAP topics include FC SVM configuration, SAN LIF design, dual-fabric architecture, multipathing, node redundancy, and high availability.

For an FC-based online Foreign LUN Import, ONTAP requires connectivity on both sides of the migration path. On the backend, ONTAP acts as a SCSI initiator when reading data from the foreign storage array; NetApp therefore specifies that FC FLI requires at least one FC port per controller capable of operating in initiator mode, with redundant ports preferred. On the frontend, the destination ONTAP LUN must be presented to the host so that application I/O can resume while the import continues. For an FCP host, this requires the data SVM to have the FCP service and appropriate FCP LIFs. iSCSI LIFs and iSCSI target definitions are irrelevant to an FC-based FLI workflow. Relevant SAN ONTAP topics include FLI prerequisites, FC initiator ports, FCP LIFs, online FLI, zoning, and host cutover.

To configure Foreign LUN Import (FLI) on a NetApp HA pair to migrate over FCP LUNs from a third-party array while serving other LUNs, the following actions are required:

Create zoning from the third-party array to the cluster: Proper zoning ensures that the NetApp cluster can communicate with the third-party storage array.

Convert a single FC port on each controller to an FC initiator port: This is necessary for the NetApp system to initiate the connection and access the LUNs on the third-party array.

For more information, refer to:

NetApp Documentation on Foreign LUN Import

When the number of paths exceeds the recommended configuration for SAN deployment, it can cause performance issues. To address this problem, you can:

Use Selective LUN Mapping (SLM): SLM allows you to control which LIFs (Logical Interfaces) are used to access specific LUNs, thus reducing the number of paths and potentially improving performance by aligning with best practice configurations.

Reconfigure the fabric switch zoning: Adjusting the zoning on the fabric switches can help manage and optimize the number of paths, ensuring that there are not too many paths that could lead to inefficient I/O operations and performance degradation.

For more details, refer to:

NetApp SAN Host Configuration

NetApp Best Practices for SAN

To protect an Oracle RAC Automatic Storage Management (ASM) instance and ensure automated restores, the recommended tool is the NetApp SnapCenter plugin. SnapCenter provides comprehensive backup, restore, and clone capabilities for Oracle databases, including those using ASM. It integrates tightly with Oracle RAC environments and automates the entire data protection process, ensuring that backups are consistent and restores are efficient and reliable.

For more details, refer to:

NetApp Documentation on SnapCenter for Oracle​ ( NetApp )​.

NetApp TR-4964: Oracle Database Backup, Restore, and Clone​ ( NetApp )​.

For a two-node cluster serving iSCSI LUNs, it is recommended to create two iSCSI LIFs per node. This configuration provides redundancy and load balancing, ensuring that each node can handle failover scenarios effectively and maintain high availability for the iSCSI connections.

For more details, see:

NetApp Documentation on iSCSI LIF Configuration
