Netapp NS0-194 NetApp Certified Support Engineer (NCSE) Exam Practice Test

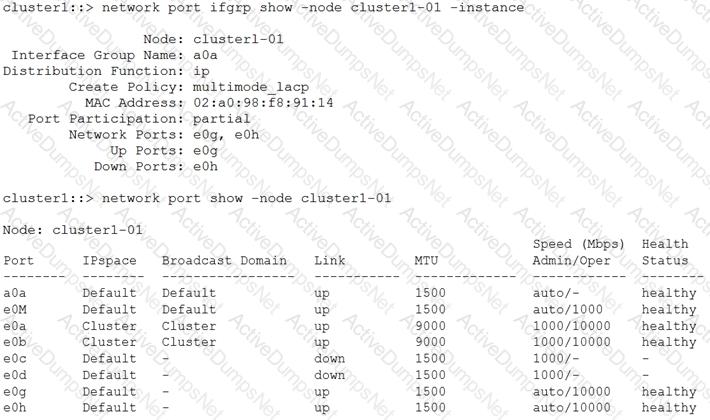

One physical interface is mis-cabled. The interface group output shows that the ifgrp expects specific member ports and that one member is not participating as expected after the network card replacement. The physical port listing shows link state information, but the ifgrp/LACP state indicates the port is not correctly associated with the intended switch-side aggregation. If a port were simply uncabled, the physical link would be down. If the interface were broken, the issue would follow the port regardless of switch-side configuration and would not primarily appear as a membership mismatch. The ifgrp is not configured in single mode; it uses multimode LACP, so switch cabling and LACP membership must match exactly. In support practice, a replacement NIC can lead to cables being swapped into the wrong switch ports or LAG groups. The engineer should verify cabling against the switch LACP configuration and NetApp port membership. References/topics: ONTAP ifgrp troubleshooting, LACP port membership, NIC replacement validation, physical cabling checks, and network port show interpretation.

The volume recovery queue is the correct recovery mechanism when a volume was accidentally deleted recently and no backups exist. ONTAP protects against accidental deletion by retaining deleted volumes in a recovery queue for a configured retention period, allowing administrators to recover them before they are permanently purged. A volume Snapshot cannot be used if the volume itself has been deleted and no accessible backup copy exists. An aggregate Snapshot revert is not a valid or normal ONTAP recovery method for restoring an individual deleted volume and would be far too disruptive. ONTAP System Manager may provide a graphical way to recover deleted volumes in later versions, but the feature being tested is the volume recovery queue itself. The support engineer should immediately check retention time, locate the deleted volume in the recovery queue, recover it, and then restore required junction or mapping details. References/topics: ONTAP volume recovery queue, accidental volume deletion protection, FlexVol recovery, retention period, and data recovery workflow.

A DS4246 shelf has 24 drive bays. The model naming can be misleading if interpreted literally, but in NetApp shelf terminology DS4246 identifies a 4U disk shelf that supports twenty-four 3.5-inch drives and uses 6 Gb SAS connectivity. Twelve bays would describe smaller shelf families, and forty-two or forty-six bays do not match the DS4246 platform. This is a hardware-identification question, so the support engineer should rely on shelf model characteristics rather than infer the capacity from a partial number in the model name. The DS4246 is commonly found in FAS environments that use external SAS shelves for high-capacity HDD deployments. Knowing bay count is important for capacity planning, shelf cabling validation, disk replacement planning, and interpreting AutoSupport shelf/disk inventories. The shelf model also affects IOM selection, stack planning, slot numbering, and replacement logistics during field service. References/topics: NetApp DS4246 disk shelf specifications, SAS shelf hardware, 4U 24-bay shelf design, and drive-shelf identification.

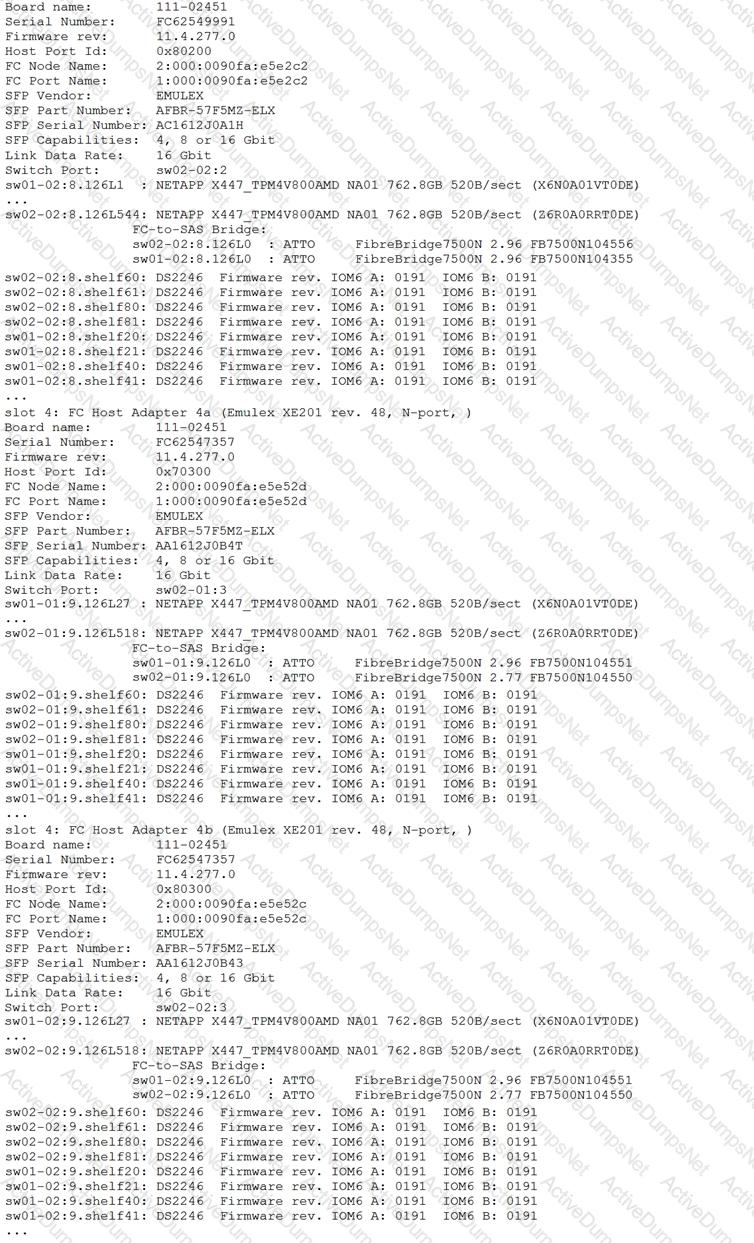

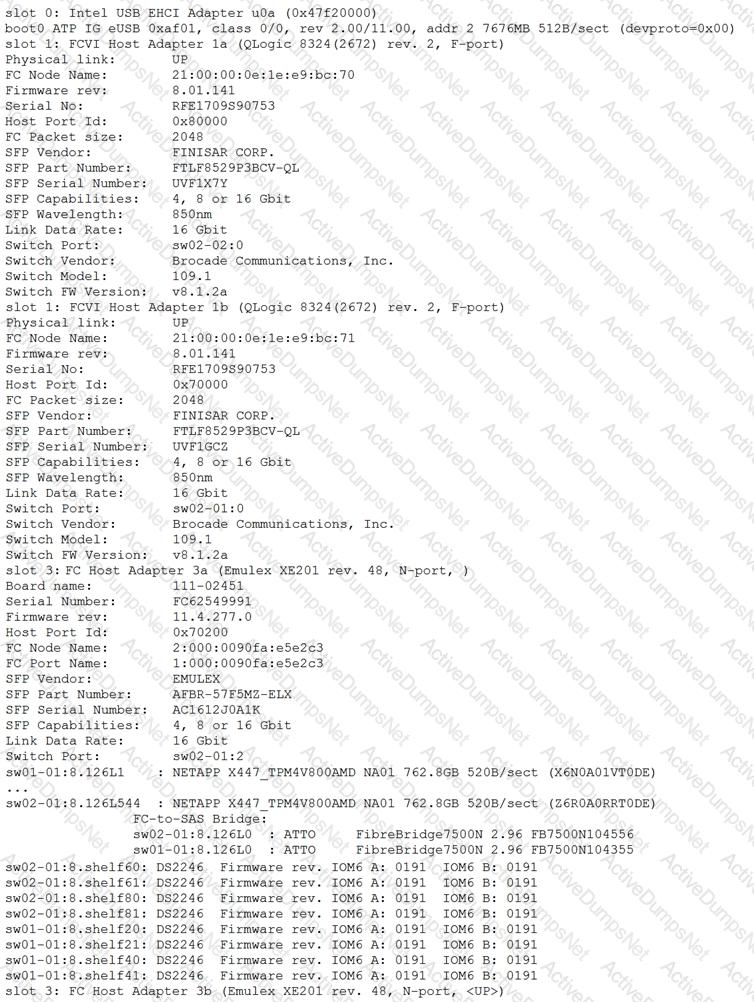

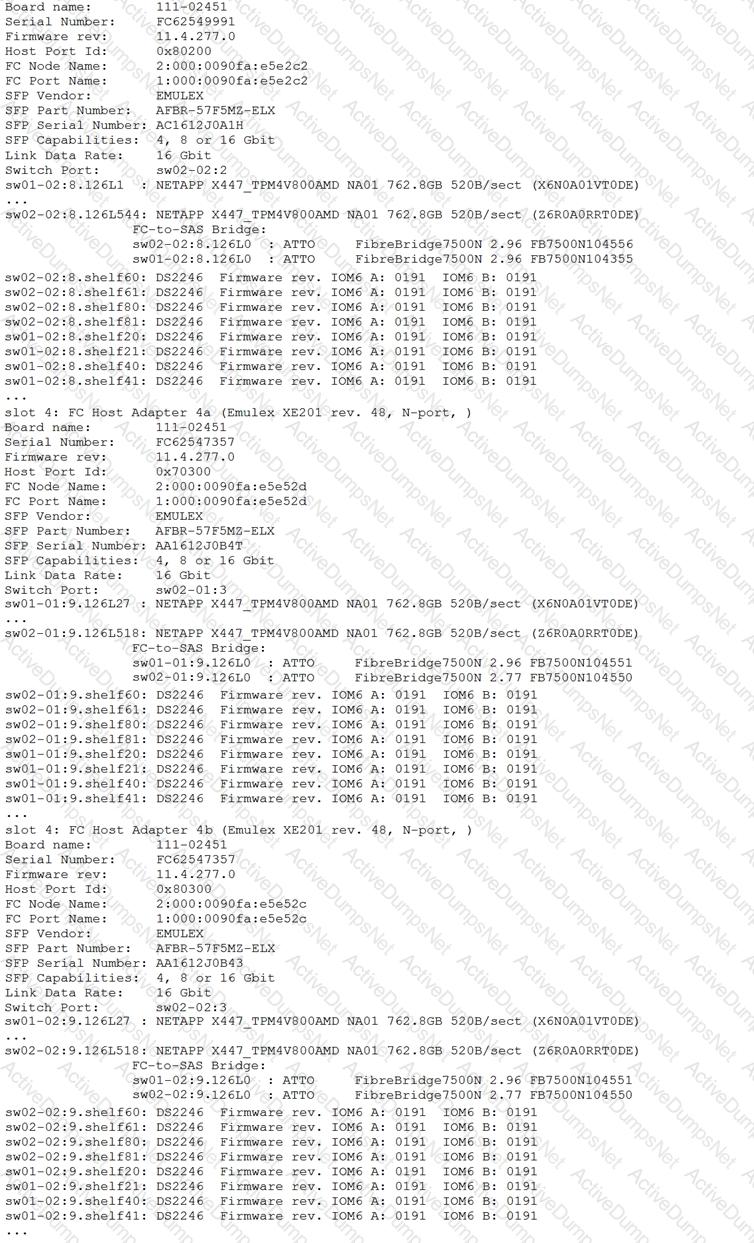

The exhibit shows a fabric-attached MetroCluster design rather than an IP or stretch design. The output includes FC-VI host adapters, Brocade switch information, FibreBridge devices, and disk shelves connected through FC-to-SAS bridges. Those components are characteristic of a fabric MetroCluster where Fibre Channel switches provide the intersite storage fabric and bridges connect SAS shelves into the FC environment. A two-node stretch MetroCluster would not show the same four-node fabric topology, and MetroCluster IP would use Ethernet-based back-end connectivity rather than FC switches and FC-to-SAS bridges. A four-node stretch MetroCluster would also not use the fabric-switch/bridge arrangement shown in the exhibit. The support engineer must identify topology from the hardware path indicators, not from the node count alone. The presence of FC switches, FC-VI, and ATTO FibreBridge devices makes the topology a four-node fabric-attached MetroCluster. References/topics: MetroCluster fabric architecture, FC-VI adapters, FC-to-SAS bridges, Brocade switch paths, and MetroCluster hardware topology identification.

On AFF systems, compaction, deduplication, and compression are enabled by default as core storage efficiency features. AFF platforms are designed around flash media and ONTAP inline efficiencies, so ONTAP applies these efficiencies automatically to reduce physical space consumption while preserving performance. Reallocation is not a default data-reduction technology in this context; it is associated with layout optimization and is not part of the standard AFF default efficiency set. Encryption may be enabled in some environments depending on configuration, NVE, NAE, or self-encrypting drives, but it is a security feature rather than a default space efficiency feature. The correct choices are the technologies that reduce physical storage footprint inside ONTAP volumes and aggregates on AFF. A support engineer should distinguish default AFF efficiency behavior from optional security and layout functions. References/topics: AFF storage efficiency defaults, inline deduplication, inline compression, data compaction, and ONTAP capacity efficiency.

The ISL between siteA and siteB is the component causing the problem. The EMS messages show both nodes reporting HA interconnect connection failures and then bridges being removed from opposite sites at essentially the same timestamp. If a single ATTO bridge were the root cause, the failure would localize to that bridge or path. If one SAN switch at siteA_2 or siteB_2 failed, the messages would more narrowly implicate paths through that switch. Instead, both sides simultaneously lose visibility across the fabric to remote bridges, which indicates an intersite link failure between the sites. In a fabric MetroCluster, ISLs carry the cross-site connectivity required for mirrored storage and FC fabric communication. A support engineer should interpret symmetry: simultaneous bridge removals from both perspectives generally point to the shared intersite path, not independent bridge failures at both locations. References/topics: MetroCluster fabric ISLs, FC-to-SAS bridge visibility, DISK REDUNDANCY FAILED messages, cross-site pathing, and MetroCluster fabric troubleshooting.

ONTAP NVRAM stores uncommitted writes and is protected by battery or nonvolatile backup mechanisms, depending on platform generation. It is not a read cache; read caching is handled by buffer cache and, on some platforms, flash-based caching technologies. It is also not correctly described as a user-visible write cache in the simple sense, because WAFL uses NVRAM/NVLog as a protected log for writes that have been acknowledged to clients but not yet committed to disk through a consistency point. This distinction is important in support scenarios: NVRAM protects write consistency, enables fast acknowledgement, and supports recovery after interruption. The battery-backed/nonvolatile characteristic is critical because acknowledged writes must survive power loss or controller failure. A support engineer should connect NVRAM symptoms to write latency, HA mirroring, consistency point behavior, and recovery guarantees. References/topics: ONTAP NVRAM/NVLog, consistency points, write protection, HA mirroring, and nonvolatile write logging.

The QoS latency output indicates the problem is associated with the HA interconnect/NVRAM mirroring path rather than ordinary disk latency. In ONTAP HA pairs, writes are protected by logging them locally and mirroring the write log to the partner. If the HA interconnect path is impaired, write acknowledgement latency can rise even when front-end network latency and disk latency do not dominate the workload. Increasing SMB read sizes would not address the observed write-path protection delay. Replacing NVRAM is too aggressive without evidence of a failed NVRAM device, and a disk bottleneck would show disk latency as the dominant center. The support engineer should interpret the QoS columns as latency centers and then correlate them with HA architecture. When NVRAM-related latency is elevated in an HA pair, HA interconnect health, cabling, ports, and partner connectivity must be reviewed before assuming a media or protocol issue. References/topics: ONTAP QoS latency centers, HA interconnect, NVRAM mirroring, SMB workload troubleshooting, and write-path latency analysis.

FabricPool is the ONTAP technology used to provide a cloud-based capacity tier from an AFF system. FabricPool combines a high-performance local tier, such as an AFF aggregate, with an object-storage cloud tier so that inactive data can be tiered according to policy. Flash Pool is a hybrid aggregate technology that uses SSDs as cache in FAS systems; it does not provide cloud object tiering. NetApp HCI is an infrastructure platform and not an ONTAP aggregate tiering feature. Flash Cache is controller-side caching and does not create a cloud capacity tier. The scenario explicitly says the customer has an AFF platform and wants object storage for cloud capacity. That is the defining use case for FabricPool. A support engineer should map the terms performance tier, capacity tier, cold data, and object storage directly to FabricPool. References/topics: ONTAP FabricPool, AFF aggregates, cloud capacity tier, object storage tiering, and inactive data movement.

Cloud Manager is the supported tool for upgrading the ONTAP version of a Cloud Volumes ONTAP instance. Cloud Volumes ONTAP is managed through the NetApp cloud management plane, so lifecycle operations such as software upgrades are performed from Cloud Manager/BlueXP rather than directly through traditional on-premises tools. Cloud Insights is an observability and monitoring service, not the upgrade mechanism. Active IQ Unified Manager manages and monitors ONTAP environments but is not the supported CVO upgrade tool in this scenario. ONTAP System Manager is used for ONTAP cluster administration, but Cloud Volumes ONTAP version upgrades are controlled through the cloud working environment in Cloud Manager. The support engineer must distinguish on-premises ONTAP administration from CVO lifecycle management. When the question says supported method for upgrading a CVO instance, the answer is Cloud Manager. References/topics: Cloud Volumes ONTAP lifecycle management, Cloud Manager/BlueXP, CVO software upgrade workflow, and NetApp cloud data services.

The special boot menu is used to implement Advanced Drive Partitioning when ADP is not already applied before cluster setup. ADP is a low-level disk partitioning and root/data layout choice that must be established early in the system initialization process. It is not enabled from the SP prompt, and the nodeshell is not the proper place to repartition a new system for ADP layout. The LOADER prompt alone does not perform the ADP initialization workflow; the special boot menu provides the maintenance options used for initialization and disk reconfiguration tasks. The scenario is specifically before cluster setup, which is the correct time to correct the disk layout. A support engineer must avoid building root aggregates on large whole drives when ADP is required, because doing so wastes capacity. References/topics: Advanced Drive Partitioning, root-data partitioning, special boot menu maintenance options, FAS2720 initialization, and pre-cluster-setup disk layout.

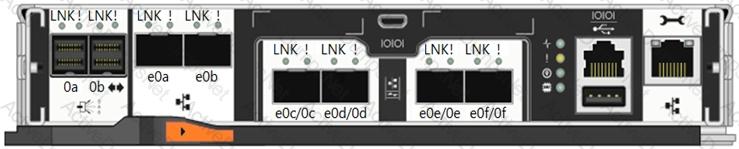

The e0c/0c port is the CNA port in the AFF A200 exhibit. A converged network adapter can operate in Ethernet mode, where it is labeled with an e-prefix, or in Fibre Channel target/initiator mode, where the corresponding identity may appear with a numeric port naming convention. On the AFF A200, the shared port labeling such as e0c/0c indicates a converged adapter identity. The option showing only e0a is a standard Ethernet-style port designation, and 0a is a Fibre Channel-style designation without the combined CNA label shown in the diagram. The visual clue is the dual-purpose label that combines Ethernet and FC naming in one port callout. For NCSE hardware questions, port nomenclature matters because replacement, cabling, protocol personality, and adapter configuration all depend on identifying the port type correctly. References/topics: AFF A200 onboard ports, CNA port labeling, Ethernet/FC personality, platform cabling, and controller port identification.

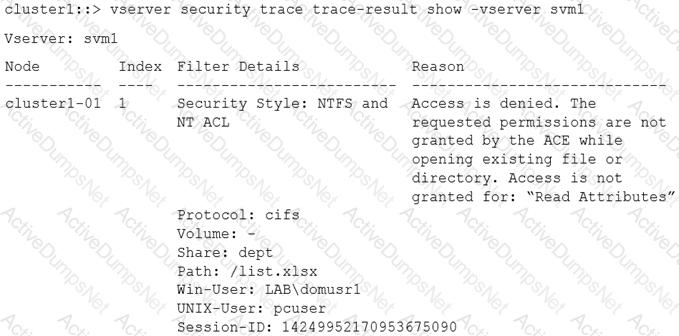

The user must be granted Read Attributes access to the path. The security trace result states that access is denied because the requested permissions are not granted by the ACE while opening the existing file or directory, and it specifically identifies Read Attributes as the missing permission. Adding the user to BUILTIN groups would be a broad and imprecise change that may not match the file's intended NTFS ACL model. Granting Execute access does not solve the reported missing permission unless the access mask also includes the required attribute-read right, and the trace does not identify Execute as the failed permission. ONTAP security trace is designed to point directly to the permission, user mapping, security style, and access decision involved in a failed NAS request. The support engineer should remediate the exact ACL deficiency shown by the trace rather than guess at group membership. References/topics: ONTAP security trace results, NTFS ACE evaluation, Read Attributes permission, CIFS access denial troubleshooting, and NAS ACL remediation.

VLANs are used in ONTAP environments to create logical network segmentation, normally by function, tenant, or protocol. Isolating management traffic from data traffic is a valid design reason because management interfaces should remain on a protected administrative network, separate from NAS or SAN client paths. Isolating iSCSI traffic from NAS traffic is also valid because iSCSI carries block storage traffic and is commonly placed on dedicated networks or VLANs for predictable latency, security, and failure-domain control. VLANs do not isolate UDP from TCP; those are transport protocols and are handled by IP stack behavior, firewalling, or application design rather than VLAN design. FC is not ordinary IP traffic, so isolating FC from other IP traffic is not a correct VLAN use case for ONTAP Ethernet networking. The support decision is to select segmentation examples that match ONTAP IP networking. References/topics: ONTAP VLANs, broadcast domains, management network isolation, iSCSI network separation, and NAS/SAN traffic design.

SnapMirror is the NetApp replication technology that performs block-level data replication between NetApp storage systems, including replication workflows involving Element software and Cloud Volumes ONTAP. SyncMirror is used for synchronous mirroring inside MetroCluster architectures and does not provide Element-to-CVO replication. Cloud Sync is a file/object data movement service and is not the block-based replication engine used for ONTAP data protection relationships. MetroCluster is a high-availability and disaster recovery architecture rather than a general replication tool from Element to Cloud Volumes ONTAP. In NetApp terminology, SnapMirror is the central data protection mechanism for creating replication relationships, maintaining source and destination consistency, and enabling disaster recovery or migration between NetApp platforms. The question emphasizes block-based replication, which directly eliminates Cloud Sync and points to SnapMirror. A support engineer should also confirm that both endpoints, licenses, and network reachability support the selected replication relationship before implementation. References/topics: SnapMirror replication, Cloud Volumes ONTAP data protection, Element software interoperability, and NetApp replication architecture.

Upgrade Advisor in Active IQ is the supported planning tool for creating an ONTAP upgrade action plan after a security bulletin. A security bulletin normally identifies exposure and recommended remediation versions, but a production upgrade plan must also consider the exact cluster configuration, upgrade path, installed features, platform model, HA state, and known risk checks. The Interoperability Matrix Tool is valuable for host, protocol, and component compatibility, but it does not generate a personalized ONTAP upgrade workflow. Reviewing a product page is too generic, and simply downloading a target image plus running a pre-check is not a complete customer action plan. Active IQ Upgrade Advisor uses AutoSupport telemetry to recommend the appropriate target release and produces a step-based plan with warnings and required preparation. For NCSE work, this is the clean support answer: use the tool that turns the customer's actual system inventory into an upgrade workflow. References/topics: Active IQ Upgrade Advisor, AutoSupport-based upgrade planning, ONTAP release remediation, and nondisruptive upgrade readiness.

For an unexplained ONTAP node reboot without a panic string or core file, the useful log sets are SP status and events all. If there is no panic and no core, the event may have originated below the ONTAP panic path, such as power, service processor, environmental, watchdog, or platform-level behavior. SP status information can reveal service processor state, power events, reset reason indicators, and platform management context. The events all output provides ONTAP EMS context before and after the reboot, allowing correlation with hardware, HA, environmental, or software messages. system core is not useful when no core file was generated. sp status -d is a detailed command variant, but the standard collected set in this answer context is SP status along with the complete event log. A support engineer should collect platform and EMS evidence before assuming a software panic. References/topics: ONTAP unexpected reboot triage, service processor status, EMS event collection, no-panic reboot investigation, and hardware/software diagnosis workflow.

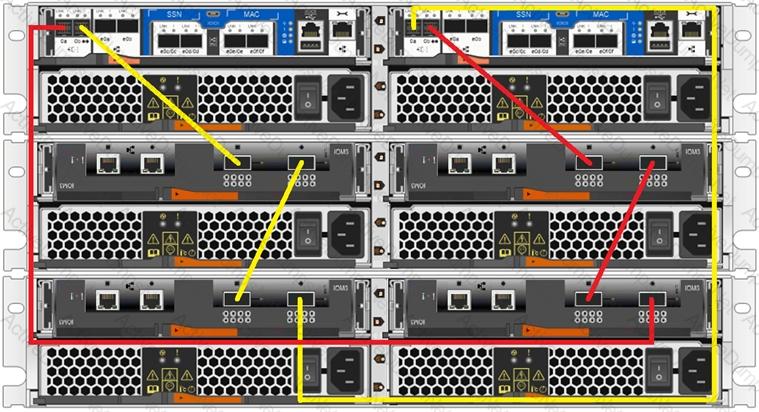

The controller of controller A should be replaced. The error reports an unknown device on adapter 0a from NetappA, with a SCSI check condition indicating a hardware error. In the cabling context of a FAS2750 HA pair, if the system is cabled according to the exhibit and the error remains isolated to controller A's path, the fault follows the controller-side hardware rather than the partner controller or only an external cable. Re-cabling per the guide would be appropriate if the exhibit showed incorrect cabling, and replacing a cable would be appropriate if the fault evidence isolated to the cable. Replacing controller B does not align with the reporting node and adapter. A support engineer should first map the error to node, adapter, shelf path, and cabling; then isolate whether the failing element is the controller path, cable, or external shelf component. Here, the reported hardware error points to controller A. References/topics: FAS2750 SAS path troubleshooting, SCSI check condition errors, controller path isolation, HA cabling validation, and hardware replacement workflow.
