From the exhibits and text:

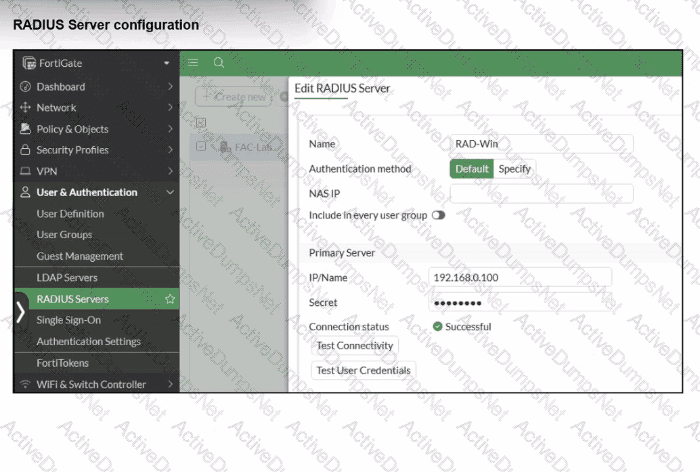

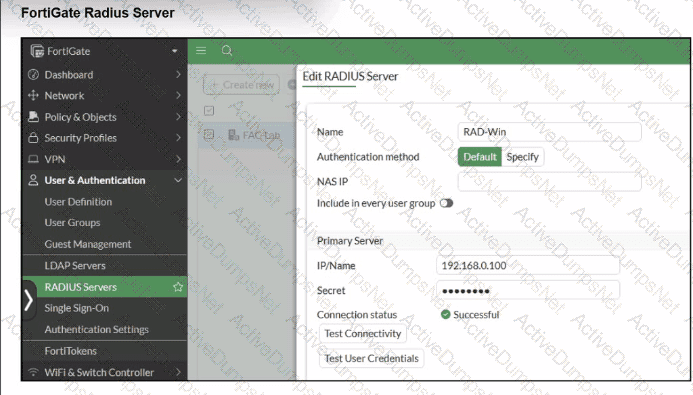

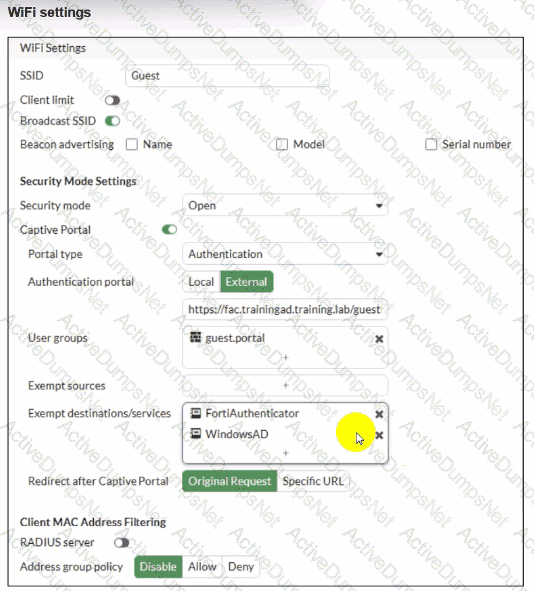

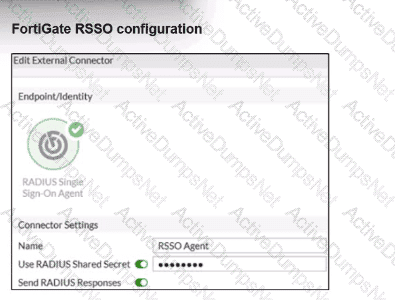

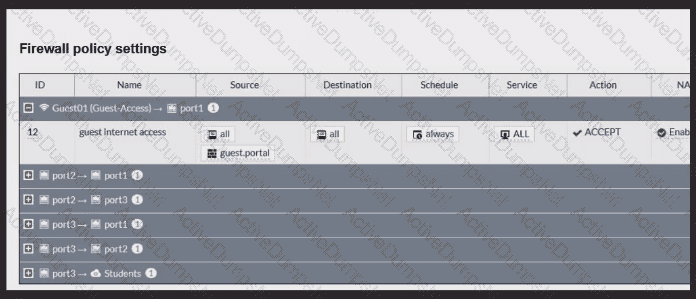

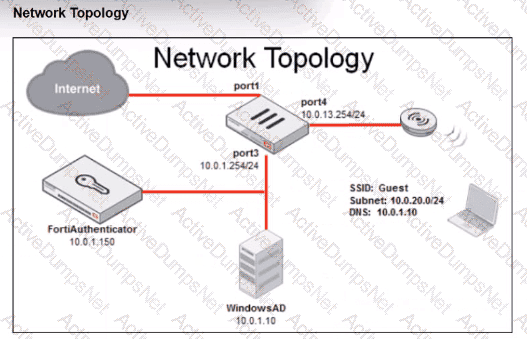

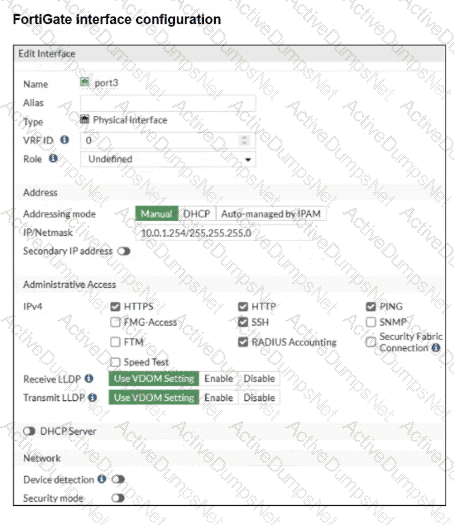

FortiGate →RADIUS→ FortiAuthenticator

FortiAuthenticator →LDAP→ Windows AD

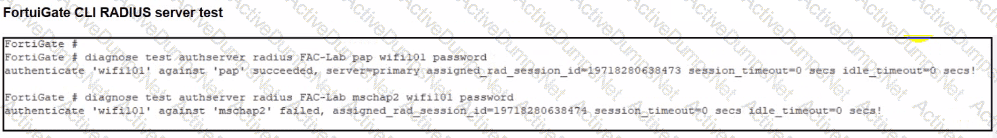

diagnose test authserver radius ... papsucceeds

diagnose test authserver radius ... mschap2fails

This behavior matches a classic limitation documented in FortiOS:

When usingLDAPas the back-end, the RADIUS server must usePAP. CHAP/MS-CHAPv2 arenot supportedwith plain LDAP because the server cannot validate the challenge–response without access to password hashes.

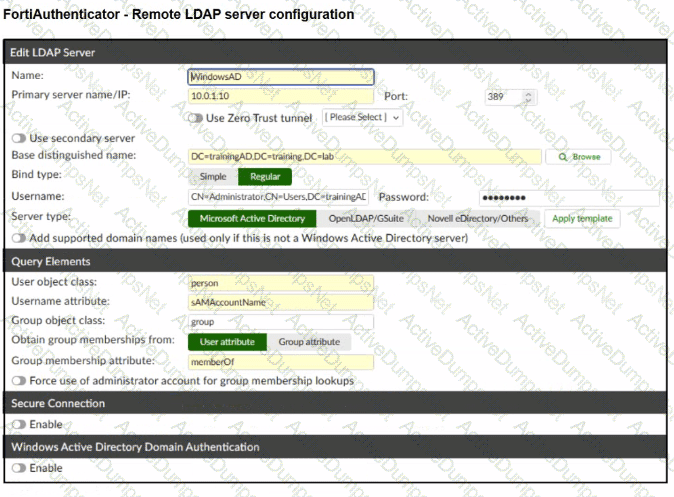

In the Remote LDAP server config on FortiAuthenticator, the option“Windows Active Directory Domain Authentication” is disabled.When this feature isenabled, FortiAuthenticator can talk to AD usingKerberos/NTLMinstead of a simple LDAP bind, whichdoes support MS-CHAPv2for incoming RADIUS authentications.

So to allow MS-CHAPv2 all the way from FortiGate to AD, you must:

Keep FortiGate using RADIUS with MS-CHAPv2 → FortiAuthenticator

EnableWindows Active Directory Domain Authenticationso FortiAuthenticator can properly validate MS-CHAPv2 against AD.

Why the other options are wrong:

A. Change to CHAP– CHAP still cannot be validated over LDAP; docs say LDAP back-ends must usePAP.

C. Manually add users to local DB– That would allow local-DB auth but does not fix MS-CHAPv2 against AD.

D. Use RADIUS attributes on FortiGate– Attributes do not influence the EAP inner method; they don’t fix MS-CHAPv2 failures.

Therefore the configuration change that can realistically fix the MS-CHAPv2 problem isenabling Windows Active Directory Domain Authentication on FortiAuthenticator (B).

Context: You’re troubleshootingSyslog-based SSOonFortiAuthenticator:

Devices (typically firewalls, WLAN controllers, VPN gateways) sendsyslog messagescontaining usernames, IPs, login/logout events.

FortiAuthenticator parses those logs usingSyslog SSO rulesand injects logon sessions intoFSSOfor FortiGate.

When users are not mapping correctly, you need to see:

Did the syslog message arrive?

Which matching rule (if any) caught it?

What username and IP were extracted?

Why was a message ignored or rejected?

FortiAuthenticator has a dedicated debug area for this:

Debug logs → Single Sign-On → Syslog SSO

This view shows:

Raw syslog lines received

Thematching ruleapplied (or “no match”)

Parsed fields (username, IP, group)

Any parsing errors

This is exactly the tool designed totroubleshoot and diagnose Syslog SSO issues.

Why the other options are not the best for this issue

A. Debug logs > Remote Servers > Syslog Viewer

Lets you see syslog traffic in general, but doesnotshow how SSO rules are applied or why they fail. Good for connectivity checks, not SSO logic.

B. Parsing Test Tool

Useful totestpatterns and rules manually by pasting sample log lines, but it doesn’t show live traffic or running SSO sessions.

C. Debug logs > SSO Sessions page

Shows existing SSO sessions (who is logged in), but notwhya particular syslog message did not create a session.

Let’s verify each protocol:

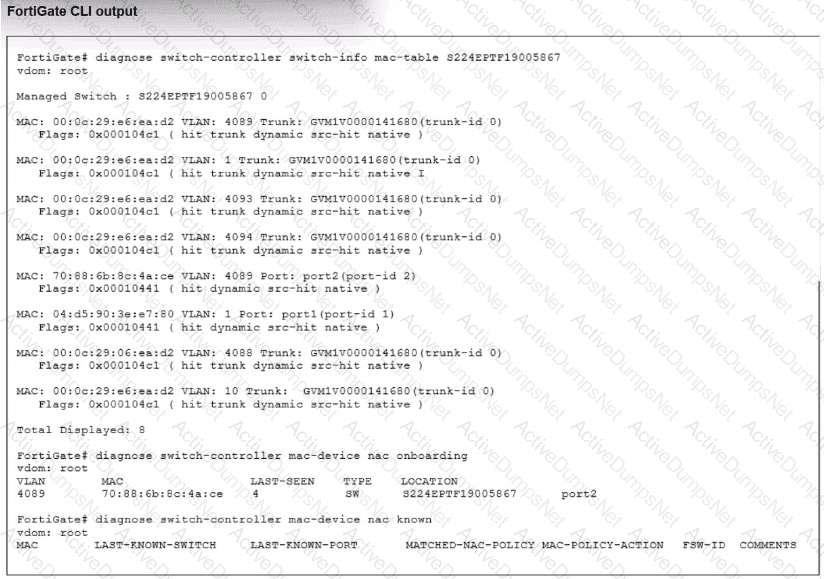

C. FortiGate uses the FortiLink protocol to establish communication with FortiSwitch.✔

FortiLink is themanagement and control protocol, encapsulated over:

LLDPfor discovery

CAPWAP (UDP/5246–5247)for control channel

DHB (Device Handshake Bus)inside CAPWAP frames

Thus,FortiLink is required.

D. CAPWAP is used to establish the control channel between FortiSwitch and FortiGate.✔

Although CAPWAP is commonly associated with FortiAP, FortiSwitchalso uses CAPWAPinternally when managed by FortiGate.

This is documented in:

FortiSwitch Administration Guide

LAN Edge deployment guide

SoD is correct.

B. UHTTPS is used by FortiGate to securely manage and configure FortiSwitch devices.✔

FortiLink session actually uses:

Encrypted CAPWAP (over DTLS)

UHTTPS (port 4433)for secure configuration exchanges

This protocol is mandatory for:

Switch configuration synchronization

Firmware upgrade

NAC data exchange

VLAN provisioning

ThereforeUHTTPS is indeed one of the key protocols.

Why the incorrect options are wrong:

A. SNMP can be used by FortiGate to manage FortiSwitch.✖

FortiGate doesnotuse SNMP to manage FortiSwitch.

SNMP is for monitoring by external systems, not for FortiLink control.

E. IGMP is required for management.✖

IGMP is a multicast protocol, irrelevant for FortiGate–FortiSwitch management.

Zero-Touch Provisioning (ZTP) for FortiGate devices is handled throughFortiDeploy, which automatically connects a FortiGate toFortiManagerso the device can download configuration templates and be centrally managed.

For ZTP to work, the newly booted FortiGate must successfully reach FortiManager. One of thecritical requirementsis connectivity over theFGFM (FortiGate–FortiManager) management protocol, which uses:

TCP Port 541

This is clearly stated in multiple Fortinet documents:

FortiGate Cloud Admin Guidelists port541as the management channel used for FortiGate → FortiManager / FortiGate Cloud communications:“Management... Protocol: TCP, Port:541”

FortiOS Administration Guidealso confirms this:“FortiManager provides remote management of FortiGate devices overTCP port 541.”

Since ZTP uses FortiDeploy to push the FortiManager IP to the device and relies on FGFM (port 541) for registration and configuration delivery,any failure on this port breaks the entire ZTP workflow.

Why option D is correct

If the FortiGate cannot reach FortiManager onTCP/541, itcannot register, cannot be authorized, and cannot receive its configuration — leading to a ZTP failure.

This is themost common causein real deployments:

Firewall blocking TCP/541

Upstream NAT device not forwarding 541

ISP restrictions

Incorrect FortiManager IP or routing issue

ZTP device behind a network that does not allow outbound 541

Why the other options are incorrect

A. The FortiGate device requires manual intervention to accept the FortiManager connection.

Incorrect.

ZTP is built specifically to avoid manual intervention. Once the FortiDeploy key is used, the device auto-connects to FortiManager without needing local acceptance.

B. ZTP works only when devices are connected using a console cable.

Incorrect.

ZTP requiresno console cable— that's the whole point. It relies on DHCP, WAN connectivity, and FortiDeploy auto-join.

C. The FortiGate device must be preloaded with a configuration file before ZTP can function.

Incorrect.

Preloading configuration defeats the purpose of ZTP.

ZTP delivers the initial configuration automatically from FortiManager using FortiDeploy.

LAN Edge 7.6 Architect Context

LAN Edge deployments often use FortiManager as the central orchestrator for:

FortiSwitch management via FortiLink

FortiAP wireless provisioning

SD-Branch configuration templates

Security Fabric automation

For all of this, ZTP enables remote sites to deploy FortiGate, FortiSwitch, and FortiAP withno on-site expertise.

If TCP/541 to FortiManager is blocked, the entire LAN Edge deployment pipeline fails, making optionDthe only valid and document-supported answer.

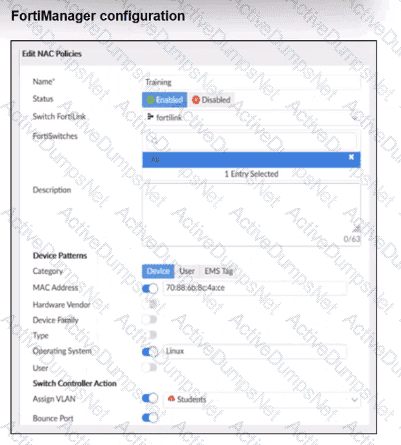

FortiLink device detection relies on FortiGate'sDevice IdentificationandIoT Detectioncapabilities to classify devices connected to FortiSwitch ports.

To enabledevice identificationandvulnerability detectionfor IoT/endpoint devices in LAN Edge deployments, FortiGate must subscribe to the correct FortiGuard services.

1. Required FortiGuard License for Device Identification (IoT Detection)

The FortiOS documentation clearly states:

“IoT detection service… requires anAttack Surface Security Rating service licenseto download the IoT signature package.”

Additionally:

“The following settings are required for IoT device detection:

A validAttack Surface Security Rating service licenseto download the IoT signature package.”

This service provides:

IoT signature package

IoT device classification

Device behavior profiling

This makesAttack Surface Securitymandatory for FortiLink device detection.

2. Required FortiGuard License for Device Vulnerability Detection

FortiOS further clarifies that IoT vulnerabilities require theIoT Detection license, which is included under the same Attack Surface service entitlement:

“To detect IoT vulnerabilities the FortiGate must have a validIoT Definitions license…”

The IoT Definitions license comeswith the Attack Surface Security Rating serviceand is used for:

Scanning connected devices

Identifying IoT/endpoint vulnerabilities

Reporting vulnerability severity

Enabling NAC-based remediation (VLAN steering, port isolation)

In LAN Edge Architect, this license combination is emphasized as a foundational requirement for:

FortiSwitch NAC

FortiLink device profiling

Automated quarantine actions

IoT device classification

Vulnerability-based segmentation

3. Why the Correct Answer Is Option D

OptionDlists:

✔FortiGuard Attack Surface Security

✔FortiGuard IoT Detection

These are exactly the services required per FortiOS 7.4.1:

Attack Surface Security Rating→ provides IoT signature package + vulnerability data

IoT Detection (Definitions)→ enables actual device-type and vulnerability identification

Together they powerFortiLink Device DetectionandIoT Vulnerability Detection, which are essential LAN Edge security functions.

4. Why Other Options Are Incorrect

A. Vulnerability Management + Endpoint Protection

Not used for FortiLink device detection; Endpoint detection relies on IoT service, not FortiClient.

B. Threat Intelligence + IoT Detection

Threat Intelligence (ThreatIntel DB) is used for FAZ IOC, not LAN Edge device detection.

C. Threat Intelligence + Endpoint Protection

Same issue—does not provide IoT device classification or vulnerability scanning.

LAN Edge 7.6 Architect Context Summary

In LAN Edge designs:

FortiGate acts as the controller for FortiSwitch via FortiLink.

Device detection is done at the FortiGate level using NAC/IoT signature capabilities.

Vulnerability detection enables dynamic segmentation decisions (e.g., move device to quarantine VLAN).

To support this, two licenses aremandatory:

Attack Surface Security(includes Security Rating + IoT Detection DB)

IoT Detection(part of the same entitlement, but explicitly required for vulnerability detection)

Thus the verified answer aligns perfectly with LAN Edge operational requirements and Fortinet documentation.

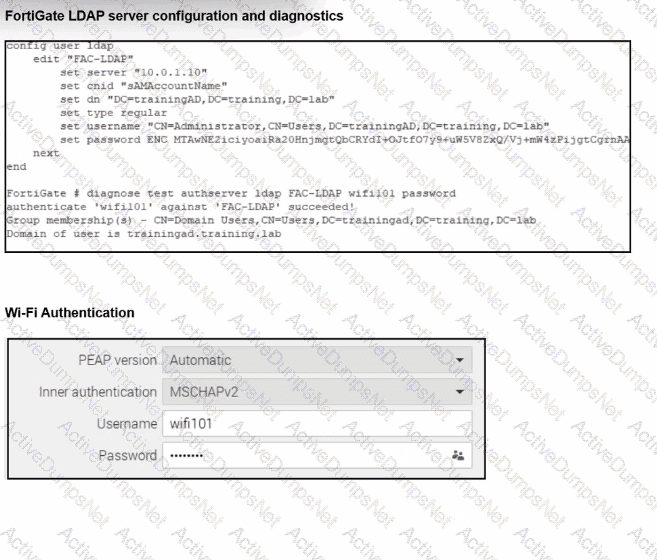

From the exhibit, LDAP on FortiGate is correctly configured and tested:

diagnose test authserver ldap FAC-LDAP wifi101 password

authenticate 'wifi101' against 'FAC-LDAP' succeeded!

Group membership(s) - CN=Domain Users,...

So:

LDAP connectivity works

Bind DN, DN, CNID, and credentials are correct(so optionCis eliminated).

Firewall policies do not affect the802.1X / Wi-Fi authentication stepitself, soAis not the root cause.

Nothing in the scenario indicates that AD is enforcing LDAPS-only; the LDAP test already succeeds using the configured parameters, soBis also excluded.

The Wi-Fi supplicant is configured forPEAP with inner authentication = MSCHAPv2.

MSCHAPv2 is achallenge–response mechanism designed for RADIUS, not for LDAP simple bind. FortiGate’s LDAP implementation uses asimple bind (username/password) over LDAP or LDAPS, and it doesnotimplement MSCHAPv2 against LDAP backends.

In Fortinet’s design, if you needPEAP-MSCHAPv2 with Active Directory, you must use:

ARADIUS server(such as Windows NPS or FortiAuthenticator), and

Have FortiGate use RADIUS,notLDAP, as the authentication backend for 802.1X / Wi-Fi users.

Because FortiGate cannot process MSCHAPv2 exchanges directly against an LDAP server, authentication fails when the inner method is MSCHAPv2, even though LDAP works when tested with a simple bind from the CLI.

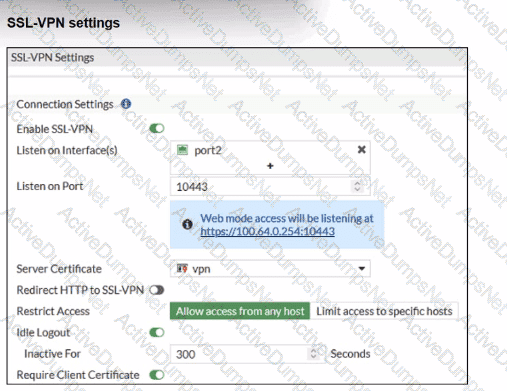

The SSL-VPN configuration hasRequire Client Certificateenabled. When this is enabled, FortiOS performs two checks:

Normal user authentication(username/password or PKI user)

Additional client certificate check– the client certificatemust be signed by a CA that FortiGate trusts

FortiOS documentation for “SSL VPN with certificate authentication” states:

“The client certificate only needs to be signed by a known CA in order to pass authentication.”

“The CA certificate is the certificate that signed both the server certificate and the user certificate… The CA certificate is available to be imported on the FortiGate.”

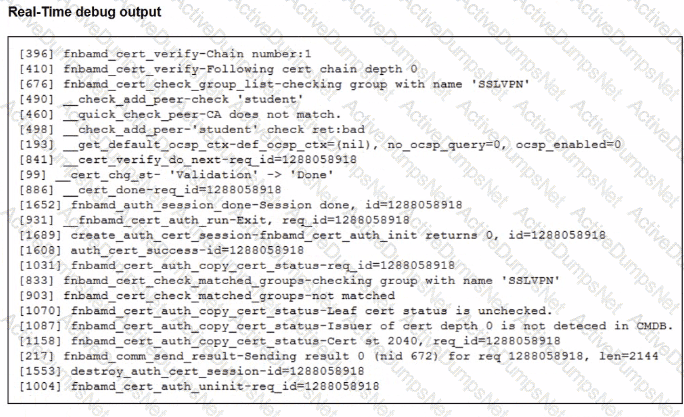

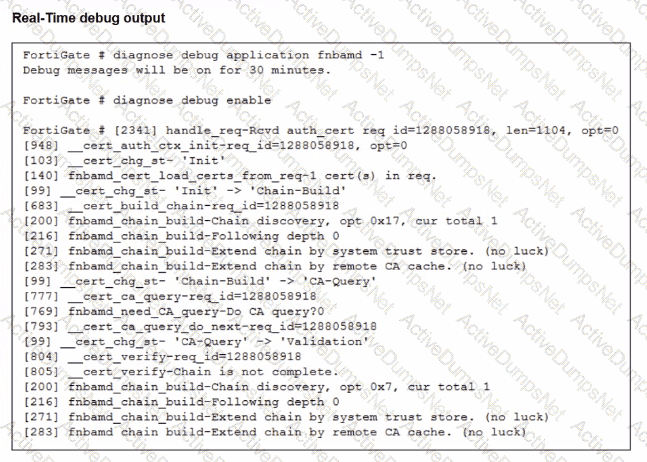

The debug output shows key lines:

__quick_check_peer-CA does not match.

Issuer of cert depth 0 is not detected in CMDB.

This tells us:

FortiGatedoes see the user’s certificate,

Butcannot find the issuing CAin its local CA certificate store (“CMDB” = configuration database).

This means theCA that signed the user certificate has not been importedinto FortiGate.

Now evaluate the options:

A. Enable Redirect HTTP to SSL-VPN– affects only redirection from HTTP to HTTPS; it has nothing to do with certificate validation.

B. Import the CA that signed the SSL VPN Server Certificate– the server certificate is already working (the portal comes up) and its CA is not what the debug complains about; the error is about thepeer (user) certificate. Often the same CA signs both, but the failing check specifically says the issuer of the client cert is not in CMDB.

C. Set the user certificate as the Server Certificate– incorrect; server and client certificates serve different roles.

D. Import the CA that signed the user certificate to FortiGate– this directly addresses the debug error and aligns with the documented requirement that the CA which issued the user certificate must be known to FortiGate.

When FortiAuthenticator is used as anFSSO agentbased onsyslog, it must:

Parse incoming syslog messagesfrom devices (firewalls, WLAN controllers, VPN concentrators, etc.).

Extract identity fieldssuch as:

Username

IP address

Login/logout event indicators

Syslogmatching ruleson FortiAuthenticator define:

Which syslog messages are relevant (by facility, message pattern, or regex).

How to capture specific fields (username, IP, group, event type).

FortiAuthenticator then uses this parsed data toinject logon sessions into FSSO, so FortiGate can apply identity-based policies.

Thus, the role of syslog matching rules is exactly as described inC.

A: Group mapping is handled separately via directory groups / FSSO config, not directly by matching rules.

B: Enforcement of authentication policies is done on FortiGate, not directly by the matching rules.

D: While irrelevant logs can be ignored via rules, the primary purpose isparsing and extraction, not generic filtering.

In this scenario:

FortiGate + FortiAnalyzer are part of theSecurity Fabric

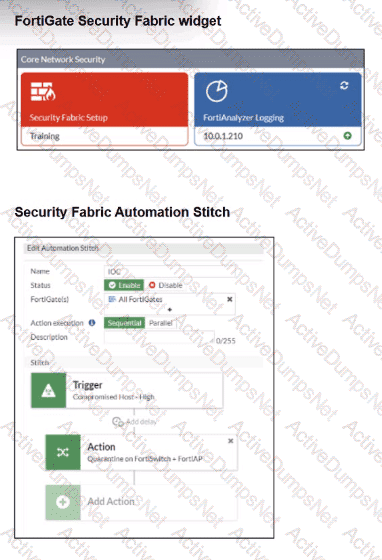

AnAutomation Stitchis configured:

Trigger:Compromised Host – High(IOC from FortiAnalyzer)

Action:Quarantine on FortiSwitch + FortiAP

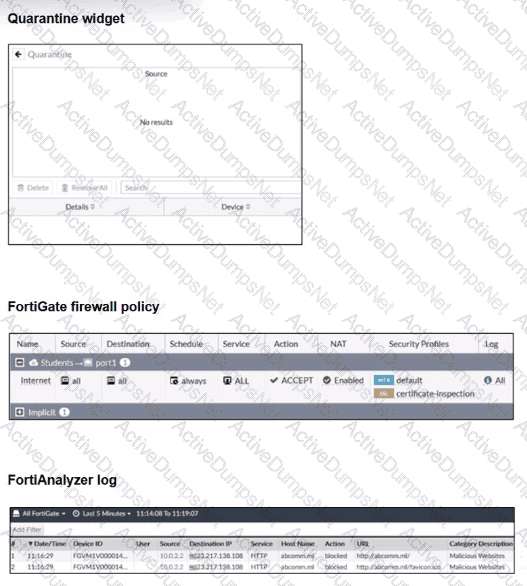

A test device10.0.2.1visits a malicious website.

FortiAnalyzer logs show the event, butFortiGate does NOT quarantine the device.

This means theautomation did not receive an IOC trigger, OR theFabric did not classify it as a compromise.

Let's evaluate each answer option.

✅C. The malicious website is not recognized as an indicator of compromise (IOC) by FortiAnalyzer.

✔Correct.

For FortiGate to quarantine a device:

FortiAnalyzer must classify the event as aCompromised Host → High / Medium / Critical

FortiAnalyzer must generate anIOC event

FortiGate must receive that IOC through the Fabric

Even though the FAZ log shows:

Action = blocked

Category = Malicious Websites

→ That doesNOTautomatically mean an IOC was generated.

A blocked website event isnot always an IOCunless:

It is included in theIOC database

FAZ’sAnalytics / UTM / IOCengine marks it as a compromise

Thus, if FAZ only logs a “Malicious Website” event butdoes not classify it as an IOC,

From the exhibits:

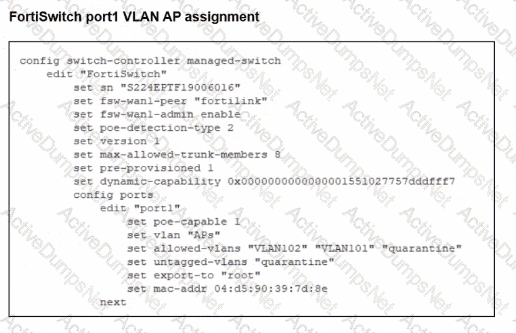

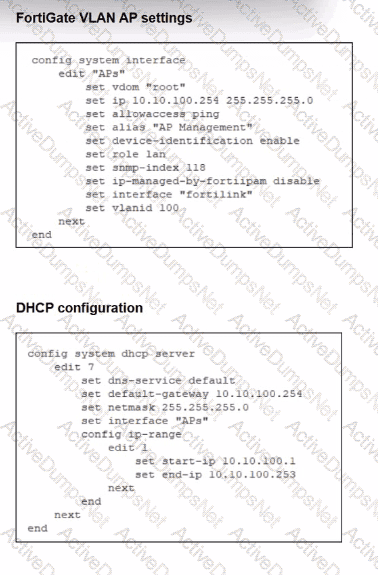

Interface“APs”is a VLAN sub-interface onfortilinkwith IP10.10.100.254/24and a DHCP server scope 10.10.100.1–10.10.100.253.

This VLAN is assigned toport1on the managed FortiSwitch for FortiAPs.

The interface config showsonly allowaccess ping—Security Fabric Connection is not enabled.

In LAN Edge designs, FortiAPs connected through FortiSwitch are discovered and managed asLAN edge devices of the Security Fabric. FortiOS documentation states that FortiAPs and FortiSwitches appear in the Fabric topologyonly when connected on an interface with Security Fabric Connection enabled.

If the VLAN/AP management interface lacksSecurity Fabric Connection:

FortiGate does not treat that network as aFabric connection segment.

CAPWAP discovery from FortiAPs on that VLAN will not result in the AP being onboarded and shown for management.

Therefore the key misconfiguration is:

✔A – Security Fabric is disabled on the VLAN interface used for AP management.

Why the others are not the root cause:

B. Firmware incompatibility– would usually show as a “Managed (upgrade required)” or similar status after discovery, not complete non-detection. The scenario specifically points to a configuration issue, not firmware.

C. VLAN not tagged correctly on uplink– The FortiSwitch uplink to FortiGate is the FortiLink trunk, and the VLAN sub-interface APs is already bound to fortilink, so tagging on the uplink is correct by definition.

D. CAPWAP ports not open– CAPWAP (UDP 5246/5247) is terminated locally on FortiGate and does not depend on any firewall policy; these ports are open on the FortiGate itself by default.

When FortiAPs connect to FortiGate overIPsec tunnels, this is treated similarly to WAN/MPLS deployments.

In these scenarios, FortiGate must know that CAPWAP must traverse anon-L2transport.

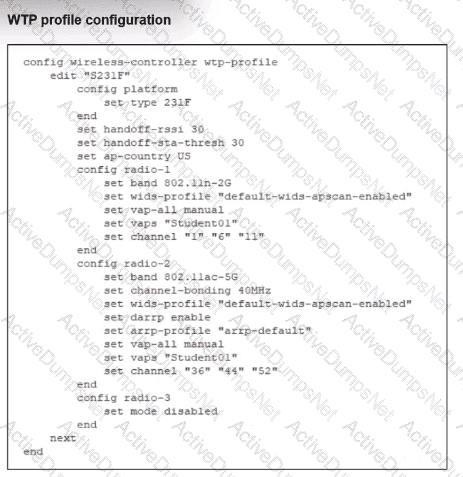

FortiAP profiles include:

set mpls-connection enable

This setting is required so that:

FortiGate can encapsulate CAPWAP inside the transport tunnel

Remote FortiAPs can establish CAPWAP even when behind routed/IPsec networks

Without this option, the FortiGate detects the AP butcannot bring CAPWAP UP, leaving the AP in “discovered/unauthorized” or “offline” state.

Why others are wrong

A. Static route→ Discovery already succeeds, so routing is not the issue.

C. Reduce MTU→ Sometimes useful for IPsec, but not required for CAPWAP establishment.

D. Firmware upgrade→ Firmware mismatch would show “Managed (upgrade required),” not CAPWAP tunnel failure.

Therefore,set mpls-connection enableis the required fix.
