The correct answer is A . Versa’s handy troubleshooting CLI command reference lists show system package-info as the command used to view information about the VOS software image running on the CPE .

This command is useful before upgrade planning because it confirms the installed software package and helps validate whether the device is on the expected release. Administrators can compare the running version against the target upgrade image, verify upgrade prerequisites, and ensure that branch and Controller releases are compatible with required features such as internet speed testing, SD-WAN policy behavior, or security services.

show system uptime only tells how long the system has been running. show interfaces brief provides operational and administrative interface status, MAC address, tenant, VRF, and IP address information. show class-of-services interfaces brief helps troubleshoot QoS or shaping behavior. None of those commands directly identifies the VOS software package. Therefore, for checking the running image before an upgrade, the correct command is show system package-info.

The correct answer is C . Versa documentation states that for Releases 22.1.3 and later , the speed test factors in network latency to derive results. In these releases, the speed test is performed in three stages : a ping test, an upload test, and a download test. The ping test calculates link latency, and the speed test uses that latency data while performing the upload and download portions.

The same documentation notes that the speed test can measure bandwidth speeds up to 1 Gbps, with actual measurement depending on factors such as in-path shapers and latency. It also states that the test may use up to 45 MB of data per upload or download in the best case and 90 MB for a complete test.

Older releases behave differently. For Releases 21.2 and earlier, the speed test is performed in two stages: upload and download. Therefore, because the question specifically states Release 22.1.3 on both client and server, the correct sequence is ping, upload, and download.

The correct answers are A, B, and D . For large-scale Versa Secure SD-WAN onboarding, common configuration is reusable through templates and grouping. A device template , also known as a post-staging template, provides the common base configuration that is applied to multiple VOS branch appliances. Versa documentation repeatedly shows configuration tasks being performed under Templates > Device Templates , where an organization is selected and the post-staging template is opened in Appliance view for common configuration.

A device group is also shared by multiple appliances because it groups devices that should receive the same template associations and common service behavior. This is the proper way to profile many branches with similar deployment requirements. Service templates are also shared objects. They are used to apply service-specific configurations, such as SD-WAN traffic steering, application steering, QoS, security, or other common services, across devices. Versa SD-WAN design documentation explains that application-steering templates automate business-intent policies and simplify management by combining application classification, forwarding-class mapping, and SD-WAN policy logic in a reusable template.

A workflow device is device-specific, and device bind data contains site-specific values such as interface addressing, gateways, VLANs, and other per-branch parameters. Therefore, those are not the shared configuration objects.

The correct answer is A . Versa template-based provisioning is designed to separate common configuration from site-specific values. A device template can define common interface, service, routing, and SD-WAN behavior, while variables and device bind data provide unique values for each appliance. This allows the same template to be reused across many branches while assigning different WAN IP addresses, gateways, VLAN IDs, circuit names, or other per-site parameters during onboarding.

In this scenario, Branch-A and Branch-B use the same template but receive different WAN VLAN IDs from bind data. That is normal and expected in a scalable SD-WAN deployment. Without variables, administrators would need to create a separate template for every site, which would be operationally inefficient and increase configuration drift.

The Controller does not automatically rewrite VLAN IDs after IPsec comes up; VLAN IDs must be part of the generated device configuration. It is also not required to duplicate the device template for each branch. The correct Versa design is reusable templates plus unique bind-data values.

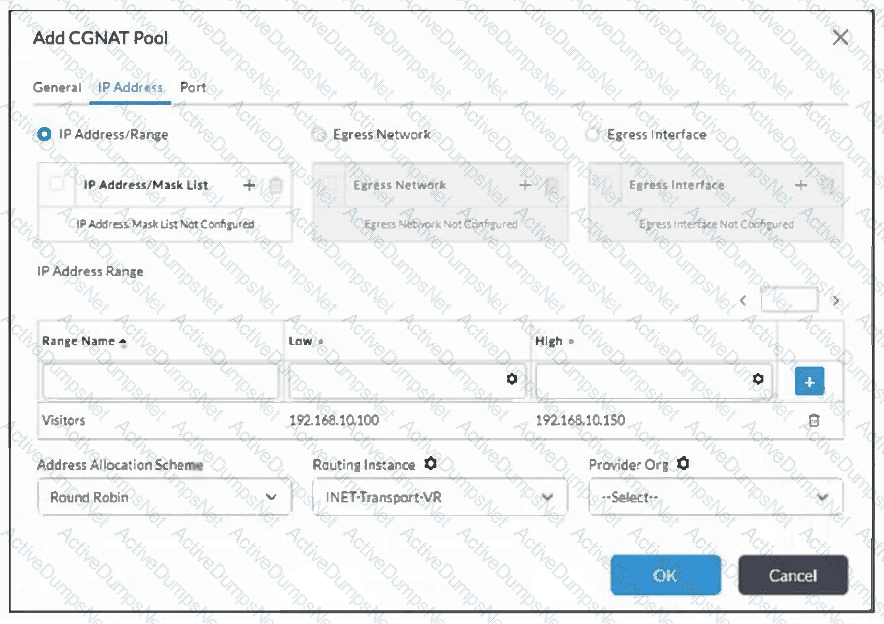

The exhibit shows the Add CGNAT Pool configuration with the IP Address/Range option selected. The configured address range is named Visitors , with a low address of 192.168.10.100 and a high address of 192.168.10.150 . In CGNAT, this pool defines the translated source address resource used by matching NAT rules; it does not define the original inside source hosts. Therefore, matching sessions will have their source address translated to an address from this configured pool range, which makes option C correct. Versa’s CGNAT configuration examples show that a rule matches original source and destination prefixes, and then attaches a translated source pool to perform NAT.

The correct answer is A . Versa SD-WAN data-path troubleshooting documentation shows the VSM local-tunnel-site output and includes a legend in which BN means Behind NAT . In the WAN local link details, the output also displays a field named WAN lcl link behind NAT , with values such as 1 or 0, and link flags including [ BN CT PT SLA-P ] when the WAN link is behind NAT.

This information is important because NAT status affects how SD-WAN tunnel endpoints are discovered and how public and private transport addresses are represented. The same output includes both public and private WAN link addresses, making it useful for troubleshooting sites behind NAT, stale tunnel endpoints, or incorrect public-address learning.

WAN lcl vrf-id identifies the local transport routing instance ID, not NAT status. Tenant ID identifies the tenant context. Neighbour site type identifies whether the remote endpoint is a Controller, hub, or SD-WAN site. None of those fields specifically confirms whether the local WAN transport is behind NAT.

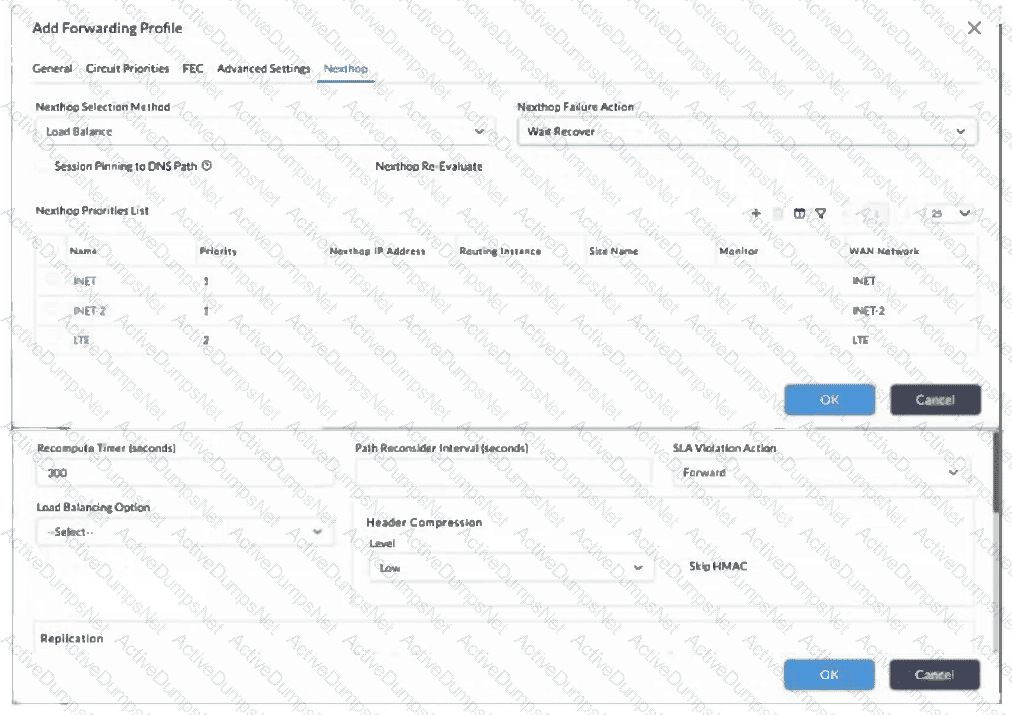

The correct answers are B and D . In the exhibit, the Next-Hop Selection Method is configured as Load Balance , and both INET and INET-2 have the same next-hop priority value of 1 . Versa SD-WAN guidance states that load balancing between WAN paths is achieved by configuring at least two circuits with equal priority. Therefore, when both INET and INET-2 satisfy the SLA requirements, sessions can be load-balanced across those two internet circuits.

Option D is also correct because the exhibit shows SLA Violation Action: Forward . This means that if no next hop is SLA-compliant, the VOS device is still allowed to forward traffic instead of dropping it. This behavior is consistent with Versa SD-WAN traffic-steering concepts, where forwarding profiles define circuit or path priorities, connection methods, load-balancing behavior, and SLA handling for traffic that matches an SD-WAN policy.

Option A is incorrect because the exhibit does not use the Automatic next-hop selection method. Versa’s performance-based SaaS optimization uses monitoring metrics to select the best path when configured for automatic/performance-based selection, but this exhibit shows Load Balance instead. Option C is not the best answer because LTE has lower priority 2 and would be considered only after the higher-priority INET and INET-2 paths are unavailable or unusable, not merely when one INET circuit fails.

The correct answers are B and C . During a migration from a legacy WAN, such as MPLS Layer 3 VPN, to Versa Secure SD-WAN, an SD-WAN gateway is used to allow communication between SD-WAN-enabled branches and legacy WAN sites. Versa SD-WAN design guidance states that an SD-WAN gateway allows sites connected to the SD-WAN VPN network to communicate with sites connected to a legacy MPLS VPN network. It also explains that this gateway facilitates route exchange between the MPLS underlay network and the SD-WAN VPN network, typically using a dynamic routing protocol such as BGP.

For this design, the hub or gateway must be configured with the Gateway option for the underlay transport so it can act as the interconnect point between the legacy and SD-WAN domains. Versa documentation further describes configuring a BGP peering session on the MPLS transport VR of the gateway to exchange routes from the MPLS provider to the SD-WAN network, and notes that Director Workflows can automate this configuration. Spoke-to-Spoke-Direct is not sufficient for legacy interconnect, and SD-WAN traffic steering policies do not advertise routes.

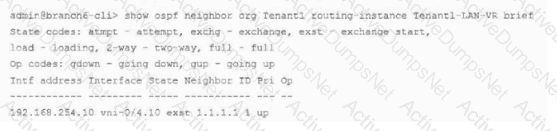

The correct answer is B . The exhibit shows the OSPF neighbor in the exst state, which means Exchange Start . Versa documentation lists the OSPF neighbor state codes and identifies exst as “exchange start,” followed by exchange, loading, and full. In normal OSPF adjacency formation, neighbors progress through initialization and two-way communication before they negotiate database exchange. If the neighbor becomes stuck in ExStart or Exchange, a common and highly probable cause is an MTU mismatch between the two OSPF peers. During database description packet negotiation, the peers must agree on parameters that allow LSDB exchange; an MTU mismatch can prevent the adjacency from advancing to Full.

Option A is less likely because an area mismatch usually prevents the neighbor relationship from forming correctly rather than leaving it stuck in ExStart. Option C is also incorrect because the neighbor has already progressed beyond early states, which indicates that bidirectional communication has occurred. Option D is not the best answer because dropping OSPF multicast 224.0.0.5 would typically prevent discovery or keep the adjacency in an earlier state, not specifically in ExStart. Therefore, the probable cause is an interface MTU mismatch.

The correct answers are C and D . Versa templates are designed to reuse common configuration while still allowing per-device customization. Template variables allow the same template to be deployed to multiple appliances while using device-specific values such as addresses, VLAN IDs, DHCP information, or other bind-data values. Versa documentation for deploying templates describes assigning values to variables contained in a main template that are specific to the device. This makes option C correct.

Option D is also correct because Versa workflows are used to create templates for VOS device configuration. Versa documentation states that workflows are used to create templates to configure VOS devices, and also to create templates for application steering, spoke groups, and service chains.

Option A is not correct in the normal Versa Director onboarding model because a group of devices is associated with one staging template and one post-staging template, rather than multiple device templates being stacked per appliance. Option B is also incorrect because service templates are optional reusable service-specific fragments. Versa documentation states that service templates can be used by multiple device templates and device groups, but it does not require every appliance to have one.

The correct answer is B . Versa documentation for internet speed tests explains that when you run an internet speed test from a Director node, it creates approximately 200 sessions . This is useful for measuring aggregate throughput, but it does not represent the behavior of a single application flow. The same documentation states that you can run a speed test with a single session from the device CLI, and that this is useful for simulating file transfer rates when using SCP or FTP .

Therefore, when the goal is to understand how a single file transfer behaves, the CLI-based single-session test is the best option. A default Director-based test may produce higher aggregate results because multiple sessions can use parallelism and better fill the pipe.

show interfaces brief is useful for interface status and addressing, but it does not measure file-transfer throughput. SLA latency is useful for path-quality monitoring, but latency alone does not show single-session TCP throughput.

The correct answer is A . Versa CGNAT troubleshooting documentation shows the command show cgnat acl info < tenant-id > for viewing CGNAT access lists used for traffic matching. The example output includes columns such as ACL handle , RuleId , Category , Precedence , VRF , Source IP , and Destination IP . It also shows tenant ID and total filters.

This command is useful when a CGNAT rule exists in configuration but sessions are not being translated. By checking the ACL output, the administrator can confirm whether the correct source prefix, destination prefix, VRF, and rule precedence are actually programmed in the dataplane. If the wrong VRF or subnet is shown, the rule may never match the intended traffic.

System uptime and CPU usage are operational health indicators. SLA metrics are SD-WAN path-quality values. BGP AS path and local preference are routing attributes. None of these directly show CGNAT access-list match programming.

The correct answer is B . Versa’s SD-WAN data-path troubleshooting documentation shows that show vsf tunnel access-circuits ... detail can display the access-circuit state and encapsulation chain used for tunnel forwarding. In the example, the output lists multiple encapsulations, including VMLH , MPLS-over-GRE , IPsec-ESP , and VXLAN . It also shows transport details such as source IP, destination IP, UDP transport, tunnel MTU, SPI values, and SLA state.

This confirms that the VOS data plane has built the SD-WAN tunnel encapsulation stack required to forward overlay traffic across the underlay. IPsec-ESP in the chain indicates encrypted tunnel handling, while VXLAN and other encapsulation components are part of the SD-WAN overlay forwarding structure.

The output does not indicate simple bridging, plain-text-only GRE, or bypass of the VOS data plane. Instead, it proves that the packet path is being processed through the VOS tunnel forwarding framework and that the administrator is looking at the SD-WAN access-circuit tunnel state.

The correct answers are A and B . In the exhibit, the LAN interface shows a fixed VLAN ID value of 100 . Because this value is directly configured in the template rather than represented as a per-device variable, every branch that uses this template will receive the same LAN VLAN ID. This supports option A. Versa configuration examples show that VLAN-tagged interfaces are created by defining logical units with a vlan-id, and organizations then use those tagged interfaces for traffic identification and routing services.

For the MPLS WAN network , the VLAN ID field is shown as a variable or bind-data style value rather than a fixed number. This allows each branch device to receive a different MPLS VLAN ID during onboarding, depending on the branch-specific values supplied in the workflow or device bind data. Therefore, branches can have separate VLAN IDs on the MPLS WAN transport, which supports option B. Versa SD-WAN troubleshooting output also shows WAN interfaces as logical VNI subinterfaces, such as vni-0/1.0 and vni-0/2.0, mapped to SD-WAN transport networks like INET and MPLS.

Option C is incorrect because an INET interface can be untagged, commonly represented with VLAN ID 0. Option D is incorrect because the MPLS VLAN field is intentionally parameterized, not incorrectly configured.

The correct answer is A . Versa documentation states that from a Director node, administrators can monitor the Director node itself, provider organizations, tenants, and VOS devices. The procedure begins by selecting the Monitor tab in the top menu bar. When a Director node is selected, the monitor screen displays panes such as System Detail , Recent Events , Package Information , Uptime , High Availability , and License .

This view is intended for operational monitoring and troubleshooting. It allows administrators to see system resource status, recent alarms and events, software package details, uptime, HA configuration, and licenses installed on managed VOS devices.

Workflows are used for provisioning and template-based configuration, not monitoring these system panes. Analytics Search is useful for querying logs and flow records, but it is not the Director system-monitoring screen described in the question. Administration > Connectors relates to integration and resource connectivity rather than Director node health and license monitoring. Therefore, the correct location is the Monitor tab.

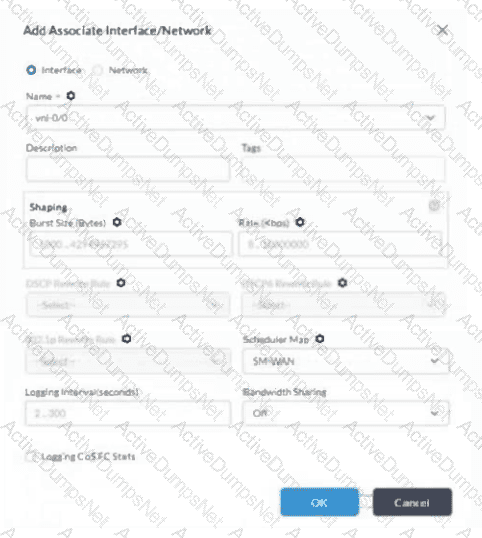

In the exhibit, the Add Associate Interface/Network window has Interface selected, and the interface name is set to vni-0/0 . The DSCP rewrite option is not available because rewrite behavior is intended to be applied at the network association level for the WAN network, not directly while associating only the physical/logical interface. For WAN-facing CoS, the scheduler and shaping parameters can be attached to an interface, but DSCP rewrite policies are applied to remark traffic as it exits through a network context.

Versa SD-WAN design documentation explains that QoS rewrite rules rewrite packet QoS attributes as packets leave the VOS device, and that rewrite rules can modify IEEE 802.1p bits, IPv4 TOS/DSCP bits, and IPv6 traffic class bits. It also explains that a rewrite policy is commonly applied on a WAN network to remark traffic based on the forwarding class and loss priority assigned by QoS or App QoS policies. In the design example, Versa explicitly describes applying a QoS propagation or rewrite policy on the MPLS WAN network to remark traffic to a DSCP value. Therefore, the issue is the association type: it is set to Interface, not Network.

Symmetric Forwarding is the correct Versa SD-WAN feature for ensuring that return traffic between SD-WAN branches follows the same SD-WAN path on which the forward traffic was received. Versa documentation for SD-WAN traffic steering describes Symmetric forwarding as the option that specifies the path for reverse-direction traffic, meaning whether traffic returning from the destination branch to the originating branch should be sent on the same path on which it arrived. It further states that enabling symmetric traffic forwarding determines the reverse path for traffic returning from the destination branch to the originating branch.

This is different from Symmetric Routing, which is a routing design goal or behavior, not the Versa SD-WAN forwarding-profile feature named in the product documentation. Equal-Cost Multipath can distribute flows across equal-cost routes, but it does not specifically guarantee that both directions of the same SD-WAN session use the same path. Packet Striping is used to split or distribute packets across multiple links for performance, not to enforce bidirectional path symmetry. Therefore, the verified Versa feature to enable is Symmetric Forwarding.

The correct answer is A . Versa’s handy CLI command reference lists show interfaces brief as the command used to view a list of interfaces along with their MAC addresses, operational and administrative status, tenant ID, VRF, and IP addresses. This is one of the first commands administrators run when validating device bring-up, staging interface assignment, WAN/LAN mapping, or whether a template applied interface addressing as expected.

For deeper interface troubleshooting, show interfaces detail provides additional information such as interface index, host interface, MTU, speed and duplex settings, RX/TX errors, and bridge information. However, for a quick overview of state and addressing across interfaces, show interfaces brief is the correct choice.

show system package-info identifies the running VOS software package. show system storage reports system storage resources. show coredumps shows generated core files. These are valuable operational commands, but they do not provide the requested interface status and addressing summary.
