VMware 3V0-41.22 Advanced Deploy VMware NSX-T Data Center 3.X Exam Practice Test

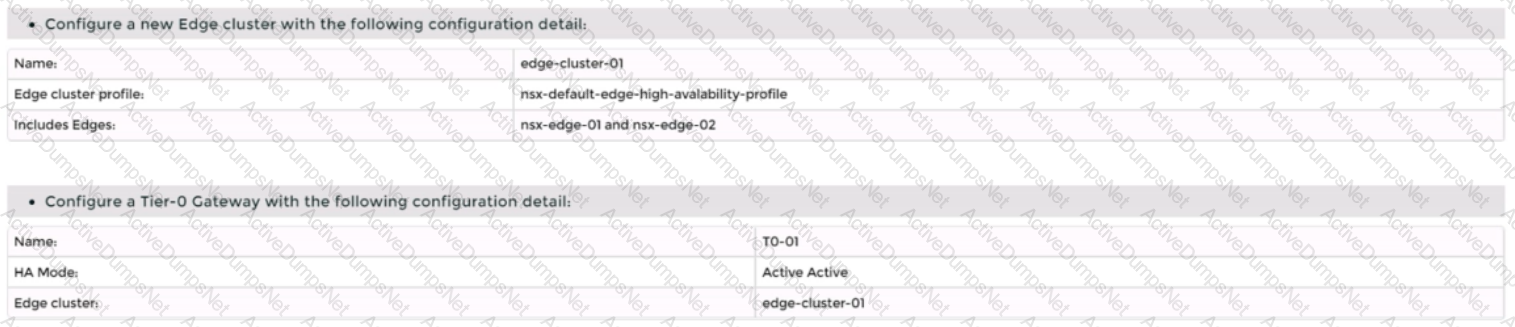

To deploy a new instance of NSX-T into an environment with two isolated tenants, you need to follow these steps:

• Log in to the NSX Manager UI with admin credentials. The default URL is https://.
• Navigate to System > Fabric > Nodes > Edge Transport Nodes and click Add Edge VM.
• Enter a name and an optional description for the edge VM. Select the compute manager, cluster, and resource pool where you want to deploy the edge VM. Click Next.
• Select the deployment size and form factor for the edge VM. For this task, you can select Medium as the size and VM as the form factor. Click Next.
• Select the datastore and folder where you want to store the edge VM files. Click Next.
• Configure the management network settings for the edge VM. Enter a hostname, a management IP address, a default gateway, a DNS server, and a domain search list. Optionally, you can enable SSH and join the edge VM to a domain. Click Next.
• Configure the transport network settings for the edge VM. Select an N-VDS as the host switch type and enter a name for it. Select an uplink profile from the drop-down menu or create a new one by clicking New Uplink Profile. Map the uplinks to the physical NICs on the edge VM. For example, map Uplink 1 to fp-eth0 and Uplink 2 to fp-eth1. Optionally, you can configure IP assignment, MTU, or LLDP for the uplinks. Click Next.
• Review the configuration summary and click Finish to deploy the edge VM.
• Repeat steps 2 to 8 to deploy another edge VM for redundancy.
• Navigate to Networking > Tier-0 Gateway and click Add Gateway > VRF.
• Enter a name and an optional description for the VRF gateway. Select an existing tier-0 gateway as the parent gateway or create a new one by clicking New Tier-0 Gateway.
• Click VRF Settings and enter a VRF ID for the tenant. Optionally, you can enable EVPN settings if you want to use EVPN as the control plane protocol for VXLAN overlay networks.
• Click Save to create the VRF gateway.
• Repeat steps 10 to 13 to create another VRF gateway for the second tenant with a different VRF ID.
• Navigate to Networking > Segments and click Add Segment.
• Enter a name and an optional description for the segment. Select VLAN as the connectivity option and enter a VLAN ID for the segment. For example, enter 128 for Tenant A’s first uplink VLAN segment.
• Select an existing transport zone from the drop-down menu or create a new one by clicking New Transport Zone.
• Click Save to create the segment.
• Repeat steps 15 to 18 to create three more segments for Tenant A’s second uplink VLAN segment (VLAN ID 129) and Tenant B’s uplink VLAN segments (VLAN ID 158 and 159).

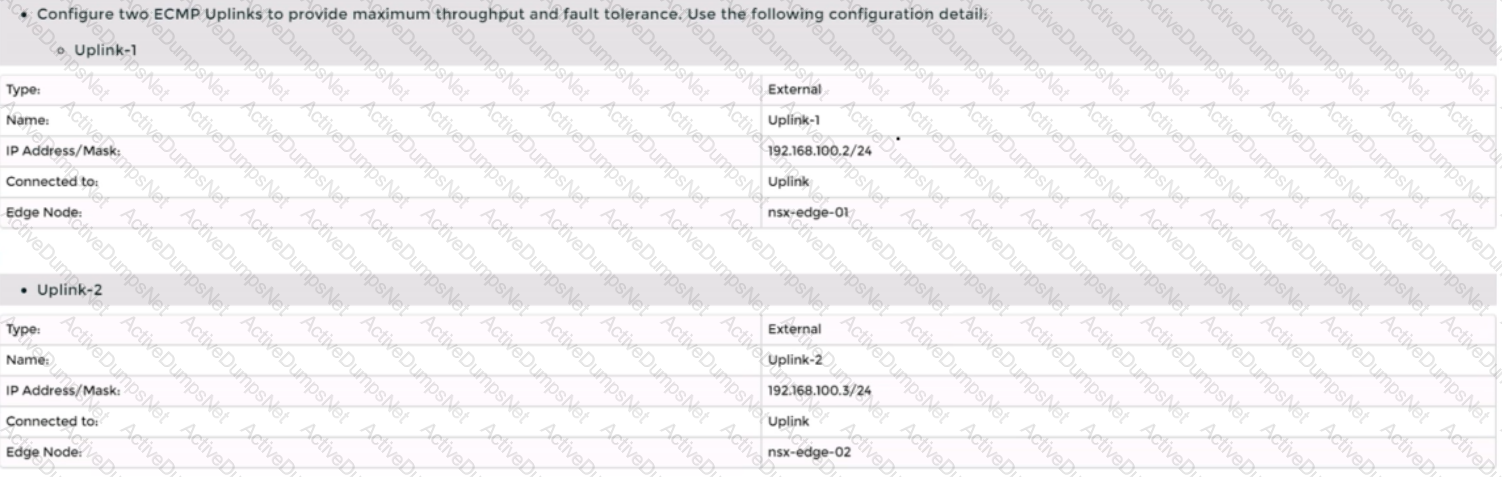

• Navigate to Networking > Tier-0 Gateway and select the VRF gateway that you created for Tenant A.
• Click Interfaces > Set > Add Interface.
• Enter a name and an optional description for the interface.
• Enter the IP address and mask for the external interface in CIDR format, such as 10.10.10.1/24.
• In Type, select External.
• In Connected To (Segment), select the VLAN segment that you created for Tenant A’s first uplink VLAN segment (VLAN ID 128).
• Select an edge node where you want to attach the interface, such as Edge-01.
• Enter the Access VLAN ID from the list as configured for the segment, such as 128.
• Click Save and then Close.
• Repeat steps 21 to 28 to create another interface for Tenant A’s second uplink VLAN segment (VLAN ID 129) on another edge node, such as Edge-02.
• Repeat steps 20 to 29 to create two interfaces for Tenant B’s uplink VLAN segments (VLAN ID 158 and 159) on each edge node using their respective VRF gateway and IP addresses.

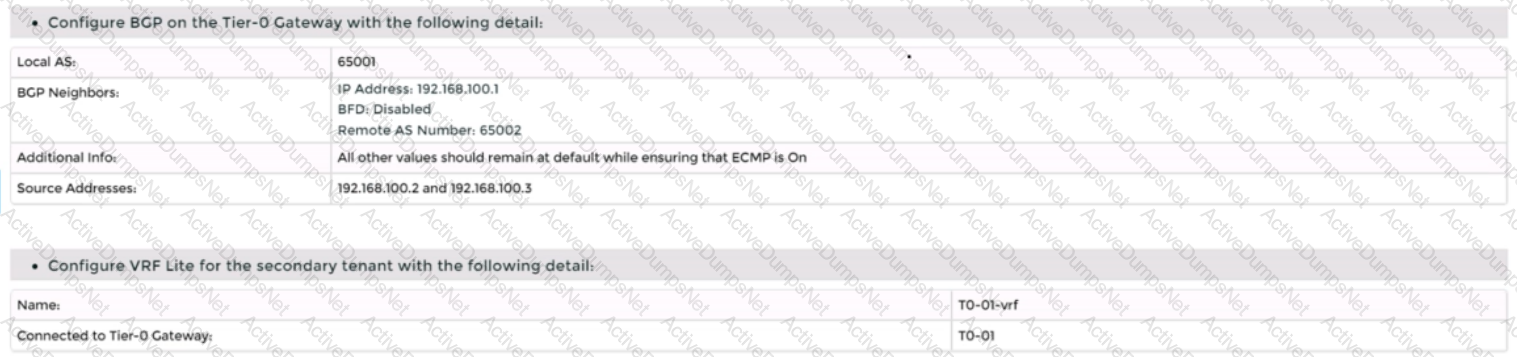

• Configure BGP on each VRF gateway using NSX UI or CLI commands12.You need to specify the local AS number, remote AS number, BGP neighbors, route redistribution, route filters, timers, authentication, graceful restart, etc., according to your requirements34.
• Configure BGP on each physical router using their respective CLI commands56.You need to specify similar parameters as in step 31 and ensure that they match with their corresponding VRF gateway settings78.
• Verify that BGP sessions are established between each VRF gateway and its physical router neighbors using NSX UI or CLI commands . You can also check the routing tables and BGP statistics on each device .
• You have successfully deployed a new instance of NSX-T into an environment with two isolated tenants using VRF Lite and BGP.

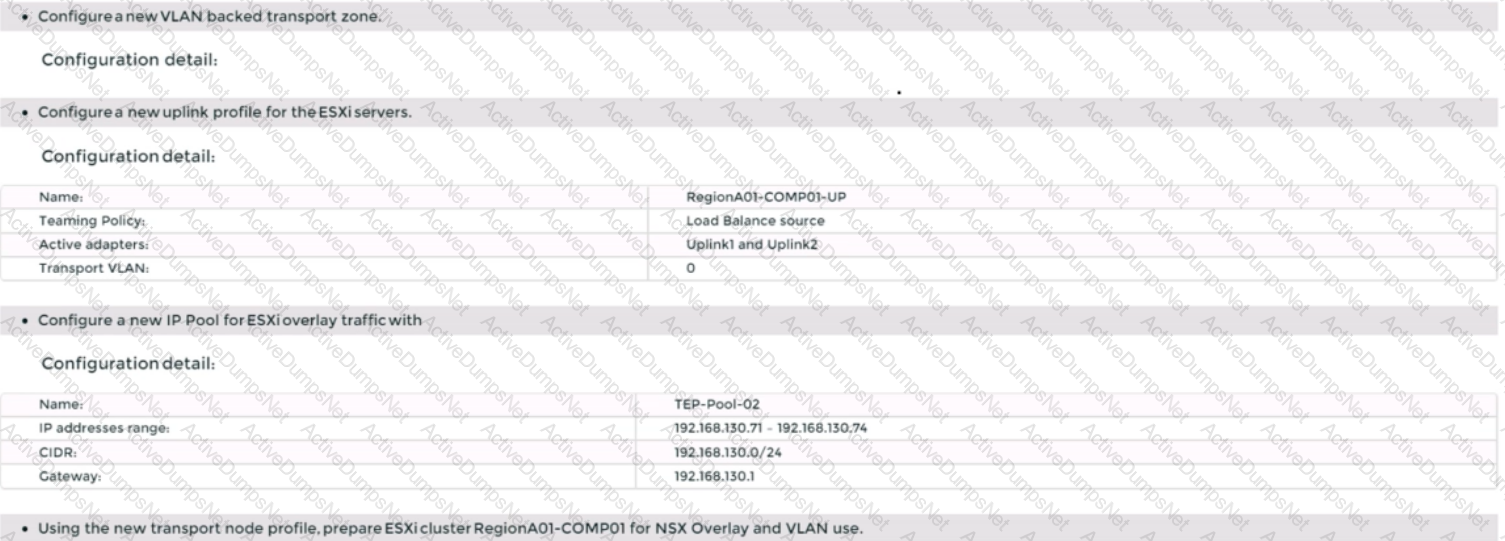

To prepare a VMware NSX-T Data Center ESXi compute cluster infrastructure, you need to follow these steps:

• Log in to the NSX Manager UI with admin credentials. The default URL is https://.

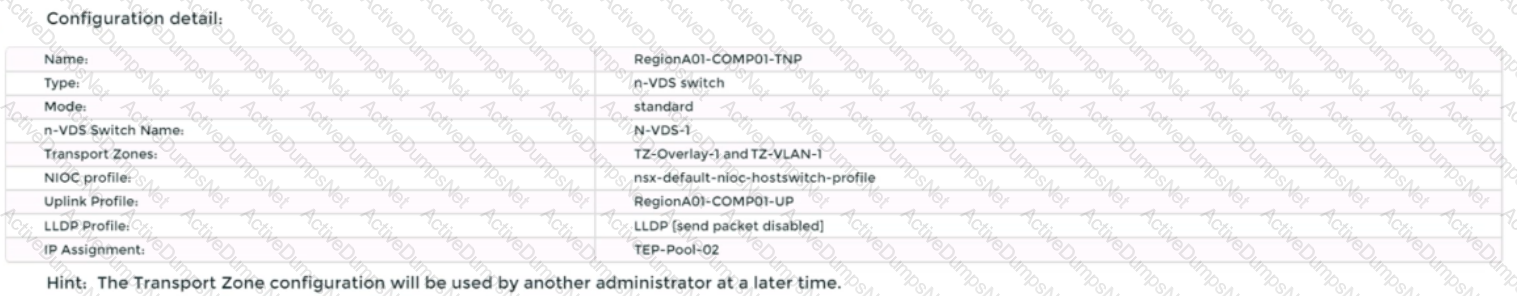

• Navigate to System > Fabric > Profiles > Transport Node Profiles and click Add Profile.
• Enter a name and an optional description for the transport node profile.
• In the Host Switches section, click Set and select N-VDS as the host switch type.
• Enter a name for the N-VDS switch and select the mode as Standard or Enhanced Datapath, depending on your requirements.
• Select the transport zones that you want to associate with the N-VDS switch. You can select one overlay transport zone and one or more VLAN transport zones.
• Select an uplink profile from the drop-down menu or create a custom one by clicking New Uplink Profile.
• In the IP Assignment section, select Use IP Pool and choose an existing IP pool from the drop-down menu or create a new one by clicking New IP Pool.
• In the Physical NICs section, map the uplinks to the physical NICs on the host. For example, map Uplink 1 to vmnic2 and Uplink 2 to vmnic3.
• Click Apply and then click Save to create the transport node profile.
• Navigate to System > Fabric > Nodes > Host Transport Nodes and click Add Host Transport Node.
• Select vCenter Server as the compute manager and select the cluster that contains the two ESXi servers that you want to prepare for NSX-T overlay and VLAN use.
• Select the transport node profile that you created in the previous steps and click Next.
• Review the configuration summary and click Finish to start the preparation process.

The preparation process may take some time to complete. You can monitor the progress and status of the host transport nodes on the Host Transport Nodes page. Once the preparation is complete, you will see two host transport nodes with a green status icon and a Connected state.You have successfully prepared a VMware NSX-T Data Center ESXi compute cluster infrastructure using a transport node profile.

To create a logical load balancer for several web servers, you need to follow these steps:

• Log in to the NSX Manager UI with admin credentials. The default URL is https://.

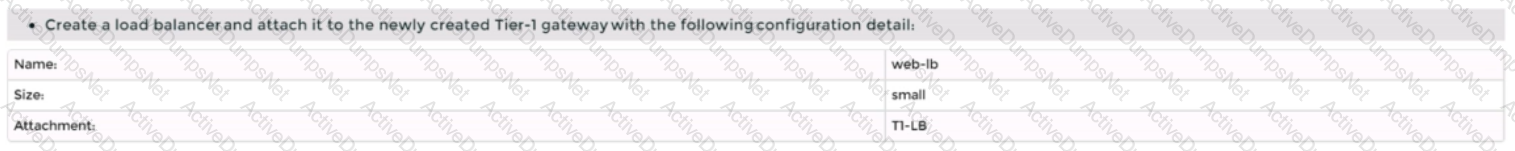

• Navigate to Networking > Load Balancing > Load Balancers and click Add Load Balancer.

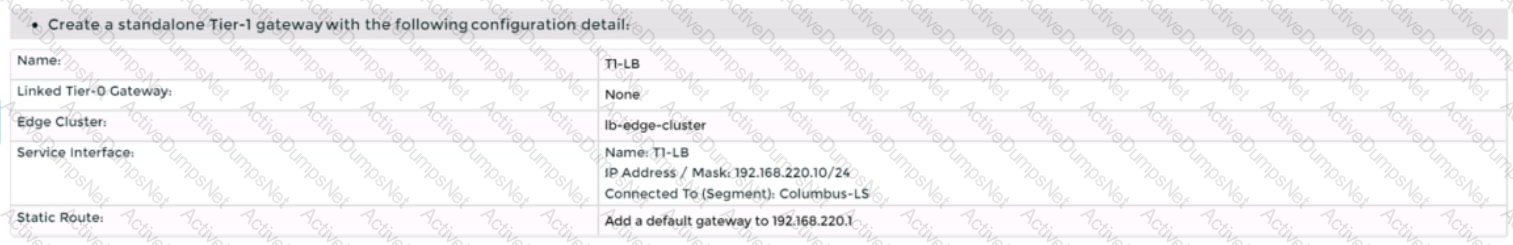

• Enter a name and an optional description for the load balancer. Select the tier-1 gateway where you want to attach the load balancer from the drop-down menu or create a new one by clicking New Tier-1 Gateway. Click Save.

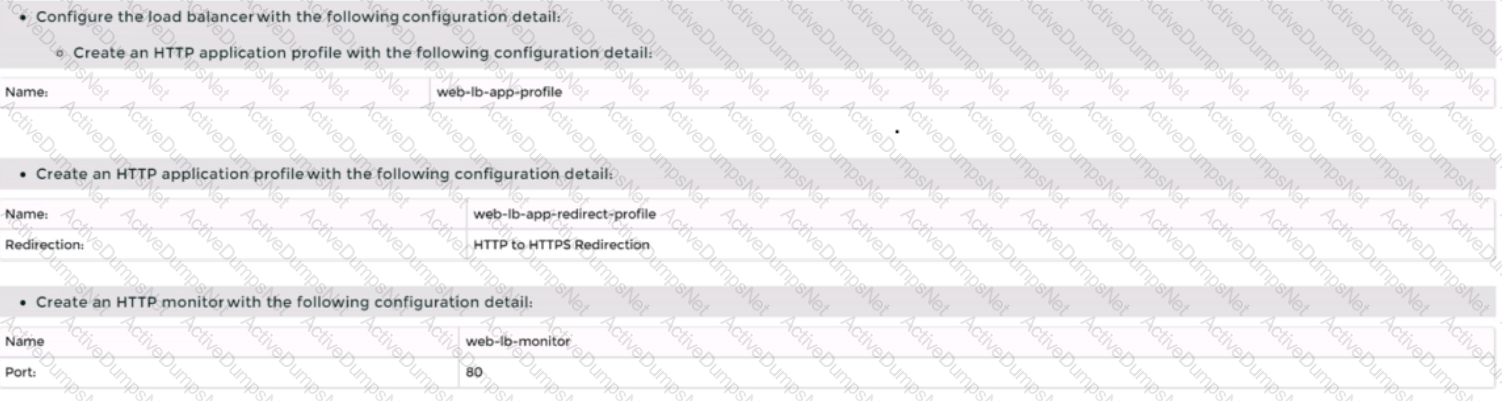

• Navigate to Networking > Load Balancing > Application Profiles and click Add Application Profile.
• Enter a name and an optional description for the application profile. Select HTTP as the application type from the drop-down menu. Optionally, you can configure advanced settings such as persistence, X-Forwarded-For, SSL offloading, etc., for the application profile. Click Save.
• Navigate to Networking > Load Balancing > Monitors and click Add Monitor.
• Enter a name and an optional description for the monitor. Select HTTP as the protocol from the drop-down menu. Optionally, you can configure advanced settings such as interval, timeout, fall count, rise count, etc., for the monitor. Click Save.
• Navigate to Networking > Load Balancing > Server Pools and click Add Server Pool.
• Enter a name and an optional description for the server pool. Select an existing application profile from the drop-down menu or create a new one by clicking New Application Profile. Select an existing monitor from the drop-down menu or create a new one by clicking New Monitor. Optionally, you can configure advanced settings such as algorithm, SNAT translation mode, TCP multiplexing, etc., for the server pool. Click Save.
• Click Members > Set > Add Member and enter the IP address and port number of each web server that you want to add to the server pool. For example, enter 192.168.10.10:80 and 192.168.10.11:80 for two web servers listening on port 80. Click Save and then Close.

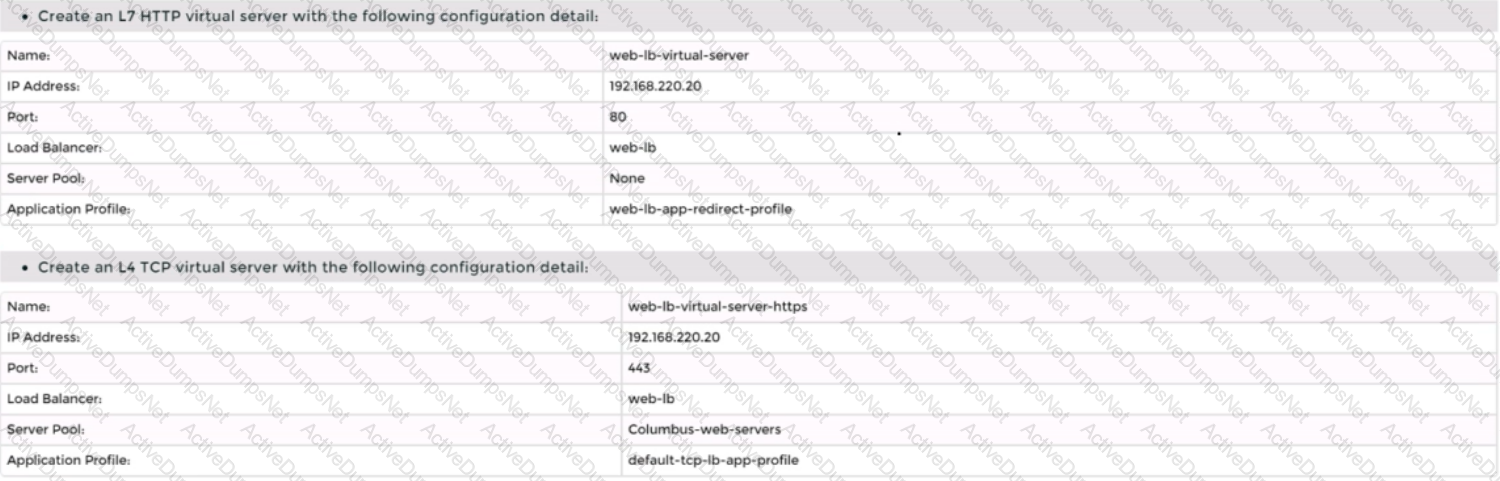

• Navigate to Networking > Load Balancing > Virtual Servers and click Add Virtual Server.
• Enter a name and an optional description for the virtual server. Enter the IP address and port number of the virtual server that will receive the client requests, such as 10.10.10.100:80. Select HTTP as the service profile from the drop-down menu or create a new one by clicking New Service Profile. Select an existing server pool from the drop-down menu or create a new one by clicking New Server Pool. Optionally, you can configure advanced settings such as access log, connection limit, rate limit, etc., for the virtual server. Click Save.
• You have successfully created a logical load balancer for several web servers using NSX-T Manager UI.

To review CPU sensitivity and threshold values, you need to follow these steps:

• Log in to the NSX Manager UI with admin credentials. The default URL is https://.
• Navigate to System > Settings > System Settings > CPU and Memory Thresholds.
• You will see the current values for CPU and memory thresholds for NSX Manager, NSX Controller, and NSX Edge. These values determine the percentage of CPU and memory usage that will trigger an alarm on the NSX Manager UI.
• You can modify the default threshold values by clicking Edit and entering new values in the text boxes. For example, you can increase the CPU threshold for NSX Manager from 80% to 90% to reduce the number of alarms for high CPU usage. Click Save to apply the changes.
• You can also view the historical data for CPU and memory usage for each component by clicking View Usage History. You can select a time range and a granularity level to see the usage trends and patterns over time
