RUCKUS RCWA RUCKUS Certified Wi-Fi Associate Exam Exam Practice Test

The 802.11n amendment introduced frame aggregation to enhance throughput efficiency by reducing MAC-layer overhead. It combines multiple data frames into a single transmission unit, improving performance under high traffic loads.

According to RUCKUS One Online Help – 802.11 Standards Overview and RUCKUS Analytics 3.5 User Guide – PHY Efficiency Metrics , 802.11n added A-MSDU (Aggregate MAC Service Data Unit) and A-MPDU (Aggregate MAC Protocol Data Unit) mechanisms to optimize data transfer. This significantly increased throughput compared to earlier 802.11a/b/g implementations.

Subsequent standards like 802.11ac and 802.11ax further refined aggregation efficiency but built upon the original concept from 802.11n.

When two access points operate on overlapping channels in the same frequency band—such as channel 7 and channel 8 in the 2.4 GHz range—they create Adjacent Channel Interference (ACI) . Unlike co-channel interference (CCI) , which occurs when APs share the exact same channel, ACI results from partial channel overlap that causes energy spillover between adjacent frequencies.

According to RUCKUS One Online Help – Radio Configuration and Channel Planning , adjacent channels in 2.4 GHz are only 5 MHz apart, while each Wi-Fi channel occupies 20–22 MHz of bandwidth. As a result, channels like 7 and 8 significantly overlap, creating degraded performance, retransmissions, and reduced throughput.

RUCKUS’s ChannelFly technology in both RUCKUS AI and RUCKUS Analytics helps automatically select non-overlapping channels (such as 1, 6, and 11) to minimize ACI and optimize network capacity.

Therefore, the correct answer is A – Adjacent interference , which directly applies to overlapping channel configurations.

The RUCKUS H Series access points are specifically designed for environments such as hospitality, student housing, and multi-dwelling units, where compact, in-room installation is ideal. A distinctive feature of the H Series—such as the RUCKUS H550 and H510 models—is their PoE output port , allowing the AP to power downstream devices like IP phones, set-top boxes, or security cameras directly through Ethernet.

This design minimizes cabling and infrastructure costs while maintaining enterprise-grade Wi-Fi performance. According to the RUCKUS One Online Help and the official RUCKUS AI documentation , the H550 supports 802.3af/at PoE input and provides 802.3af PoE output on one of its Ethernet ports. The feature is highlighted as part of RUCKUS’s integrated wired and wireless connectivity solution, combining dual-band Wi-Fi 6 access with switch-like wired connectivity for room-based deployments.

The R Series and E Series are ceiling-mounted APs primarily used for large-area coverage and typically do not include PoE passthrough functionality. The M Series (outdoor mesh APs) are designed for outdoor coverage extension, also lacking this downstream PoE capability.

Weak client connectivity at the edge of coverage is typically caused by insufficient received signal strength rather than AP transmit power limitations. Increasing AP power does not help if the client device cannot transmit back effectively .

According to RUCKUS One Online Help – Outdoor RF Design and Antenna Optimization , the best corrective action is to use higher-gain directional or sector antennas (D) , which focus RF energy toward client areas to improve link budget and two-way communication .

RUCKUS Analytics 3.5 User Guide – RF Link Quality Metrics confirms that directional gain antennas improve downlink and uplink SNR, enhancing stability without increasing interference footprint.

RTS/CTS helps mitigate collisions, and polarity alignment applies to point-to-point backhaul, not client coverage.

Designing Wi-Fi for Large Public Venues (LPV) such as stadiums, arenas, or convention centers requires a highly strategic RF approach to handle extreme client density and dynamic environmental factors .

According to RUCKUS One Online Help – High-Density Design Best Practices and RUCKUS AI Documentation – LPV Deployment Planning , three critical considerations are:

Expected number of devices (B): Determines AP count, bandwidth capacity, and airtime utilization. LPV environments often exceed one device per seat, requiring precise capacity planning.

Effect of human bodies on RF propagation (D): Human absorption of 2.4 GHz and partial reflection of 5 GHz signals dramatically affects coverage. RUCKUS recommends directional antennas and elevated AP placement to overcome this.

Versions of iOS and Android (F): Client device capability (e.g., Wi-Fi 5/6 support, roaming features) influences channel width, band steering, and roaming design.

Other factors like WAN speed and charging stations are operational but not primary design variables in LPV RF engineering.

Post-deployment validation ensures that the installed WLAN physically matches the RF design. RUCKUS RCWA material specifically identifies location, orientation, and physical mounting as key installation-validation considerations. An AP installed several feet away from its planned position can materially alter the predicted RF cell. Incorrect orientation can point the antenna pattern away from the intended coverage area, while improper physical mounting can alter performance or create installation problems. The survey should therefore confirm that each AP is in its planned location, is physically installed correctly, and has the intended orientation. Proximity to a power outlet is not normally relevant for PoE-powered enterprise APs, and proximity to a particular Cat 6E outlet is not one of the three RF validation criteria. LED direction is operationally irrelevant. Scribd

================

RUCKUS BeamFlex+ is an advanced adaptive antenna technology that dynamically selects from thousands of possible antenna patterns to optimize signal quality and performance for each client connection. Unlike Transmit Beamforming (TxBF) , which depends on feedback from client devices that must support specific beamforming protocols, BeamFlex+ operates entirely on the access point side .

The key advantage of BeamFlex+ is that it does not require any client-side support or compatible drivers . It continuously analyzes signal characteristics and client locations to select the optimal antenna pattern in real time, enhancing both range and throughput without additional client configuration.

According to the RUCKUS One Online Help and RUCKUS AI documentation , BeamFlex+ combines adaptive antenna pattern selection with polarization diversity (PD-MRC) to improve performance in dynamic environments. In contrast, Tx Beamforming requires explicit feedback (channel state information) from clients—limiting its effectiveness when clients lack driver or chipset compatibility.

Thus, the correct answer is D , as BeamFlex+ provides all the benefits of adaptive beamforming without the need for client-side dependencies.

When onboarding access points (APs) to RUCKUS One , the system requires essential identifiers to register and associate the devices with the correct organization and physical site.

According to RUCKUS One Online Help – Device Onboarding and Registration , administrators must specify:

Device Serial Number (A): Unique hardware ID for authentication and cloud linkage.

Device Model (B): Ensures the correct firmware image and configuration profile are applied.

Venue to Assign to Devices (D): Determines the logical and geographical site placement for analytics and management grouping.

Device name and WLAN settings are optional and configured later after registration.

A SmartZone cluster backup is a comprehensive backup of the controller cluster’s system and configuration data, intended for disaster recovery or migration to similar SmartZone platforms. According to the RUCKUS One Online Help – Cluster Backup and Restore and SmartZone Administration Guide (v5.2+) , a cluster backup includes:

Cluster and controller configuration , including IP addressing, zones, AP groups, WLANs, and policies.

Client statistical data and historical analytics , which are also captured for restoration of system monitoring data.

When a cluster backup is initiated, the controller enters maintenance mode to ensure database consistency and prevent configuration changes during the process. This temporarily suspends management operations but preserves data integrity.

Cluster backups cannot be restored to different SmartZone models (e.g., vSZ to SZ-100) due to hardware and licensing differences. Backups also require system services to be active during execution.

Therefore, the correct answers are B (contains IP addressing and client statistical information) and D (puts the controller into maintenance mode when executed).

For Voice-over-Wi-Fi (VoWiFi) deployments, RUCKUS recommends maintaining airtime utilization under 50% and ensuring a minimum RSSI of –65 dBm at the edge of coverage areas to guarantee clear call quality and low latency.

According to RUCKUS One Online Help – WLAN Design for Real-Time Applications and RUCKUS AI Documentation – VoIP Quality Optimization , these thresholds ensure a Signal-to-Noise Ratio (SNR) above 25 dB, keeping jitter under 30 ms and packet loss below 1%.

RUCKUS SmartCast QoS automatically prioritizes voice packets (802.11e WMM Voice AC) to further protect call performance, but maintaining low channel congestion remains critical.

RUCKUS Analytics 3.5 User Guide – Airtime and Voice Traffic Metrics emphasizes monitoring airtime utilization through dashboards to verify compliance with design thresholds.

The IEEE 802.11k amendment enhances Wi-Fi client roaming by allowing an AP to share information about nearby access points with connected clients. This process, known as the Neighbor Report , provides a list of available APs that the client can use to make faster, more informed roaming decisions.

When a client device receives this neighbor list, it can scan fewer channels , reducing latency and improving the handoff experience—especially in enterprise networks managed by RUCKUS One , SmartZone , or RUCKUS Cloud . According to RUCKUS One Online Help and RUCKUS AI documentation , enabling 802.11k/v/r features together allows for fast and seamless roaming , as 802.11k supplies discovery data, 802.11v assists with steering decisions, and 802.11r enables fast re-authentication.

Option C is correct because 802.11k’s core function is to help clients identify the best potential APs to roam to. The other options describe unrelated functions: encryption caching relates to 802.11r, ignoring weak clients is an AP policy function, and forcing disconnections occurs during load balancing or steering—not through 802.11k.

SmartCast is RUCKUS’s advanced Quality of Service (QoS) engine that prioritizes latency-sensitive traffic such as voice, video, and real-time collaboration apps .

According to RUCKUS One Online Help – SmartCast Overview and RUCKUS Analytics 3.5 User Guide – QoS Monitoring , SmartCast identifies traffic types using Deep Packet Inspection (DPI) and applies 802.1p/DSCP markings to preserve QoS across wired and wireless segments.

It dynamically manages airtime scheduling and retransmissions to maintain low delay and jitter. Other features—like BeamFlex+ (antenna optimization) or ChannelFly (channel selection)—do not handle traffic prioritization.

A WISPr walled garden defines the destinations that unauthenticated users are permitted to access before completing captive-portal authentication. When an external logon portal depends on additional domains, authentication systems, content-delivery services, or other external resources, those destinations must be reachable during the pre-authentication phase. If the necessary addresses are absent from the walled-garden configuration, the client may reach the initial portal but fail when that portal attempts to load other required external resources. RUCKUS SmartZone documentation defines the walled garden as a limited environment to which unauthenticated users are explicitly granted access while establishing their account or completing onboarding. Post-authentication redirection concerns what happens after authentication, while client isolation does not control external portal reachability. Therefore, D is correct. Ruckus Wireless Documentation

================

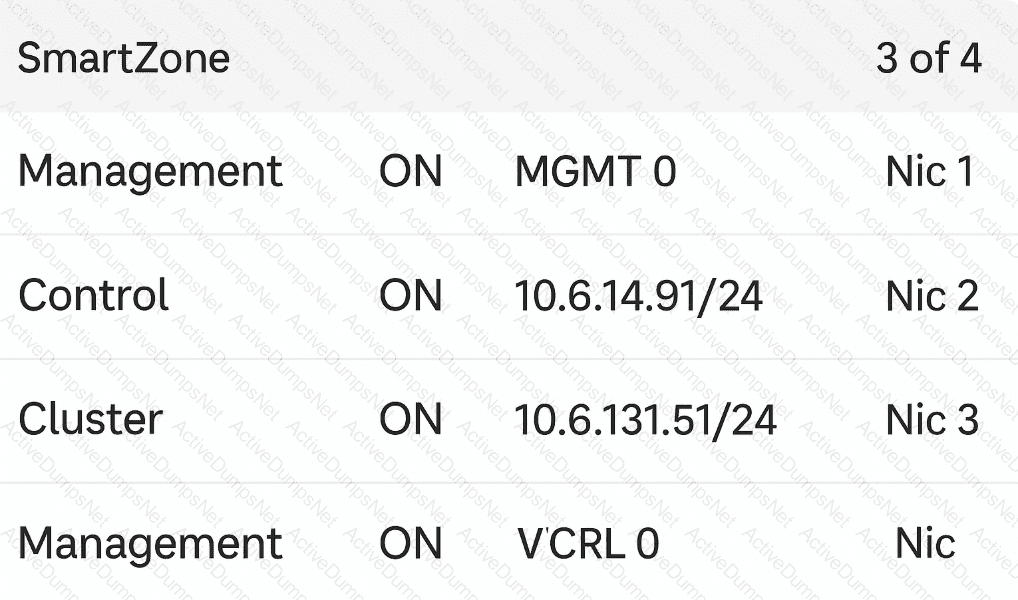

The exhibit shows a virtual SmartZone (vSZ) configuration running in a VMware environment with three separate virtual NICs (vNICs) , each mapped to a different port group: Management , Control , and Cluster .

According to RUCKUS One Online Help – SmartZone Interface Configuration and RUCKUS AI Documentation – SmartZone High-Scale Architecture , this design is specific to vSZ-H (High-Scale) deployments, which require three distinct network interfaces for distributed control, management, and cluster synchronization.

The three NIC mappings confirm physical or virtual separation of traffic for scalability and redundancy ( A and E ). vSZ-E (Essentials) requires only two interfaces (Management and Control) and does not use a dedicated cluster interface, distinguishing it from vSZ-H ( D ).

There is no indication of a four-node cluster in the exhibit, and SmartZone appliances typically show node counts under the Cluster Dashboard, not at the NIC configuration stage.

Thus, based on the configuration, this is a vSZ-H system with three NICs and three port groups , each serving a dedicated function.

When spectrum analysis mode is enabled on a RUCKUS Access Point , the AP’s radios are temporarily dedicated to spectrum scanning and interference analysis, meaning they cannot serve wireless clients during that period. Therefore, new clients will not be able to join , and existing clients are typically disconnected.

According to the RUCKUS One Online Help – Spectrum Analysis Tool and RUCKUS AI Documentation – RF Monitoring and Optimization , spectrum analysis mode captures and reports RF energy utilization , identifying interference sources such as non-Wi-Fi devices, microwave ovens, or Bluetooth. The AP alternates its radio into “sniffer” mode to analyze RF characteristics, during which client association and data traffic handling are suspended .

The output is visualized through graphs and real-time utilization charts , not histograms. Furthermore, an AP can only scan one band (either 2.4 GHz or 5 GHz) at a time — not both simultaneously.

Thus, the correct answer is A , since enabling spectrum analysis prevents new client associations while the AP is in scanning mode.

In SmartZone , Generic Routing Encapsulation (GRE) tunnels are used to encapsulate client traffic and forward it to a remote gateway, typically for security or centralized routing.

As described in RUCKUS One Online Help – GRE Tunneling Configuration , a tunnel profile becomes available for WLAN association only when it is explicitly linked to an AP Zone . This ensures that all APs in the zone can apply the correct tunnel endpoint and keying parameters.

If a GRE profile is not mapped to a zone, it will not appear in the WLAN configuration dropdown , even if successfully created.

Other options are incorrect because SmartZone supports GRE for WLANs by design, split-tunnel profiles are optional, and tunnel count limitations are far higher than typical enterprise use.

RUCKUS Directed Multicast improves wireless multicast delivery by converting qualifying multicast frames into individual unicast transmissions for associated wireless clients. The primary advantage is that unicast frames can use higher negotiated PHY rates and receive normal IEEE 802.11 acknowledgements, improving reliability and often reducing airtime consumption compared with multicast transmission at conservative basic rates. RUCKUS documentation specifically describes the qos directed-multicast behavior as converting IGMP multicast traffic to unicast. Directed Multicast should therefore not be confused with routing multicast between VLANs, simply permitting multicast across WLANs, or multicast pruning. RUCKUS also combines multicast optimization with SmartCast QoS functionality in its AP portfolio. These techniques are particularly useful for applications such as streaming media and other multicast-dependent services operating over enterprise wireless networks. Ruckus Wireless Support

================

RUCKUS identifies two primary influences on Wi-Fi airtime utilization: external RF interference, including non-Wi-Fi energy, and medium contention. Non-Wi-Fi devices such as microwave ovens, Bluetooth equipment, cameras, or other RF emitters can occupy the channel and reduce the amount of usable airtime available to Wi-Fi transmissions. Medium contention occurs because 802.11 uses a shared half-duplex medium in which stations must compete for transmission opportunities. As more devices contend for access, additional waiting and retransmission overhead can reduce effective throughput. The RUCKUS RCWA study material explicitly identifies external non-Wi-Fi RF energy and medium contention as the two principal airtime-utilization influencers. Free-space path loss and wall attenuation primarily affect signal propagation, while a short guard interval is intended to improve PHY efficiency rather than directly create excessive airtime utilization. Ruckus Training

================

In SmartZone , WLAN Groups define which SSIDs (WLANs) are broadcast by specific APs or AP Groups. However, for an AP Group to actually broadcast the WLANs from a WLAN Group, that WLAN Group must be explicitly assigned to the AP Group’s radio interfaces (2.4 GHz, 5 GHz, or 6 GHz).

According to RUCKUS One Online Help – WLAN Group Configuration and SmartZone Administrator Guide , when an AP Group does not have a WLAN Group bound to its radios, the SSIDs in that group will not be broadcast—even if both exist within the same Zone.

Creating the WLAN Group at the Domain level or Zone level is valid, but broadcasting depends on association at the AP Group radio level.

RUCKUS Analytics is a cloud-based network intelligence platform integrated with RUCKUS One that provides service-level assurance (SLA) and end-user experience visibility across multiple sites and networks.

According to the RUCKUS Analytics 3.5 User Guide , it leverages AI-driven baselines and telemetry data from access points and switches to:

Detect anomalies

Measure Wi-Fi performance against SLAs

Generate detailed client experience reports

SmartZone Essentials handles local management, ZoneDirector is legacy controller software, and SmartMesh is a wireless backhaul technology—not a management analytics system.

Client Load Balancing in RUCKUS WLANs is designed to optimize client distribution among nearby access points, preventing over-association to a single AP and improving overall airtime efficiency.

According to the RUCKUS One Online Help – Load Balancing and Band Steering and RUCKUS Analytics 3.5 User Guide – Client Distribution Analysis , SmartZone load balancing can be configured using two key parameters:

Client RSSI (B): The system evaluates the signal strength of a client device relative to multiple APs to ensure that it connects to the most suitable AP, not necessarily the strongest or first one detected.

Client Count (C): Balances client connections by redistributing associations when one AP exceeds a configured threshold compared to its neighbors.

AP capacity and device type are not direct load-balancing criteria, and proximity is implicitly derived from RSSI measurements rather than configured explicitly.

Therefore, the correct answers are B (Client RSSI) and C (Client count) .

The Rule of 10s and 3s provides a fast approximation for converting logarithmic dBm values into absolute power in milliwatts. A 10 dB increase multiplies power by ten, while a 3 dB increase approximately doubles it. Start with the standard reference of 20 dBm = 100 mW. Because 17 dBm is 3 dB below 20 dBm, the power is approximately halved: 100 mW ÷ 2 = 50 mW. Therefore, 17 dBm corresponds to approximately 50 mW. The exact mathematical value is about 50.1 mW, so option C is also accurate beyond the quick approximation. RUCKUS technical specifications routinely express transmit and receive power in dBm while antenna gain is specified separately in dBi, making these conversions fundamental to RF planning and troubleshooting. RUCKUS Networks

================

To maintain seamless client roaming in enterprise-grade Wi-Fi environments, RUCKUS recommends 20–25% signal overlap between adjacent AP coverage cells.

According to RUCKUS One Online Help – Roaming and Coverage Design Guidelines , this overlap ensures clients maintain an adequate RSSI and SNR threshold during roaming events without coverage gaps.

RUCKUS Analytics 3.5 User Guide – Client Mobility Analysis confirms that insufficient overlap often leads to disconnects or sticky-client behavior, while excessive overlap increases co-channel interference.

This guideline applies across 2.4 GHz and 5 GHz deployments, ensuring smooth transitions for 802.11r/k/v-enabled clients.

RUCKUS One is the cloud-managed, AI-enabled converged network-management platform in the RUCKUS portfolio. It provides centralized deployment, monitoring, troubleshooting, and management of geographically distributed wired and wireless networks from a cloud interface. RUCKUS specifically describes RUCKUS One as an AI-enabled network-management-as-a-service platform capable of managing both single-site and distributed multi-site environments. Its AI-driven capabilities include incident analytics, service assurance, anomaly detection, and operational insights that help administrators identify and remediate network problems. ZoneDirector is a traditional controller platform and does not provide the RUCKUS One cloud architecture. Unleashed is intended primarily for controller-less deployments, while Network Director does not represent the current RUCKUS cloud-management and AI platform described in the question. Therefore, RUCKUS One satisfies all three requirements. RUCKUS Networks

================

In this SmartZone 5.2 onboarding scenario:

San Mateo (200.7.10.202.121): These APs are running Unleashed firmware , which cannot directly join a SmartZone controller. According to the RUCKUS One Online Help – AP Firmware Migration , Unleashed APs must first be converted to Standalone (Solo) mode using CLI (set director ip < SZ_IP > or set scg ip) before they can connect. Thus, D (San Mateo devices can use ap-mode commands to onboard) is correct.

Toronto (102.0.0.0.5): This firmware version represents ZoneDirector (ZD) code. APs on ZD firmware communicate using LWAPP , and to migrate them, administrators must perform a firmware conversion process (using set scg ip) for SmartZone compatibility. Therefore, E (Toronto devices will use LWAPP to communicate to SmartZone) is correct.

Mexico City (5.2.0.0.1412): These APs already match the SmartZone firmware family (5.2.x), meaning they are currently or can immediately be managed by this SmartZone cluster. Therefore, F is correct.

The SmartZone Trace Tool enables administrators to capture packet-level traces from selected APs, clients, or controller interfaces to troubleshoot communication issues.

As defined in RUCKUS One Online Help – Trace and Packet Capture , this tool is used to analyze AP-to-controller join problems, authentication failures, or network latency conditions. Administrators specify the client MAC and associated AP(s) to collect targeted trace logs.

RUCKUS Analytics 3.5 User Guide – Client Troubleshooting Section further notes that trace outputs can be downloaded as .pcap files for Wireshark analysis, providing detailed visibility into control-plane and data-plane interactions.

Other options serve different roles: AP Debug Mode provides command-line diagnostics; Network Health Dashboard shows aggregated metrics; Cluster Diagnostics assesses overall cluster health.

In high-density environments such as stadiums or auditoriums, ceiling height and material directly influence signal propagation, attenuation, and AP coverage patterns .

As defined in RUCKUS One Online Help – High-Density Wi-Fi Design Guidelines , proper AP placement and downtilt must account for ceiling height and reflective surfaces to avoid co-channel interference and ensure sufficient SNR for every seat zone.

RUCKUS Wi-Fi Planner includes modeling tools for line-of-sight optimization and reflective surface analysis. DHCP and VLAN configurations affect logical segmentation but not physical RF propagation.

Cloud Auto-Upgrade is a RUCKUS One feature that automatically updates AP firmware to the latest stable release without requiring manual scheduling.

According to RUCKUS One Online Help – Firmware and Lifecycle Automation , this capability ensures security compliance and performance optimization across managed APs. Administrators can opt in or out of automatic updates per site or organization.

SmartZone uses manual scheduling via Image Management , while RUCKUS One provides hands-free upgrades integrated into its cloud management platform.

Using the Rule of 10s and 3s, begin with the known reference that 30 dBm equals 1,000 mW, or 1 watt. A reduction of 3 dB approximately halves the absolute power. Therefore, subtracting 3 dB from 30 dBm gives 27 dBm, while halving 1,000 mW gives 500 mW. Consequently, 500 mW corresponds to approximately 27 dBm, making option A correct. The exact logarithmic calculation, \(10 \log_{10}(500)\), produces approximately 26.99 dBm, which rounds to 27 dBm. RUCKUS access-point specifications use dBm extensively for transmitter power and receiver sensitivity, while RF design calculations use these logarithmic relationships to evaluate link budgets, coverage, EIRP, attenuation, and acceptable operating power levels. RUCKUS Networks

================

When configuring an 802.1X-secured WLAN , RUCKUS systems such as SmartZone , RUCKUS One , or RUCKUS Cloud typically rely on an external RADIUS server for user authentication. However, in the event of a controller failure or connectivity loss to the RADIUS server , RUCKUS APs can continue to authenticate users locally if the local user database is enabled and configured.

The Local Authentication Database allows APs or controllers to store a limited set of credentials that can be used when external AAA services are unavailable. This ensures continued access and redundancy for critical WLANs without requiring external dependency. According to RUCKUS One Online Help – WLAN Configuration and AAA Settings , enabling the Local Authentication Database provides fallback authentication for 802.1X clients during system or connectivity failures.

In contrast, the proxy and non-proxy modes define how authentication requests are relayed to the RADIUS server, while Dynamic PSK (DPSK) is a separate authentication method that replaces 802.1X with per-user keys.

Image Management in SmartZone automates the firmware upgrade process for APs, ensuring consistent software versions across all zones and AP models.

As detailed in RUCKUS One Online Help – Image Management and Firmware Control , administrators can upload, assign, and schedule firmware images by zone. The system automatically validates version compatibility before deployment to prevent mismatched or unsupported upgrades.

RUCKUS Analytics 3.5 User Guide – Firmware Compliance Monitoring confirms that this ensures version uniformity across large distributed networks.

Options like Zone Upgrade Scheduler and AP Provisioning Policy are part of related workflows but not the primary feature controlling image management.

In SmartZone Active-Active cluster redundancy, one active cluster acts as the configuration source while the other active clusters operate as target clusters. The source cluster periodically creates and pushes configuration backups to the target clusters so that configuration remains synchronized across the redundancy topology. Unlike Active-Standby operation, every Active-Active cluster remains operational rather than placing target clusters into a read-only state. RUCKUS documentation specifies that only one cluster can enable scheduled configuration synchronization, and administrators are advised to make configuration changes primarily on that source cluster. Target clusters periodically receive and restore the synchronized configuration. Therefore, the source cluster ' s defining role is to distribute and synchronize configuration data to its target clusters, making option C correct. Ruckus Wireless Documentation

================

Band Steering is a RUCKUS feature designed to guide dual-band capable clients toward the 5 GHz band , which generally provides better performance and less interference than 2.4 GHz.

As described in RUCKUS One Online Help – Band Steering Configuration and RUCKUS AI Documentation – Client Connectivity Optimization , when a client attempts to connect, the AP temporarily delays responses to 2.4 GHz probes, encouraging the client to associate on 5 GHz.

This feature enhances airtime efficiency and reduces congestion in dense environments. Band Balancing distributes clients between APs, while SmartCast and ChannelFly manage QoS and channel optimization, respectively.
