Comprehensive and Detailed Explanation

To diagnose specific VPN negotiation failures (Phase 1 or Phase 2 IPSec issues), the Event Logs (specifically filtered for System or VPN events) are the correct resource.

Event Logs: This section records the control plane signaling messages. If a VPN tunnel fails to establish, the Event Log will generate an entry containing the specific IKE failure reason sent by the peer or generated locally. Common errors found here include INVALID_COOKIE, NO_PROPOSAL_CHOSEN (mismatch in encryption algorithms), or PRE_SHARED_KEY_MISMATCH.

Flow Browser (A): This shows user traffic (TCP/UDP sessions). If the VPN is down, user traffic won't even enter the tunnel, so the Flow Browser will just show dropped flows or blackholes, but it won't explain why the tunnel itself is broken.

Link Quality (D): This shows latency/loss graphs for established tunnels. It cannot diagnose why a tunnel failed to form in the first place.

Comprehensive and Detailed Explanation

The best practice for managing upgrades in a large-scale Prisma SD-WAN environment is the Canary or Phased Rollout approach, utilizing Site Tags.

Risk Mitigation: Upgrading all sites simultaneously (Option B) is highly risky. If the new software version has an unforeseen bug or compatibility issue with a specific circuit type, the entire network could face an outage.

Tag-Based Management: Administrators should create tags such as "Upgrade-Phase-1" (Pilot sites) or "Region-North". By assigning the specific Software Version to the Tag (rather than the individual site or the global default), the controller pushes the update only to that subset of devices.

Procedure:

Apply update to "Pilot" tag (5 sites). Monitor for 24-48 hours.

Apply update to "Region-1" tag (50 sites). Monitor.

Eventually, update the Global default once confidence is high.

Option A is unscalable, and Option D is incorrect as the administrator retains full control over when upgrades occur; they are not forced automatically without policy configuration.

In Prisma SD-WAN, the Signal-to-Noise Ratio (SNR) is a critical metric used to monitor the health and performance of cellular WAN interfaces. SNR measures the strength of the desired signal relative to the background noise level; higher values indicate a cleaner signal, while lower values suggest that noise is overwhelming the signal, typically leading to increased packet loss, high latency, and reduced throughput.

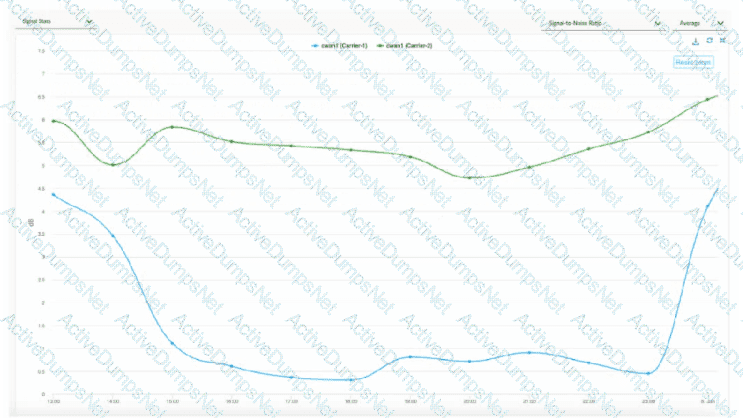

Analyzing the provided graph, Carrier-1 (blue line) shows a severe drop in SNR, plummeting from approximately 4.5 dB to nearly 0.3 dB between 15:00 and 23:00. An SNR value this low is indicative of a failing or highly unstable link that cannot reliably sustain data traffic, directly supporting Inference A—that Carrier-1 experienced significant performance degradation. In contrast, Carrier-2 (green line) maintains a much higher and more consistent SNR throughout the same period.

Prisma SD-WAN’s AppFabric uses application-based path selection and SLA monitoring to ensure the best possible user experience. When the system detects that a primary path (like Carrier-1) has degraded below acceptable thresholds—often triggered by high loss or latency resulting from poor signal quality—it will dynamically steer application flows to an alternative healthy path. Therefore, Inference D is correct: because Carrier-1’s quality became untenable while Carrier-2 remained stable, the ION device would have likely initiated a path switchover to move traffic from the degraded Carrier-1 to the healthier Carrier-2.

Comprehensive and Detailed Explanation

The AppX (Application Experience) score is a proprietary metric used by Prisma SD-WAN to provide a holistic view of user experience, rather than just network statistics. It is calculated based on three key components:

Transaction Failure Rate (A): The percentage of application transactions that failed (e.g., TCP resets, HTTP 500 errors). This indicates availability.

Network Transfer Time (B): The time taken for packets to traverse the network (WAN/LAN latency). This indicates network health.

Server Response Time (C): The time taken by the application server to respond to a request. This indicates backend performance.

Why not D or E?

Bandwidth Utilization (D) is a capacity metric, not a direct measure of quality. A link can be 90% full but still deliver packets quickly (good AppX), or 10% full but dropping packets (bad AppX).

Jitter (E) is a network-layer metric primarily relevant for UDP Real-Time media. While important, the high-level "AppX" score for general TCP apps focuses on the "Time-to-Glass" metrics (NTT/SRT) and success rates.

Comprehensive and Detailed Explanation

Prisma SD-WAN utilizes a sophisticated decision engine for Application-Based Path Selection that goes beyond simple failover. When configuring a Path Policy, the administrator defines "Active" paths and a "Path Quality Profile" (SLA).

SLA Compliance (The Filter): First, the system filters the available paths based on the Path Quality Profile. In this scenario, both ISP-A and ISP-B have 40ms latency against a 150ms threshold. Both are "green" or compliant paths.

Selection Criteria (The Tie-Breaker): When multiple paths are configured as "Active" and all meet the performance SLA, the ION device aims to optimize the overall user experience and network utilization. The default behavior for load balancing across healthy, compliant active paths is to select the path with the highest available bandwidth capacity.

By steering new flows to the link with the most "headroom" (available Mbps), the system prevents the saturation of a smaller link (e.g., a 20Mbps DSL line) while a larger link (e.g., 1Gbps Fiber) sits underutilized. This maximizes the aggregate throughput for the site. While latency is the qualifier, bandwidth availability is often the selector for compliant paths. Note that if the application was defined as "Real-Time" and configured for packet duplication, behavior would differ, but for standard traffic, capacity-based distribution is the standard active/active logic.

Comprehensive and Detailed Explanation

Prisma SD-WAN supports Dynamic VPNs (Branch-to-Branch) even when both endpoints are behind Source NAT (e.g., typical broadband connections).

To achieve this, the ION devices utilize standard NAT Traversal techniques, specifically leveraging STUN (Session Traversal Utilities for NAT).

Discovery: Each ION communicates with the Cloud Controller (which acts as a STUN server/signaling broker). Through this communication, the controller observes the public IP and Port that the ION's traffic is coming from (the post-NAT address).

Signaling: The controller shares this public reachability information with the peer ION.

Hole Punching: The IONs then attempt to initiate connections to each other's discovered public IP/Port. This "UDP Hole Punching" allows them to establish a direct IPSec tunnel through the NAT devices without requiring static 1:1 NAT mapping or manual port forwarding on the provider routers, enabling mesh connectivity in commodity internet environments.

Comprehensive and Detailed Explanation

Prisma Access manages Remote Network bandwidth using an Aggregate Bandwidth licensing model.

Compute Locations: When you purchase bandwidth (e.g., 1 Gbps), you allocate it to specific Prisma Access Compute Locations (e.g., US West, Europe Central).

Shared Pool: All branch sites (Remote Networks) that connect to that specific Compute Location share the allocated bandwidth pool. For example, if you allocate 500 Mbps to "US West" and connect 10 branches to it, they compete for that 500 Mbps aggregate.

Bursting: An individual branch is not strictly rate-limited to a "slice" (e.g., 50 Mbps) unless you explicitly configure QoS guarantees. By default, a single branch can burst and consume a large portion of the aggregate pool if other branches are idle. The enforcement happens at the Region/Compute Node level, ensuring the total throughput does not exceed the licensed capacity for that region.

In the Prisma SD-WAN architecture, security is built directly into the AppFabric using a centralized, controller-led approach to key management. Unlike traditional VPNs that rely on manual Internet Key Exchange (IKE) or static Pre-Shared Keys (PSKs) which can be administratively burdensome and security-vulnerable, Prisma SD-WAN automates the entire lifecycle of encrypted tunnels. The Prisma SD-WAN Controller acts as the central authority for identity and key distribution for all ION (Instant-On Network) devices within the tenant's fabric.

Specifically, the VPN shared secrets used to secure these tunnels are ephemeral and are valid for exactly 24 hours. This 24-hour validity period is a security best practice implemented by Palo Alto Networks to limit the "blast radius" or window of exposure in the unlikely event that a key is compromised. The controller automatically handles the generation, distribution, and rotation of these secrets. Before the 24-hour timer expires, the controller pushes new keys to the ION devices, which then perform a hitless rollover. This ensures that the data plane remains active and encrypted without requiring manual intervention from a network administrator. If an ION device loses its control plane connection to the controller, it will maintain its existing tunnels using the current keys until they expire, at which point it must re-authenticate with the controller to receive a new set of valid secrets. This automated rotation is a core component of the Prisma SD-WAN Zero-Trust security model.

Comprehensive and Detailed Explanation

The Bypass Pair feature on Prisma SD-WAN ION devices (specifically supported models like ION 2000, 3000, 7000, 9000) is a hardware-based resiliency mechanism known as Fail-to-Wire.

Operation: A "Bypass Pair" logically groups two physical interfaces (e.g., WAN 1 and LAN 1). Under normal operation, the ION processes traffic between them.

Power Loss: In the event of a total power loss (or critical software failure), a mechanical relay inside the device physically closes the circuit between the two ports.

Result: This creates a direct electrical connection (like a patch cable) between the upstream device (ISP Modem) and the downstream device (Legacy Firewall or Router). This ensures that internet connectivity is preserved for the site, even if the SD-WAN appliance is completely dead. This is critical for single-point-of-failure deployments where maintaining basic dial-tone is more important than SD-WAN optimization during a hardware outage.

In the Prisma SD-WAN solution, multi-tenancy and network isolation are achieved through the use of Virtual Routing and Forwarding (VRF) instances. However, there are many operational scenarios—such as providing shared access to a common service (e.g., DNS, NTP) or a central Internet gateway—where traffic must transition between these isolated routing domains. This process is known as route leaking.

In the Prisma SD-WAN management interface, route leaking is specifically configured within the VRF Profile. Unlike traditional CLI-based routers where route leaking might be configured under a global routing table or individual VRF definitions via import/export targets, Prisma SD-WAN utilizes a profile-based approach to ensure scalability and consistency across multiple sites. A VRF Profile acts as a template that defines the routing behavior for specific VRFs across the fabric.

When an administrator navigates to the VRF Profile settings, they can define "Leaking Rules." These rules specify the "From VRF" (source) and "To VRF" (destination) parameters, along with the specific prefixes or default routes that should be shared. By placing this configuration within the VRF Profile rather than a site-specific configuration, Palo Alto Networks allows for a "configure once, apply many" workflow. Once the VRF Profile is updated with the leaking rules, any ION device associated with that profile will automatically update its local routing table to allow the specified inter-VRF communication. This centralized orchestration simplifies the management of complex segmentation requirements in large-scale SD-WAN deployments.

In Palo Alto Networks PAN-OS SD-WAN environments, automation and orchestration are key components for service providers managing large-scale deployments. The PAN-OS REST API provides a modern, structured way to programmatically manage configuration objects, including those required for SD-WAN functionality.

When an application is designed to push changes directly to devices (individual firewalls) rather than through a centralized template in Panorama, it must interact with the firewall's local REST API. To successfully create a virtual SD-WAN interface, the application must target the correct resource URI. In the PAN-OS API schema, the logical SD-WAN interface—which groups physical links to enable application-based path selection—is managed via the sdwanInterfaces parameter within the REST API.

It is important to distinguish between the interface itself and the profiles that support it. Option A refers to sdwanInterfaceprofiles, which are the objects used to define the characteristics of a link (such as bandwidth, link type, and monitoring frequency), but not the interface itself. Furthermore, since the scenario specifies making changes "directly to devices," the target must be the firewall rather than Panorama. While Panorama can manage these objects via templates, a direct-to-device automation workflow necessitates using the firewall’s REST API endpoint. Utilizing the REST API over the legacy XML API is the recommended standard for modern integrations due to its ease of use with JSON payloads and alignment with contemporary DevSecOps practices. By using the sdwanInterfaces parameter on the firewall, the MSP application can programmatically bind physical Layer 3 interfaces to the SD-WAN fabric.

Comprehensive and Detailed Explanation

In Prisma SD-WAN (CloudGenix), Zone-Based Firewall (ZBFW) policies rely on the device's ability to map an IP address to a User-ID to enforce identity-based rules. The key to this question is understanding where the mapping exists and which direction the policy attributes (Source User vs. Destination User) apply to.

1. Mapping Location (Branch-1): The prompt states that Branch-1 has the user-to-IP mapping for User-1. For the most effective and scalable security enforcement, policies should be applied at the source (ingress) device where the traffic originates and where the user identity is known. This prevents unauthorized traffic from consuming WAN bandwidth only to be dropped at the destination. Therefore, the Branch-1 ION is the correct enforcement point for User-1's traffic.

2. Source vs. Destination User:

User-1 is the Source: In all scenarios, User-1 is the initiator of the traffic. Therefore, the security rule must match on Source User-ID.

Options C and D are incorrect because they suggest using Destination User-ID based rules to control User-1. Destination User-ID rules are used when the target of the traffic is a known user (e.g., VoIP calls to a specific user's phone), not when filtering based on the sender. Furthermore, relying on the DC or Branch-2 ION to enforce policies for User-1 would require the propagation of User-ID mappings across the overlay, whereas local enforcement at Branch-1 is the standard architectural model.

3. Valid Use Cases (A and B):

Option A (SaaS/Internet): The Branch-1 ION acts as the internet gateway. It can use the local mapping (IP-1 = User-1) to allow or deny access to specific SaaS applications (Direct Internet Access) based on the user's identity (e.g., "Allow Marketing Group to access Social Media").

Option B (Internal Segmentation): The Branch-1 ION can enforce policies for traffic moving between local zones (e.g., from a "Users" VLAN to a "Servers" VLAN within the branch). Since the ION routes this traffic and holds the mapping, it can enforce Source User-ID policies to secure local private applications.

Comprehensive and Detailed Explanation

In a Prisma SD-WAN High Availability (HA) deployment, the HA Control Interface is the critical lifeline used to synchronize state, heartbeats, and flow information between the Active and Standby ION devices.

The strict requirement for this connection is that it must be Layer 2 adjacent.

Best Practice: A direct physical cable connection between the designated HA ports of the two devices (e.g., Port 2 on Device A to Port 2 on Device B).

Alternative: Connectivity through a switch on a dedicated, isolated VLAN is supported, provided the devices are in the same broadcast domain and subnet.

Routing (Layer 3) is not supported for the HA Control link because the keepalive mechanism relies on low-latency, multicast/broadcast-level adjacency to detect failures instantly (sub-second failover). If the HA link were routed (Option A), network latency or router convergence issues could cause "Split-Brain" scenarios where both devices assume the Active role, leading to IP conflicts and traffic loops. Option C is incorrect because the Controller is too slow to manage real-time failover; the decision must be local.

Comprehensive and Detailed Explanation

In Prisma SD-WAN (CloudGenix), Path Policies control how application traffic is steered across WAN links. To ensure that traffic is automatically shifted from a saturated circuit to another circuit with available bandwidth, both circuits must be configured as Active Paths within the policy rule.

When multiple paths are designated as "Active," the ION device treats them as a shared pool of available resources. The system continuously monitors the bandwidth utilization (capacity) and health (latency, jitter, loss) of all active links. If "Circuit A" (500 Mbps) becomes saturated or approaches its defined bandwidth limit, the ION's intelligent scheduler will automatically direct new application flows to "Circuit B" (100 Mbps) because it is a valid, healthy Active path with available capacity. This achieves effective load balancing and bandwidth aggregation.

In contrast, configuring "Circuit B" as a Backup Path (Option A or B) creates a strict priority relationship. Traffic would only move to the Backup path if the Active path completely failed or violated its configured SLA (Path Quality Profile) significantly enough to be considered "down." Mere bandwidth saturation might not trigger an SLA failure immediately, potentially leading to dropped packets on the saturated link while the backup link remains idle. Therefore, placing Both circuits under active path is the correct configuration for dynamic capacity management.

Comprehensive and Detailed Explanation

The RMA replacement process in Prisma SD-WAN is designed to be seamless, leveraging the decoupling of logical configuration from physical hardware.

Replace Device Workflow: The administrator should use the "Replace Device" (or RMA) function within the portal. This workflow allows you to select the "Defective" device (old serial) and the "Replacement" device (new serial).

Configuration Transfer: Once executed, the system automatically binds the existing Device Shell (which contains all interface configs, routing policies, and site associations) to the new hardware's serial number. The new device, once connected to the internet, will "call home," identify itself, and download the exact configuration of the previous unit.

License Transfer: While the configuration moves automatically, the Support License transfer typically requires a specific step in the Customer Support Portal (CSP) or happens automatically if processed as a formal RMA order. Options A and D are incorrect because they involve manual reconfiguration, which is unnecessary and error-prone. Option C is incorrect as the ION platform relies on cloud-based config management, not local USB backups for hardware swaps.

In Prisma SD-WAN, Performance Policies are the primary mechanism used to define the expected quality of experience for specific applications. Unlike traditional monitoring that relies solely on "up/down" interface states, Prisma SD-WAN focuses on the actual health of the application path. An incident is triggered when the system detects a violation of defined service-level agreement (SLA) thresholds, such as excessive latency, jitter, or packet loss, even if the physical link remains active.

When an administrator configures a performance policy, they set specific bounds for these metrics. For example, a VoIP application might have an SLA requiring latency below 150ms and packet loss below 1%. If the ION device detects that the current path (e.g., a broadband circuit) exceeds these limits, it generates a performance incident. This incident serves two purposes: first, it alerts the administrator to the degradation; second, it triggers the Path Selection engine to proactively steer the application traffic to a more suitable "Backup" or "Available" path that currently meets the SLA requirements.

Options B, C, and D represent system-level or network-level events that generate different types of alerts or incidents (System or Network incidents), but they are not the triggers defined within a Performance Policy. Performance policies are specifically concerned with the application's perceived performance across the fabric. By focusing on SLA violations rather than just physical link status, Prisma SD-WAN ensures that business-critical applications remain functional even during "brownout" conditions where a circuit is technically "up" but performing poorly.

When a Prisma SD-WAN ION device triggers the DEVICESW_CONCURRENT_FLOWLIMIT_EXCEEDED incident, it indicates that the number of active sessions has reached the hardware or software-defined capacity limit of that specific appliance. In the provided graph, we can see a massive spike in concurrent TCP flows on May 13th, reaching nearly 500k, which is a clear indicator of anomalous behavior—likely a "top talker" host, a malware outbreak, or a misconfigured application generating excessive connections.

To identify the specific host responsible for this surge, administrators should navigate to Monitor → Activity → Flows. This interface, commonly known as the Flow Browser, provides the most granular visibility into real-time and historical session data within the Prisma SD-WAN fabric. Unlike "Transaction Stats," which provide high-level summaries, or "New Flows," which only show the rate of session initiation, the Flows view allows an engineer to filter and sort the active session table by metadata such as Source IP, Destination IP, Application, and Site.

By utilizing the Flow Browser, an administrator can quickly group flows by "Source IP" to pinpoint exactly which internal host is consuming the most flow table entries. This is the standard "Day 2" operational workflow for troubleshooting performance and capacity incidents. While running a tcpdump (Option A) is a valid diagnostic for packet-level analysis, it is inefficient for identifying a single host among hundreds of thousands of flows and can further tax the device's CPU during a high-load event. The Monitor → Activity → Flows tool is designed specifically for this type of scale, providing the necessary visibility to remediate the flow limit exhaustion and restore normal network operations.

Comprehensive and Detailed Explanation

The Flow Browser and App Response Time metrics in Prisma SD-WAN are critical tools for isolating the fault domain—determining whether a problem lies in the "Network" or the "Application."

Network Transfer Time (NTT) / Round Trip Time (RTT): These metrics measure the time it takes for packets to traverse the network (WAN/LAN) and for acknowledgments to return. A low NTT (e.g., <50ms) confirms that the network pipes (SD-WAN overlay, Underlay circuits) are healthy and transporting packets quickly.

Server Response Time (SRT): This metric specifically measures the time between the server receiving a request and the server sending the first byte of the response. It essentially measures the "processing time" of the backend server.

In the scenario described, the network metrics (NTT/RTT) are excellent, effectively ruling out WAN congestion, packet loss, or latency (Option A and C). However, the Server Response Time (SRT) is very high (500ms). This signature is a definitive indicator that the network delivered the request instantly, but the application server took a long time to process it. This points the troubleshooting effort toward the server infrastructure (e.g., a slow SQL query, an overloaded web server, or lack of compute resources) rather than the SD-WAN environment.

In the Prisma SD-WAN (Instant-On Network) architecture, the "Secure Fabric" is a key feature that simplifies VPN orchestration through automation. When an ION device is deployed at a site and associated with a specific role, the Prisma SD-WAN Controller automatically manages the establishment of encrypted VPN tunnels without requiring manual IPsec configuration.

The most fundamental tunnel type is Branch gateway to data center (Option B). By default, the system follows a hub-and-spoke model where every branch ION device automatically attempts to build secure tunnels to all available Data Center clusters within its domain. This ensures that branch locations have immediate, redundant connectivity to centralized corporate resources and applications as soon as they are brought online.

Additionally, Prisma SD-WAN supports automated Branch gateway to branch gateway connectivity (Option C). Unlike traditional architectures that backhaul all traffic through a central hub, the Prisma SD-WAN fabric can dynamically establish "spoke-to-spoke" tunnels between branch gateways to facilitate direct communication. This is particularly useful for latency-sensitive applications like Voice over IP (VoIP) or video conferencing. While this can be configured as a "full mesh" where all sites build tunnels to all other sites, the controller intelligently manages these connections based on the defined site roles and domain configurations to optimize resource usage and performance. Options A and D are incorrect because the fabric orchestration logic is primarily focused on the functional roles of the gateways (Branch vs. Data Center) rather than "domains" in the context of tunnel initiation.

In complex retail or banking environments, maintaining strict network segmentation is a regulatory and security requirement. Prisma SD-WAN utilizes Virtual Routing and Forwarding (VRF) to provide this isolation, ensuring that high-security traffic, such as ATM transactions or teller cash registers, remains logically separated from Guest Wi-Fi or general corporate applications. While isolation is the default state, route leaking is used to allow specific communication between these VRFs—for instance, allowing multiple isolated segments to reach a common shared service like a DNS server or a centralized security gateway.

To verify that these configurations have been correctly pushed from the Controller to the local ION device, administrators utilize the ION CLI (Command Line Interface) for deep-dive diagnostics. The command inspect vrf route_leak_rule all is the definitive tool for this purpose. Unlike "show" commands which typically provide interface status, "inspect" commands in the Prisma SD-WAN ecosystem are designed to pull real-time operational state data from the control plane's internal databases.

When executed, this command displays the specific prefix-level rules that allow routes to "leak" from one VRF table into another. It provides visibility into the source VRF, the destination VRF, and the exact network prefixes or default routes being shared. This is critical for troubleshooting "Day 2" operations; if a teller register cannot reach a shared database, the administrator can use this command to confirm if the necessary route leak rule is active and accurately reflecting the intent of the VRF Profile configured in the portal. Without this command, verifying inter-VRF reachability would be limited to trial-and-error connectivity tests, making it an essential part of the Prisma SD-WAN engineer's toolkit.

Comprehensive and Detailed Explanation

In a Prisma SD-WAN Data Center deployment, the operational state of the Secure Fabric VPNs (overlay tunnels) is directly tied to the health of the BGP Core Peer configuration.4

Core Peer Dependency: DC ION devices typically peer with the data center core switch (Core Router) via BGP to learn the subnets (prefixes) for the applications hosted in the DC. The Prisma SD-WAN controller monitors this BGP peering status.5

Controller Logic: If the BGP Core Peer on a DC ION goes down (or is not established), the controller automatically marks the VPN tunnels terminating at that specific ION as "Inactive".6 This is a fail-safe mechanism designed to prevent remote branches from sending traffic to a DC ION that has lost conne7ctivity to the internal data center network (and thus the applications).

Scenario Analysis: In this scenario, DC ION-1 has active VPNs, meaning its BGP Core Peer is UP and it is successfully advertising reachability. DC ION-2 has no active VPNs, which strongly indicates that its BGP Core Peer is down.8 Because the controller sees the peer is down, it suppresses the tunnel establishment or marks existing tunnels as inactive to ensure traffic is only directed to the healthy node (ION-1).

Palo Alto Networks IoT Security relies on rich metadata and traffic logs to identify, classify, and secure devices across the network. A critical component of this discovery process is the ingestion of DHCP (Dynamic Host Configuration Protocol) traffic. DHCP packets contain vital information about a device, such as the MAC address, vendor-specific identifiers (Option 60), and hostnames, which are used by the machine learning engine to create a precise device profile.

In a Prisma SD-WAN environment, if the ION devices are not involved in the DHCP process, the necessary logs cannot be forwarded to the Strata Logging Service (SLS) for analysis by the IoT Security cloud. To ensure successful discovery, the ION device at the branch must be explicitly configured as either the DHCP Server for the local segment or as a DHCP Relay Agent. When the ION handles DHCP traffic, it automatically extracts and sends the relevant metadata to the cloud.

If the ION is bypassed—for example, if a local Layer 3 switch is handling DHCP internally without relaying it to the ION—the IoT Security service will lack the context needed to move beyond basic IP-level visibility. Without these DHCP-derived "fingerprints," the system cannot perform the full classification required to apply granular security policies or identify potential vulnerabilities. Therefore, verifying that the ION device is correctly integrated into the DHCP lifecycle is the primary troubleshooting step for incomplete IoT device discovery in the Prisma SD-WAN portal.

Comprehensive and Detailed Explanation

Prisma SD-WAN separates real-time visibility from historical summarization.

Reports (C): The Reports section is the dedicated engine for generating historical summaries. Administrators can create custom report templates (e.g., "Monthly Executive Summary") that include specific widgets like "Top Applications by Volume," "Site Availability," or "Circuit Utilization." Crucially, this feature allows for Scheduling, where the system automatically generates the PDF report at a set interval (e.g., first day of the month) and emails it to a distribution list.

Activity Charts (A) / Media Analytics (B): These provide interactive, visual graphs for ad-hoc analysis but are not designed for generating downloadable, scheduled PDF summaries for management.

Flow Browser (D): This is for deep-dive troubleshooting of individual sessions, not for high-level aggregate reporting.

Prisma SD-WAN Copilot is an AI-powered operational tool designed to simplify network management through Natural Language Processing (NLP). Traditionally, identifying a bandwidth "hog" required manual navigation through multiple dashboards, such as WAN Clarity and the Flow Browser, to correlate source IP addresses with specific application flows and timestamps. Copilot transforms this workflow by allowing administrators to interact with the system using conversational queries.

When an administrator inputs a query like “Show top bandwidth source IPs at SD-WAN Branch X over last 3 hours,” Copilot leverages its underlying machine learning models and integrated data lake to aggregate telemetry across the entire fabric. It instantly identifies the specific source IPs responsible for the highest throughput and correlates that data with application visibility. Instead of providing a static report or redirecting the user to other tools, Copilot presents an interactive, summarized view directly within the interface. This view highlights the top-consuming users and breaks down their consumption by application, such as YouTube, Netflix, or business-critical SaaS tools.

This capability significantly reduces the Mean Time to Resolution (MTTR) for performance issues. By bypassing the need for manual data correlation, Copilot provides immediate "Day 2" operational insights. It effectively acts as a virtual assistant that understands the context of the network topology, site names, and time ranges, allowing the administrator to quickly determine if a branch's slow performance is due to an individual user's behavior or a broader infrastructure issue.

Comprehensive and Detailed Explanation

In the Prisma SD-WAN (CloudGenix) Zero Touch Provisioning (ZTP) lifecycle, the device status transitions through specific stages that indicate its readiness and connectivity.

When an administrator enters the Claim Code (or Serial Number/Claim Code pair) into the portal, the device status immediately updates to "Claimed".

This status confirms that the portal has registered the device's unique identity and associated it with the customer's tenant. However, "Claimed" does not necessarily mean the device is fully operational or passing traffic yet. It simply signifies that the ownership is verified.

Once the physical device at the site successfully connects to the internet and reaches the Prisma SD-WAN Controller (using the call-home function), it will authenticate using its installed certificate. Upon successful authentication and the establishment of the secure control channel, the status will transition from "Claimed" to "Online".

Only after the device is "Online" can the controller push the specific site configuration (Device Shell), policies, and IP addressing required for the device to become "Provisioned" and eventually "Active" in the data path. If the device remains in the "Claimed" state for an extended period, it indicates that the hardware has not yet successfully contacted the controller, which prompts troubleshooting of the physical internet circuit or firewall rules upstream.
