Oracle 1z0-821 Oracle Solaris 11 System Administration Exam Practice Test

B: Setting the default route on Solaris is easy. If you are trying to just set the route temporarily you can use the route command:

Route add default

Example:

Route add default 192.168.1.1

Note: Route command manipulates the kernel routing tables. Routing is the process of forwarding a packet from one computer to another. It is based on the IP address in the IP packet header and netmask.

F: If you want the route to be persisted when you reboot the system, you will need to set the route in the /etc/defaultrouter file.

/etc/defaultrouter

Example:

Echo 192.168.1.1 > /etc/defaultrouter

The Internet Protocol (IP) is the principal communications protocol in the Internet protocol suite for relaying datagrams across network boundaries. Its routing function enables internetworking, and essentially establishes the Internet.

Network configuration in Oracle Solaris 11 includes

* Generic datalink name assignment – Generic names are automatically assigned to datalinks using the net0, net1, netN naming convention, depending on the total number of network devices that are on the system

Note: There is no upgrade path from Oracle Solaris 10 to Oracle Solaris 11. You must perform a fresh installation.

The coreadm command is used to specify the name and location of core files produced by abnormally-terminating processes.

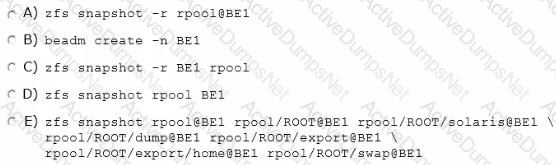

zfs snapshot [-r] [-o property=value] ... filesystem@snapname|volume@snapname

Creates a snapshot with the given name. All previous modifications by successful system calls to the file system are part of the snapshot. See the “Snapshots” section for details.

-r

Recursively create snapshots of all descendent datasets. Snapshots are taken atomically, so that all recursive snapshots correspond to the same moment in time.

Note 1: State Transition Sets are defined as:

to

Set of all transitions that have as the final state of the transition.

form-

Set of all transitions that have as the initial state of the transition.

Set of all transitions that have as the initial state of the transitional.

Set of all transitions. (A)

Valid values of state are maintenance, offline (G), disabled (E), online and degraded. An example of a transitions set definition: maintenance, from-online, to-degraded.

F: In this context, events is a comma separated list of SMF state transition sets or a comma separated list of FMA (Fault Management Architecture) event classes. events cannot have a mix of SMF state transition sets and FMA event classes. For convenience, the tags problem- {diagnosed, updated, repaired, resolved} describe the lifecycle of a problem diagnosed by the FMA subsystem - from initial diagnosis to interim updates and finally problem closure.

Note 2:

SMF allows notification by using SNMP or SMTP of state transitions. It publishes Information Events for state transitions which are consumed by notification daemons like snmp-notify(1M) and smtp-notify(1M). SMF state transitions of disabled services do not generate notifications unless the final state for the transition is disabled and there exist notification parameters for that transition. Notification is not be generated for transitions that have the same initial and final state.

'ipadm show-addr' displays all the configured addresses on the system.

Example:

# ipadm show-addr

ADDROBJ TYPE STATE ADDR

lo0/v4 static ok 127.0.0.1/8

lo0/v6 static ok ::1/128

Unlike DOS, which uses the file extension to determine if a file is executable or not, UNIX relies on file permissions.

The value assigned by umask is subtracted from the default.

User's file creation mask. umask sets an environment variable which automatically sets file permissions on newly created files. i.e. it will set the shell process's file creation mask to mode.

umask 000 would grant full permissions.

Note: 777 full permissions

A: Zones can use Oracle Solaris 11 products and features such as the following:

Oracle Solaris ZFS encryption

Network virtualization and QoS

CIFS and NFS

C: Non-global zones cannot modify the system clock by default, but each zone can have a separate time zone setting.

F (not E): The Oracle Solaris Zones partitioning technology is used to virtualize operating system services and provide an isolated and secure environment for running applications. A zone is a virtualized operating system environment created within a single instance of the Oracle Solaris operating system.

In this output, the statistics for interrupt (INTRS) are significant. Low interrupt numbers indicate greater efficiency in performance. If the interrupt numbers are high, then you might need to add more resources to the specific link.

Example:

# dlstat -r -i 1

LINK IPKTS RBYTES INTRS POLLS CH<10 CH10-50 CH>50

e1000g0 101.91K 32.86M 87.56K 14.35K 3.70K 205 5

nxge1 9.61M 14.47G 5.79M 3.82M 379.98K 85.66K 1.64K

vnic1 8 336 0 0 0 0 0

e1000g0 0 0 0 0 0 0 0

nxge1 82.13K 123.69M 50.00K 32.13K 3.17K 724 24

vnic1 0 0 0 0 0 0 0

Note: dlstat show-link [-r [-F] | -t] [-i interval] [-a] [-p] [ -o field[, ...]] [-u R|K|M|G|T|P] [link]

Display statistics for a link.

-r

Display receive-side statistics only. Includes bytes and packets received, hardware and software drops, and so forth.

List of supported RX fields:

link

iusedby

ibytes

ipkts

intrs

polls

hdrops: hardware drops

sdrops: software drops (owing to bandwidth enforcement)

ch<10: number of packet chains of length < 10

ch10-50: number of packet chains of length between 10 and 50

ch>50: number of packet chains of length > 50

UFS quotas enable system administrators to control the size of file systems. Quotas limit the amount of disk space and the number of inodes, which roughly corresponds to the number of files, that individual users can acquire. For this reason, quotas are especially useful on the file systems where user home directories reside. As a rule, the public and /tmp file systems usually do not benefit significantly by establishing quotas.

Note: The cp command copies files and directories.

B (not A, not D, Not C): If two client machines need to be installed with the same version of the Oracle Solaris 11 OS but

need to be installed differently in other ways, then create two AI manifests for the AI install service. The different AI manifests can specify different packages to install or a different slice as the install target, for example.

Note: An AI manifest provides installation instructions.

The AI manifest specifies one or more IPS package repositories where the client retrieves the packages needed to complete the installation. The AI manifest also includes the names of additional packages to install and information such as target installation device and partition information.

F: The install server can be either an x86 machine or a SPARC machine.

Each client uses one and only one AI manifest to complete its installation. The AI manifest is selected for a client according to the following algorithm:

* If no custom AI manifests are defined for this install service, the default AI manifest is used. The default AI manifest is not associated with any client criteria etc.

Each client can use any number of system configuration profiles. If a client system does not use any configuration profile, then an interactive tool opens on that client at first boot after that client installation to complete the configuration of that client.

How to Set Up Email Notification of SMF Transition Events

This procedure causes the system to generate an email notification each time one of the services or a selected service has a change in state. You can choose to use either SMTP or SNMP. Normally, you would only select SNMP if you already have SNMP configured for some other reason.

By default, SNMP traps are sent on maintenance transitions. If you use SNMP for monitoring, you can configure additional traps for other state transitions.

1. Become an administrator or assume a role that includes the Service Management rights profile.'

2. Set notification parameters.

Example 1:

The following command creates a notification that sends email when transactions go into the maintenance state.

# /usr/sbin/svccfg setnotify -g maintenance mailto:sysadmins@example.com

Example 2:

The following command creates a notification that sends email when the switch service goes into the online state.

# /usr/sbin/svccfg -s svc:/system/name-service/switch:default setnotify to-online \ mailto:sysadmins@example.com

Note: The svccfg command manipulates data in the service configuration repository. svccfg can be invoked interactively, with an individual subcommand, or by specifying a command file that contains a series of subcommands.

Changes made to an existing service in the repository typically do not take effect for that service until the next time the service instance is refreshed.

C: To change the default behavior of the Fast Reboot feature on the SPARC platform, so that a fast reboot is automatically performed when the system reboots, see below.

The following example shows how to set the property's value to true on the SPARC platform, so that a fast reboot is initiated by default:

# svccfg -s "system/boot-config:default" setprop config/fastreboot_default=true

# svcadm refresh svc:/system/boot-config:default

D: Fast Reboot implements an in-kernel boot loader that loads the kernel into memory and then switches to that kernel.

The firmware and boot loader processes are bypassed, which enables the system to reboot within seconds.

The Fast Reboot feature is managed by SMF and implemented through a boot configuration service, svc:/system/boot-config. The boot-config service provides a means for setting or changing the default boot configuration parameters. When the config/fastreboot_default property is set to true, the system performs a fast reboot automatically, without the need to use the reboot -f command. This property's value is set to true on the x86 platform. For task-related information, including how to change the default behavior of Fast Reboot on the SPARC platform, see Accelerating the Reboot Process on an x86 Based System.

Note: One new feature, called Fast Reboot, will allow the system to boot up without doing the routine set of hardware checks, a move that can make system boot times up to two-and-a-half times faster, Oracle claimed. This feature can be handy in that an administrator applying a patch or software update across thousands of Solaris deployments can reboot them all the more quickly.

A: -n

Uses this install service name instead of default service name.

B: -i

Sets up a new DHCP server. The IP addresses, starting from dhcp_address_start, are set up.

D: -c

Sets up a total number of IP addresses in the DHCP table equal to the value of the count_of_ipaddr. The first IP address is the value of dhcp_ip_start that is provided by the -i option.

F: -s

Specifies location of AI ISO image to use for setting up the install service.

Required: Specifies location to set up net image.

Audit Significant Events in Addition to Login/Logout (see step 2 below)

Use this procedure to audit administrative commands, attempts to invade the system, and other significant events as specified by your site security policy.

For all users and roles, add the AUE_PFEXEC audit event to their preselection mask.

# usermod -K audit_flags=lo, ps:no username

# rolemod -K audit_flags=lo, ps:no rolename

# auditconfig -setpolicy +argv

3- Record the environment in which audited commands are executed.

# auditconfig -setpolicy +arge

Note: [-t] -setpolicy [+|-]policy_flag[, policy_flag ...]

Set the kernel audit policy. A policy policy_flag is literal strings that denotes an audit policy. A prefix of + adds the policies specified to the current audit policies. A prefix of - removes the policies specified from the current audit policies. No policies can be set from a local zone unless the perzone policy is first set from the global zone.

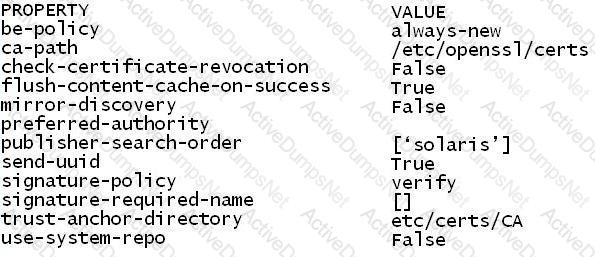

Image properties described below.

* be-policy

Specifies when a boot environment is created during packaging operations. The following values are allowed:

/ default

Apply the default BE creation policy: create-backup.

/ always-new (D, F)

Require a reboot for all package operations (D) by performing them in a new BE set as active on the next boot (F). A backup BE is not created unless explicitly requested.

This policy is the safest, but is more strict than most sites need since no packages can be added without a reboot.

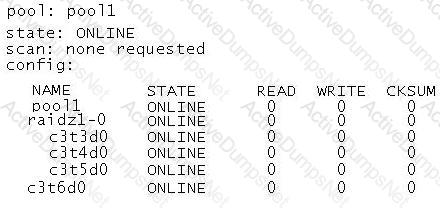

Device c3t6d0 is not included in the RAIDZ storage pool. The other three devices are included in the raidz pool. The data on these devices are protected.

Note: In addition to a mirrored storage pool configuration, ZFS provides a RAID-Z configuration with either single, double, or triple parity fault tolerance. Single-parity RAID-Z (raidz or raidz1) is similar to RAID-5. Double-parity RAID-Z (raidz2) is similar to RAID-6.

rctladm - display and/or modify global state of system resource controls

The following command activates system logging of all violations of task.max-lwps.

# rctladm -e syslog task.max-lwps

#

The Internet Control Message Protocol (ICMP) is one of the core protocols of the Internet Protocol Suite.

ICMP differs from transport protocols such as TCP and UDP in that it is not typically used to exchange data between systems, nor is it regularly employed by end-user network applications (with the exception of some diagnostic tools like ping and traceroute).

A: The beadm utility includes support for creating and administering non-global zone boot environments.

Note: A boot environment is a bootable instance of the Oracle Solaris operating system image plus any other application software packages installed into that image. System administrators can maintain multiple boot environments on their systems, and each boot environment can have different software versions installed.

B: Role-based access control (RBAC) is a security feature for controlling user access to tasks that would normally be restricted to the root role. By applying security attributes to processes and to users, RBAC can divide up superuser capabilities among several administrators.

Solaris 11 Express makes it pretty easy to set up a local copy of the repository.

A common reason folks need access to a local repository is because their system is not connected to the Internet.

Tthe pkg set-publisher command can be used to for example add a publisher or to enable or disable a publisher.

Note: Example Adding a Publisher

Use the -g option to specify the publisher origin URI.

# pkg set-publisher -g http://pkg.example.com/release example.com

Example Specifying the Preferred Publisher

Use the -P option to specify a publisher as the preferred publisher. The specified publisher moves to the top of the search order. You can specify the -P option when you add a publisher or you can modify an existing publisher.

# pkg set-publisher -P example.com

Example Enabling or Disabling a Publisher

Use the -d option to disable a publisher. The preferred publisher cannot be disabled. A disabled publisher is not used in package operations such as list and install. You can modify the properties of a disabled publishers.

Use the -e option to enable a publisher.

# pkg set-publisher -d example2.com

The pargs utility examines a target process or process core file and prints arguments, environment variables and values, or the process auxiliary vector.

When you install this Oracle Solaris release on a system for the first time, Oracle Solaris automatically provides generic link names for all the system's physical network devices. This name assignment uses the net# naming convention, where the # is the instance number. This instance number increments for each device, for example, net0, net1, net2, and so on.

Note:

Network configuration in Oracle Solaris 11 includes

* Generic datalink name assignment – Generic names are automatically assigned to datalinks using the net0, net1, netN naming convention, depending on the total number of network devices that are on the system

First create a virtual switch, then create a virtual network interface.

The sulog file, /var/adm/sulog, is a log containing all attempts (whether successful or not) of the su command. An entry is added to the sulog file every time the su command is executed. The fields in sulog are: date, time, successful (+) or unsuccessful (-), port, user executing the su command, and user being switched to. In the preceding example, all su attempts were successful, except for the attempt on 2/23 at 20:51, when user pete unsuccessfully attempted to su to user root.

Look for entries where an unauthorized user has used the command inappropriately. The following entry shows a successful (indicated by +) su from user userid to root.

SU 03/31 12:52 + pts/0 -root

A kernel panic is a type of error that occurs when the core (kernel) of an operating system receives an instruction in an unexpected format or when it fails to handle properly. A kernel panic can also follow when the operating system can’t recover from a different type of error. A kernel panic can be caused by damaged or incompatible software or, more rarely, damaged or incompatible hardware.

When a server kernel panics it abruptly halts all normal system operations. Usually, a kernel process named panic() outputs an error message to the console and stores debugging information in nonvolitile memory to be written to a crash log file upon restarting the computer. Saving the memory contents of the core and associated debugging information is called a “core dump.”

B: It can be created by importing a Solaris 10 flash archive.

You can use the Oracle Solaris Flash archiving tools to create an image of an installed system that can be migrated into a zone.

The system can be fully configured with all of the software that will be run in the zone before the image is created. This image is then used by the installer when the zone is installed.

Note: You can use alternate methods for creating the archive. The installer can accept the following archive formats:

* cpio archives

* gzip compressed cpio archives

* bzip2 compressed cpio archives

* pax archives created with the -x xustar (XUSTAR) format

Ä ufsdump level zero (full) backups

Note:

Branded zones that run an environment different that the OS release on the system

* The lx branded zone introduced in the Solaris 10 8/07 release provides a Linux environment for your applications and runs on x86 and x64 machines on the Oracle Solaris 10 OS.

* The solaris8 and solaris9 branded zones enable you to migrate an Oracle Solaris 8 or Oracle Solaris 9 system to an Oracle Solaris 8 or Oracle Solaris 9 Container on a host running the Oracle Solaris 10 8/07 Operating System or later Oracle Solaris 10 release.

* The Oracle Solaris 10 Container brand is available in OpenSolaris build 127. These branded zones host Oracle Solaris 10 user environments.

Note: One of the powerful features of Solaris 11 is the ability to run a Solaris 10 environment in a zone. Solaris 10 allows you to run Solaris 8 and 9 environments in zones, but only on SPARC.

C: Here the wildcard character ? is used (Matches any single character).

file1 and file2 will be copied into dir1

F: the two files file1 and file2 are copied into directoy dir1.

Note: cp - copy files and directories

Copy SOURCE to DEST, or multiple SOURCE(s) to DIRECTORY.

Cp has three principal modes of operation. These modes are inferred from the type and count of arguments presented to the program upon invocation.

* When the program has two arguments of path names to files, the program copies the contents of the first file to the second file, creating the second file if necessary.

* When the program has one or more arguments of path names of files and following those an argument of a path to a directory, then the program copies each source file to the destination directory, creating any files not already existing.

* When the program's arguments are the path names to two directories, cp copies all files in the source directory to the destination directory, creating any files or directories needed. This mode of operation requires an additional option flag, typically r, to indicate the recursive copying of directories. If the destination directory already exists, the source is copied into the destination, while a new directory is created if the destination does not exist.

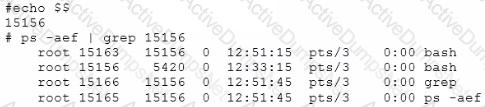

From the output exhibit we can deduce that the shell has id 15156.

It has spawned three subprocesses:

grep: id 15166

ps –aef 15165

The remaining 15163 must be the subshell (see note below).

This is the id of the process which should be terminated.

Check DNS

* (A) Check whether DNS is configured on your client by verifying that a non-empty /etc/resolv.conf file exists.

* (F) If /etc/resolv.conf does not exist or is empty, check that your DHCP server is providing DNS server information to the client:

# /sbin/dhcpinfo DNSserv

If this command returns nothing, the DHCP server is not set up to provide DNS server information to the client. Contact your DHCP administrator to correct this problem.

* (B) If an /etc/resolv.conf file exists and is properly configured, check for the following possible problems and contact your system administrator for resolution:

** The DNS server might not be resolving your IPS repository server name.

** No default route to reach the DNS server exists.

By default, the passwd command assumes a minimum length of six characters. You can use the PASSLENGTH default in the /etc/defaults/passwd files to change that by setting the minimum number of characters that a user's password must contain to some other number.

B: Configure the AI install server to use a static IP address and default route.

D: The create-service command can set up DHCP on the AI install server. If you want to set up a separate DHCP server or configure an existing DHCP server for use with AI. The DHCP server must be able to provide DNS information to the systems to be installed.

E: An automated installation of a client over the network consists of the following high-level steps:

1. The client system boots over the network and gets its network configuration and the location of the install server from the DHCP server.

2. The install server provides a boot image to the client.

3. Characteristics of the client determine which installation instructions and which system configuration instructions are used to install the client.

4. The Oracle Solaris 11 OS is installed on the client, pulling packages from the package repository specified by the installation instructions in the AI install service.

G: Install the AI tool set.

Use the installadm create-service command to create an AI install service. Give the service a meaningful name, and specify the path where you want the service created. Specify the source of the network boot image (net image) package or ISO file.

installadm create-service [-n svcname]

[-s FMRI_or_ISO] [-d imagepath]

-d imagepath

The imagepath is the location of the new install service. The install-image/solaris-auto-install package is installed to this location, or the specified ISO file is expanded at this location.

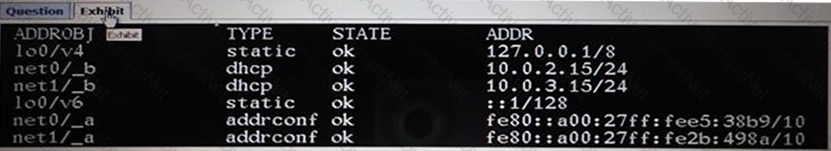

Show address information, either for the given addrobj or all the address objects configured on the specified interface, including the address objects that are only in the persistent configuration.

State can be: disabled, down, duplicate, inaccessible, ok, tentative

Example:

# ipadm show-addr

ADDROBJ TYPE STATE ADDR

lo0/v4 static ok 127.0.0.1/8

lo0/v6 static ok ::1/128
