Microsoft AZ-802 Administering Windows Server Exam Practice Test

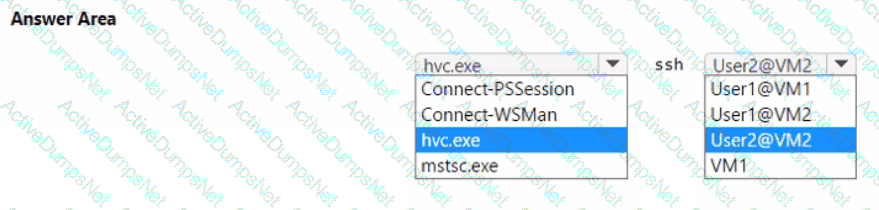

hvc.exe, ssh User2@VM2

The requirement is to use a direct SSH session to manage all the supported virtual machines on HyperV1, without relying on a network path to the guest. Hyper-V provides hvc.exe, a helper used as an SSH ProxyCommand, that opens an SSH session to a virtual machine over the VMBus (the internal Hyper-V socket/console channel) rather than over the network, which works even when the guest has no reachable IP configuration and only default management tools installed, matching the stated environment. Direct SSH management this way requires the guest to run an SSH server; of the three VMs, only VM2 runs Red Hat Enterprise Linux, which includes OpenSSH server support out of the box, so it is the only VM realistically " supported " for this direct SSH scenario as described, and the account to use is User2, the local account that exists on VM2. VM1 and VM3 both run Windows Server, so " direct SSH, " as intended by this requirement, targets the Linux guest. Connect-PSSession and Connect-WSMan are PowerShell remoting tools, not SSH, and mstsc.exe launches a graphical Remote Desktop session rather than a console-mode SSH session, so none of those alternatives fit. The correct combination is hvc.exe used as the SSH proxy, connecting as User2@VM2.

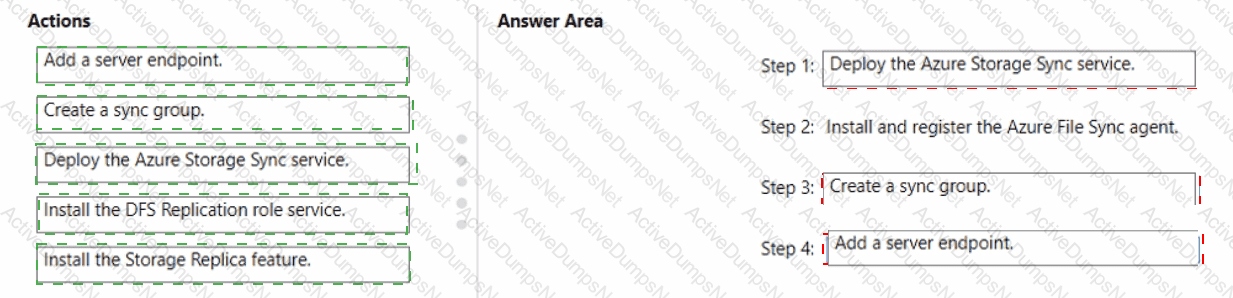

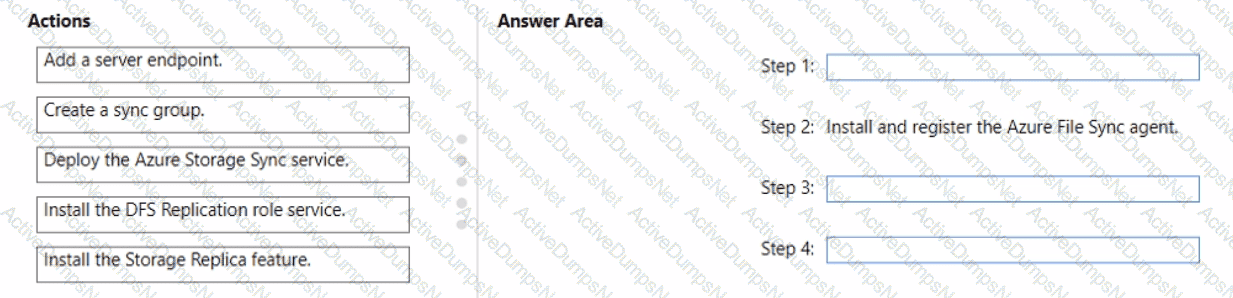

1. Deploy the Azure Storage Sync service. 2. Install and register the Azure File Sync agent. 3. Create a sync group. 4. Add a server endpoint.

Data1 is a file share on VM1 that must be synced to the Azure Files share1 using Azure File Sync. The documented deployment order starts in Azure: you must first deploy a Storage Sync Service resource, because the on-premises agent registration process needs an existing Storage Sync Service to register against. With that resource in place, the next step, already fixed in the sequence, is to install the Azure File Sync agent on VM1 and register the server with the Storage Sync Service, which establishes the server ' s identity and trust relationship with Azure. After registration, you create a sync group, the container that pairs one Azure file share (the cloud endpoint) with one or more on-premises folders (server endpoints); the sync group must exist before endpoints can be attached to it. Finally, you add a server endpoint pointing at the Data1 path on VM1, which starts the actual namespace and content synchronization with share1. Installing the DFS Replication role service and installing the Storage Replica feature are unrelated technologies, DFS-R replicates between on-premises servers and Storage Replica performs block-level volume replication, neither of which is part of an Azure File Sync deployment, so both are correctly excluded from the sequence.

The Marketing OU users exist in fabrikam.com, a completely separate on-premises AD DS forest belonging to a different company than A. Datum, whose own Microsoft Entra tenant only syncs the adatum.com forest today. To give those Fabrikam users access to storage1 in A. Datum ' s tenant, their identities must also be represented in that tenant. Microsoft Entra Connect cloud sync uses lightweight, cloud-managed provisioning agents that are specifically designed to support complex or multi-forest topologies, including syncing from a partner organization ' s forest, with a much smaller on-premises footprint and configuration burden than the full Microsoft Entra Connect Sync engine, and without requiring a trust relationship between the two companies ' forests. The traditional Microsoft Entra Connect Sync engine (whether in active or staging mode) is built around a single organization ' s identity infrastructure and is a heavier deployment to extend safely across an independent partner company ' s forest; staging mode specifically only prepares a secondary sync server to take over, and does not by itself address the cross-company sync problem. AD FS provides federation and SSO but does not create Microsoft Entra ID objects for Fabrikam ' s users. Microsoft Entra Connect cloud sync is therefore the correct, purpose-built option.

The requirement is that VMs must be configured to enable per-folder quotas. VM3 already has the File and Storage Services role installed, but native NTFS quotas only apply per volume and per user; they cannot restrict the amount of data stored inside an individual folder. File Server Resource Manager (FSRM) is the Windows Server feature that adds true folder-level quota management, letting an administrator define hard or soft quota limits (and quota templates) scoped to specific folders rather than entire volumes, which is exactly the granularity the requirement calls for. Enhanced Storage is an unrelated feature that supports certain storage devices with enhanced storage access (IEEE 1667), Windows Standards-Based Storage Management provides SMI-S/WMI-based management of storage arrays and has nothing to do with folder-level quotas, and the iSNS Server service is used for discovery of iSCSI targets and initiators on a network, also unrelated to quota enforcement. None of those three alternatives provide any per-folder capacity restriction capability, so installing FSRM is the necessary first step before per-folder quotas can be configured on VM3.

Enabling Microsoft Entra ID sign-in on an Azure VM running Windows is implemented through a VM extension named AADLoginForWindows, published by Microsoft.Azure.ActiveDirectory. This extension installs the components needed for the VM to accept Microsoft Entra credentials for RDP sign-in and, when combined with Azure RBAC roles such as Virtual Machine Administrator Login, controls who is authorized to sign in. VM extensions in Azure are deployed and managed with the Set-AzVMExtension cmdlet, which is how this specific extension gets installed onto Server1. Set-AzVM modifies general virtual machine properties, such as size or OS profile settings, but has no mechanism for installing extensions. Add-ADComputerServiceAccount and New-ADComputer are on-premises Active Directory cmdlets used to manage computer objects and service accounts in AD DS; they have no relevance to an Azure VM ' s sign-in method and would not apply here since Server1 ' s sign-in requirement is being satisfied by Microsoft Entra ID, not by joining a domain. Set-AzVMExtension is therefore the correct cmdlet.

Azure Automanage currently does not support virtual machines that use the Trusted launch security type; this is an explicit, documented limitation of the service, independent of which Windows Server version or edition the VM is running. Looking at the four virtual machines ' security types, Server1 (Windows Server 2022 Datacenter: Azure Edition) and Server4 (Windows Server 2019 Datacenter) are both configured with Trusted launch, which makes both of them ineligible for Automanage onboarding regardless of their OS version. Server2 (Windows Server 2022 Datacenter: Azure Edition) and Server3 (Windows Server 2022 Datacenter) both use the Standard security type and run OS versions on Automanage ' s supported list, so both qualify and Automanage should be enabled on them to satisfy the requirement that it be used on " all supported " virtual machines, which by definition excludes the ones the service cannot onboard. It is a common misreading of this scenario to assume the Azure Edition label is the deciding factor, since Server1 and Server2 share that edition; the actual determining attribute the requirement hinges on is the VM ' s security type, not its Windows Server edition. Therefore Server2 and Server3 are the correct machines on which to enable Automanage.

Private1 is deployed with its inbound endpoint in VNet1, and an Azure DNS Private Resolver inbound endpoint can resolve only private DNS zones that are virtual-network-linked to the same virtual network where the resolver itself sits; it cannot resolve a zone just because it exists in the same subscription, or because that zone happens to be linked to a different, unrelated virtual network. Per the private DNS zone table, Zone1.com is linked to VNet1, Zone2.com is linked to VNet2, and Zone3.com has no virtual network link at all. Because Private1 ' s inbound endpoint lives in VNet1, only Zone1.com, the zone actually linked to VNet1, can be resolved through it. Zone2.com cannot be resolved by Private1 because it is linked only to VNet2, a separate virtual network with no stated peering or additional resolver configuration connecting it to VNet1; and Zone3.com cannot be resolved by any resolver in any virtual network because it has no virtual network link whatsoever, meaning no virtual network can consult it through the normal Azure-provided DNS resolution path. Extending resolution to Zone2.com would require either a separate resolver deployed in VNet2, or peering combined with a forwarding ruleset and outbound endpoint, neither of which is described as being configured here. Therefore only Zone1.com can currently be resolved.

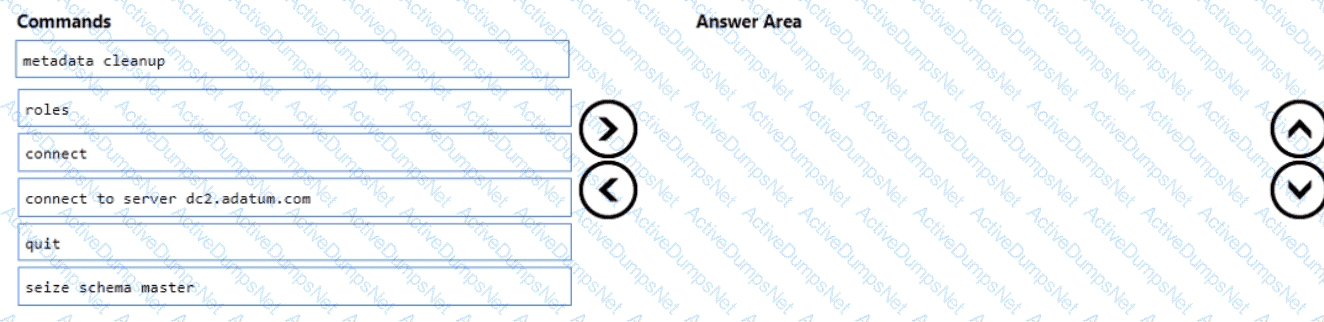

1. roles 2. connections 3. connect to server dc2.adatum.com 4. quit 5. seize schema master

Because DC1 has failed and cannot gracefully transfer the schema master role, DC2 must forcibly seize it using ntdsutil.exe. From the initial ntdsutil prompt, the first command is roles, which enters the Role Management submenu where FSMO role transfers and seizures are performed. From within that submenu, the command connections opens the Connections submenu, which is required before you can bind ntdsutil to a specific target domain controller. Inside the Connections submenu, connect to server dc2.adatum.com establishes the bind to DC2, the domain controller that will actually take over the schema master role. The quit command then exits the Connections submenu and returns to the Role Management submenu while keeping the established connection to DC2 active. Finally, seize schema master, executed from the Role Management submenu while bound to DC2, forces DC2 to take ownership of the schema master role even though DC1 (the previous holder) is offline and cannot be contacted to confirm the transfer. The unused command in the list, metadata cleanup, is a separate, later step used to remove the failed DC1 ' s leftover directory metadata once its roles have been reassigned; it is not part of seizing the schema master role itself, so it is correctly left out of this five-step sequence.

Task1 is an Azure Automation runbook, and Azure Automation supports a specific, limited set of runbook types: PowerShell (and PowerShell Workflow), Python, and Graphical runbooks (which are authored visually rather than in a scripting language). Of the listed options, PowerShell and Python are the two genuine scripting languages Azure Automation lets you author a runbook in directly, making them the two correct answers. Java and JavaScript are not supported runbook languages in Azure Automation; JavaScript is used elsewhere in Azure (for example, in Azure Functions or Logic Apps custom code), but not for Automation runbooks. Bicep is a domain-specific language for declaratively defining Azure infrastructure as code (compiling down to ARM templates) and has no role as an executable runbook language; you would not write a Task1 runbook in Bicep, since runbooks execute imperative logic rather than declare resource deployments. Therefore, Python and PowerShell are the two languages available for Task1.

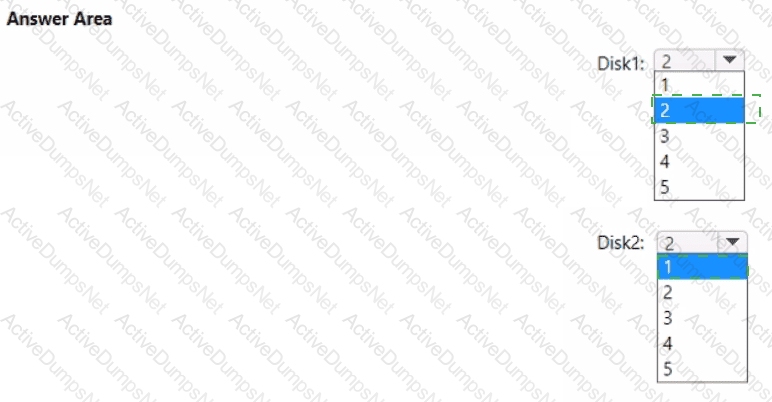

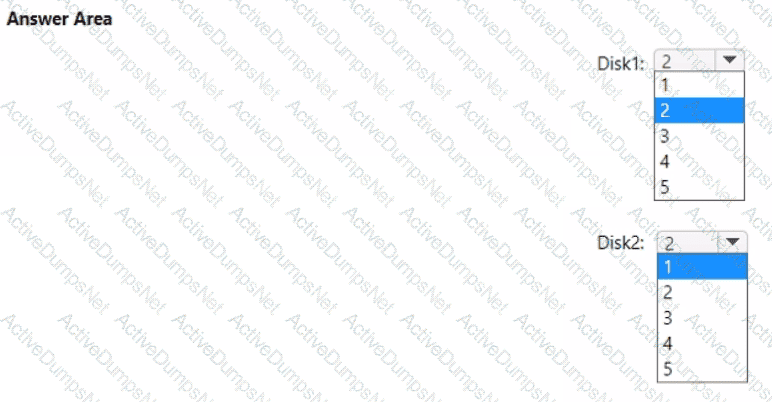

Disk1: 2. Disk2: 1.

The requirement is that data on SSPace1 must remain available at all times, meaning the storage pool ' s virtual disks must be able to tolerate physical disk failures without becoming unavailable or losing data. A three-way mirror keeps three copies of every block of data spread across different physical disks, so it remains available and readable even if any two of those disks fail simultaneously; the resiliency is fixed at tolerating two failures regardless of how many total disks (8, in Disk1 ' s case) make up the pool, as long as there are enough disks to support three-way mirroring, which eight comfortably provides. Disk2 uses parity resiliency, which stores a single parity block that can reconstruct data after one physical disk failure; unless dual parity is explicitly configured (which requires being set at virtual disk creation time and is not indicated here), a standard parity virtual disk tolerates only one physical disk failure before data becomes unavailable, regardless of the pool having twelve physical disks. Administrators sometimes assume more disks in a parity pool automatically means more fault tolerance, but the number of disks a parity space can lose is determined by the resiliency configuration (single vs. dual parity), not by the total disk count. Therefore Disk1 tolerates two disk failures and Disk2 tolerates one.

Azure Arc-enabled servers extends Azure management (policy, monitoring, extensions, and so on) to machines that live outside Azure -- physical servers and virtual machines running on-premises or in another cloud -- by installing the Azure Connected Machine agent on each of them. Server1 (an on-premises physical server) and VM2 (an on-premises Hyper-V virtual machine) both qualify as non-Azure machines and therefore both need the Connected Machine agent installed to be onboarded to Azure Arc. VM1, however, is already a native Azure virtual machine -- it is already a first-class Azure resource, fully managed through Azure Resource Manager without any additional agent, and Azure Arc is not applicable to (and does not support) resources that are already running natively in Azure. Installing the Connected Machine agent on VM1 would be unnecessary and provides no benefit, since everything Arc would offer for an on-premises machine (centralized policy, inventory, extensions) is already natively available for an actual Azure VM. Therefore, to manage all three servers through Azure Arc with minimal wasted effort, the Connected Machine agent should be installed only on Server1 and VM2, leaving VM1 managed natively as an Azure resource.

Windows Server 2016 remains the highest Active Directory forest and domain functional level that exists in the product line, since no separate, higher functional level was introduced alongside the release of Windows Server 2019, 2022, or 2025, and Windows Server 2016 is also documented as the minimum functional level that must be in place before a domain controller running Windows Server 2025 can be added to a domain. In this scenario, DC1 is still running the much older Windows Server 2012 R2, which sits below the Windows Server 2016 baseline required for raising the functional level, and as long as DC1 remains present and running that older version, the forest and domain functional level cannot be raised past Windows Server 2012 R2. Because DC2 and DC3 are already running Windows Server 2016, removing (demoting and decommissioning) only DC1 is sufficient to clear the way, after which the forest and domain functional level can be raised directly to Windows Server 2016 using the two remaining domain controllers, without needing to upgrade any domain controller ' s operating system version at all. This combination, removing DC1 and raising the functional level to Windows Server 2016, satisfies the requirement to minimize administrative effort while still enabling a Windows Server 2025 domain controller to be added afterward.

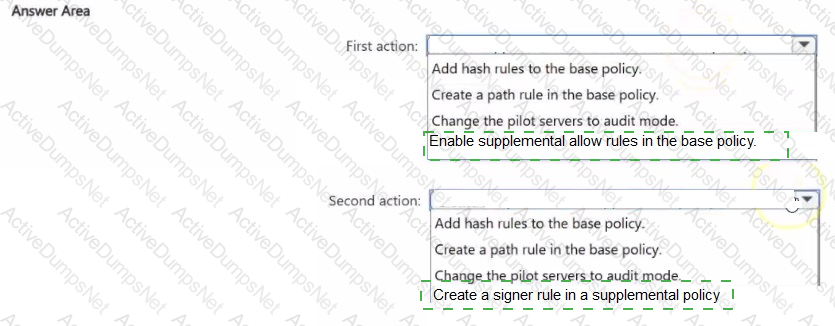

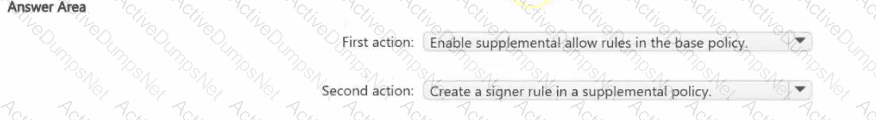

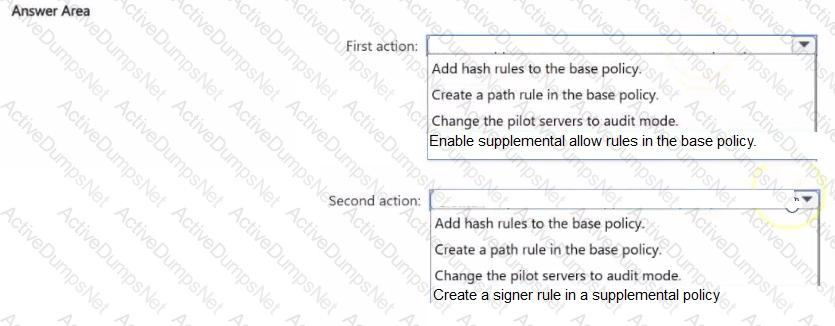

First action: Enable supplemental allow rules in the base policy. Second action: Create a signer rule in a supplemental policy.

A Windows Defender Application Control supplemental policy is a separate policy that expands what an existing, enforced base policy allows, without editing the base policy ' s own allow rules, but a base policy must explicitly permit supplemental policies before any supplemental policy can be linked to and take effect alongside it, which is why enabling supplemental allow rules in the base policy has to happen first; this is a one-time change to the base policy ' s own options (adding the Enabled:Allow Supplemental Policies rule option), not a modification of its allow rules, so it satisfies the requirement not to change the base policy ' s allow rules. With supplemental policies permitted, creating a signer rule inside a new supplemental policy, keyed to the vendor ' s single code-signing certificate rather than to individual file hashes, allows every binary the vendor signs with that certificate, including all of App1 ' s monthly updates, without requiring the supplemental policy (or the base policy) to be edited again each time a new signed build ships, which directly minimizes ongoing policy maintenance. The supplemental policy can then be deployed only to the six pilot servers, leaving the other 34 servers unaffected. Adding hash-based rules or path rules to the base policy would both violate the no-base-policy-allow-rule-changes requirement and would require constant hash updates every time the vendor releases a new monthly build, and putting the pilot servers into audit mode would stop enforcing the base policy ' s controls entirely rather than selectively permitting App1.

New-AzADServicePrincipal -DisplayName ' arc-for-servers ' -Role ' Azure Connected Machine Onboarding '

At-scale onboarding to Azure Arc with a deployment script authenticates using a service principal rather than an interactive sign-in, and Microsoft ' s guidance for scripted, least-privilege onboarding is to create that service principal with New-AzADServicePrincipal, supplying a -DisplayName and assigning it the built-in Azure Connected Machine Onboarding role, optionally scoped to a specific resource group with -Scope. This role grants only the permissions required to register a machine with Arc and complete the connect operation; it does not include general compute, storage, or networking rights, which is why it satisfies least privilege far better than a broad role such as Contributor. The other two cmdlets in the option list do not fit this task: New-AzADAppCredential only adds or rotates a credential (secret or certificate) on an application object that already exists, and it performs no role assignment; New-AzUserAssignedIdentity creates a standalone managed identity resource, which is a different authentication mechanism used by Azure resources calling other Azure services, not a mechanism a locally run onboarding script can use to authenticate against an Azure AD tenant. For the role value, Virtual Machine Contributor and Virtual Machine User Login both exceed what onboarding needs, since they grant ongoing VM management or interactive sign-in rights rather than the narrow, one-time registration permission the Azure Connected Machine Onboarding role provides.

Azure Site Recovery recovery plans support inserting automated steps before or after each failover group within the plan, and the mechanism used to run that automation is an Azure Automation runbook invoked directly from the recovery plan. Runbooks can call Azure Resource Manager operations, PowerShell workflows, or other custom orchestration logic, which makes them a natural fit for replacing a manual step such as reconfiguring a load balancer, updating DNS records, or validating application health once the 200 virtual machines have failed over. An Azure Desired State Configuration virtual machine extension enforces configuration state on a running VM rather than integrating with the recovery plan ' s action framework, an Azure PowerShell function run outside of Automation has no native hook point within a recovery plan, and a Custom Script Extension executes a script inside a VM rather than as an orchestrated recovery-plan action. Because Azure Automation runbooks are the specific, documented integration point Site Recovery recovery plans use for automating manual actions, that is the correct choice for automating one of the plan ' s three manual steps.

Exploit protection, found under App & browser control in the Windows Security app, applies system-wide and per-application mitigations against memory-corruption and code-execution exploit techniques, such as Data Execution Prevention (DEP), Address Space Layout Randomization (ASLR), Control Flow Guard, and restrictions on child-process creation or Win32k system call use. These mitigations harden individual applications against being exploited by malicious code that tries to hijack their execution flow; they do not govern, allow-list, or restrict which applications are permitted to modify files inside specific protected folders, and Exploit protection has no concept of a " protected folder " at all. Configuring Exploit protection therefore has no effect whatsoever on which applications can write to the protected folders described in the requirement, regardless of how its individual mitigation settings are tuned for Server1. Only Controlled folder access, configured from Virus & threat protection > Manage ransomware protection rather than from App & browser control, provides that specific folder-level application allow-listing capability. Therefore, configuring the Exploit protection settings does not meet the goal.

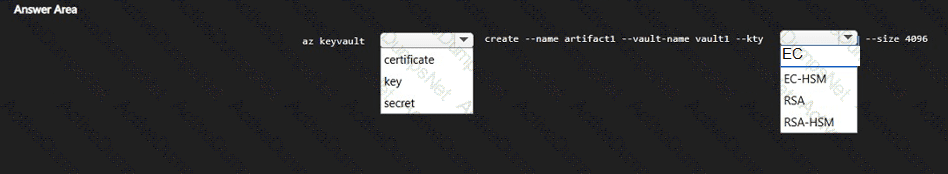

Azure Disk Encryption artifacts (such as the BitLocker/DM-Crypt encryption keys) can be protected in Key Vault by a software-protected key or by a hardware-protected key. Choosing ' key ' (rather than ' certificate ' or ' secret ' ) creates a cryptographic key object that can be used as a key-encryption key to wrap the disk encryption secret before it is written to the vault. Specifying --kty RSA-HSM (as opposed to plain RSA) ensures the key material is generated and protected inside a FIPS 140-validated hardware security module rather than in software, which is the highest level of protection Key Vault offers for this purpose. This matches the completed command shown in the exhibit, and Vault1 must be a Premium-tier vault for the RSA-HSM key type to be available, since HSM-backed keys are not supported on the Standard vault tier. Once artifact1 exists as an RSA-HSM key, its key identifier is supplied to Set-AzVMDiskEncryptionExtension as the key-encryption key parameter so that every BitLocker protector secret written to Vault1 is wrapped by it before storage.

Windows Admin Center includes a built-in Azure Monitor integration tool, reached under Tools > Azure Monitor for a connected cluster, that registers the connection with Azure, provisions the underlying Log Analytics workspace, deploys the monitoring agent to every cluster node, and exposes a predefined set of alert rules covering exactly this scenario ' s requirements: CPU utilization over 85% for 10 minutes, disk capacity over roughly 80 to 85% for 10 minutes, memory utilization thresholds, heartbeat loss, cluster critical events, and health service faults. Because the administrator already manages every server and cluster through Windows Admin Center on a daily basis, launching this wizard from the existing console and onboarding Cluster1 directly through it is the lowest-effort path available, since it avoids standing up a separate manual Azure Arc onboarding project or installing agents by hand. Configuring Azure Monitor and onboarding Cluster1 through Azure Arc from the Azure portal accomplishes something similar but requires more manual configuration outside the tool the administrator already uses, and manually installing the Microsoft Monitoring Agent on each of the three nodes individually is explicitly the higher-effort approach that the Windows Admin Center wizard is designed to eliminate.

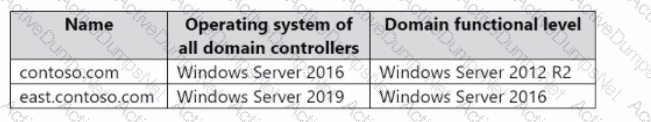

The exhibit shows that east.contoso.com already runs domain controllers on Windows Server 2019, and the Active Directory schema version introduced by Windows Server 2019 is schema version 88, which is identical to the schema version used by Windows Server 2022. Because introducing a new Windows Server 2022 domain controller into a domain whose schema already supports that operating system version requires no forest preparation (adprep /forestprep) and no domain preparation (adprep /domainprep), promoting the new domain controller does not require Enterprise Admins or Schema Admins membership at all. Promoting an additional domain controller into a domain whose schema is already compatible with the OS being installed only requires membership in that specific domain ' s Domain Admins group, which for east.contoso.com is EAST\Domain Admins. Adding Admin1 to CONTOSO\Enterprise Admins or CONTOSO\Schema Admins would grant forest-wide administrative rights far beyond what is needed for this single-domain promotion task, violating least privilege, so the correct and minimally sufficient group membership is EAST\Domain Admins only.

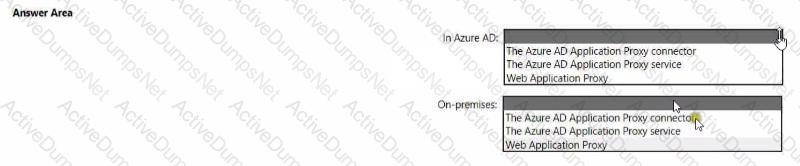

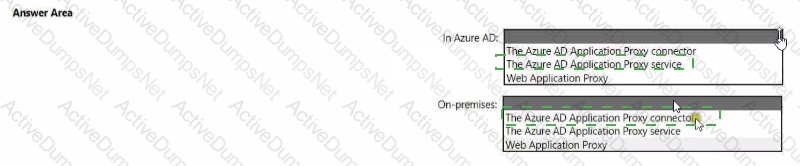

In Microsoft Entra ID: the Application Proxy service. On-premises: the Application Proxy connector.

Microsoft Entra Application Proxy is designed exactly for publishing an internal, Kerberos-only web application to users who authenticate with their Microsoft Entra account, using Kerberos Constrained Delegation to perform single sign-on into the app on the user ' s behalf, which minimizes administrative effort compared to re-architecting the app ' s authentication. The feature has two halves: a cloud-side component, the Application Proxy service in Microsoft Entra ID, which publishes an external URL, terminates user authentication, and brokers the connection; and an on-premises component, a lightweight Application Proxy connector installed on a server inside the corporate network, which maintains an outbound connection to the service and relays traffic to WebApp1, performing the Kerberos delegation locally where the app lives. Because the connector only makes outbound connections, no inbound firewall changes or DMZ placement are required, unlike the retired Web Application Proxy/reverse-proxy pattern. Configuring the service in Microsoft Entra ID and the connector on-premises together completes the publishing setup with minimal administrative overhead.

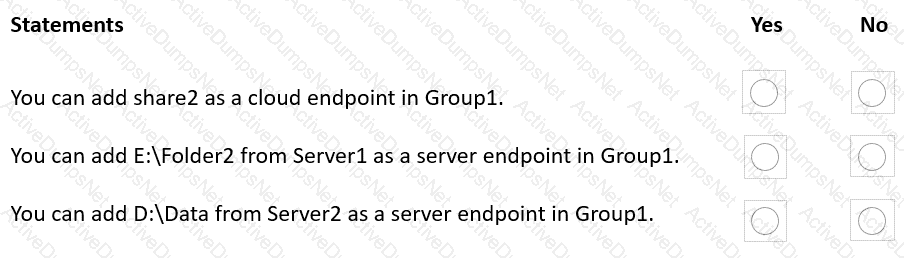

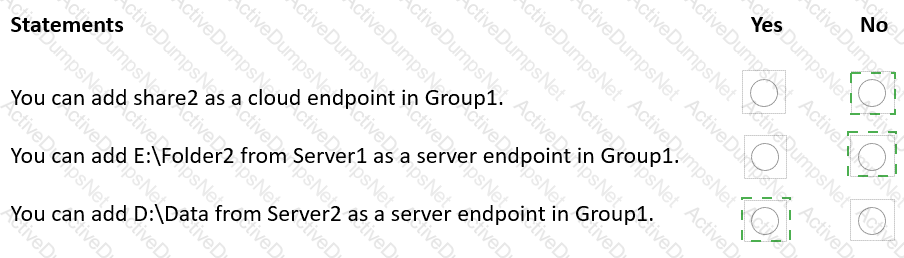

You can add share2 as a cloud endpoint in Group1: No. You can add E:\Folder2 from Server1 as a server endpoint in Group1: No. You can add D:\Data from Server2 as a server endpoint in Group1: Yes.

Azure File Sync enforces a strict one-to-one relationship between a sync group and its cloud endpoint: a sync group can contain exactly one cloud endpoint, and an Azure file share can be the cloud endpoint of only one sync group. Group1 already uses share1 as its cloud endpoint, so share2 cannot be added as a second cloud endpoint to the same sync group; that statement is No. Separately, Azure File Sync also limits a sync group to only one server endpoint per registered server, regardless of whether the additional path is on a different volume and does not overlap the existing endpoint ' s folder tree. Because Server1 already has D:\Folder1 registered as its server endpoint in Group1, adding a second, independent server endpoint from that same server (E:\Folder2) into the same sync group is not permitted; that statement is also No — to sync E:\Folder2 at all, it would need to go into a different sync group (with its own cloud endpoint). Server2, however, has no existing server endpoint in Group1 yet, so adding D:\Data from Server2 as Group1 ' s server endpoint for that server is a normal, fully supported configuration — every additional registered server can contribute its own single server endpoint to the same sync group, which is exactly how Azure File Sync supports multi-site sync of a common namespace; that statement is Yes.

iWARP (Internet Wide Area RDMA Protocol) implements RDMA on top of standard TCP/IP, which allows it to operate over an ordinary, lossy Ethernet fabric without requiring Data Center Bridging or Priority Flow Control to guarantee lossless delivery of RDMA traffic. This is fundamentally different from RoCE (RDMA over Converged Ethernet), in either its v1 or v2 form, both of which depend on a DCB-configured, lossless Ethernet fabric to operate reliably, since RoCE has no built-in congestion or loss-recovery mechanism of its own and instead relies on the underlying network to guarantee lossless delivery. InfiniBand is excluded outright because it is not an Ethernet-based fabric at all, and the requirement explicitly calls for an Ethernet fabric. Because the deployment must use Ethernet while specifically eliminating the DCB dependency that both RoCEv1 and RoCEv2 require, iWARP is the only RDMA technology among the options that satisfies both stated requirements simultaneously for the Storage Spaces Direct converged infrastructure deployment.

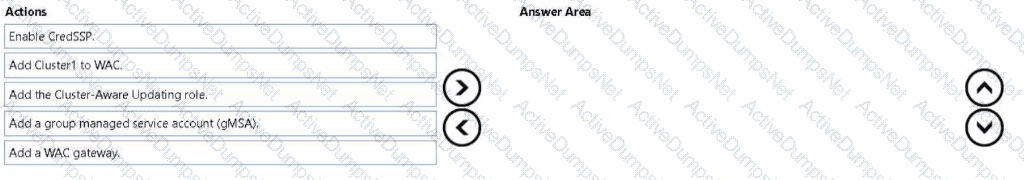

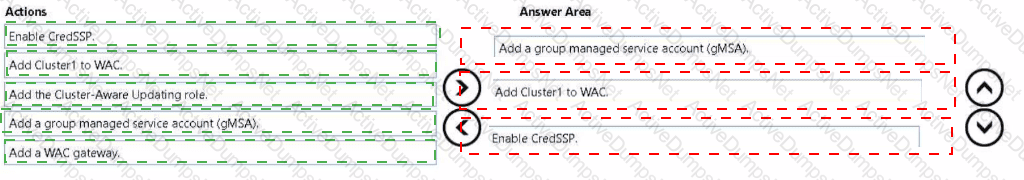

1. Add a group managed service account (gMSA). 2. Add Cluster1 to WAC. 3. Enable CredSSP.

Cluster-Aware Updating in Windows Admin Center needs a group managed service account already provisioned in Active Directory to actually run the CAU scan and update orchestration operations under, so that account must be created first, before anything else in this sequence can proceed. Cluster1 is then added as a cluster connection inside Windows Admin Center, which is what makes its Updates blade, including the Cluster-Aware Updating tool, become available for that cluster in the first place. Windows Admin Center ' s Cluster-Aware Updating tool specifically requires CredSSP to be enabled, along with explicit credentials supplied at the time of use, before it will actually run; attempting to use the tool beforehand produces the documented error stating that Cluster-Aware Updating cannot be used without enabling CredSSP and providing explicit credentials. Enabling CredSSP is therefore the final step in the sequence, since it is what unlocks the already-added cluster connection ' s Cluster-Aware Updating tool for actual use, after the gMSA and the WAC connection are already in place.

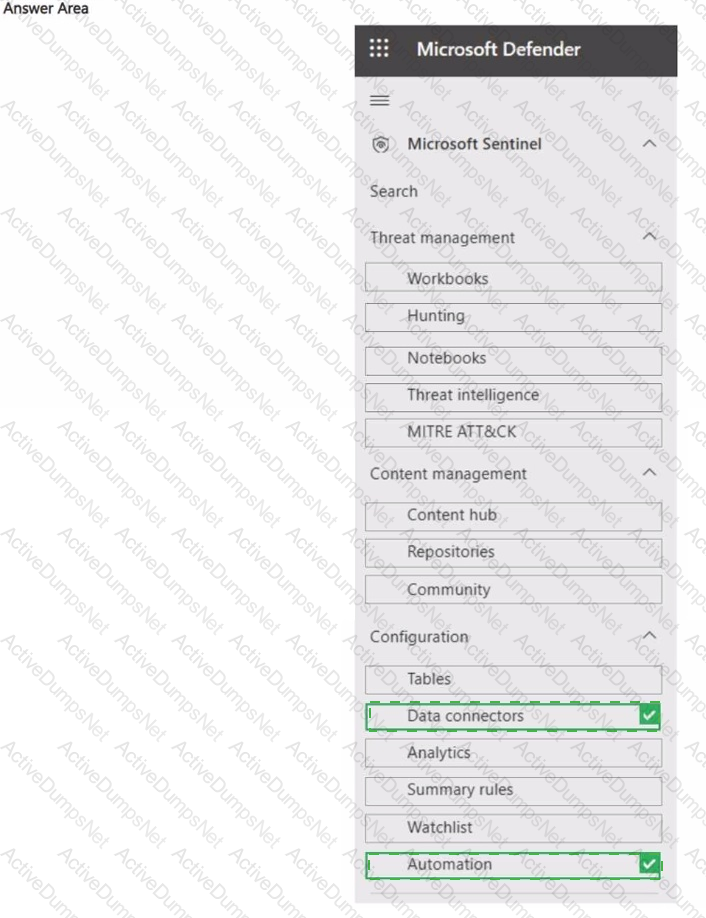

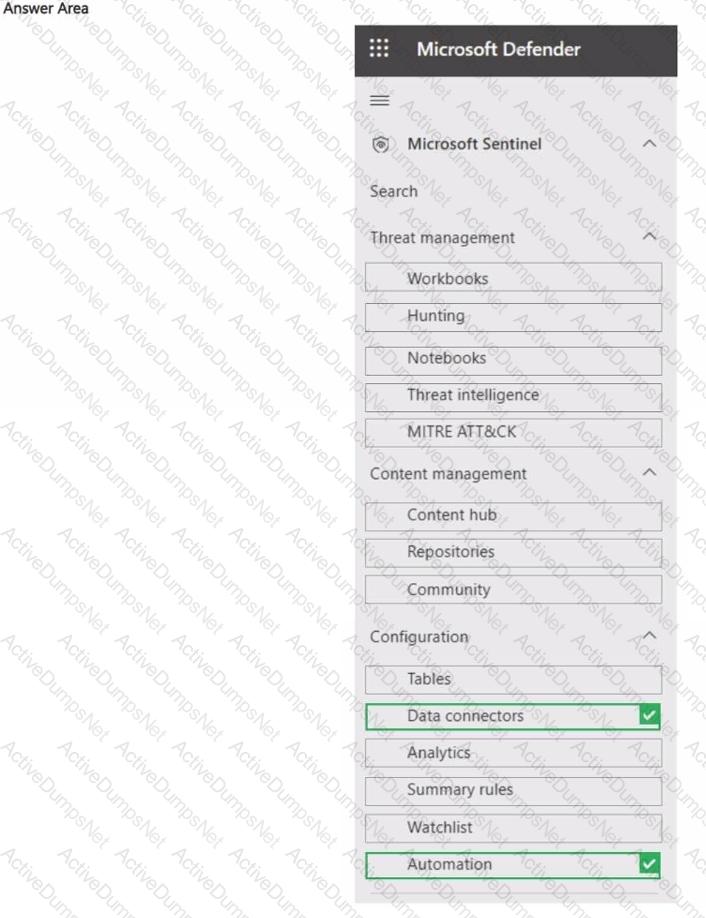

In the Microsoft Sentinel navigation pane, under the Configuration section, data connectors such as Windows Forwarded Events are added and configured from the Data connectors page, which is the purpose-built area of the workspace for enabling the underlying Log Analytics data connection that ingests forwarded Windows event log data from on-premises servers, typically by way of Azure Monitor Agent and Windows Event Forwarding. Automation rules and playbooks, including a Logic App-based playbook that starts with a Microsoft Sentinel incident trigger so it can run automated response steps whenever a new incident is created, are created and managed from the Automation page, which sits in the same Configuration section of the workspace navigation. These two pages are the specific, purpose-built areas of Microsoft Sentinel for connecting server-generated event data into the workspace and for building automated incident-response playbooks respectively, and they directly match the two actions described in the scenario: bringing in Windows Forwarded Events as a source, and wiring up an incident-triggered playbook to act on the alerts and incidents that source ultimately helps generate.

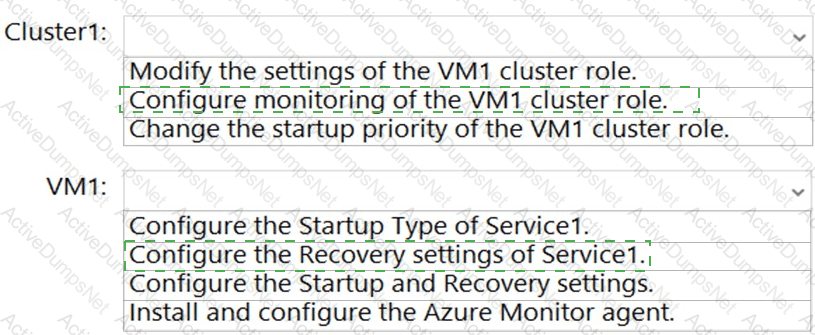

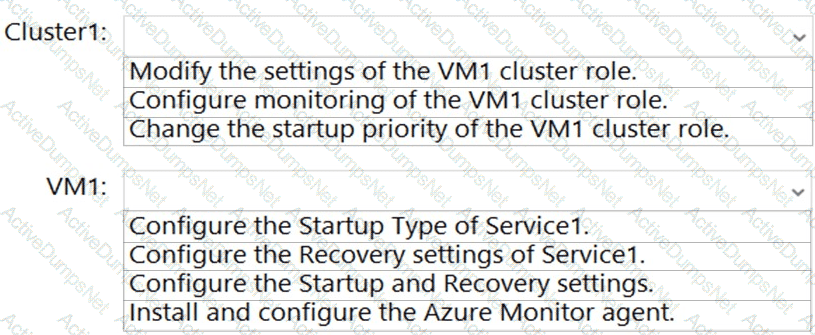

On Cluster1: Configure monitoring of the VM1 cluster role. On VM1: Configure the Recovery settings of Service1.

Failover Clustering ' s virtual machine monitoring feature lets the cluster watch the health of a specific Windows service running inside a guest virtual machine and take corrective action -- up to and including failing the VM over to another node -- when that service repeatedly fails. Enabling this requires two coordinated configuration steps on two different sides. On Cluster1, an administrator selects " Configure Monitoring " on the VM1 cluster role in Failover Cluster Manager (or runs Add-ClusterVMMonitoredItem) and chooses Service1 as the specific service to monitor, which is what actually enables the cluster ' s health-detection integration to watch that service and react when it fails. Inside the guest, on VM1, Service1 ' s own Recovery tab in the Services console must be configured so that its failure actions notify the operating system on failure, which is the signal the cluster ' s monitoring integration component relies on to detect that the service has actually failed. Configuring the Startup Type alone, or the Startup and Recovery settings together without specifically enabling the failure-notification behavior, does not provide the cluster with the signal it needs, and installing the Azure Monitor agent is unrelated to in-guest service monitoring for cluster failover. Both configuration steps together are required for the desired automatic failover behavior to work.

For onboarding a large number of Azure Arc-enabled servers that already sit within a common resource group, Microsoft documents Azure Policy as the at-scale mechanism for deploying the required Sentinel data connector (the Azure Monitor Agent, along with its associated data collection rule) across every resource in that scope automatically, rather than installing an extension or configuring each server individually by hand. An administrator assigns a single policy definition to the resource group, and Azure evaluates and remediates compliance for all 100 servers, deploying the agent and connecting them to Microsoft Sentinel without any per-server manual steps. Azure Automation is used for runbook-based automation tasks rather than at-scale agent deployment for onboarding. Manually installing Azure virtual machine extensions on each of the 100 servers individually would technically work but requires far more administrative effort than a single policy assignment. Microsoft Defender for Cloud is a separate security posture management service and is not itself the onboarding mechanism for Sentinel. Therefore, Azure Policy is the option that minimizes administrative effort for this at-scale onboarding.

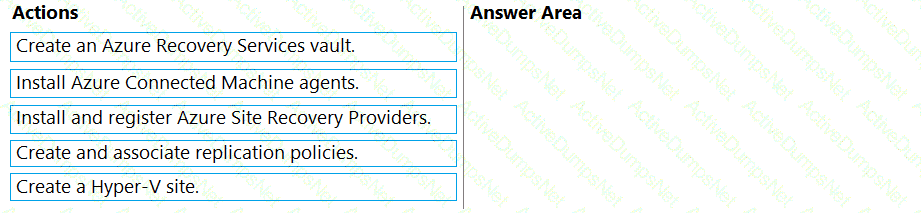

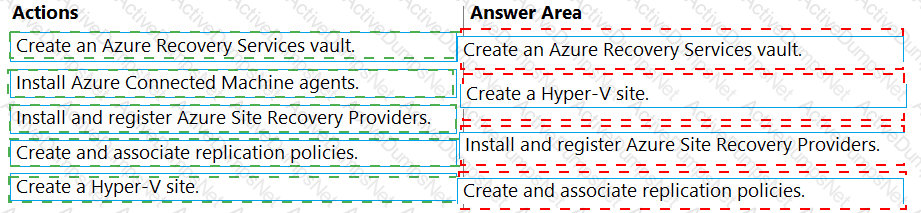

1. Create an Azure Recovery Services vault. 2. Create a Hyper-V site. 3. Install and register Azure Site Recovery Providers. 4. Create and associate replication policies.

Setting up Azure Site Recovery for a Hyper-V cluster that is not managed by Virtual Machine Manager follows a fixed infrastructure-preparation order. An Azure Recovery Services vault must exist first, since it is the container that every later step registers against. A Hyper-V site is then created in that vault to represent the on-premises Hyper-V environment, because a Hyper-V host or cluster must belong to a site before its hosts can be registered against Azure Site Recovery. The Azure Site Recovery Provider is then installed on the Hyper-V hosts (Cluster2 ' s nodes) and registered to that site/vault, which is what actually connects the cluster nodes to Azure Site Recovery. Only once the hosts are registered can a replication policy be created and associated with the Hyper-V site, since a policy has nothing to attach to until the site and its registered hosts already exist. Installing Azure Connected Machine agents is unrelated to Hyper-V VM replication -- that agent is used for onboarding servers to Azure Arc -- and is not part of this workflow. Therefore, the correct order is: create the vault, create the Hyper-V site, install and register the Providers, and create and associate the replication policy.

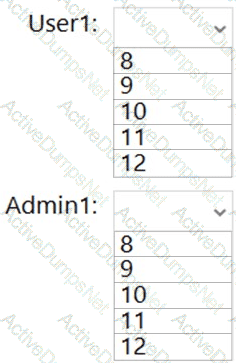

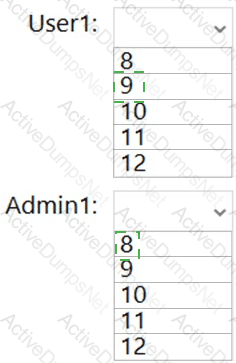

User1: 9. Admin1: 8.

Fine-grained password policies delivered through Password Settings Objects (PSOs) take precedence over the domain-wide Default Domain Policy for any user they apply to. When more than one PSO would apply to the same user only through different group memberships (as opposed to one being linked directly to the user), the PSO with the lowest numeric precedence value wins. User1 is a member of both Group2 (targeted directly by PSO1, precedence 10, minimum password length 9) and Group4 (targeted directly by PSO2, precedence 20, minimum password length 11); since PSO1 ' s precedence value of 10 is lower than PSO2 ' s 20, PSO1 governs, giving User1 an effective minimum password length of 9. Admin1 is a member only of Domain Admins, which is not targeted by either PSO, so no fine-grained password policy applies. Admin1 is also in OU1, which has GPO1 linked to it with a minimum password length of 10, but Account Policy settings such as password policy configured in an OU-linked GPO never affect the effective password policy of domain user accounts -- only a GPO linked at the domain root can supply a fallback domain-wide default, and PSOs otherwise take precedence over that default. With no applicable PSO, Admin1 ' s effective policy falls back to the Default Domain Policy, whose minimum password length in this environment is 8.

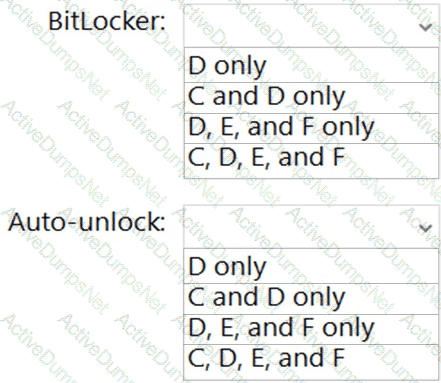

BitLocker: C, D, E, and F. Auto-unlock: D, E, and F only.

BitLocker Drive Encryption can be enabled on every volume shown in Server4 ' s disk configuration -- the NTFS-formatted operating system volume (C:), the NTFS data volume (D:), and the two ReFS-formatted data volumes (E: and F:). BitLocker has no file-system restriction that excludes ReFS: Microsoft ' s ReFS documentation and BitLocker ' s own volume support explicitly confirm that ReFS-formatted volumes, including already-encrypted ones that are later expanded, are fully supported, so E: and F: are just as eligible for BitLocker as the NTFS volumes. BitLocker auto-unlock, however, is a feature limited to fixed data volumes: it lets a data volume unlock automatically at startup using a key protected by the already-unlocked operating system volume, and it is not applicable to the OS volume itself, since the OS volume instead relies on the TPM (or a startup key/PIN) to unlock during boot -- there is no separate outer volume for it to depend on. Because C: is the operating system volume, auto-unlock cannot be configured on it, leaving D:, E:, and F: as the volumes eligible for auto-unlock. Therefore, BitLocker can be turned on for all four volumes (C, D, E, and F), while auto-unlock is available only on the three data volumes (D, E, and F).

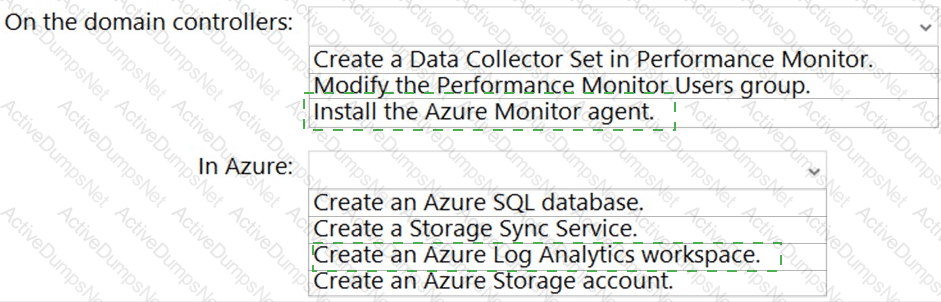

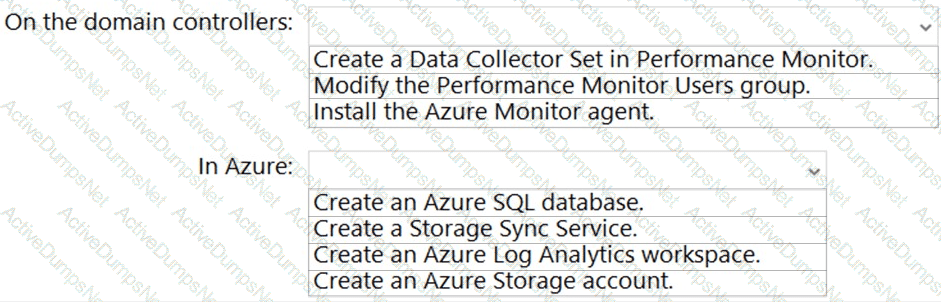

On the domain controllers: Install the Azure Monitor agent. In Azure: Create an Azure Log Analytics workspace.

Centrally managing performance alerts in Azure for on-premises domain controllers is done by connecting those servers to Azure Monitor: the Azure Monitor agent is installed on each domain controller (onboarded to Azure Arc for non-Azure servers, or directly if they are Azure VMs) to collect performance counters and event data, and that telemetry is sent to an Azure Log Analytics workspace, which is the resource that stores the collected data and against which performance-based alert rules are then defined and centrally managed. Creating a Data Collector Set in Performance Monitor and modifying the Performance Monitor Users group are both local, per-server administrative actions that never send any data to Azure and cannot support central, Azure-based alerting. An Azure SQL database, a Storage Sync Service, and an Azure Storage account are all Azure resources, but none of them is the telemetry store that Azure Monitor ' s alerting pipeline is built on -- only a Log Analytics workspace serves that role. Therefore, installing the Azure Monitor agent on the domain controllers and creating an Azure Log Analytics workspace are the two required actions.

Promoting a new domain controller that runs a newer operating system version than any existing domain controller in the forest -- here, DC4 running Windows Server 2022 into a forest whose functional level is still Windows Server 2012 R2 -- requires the Active Directory schema to first be extended to support that OS version ' s schema additions (the adprep /forestprep and /domainprep operations, which modern promotion tools such as Install-ADDSDomainController run automatically when needed). Extending the schema requires connectivity to the domain controller holding the Schema Master FSMO role, since schema changes can only be made by contacting that specific role holder; if the Schema Master is offline, the schema extension step fails and the promotion cannot proceed. According to the domain controllers table, DC1 holds both the RID master and the schema master roles. DC2 holds the PDC emulator and infrastructure master roles, and DC3 holds the domain naming master role -- neither of those role sets is relevant to a schema extension. Therefore, DC1, as the Schema Master, must be online for DC4 ' s promotion (and its associated schema extension) to succeed.

Using Hyper-V Replica within a clustered Hyper-V environment such as Cluster3 requires deploying the Hyper-V Replica Broker, which itself runs as a clustered role on the failover cluster; without the Broker, replication cannot follow a protected virtual machine if it live-migrates between Cluster3 ' s nodes, since there would be no single, cluster-aware endpoint tracking which node currently owns each VM ' s replication state. Adding a failover cluster role is exactly how the Hyper-V Replica Broker is deployed onto Cluster3, satisfying the requirement to use Hyper-V Replica to protect Cluster3 ' s virtual machines. Enabling integration services on the virtual machines addresses guest-OS-to-host integration (time synchronization, heartbeat, and similar) rather than providing any replication capability. Adding a generic Windows Server server role does not, by itself, install or configure the Hyper-V Replica Broker -- the Broker must specifically be added as a clustered role through Failover Cluster Manager. Configuring a fault domain for the cluster is not a real Windows Server failover clustering concept and does not provide Hyper-V Replica capability. Therefore, adding a failover cluster role (the Hyper-V Replica Broker) is the correct solution for Cluster3.

Storage Migration Service is designed to migrate a file share such as Share1 to a new server (Server2) while carrying over both the share-level and NTFS folder/file permissions, and it can also perform a cutover of the source server ' s name and IP address if a fully transparent migration is later required. This directly satisfies the requirement to migrate Share1 to Server2 including all the share and folder permissions. File Server Resource Manager (FSRM) only provides quota, file-screening, and storage-reporting capabilities and has no mechanism to migrate data, shares, or permissions between servers. Server Manager is a general-purpose administration console with no dedicated share-migration workflow -- it can be used to create shares manually but cannot transfer existing permissions programmatically. Storage Replica performs block-level volume replication intended for disaster recovery and stretch-cluster scenarios rather than a one-time, permission-preserving share migration to a specific destination server. Therefore, Storage Migration Service is the correct tool to migrate Share1 to Server2 while preserving its share and folder permissions.

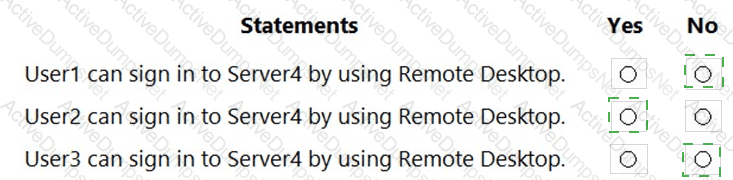

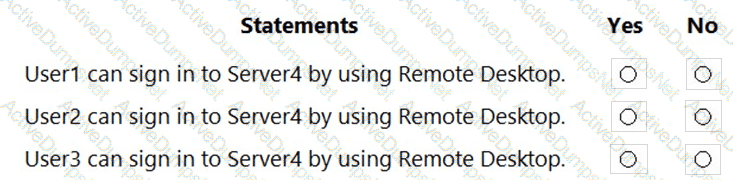

Signing in over Remote Desktop requires a user to hold the " Allow log on through Remote Desktop Services " right and the " Access this computer from the network " right, and to be excluded from any matching Deny counterpart, since an explicit Deny always overrides an Allow granted through any other group membership. User1 is a member of Group2 (granted the Remote Desktop Services logon right) but is also a member of Group4, which is explicitly denied " Access this computer from the network " on Server4 -- that network-access denial blocks the RDP connection outright regardless of the Everyone-based network-access Allow or the RDS logon right, so User1 is denied. User2 belongs only to Group2: Group2 grants the RDS logon right, User2 is covered by the Everyone-based network-access Allow, and User2 is not a member of either Group3 or Group4, so neither Deny applies and User2 can sign in successfully. User3 is a member of Group3, which is explicitly denied " Allow log on through Remote Desktop Services " on Server4 -- that denial blocks the RDP logon right itself, so User3 cannot sign in regardless of network-access rights (and User3 is also in Group4, which independently denies network access as well). Therefore, only User2 can successfully sign in to Server4 using Remote Desktop.

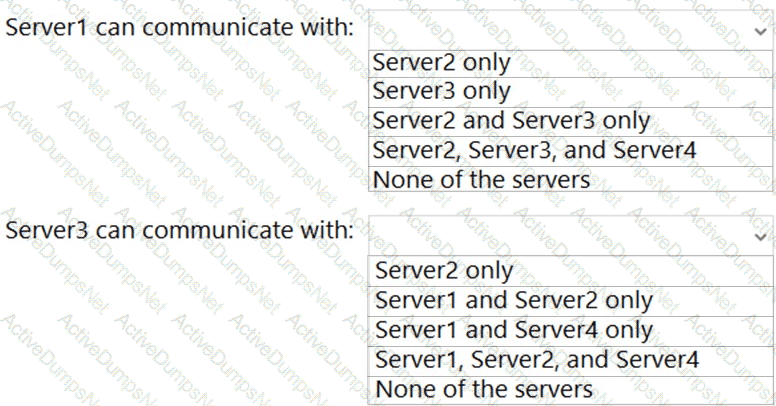

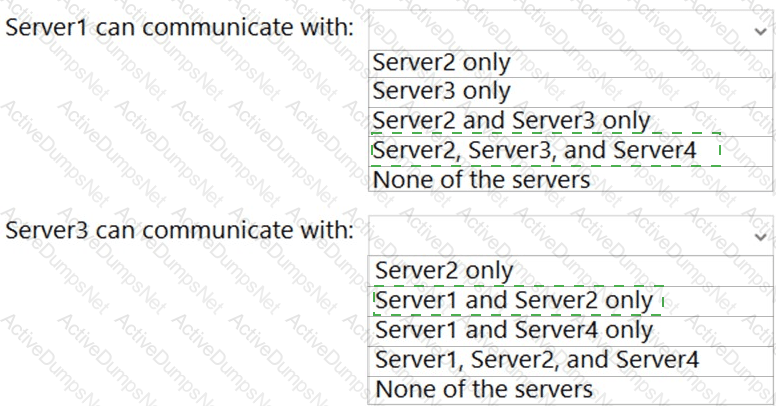

Server1 can communicate with: Server2, Server3, and Server4. Server3 can communicate with: Server1 and Server2 only.

Server4 has no isolation connection security rule configured at all, so it never attempts or performs IPsec authentication with any peer. Server1 ' s rule only requests IPsec in both directions rather than requiring it, meaning that if IPsec negotiation does not occur -- as with Server4, which has no IPsec capability configured -- the connection still falls back to succeed in the clear; Server1 can therefore reach Server2, Server3, and Server4. Server3 ' s rule requires IPsec in both directions, meaning a connection only succeeds if IPsec authentication is actually negotiated. Server3 can successfully negotiate IPsec with Server1 (whose " request " setting means it will still respond to and complete an IPsec negotiation when the peer requires it) and with Server2 (which requires inbound and requests outbound IPsec, and likewise supports negotiation), so both of those connections succeed. Server3 cannot successfully negotiate IPsec with Server4, since Server4 has no IPsec capability configured at all, and Server3 ' s " require " setting blocks any connection that cannot be authenticated via IPsec. Therefore, Server1 can communicate with Server2, Server3, and Server4, while Server3 can communicate with only Server1 and Server2.

Backing up a standalone Windows Server ' s files, folders, and system state directly to an Azure Recovery Services vault -- exactly what the requirement calls for on Server4 -- is done using the Microsoft Azure Recovery Services (MARS) agent, so installing that agent on Server4 is the necessary first step. Microsoft Azure Backup Server (MABS) is used for application-aware and Hyper-V virtual machine backups rather than direct file/system-state backup of a single standalone server, and while it can also protect servers, it is not the lightweight, direct-to-vault mechanism appropriate for a single standalone server like Server4 and represents unnecessary additional infrastructure. Native Windows Server Backup does not target an Azure Recovery Services vault on its own without additional agent installation, and Storage Replica provides block-level volume replication between servers rather than the point-in-time backup and long-term retention the requirement calls for. Therefore, installing the MARS agent on Server4 is the correct first step to meet this technical requirement.

The Azure Site Recovery Provider must be installed and registered on every Hyper-V host that is a node of the cluster being protected, because each node is a location the protected virtual machines could reside on after a live migration, and each node must independently be able to track and replicate the VMs it is currently hosting. Cluster2 has four nodes according to the Hyper-V failover clusters table (Cluster1 has six nodes and eighteen virtual machines, Cluster2 has four nodes and twelve virtual machines, and Cluster3 has two nodes and six virtual machines), so a minimum of four Provider installations -- one per node -- is required; installing the Provider on only one, two, or three of the nodes would leave replication unable to follow a protected VM if it live-migrated to whichever node lacks the Provider, breaking continuous replication for that VM the moment it moved. Therefore, four is the minimum number of Azure Site Recovery Provider installations required to fully protect all of Cluster2 ' s virtual machines regardless of which node currently hosts them.

Restoring deleted objects from the Active Directory Recycle Bin requires permission to view and restore objects inside the forest ' s Deleted Objects container, and by default that container ' s access control list denies access to everyone except the SYSTEM account and members of Domain Admins (and Enterprise Admins at the forest root) -- no delegation to any other built-in group exists out of the box. Among the four groups offered, only Domain Admins carries this permission by default, since Account Operators (which can manage most user, group, and computer objects but has no special access to the hidden Deleted Objects container), Schema Admins (which governs schema modifications, not object restoration), and Backup Operators (which can back up and restore files and the system state, but not perform an online Active Directory Recycle Bin object restore through the Active Directory Administrative Center) all lack the needed access. The case study ' s general instruction to use the principle of least privilege where possible does not change this outcome here, since none of the three lower-privileged alternatives actually has the required capability by default -- Domain Admins is not merely the most convenient choice but the only one of the four that functionally works. Therefore, User1 must be added to Domain Admins to be able to recover objects from the Active Directory Recycle Bin.

The requirement states that server administrators must request approval before establishing a Remote Desktop connection to an Azure virtual machine, and that once approved, the connection must be established within a defined two-hour window. This request-approve-then-time-limited-access pattern for a specific management port on an Azure VM is precisely what just-in-time (JIT) VM access, a Microsoft Defender for Cloud capability, provides: it keeps the RDP/SSH management ports closed by default in the network security group, requires an explicit access request, and, once approved, opens the port only for a specified time window and only from the requester ' s source IP. Microsoft Entra Privileged Identity Management provides time-bound, approval-based elevation for Microsoft Entra and Azure RBAC roles, not for opening network ports to a VM, so it does not by itself control Remote Desktop network access. The Remote Desktop extension for Azure Cloud Services is a legacy classic-deployment feature unrelated to this scenario. Azure Bastion provides browser-based RDP/SSH without exposing public IPs but does not implement an approval workflow with a bounded connection window. JIT VM access is therefore the correct, purpose-built solution.

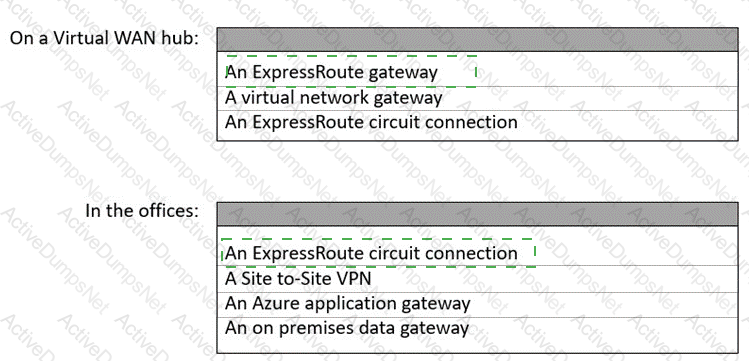

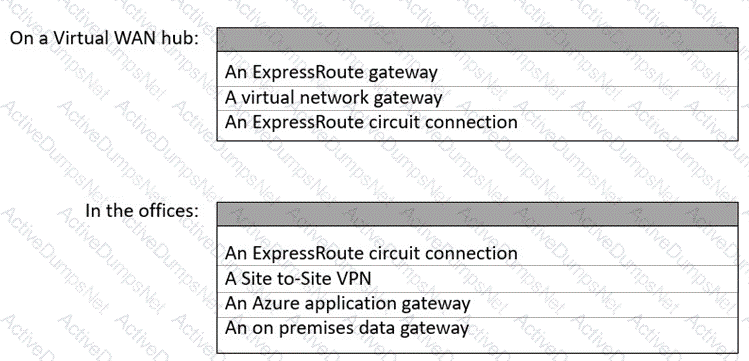

On a Virtual WAN hub: An ExpressRoute gateway. In the offices: An ExpressRoute circuit connection.

Fabrikam ' s plan is to replace the existing WAN links between the New York and Seattle offices with Azure Virtual WAN and ExpressRoute, connecting both offices to Vnet1 through the Virtual WAN hub. Azure Virtual WAN uses its own hub-native ExpressRoute gateway object (distinct from the standalone virtual network gateway used when ExpressRoute is connected directly to a single VNet); this ExpressRoute gateway is deployed inside the Virtual WAN hub and is required before any ExpressRoute circuit can terminate into that hub. A standard virtual network gateway is used for VNet-to-VNet or VPN scenarios, not for Virtual WAN hub ExpressRoute termination, and an ExpressRoute circuit connection itself is the logical link resource, not something you deploy on the hub. At each office, connectivity into Microsoft ' s network is established through an ExpressRoute circuit connection provisioned with a connectivity provider, which then links, via Microsoft ' s backbone, into the ExpressRoute gateway in the Virtual WAN hub. A Site-to-Site VPN, an Azure application gateway (a web traffic load balancer), and an on-premises data gateway (used for Power Platform/Logic Apps connectors) are all unrelated to this ExpressRoute-based design.

DC3 is explicitly described as a domain controller named dc3.corp.fabrikam.com that will exist inside Vnet1, meaning it must be a genuine, writable domain controller for Fabrikam ' s existing corp.fabrikam.com AD DS forest, replicating with DC1 and DC2. The only way to run an actual domain controller for an existing on-premises forest inside Azure is to deploy a regular Azure virtual machine, place it on Vnet1, install the AD DS role on it, and promote it as an additional domain controller for corp.fabrikam.com. Microsoft Entra Domain Services is a fundamentally different, fully managed service: it creates its own separate, standalone managed domain and does not add a domain controller to, or replicate directly with, an existing on-premises forest, so it cannot be used to deploy " DC3 " as described. Microsoft Entra Application Proxy publishes on-premises web applications to external users and has nothing to do with domain controller placement. A Microsoft Entra administrative unit is a container used to scope administrative permissions over Microsoft Entra objects and is unrelated to deploying infrastructure. Therefore, an Azure virtual machine, promoted to a domain controller, is the correct implementation for DC3.

GPO4 is already linked to the VirtualDesktops OU, which contains the Azure Virtual Desktop session host computer accounts, so it is correctly targeted at the right computers. The requirement is that the idle lockout behavior configured in GPO4 must apply to whichever user is signed in to a session host, and that the user must still be able to adjust the lockout time manually from their own client, which means the relevant setting is a per-user configuration item rather than a strict, non-negotiable computer policy. By default, user-configuration settings inside a GPO apply based on the OU containing the user account, not the computer the user signs in to; Fabrikam ' s users are located in the AllUsers OU, which is governed by GPO1, not GPO4. Group Policy Loopback Processing, enabled in GPO4 and set to Merge (to allow the client-side adjustment) or Replace, forces the user-configuration portion of GPO4 to apply to any user who logs on to a computer in the VirtualDesktops OU, regardless of where that user ' s own account resides. Security filtering and the Enforced property both affect who a GPO applies to or its precedence in conflicts, but neither one makes a GPO ' s user-side settings follow the computer instead of the user, so loopback processing in GPO4 is correct.

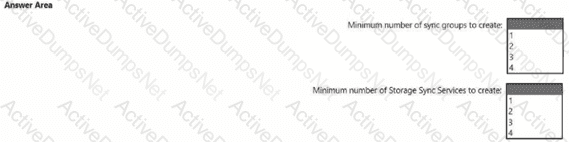

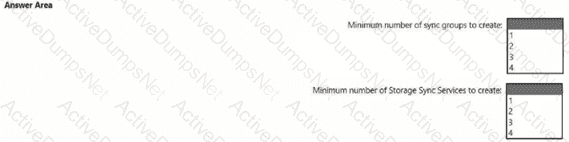

Sync groups: 3. Storage Sync Services: 1.

In Azure File Sync, a sync group defines a single sync topology and can contain exactly one cloud endpoint (one Azure file share) but can contain multiple server endpoints (on-premises server locations) that all sync to that same file share. Fabrikam needs newyorkfiles to sync only to FS1, seattlefiles to sync only to FS2, and companyfiles to sync to both FS1 and FS2. Because each Azure file share can only belong to one sync group, newyorkfiles requires its own sync group with a single server endpoint on FS1, seattlefiles requires its own sync group with a single server endpoint on FS2, and companyfiles requires a third sync group whose one cloud endpoint (companyfiles) has two server endpoints, one on FS1 and one on FS2, which Azure File Sync fully supports within a single sync group. That gives a minimum of three sync groups. A Storage Sync Service is the top-level Azure resource that contains and manages sync groups, and there is no requirement here that forces the shares into separate Storage Sync Service instances (such as differing regions or subscriptions); a single Storage Sync Service can hold all three sync groups. Therefore only one Storage Sync Service is required.

Fabrikam ' s plan is to use Azure Policy to enforce configuration management policies across both its Azure and on-premises servers. Azure Policy ' s guest configuration capability, which evaluates and can remediate in-guest settings, only works against a server that is registered as an Azure resource. For an on-premises or non-Azure server, that registration is achieved by deploying the Azure Connected Machine agent, which onboards the machine as an Azure Arc-enabled server, gives it an Azure resource ID, and makes it a valid target for Azure Policy assignments, including guest configuration policies, in exactly the same way an Azure VM would be. Hybrid joining servers to Microsoft Entra ID affects identity and device management (such as Conditional Access) but does not make a server a valid Azure Policy target. A hybrid runbook worker lets Azure Automation runbooks execute on-premises but is unrelated to Azure Policy enforcement. The Azure Monitor agent collects telemetry into Log Analytics and Azure Monitor but does not register the server as an Arc resource or enable policy assignment on its own; it is typically deployed after Arc onboarding, not instead of it. Deploying the Azure Connected Machine agent is therefore the correct first step.

DC3 is a domain controller for the existing corp.fabrikam.com AD DS forest, deployed into Vnet1 in Azure. Domain controllers rely on AD-integrated DNS for locating other domain controllers, SRV records, and replication, so DC3 needs to host that zone itself, which requires installing the DNS Server role on DC3 and letting it host an AD-integrated copy of the corp.fabrikam.com zone. Azure ' s default virtual-network-provided DNS resolver has no awareness of AD DS records and cannot host or serve an AD-integrated zone, so every resource in Vnet1 that needs to locate the domain (including Azure VMs and DC3 ' s own replication partners) must be pointed at real DNS servers instead. That is accomplished by configuring the custom DNS Servers setting on Vnet1 to reference DC3 (and, once available, DC1 and DC2), which makes all Azure VMs in the virtual network resolve names through the AD-integrated DNS infrastructure rather than the platform resolver. An Azure DNS zone (public) or an Azure private DNS zone are separate, unrelated Azure-native DNS services that cannot host an AD-integrated zone and are not used for this scenario. Installing the DNS Server role on DC3 and pointing Vnet1 at it together satisfy the requirement.

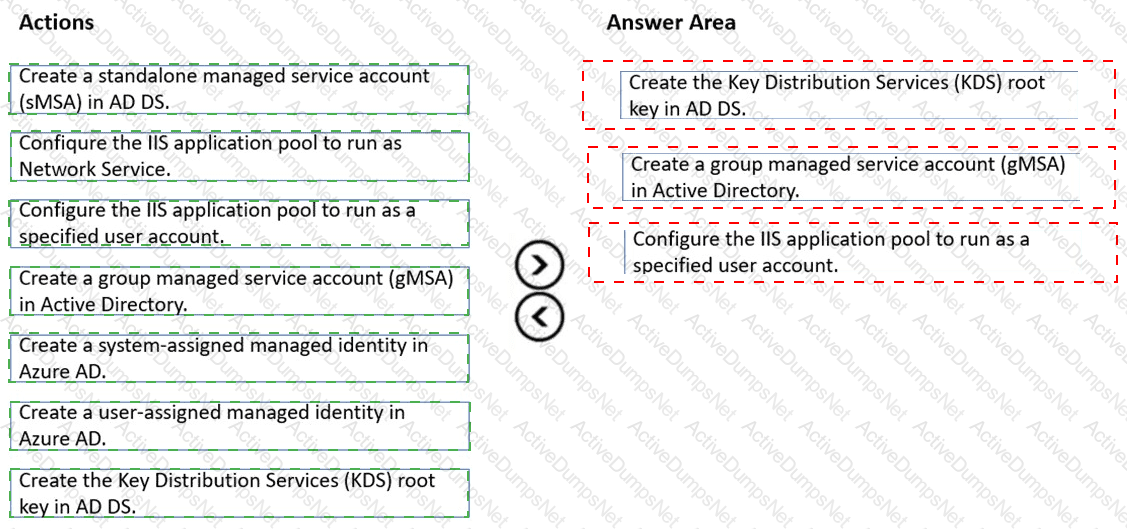

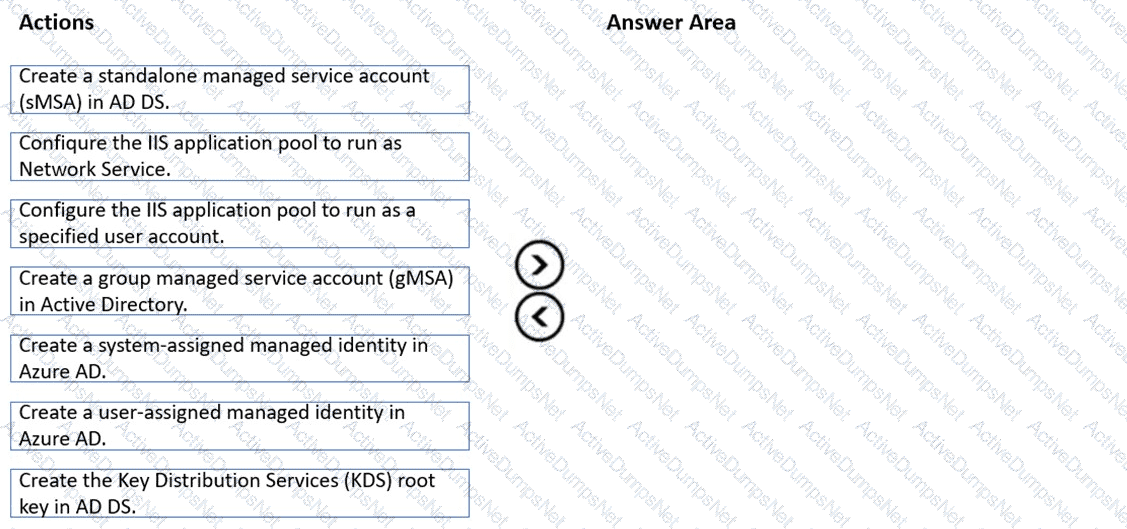

1. Create the KDS root key in AD DS. 2. Create a group managed service account (gMSA) in Active Directory. 3. Configure the IIS application pool (on WEB1 and WEB2) to run as the gMSA via a specified user account.

The requirement is that every instance of Webapp1 (running on both WEB1 and WEB2) uses the same identity, and that identity ' s password rotates automatically every 30 days, without any administrator manually resetting it. A standalone managed service account (sMSA) is tied to a single computer and cannot be shared across WEB1 and WEB2, so it does not meet the requirement. A group managed service account (gMSA) is designed exactly for this scenario: one AD-managed identity that multiple servers can use simultaneously, with the Key Distribution Service automatically rotating its password (by default every 30 days) without needing manual intervention or downtime. Before any gMSA can be created in the forest, a one-time prerequisite must exist: the KDS root key, which the Key Distribution Service uses to generate and later recompute the gMSA ' s password material. So the correct order is to first create the KDS root key, then create the gMSA object in Active Directory, and finally configure the IIS application pool on each web server to run as that gMSA using the " specified user account " identity option (entered as domain\gMSA$ with no password required, since the password is centrally managed). Creating a system- or user-assigned managed identity in Microsoft Entra ID does not apply here, since Webapp1 runs on IIS on domain-joined VMs, not as an Azure PaaS resource.

DHCP1 (New York, Scope1) and DHCP2 (Seattle, Scope2) currently serve only their own local office. To make DHCP highly available across both offices, the modern, supported approach is DHCP Failover, configured per scope (option E), which replicates lease information between DHCP1 and DHCP2 in either load-balance or hot-standby mode so that either server can service either scope ' s clients if its partner becomes unavailable. However, DHCP Failover alone only helps if a client ' s DHCP broadcast can actually reach the surviving partner server across the WAN; broadcasts do not cross routed office boundaries on their own. Configuring a DHCP relay agent on the router (or another relay-capable device) in each office (option B) forwards DHCPDISCOVER broadcasts from local clients to the remote partner server whenever the local DHCP server is down, allowing failover to actually take effect for clients in either office. The legacy split-scope technique of manually carving off a percentage of the other scope ' s addresses (options A and C) is the older, pre-failover workaround and is unnecessary once DHCP Failover is used; there is also no DHCP cluster role delivered through Windows Failover Clustering (option D), since DHCP achieves high availability through Failover mode, not a clustered role.

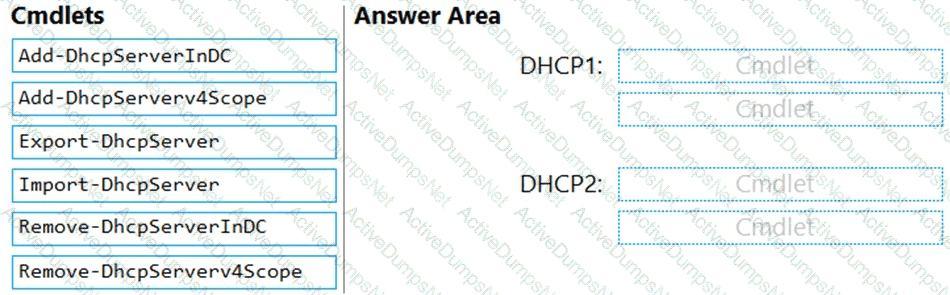

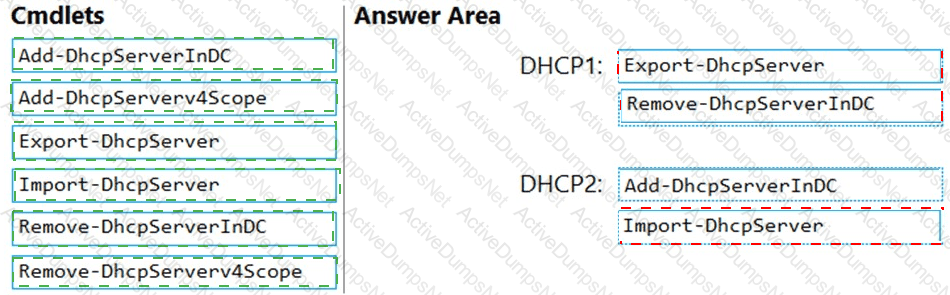

DHCP1: Export-DhcpServer, Remove-DhcpServerInDC. DHCP2: Add-DhcpServerInDC, Import-DhcpServer.

Migrating a DHCP server ' s configuration together with its existing leases and reservations by PowerShell follows an export/unauthorize-then-authorize/import pattern across the two servers. On the source server, DHCP1, Export-DhcpServer captures the existing scopes, options, leases, and reservations into a migration file, which is what allows the existing leases and reservations to actually carry over to the replacement server. Remove-DhcpServerInDC is then run on DHCP1 to unauthorize it in Active Directory, which is what prevents DHCP1 from continuing to service client requests once DHCP2 is brought online, satisfying that specific migration requirement. On the target server, DHCP2, Add-DhcpServerInDC authorizes the new server in AD DS so it is permitted to lease addresses on the network, and Import-DhcpServer then applies the configuration file exported from DHCP1, causing DHCP2 to hand out the same address ranges as DHCP1 along with the existing leases and reservations that were captured during export. Add-DhcpServerv4Scope and Remove-DhcpServerv4Scope only create or delete an individual scope ' s address range and do not export, import, or preserve any existing lease or reservation data, so neither is part of this migration sequence. Therefore, DHCP1 requires Export-DhcpServer and Remove-DhcpServerInDC, while DHCP2 requires Add-DhcpServerInDC and Import-DhcpServer.

Server administrators can be prevented from configuring Windows Defender Firewall rules by defining firewall policy centrally in a Group Policy Object and linking it to the servers ' organizational unit(s); domain-based GPO firewall policy overrides any local, administrator-configured Windows Defender Firewall rules on the domain-joined servers, since Group Policy-delivered firewall settings take precedence over local policy. Adaptive network hardening in Microsoft Defender for Cloud only generates recommendations to tighten network security group (NSG) rules protecting Azure resources -- it has no visibility into or control over host-based Windows Defender Firewall configuration on on-premises servers. A network security group (NSG) in Sub1 filters traffic at the Azure virtual network boundary and has no bearing on the on-premises Chicago office servers described in the scenario. An Azure Firewall policy governs the centrally managed Azure Firewall network virtual appliance, not the host-based Windows Defender Firewall running locally on each on-premises server. Because the servers in question are on-premises and domain-joined, only a Group Policy Object can centrally enforce and lock down their local Windows Defender Firewall configuration, preventing server administrators from modifying the rules directly on each machine. Therefore, configuring a GPO is the correct way to reduce this security risk.

Microsoft Defender for Identity is the Microsoft Sentinel data connector purpose-built to monitor on-premises Active Directory domain controllers and surface exactly the insecure-protocol activity described in the requirement, including authentication attempts and sign-ins that rely on legacy or unsigned protocols such as NTLMv1, SMBv1, and unsigned LDAP binds. It does this by analyzing domain controller network traffic and Windows Events directly on the DCs, which is exactly where this insecure-protocol usage originates. The Threat Intelligence - TAXII connector ingests external threat-intelligence indicator feeds (IP addresses, file hashes, domains) from TAXII-compliant sources and has nothing to do with monitoring authentication protocol usage on domain controllers. The Azure Active Directory (Microsoft Entra ID) connector reports on cloud sign-in and audit log events for the Entra tenant, not on legacy protocol usage against on-premises AD DS domain controllers. Microsoft Defender for Cloud focuses on cloud resource security posture management and workload protection rather than detecting legacy authentication protocol usage against on-premises domain controllers. Therefore, connecting Microsoft Defender for Identity to Microsoft Sentinel is the correct connector to identify connections to the domain controllers that use insecure protocols.

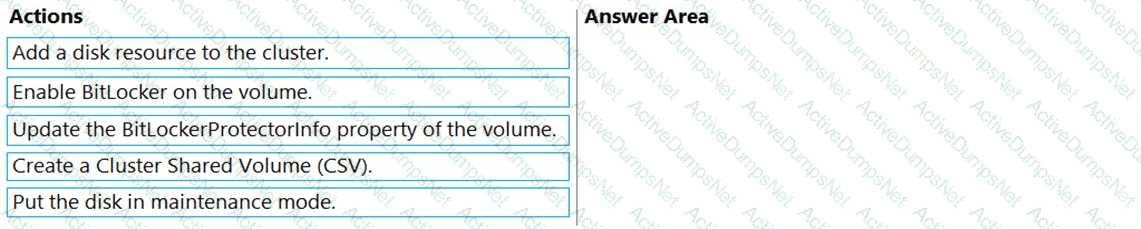

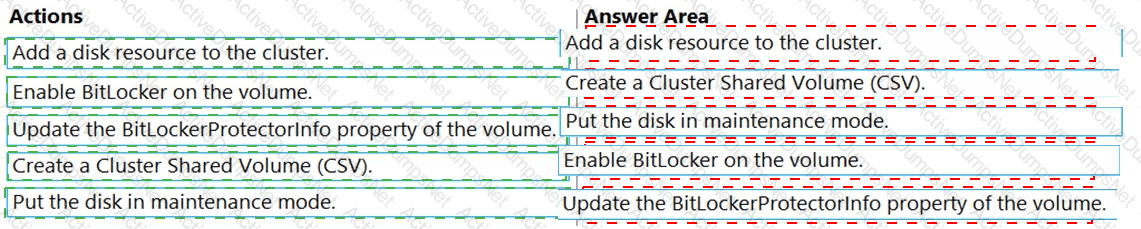

1. Add a disk resource to the cluster. 2. Create a Cluster Shared Volume (CSV). 3. Put the disk in maintenance mode. 4. Enable BitLocker on the volume. 5. Update the BitLockerProtectorInfo property of the volume.

BitLocker can only be enabled on a Cluster Shared Volume disk while that disk is taken offline to cluster I/O, so the CSV must exist and be placed into maintenance mode before encryption can be applied. The supported sequence begins by adding the disk resource to the cluster and converting it into a Cluster Shared Volume, since BitLocker-on-CSV support requires the disk to already be a CSV rather than a plain cluster disk. The disk is then put into maintenance mode, which takes it offline to the other cluster nodes so it can be safely encrypted without a node attempting to access it mid-operation. With the CSV disk offline in maintenance mode, BitLocker is enabled on the volume. Finally, the volume ' s BitLockerProtectorInfo property is updated so that Failover Clustering registers the unlock protector, allowing the volume to automatically unlock on every cluster node once maintenance mode ends and the CSV is brought back online. Performing these steps out of order either fails outright -- BitLocker cannot be enabled on a CSV disk that is still online and actively used by the cluster -- or leaves the other cluster nodes unable to bring the encrypted volume back online afterward, since they would lack the registered unlock protector. Therefore, the correct order is: add the disk resource, create the CSV, put the disk in maintenance mode, enable BitLocker, and update BitLockerProtectorInfo.

A Windows Server failover cluster requires a distinct IP address for each individual cluster node ' s network adapter, plus one additional IP address for the cluster ' s own network name resource -- the cluster access point that clients and management tools use to address the cluster as a single logical entity rather than any one specific node. Cluster3 will contain two physical nodes, Node1 and Node2, so at minimum one IP address is required for Node1 ' s network adapter and one for Node2 ' s network adapter. Beyond those two node-level addresses, the cluster core resource itself (the cluster name object and its associated IP address resource) requires one more address so that the cluster can be addressed and managed as a whole and so that any highly available roles hosted on the cluster (such as the file share role planned for Cluster3) can obtain the network identity they need to fail over between nodes. Adding these together -- one for Node1, one for Node2, and one for the cluster ' s own network name -- yields a minimum of three IP addresses required for Cluster3 ' s node and cluster roles. Fewer than three would leave either a node or the cluster itself without a usable network identity, and while additional IP addresses may be consumed by highly available roles later added to the cluster, three is the baseline minimum for the node and cluster roles themselves.

Installing and authorizing a DHCP server in an Active Directory-integrated environment requires two distinct sets of rights: local Administrators group membership on Server3 to install the DHCP Server role itself, and Enterprise Admins group membership to authorize that server in AD DS, because DHCP server authorization is stored as a forest-wide object under CN=NetServices,CN=Services,CN=Configuration and only Enterprise Admins can create or modify objects there by default. Admin1 is a member of Contoso\Enterprise Admins, which grants exactly this forest-wide right and also carries local administrative rights on every domain-joined computer in the forest, including Server3, so Admin1 can both install the role and authorize the server, fully satisfying the requirement on his own. Admin2, a member of only Contoso\Domain Admins, has full administrative rights over contoso.com and its member computers, but Domain Admins does not carry the right to authorize a DHCP server in the forest-wide NetServices container, so Admin2 cannot complete authorization even though he can install the role. Admin3, a member of Canada\Domain Admins, has administrative rights limited to the canada.contoso.com domain and likewise lacks the Enterprise Admins-only authorization right needed here, since Server3 and the DHCP authorization object both fall outside that domain ' s scope of control. Because only Admin1 holds both the local administrative rights needed to install the DHCP Server role on Server3 and the Enterprise Admins membership needed to authorize it in AD DS, Admin1 only is correct.

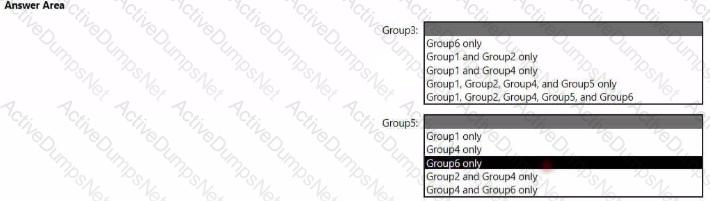

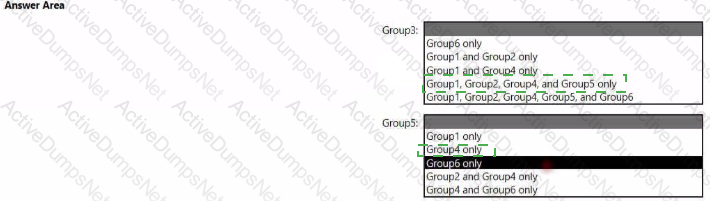

Group3: Group1, Group2, Group4, and Group5 only. Group5: Group4 only.

Group nesting in AD DS is governed strictly by group scope, independent of whether a group is security- or distribution-type. A Domain Local group can contain user accounts, Global groups from any domain, and Universal groups from any domain, plus other Domain Local groups from its own domain only. Group3 is a Domain Local group in contoso.com, so it can accept Group1 (Universal, contoso.com), Group2 (Global, contoso.com), and Group4 and Group5 (both Global, canada.contoso.com), since Global groups from any domain are valid Domain Local members. It cannot accept Group6, because Group6 is Domain Local in canada.contoso.com, a different domain, and Domain Local groups may only nest other Domain Local groups from their own domain. That gives Group3: Group1, Group2, Group4, and Group5 only. A Global group, by contrast, can contain only user accounts and other Global groups from the same domain. Group5 is Global in canada.contoso.com, so among the remaining groups only Group4 qualifies, since it is also Global and in the same domain; Group1 (Universal), Group2 (Global but a different domain), and Group6 (Domain Local) are all excluded by scope rules. That gives Group5: Group4 only.

Site, subnet, and site-link objects are stored in the Configuration partition, which replicates to every domain controller in the forest but is administratively owned by the forest root domain. By default, only members of Enterprise Admins and members of the Domain Admins group of the forest root domain (contoso.com in this forest) have permissions to modify objects in the Configuration container, including editing a site link ' s replication schedule. Admin1 is a member of Contoso\Enterprise Admins and therefore has forest-wide rights over the Configuration partition. Admin2 is a member of Contoso\Domain Admins; because contoso.com is the forest root domain, this group also carries default rights over the Configuration and Schema partitions. Admin3, however, is a member of Canada\Domain Admins, the Domain Admins group of the canada.contoso.com child domain, which has no inherent rights over the Configuration partition. Consequently, to change the replication schedule on all site links to 30 minutes, only Admin1 and Admin2 currently have the necessary permissions, making option C the correct answer.

Promoting a member server to a domain controller in a specific domain requires membership in either the Enterprise Admins group (forest-wide rights) or the Domain Admins group of that target domain. Server1 is a member server in canada.contoso.com, and the requirement is to promote it to a domain controller in that same domain. Admin1 belongs to Contoso\Enterprise Admins, which has full administrative rights across every domain in the forest, including the right to install AD DS and promote a server anywhere in the forest, so Admin1 qualifies. Admin3 belongs to Canada\Domain Admins, the Domain Admins group of canada.contoso.com itself, which grants full administrative control, including domain controller promotion, within that domain, so Admin3 also qualifies. Admin2, by contrast, is a member of Contoso\Domain Admins, the Domain Admins group of the contoso.com domain; Domain Admins rights are scoped to their own domain and do not extend into a child domain such as canada.contoso.com, so Admin2 cannot promote Server1. User1 has only standard Domain Users membership and holds no administrative rights anywhere. Therefore, only Admin1 and Admin3 currently have sufficient rights, making option C correct.

Data Deduplication is a Windows Server file-and-storage feature that can only be enabled on NTFS-formatted data volumes; it cannot be enabled on the operating system (boot/system) volume, and it does not support ReFS or FAT/exFAT volumes at all. VM3 ' s volumes are C (NTFS, the operating system volume), D (NTFS, a data volume), E (ReFS), and F (exFAT). Volume C is excluded because Deduplication is never supported on the volume that hosts the operating system, even though its file system is NTFS. Volume E is excluded because Data Deduplication has no ReFS support in general-purpose deployments; ReFS uses its own separate storage-efficiency mechanisms such as block cloning, not the Deduplication feature. Volume F is excluded because exFAT is a lightweight file system with no support for Windows Server roles or features such as Deduplication, which depends on NTFS-specific metadata structures. That leaves volume D as the only NTFS data volume that is neither the boot volume nor formatted with an unsupported file system, so it is the only volume on which Data Deduplication can currently be enabled, making option C correct.

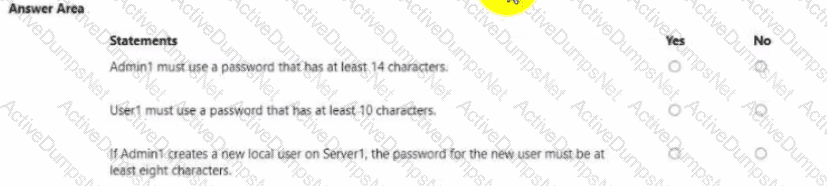

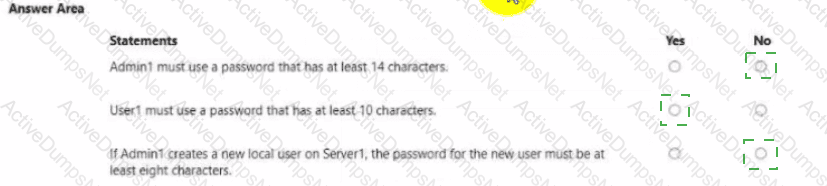

Statement 1: No. Statement 2: Yes. Statement 3: No.

Password-policy (Account Policy) settings inside a GPO behave differently depending on where the GPO is linked. For domain user accounts, only Account Policy settings defined in a GPO linked at the domain level (or in a fine-grained Password Settings Object) take effect; Account Policy settings in a GPO linked to an OU are ignored for domain accounts and instead apply only to the local SAM password policy of computer objects located in that OU. GPO1 (minimum length 14) is linked to OU1, where Admin1 ' s user object resides, but because it is linked to an OU rather than the domain, it has no effect on Admin1 ' s domain account password requirement. Admin1 ' s domain password is governed only by the Default Domain Policy (minimum length 10), so statement 1 is false. User1 is likewise a domain account subject only to the Default Domain Policy ' s minimum length of 10, so statement 2 is true. GPO2 (minimum length 8) is linked to the Member Servers OU, which contains Server1 as a computer object; this makes GPO2 the effective local password policy for local accounts created on Server1 (overriding the Default Domain Policy locally), not the domain policy ' s 10-character minimum. Therefore a new local account on Server1 needs only eight characters, not ten, making statement 3 false.

The requirement is narrow: User1 must be able to manage the membership of all the groups located in Contoso\OU3, and nothing more. The Delegation of Control Wizard, run against OU3 specifically, lets an administrator grant User1 exactly the built-in task " Modify the membership of a group, " which grants write access to the member attribute on group objects contained in that OU only. This satisfies the requirement while granting no rights outside OU3, which is the definition of least privilege. Creating the same delegation at the domain root (contoso.com) would technically work but grants far broader scope than needed, since it would apply to every container in the domain, not just OU3, violating least privilege. Adding User1 to Account Operators grants domain-wide rights to create, delete, and modify most user, group, and computer accounts throughout the domain (with some protections for built-in admin accounts), which is excessive for a task limited to group membership in one OU. Server Operators is unrelated to Active Directory object management altogether; it governs local administrative rights on domain controllers themselves. Therefore, delegating control on OU3 is the correct, minimally scoped solution.

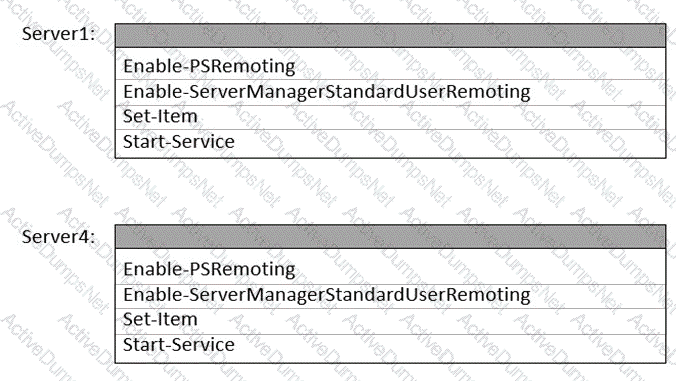

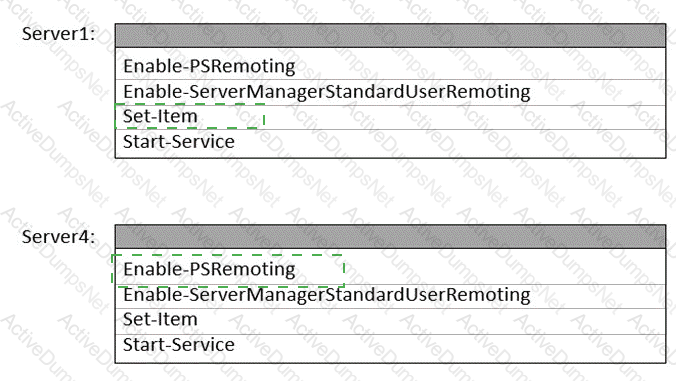

Server1: Set-Item. Server4: Enable-PSRemoting.

The requirement is to manage Server4 from Server1 by using PowerShell remoting. Server4 is a workgroup computer, not a member of either AD DS domain, so the WinRM authentication that PowerShell remoting relies on cannot use Kerberos between Server1 and Server4; it must fall back to NTLM, which WinRM only permits toward hosts explicitly listed in the client ' s TrustedHosts list. On Server1, the correct action is therefore Set-Item, used as Set-Item WSMan:\localhost\Client\TrustedHosts -Value " Server4 " (with -Concatenate as needed), which adds Server4 to Server1 ' s trusted hosts so an NTLM-based remoting session is permitted. On Server4, the target must first be configured to accept remote commands at all, which is done with Enable-PSRemoting; this cmdlet starts and configures the WinRM service, creates a listener, and enables the Windows Remote Management firewall rule for the current network profile, matching Server4 ' s private firewall profile. Enable-ServerManagerStandardUserRemoting only grants a non-administrator limited Server Manager access and does not establish remoting, and Start-Service alone does not create or configure a WinRM listener or firewall exception. Configuring Set-Item on Server1 and Enable-PSRemoting on Server4 together satisfies the requirement.

The stated problem is that when an administrator connects to VM2 ' s console through Virtual Machine Connection and disconnects without signing out, a second administrator who opens the console can silently inherit that still-signed-in session without ever supplying credentials. By default, VMConnect attaches directly to the raw console of the guest, which behaves like walking up to a physical, unlocked machine. Enhanced Session Mode changes this behavior by routing the VMConnect session over the Remote Desktop Protocol into the guest, which means every connection is treated as a new interactive Remote Desktop logon and therefore always prompts for credentials, eliminating the ability to passively inherit someone else ' s open session. Enabling Enhanced Session Mode requires both host-side and guest-side support (the guest operating system must support RDP and have the setting enabled) but is the direct, purpose-built fix for this exact console-sharing problem. The Guest Services integration component only enables basic file-copy functionality between host and guest and has no effect on console/session behavior. Credential Guard protects locally stored credentials from theft using virtualization-based security, and shielded VMs protect a VM ' s disk, state, and console from a compromised or malicious fabric administrator; neither addresses console session takeover between two legitimate administrators. Enhanced Session Mode is therefore the correct solution.

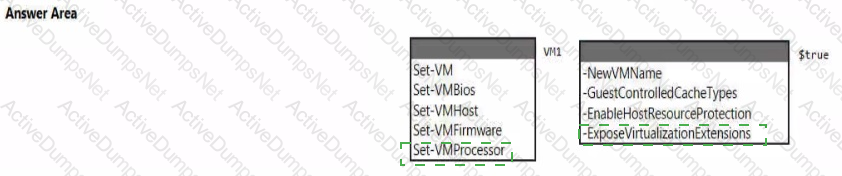

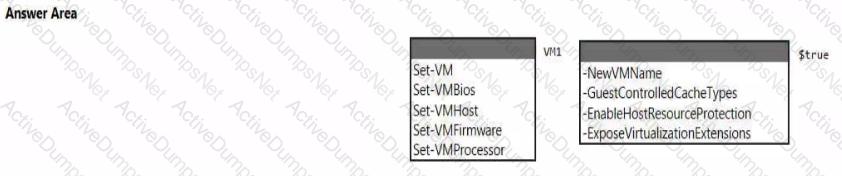

Set-VMProcessor -VMName VM1 -ExposeVirtualizationExtensions $true

The requirement is to run virtual machines on VM1 itself, which means enabling nested virtualization so that VM1 (a guest VM hosted on Server2) can install Hyper-V and host its own virtual machines. Nested virtualization on Hyper-V requires the parent VM ' s virtual processor to expose the host ' s hardware virtualization extensions (Intel VT-x or AMD-V) through to the guest. This is done with the Set-VMProcessor cmdlet using the -ExposeVirtualizationExtensions parameter set to $true, run against VM1 from the Hyper-V host (Server2): Set-VMProcessor -VMName VM1 -ExposeVirtualizationExtensions $true. VM1 must be turned off before this setting can be applied, and after it is applied, VM1 needs the Hyper-V role installed inside the guest before it can run its own VMs. Set-VM, Set-VMBios, Set-VMHost, and Set-VMFirmware do not control virtualization extension exposure: Set-VM manages general VM configuration such as memory and name, Set-VMHost configures host-wide settings, and Set-VMFirmware/Set-VMBios control boot and firmware settings for generation 2 and generation 1 VMs respectively. Only Set-VMProcessor with -ExposeVirtualizationExtensions satisfies the stated requirement, making it the correct first step.
