Juniper JN0-105 Junos - Associate (JNCIA-Junos) 2025 Exam Exam Practice Test

In the Junos CLI, the pipe character | is used as a filter operator to refine command output. This operator can be combined with various filtering commands like match, except, count, etc., to display only the relevant portions of the command output. For example, using | match <pattern> filters the output to show only the lines that contain the specified pattern, making it easier to find specific information within extensive command output. This functionality is especially useful in managing and troubleshooting complex configurations and network states, allowing for more efficient analysis of the device's operational status and configuration details.

In the Junos OS command-line interface (CLI), the keyboard shortcut Ctrl+a is used to move the cursor to the start of the line. This is a common convention in many command-line environments and text editors, providing a quick way to navigate to the beginning of the current command or line of text without having to use the arrow keys. This can be particularly useful for making quick edits to commands or for navigating long lines of text more efficiently.

Referring to the exhibit, the presence of the "+" symbol next to the OSPF route for 192.168.100.2/32 indicates that this is the active route being used to forward traffic. The BGP route, although present, does not have the "+" symbol, indicating it is not the active route. In Junos OS, the routing table displays the active route with a "+" symbol, and the fact that the OSPF route has this symbol means it is the preferred path based on the routing protocol's decision process, which takes into account factors such as route preference (administrative distance) and metrics.

The Packet Forwarding Engine (PFE) in Juniper Networks devices is the heart of the data plane, handling the actual forwarding of packets based on pre-computed forwarding tables. It provides several critical services to manage and control traffic flow, including policing (to enforce bandwidth limits for certain traffic types), stateless firewall filtering (to permit or deny traffic based on predefined criteria), and Class of Service (CoS) (to prioritize traffic to ensure quality of service for critical applications). The PFE utilizes both Layer 2 (MAC addresses) and Layer 3 (IP addresses) forwarding tables to make intelligent forwarding decisions, ensuring that packets are efficiently routed toward their final destination.

The Routing Protocol Daemon (rpd) in Junos OS is responsible for maintaining routing protocols and tables. It handles all routing information, including the calculation of routes and the population of the routing table, making it crucial for dynamic routing operations.

In Junos OS, remote access to the device's CLI is commonly facilitated through Secure Shell (SSH), a protocol providing secure command-line access over an insecure network. The given exhibit indicates an attempt to set a root authentication password but does not show configuration for enabling remote access services. To enable SSH, which is not shown in the configuration snippet, you need to configure the device to accept SSH connections. This is done by enabling the SSH service within the system services hierarchy of the configuration. The correct command to add to the existing configuration for enabling remote CLI access via SSH is set system services ssh. This command activates the SSH service, allowing secure remote logins to the device.

When creating a new policy to accept and redistribute routes into your Interior Gateway Protocol (IGP), the route-filter match criteria is used to identify the route prefixes to select. The route-filter statement specifies which prefixes should be matched in a policy. This allows for precise control over which routes are accepted and redistributed, facilitating efficient and secure routing policies within the network.

In Junos OS, there are two main configuration databases:

Candidate configuration: a working copy of the configuration that holds any uncommitted changes. All configuration edits are made here.

Active configuration: the running configuration that the system currently uses.

When you issue a commit command, the candidate configuration is promoted to active, replacing the previous configuration. Until that happens, all changes remain in the candidate configuration and do not affect device operation.

From Junos Fundamentals Guide:

“The candidate configuration is a separate copy of the configuration database. All changes are made to the candidate configuration and do not take effect until they are committed.”

When you enter ? at the command-line prompt in Junos OS, the system provides assistance in two significant ways. Firstly, it lists the available commands and options that can be used at the current point in the command hierarchy, aiding users in understanding what commands they can execute next. Secondly, it displays summary information about those commands and options, providing brief descriptions or additional context that can help users understand the function of each command or option. This feature is particularly useful for learning the command structure or for quick reference when specific command syntax is forgotten.

Layer 2 network switches are crucial components in local area networks (LANs), providing multiple functions for data packet forwarding and network segmentation. One inherent characteristic of switches is their susceptibility to traffic loops, especially in networks with redundant paths. Without proper loop prevention protocols like Spanning Tree Protocol (STP), loops can cause broadcast storms and network instability. Additionally, switches inherently flood broadcast traffic to all ports within the broadcast domain, except the port on which the broadcast was received. This is because broadcast frames are meant to be delivered to all devices within the VLAN, and the switch ensures this by flooding these frames to all ports in the VLAN, except the source port.

The TCP three-way handshake establishes a reliable connection between two hosts. During this process:

SYN: The client sends a TCP segment with the SYN flag set, including an initial sequence number (ISN) and port information.

SYN-ACK: The server responds with a SYN-ACK, which contains its own sequence number and acknowledgment of the client’s ISN.

ACK: The client replies with an ACK, confirming receipt of the server’s ISN.

Thus, port numbers (to identify the application endpoints) and sequence numbers (to ensure ordered and reliable data transfer) are exchanged.

Interfaces and application names are not exchanged during this process.

From Junos OS Fundamentals / TCP Concepts:

“The TCP three-way handshake establishes a reliable session by exchanging port numbers and sequence numbers between peers. This process synchronizes both sides before data transmission begins.”

In the OSI model, the Data Link Layer is responsible for node-to-node delivery of data. It frames the packets received from the Network Layer and prepares them for physical transmission. The Protocol Data Unit (PDU) for the Data Link Layer is called a "frame." Frames encapsulate the network layer packets, adding a header and a trailer that include the hardware addresses of the source and destination, among other things, facilitating the data link layer services like frame synchronization, flow control, and error checking.

To view real-time usage statistics for the busiest interfaces on a device running Junos OS, the correct command is B, "monitor interface traffic." This command provides a dynamic, real-time view of the traffic flowing through the interfaces, allowing administrators to quickly identify and monitor the busiest interfaces on the device.

To convert the decimal number 7 to binary, the correct representation is 00000111 (C). In binary, 7 is represented as 1+2+4 (2^0 + 2^1 + 2^2), which corresponds to the last three digits being 1 in the binary format, with leading zeros added for clarity.

In Junos OS, as with many network operating systems, the control plane is responsible for processes that determine how to route traffic. This includes maintaining routing tables, which store information about network paths and protocols. Therefore, routing tables are indeed stored in the control plane.

Exception traffic refers to packets that cannot be processed by the normal fast-path processing of the Packet Forwarding Engine (PFE) in the forwarding plane, and thus are sent to the control plane for further processing. This might include packets destined for the router itself, packets that need to be fragmented, or packets that match certain firewall filter criteria, among other reasons.

Routing tables are not stored in the forwarding plane. However, the forwarding plane contains the forwarding table (sometimes referred to as the forwarding information base or FIB), which is a distilled version of the routing table optimized for fast packet forwarding. The forwarding plane uses this information to perform the actual transfer of packets across the network device interfaces.

https://www.juniper.net/documentation/us/en/software/junos/user-access-evo/user-access/topics/topic-map/junos-os-login-class.html#:~:text=You%20can%20define%20any%20number,to%20an%20individual%20user%20account.

In Junos OS, each user account can be assigned only one login class. Login classes in Junos OS define the permissions for users, controlling what they can access and modify within the system. This setup helps in maintaining a clear and secure access control mechanism.

In Junos OS, the management daemon (mgd) is responsible for handling all the device management tasks, including processing CLI commands and handling commit operations. The mgd daemon interacts with the Junos OS configuration database and provides the necessary logic to ensure that configuration changes are syntactically correct and do not conflict with each other. When a user commits a configuration, mgd validates the changes, applies them to the running configuration, and ensures that the necessary daemons are notified of the changes to apply them accordingly.

In Juniper firewall filter configurations, "discard" and "accept" are two valid terminating actions for a term within a filter. The "discard" action drops the packet, preventing it from reaching its intended destination, while the "accept" action allows the packet to pass through the filter, proceeding to its next hop or destination. "Count" is a non-terminating action that increments a counter every time a packet matches the term but does not inherently determine the packet's fate. "Next term" directs the evaluation to proceed to the next term in the filter for further processing, also a non-terminating action.

In Junos OS, the prompt employee@R1> indicates the current context of the user interface. The 'R1' part of the prompt signifies the hostname of the device, which in this case is 'R1'. The absence of a '#' symbol at the end of the prompt suggests that the user is in operational mode, as opposed to configuration mode which is indicated by a prompt ending in '#'. Operational mode allows users to view the status of the device and execute operational commands, but does not allow for configuration changes.

Transit traffic that traverses the forwarding plane of a Layer 3 router includes both unicast and multicast traffic types. Unicast traffic is directed from a single source to a single destination, while multicast traffic is sent from one source to multiple destinations that are part of a multicast group. These types of traffic are efficiently routed through the network by leveraging the router's forwarding plane capabilities. Exception traffic, which requires special handling by the control plane, and broadcast traffic, which is typically limited to a single broadcast domain and not usually forwarded by Layer 3 routers, are not considered standard types of transit traffic for the forwarding plane of a router.

The Routing Engine (RE) in Junos OS has several critical functions, including processing all management traffic (A) and running the Junos operating system (B). The RE handles system management tasks, user interfaces, system services, and routing protocol processes. It does not directly process transit traffic or evaluate firewall filters for transit traffic, as these tasks are handled by the Packet Forwarding Engine (PFE).

The Routing Engine (RE) in Juniper Networks devices plays a pivotal role in the control plane, handling tasks that are critical for the operation and management of the network. One of its key functions is processing management traffic, which includes user commands, system configuration, and monitoring operations. The RE also maintains routing tables, which are essential for network routing decisions. These tables contain network topology information and routing paths, which the RE uses to update the Packet Forwarding Engine (PFE) so that it can forward packets appropriately. The RE does not forward transit traffic or process Class of Service (CoS) marked traffic, as these tasks are handled by the PFE.

The load-balance per-flow statement in the Junos OS policy-options configuration enables flow-based load balancing in the forwarding table. This means that the traffic is distributed across multiple paths based on flows, where a flow is typically identified by attributes such as source and destination IP addresses, and possibly layer 4 information like TCP/UDP ports. This allows for more granular and efficient utilization of available paths, avoiding overloading a single path. The policy does not enable per-packet load balancing, which would send individual packets of the same flow over different paths, potentially causing out-of-order delivery issues. The policy's placement in the forwarding-table export suggests it's intended to influence forwarding behavior, not just routing protocol decisions, and does not necessarily have to be applied under the protocols hierarchy.

The Packet Forwarding Engine (PFE) in Junos OS performs several key functions, including implementing firewall filters (A) and forwarding transit traffic (C). The PFE applies firewall filter rules to incoming and outgoing traffic and is responsible for the high-speed forwarding of packets based on the information in the forwarding table.

In the given telnet command, "telnet 10.10.10.1 source 192.168.100.1," the destination address of the telnet session is 10.10.10.1, and the source address of the session is specified as 192.168.100.1, making C and D the correct answers. This command instructs the telnet client to use the specified source IP address when establishing the connection to the destination.

In Juniper Networks devices, when the factory default configuration is loaded, the first step before committing any configuration is to set up root authentication. This is crucial because it secures the device by ensuring that only authorized users have administrative access. Without setting up a root password, the device will not allow any commit operations, which is a safety measure to prevent unauthorized access. This requirement emphasizes the importance Juniper places on security right from the initial setup of the device.

The candidate configuration in Junos OS is a temporary configuration that allows network administrators to make and stage multiple configuration changes before applying them to the device. This approach enables the deployment of multiple changes in a single operation, ensuring that all configurations work together as intended before making them active. Additionally, the candidate configuration can be discarded if the administrator decides not to apply the staged changes, allowing for a "trial and error" approach without affecting the currently active configuration. This feature provides flexibility and reduces the risk of disruptive changes to the network.

In the Junos OS, multiple software processes run independently in their own protected memory spaces. This design ensures that if one process crashes or encounters an issue, it does not affect the other processes running on the system. This architecture enhances the stability and reliability of the network device, as each process operates independently and securely.

Link-state routing protocols are a type of routing protocol used in packet-switching networks for finding the best path between source and destination. OSPF (Open Shortest Path First) and IS-IS (Intermediate System to Intermediate System) are both examples of link-state routing protocols. They work by maintaining a complete map or topology of the network, allowing routers to independently calculate the best path to each destination. Unlike distance-vector protocols like RIP, link-state protocols are more efficient and scalable, making them suitable for larger networks.

The transport layer in the OSI model is responsible for end-to-end communication and error recovery. In a transport header, such as TCP or UDP, the key components include the source port number and the destination port number. These port numbers are used to identify sending and receiving applications. The source port number indicates the port of the sending application, and the destination port number refers to the port of the receiving application. MAC addresses, on the other hand, are part of the data link layer (Layer 2) and would be included in an Ethernet header, not a transport header.

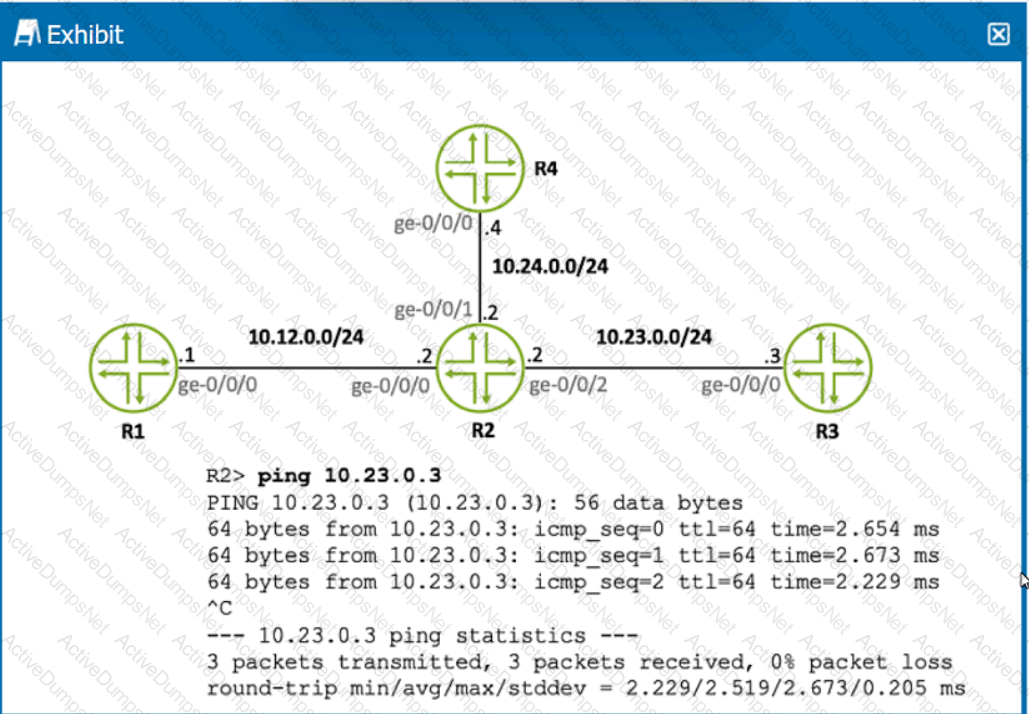

The exhibit shows a ping test being executed from router R2 to the IP address 10.23.0.3. Since the ping command is issued on R2 and we see successful replies from 10.23.0.3, it means the source of the ping must be an interface on R2. Given the network diagram and the IP address scheme, the source IP address of the ping is on the interface ge-0/0/2 of R2, which is in the subnet 10.23.0.0/24. The only logical IP address for R2's interface in this subnet, based on standard networking practices and the given options, would be 10.23.0.2. The other addresses provided in the options belong to different subnets or are the destination of the ping itself.

When configuring the system-related settings for the current date and time on a Junos device, especially for a specific time zone like America/Los_Angeles, and the time does not automatically adjust, two effective actions can be taken. Firstly, setting the date and time manually allows for immediate correction of the system clock. This can be done via the CLI with the appropriate set date and time command. Secondly, configuring the device to use an NTP server can provide ongoing synchronization with an accurate time source, ensuring that the device maintains the correct time and date automatically in the future, even in the case of restarts or minor drifts in the internal clock.
