Under the illustrated connection detail, the minimum wood-block dimensions are 3 inches by 3 inches. Therefore, option C is correct.

The block is part of the sacrificial wood-cover system used to protect the connection for the full two-hour fire-resistance period. It must provide sufficient timber beyond the protected connection region to account for calculated charring and the increased exposure that can develop at the interface between abutting wood members. Because the problem states that the CLT-to-glulam bearing area is already the minimum required, the primary members do not provide surplus material that can be credited as additional protection at that edge.

AWC connection-fire-design guidance requires the protective geometry to remain effective after the calculated char front advances. Char contraction can open a gap at abutting edges and expose material deeper in the connection than would occur on an uninterrupted planar surface. The 3-inch-by-3-inch block maintains the required protective envelope for the stated two-hour condition.

This dimension is specific to the illustrated configuration and assumptions; it is not a universal minimum for every mass timber connection. The inspector must verify the approved detail rather than substitute nominal blocking based solely on field availability.

References/Topics: AWC Technical Report 10; AWC Fire Design Specification provisions for wood-cover protection and char contraction at abutting members.

===============

Option A is the incorrect statement and therefore the required answer. Under 2021 IBC Table 601, an exterior bearing wall in Type IV-C construction requires a two-hour fire-resistance rating , not one hour.

The tall mass timber classifications progressively vary the degree of noncombustible protection and allowable exposure, but the structural fire-resistance requirements remain substantial. Type IV-A exterior bearing walls require three hours. Type IV-B exterior bearing walls require two hours. Type IV-C exterior bearing walls also require two hours. Thus, options B, C, and D correctly reproduce the Table 601 values.

The special inspector must also recognize that Table 601 is not necessarily the only rating criterion affecting an exterior wall. Exterior walls are additionally subject to the requirements associated with fire separation distance, particularly Table 705.5. Where another IBC provision requires a higher rating, that more restrictive condition controls.

For mass timber construction, compliance also depends on the prescribed protective system, member dimensions, connections, joints, intersections, and exterior-side protection. A wall cannot be accepted as compliant solely because the timber cross section appears substantial; it must conform to the approved rated design.

References/Topics: 2021 IBC Section 601; Table 601; Section 602.4; Table 705.5.

===============

The IFC does not require daily inspection documentation to be stored in a fire- and water-resistant safe. Therefore, option C is the exception.

The owner or the owner’s authorized agent must establish and maintain the required construction-site fire-prevention program and designate a site safety director. The site safety director is responsible for completing a daily fire-safety inspection covering the building and exterior project areas. The results must be documented, retained on-site until the certificate of occupancy is issued, and made immediately available to the fire code official upon request. Options A, B, and D accurately reflect these administrative requirements.

The purpose is not merely record retention. Daily inspections are intended to identify conditions such as obstructed fire apparatus access, blocked hydrants or fire department connections, exposed temporary wiring, improper hazardous-material storage, uncontrolled combustible debris, unavailable extinguishers, impaired standpipes, and deficient hot-work controls.

A special inspector is not automatically the site safety director. However, observations involving installed passive protection or unsafe construction conditions should be communicated through the approved reporting process. The owner remains accountable for implementing the site safety plan and maintaining the required documentation.

References/Topics: 2021 IFC Sections 3303.1 through 3303.3; site safety director and daily fire-safety inspection records.

===============

Option C is the incorrect statement. The sealing inspection requirements in IBC Section 1705.20 do not automatically apply to every item classified as a “joint” under Section 202. They apply specifically where a sealant or adhesive required by Section 703.7 is installed on mass timber building elements identified in the approved construction documents.

Section 703.7 addresses abutting edges and intersections of fire-resistance-rated mass timber elements and intersections between mass timber and other materials where both elements require a fire-resistance rating. These conditions require periodic special inspection because continuity of the air seal affects the fire performance assumed for the timber assembly.

Option A is correct: qualifying sealants must comply with ASTM C920. Option B is also correct: adhesives used for this purpose must comply with ASTM D3498. Option D reflects the required inspection of sealant applications at the prescribed abutting edges and intersections, although the technically precise term is “mass timber building elements.”

Fire-resistant joint systems are governed separately by IBC Section 715 and may require inspection under Section 1705.18. The two inspection categories must not be treated as interchangeable.

References/Topics: 2021 IBC Sections 703.7, 715, 1705.18 and 1705.20; ASTM C920; ASTM D3498.

===============

The requirement applies to Type IV-C construction. Under the 2021 IBC provisions governing Type IV-C, combustible construction forming concealed spaces must be protected with noncombustible protection having an assigned protection time of not less than 40 minutes. Therefore, option C is correct.

The assigned protection time is determined using the protection-time values prescribed by the code, including the applicable values for gypsum board and other approved noncombustible materials. The provision is intended to delay ignition and involvement of combustible mass timber surfaces located within concealed spaces, where fire growth might otherwise remain undetected and become difficult for fire-suppression personnel to access.

Type IV-A and Type IV-B are subject to more extensive noncombustible protection requirements because those construction types support taller buildings and require greater protection of mass timber elements. Type IV-HT uses the traditional heavy-timber concealed-space provisions and may employ alternative methods, such as complete filling with noncombustible insulation.

During inspection, the special inspector must confirm that the installed layers, thicknesses, fastening patterns, joints, penetrations, and transitions collectively provide the required 40-minute assigned protection time.

References/Topics: 2021 IBC Section 602.4.3.5; Table 722.7.1(1); Type IV-C concealed-space protection.

===============

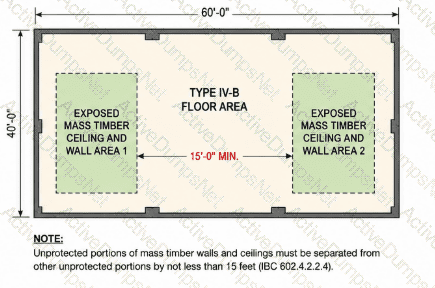

The required separation is 15 feet , making option B correct. Section 602.4.2.2.4 of the 2021 IBC specifically regulates the separation distance between unprotected mass timber elements in Type IV-B construction.

Within each dwelling unit or fire area, unprotected portions of mass timber walls and ceilings must be separated from other unprotected wall and ceiling portions by not less than 15 feet . For ceiling-related surfaces, the separation is measured horizontally along the ceiling. For wall-to-wall exposure, the applicable separation is measured horizontally along the floor.

This requirement operates in addition to the maximum exposed-area restrictions. A designer therefore cannot merely demonstrate that the exposed ceiling is below 20 percent or that exposed walls are below 40 percent of floor area; the exposed regions must also satisfy the required spatial separation.

The purpose is to prevent multiple exposed mass timber regions from acting as closely spaced fuel packages during a compartment fire. During inspection, dimensions should be checked against the approved documents before required gypsum or other noncombustible protection is completed.

References/Topics: 2021 IBC Section 602.4.2.2.4; separation distance between unprotected Type IV-B mass timber elements.

===============

The intended answer is ANSI/AWC NDS Chapter 16. The video option uses “AWS,” but the correct standards organization is the American Wood Council—AWC . Option D is therefore correct based on its intended reference.

IBC Section 722.1 expressly permits exposed wood members and wood decking to have their calculated fire resistance determined in accordance with Chapter 16 of the ANSI/AWC National Design Specification for Wood Construction. The method evaluates charring, the effective char depth, the reduced residual cross section, elevated-temperature effects, loading, and the remaining structural capacity for the required exposure period.

ACI 216.1 applies to concrete and masonry fire resistance. TMS 0216 addresses masonry assemblies. ASCE 29 Chapter 5 provides procedures for calculating the fire resistance of structural steel assemblies. Those references are code-recognized methods, but they apply to different construction materials.

For mass timber inspection, the approved calculations should identify the exposed surfaces, required rating, timber species or product, member dimensions, design loads, protective contribution, and connection treatment. Field reductions in member dimensions can invalidate the calculated fire resistance.

References/Topics: 2021 IBC Section 722.1; ANSI/AWC NDS Chapter 16; calculated fire resistance of exposed wood members and decking.

===============

Option D directly reflects the engineering-analysis method authorized by 2021 IBC Section 2304.10.1. For structural connections in Type IV-A, IV-B, or IV-C construction, the analysis must demonstrate that temperatures at every relevant portion of the connection remain within prescribed limits for a period corresponding to the fire-resistance rating required of the connected structural element.

The code establishes two critical temperature-rise limits: an average rise of not more than 250°F and a maximum rise of not more than 325°F . For this purpose, the “connection” includes the connectors, fasteners, and those portions of the wood members that participate structurally in the connection.

Option A is incorrect because ASTM E136 is a test for determining whether a material is noncombustible; it is not the fire-resistance test method for a structural connection. Option B is not a code-recognized substitute for the required connection fire evaluation. Option C is insufficient because a manufacturer’s generalized fire-performance representation does not establish the required code fire-resistance duration unless supported through an approved test, evaluation, or engineering analysis.

References/Topics: 2021 IBC Section 2304.10.1; engineering-analysis method for Type IV-A, IV-B, and IV-C structural connections.

===============

Option D is the incorrect statement. IBC Section 722.7.2.1 requires the panel edges of the face layer , rather than the base layer, to be taped and finished with joint compound. Fastener heads on the face layer must also be covered with joint compound.

The other three provisions accurately reproduce the code. Each gypsum-board layer must be secured with Type S drywall screws long enough to penetrate the mass timber at least 1 inch when driven flush. Screws for the base layer are installed at 12 inches on center in both directions . Subsequent layers use the same general spacing but are offset from screws in the preceding layer. In addition, the panel edges of each succeeding layer must be offset 18 inches from the panel edges of the previous layer.

These details are not merely workmanship recommendations. They form part of the installation conditions under which the protection contributions in Table 722.7.1(2) can be credited.

References/Topics: 2021 IBC Section 722.7.2.1, Items 1–9; fastening, panel-edge offset, and finishing of Type X gypsum protection.

===============

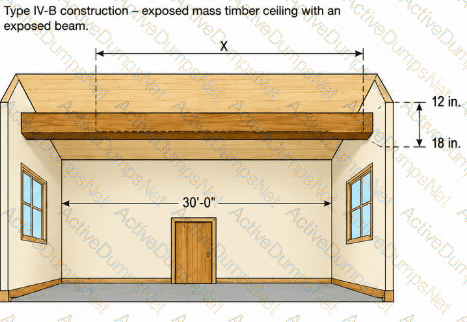

Section 602.4.2.2.2 permits unprotected mass timber ceilings in Type IV-B construction to equal no more than 20 percent of the floor area , and the code expressly states that attached beams are included when determining that exposed ceiling area.

The floor area is 900 square feet:

20% × 900 = 180 sq. ft. maximum exposed area .

The exposed 12-inch × 18-inch beam extends across the 30-foot room. Its three exposed surfaces consist of the 12-inch-wide bottom and two 18-inch-deep sides:

30 ft × (1 ft + 1.5 ft + 1.5 ft) = 120 sq. ft.

Because the attached beam counts against the ceiling exposure allowance, only:

180 − 120 = 60 sq. ft.

remains available for the exposed ceiling itself.

The exposed ceiling extends across the 30-foot room width, so:

30 ft × X = 60 sq. ft.

Therefore:

X = 2 ft .

Option A is correct. Ignoring the beam surfaces would overstate the permitted ceiling exposure and would contradict the explicit IBC requirement that attached beams be included in the exposed ceiling calculation.

References/Topics: 2021 IBC Section 602.4.2.2.2, Exception 1.1; Type IV-B exposed ceiling and attached-beam area calculations.

===============

ASTM E84 cannot be used to establish the hourly fire-resistance rating of a structural member or assembly. Therefore, option B is correct.

ASTM E84 evaluates surface-burning characteristics , principally flame-spread and smoke-developed indices. Those measurements characterize how a material ' s exposed surface behaves when subjected to the standard tunnel test. They do not demonstrate that a wall, floor, roof, beam, column, or structural assembly will maintain integrity and structural performance for one, two, or three hours.

Fire-resistance ratings are instead established through the methods recognized by the IBC, including standard fire testing—principally ASTM E119 or UL 263—prescriptive rated construction provided by Section 721, and calculated fire-resistance procedures under Section 722. The code also recognizes appropriately documented approved designs and other approved methods within the Section 703 framework.

This distinction is particularly important in mass timber work because ASTM E84 may appear elsewhere in the code for flame-spread limitations on materials, but an acceptable E84 result does not establish structural fire endurance.

The special inspector must determine which approved fire-resistance methodology applies and verify that the installed assembly precisely reflects that design.

References/Topics: 2021 IBC Sections 703, 721 and 722; ASTM E119; UL 263; distinction between fire resistance and ASTM E84 surface-burning testing.

===============

Mass timber can be incorporated into all five principal IBC construction types, although the extent and permitted application vary substantially. Therefore, option D is the technically complete answer.

Types III, IV and V provide the broadest opportunities for mass timber structural systems. Type III permits combustible interior building elements, Type IV is specifically organized around mass timber or noncombustible structural elements, and Type V permits structural elements of any material allowed by the code. Type IV includes the tall mass timber classifications IV-A, IV-B and IV-C, together with Type IV-HT.

Types I and II are predominantly noncombustible construction, but they are not absolute prohibitions against every wood or mass timber application. IBC Section 603 identifies permitted combustible materials in Types I and II. In addition, Table 601, Note c, permits heavy timber complying with Section 2304.11 for roof construction—including applicable primary structural frame members—where the required fire-resistance rating is one hour or less.

Consequently, the answer does not mean that a Type I or Type II building may be framed entirely with exposed mass timber. It means that code-compliant mass timber elements can be used in defined applications within each construction type.

References/Topics: 2021 IBC Sections 602.1–602.5 and 603.1; Table 601, Note c; Section 2304.11.

===============

For the illustrated two-layer protection system, the 5/8-inch Type X gypsum-board layer directly adjacent to the connection is assigned 20 minutes, while the second layer is assigned 40 minutes. Therefore, option C is correct.

The standard assigned protection time for one layer of 5/8-inch Type X gypsum board is 40 minutes. However, the thermal-separation methodology applies a 0.50 reduction factor to the final or base Type X layer located directly against the protected connection. That layer therefore contributes 20 minutes. The outer layer retains its full 40-minute assigned value, producing a combined assigned protection time of 60 minutes for the two-layer configuration.

The layers are not interchangeable for calculation purposes because the reduced contribution applies specifically to the layer adjacent to the protected connection. Options A and B incorrectly assign the same value to both layers, while option D reverses the required allocation.

During inspection, the special inspector should verify layer sequencing, board thickness and type, fastening, joint staggering, edge support, protection at corners, and continuity around the connection. Missing or incorrectly sequenced layers can invalidate the calculated thermal-separation time.

References/Topics: AWC Technical Report 10; AWC 2021 Fire Design Specification Section 3.5.2.1; assigned protection time for Type X gypsum board.

===============

Option B is correct because the required protection time placed over a mass timber structural connection may be established through a code-recognized fire-resistance evaluation of that protective construction under standard fire exposure.

IBC Section 2304.10.1 regulates connections in Types IV-A, IV-B, and IV-C. The code allows connection fire performance to be demonstrated through testing where the connection is incorporated into the fire-resistance test or through an approved engineering analysis. AWC further clarifies that the protection applied over the connection must provide the necessary protection time and that its performance may be established using the methods recognized by IBC Section 703.3, including testing and engineering analysis based on ASTM E119 or UL 263 performance.

Option A is too narrow: testing an isolated fastener does not establish the fire protection of the entire connection. Options C and D also use the wrong temperature location. Where an engineering-analysis route is used, the temperature criterion applies to the connection itself , including connectors, fasteners, and portions of wood incorporated into the structural connection—not simply to the protected structural element or supported member.

References/Topics: 2021 IBC Section 2304.10.1; Section 703.3; AWC guidance on fire resistance of mass timber connections.

===============

The minimum required fire flow is 500 gallons per minute. Therefore, option C is correct.

Under 2021 IFC Section 3313.2, an approved water supply must be available when combustible building materials for the building under construction are delivered to the project site. The hydrant supplying the required flow must be located within the prescribed distance of the combustible materials as measured along an approved fire apparatus access route. Where one hydrant cannot provide coverage to all combustible material locations, additional hydrants are required.

The 500-gpm requirement is the initial minimum associated with the delivery of combustible building materials. It should not be confused with the potentially greater fire-flow requirements applicable after vertical construction of a Type III, IV, or V building begins. Depending on fire separation distance and the building’s calculated final fire-flow demand, a larger supply may be required under subsequent provisions.

Options A and B provide inadequate suppression capacity. Option D is not the baseline amount prescribed for the condition stated in the question. Inspectors and site safety personnel should verify that the water source is operational and accessible before substantial quantities of mass timber arrive on-site.

References/Topics: 2021 IFC Sections 3313.1 and 3313.2; construction-site water supply and combustible building materials.

===============

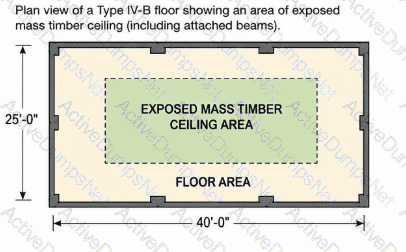

The figure depicts an unprotected portion of the mass timber ceiling . For Type IV-B construction, Section 602.4.2.2.2, Exception 1.1, limits unprotected ceiling areas—including attached mass timber beams—to 20 percent of the floor area of the applicable dwelling unit or fire area. Option B is therefore correct.

The percentage is based on floor area rather than total ceiling surface area. For example, where the associated fire area contains 1,000 square feet of floor area, the maximum ceiling exposure permitted under this particular exception would be 200 square feet, subject to the additional separation and mixed-exposure provisions.

The 40-percent value in option D applies to mass timber walls, including attached columns , rather than ceilings. The 15-percent and 30-percent values are not the prescribed Type IV-B ceiling exposure limitations in the 2021 IBC.

The inspector must additionally determine whether another exposed wall or ceiling region exists nearby. Section 602.4.2.2.4 imposes a 15-foot separation requirement, and Section 602.4.2.2.3 controls situations where both wall and ceiling surfaces are intentionally exposed.

References/Topics: 2021 IBC Sections 602.4.2.2.2 through 602.4.2.2.4; Type IV-B ceiling exposure limitations.

===============

IBC Section 703.7 requires sealant or adhesive to resist air passage at the abutting edges and intersections of mass timber building elements where those elements are required to be fire-resistance rated. Section 1705.20 then requires periodic special inspection where those prescribed sealants or adhesives are installed. Option C repeats that first required location accurately.

Option D is defective because the code requires sealing at an intersection between mass timber and another material only where both intersecting building elements are required to be fire-resistance rated. The phrase “one or the other” materially weakens the condition. Option A is also too broad. A code-defined joint is not automatically subject to Section 703.7; fire-resistant joint systems are separately regulated by Section 715 and, where applicable, Section 1705.18.

Option B describes the exception in reverse. Sealant or adhesive need not be added under Section 703.7 where it is not a required component of the tested fire-resistance-rated assembly. When it is part of the listed or tested assembly, it must be installed accordingly, but that statement does not identify the primary location requested.

References/Topics: 2021 IBC Sections 703.7 and 1705.20; sealing of adjacent rated mass timber elements; periodic inspection.

===============

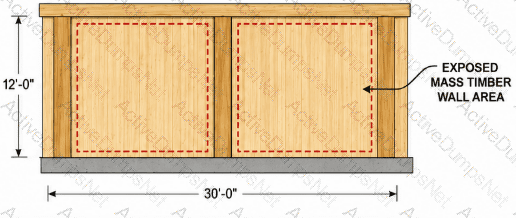

The highlighted exposed surfaces in this figure are mass timber wall surfaces . Under 2021 IBC Section 602.4.2.2.2, Exception 1.2, unprotected portions of Type IV-B mass timber walls, including attached columns, are permitted up to an area equal to 40 percent of the floor area in the applicable dwelling unit or fire area. Option D is therefore correct.

This should be distinguished from the corresponding ceiling limitation. Unprotected mass timber ceilings, including attached beams, are limited to 20 percent of floor area. The larger 40-percent allowance applies specifically to wall exposure.

Where only wall surfaces are exposed, the allowable wall area is calculated directly from the base floor area. For example, a 1,000-square-foot fire area would permit up to 400 square feet of exposed wall surface under this exception. However, Section 602.4.2.2.4 additionally requires unprotected wall portions to maintain the prescribed 15-foot separation from other applicable exposed wall or ceiling portions.

Where exposed walls and exposed ceilings occur together, the individual 40- and 20-percent limits cannot simply be maximized simultaneously; the mixed-exposure equation in Section 602.4.2.2.3 governs.

References/Topics: 2021 IBC Sections 602.4.2.2.2 through 602.4.2.2.4; Type IV-B wall exposure.

===============

Adhesive anchors installed horizontally to resist sustained tension loads require continuous special inspection. Therefore, option D is correct.

Continuous special inspection means that the special inspector must be present during the performance of the regulated work. This heightened oversight is necessary because horizontal or upwardly inclined adhesive-anchor installations resisting sustained tension are sensitive to installation variables such as borehole cleaning, adhesive proportioning, mixing, placement, embedment depth, temperature, cure time, and prevention of adhesive loss before curing. A concealed installation defect can substantially reduce long-term tension capacity.

The other listed activities are generally subject to periodic inspection under the mass timber special-inspection provisions. Periodic inspection allows the inspector to observe the work intermittently at appropriate stages rather than remaining present throughout the entire operation. Bolted connections, concealed mass timber connections, and anchorage of mass timber construction to deep foundation systems must still be inspected, but the code does not automatically designate each of those activities as continuous.

The inspector should also verify installer certification where required, approved adhesive-anchor evaluation documentation, expiration dates, storage conditions, drilling method, hole dimensions, and compliance with the approved structural documents.

References/Topics: 2021 IBC Sections 1705.3 and 1705.5.3; Table 1705.3; continuous inspection of adhesive anchors under sustained tension.

===============

Two layers of 5/8-inch Type X gypsum wallboard are required for the condition shown, so option D is correct. The relevant AWC TR10 connection-protection methodology distinguishes between outer gypsum layers and the base layer immediately adjacent to the connection .

For 5/8-inch Type X gypsum board, an outer layer contributes 40 minutes. However, when gypsum board is being relied upon as the complete thermal-separation protection for a connection, TR10 reduces the contribution of the final/base layer to 50 percent. Therefore, the base layer contributes 20 minutes , while the second, exterior layer contributes 40 minutes . The total is:

20 minutes + 40 minutes = 60 minutes .

That satisfies the one-hour required protection period.

This is why simply looking at the normal 40-minute contribution of one 5/8-inch Type X layer would be incorrect for this connection condition. TR10 expressly uses the reduced base-layer contribution when gypsum constitutes the connection protection. The same methodology shows that four 5/8-inch Type X layers are needed for 120 minutes: 20 + 40 + 40 + 40 = 140 minutes, satisfying two hours.

References/Topics: AWC Technical Report No. 10, Sections 4.4.2 and connection-protection examples. TR10 states that outer 5/8-inch Type X layers provide 40 minutes each while the base layer provides 20 minutes.

===============

Option A correctly reflects the required noncombustible protection for protected Type IV-A mass timber. Under IBC Section 602.4.1.2.1, the noncombustible protection applied to interior faces of Type IV-A mass timber must contribute the protection time determined by the applicable provisions of Section 722.7, but not less than 80 minutes .

The broader Type IV provisions are particularly important for interior exit and elevator hoistway enclosures. In qualifying tall mass timber buildings with an occupied floor more than 75 feet above the lowest level of fire department access, mass timber interior exit and elevator hoistway enclosures are permitted up to the specified height limits only where protected in accordance with Section 602.4.1.2. For a two-hour, 120-minute-rated enclosure, at least 80 minutes must therefore come from the prescribed noncombustible protection.

Type IV-B likewise uses an 80-minute minimum for protected interior mass timber, so option B ' s 40-minute value is incorrect. Type IV-C has different exposure allowances and shaft-protection provisions, but option C does not state the controlling tall-building enclosure requirement tested here. Type IV-HT is not governed by the Type IV-A tall mass timber enclosure protection rule.

References/Topics: 2021 IBC Sections 602.4 and 602.4.1.2 through 602.4.1.2.1; Section 722.7.

===============

IBC Section 722.7 establishes the governing calculation principle for protected mass timber. The required fire resistance consists of the inherent fire resistance of the unprotected mass timber element plus the protection time contributed by the noncombustible protection . Therefore, option D is correct.

This approach recognizes two sequential protective mechanisms. First, the noncombustible covering delays heating and charring of the timber. After the credited protection period, the remaining mass timber cross section provides structural fire resistance through predictable charring behavior and residual section capacity. Section 722.7.1 further requires the contribution of the covering material to comply with the prescribed protection times or to be established under Section 703.6.

Option A ignores the contribution of the protective membrane. Option B ignores the inherent structural fire resistance of the timber. Option C incorrectly substitutes a finish rating for the code-recognized protection contribution. A finish rating is a separate temperature-based performance concept and is not automatically additive as the protection time used by Section 722.7.

References/Topics: 2021 IBC Sections 602.4, 703.6, 722.7 and 722.7.1; calculation of protected mass timber fire resistance.

===============

The fire resistance of a protected mass timber element is determined by adding the inherent fire resistance of the mass timber to the protection time contributed by the approved noncombustible protection. Therefore, option D is correct.

The mass timber component provides structural endurance through its large cross section and predictable charring behavior. The noncombustible protection delays heating, ignition, and charring of the protected timber surfaces. Its contribution may be established by testing or by assigned values permitted under IBC Section 722.7. The combined value must equal or exceed the rating required for the building element.

Option A ignores the additional protection contribution. Option B ignores the structural endurance provided by the timber after the protective membrane has performed its assigned function. Option C incorrectly substitutes “finish rating time.” A finish rating measures temperature rise behind a protective membrane and is not automatically the same as the added fire-resistance contribution established for protected mass timber.

Inspection must confirm that the protection system matches the approved calculation or tested configuration, including material type, thickness, layer count, fastening, edge treatment, joints, penetrations, and continuity.

References/Topics: 2021 IBC Sections 703.6, 703.8 and 722.7; protected mass timber performance method and noncombustible protection contribution.

Option C correctly states the fundamental UL finish-rating criterion. UL defines a finish rating for assemblies containing combustible wood structural supports as the elapsed fire-exposure time at which the wood member immediately behind the protective membrane reaches the prescribed temperature-rise threshold.

More precisely, UL uses two criteria: an average temperature rise of 250°F or an individual-point temperature rise of 325°F , measured on the plane of the wood nearest the fire, typically between the gypsum membrane and the wood stud or joist. The question asks for the principal definition, which is the 250°F temperature-rise criterion; therefore, option C is correct. Option D incorrectly treats the 325°F individual-point limit as the sole definition.

Options A and B confuse a finish rating with “assigned protection time.” IBC Tables 722.6 and 722.7 provide calculated contribution values for specified protective materials, but those assigned values are not themselves UL finish ratings.

This distinction matters in mass timber fire design because membrane contribution, thermal separation, structural fire resistance, and finish rating are related but not interchangeable concepts.

References/Topics: UL Fire Resistance Directory terminology; finish rating; average 250°F and individual 325°F temperature-rise criteria.

===============
