Huawei H13-629_V3.0 HCIE-Storage V3.0 Exam Practice Test

The SmartVirtualization offline-takeover workflow states: “Step 2: Disconnect the application server from the heterogeneous storage system to stop data transfer and services. Step 3: Connect the application server to the local storage system and enable the local storage system to take over services.” The takeover-mode section further states that offline takeover uses no masquerading and is applicable to compatible Huawei and third-party heterogeneous storage systems; importantly, services on the related application servers are stopped temporarily. For migration implementation, services must therefore first be stopped. The original source-storage mapping is then changed so that host access can be redirected correctly. SmartVirtualization subsequently takes over the source LUNs. After the host paths and service relationship have been transferred to Huawei storage, applications and services are restored. SmartMigration can then move the actual data from the heterogeneous eDevLUN to the target internal LUN while Huawei storage controls host access.

Consequently, the sequence is b → a → c → e → d, or baced.

Study Guide Topics: Data Migration Solution → SmartVirtualization → Offline Takeover → Takeover Mode Selection → SmartMigration.

Huawei states that database backup “supports full backup, incremental backup, differential backup, and log backup.” It further specifies: “By using log backup, production data can be recovered to any time point in the past,” and that the solution supports “data encryption, backup data transmission encryption, and storage encryption” as well as “traffic control.”

Therefore, A, C, and D are correct.

Point-in-time recovery is enabled by combining database backup copies with transaction/archive log backup. Instead of being restricted to a full or incremental backup timestamp, the restore workflow can replay the required logs until the requested recovery time, thereby reducing the effective RPO.

Encryption is supported across multiple stages: backup data itself can be encrypted, backup-data transmission can be protected, and the underlying storage can use encryption. Traffic control is also supported so that backup activity does not consume excessive network or storage bandwidth and interfere with production services.

Data cleaning, option B, is not listed among the database backup capabilities described in this course section.

Study Guide Topics: Data Protection Solution → OceanProtect Database Backup → Log Backup → Point-in-Time Recovery → Encryption → Traffic Control.

The OceanProtect software architecture states: “Infrastructure: Includes GaussDB, Elasticsearch, Kafka, ZooKeeper, and other common components.”

Accordingly, Elasticsearch, Kafka, and GaussDB are valid infrastructure components and the correct selections are A, C, and D.

GaussDB provides relational database services required by the management and data-protection software stack. Elasticsearch supports indexing and search-oriented functions, which are important for metadata processing, global search, and operational data retrieval. Kafka provides distributed messaging capabilities that enable communication and event/data exchange between components in the distributed OceanProtect architecture.

Ceph is not listed as one of the OceanProtect infrastructure components in this architecture. Instead, the storage layer is Huawei ' s integrated storage platform, providing file-system and protocol-access capabilities beneath the data-protection services.

The same architecture separates the platform into the management layer, data-protection layer, storage layer, hardware layer, and common infrastructure. ProtectManager schedules backup, recovery, archive, and replication jobs, while DataMover Engine processes protection data flows.

Study Guide Topics: Data Protection Solution → OceanProtect Backup Storage → Software Architecture → Infrastructure Components → ProtectManager/DataMover Engine.

The SmartQoS section explicitly states that upper-limit control can “limit the IOPS, bandwidth, and latency.” Therefore, A, C, and D are correct.

IOPS controls the number of I/O operations that a workload can issue within a given period. Bandwidth controls the quantity of data transferred per unit of time. Latency control provides an I/O response-time objective so that resource contention can be managed while protecting service quality.

For OceanStor Pacific block services, Huawei implements distributed SmartQoS with volume I/O queues and token buckets. The course explains that when IOPS is restricted, one I/O consumes one token; when bandwidth is restricted, one byte consumes one token. The token rate is coordinated among VBS nodes to enforce the overall performance objective of a volume.

Option B, OPS, is not identified as one of the SmartQoS performance-control indicators in this section. The defined indicators are IOPS, bandwidth, and latency.

Study Guide Topics: Data Storage Technology Presentation → OceanStor Pacific → SmartQoS → Block Service → Distributed Traffic Control → IOPS/Bandwidth/Latency.

Huawei states: “I/O-level load balancing in DPC access mode is better than that in NFS access mode (load balancing determination is performed only during mounting).” It further states that DPC supports both POSIX and MPI-IO.

Therefore, B is correct.

DPC is installed on compute nodes and enables one client to connect directly to multiple OceanStor Pacific storage nodes. This removes the single-node access limitation associated with conventional NFS access and allows I/O distribution decisions to be made dynamically at the I/O level instead of only when the file system is mounted.

Option A reverses the protocol characteristics: MPI-IO is associated with DPC, not ordinary NFS access. Option C is incorrect because Huawei specifically identifies the single-storage-node access model of NFS as a potential performance limitation in demanding HPC scenarios. Option D correctly notes that DPC connects to multiple nodes, but its statement that I/Os are cached on one mounted storage node before being forwarded does not describe DPC ' s distributed access architecture.

Study Guide Topics: Data Storage Technology Presentation → OceanStor Pacific → Distributed Parallel Client → DPC vs NFS → I/O-Level Load Balancing → POSIX/MPI-IO.

Huawei describes DME IQ as supporting “remote maintenance and installed base operation.” It collects alarms, performance information, configurations, system logs, and disk information as the data foundation for intelligent O & M.

The full-lifecycle O & M architecture also places DME IQ on the intelligent prediction, remote O & M, online site deployment, and planning-simulation side of the Huawei data-management framework. DME IQ therefore directly supports remote O & M, installed-base operations, and delivery/maintenance-oriented activities.

Service Change, however, is associated primarily with DME Storage ' s data-center management and orchestration capabilities, rather than being one of the principal DME IQ functions. The DME Storage product architecture explicitly lists Service Change, O & M Management, Data Protection, and Data Flow as its operational domains.

DME IQ may analyze or simulate changes—for example workload migration or rollout—but executing service changes and resource orchestration belongs to DME/DME Storage. Consequently, D is the required answer.

Study Guide Topics: Data Storage Management and O & M → DME IQ → Intelligent Cloud O & M → Remote Maintenance → Installed Base Operations → DME Storage Service Change.

Huawei lists “Performance bottleneck analysis” as one of the major DME IQ intelligent-computing capabilities, together with noisy-neighbor analysis, disk-risk prediction, workload planning, performance-exception detection, and capacity prediction.

DME IQ uses collected performance and configuration data to assess whether storage workloads are operating normally, whether resources are balanced, or whether resource pressure has resulted in overload. Accordingly, the load-status classifications in this interface are Balanced, Overloaded, and Normal.

Optimizable is not one of the load-status values in this classification. Optimization is an O & M action or analytical recommendation rather than the load state assigned to a resource on the Performance Bottlenecks page.

The broader course explains that DME IQ uses cloud-native AI, machine learning, and deep-learning analysis for performance prediction, fault reporting, capacity prediction, risk prediction, and proactive O & M. These capabilities supply the data used by bottleneck analysis.

The retrieved Training/Lab text explicitly documents the Performance Bottleneck Analysis capability, although it does not separately reproduce the UI table containing the three status-label names.

Study Guide Topics: Data Storage Management and O & M → DME IQ → Performance Bottleneck Analysis → Intelligent Computing → Performance Diagnosis.

The OceanProtect product-series section identifies X6000, X8000, and X9000, and shows X6000 as the mid-range platform and X8000/X9000 as higher-end systems. It also documents that OceanProtect supports both scale-up and scale-out, with a scale-out system reaching up to 9.2 PB physical capacity and 155 TB/hour. The software architecture further places multi-device management in the OceanProtect management layer, which is the basis for centrally managing multiple backup-storage nodes as one protection environment. For hybrid clustering, the higher-capability platform assumes the cluster-management roles while compatible lower-tier systems act as members. Therefore, X8000 can head a cluster containing X6000 members, and X9000 can head a cluster containing X8000 members. X3000 belongs to a different product category and is not mixed with X6000 in the proposed configuration.

Study Guide Topics: OceanProtect Backup Storage → Product Overview → Product Series → Scale-Up and Scale-Out → Software Architecture → Multi-device Management.

Huawei defines HyperCDP as a continuous-protection mechanism and states that it provides more intensive and persistent protection than conventional writable snapshots while imposing little impact on source LUN performance.

For block protection, a protection group provides the logical collection of source LUNs that must be protected consistently. A HyperCDP consistency group is then created for that protection group so that the member LUNs can receive a coordinated set of CDP protection points. Therefore, the protection group must already exist before the corresponding HyperCDP CG is created, making B correct.

A protection plan or schedule controls the policy and timing of protection-point generation; it is not the prerequisite object that defines which LUNs belong to the HyperCDP consistency relationship. This distinction is important: membership is established by the protection group, while execution timing is governed by scheduling/policy settings.

Huawei ' s data-protection model consistently separates protected objects/groups from the policies subsequently applied to those groups.

Study Guide Topics: Flash Storage Technology Presentation → HyperCDP → Block Continuous Data Protection → Protection Groups → HyperCDP Consistency Groups.

The OceanStor Pacific logical software architecture states that the index layer provides fine-grained space-layout management capabilities and that the index module “maps the data objects in the DROS or block module to the lower-layer Plog space.” The training materials separately define the surrounding block-service components. VBS provides standard iSCSI/SCSI access. EDS provides structured services and value-added features, while OSD provides data-persistence capabilities. OceanStor Pacific block storage also uses a multi-MDC design to enhance reliability. The MDC is therefore the metadata-control component associated with maintaining the logical metadata relationship between block data and its allocated storage space. VBS is the access layer and does not own the metadata mapping function; OSD persists the actual data; EDS provides the broader structured-data service. Maintaining space metadata and the data-to-space index relationship belongs to the Metadata Controller function.

Study Guide Topics: Scale-Out Storage Technology Presentation → OceanStor Pacific → Logical Software Architecture → Block Service → Index Layer → MDC/VBS/EDS/OSD.

All four listed capabilities are included in the DME data-management/O & M framework.

Huawei describes DME Storage as an intelligent storage management platform covering the complete storage lifecycle, including planning, deployment, O & M, and optimization. Its architecture includes intelligent diagnosis, intelligent optimization, resource optimization, planning simulation, operation visibility, insight analysis, and multidimensional analysis.

Planning enables administrators to model and organize resources before deployment. Analysis provides performance, capacity, topology, alarm, and workload insight. Optimization uses those analytics to recommend or execute improvements such as capacity balancing, migration, SLA adjustment, and QoS changes. Search is important for unstructured-data environments because files, objects, and other unstructured content must be located and analyzed according to metadata.

Huawei OceanStor Pacific also provides SmartIndexing for unstructured file, object, and HDFS storage. It can return search results from extremely large metadata sets within seconds and provides unified multi-protocol metadata indexing.

Consequently, DME ' s unstructured-data management workflow spans the complete chain of search, analysis, planning, and optimization.

Study Guide Topics: Data Storage Management and O & M → DME → Unstructured Data Management → Search → Analysis → Planning → Optimization.

OceanProtect ' s architecture explicitly includes a “Ransomware protection solution (encryption/decryption, WORM, ransomware detection, and secure transmission).” The course also states that ransomware protection protects copies and provides anti-tampering through the read-only attribute of WORM.

Therefore, all four mechanisms contribute to the required defense.

WORM provides the immutable-copy foundation. Huawei explains that protected WORM files cannot be rewritten, modified, deleted, or renamed during their protection period. Abnormal behavior monitoring corresponds to ransomware-detection capabilities used to identify suspicious activity against protected copies. Multi-layer antivirus association provides an additional malware-detection barrier around file-oriented protection workflows.

Finally, access control limits who can administer, modify, or operate protection resources. OceanProtect implements role-based access control with predefined and customizable roles, reducing the attack surface for compromised or unauthorized accounts.

Together these controls provide detection, prevention, privilege restriction, and immutable recovery copies.

Study Guide Topics: Data Protection Solution → OceanProtect Backup Storage → High Security Design → Ransomware Protection → WORM → Role-Based Access Control.

The Huawei flash-storage feature table defines SmartThin as “Intelligent thin provisioning.” Therefore, when the provisioning type is configured for thin provisioning, the associated feature is SmartThin.

The DME Storage course separately states that block-storage service levels support resource-tuning policies for Thin/Thick mode, deduplication and compression, and SmartTier. These are separate resource-tuning dimensions.

SmartTier concerns data placement among storage tiers, SmartCompression performs data reduction by compression, and SmartDedupe eliminates duplicate data. None of those features defines whether a LUN is thinly or thickly provisioned. SmartThin is specifically the capacity-allocation technology that exposes a logical capacity while allocating physical storage according to actual consumption.

Thus, among the four choices, SmartThin is the license/feature corresponding to the requested provisioning type.

The retrieved course material clearly maps SmartThin to intelligent thin provisioning and DME to Thin/Thick resource tuning; the exact licensing dialog wording is not separately reproduced in the parsed Training/Lab pages.

Study Guide Topics: Data Storage Management and O & M → DME Storage → Block Storage Service Level → Resource Tuning → Thin Provisioning → SmartThin.

The required component is MDC.

OceanStor Pacific uses a distributed control architecture in which cluster-management and metadata/control services must remain highly available as nodes are added, removed, or experience failures. Huawei specifically identifies multi-MDC as a mechanism that improves system reliability. The training architecture also shows MDC participating in sub-health management together with storage-side processes such as OSD and EDS.

This distributed deployment is consistent with the architecture of OceanStor Pacific: storage services are spread across nodes, and control information must remain accessible regardless of the physical node role. The system therefore cannot depend on one isolated control instance.

Huawei also describes OceanStor Pacific as a three-layer scale-out architecture integrating block, file, object, and HDFS services, with cluster-status control, distributed data routing, redundancy management, rebuilding, and balancing forming core storage-engine functions. MDC supports the distributed coordination and control required by this architecture.

The supplied question set identifies MDC as the required abbreviation.

Study Guide Topics: Data Storage Technology Presentation → OceanStor Pacific → Scale-Out Architecture → MDC → Cluster Control → High Reliability.

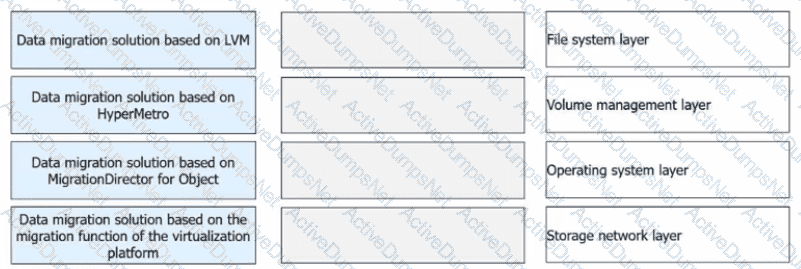

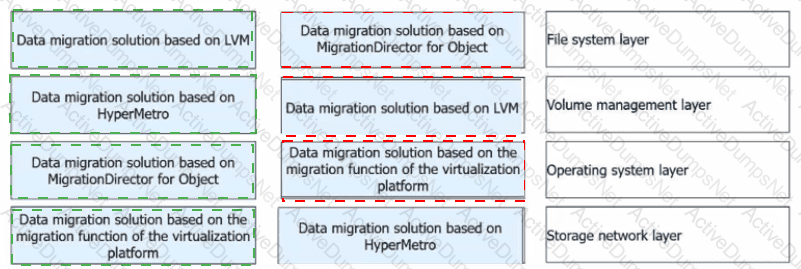

Data migration solution based on MigrationDirector for Object → File system layer; Data migration solution based on LVM → Volume management layer; Data migration solution based on the migration function of the virtualization platform → Operating system layer; Data migration solution based on HyperMetro → Storage network layer

The supplied practice-set answer maps the four migration approaches as shown above. Huawei’s migration architecture organizes migration technologies according to where the migration function is implemented in the host/storage stack. LVM-based migration operates through host volume management, while virtualization-platform migration uses capabilities supplied by platforms such as VMware or FusionCompute. HyperMetro/HyperReplication-based migration operates at the storage-network/storage-system level and moves or mirrors storage data independently of application logic.

There is one important source inconsistency in this item: the official Training Materials’ “Technical Structure of Huawei Storage Migration Solutions” explicitly places Migration Director for Object under the Object layer, while it separately associates the file-system layer with NAS migration. Therefore, the first match in the supplied question key does not align with the official training diagram.

For this practice set, the answer above reproduces the supplied key; for study purposes, remember that Huawei’s official architecture classifies object migration at the Object layer.

Study Guide Topics: Data Migration Solution → Huawei Migration Architecture → LVM → Virtualization Platform → MigrationDirector → HyperMetro.

The correct selections are IPMI, RESTful, and Redfish.

Huawei describes DME as “the unified management software integrating software and hardware for data centers” and states that it controls, manages, and analyzes VMs, datastores, databases, servers, switches, and storage devices.

For API-oriented integration, RESTful is explicitly part of Huawei ' s DME architecture. The storage-management course states that the open southbound system manages storage, switch, and host resources through management protocols including RESTful.

IPMI and Redfish provide the hardware-management interfaces required when the management platform interacts with server/BMC infrastructure. Redfish supplies a modern REST-oriented hardware-management model, while IPMI provides established out-of-band platform-management functions.

Telnet is not selected. It is a legacy plaintext terminal protocol and is not an appropriate protocol for the hardware/API interconnection functions being tested in this DME management architecture.

Study Guide Topics: Data Storage Management and O & M → DME/eDME → Unified Data Center Management → Southbound Interconnection → Server Hardware Management.

The BCManager architecture shows eReplication Server components associated with the production and DR environments, while the one-click fault-recovery workflow explicitly performs recovery by setting storage resources at the DR site to writable, mapping LUNs, configuring storage, and recovering services.

The statement is therefore TRUE. In a dual-eReplication-server remote DR deployment, management operations can normally be initiated through either management endpoint because the servers coordinate DR configuration and protection information. Fault recovery is different because the production environment is assumed to be unavailable or impaired. Recovery must consequently be executed from the DR-side management environment that remains accessible and can coordinate activation of DR resources.

The fault-recovery workflow reflects this requirement: secondary resource consistency is checked, DR storage is made writable, LUNs are mapped, the storage configuration is completed, and services are recovered at the DR site.

Huawei also recommends placing DR management capabilities where they remain available when production infrastructure fails, reinforcing the design objective of independent DR-side recovery control.

Study Guide Topics: Data Protection Solution → OceanStor BCManager eReplication → Remote DR Deployment → One-Click Fault Recovery → Recovery Plan Execution.

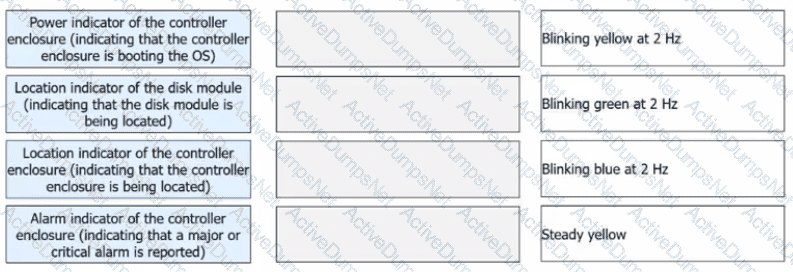

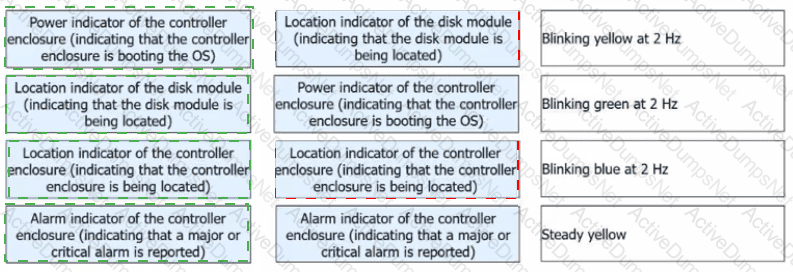

Controller enclosure power indicator during OS boot → Blinking green at 2 Hz; Disk module location indicator → Blinking yellow at 2 Hz; Controller enclosure location indicator → Blinking blue at 2 Hz; Controller enclosure major/critical alarm indicator → Steady yellow

Hardware indicators provide a direct physical diagnostic mechanism during OceanProtect maintenance. The four states represent different operational meanings rather than interchangeable fault conditions.

A blinking green power indicator at 2 Hz represents the controller enclosure progressing through its boot process. A blinking yellow disk-location indicator at 2 Hz identifies the specific disk selected for physical location. A blinking blue enclosure-location indicator at 2 Hz similarly helps maintenance personnel identify the correct controller enclosure in a rack. A steady yellow alarm indicator identifies a major or critical alarm condition requiring investigation.

Huawei emphasizes that abnormal hardware indicators are a primary method for locating failing FRUs and CRUs and should be correlated with DeviceManager alarm information. The OceanProtect X6000/X8000 architecture also uses redundant, serviceable hardware components, including controllers, BBUs, power supplies, and interface modules, making correct physical fault identification essential during maintenance.

Study Guide Topics: Data Storage Management and O & M → OceanProtect Hardware Maintenance → Hardware Indicators → FRU/CRU Fault Identification.
