Huawei H13-527_V5.0 HCIP-Cloud Computing V5.0 Exam Practice Test

The correct answer is B (FALSE) . Huawei documentation confirms that FusionCare is a deployed component used for inspection and troubleshooting , but the statement’s deployment location is not reliably correct as written. In Huawei Cloud Stack maintenance and troubleshooting materials, Huawei explicitly references logging in to FusionCare separately and also notes cases where administrators must obtain the IP address of the node where FusionCare is deployed , which shows it is treated as a specific deployable node/service rather than a fixed default identity tied universally to PUB-SRV-01 .

More importantly, Huawei documentation for certificate replacement states that administrators may need the IP address of the PUB-SRV03 node where FusionCare is deployed , which directly contradicts the claim that FusionCare runs on PUB-SRV-01 by default. Huawei O & M rollback documents also mention checking whether FusionCare is deployed in each secondary region , indicating that its deployment is not always a single fixed-node default in the simplistic way the statement suggests.

So, although FusionCare is indeed part of Huawei Cloud Stack O & M, the statement is inaccurate because the node/location claim is not universally true. Therefore, the verified answer is FALSE .

========

The statement is FALSE . Official OpenStack Heat documentation says that when the Orchestration service was originally introduced, it worked with AWS CloudFormation templates , which are in JSON format. It then states that Heat also runs HOT templates written in YAML . This directly disproves the claim that both HOT and CFN templates support YAML in the same native sense.

OpenStack Heat documentation also explains that HOT was introduced to replace the Heat CloudFormation-compatible format (CFN) as the native format supported by Heat over time. That means HOT, not CFN, is the format more suitable for OpenStack-native deployments. The documentation further notes that YAML is easier to write, parse, and maintain, which is one reason HOT became the preferred OpenStack format.

Although internal parsing code shows the API can accept a JSON- or YAML-formatted document in some contexts, the OpenStack-native orchestration model clearly favors HOT and identifies CFN as the older CloudFormation-compatible format. So the combined statement is incorrect, and the correct answer is B (FALSE) .

========

The correct answer is B. L3 Agent . Official OpenStack Neutron documentation states that routers provide virtual Layer 3 services such as routing and NAT , and that the Networking service uses a layer-3 agent to manage routers. OpenStack also explicitly says that the neutron-l3-agent uses the Linux IP stack and iptables to perform L3 forwarding and NAT . This directly matches the wording of the question.

The other options do not fit. The L2 agent handles local virtual switch configuration and Layer 2 networking behavior, not routing and NAT. The DHCP agent provides DHCP services to tenant networks. “ NAT Agent ” is not the standard Neutron component name used in official OpenStack architecture. OpenStack documentation consistently identifies the L3 agent as the component responsible for router namespace management, forwarding, floating IP behavior, and source NAT functions.

This is also consistent with Huawei Cloud Stack networking architecture topics, where routing and NAT functions are tied to Neutron Layer 3 services. Therefore, the fully verified answer is B. L3 Agent .

The correct answer is D . Huawei’s official HUAWEI CLOUD Stack NAT Gateway documentation explains that DNAT is used to map the private IP address and port of a cloud server in a VPC to a public IP address and port by binding an EIP. In practical terms, DNAT allows requests that arrive at a public IP address to be forwarded to the private IP address of a server inside the cloud network. That matches option D exactly.

Option A describes SNAT , not DNAT. Huawei explicitly states that SNAT translates a private IP address into an extranet/public IP address so cloud servers can access the Internet. Option B is also related to SNAT behavior, because Huawei notes that multiple cloud servers in a VPC can share an EIP for outbound Internet access through SNAT. Option C describes a filtering or firewall-style function rather than NAT translation.

Therefore, in Huawei Cloud Stack networking, DNAT is specifically used for inbound mapping from public addresses to private cloud-server addresses , so the verified answer is D .

========

The statement is TRUE according to the official HOT specification. OpenStack Heat documentation shows the overall HOT structure and explains that heat_template_version identifies the YAML document as a HOT template of a specific version. This key is fundamental because it tells Heat which template format and feature set to validate.

The same HOT specification states that the resources section contains the declaration of the resources in the template and that this section with at least one resource should be defined in any HOT template , otherwise the template would not really do anything when instantiated. In other words, a valid HOT template intended to deploy a stack needs both the version declaration and a resource definition.

Other sections such as description, parameters, outputs, and conditions are documented as optional. That is why heat_template_version and resources stand out as the core required parts for normal HOT authoring. In Huawei Cloud Stack training contexts based on OpenStack Heat, these are treated as the mandatory structural elements of a HOT template. Therefore, the verified answer is A (TRUE) .

========

The correct answer is C. Tenant application response time . Huawei’s comprehensive monitoring documentation states that service monitoring tests the health of the current application and locates application exceptions based on monitoring metrics such as response time and availability . That directly matches the scenario of monitoring tenant application response time .

The other options belong to different monitoring domains. Health status of the physical server power supply is hardware or infrastructure monitoring, not service monitoring. Virtual network congestion is a network-layer performance issue rather than an application service-monitoring scenario. Latency of the distributed tracing system is closer to tracing or APM platform internals than to the application service-monitoring scenario explicitly described in Huawei’s cited service-monitoring definition. Huawei’s wording focuses on the monitored application’s health, response time, and availability, not hardware power modules or tracing-platform latency.

Therefore, based on Huawei’s official description of comprehensive service monitoring , the scenario clearly covered is tenant application response time , making the verified answer C .

The statement is TRUE . Huawei’s official HUAWEI CLOUD Stack storage-resource documentation explicitly states that a storage backend can contain one or more storage pools of the same cloud block storage system , and it also clearly states that a storage backend only belongs to one AZ . This matches the wording of the question almost exactly. ( )

Huawei’s more recent resource-provisioning documentation repeats the same architecture principles: a storage pool belongs to only one storage backend , a disk type belongs to only one AZ , and a storage backend device can contain one or more storage pools . This design helps keep storage planning and fault-domain boundaries clear in multi-AZ cloud deployments. ( )

In practical HUAWEI CLOUD Stack operation, this means one backend can aggregate multiple pools from the same storage system for service use, but the backend itself is still scoped to a single availability zone for resource isolation and service planning. Therefore, the verified answer is A (TRUE) . ( )

========

The best verified answer is A and D . Huawei’s official EVS documentation states that the major disk performance metrics include IOPS, throughput, and latency . Among the options given in your question, throughput is therefore definitely one of the major EVS disk metrics. ( ; )

In addition, Huawei EVS usage materials consistently treat capacity as a core disk attribute when defining EVS disks and their sizing. Although capacity is not a performance metric like throughput, exam questions of this type often use “major metrics” more broadly to mean the key measurable characteristics users pay attention to when selecting disks. By contrast, maximum snapshots is a feature limit rather than a primary disk metric, and endurance is not listed by Huawei as one of the standard major EVS disk metrics in the product guidance cited above.

So based on Huawei documentation and the exam-style wording, the most defensible answer is A and D : Throughput and Capacity . ( )

========

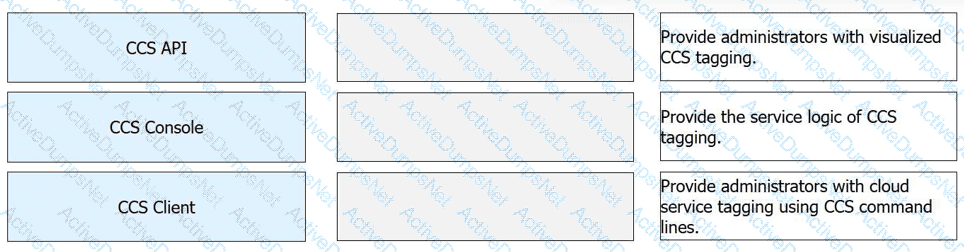

CCS API → Provide the service logic of CCS tagging

CCS Console → Provide administrators with visualized CCS tagging

CCS Client → Provide administrators with cloud service tagging using CCS command lines

Comprehensive and Detailed 150 to 200 words of Explanation From HUAWEI CLOUD Computing Topics:

This drag-and-drop match follows the normal architectural roles of Huawei Cloud Stack CCS components. The CCS API is the backend service interface, so it is responsible for the service logic of CCS tagging . In cloud platforms, APIs handle request processing, tag creation, tag query, and tag-management actions exposed to other components or clients. The CCS Console is the graphical management interface, so its role is to provide administrators with visualized CCS tagging . This means administrators can perform tag-related operations through a web-based UI rather than command lines. The CCS Client is the command-line access component, so it is used to provide administrators with cloud service tagging using CCS command lines .

This mapping is also consistent with standard Huawei Cloud Stack component design principles: API for backend logic , Console for visual management , and Client for CLI-based operations . In practical cloud O & M and resource governance, these three components complement each other by supporting programmatic integration, web-based administration, and command-line automation. Therefore, the verified matching is: CCS API → service logic , CCS Console → visualized tagging , and CCS Client → command-line tagging .

The best verified answer is A. AutoOps built-in scripts . Huawei’s HUAWEI CLOUD Stack O & M documentation states that Automated Jobs automatically detect faults of each cloud service , and that the automation scripts or jobs of each cloud service are displayed and can be centrally managed . That makes AutoOps built-in scripts the most suitable choice for quick diagnosis when VM migration failures happen repeatedly, because this is exactly the kind of recurrent platform-side fault scenario where automated diagnosis scripts are useful.

The other tools are more specialized for different problem domains. CloudNetDebug is described by Huawei as a network diagnosis tool on virtual networks and is mainly used to detect network traffic interruption, packet loss, and full-link virtual network faults. Call chain is associated with application tracing or APM-style request tracing, not VM migration troubleshooting. ECS storage troubleshooting tools are aimed at storage-related fault analysis rather than general VM migration diagnosis.

Therefore, for fast diagnosis of frequent VM migration failures in Huawei Cloud Stack O & M, the most appropriate tool is AutoOps built-in scripts , so the verified answer is A .

========

The statement is FALSE . Official OpenStack documentation clearly distinguishes pause from suspend . When a server is paused , OpenStack states that the state of the VM is stored in RAM , and the instance continues in a frozen state. This means memory is not written to disk during a pause operation. Because RAM is still occupied, a paused VM does not reduce resource usage to a minimal level in the way the question suggests.

By contrast, when a server is suspended , OpenStack documentation says that its state is stored on disk , all memory is written to disk , and the server is stopped. This is the action that is conceptually similar to hibernation. The distinction is important in OpenStack and Huawei Cloud Stack operations because pause is mainly used for temporary freezing of execution, while suspend is used when preserving state on disk is required. Therefore, the statement in the question incorrectly describes suspend , not pause . For that reason, the correct answer is B (FALSE) .

The correct answer is B. ML2 Plugin . In OpenStack Neutron, ML2 stands for Modular Layer 2 and is the main core networking plugin framework used to support different network types and mechanism drivers. Official OpenStack documentation describes ML2 as a plug-in with components for network types and mechanisms, not as a service plugin .

Service plugins in Neutron are different. They add higher-level networking services beyond basic Layer 2 connectivity. OpenStack deployment documentation shows optional service areas such as load balancing and virtual private network services, and Neutron’s router-related functionality is commonly associated with the L3 service plugin . These are examples of service plugins layered on top of the core networking plugin model.

So the key distinction is this: ML2 is the core plugin architecture , while L3, VPN, and load balancing belong to the service-plugin category. In Huawei Cloud Stack networking topic coverage, this separation between the core Neutron plugin and optional service plugins is also fundamental. Therefore, the option that is not a service plugin is B. ML2 Plugin .

========

The correct fill-in answer is FTP. Huawei documentation for image registration on Service OM shows that images can be uploaded using different modes, including local upload, FTP, and NFS. The guidance indicates that for larger image files, administrators should use a network-based upload mode rather than simple local browser upload. In the Huawei document snippet, the upload options explicitly include NFS, and the paired option used in this context is FTP, which matches the exam sentence structure: “select ____ or NFS.”

This makes sense operationally in HUAWEI CLOUD Stack because large image files are more reliably transferred through shared file or server-based methods, especially in enterprise O & M scenarios. Local browser-based uploads are less suitable for very large images due to session stability, browser limits, and transfer reliability. Using FTP or NFS improves image registration efficiency and reduces the chance of interrupted uploads during image onboarding. Therefore, after correcting the sentence, the blank should be filled with FTP.

========

Comprehensive and Detailed 150 to 200 words of Explanation From HUAWEI CLOUD Computing Topics:

The correct answer is B. AutoOps . In HUAWEI CLOUD Stack, AutoOps is the automation platform used for standardized O & M task execution. Its core value is that it can take individual atomic operations and organize them into automated workflows, allowing repeated maintenance and troubleshooting procedures to be executed in a consistent, efficient, and less error-prone manner. This makes it highly suitable for routine operational tasks, fault handling, and platform maintenance scenarios where manual execution would be slower and more risky.

The other options have different roles. CMDB is mainly used for configuration and dependency information management. FusionCare is more focused on inspection, health check, and troubleshooting support. CloudNetDebug is designed for network fault diagnosis, especially for virtual network path troubleshooting. None of these primarily serve as the orchestration and automation engine for O & M workflows.

Therefore, when the requirement is to automate standardized operations and execute orchestration-based maintenance tasks in HUAWEI CLOUD Stack, the best answer is AutoOps , so the correct option is B .

The correct answer is C. Glance Store . OpenStack’s official Glance architecture documentation states that all image data operations are performed using the glance_store library, and that this library is responsible for interaction with external storage back ends and/or local file systems . The same documentation explains that glance_store provides a uniform interface to access backend stores, which is exactly the function described in the question.

The other options do not match this role. The REST API exposes image service operations to clients, but it does not directly serve as the backend storage interaction layer. The database stores metadata about images, while the actual image binary data is handled through the storage interface. “ Glance Domain Controller ” is not a standard Glance core component in official OpenStack architecture. In Huawei Cloud Stack and OpenStack-based image management, the distinction between image metadata management and image data storage interaction is important, and the storage-facing part is handled by Glance Store . Therefore, the fully verified answer is C .

========

The correct fill-in answer is Ironic . Huawei’s official HUAWEI CLOUD Stack documentation clearly states that Ironic provides BMS management services by working with components such as Nova and Neutron . Huawei’s BMS usage guide also explicitly refers to BMS lifecycle management operations , including actions such as starting, stopping, forcibly stopping, and other lifecycle tasks. This confirms that Ironic is the component responsible for managing physical servers through their lifecycle in a Huawei Cloud Stack environment.

This is consistent with standard OpenStack architecture as well, where Ironic is the OpenStack Bare Metal service used to provision and manage physical machines similarly to how Nova manages virtual machines. In Huawei Cloud Stack, BMS is not handled as a simple ECS variant; instead, it relies on Ironic for provisioning, state transitions, and lifecycle orchestration of dedicated hardware resources.

Therefore, after correcting the sentence, the blank should be filled with Ironic , and the fully verified answer is Ironic .

The correct fill-in answer is PB level . Huawei’s official HUAWEI CLOUD Stack SFS documentation states that the maximum capacity of a single file is 240 TB , and it further explains that the file system capacity can be scaled to the PB level . This is the exact Huawei wording used to describe the upper expansion capability of SFS.

This reflects the design goal of SFS in Huawei Cloud Stack: to provide managed, shared file storage for applications that require large-scale file-system growth over time. In other words, the size of one individual file and the total expandable capacity of the file system are two different things. A single file has a stated upper limit, but the whole file system can continue to grow far beyond that limit, reaching petabyte-scale capacity

Therefore, after correcting the sentence structure, the blank should be filled with PB level , which is the official Huawei description of the scalable upper capacity for the file system.

========

The correct fill-in answer is VPN gateway . In Huawei Cloud Stack networking, an EIP can be associated not only with an individual ECS, but also with shared-access components that serve multiple backend resources. Huawei documentation clearly states that when multiple cloud servers in a subnet need outbound Internet access, they can use a NAT gateway and share an EIP . Huawei’s ELB documentation also reflects the model where a load balancer exposes services externally on behalf of multiple backend ECSs.

In the same family of network services, a VPN gateway is another gateway-type object that uses public-facing connectivity to provide secure access for multiple private-side resources. That is why the exam sentence groups it with load balancer and NAT gateway . The logic is that these service gateways allow multiple ECSs or private resources to make use of a single public-facing IP resource instead of requiring one EIP per server. Huawei’s VPN service documentation also shows VPN as the gateway-based service for secure site-to-cloud communication.
