Huawei H12-891_V1.0 HCIE-Datacom V1.0 Exam Practice Test

For SRv6 (Segment Routing over IPv6) deployment on a bearer WAN, the following are essential:

IGP (OSPFv3 or IS-IS): Required for SID advertisement and SRv6 route computation → ✅

BGP: Required when deploying inter-domain SRv6 or for control plane distribution of VPN/service routes → ✅

Not required:

MPLS: SRv6 replaces MPLS labels with IPv6-based SIDs → ❌

BGP-LU: Used in MPLS-based inter-AS scenarios, not applicable to SRv6 → ❌

Correct answers: B, C

In IPsec, a symmetric encryption algorithm (e.g., AES) is used for encrypting data due to its speed. To securely exchange the symmetric key between peers, asymmetric encryption algorithms (like RSA) are used.

This method ensures:

High performance (due to fast symmetric encryption)

Secure key exchange (asymmetric protection)

Exact Extract - Huawei HCIE-Datacom Guide – IPsec Encryption:

“IPsec uses symmetric algorithms to encrypt data for performance and asymmetric algorithms to securely exchange symmetric keys during IKE negotiation.”

Understanding iMaster NCE-Campus Terminal Identification

Huawei ' s iMaster NCE-Campus is an AI-driven network management platform for campus networks.

???? Terminal Identification Features in iMaster NCE-Campus

Identifies device type (e.g., Laptop, Mobile, IoT device).

Detects Operating System (Windows, Linux, Android, iOS).

Determines manufacturer information (Huawei, Apple, Cisco, Dell).

Uses AI-based profiling to continuously update device fingerprints.

???? Real-World Application:

Improved security policies (Only authorized devices can access the network).

QoS and network optimization based on device type.

Dynamic access control based on OS and manufacturer.

✅ Reference: Huawei HCIE-Datacom Guide – AI-Driven Campus Networks with iMaster NCE

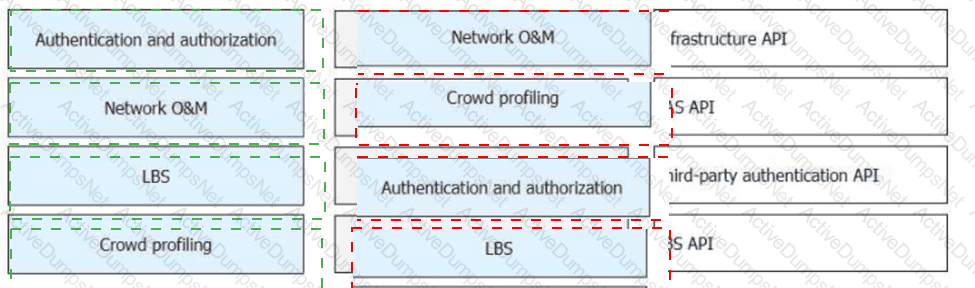

Huawei iMaster NCE-Campus provides open APIs for seamless integration with third-party applications and services. Each API serves a specific purpose in managing network security, operations, analytics, and user interactions.

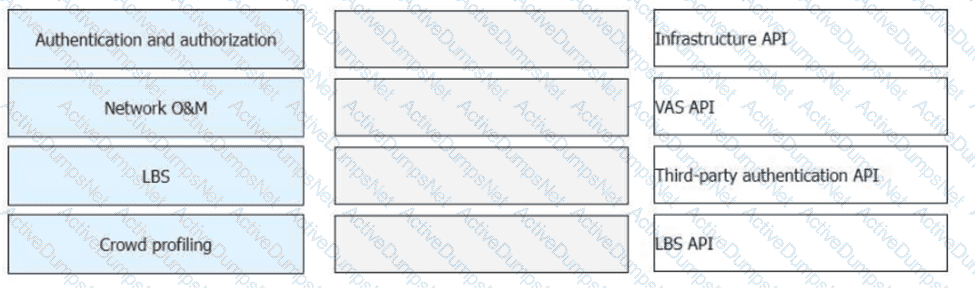

1. Authentication and authorization → Third-party authentication API

This API is used to integrate third-party authentication systems, such as:

LDAP (Lightweight Directory Access Protocol)

RADIUS (Remote Authentication Dial-In User Service)

OAuth/OpenID authentication

It ensures secure user identity verification, access control, and single sign-on (SSO) in CloudCampus networks.

2. Network O & M → Infrastructure API

The Infrastructure API provides tools for network monitoring, diagnostics, and automated management.

It is used for:

Device status monitoring

Network topology visualization

Fault detection and real-time alerts

Performance optimization

3. LBS (Location-Based Services) → LBS API

The LBS API enables applications to access location data collected by the network.

It is used for:

Tracking users or assets within a campus network

Heatmap generation and movement analytics

Geo-fencing and location-based policies

4. Crowd profiling → VAS API

VAS (Value-Added Services) API is designed for advanced analytics and business intelligence.

It supports:

User behavior analytics

Demographic profiling

Marketing strategies based on network usage patterns

Reference from Huawei HCIE-Datacom Documentation:

HCIE-Datacom Training Guide – CloudCampus Solution

Huawei iMaster NCE-Campus API Documentation

Huawei CloudCampus Solution Whitepaper – Open API and Use Cases

Huawei Switch Deployment Methods in CloudCampus

✅ A. DHCP Option 148 – Used for automatic device registration in iMaster NCE-Campus.

✅ B. CLI (Command-Line Interface) – Traditional manual configuration method using the command-line interface.

✅ C. Web Interface – Web GUI-based configuration for easy management.

✅ D. Huawei Registration Center – Cloud-based automatic registration and provisioning for plug-and-play deployment.

Reference from Huawei HCIE-Datacom Documentation:

Huawei CloudCampus Deployment Guide – Device Onboarding Methods

HCIE-Datacom Training Material – Zero-Touch Deployment (ZTP) in CloudCampus

Let’s break this down step-by-step based on Huawei IS-IS VPN and multi-process behavior.

???? Configuration Summary:

Process 1: IS-IS for the global routing table

Process 2: IS-IS for VPN instance tt

Process 3: IS-IS for VPN instance rr

✅ Option C: Correct

Process 1 contains only global routing information.

The configuration of isis 1 does not include any vpn-instance keyword, meaning it is bound to the global routing table.

It does not interact with VPN routing tables unless explicitly configured with import/export mechanisms or route leaking (which is not shown here).

Huawei Datacom Reference:

“When an IS-IS process is not associated with a VPN instance, it belongs to the global routing table and only maintains global routes.”

(Source: HCIE-Datacom Study Guide v3.0 – Chapter: IS-IS for IPv4 and IPv6, Section: Multi-Instance Routing)

✅ Option D: Correct

Routing information of process 2 is isolated from that of process 3.

isis 2 is bound to VPN instance tt

isis 3 is bound to VPN instance rr

Each IS-IS process in Huawei VRF context maintains independent LSDBs and routing tables, and by default, they do not share routing information unless route leaking or redistribution is configured (which is not shown in the config).

Huawei Datacom Reference:

“IS-IS processes bound to different VPN instances operate independently and do not share routing information.”

(Source: HCIE-Datacom Study Guide v3.0 – Chapter: MPLS L3VPN with IS-IS)

Comprehensive and Detailed In-Depth Explanation:

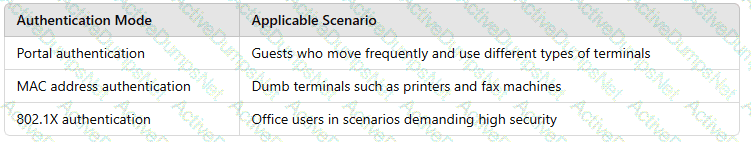

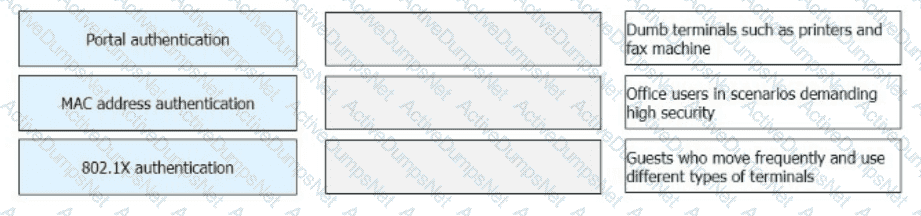

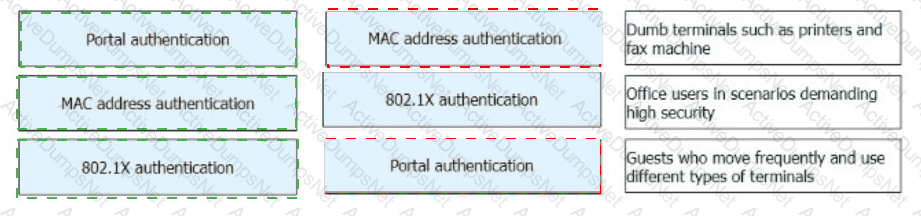

1. Portal Authentication:

Scenario: Guests who move frequently and use different types of terminals.

Explanation:

Portal authentication (also known as Web authentication) is commonly used in environments like Wi-Fi hotspots, hotels, and public areas.

Users are redirected to a login page where they enter credentials.

This method is flexible for guests and visitors who may frequently change locations or devices.

Use Case: Wi-Fi access for guests in a corporate environment.

2. MAC Address Authentication:

Scenario: Dumb terminals such as printers and fax machines.

Explanation:

MAC address authentication is useful for devices that do not support interactive authentication methods (like printers or IP phones).

It authenticates devices based on their MAC address without user intervention.

This method is suitable for static, non-user devices that are typically part of the local network.

Use Case: Ensuring that only authorized printers or IP phones connect to the network.

3. 802.1X Authentication:

Scenario: Office users in scenarios demanding high security.

Explanation:

802.1X is a port-based network access control protocol that authenticates users before allowing network access.

Typically used in wired or wireless LAN environments where high security is required.

It uses EAP (Extensible Authentication Protocol) methods and integrates with RADIUS servers.

Use Case: Corporate LAN environments with stringent security policies.

OSPFv3 (for IPv6) introduces significant changes compared to OSPFv2 (for IPv4).

While both versions share similar routing mechanisms, there are key LSA format and functional differences beyond just address changes.

Major Differences Between OSPFv2 and OSPFv3:

Address Independence (LSA Format Changes)

OSPFv3 LSAs do not contain IP addresses directly; they rely on Link-LSA and Intra-Area Prefix LSA to advertise addresses.

In OSPFv2, IP addresses were included in LSA headers.

New LSA Types in OSPFv3

LSA Type 8 (Link-LSA): Advertises a router’s IPv6 address to neighbors.

LSA Type 9 (Intra-Area Prefix LSA): Replaces the address information in Router-LSAs and Network-LSAs.

Support for Multiple Address Families (AF)

OSPFv3 can support both IPv4 and IPv6 in newer implementations (RFC 5838).

Authentication Mechanism Removed

OSPFv3 relies on IPsec for authentication, whereas OSPFv2 had built-in authentication mechanisms.

Incorrect Statement Explanation:

❌ The statement " LSA formats and functions remain unchanged " is false because:

LSA structures were modified in OSPFv3.

New LSA types were introduced to handle IPv6 addresses separately.

Reference from Huawei HCIE-Datacom Documentation:

Huawei OSPFv3 Configuration Guide – LSA Differences from OSPFv2

HCIE-Datacom Study Material – OSPFv3 Evolution & IPv6 Implementation

BGP EVPN in VXLAN Tunneling

✅ A. MP_REACH_NLRI is used to carry routing information.

MP_REACH_NLRI (Multiprotocol Reachable Network Layer Reachability Information) is used in BGP updates to carry VXLAN reachability information.

✅ B. Several BGP EVPN routes are defined through BGP extension.

BGP EVPN introduces multiple route types, such as Type 2 (MAC/IP Advertisement), Type 3 (Inclusive Multicast), and Type 5 (IP Prefix Advertisement).

✅ D. MP_REACH_NLRI is used to carry the RT.

RT (Route Target) defines route import/export policies in VPN environments.

MP_REACH_NLRI carries the RT attribute in BGP EVPN updates.

❌ Incorrect Answer:

❌ C. MP_REACH_NLRI is used to carry the RD.

Wrong! The Route Distinguisher (RD) is carried inside BGP attributes, but not in MP_REACH_NLRI.

Reference from Huawei HCIE-Datacom Documentation:

Huawei VXLAN BGP EVPN Configuration Guide – BGP EVPN Route Types

HCIE-Datacom Training Material – VXLAN Dynamic Tunnel Establishment

In SR-MPLS (Segment Routing over MPLS), prefix SID conflicts may occur if multiple prefixes are assigned the same SID or vice versa.

Conflict resolution principle (Huawei standard):

When there are multiple SIDs for the same prefix, the SID with the lowest value wins.

When the same SID is assigned to multiple prefixes, the prefix with the smallest address wins.

Apply to this case:

Conflict: Two entries for 1.1.1.1/32 with SID 2 and SID 1.

SID 1 is lower, so 1.1.1.1/32 → SID 1 is selected.

Correct answer: D. 1.1.1.1/32 → SID 1

Understanding User Authentication Points in a Network

Authentication points can be deployed at different network layers based on security and scalability needs:

✅ Access Layer Authentication:

Ensures high security & granular control (user-level authentication).

Preferred in high-security enterprise networks.

✅ Aggregation or Core Layer Authentication:

Reduces authentication overhead but provides less granular control.

Suitable for large-scale networks where authentication load needs to be balanced.

Analysis of the Answer Choices:

✅ A. Deploying user authentication points at the access layer achieves granular permission management and high network security.

Correct: Provides fine-grained control per user and prevents unauthorized access.

✅ B. Moving user authentication points from the access layer to the aggregation or core layer greatly reduces the number of user authentication points, thereby effectively mitigating the pressure on the AAA server.

Correct: Fewer authentication points mean less load on the AAA server.

✅ C. Deploying user authentication points at the access layer has both advantages and disadvantages when compared to doing so at the aggregation or core layer. Policy association can be applied if user authentication points are deployed at the access layer.

Correct: Policy-based authentication is best applied at the access layer for granular control.

❌ D. When user authentication points are moved from the access layer to the aggregation layer, MAC address authentication for users may fail.

Incorrect: MAC authentication works at both layers, but policy adjustments may be needed.

✅ Reference: Huawei HCIE-Datacom Guide – User Authentication Strategies in Enterprise Networks

Comprehensive and Detailed In-Depth Explanation:

A. When planning paths based on bandwidth: Correct. The available bandwidth of each interface must be set in advance to allow path planning based on bandwidth requirements.

B. When planning paths based on delay: Correct. To plan paths considering delay, you need to deploy TWAMP (Two-Way Active Measurement Protocol) or iFIT (Intelligent Flow Information Telemetry) to measure the real-time delay on network links.

C. If the controller plans SR-MPLS Policy paths: Incorrect. The controller can plan primary, backup, and load-balanced paths, enabling traffic distribution across multiple paths.

D. Statically planned SR-MPLS Policy paths: Correct. You can manually configure load balancing for the primary path when planning the SR-MPLS Policy path statically.

Analyzing the Routing Table Output:

The command display ipv6 routing-table protocol isis shows all IPv6 routes learned via IS-IS.

The output shows " Summary Count: 6 " , meaning R1 has six IS-IS IPv6 routes.

Explanation of Correct Answers:✅ A. R1 has six IS-IS IPv6 routes.

The " Summary Count: 6 " confirms that six IS-IS IPv6 routes exist in R1 ' s routing table.

✅ C. IS-IS IPv6 must have been enabled on GigabitEthernet0/0/1 of R1.

The interface GigabitEthernet0/0/1 is listed as the next-hop, meaning IS-IS IPv6 must be enabled on that interface.

✅ D. R1 is not a Level-1 device.

The protocol is listed as " ISIS-L2 " , indicating that R1 is an IS-IS Level-2 (backbone) router, not a Level-1 router.

Incorrect Answer Explanation:❌ B. R1 does not have IS-IS IPv6 routes.

Wrong! The output clearly shows six IS-IS IPv6 routes, proving this statement false.

Reference from Huawei HCIE-Datacom Documentation:

Huawei IPv6 Routing Protocols Guide – IS-IS for IPv6

HCIE-Datacom Routing & Switching Training – IS-IS L1 & L2 Operations

Huawei IS-IS Configuration Guide – IPv6 Route Management

Comprehensive and Detailed In-Depth Explanation:

OSPFv3, which supports IPv6, uses a router ID that is 32 bits in length, similar to OSPFv2. The router ID in OSPF is always a 32-bit number, typically represented in an IPv4 address format (dotted decimal). Although OSPFv3 is designed to support IPv6, it still relies on a 32-bit router ID for identification, which must be unique within an OSPF domain. The router ID does not change even though the protocol itself supports IPv6 addresses (128 bits).

Comprehensive and Detailed In-Depth Explanation:

The IP prefix list configuration:

ip ip-prefix TEST permit 10.0.0.0 24 less-equal 30

10.0.0.0/24: Matches because it falls within the 10.0.0.0/24 prefix with the same prefix length (24).

10.0.1.0/24: Matches because it also falls within the /24 network range.

10.0.2.0/24: Matches for the same reason as the above.

10.0.0.1/30: Matches because it falls within the /24 prefix and its subnet length (30) is within the less-equal 30 range.

The prefix list permits any route that falls within the 10.0.0.0/24 network with a subnet mask ranging from /24 to /30. Therefore, all given routes are matched.

Understanding HTTP/1.1 Response Structure

???? What is an HTTP Response?

The response is sent from the server to the client after processing an HTTP request.

The structure follows a standardized format:

Elements of an HTTP/1.1 Response:

✅ A. Status Line → Contains protocol version, status code, and reason phrase.

✅ B. Response Body → Contains HTML, JSON, XML, or other content.

✅ C. Response Header → Provides metadata about the response (e.g., Content-Type, Server).

✅ D. Empty Line → A blank line separates headers from the response body.

Example of an HTTP/1.1 Response:

HTTP/1.1 200 OK

Date: Sat, 08 Mar 2025 14:00:00 GMT

Server: Apache/2.4.41 (Ubuntu)

Content-Type: text/html; charset=UTF-8

< html >

< body >

< h1 > Welcome to Huawei Datacom < /h1 >

< /body >

< /html >

Why is the Answer A, B, C, D?

✅ An HTTP response includes a status line, headers, an empty line, and a response body.

Real-World Application:

Web Application Debugging: Helps developers analyze server responses.

API Security: Validates response headers to prevent injection attacks.

✅ Reference: Huawei HCIE-Datacom Guide – HTTP Protocol and Response Headers

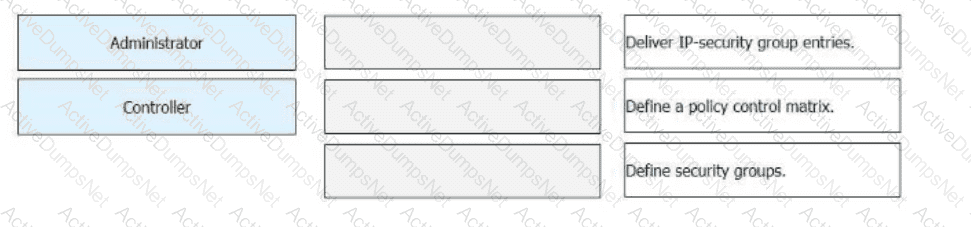

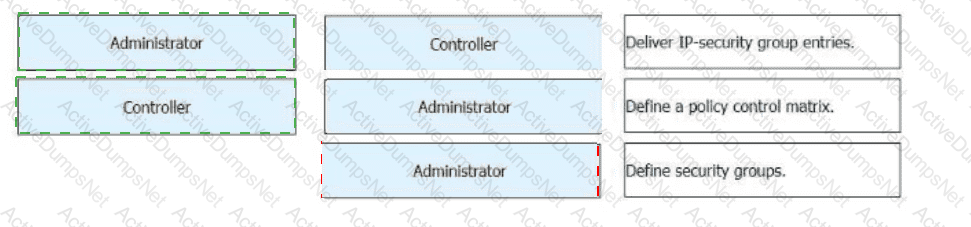

In Huawei’s Free Mobility solution:

Authentication Point (AP): Identifies users and associates them with a Security Group Tag (SGT) upon access.

Policy Enforcement Point (PEP): Enforces policies between different security groups, such as allowing or denying traffic.

Key points:

A is correct — The PEP enforces inter-group access based on defined policies.

B is incorrect — AP and PEP can be on separate devices, offering deployment flexibility.

C is incorrect — The policy enforcement happens at the PEP, not the AP. AP ' s job is to authenticate and tag traffic.

D is correct — AP and PEP can be deployed on different devices.

Correct answers: A, D

Understanding MPLS LDP and PHP (Penultimate Hop Popping):

✔ Label Distribution in MPLS LDP:

LDP assigns labels to FECs so that routers can forward packets based on labels rather than IP lookup.

Labels are advertised downstream (from R4 to R3, R3 to R2, and so on).

✔ Penultimate Hop Popping (PHP) Concept:

The egress LSR (R4) does not require an incoming label for 4.4.4.0/24.

Instead, R3 (Penultimate LSR) removes the label before forwarding the packet to R4.

R3 forwards the packet as an IP packet, not an MPLS packet, to avoid an unnecessary label lookup at R4.

In MPLS LDP, the label " 0 " is used to indicate an implicit NULL label (PHP operation).

Why the Answer is " 0 " (Implicit NULL Label)?

✅ Since R4 is the egress LSR, it does not need a label for 4.4.4.0/24.

✅ R3 assigns the outgoing label as " 0 " (Implicit NULL Label) to indicate that the label should be removed before sending to R4.

✅ R4 receives the packet as a pure IP packet (no MPLS label).

Why Other Answers Are Incorrect?

❌ Any value other than " 0 "

If R3 assigns a label (e.g., 100), R4 would need to perform an unnecessary MPLS lookup, which is inefficient.

Using " 0 " ensures PHP occurs, optimizing the forwarding process.

Final Answer: 0

???? Reference: Huawei HCIE Datacom – MPLS LDP and Penultimate Hop Popping (PHP)

Understanding L3VPN over SRv6 BE Networks

???? What is L3VPN over SRv6?

Layer 3 VPN (L3VPN) allows multiple private routing domains to operate over a shared service provider backbone.

SRv6 (Segment Routing over IPv6) replaces traditional MPLS labels with IPv6 Segment Identifiers (SIDs).

Best Effort (BE) mode means that no explicit Traffic Engineering (TE) constraints are applied.

How Routing Works in This Scenario

Key Components in the Network:

PE1 & PE2 (Provider Edge routers): Connect customer networks (CE1 & CE2).

P Router (Core Router): Provides transit between PE routers over SRv6.

SRv6 SID FC00:2::1:79: Used for VPN routing at PE2 (End.DT4 function).

Step-by-Step Route Learning Process:

1️⃣ PE1 advertises the 192.168.1.0/24 VPN route to PE2 using iBGP VPNv4.

2️⃣ PE2 receives the route with next-hop 2001:DB8:1::1 (PE1).

3️⃣ PE2 installs the route with the SRv6 Prefix-SID FC00:2::1:79 (End.DT4).

4️⃣ The route is imported into the VRF using the import-route command.

Analysis of Each Answer Choice

✅ A. An IBGP peer relationship is established between PE2 and PE1, and PE2 learns the route to 192.168.1.0/24 over an IBGP peer relationship.

Correct: The routing table output confirms that PE2 receives the route via iBGP from PE1.

✅ B. The instruction type corresponding to FC00:2::1:79 is End.DT4.

Correct:

End.DT4 is an SRv6 function that represents a Layer 3 VPN endpoint (VRF routing).

PE2 uses End.DT4 to process VPN traffic for 192.168.1.0/24.

✅ C. PE2 imports the route 192.168.1.0/24 through the import-route command.

Correct:

The import-route command allows BGP-learned routes to be added to the local routing table (VRF).

❌ D. The router ID of the BGP process on the P router is 1.0.0.6. (Incorrect Statement)

Incorrect:

The P router is a transit router and does NOT run BGP for VPNv4 routes.

The router ID of PE2 is 1.0.0.11, and the route originator is 1.0.0.2 (likely PE1).

P routers in an SRv6 BE network do NOT need BGP router IDs.

Final Answer: D (The router ID of the BGP process on the P is 1.0.0.6.)

✅ Reference: Huawei HCIE-Datacom Guide – SRv6 L3VPN Routing and End.DT4 Function

Real-World Application:

Service Provider Networks: Uses SRv6 to replace MPLS in large-scale VPN deployments.

5G Transport Networks: Implements SRv6 L3VPN for high-speed, low-latency services.

Understanding HTTP/1.1 Response Headers

???? What is an HTTP Response?

When a web server responds to an HTTP request, it sends an HTTP response message.

The response contains headers, a status line, and a response body.

Elements of an HTTP Response Header:

✅ A. Status Code → Correct

Indicates the response status (e.g., 200 OK, 404 Not Found).

✅ B. Reason Phrase → Correct

Provides a human-readable explanation of the status code (e.g., OK, Not Found).

✅ C. Protocol Version → Correct

Specifies which HTTP version is being used (e.g., HTTP/1.1).

❌ D. Response Method → Incorrect

The HTTP method (GET, POST, etc.) is part of the request, not the response.

Understanding Inter-AS MPLS VPN Option C (Solution 2)

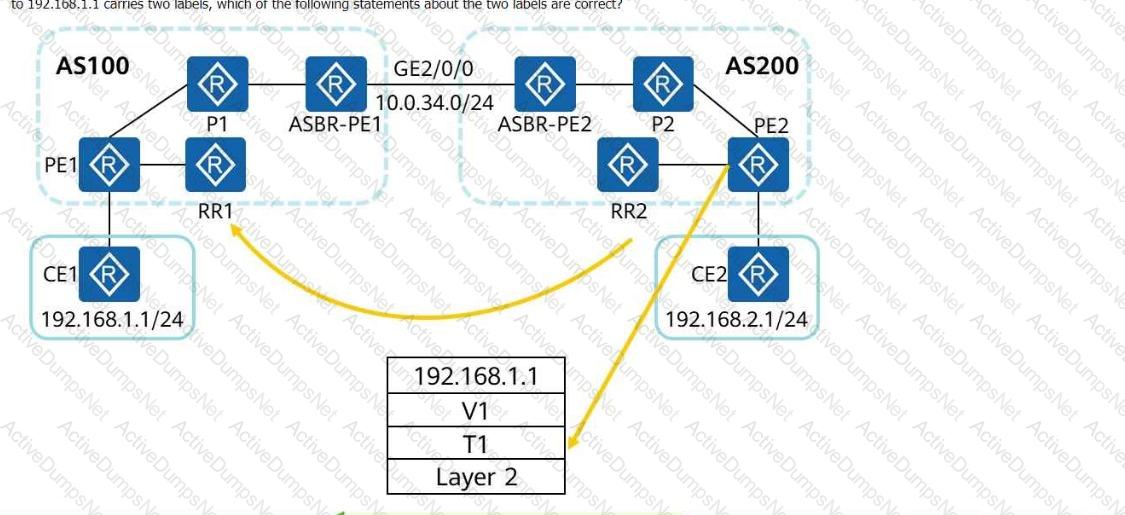

In MPLS L3VPN Inter-AS Option C, the Route Reflectors (RRs) are used for VPN route distribution but do not participate in data forwarding. The traffic forwarding path is based on MPLS labels assigned at different routers.

Each data packet carries two MPLS labels:

Transport Label (T1) – Used for forwarding within the backbone.

VPN Label (V1) – Used for VPN route identification.

Breaking Down the Labels:

✔ VPN Label (V1) – Allocated by PE1 (Answer: C ✅)

V1 (Inner Label) is the VPN label assigned by the egress PE router (PE1).

This label ensures that when the packet reaches PE1, it knows how to forward the traffic to CE1 (192.168.1.1).

✔ Transport Label (T1) – Allocated by P2 (Answer: B ✅)

T1 (Outer Label) is the transport label assigned by P2 to forward the packet across the AS core.

This label ensures the packet reaches the next-hop router (ASBR-PE1 in AS100).

Why Are the Other Options Incorrect?

❌ A. " T1 is allocated by RR2 " (Incorrect)

RR2 is used only for route reflection; it does not participate in label allocation or forwarding.

❌ D. " V1 is allocated by P2 " (Incorrect)

P2 is an intermediate router and does not allocate VPN labels.

VPN labels are always assigned by the egress PE router (PE1 in AS100).

???? Reference: Huawei HCIE Datacom – MPLS L3VPN Inter-AS Option C

Comprehensive and Detailed Explanation:

Inter-AS MPLS L3VPN Option B requires ASBRs to exchange VPNv4 routes using eBGP with label information.

Analysis of Inter-AS VPN Solutions:

Option B uses eBGP to exchange labeled VPNv4 routes between ASBRs but does not require MPLS between ASBRs.

Option A does not exchange VPNv4 routes over ASBRs (uses IP routing instead).

Option C uses MP-BGP and requires full MPLS between ASBRs.

Since Option B requires ASBRs to exchange VPNv4 routes, the correct answer is B.

???? Reference: Huawei HCIE Datacom – MPLS Inter-AS VPNs

Comprehensive and Detailed Explanation:

✔ Hub-Spoke networking is the most efficient and scalable model for interconnecting 100+ branches in a small and midsize campus network.

✔ Why Hub-Spoke?

Centralized Control: A hub router manages communication between spoke routers (branch sites).

Reduced Complexity: Unlike full-mesh, which requires N(N-1)/2* connections, hub-spoke minimizes link costs.

Easier Management: Policy enforcement and security are centralized at the hub site.

✔ Why Not Other Options?

❌ A (Direct Networking) → Suitable for small networks, but inefficient for 100+ branches.

❌ B (Full-Mesh Networking) → High cost and complexity, requiring too many links.

❌ D (Partial-Mesh Networking) → More scalable than full-mesh, but hub-spoke is more optimized for large branch networks.

???? Reference: Huawei HCIE Datacom – WAN Interconnection Models

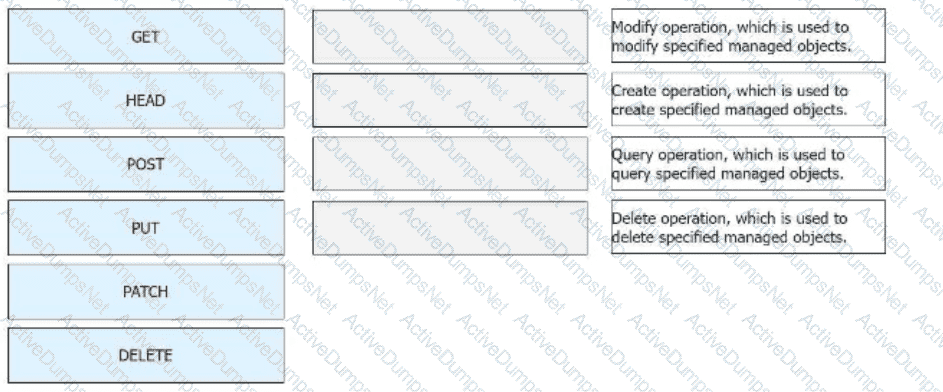

Huawei Datacom Reference:

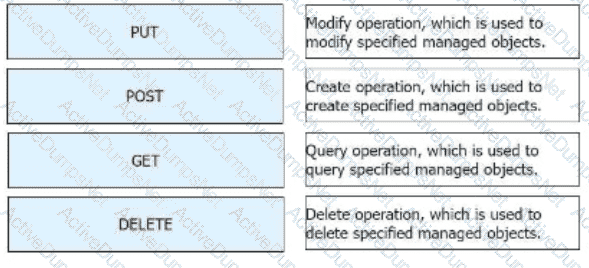

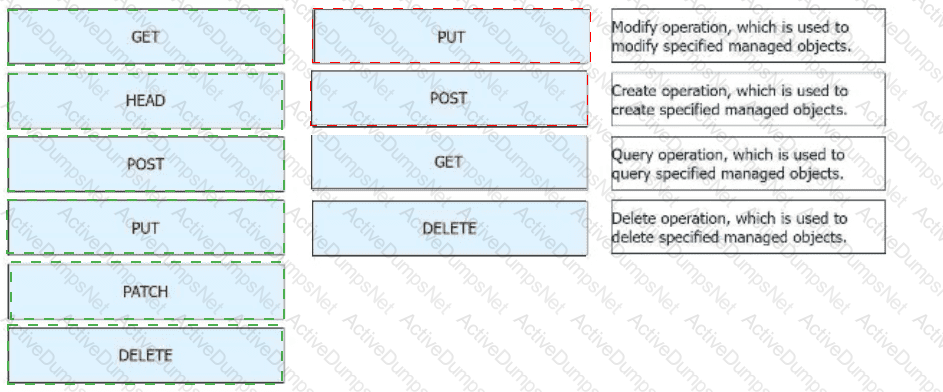

“In RESTful APIs, GET is used for reading data, POST for creation, PUT/PATCH for updates, and DELETE for deletion. PATCH allows partial updates while PUT replaces the entire resource.”

(Source: HCIE-Datacom V1.0 – OPS & NETCONF API Chapter)

IS-IS (Intermediate System to Intermediate System) protocol has a limit on the size of Link-State PDUs (LSPs).

Why Fragmentation?

LSPs contain routing and topology information.

If the LSP exceeds the maximum size, fragmentation allows the device to store and forward more routes by breaking them into smaller LSPs.

Key Point: IS-IS fragmentation is essential in large-scale networks where routing tables grow beyond the default LSP size limit.

✅ Reference: Huawei HCIE-Datacom Guide - IS-IS Protocol and Route Scaling

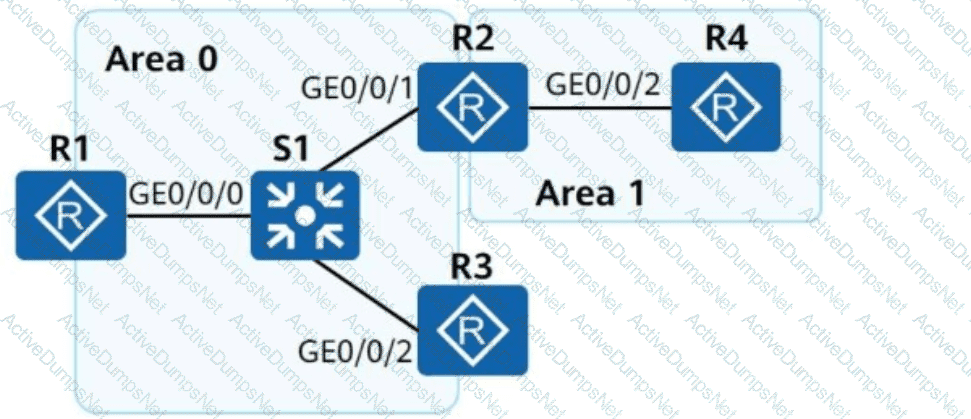

For OSPF neighbors to reach Full state, they must exchange LSAs (Link State Advertisements) properly and synchronize their databases.

Possible Causes Preventing OSPF from Entering Full State:

✅ A. A link works abnormally

If the physical or Layer 2 link is unstable, OSPF Hello packets may be lost, preventing the Full state.

✅ B. The OSPF network types on both ends of the link are inconsistent

OSPF network types (Broadcast, P2P, NBMA, etc.) must match on both ends.

Example: If one router is P2P and the other is Broadcast, adjacency issues occur.

✅ C. The router IDs of neighbors are the same

Router ID conflicts prevent OSPF adjacencies from forming.

Each router must have a unique Router ID.

✅ D. The OSPF MTU values of interfaces on both ends of the link are different

If MTU settings do not match, OSPF Database Description (DD) packets may be dropped, preventing Full state.

Reference from Huawei HCIE-Datacom Documentation:

Huawei OSPF Configuration Guide – Troubleshooting OSPF Neighbor Issues

HCIE-Datacom Study Material – OSPF Adjacency and Route Synchronization

Understanding MPLS Label Retention Modes

In MPLS (Multiprotocol Label Switching), a Label Switching Router (LSR) can operate in one of two label retention modes:

1️⃣ Liberal Label Retention Mode (LLRM)

Stores all labels received from neighbors, even if they are not immediately used.

Advantage: Fast convergence during link failures.

Disadvantage: Consumes more memory & label space.

2️⃣ Conservative Label Retention Mode (CLRM)

Only keeps labels for the best next-hop path.

Advantage: Saves memory & label space.

Disadvantage: Slower convergence when topology changes.

Why are C and D Correct?

✅ C. An LSR reserves all labels distributed by its neighbor.

Correct: In Liberal Mode, the router accepts and stores all labels received, even for non-best paths.

✅ D. The liberal mode requires more memory and label space.

Correct: Since the router keeps all labels, it requires higher memory & storage.

Why are A and B Incorrect?

❌ A. An LSR retains labels from a neighboring LSR only when the neighbor is its next hop.

Incorrect: This describes Conservative Mode, not Liberal Mode.

❌ B. This label retention mode saves memory and label space.

Incorrect: Liberal Mode consumes more memory, not less.

Real-World Application

Liberal Mode is used in large-scale MPLS networks where fast failover is critical.

Conservative Mode is preferred in memory-constrained environments.

✅ Reference: Huawei HCIE-Datacom Study Guide – MPLS Label Retention Modes

Comprehensive and Detailed In-Depth Explanation:

Prefix Segment:

Represents a destination prefix in the network.

A Prefix SID (Segment Identifier) is a globally unique SID that maps to an IP prefix and is within the SRGB (Segment Routing Global Block) range.

Therefore, C is correct.

A is incorrect because a prefix SID is within the SRGB range, not out of it.

Adjacency Segment:

Represents a link (adjacency) between two nodes.

An Adjacency SID is locally significant and typically allocated from the SRLB (Segment Routing Local Block) range.

It uniquely identifies a link between nodes in the source node’s local routing table.

Therefore, D is correct, while B is incorrect because an adjacency SID is not necessarily an offset within the SRGB.

Comprehensive and Detailed In-Depth Explanation:

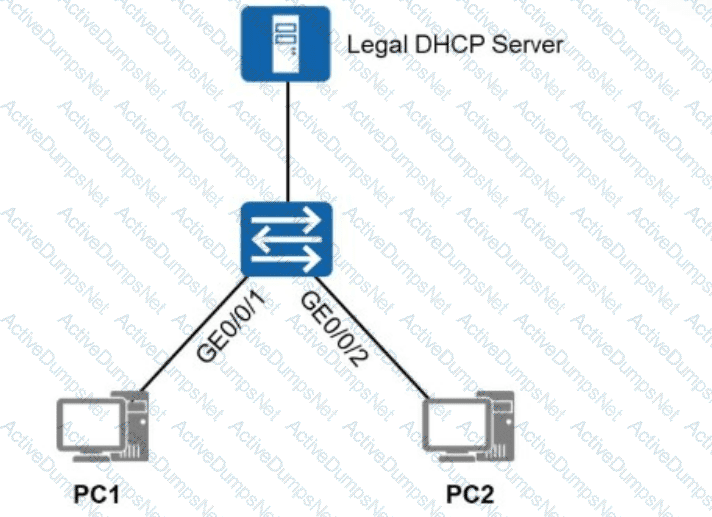

The statement A is incorrect because enabling DHCP snooping in the VLAN view only takes effect on interfaces within that specific VLAN that have DHCP snooping configured. It does not automatically apply to all interfaces of the device. Each interface within the VLAN must individually be configured or marked as trusted/untrusted.

B: Correct, as DHCP snooping, when enabled globally without any additional specifications, defaults to processing DHCPv4 messages.

C: Correct, as DHCP snooping can protect against DHCP spoofing attacks by marking interfaces as trusted or untrusted.

D: Correct, enabling DHCP snooping on an interface means it will monitor all DHCP messages on that specific interface.

Comprehensive and Detailed In-Depth Explanation:

When invoking RESTful APIs in iMaster NCE-Campus, the client must include the ACCESS-TOKEN in the request header to authenticate the request.

The ACCESS-TOKEN is obtained through authentication and is required for API access control.

The correct format in the HTTP header is:

Authorization: Bearer ACCESS-TOKEN

Other formats like ACCEPT-TOKEN, X-ACCEPT-TOKEN, and X ACCESS TOKEN are not recognized or valid for iMaster NCE-Campus API requests.

Therefore, the correct answer is A.

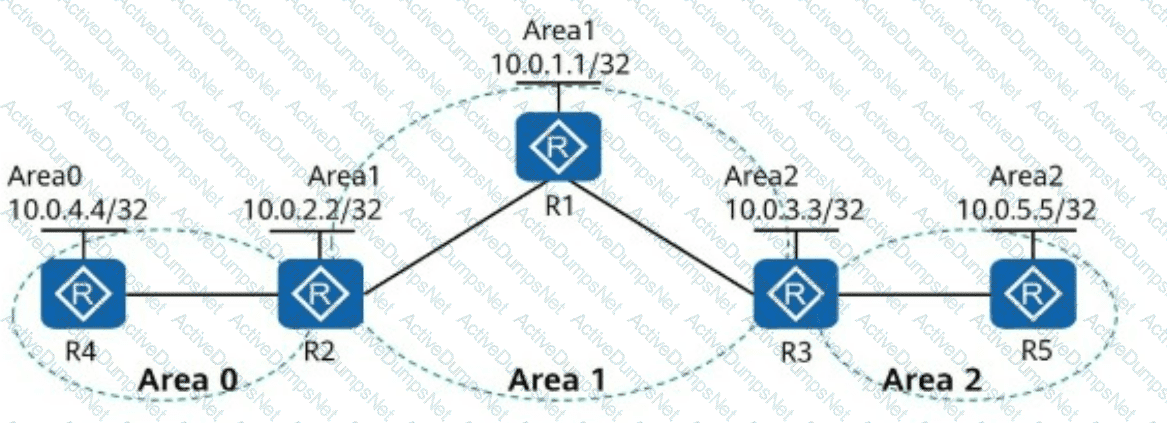

Understanding OSPF Multi-Area Routing

???? OSPF (Open Shortest Path First) is a link-state routing protocol that uses a hierarchical area design for scalability.

???? OSPF Areas in the Diagram:

Area 0 (Backbone Area): Contains R4 (Loopback 10.0.4.4/32).

Area 1: Contains R1 (Loopback 10.0.1.1/32) and R2 (Loopback 10.0.2.2/32).

Area 2: Contains R3 (Loopback 10.0.3.3/32) and R5 (Loopback 10.0.5.5/32).

R1 and R2 connect Area 1 to Area 0.

R1 and R3 connect Area 1 to Area 2.

How OSPF Advertises Routes Across Areas

✅ Intra-area communication (within the same area) is always possible.

✅ Inter-area communication is possible if the ABR (Area Border Router) correctly advertises routes.

✅ OSPF does NOT automatically advertise routes from one non-backbone area (e.g., Area 2) to another (e.g., Area 0) unless explicitly allowed.

Analysis of the Answer Choices:

❌ A. 10.0.3.3 and 10.0.5.5 (Incorrect)

Both R3 (10.0.3.3) and R5 (10.0.5.5) are in Area 2.

R3 and R5 can communicate directly, but OSPF rules require an Area Border Router (ABR) to share routing information between areas.

Since no information is provided about inter-area route redistribution, we cannot confirm that R3 and R5 can reach each other.

❌ B. 10.0.2.2 and 10.0.5.5 (Incorrect)

R2 (10.0.2.2) is in Area 1, and R5 (10.0.5.5) is in Area 2.

R2 does NOT have direct OSPF reachability into Area 2.

✅ C. 10.0.2.2 and 10.0.3.3 (Correct)

R2 (10.0.2.2) is in Area 1, and R3 (10.0.3.3) is in Area 2.

R1 connects both Area 1 and Area 2, meaning R2 and R3 can communicate via R1.

R1 is the ABR (Area Border Router) between Area 1 and Area 2, so it will advertise routes from R3 to R2 and vice versa.

❌ D. 10.0.4.4 and 10.0.2.2 (Incorrect)

R4 (10.0.4.4) is in Area 0 (Backbone), and R2 (10.0.2.2) is in Area 1.

R2 does NOT connect directly to Area 0, so R2 does not learn routes from Area 0 unless R1 explicitly redistributes them.

No explicit information about route redistribution is provided.

Final Answer: C (10.0.2.2 and 10.0.3.3)

✅ Reference: Huawei HCIE-Datacom Guide – OSPF Multi-Area Routing & ABR Role

Real-World Application:

Enterprise WAN Networks: Multi-area OSPF is used to scale large enterprise networks while maintaining fast convergence.

Service Provider Networks: ABRs control route distribution, preventing unnecessary flooding of routing updates across areas.

Comprehensive and Detailed In-Depth Explanation:

When configuring a virtualized campus network on iMaster NCE-Campus, the platform supports automatic delivery of routing policies when connecting to external networks, including the Internet.

This feature ensures that traffic destined for external networks is automatically directed to the appropriate egress points.

The NCE-Campus automatically creates and delivers the default route or specific routes, depending on the network topology and configuration.

This simplifies network management by eliminating the need for manual route configuration on each device.

Therefore, the statement is TRUE.

Huawei AR routers used as egress gateways in CloudCampus solutions support multiple onboarding and deployment methods, including:

DHCP Option 148-based auto-deployment

Web-based management

CLI-based deployment and configuration (also supported)

So, the statement is incorrect—CLI-based deployment is supported.

Exact Extract - Huawei CloudCampus AR Router Deployment Guide:

“AR series routers support multiple deployment methods including CLI, DHCP Option 148, and web-based registration.”

Understanding SSH Authentication and Key Exchange

???? What Happens When an SSH Client Connects to a Server?

1️⃣ Key Exchange Phase (KEX)

Even if only password authentication is used, SSH still performs key exchange.

The server and client negotiate encryption keys using algorithms like Diffie-Hellman (DH).

2️⃣ User Authentication Phase

After encryption keys are exchanged, the user authenticates using a username and password.

Why is the Answer FALSE?

❌ Even with password authentication, SSH still performs key exchange to establish an encrypted session.

✅ The SSH session is always encrypted using cryptographic keys generated during KEX.

Real-World Application:

Secure Remote Access: Protects login credentials from MITM (Man-in-the-Middle) attacks.

Cloud & Datacenter Networks: Ensures secure SSH connections across remote infrastructure.

✅ Reference: Huawei HCIE-Datacom Guide – SSH Key Exchange and Authentication

In Huawei’s CloudCampus Solution, when static IPsec VPN is used for WAN interconnection, the following devices are capable of acting as egress gateways for encrypted tunnels:

Access Point (AP)

Router

Switch

This is based on Huawei’s CloudCampus architecture, where all three device types can support VPN tunnel termination depending on the deployment size and use case.

Huawei Datacom Reference:

" In static IPsec VPN networking scenarios, egress devices can be APs, Routers, or Switches depending on the deployment model. This allows flexibility for small, medium, and large-scale branches. "

(Source: HCIE-Datacom V1.0 Training Guide – WAN Interconnection and VPN Chapter)

According to the displayed OSPF error statistics from the Huawei device, the key HELLO packet error shown is:

yaml

CopyEdit

2 : Netmask mismatch

This indicates that the OSPF adjacency formation is failing due to a subnet mask mismatch between the two OSPF neighbors on the corresponding interface (GigabitEthernet 0/0/0). OSPF uses the subnet mask in Hello packets to ensure that neighbors are in the same network. If the masks do not match, OSPF will not form an adjacency.

From the Huawei Official HCIE-Datacom Study Guide (Version 3.0) — under the OSPF Troubleshooting Section:

" Netmask mismatch: If the subnet mask configured on the interfaces of OSPF neighbors does not match, a ' Netmask mismatch ' error occurs. OSPF requires neighbors to be on the same subnet to establish an adjacency. This is a common reason for failure in adjacency formation. "

(Reference: Huawei HCIE-Datacom V3.0, OSPF Troubleshooting Chapter, Section 4.2 – OSPF Hello and Adjacency Establishment Issues)

Thus, among the given options:

A. Area type inconsistency would result in an area ID mismatch error, not netmask.

B. Authentication mismatch would show a bad authentication key or type error.

D. Hello interval mismatches would trigger a Hello timer mismatch error.

Only C. The IP address masks of the interfaces are inconsistent directly matches the actual error observed: Netmask mismatch.

Comprehensive and Detailed In-Depth Explanation:

By default, OSPF does not automatically associate a domain ID with a process ID. The concept of " domain ID " is primarily used when redistributing routes between OSPF and BGP, particularly in MPLS VPN scenarios. The domain ID in OSPF helps maintain loop prevention and correct route advertisement between different OSPF domains. You can manually configure the domain ID using the domain-id command within the OSPF process view, but it is not inherently set to the process ID.

In Huawei ' s SRv6 instruction naming system, each letter keyword represents a specific forwarding behavior:

X (Cross): Forwards packets via specified Layer 3 interfaces → ✅

M (MAC): Searches Layer 2 forwarding table for broadcast/multicast, not unicast → ❌

V (VPN): Searches the VPN routing table (VRF) for forwarding → ✅

T (Table): Searches a specific routing table (e.g., user-defined) → ✅

Correct answers: A, C, D

In SRv6 (Segment Routing over IPv6), flavors are extensions to standard SRv6 instructions that define how the Segment Routing Header (SRH) is handled at specific points:

PSP (Penultimate Segment Pop): Instructs the penultimate node to remove the SRH before reaching the last node → ✅

USD (Ultimate Segment Decapsulation): Instructs the final segment to remove the SRH and IPv6 header, exposing the payload → ✅

PSD (Penultimate Segment Decapsulation): Instructs the penultimate node to remove the SRH and deliver the payload → ✅

USP (Ultimate Segment Pop) is not a standard flavor in Huawei SRv6 implementations → ❌

Correct answers: A, B, D

In BGP, community attributes help control the advertisement scope of BGP routes. Here’s what each option means:

No_Export: This well-known community attribute prevents BGP routes from being advertised to external BGP (EBGP) peers. Routes with this attribute can still be advertised to internal BGP (IBGP) peers within the same AS. This ensures that the route remains within the originating AS.

No_Advertise: This attribute means that the route should not be advertised to any BGP peer, whether internal or external.

Internet: Indicates that the route can be advertised to all BGP peers, both internal and external, with no restrictions.

No_Export_Subconfed: Similar to No_Export, but it also restricts advertisement to peers within a BGP confederation. It ' s more specific and not generally used just to keep routes inside one AS.

Therefore, the correct answer is B. No_Export, as it is the attribute that ensures BGP routes remain within the AS by not being sent to EBGP peers.

Let’s break it down:

A. ❌ Incorrect — Path computation can be done by both controller and ingress routers, not just the controller.

B. ✅ SR-MPLS extends IGP protocols (e.g., OSPF/IS-IS) for segment distribution, allowing smooth evolution.

C. ✅ Supports TI-LFA (Topology Independent Loop-Free Alternate) for fast failure recovery.

D. ✅ Through source routing, SR-MPLS integrates easily with applications for programmable path control.

Exact Extract – HCIE-Datacom Segment Routing Chapter:

“SR-MPLS supports distributed and centralized path computation, uses IGP extensions for deployment, and supports TI-LFA for FRR. It allows interaction with applications through programmable routing.”

Portal Authentication vs. MAC Authentication

✅ Portal Authentication

Used in high-mobility environments (e.g., shopping malls, hotels, and public Wi-Fi hotspots).

Users authenticate via a web portal before gaining network access.

Supports multiple device types (smartphones, laptops, tablets, etc.).

✅ MAC Address Authentication

Used for dumb devices that cannot perform interactive authentication (e.g., printers, IP phones, cameras).

The network authenticates devices based on their MAC addresses automatically.

Often used in enterprise LANs to ensure unattended devices get network access securely.

Reference from Huawei HCIE-Datacom Documentation:

Huawei CloudCampus Authentication Guide – Portal and MAC Authentication

HCIE-Datacom Training Material – Access Control Mechanisms

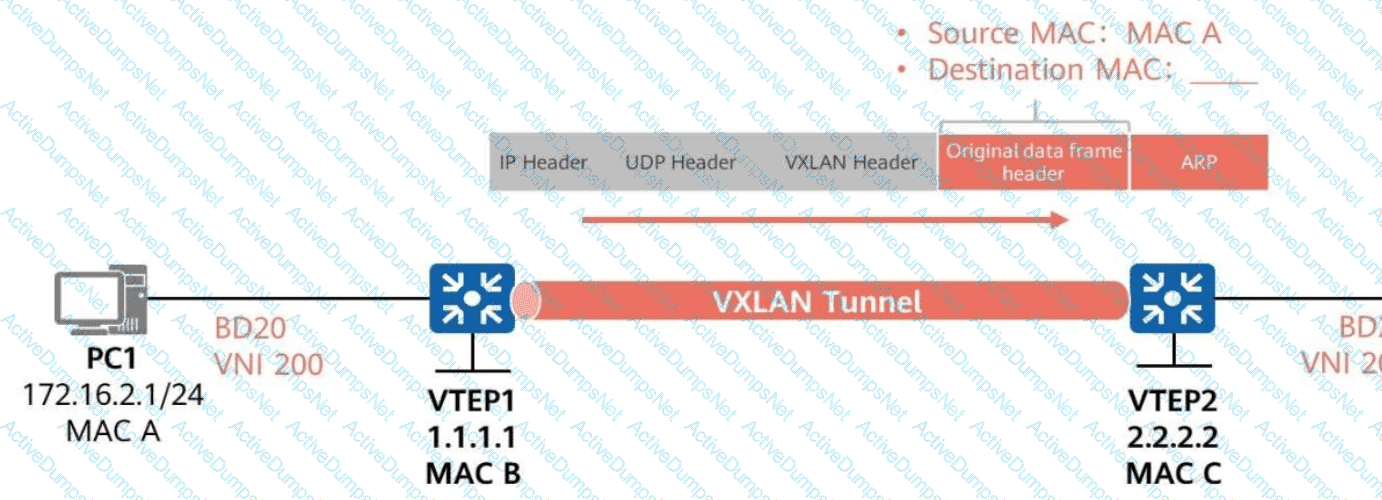

Understanding VXLAN and BGP EVPN Control Plane

VXLAN (Virtual eXtensible LAN) is an overlay network technology that enables Layer 2 (L2) extension over an IP-based network using MAC-in-UDP encapsulation.

???? Traditional VXLAN Flooding Issue:

Without BGP EVPN, VXLAN uses flood-and-learn behavior for MAC address learning.

Broadcast, Unknown Unicast, and Multicast (BUM) traffic is flooded to all VTEPs, which is inefficient.

???? How Does BGP EVPN Solve Flooding?

BGP EVPN (Ethernet VPN) replaces the flood-and-learn model with a distributed control plane.

MAC/IP bindings are advertised through BGP EVPN Type 2 routes, eliminating the need for flooding ARP requests.

VXLAN routers learn MAC addresses proactively instead of relying on flooding.

Why is the Answer TRUE?

✅ BGP EVPN fully prevents ARP flooding by distributing MAC/IP bindings via control plane updates.

✅ VTEPs only send traffic to known destinations, reducing network congestion.

✅ BGP EVPN is the industry standard for large-scale data center and campus VXLAN deployments.

Real-World Application:

Data Centers: Avoids unnecessary ARP request flooding in large cloud networks.

Campus Networks: Reduces L2 broadcast storms, improving network efficiency.

Service Provider Networks: Enables scalable multi-tenant VXLAN solutions.

✅ Reference: Huawei HCIE-Datacom Guide – VXLAN BGP EVPN Control Plane Architecture

Understanding 802.1X Authentication in Enterprise Networks

???? What is 802.1X?

802.1X is a network access control (NAC) protocol that enforces authentication before allowing a device to connect to a LAN.

It uses EAP (Extensible Authentication Protocol) over RADIUS for user verification.

Typically deployed in corporate and campus networks for secure wired and wireless access.

???? How Does 802.1X Work?

1️⃣ Client (Supplicant) → Requests network access.

2️⃣ Switch (Authenticator) → Forwards request to RADIUS server.

3️⃣ RADIUS Server → Verifies credentials & grants access.

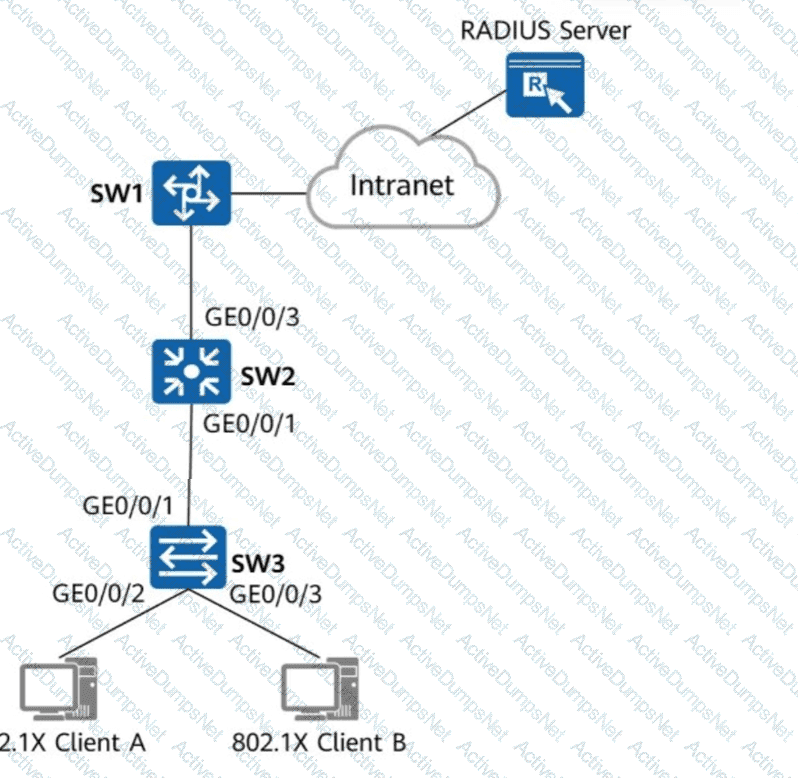

Mandatory Steps to Enable 802.1X on SW3

✅ A. Configure an AAA Scheme

Defines authentication, authorization, and accounting (AAA) methods.

Links 802.1X authentication to the RADIUS server.

✅ B. Configure an Authentication Profile

Specifies how authentication is handled on the switch.

Associates 802.1X authentication with an AAA scheme.

✅ C. Configure an Authentication Domain

Groups authentication policies for different user types.

Maps AAA scheme to user login requests.

✅ D. Configure an 802.1X Access Profile

Applies 802.1X authentication to specific switch ports (GE0/0/2 & GE0/0/3).

Ensures that only authenticated users can pass traffic.

Why Are All Four Steps Necessary?

✅ Each step plays a critical role in enabling 802.1X authentication and linking it to the RADIUS server.

✅ Without any one of these configurations, the 802.1X authentication process would fail.

Real-World Application:

Enterprise Wired Security: Ensures that only authenticated devices access corporate networks.

University Campuses & Public Wi-Fi: Prevents unauthorized access to secure LAN environments.

✅ Reference: Huawei HCIE-Datacom Guide – 802.1X Authentication & RADIUS Server Configuration

Understanding MPLS Forwarding Mechanism

MPLS (Multiprotocol Label Switching) is a high-performance forwarding mechanism that operates on two planes:

1️⃣ Control Plane:

Establishes Label Switched Paths (LSPs) using protocols like LDP (Label Distribution Protocol), RSVP-TE (Resource Reservation Protocol - Traffic Engineering), or BGP-LU (BGP Label Unicast).

Assigns labels to packets based on routing policies.

2️⃣ Data Plane (Forwarding Plane):

Uses a Label Forwarding Information Base (LFIB) instead of traditional IP routing.

Packets are forwarded based on labels, not IP addresses.

Analysis of the Answer Choices

✅ C. The system automatically assigns an ID to the upper-layer application that uses a tunnel. This ID is also called the tunnel ID.

Correct: MPLS assigns a Tunnel ID to applications that utilize tunnels (e.g., VPNs, MPLS-TE, or L2/L3 services).

This ID helps differentiate between various tunnel applications, ensuring traffic follows the correct LSP.

❌ A. After an IP packet enters an MPLS domain, the MPLS device forwards the packet based on FIB table queries.

Incorrect: MPLS routers do NOT use the FIB (Forwarding Information Base) for forwarding once labels are assigned.

Instead, they use LFIB (Label Forwarding Information Base) to switch packets based on labels.

❌ B. If the tunnel ID is 0x0, the MPLS forwarding process starts.

Incorrect: If the Tunnel ID is 0x0, MPLS does NOT start; it means no label is assigned, and traditional IP forwarding occurs.

❌ D. If the tunnel ID is not 0x0, the normal IP forwarding process starts.

Incorrect: If the Tunnel ID is not 0x0, MPLS forwards traffic using label switching, not IP forwarding.

Understanding Inter-AS MPLS L3VPN Option C

???? MPLS L3VPN provides Layer 3 VPN services over an MPLS backbone by using BGP to exchange VPN routes.

???? Inter-AS MPLS L3VPN Option C (Carrier-to-Carrier Model) works as follows:

ASBRs (Autonomous System Boundary Routers) exchange VPNv4 routes using MP-BGP.

ASBRs do NOT store VPN routing tables. Instead, they advertise labeled IPv4 routes to enable inter-AS forwarding.

How ASBR-PE2 Enables Inter-AS Communication?

✅ VPNv4 Address Family (Answer A - Required)

Used to exchange MPLS VPN routes between PE routers.

MP-BGP (Multiprotocol BGP) exchanges VPNv4 prefixes between ASBR-PE1 and ASBR-PE2.

✅ Unicast BGP Address Family (Answer D - Required)

Required to exchange IPv4 labeled routes between ASBRs.

Ensures MPLS label forwarding between AS100 and AS200.

❌ BGP-LS Address Family (Answer B - Not Required)

BGP-LS (BGP Link-State) is used for SDN controllers to learn topology information.

It is not required for Inter-AS MPLS L3VPN.

❌ VPN Instance Unicast Address Family (Answer C - Not Required)

This is used for PE-CE communication but is not required between ASBRs.

Why is the Answer A, D?

✅ VPNv4 routes enable inter-AS VPN communication.

✅ IPv4 unicast routes are required for ASBR-PE2 to forward packets across AS boundaries.

Real-World Application:

Service Provider Networks: Used in carrier-to-carrier MPLS VPN deployments.

Enterprise WAN Interconnection: Enables multi-AS MPLS VPN connectivity for large enterprises.

✅ Reference: Huawei HCIE-Datacom Guide – Inter-AS MPLS L3VPN Option C (Carrier-to-Carrier Model)

Why is Free Mobility Not Based on VLANs or IP Addresses?

Free mobility in Huawei CloudCampus implements policy-based user access control based on user identity (rather than VLANs or IP addresses).

Users can move across different network locations while maintaining their assigned security and access policies.

✅ How Free Mobility Works:

Policies are applied based on User Groups instead of VLAN or IP.

Uses Group-Based Policy Control (GBP) and Software-Defined Access (SDA) principles.

❌ Incorrect Statement Explanation:

Traditional networks rely on VLANs and IP addresses for segmentation, but Free Mobility applies policies at the user level, allowing seamless access anywhere on the network.

Reference from Huawei HCIE-Datacom Documentation:

Huawei CloudCampus Solution Guide – Free Mobility and Policy Control

HCIE-Datacom Training Material – Identity-Based Networking

Understanding IRB (Integrated Routing and Bridging) Forwarding in VXLAN

VXLAN (Virtual Extensible LAN) supports Layer 2 and Layer 3 forwarding between Virtual Network Identifiers (VNIs).

IRB (Integrated Routing and Bridging) enables inter-subnet communication within a VXLAN fabric.

There are two modes of IRB forwarding:

Symmetric IRB

Asymmetric IRB

Why the Answer is " Symmetric " IRB Forwarding?

✔ Ingress VTEP performs both Layer 2 and Layer 3 lookups:

Symmetric IRB requires both ingress and egress VTEPs to perform Layer 3 lookups.

The ingress VTEP (source gateway) performs a Layer 2 MAC lookup, then a Layer 3 lookup to find the destination VTEP.

The egress VTEP (destination gateway) performs another Layer 3 lookup before forwarding the packet to the destination.

✔ Asymmetric IRB does not perform two lookups at the ingress VTEP:

In Asymmetric IRB, the ingress VTEP performs both Layer 2 and Layer 3 forwarding and sends a Layer 2 packet to the egress VTEP.

The egress VTEP only does a Layer 2 lookup, not a Layer 3 lookup.

Since the question states that both L2 and L3 lookups occur at the ingress VTEP, asymmetric IRB is incorrect.

✔ Why Symmetric IRB is More Common?

Scalability: Supports any-to-any communication across VXLAN networks.

More Efficient Routing: Uses Layer 3 VXLAN encapsulation, ensuring efficient routing between VNIs.

???? Reference: Huawei HCIE Datacom – VXLAN Symmetric and Asymmetric IRB Forwarding

✅ A. encoding: indicates the character set encoding format. Currently, only UTF-8 encoding is supported.

UTF-8 is the default and only supported character encoding in NETCONF XML.

✅ B. /: indicates the end of the current tag.

In XML, < /tag > closes an element, defining the end of a structure.

✅ C. < ?: indicates the start of an instruction.

The < ?xml line declares an XML document and its version/encoding.

✅ D. ? > : indicates the end of an instruction.

Closes the XML declaration.

Reference from Huawei HCIE-Datacom Documentation:

Huawei NETCONF Development Guide – XML Formatting Rules

HCIE-Datacom Training Material – Understanding XML in Network Automation

Comprehensive and Detailed In-Depth Explanation:

In OSPFv3, the AS-external-LSA (Type 5 LSA) is the only LSA type that can be flooded throughout the entire Autonomous System (AS). It is used to advertise external routes (routes redistributed from other routing protocols or static routes) into the OSPF domain.

B. Intra-Area-Prefix-LSA (Type 9): Used to advertise IPv6 prefixes within an OSPF area, not across the AS.

C. Link-LSA (Type 8): Advertises link-local addresses and options, only within the local link, not the entire AS.

D. Inter-Area-Prefix-LSA (Type 3 or Type 4): Advertises prefixes between OSPF areas but not throughout the entire AS.

Only AS-external-LSAs (Type 5) can be propagated across the whole OSPF AS, making them essential for exchanging routes learned from other routing protocols.

Virtual Networks in Huawei CloudCampus Solution:

Virtual networks (VNs) are segmented based on services (e.g., IoT, Guest Wi-Fi, Enterprise Wi-Fi).

Each VN has its own routing and forwarding instance (VRF).

Isolation Between Virtual Networks:

By default, different virtual networks are isolated.

If inter-VN communication is required, it must be manually configured using policy-based routing (PBR), inter-VRF routing, or firewall policies.

Reference from Huawei HCIE-Datacom Documentation:

Huawei CloudCampus Solution Guide – Virtual Networks and Segmentation

HCIE-Datacom Training Material – Policy-Based Inter-VN Communication

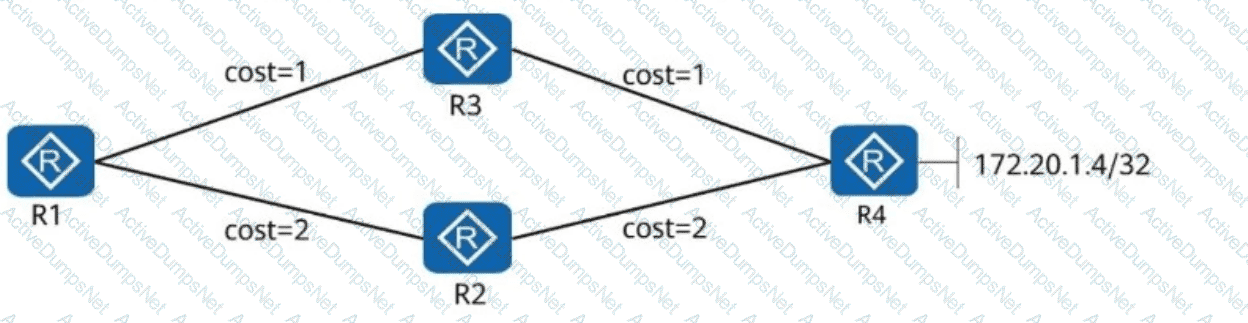

Let’s analyze the scenario and each statement carefully based on OSPF path selection and BGP behavior in Huawei routers.

✅ Option A: The preferred path is R1–R3–R4.

According to the OSPF cost values:

R1–R3–R4: Cost = 1 + 1 = 2

R1–R2–R4: Cost = 2 + 2 = 4

OSPF chooses the lowest-cost path to reach a destination. Therefore, R1 will prefer the R1–R3–R4 path to reach 172.20.1.4/32.

Huawei Datacom Reference:

" OSPF selects routes based on the shortest path calculated using link costs. The router always selects the path with the lowest cost. "

(Source: HCIE-Datacom Study Guide v3.0 – OSPF Path Selection, Chapter 5)

✅ Option B: If the stub router on-startup command is run on R3, packet loss occurs during the power-off process of R3 but no packet loss occurs during the startup process of R3.

When R3 is powered off, OSPF needs to reconverge, which causes temporary packet loss.

When R3 starts up, it will advertise itself as a stub router using the stub-router on-startup command. This tells OSPF not to use R3 as a transit path during the startup period, thus preventing traffic blackholing.

Huawei Datacom Reference:

" stub-router on-startup command prevents a newly started router from being used as a transit node by OSPF, allowing routing to remain stable during convergence. "

(Source: HCIE-Datacom Study Guide v3.0 – OSPF Stub Router Functionality, Chapter 6.2)

❌ Option C: The preferred path is R1–R2–R4.

This is incorrect because the OSPF path cost via R2 is higher (4) than the cost via R3 (2).

❌ Option D: Packet loss occurs during both the power-off and startup processes of R3.

Incorrect. As explained above, when the stub-router on-startup command is used, packet loss is avoided during startup, but still occurs during power-off since the alternate path requires convergence.

HTTP/2 is a TCP-based protocol, not UDP-based. It runs on top of TCP port 443 (usually via TLS). The protocol enhances performance using multiplexing, header compression, and stream prioritization, but it still relies on TCP, unlike newer protocols like HTTP/3, which uses UDP and QUIC.

Exact Extract - Huawei Application Networking Fundamentals:

“HTTP/2 continues to use TCP as its transport layer, introducing improvements like multiplexing over a single TCP connection. UDP-based HTTP/3 is a separate protocol built on QUIC.”

Understanding SR-MPLS Prefix and Adjacency Segments

???? What Are Prefix Segments?

Globally unique labels assigned to network prefixes.

Advertised via IGP (OSPF, IS-IS) with SRGB (Segment Routing Global Block).

???? What Are Adjacency Segments?

Locally significant labels assigned to direct router adjacencies.

Not globally visible—only used within a local router’s LFIB (Label Forwarding Information Base).

Why is the Answer FALSE?

❌ Prefix Segments are globally unique, but Adjacency Segments are only locally significant.

❌ Adjacency Segments are not distributed globally through IGP.

✅ Only Prefix Segments use globally advertised SRGB labels.

Real-World Application:

Segment Routing Traffic Engineering (SR-TE): Uses prefix segments for global routing and adjacency segments for local path steering.

5G Core Networks: Uses SR-MPLS with Prefix SIDs for scalable path selection.

✅ Reference: Huawei HCIE-Datacom Guide – SR-MPLS Prefix & Adjacency Segments

An IPsec Security Association (SA) includes the following critical components:

SPI (Security Parameter Index)

Destination IP address

Security Protocol (AH or ESP)

Encryption/Authentication algorithms

The Source IP address is not a defining parameter of an SA. SA is unidirectional and identified based on the SPI and destination address.

Exact Extract - Huawei Security Configuration Guide – IPsec Fundamentals:

“An SA is uniquely identified by the SPI, destination IP, and security protocol. The source address is not a determining factor in the SA.”

MP-BGP is an extension of BGP-4 that supports multi-protocol address families such as IPv6, VPNv4, etc. When PE and CE exchange BGP routes, there is no need to create a BGP process per VPN on the CE. The CE typically runs a standard BGP process, while the PE maintains separate VPN routing tables (VRFs).

Exact Extract - Huawei HCIE-Datacom MP-BGP Chapter:

“CE devices use standard BGP, and multiple VPNs can share the same BGP process on the CE. The PE handles VPN route separation through VRFs and MP-BGP.”

IS-IS Multi-Process:

Huawei devices support running multiple IS-IS processes simultaneously.

These processes are completely independent of one another: different LSDBs, interfaces, routing tables, etc.

Each process can be associated with a separate VPN instance, and a single VPN instance can be served by multiple IS-IS processes.

IS-IS Multi-Instance:

One IS-IS process can run multiple instances, typically used for multi-VPN scenarios.

However, Huawei ' s current implementation prefers one VPN per process for clarity and control.

Based on Huawei’s design:

A is incorrect — an IS-IS process can serve multiple VPNs in other vendors, but Huawei typically uses one process per VPN for clean separation.

B is correct — a VPN instance can be associated with multiple IS-IS processes.

C is incorrect in Huawei implementation context.

D is correct — IS-IS processes are independent.

Correct answers: B, D

Comprehensive and Detailed In-Depth Explanation:

BGP4+ (BGP for IPv6) uses the MP_REACH_NLRI (Multiprotocol Reachable Network Layer Reachability Information) attribute to advertise IPv6 routes. This attribute is part of BGP ' s multiprotocol extensions (RFC 2858), allowing BGP to support multiple address families, including IPv6.

MP_REACH_NLRI: Advertises reachable IPv6 prefixes along with next-hop information.

MP_UNREACH_NLRI: Used to withdraw previously advertised IPv6 routes.

Since IPv6 addresses are significantly different from IPv4 addresses in structure and length (128 bits), the traditional BGP update message format (which supports only IPv4) is insufficient. The MP_REACH_NLRI attribute solves this by carrying IPv6-specific information.

Comprehensive and Detailed Explanation:

✔ SRv6 Locator and Segment Structure:

The SRv6 Locator is 2001:DB8:ABCD::/64 → This defines the segment routing namespace for this node. ✅

Dynamic Segment (SID) = 32 bits → Defined dynamically per segment. ✅

Args Field = 32 bits → Used for function arguments. ✅

❌ (B) Incorrect → Static segments are NOT explicitly defined as 32-bit fields in Huawei SRv6.

???? Reference: Huawei HCIE Datacom – SRv6 Locator and SID Structure

BGP in Huawei SD-WAN

Huawei SD-WAN uses BGP (Border Gateway Protocol) as the primary routing protocol to exchange VPN routes between Customer Premises Equipment (CPEs) and the controller.

✅ Why BGP is Used in SD-WAN?

Scalability: BGP can handle a large number of VPN routes.

Policy-Based Routing: BGP allows traffic engineering and policy control across SD-WAN tunnels.

Multiprotocol Support: Huawei SD-WAN uses MP-BGP to exchange IPv4, IPv6, and VPNv4 routes.

Comprehensive and Detailed In-Depth Explanation:

The iMaster NCE-IP controller uses Telemetry to collect real-time device running status information efficiently and with low latency.

Telemetry (A): Enables continuous data streaming to the controller, including network performance and link state information.

Telnet (B): Used for manual device management and not suitable for automated data collection.

BGP-LS (C): Used for distributing link-state information, but not for real-time performance data collection.

IS-IS (D): An IGP protocol, not used for collecting device status.

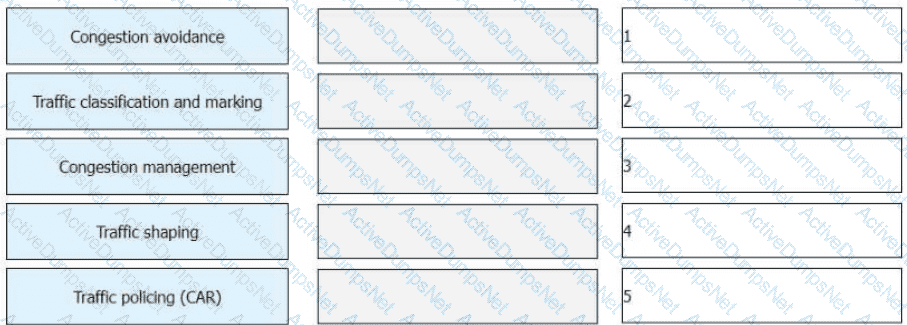

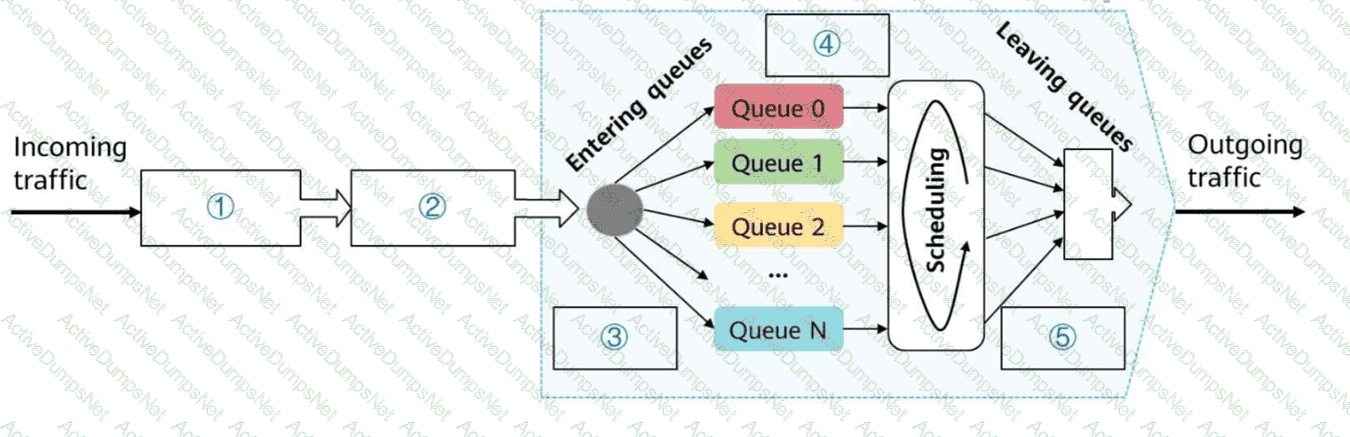

The Differentiated Services (DiffServ) model for Quality of Service (QoS) enables traffic management based on predefined priorities. This involves classifying, policing, queuing, and scheduling traffic to ensure efficient network resource utilization.

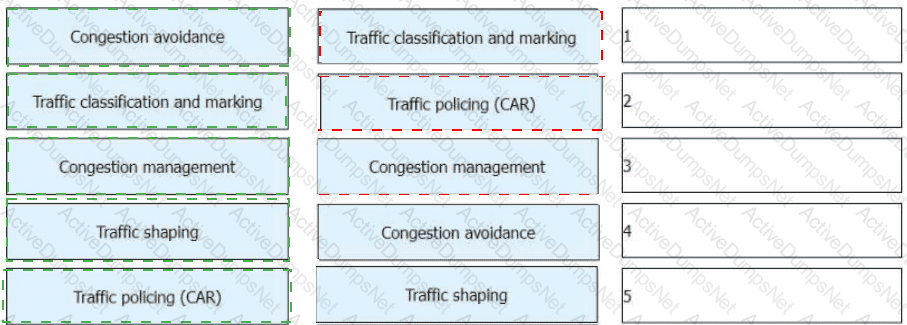

Breakdown of Each QoS Processing Step:

✅ Step 1: Traffic Classification and Marking

Purpose: Identifies and marks packets based on QoS attributes such as DSCP (Differentiated Services Code Point) or 802.1p priority bits.

Function: Assigns a QoS label to packets for further processing.

Example: Packets carrying voice traffic (EF - Expedited Forwarding) are marked for high-priority treatment.

✅ Step 2: Traffic Policing (CAR - Committed Access Rate)

Purpose: Enforces bandwidth limits on specific traffic flows to prevent excessive usage.

Function: Drops or re-marks packets exceeding the assigned bandwidth threshold.

Example: If a video stream exceeds 10 Mbps, excess packets may be dropped or re-marked.

✅ Step 3: Congestion Management (Queuing and Scheduling)

Purpose: Manages traffic flow through queues based on assigned QoS levels.

Function: Places packets in appropriate priority queues (e.g., Strict Priority, Weighted Fair Queuing - WFQ, CBWFQ).

Example: Voice packets are assigned to high-priority queues for low-latency forwarding.

✅ Step 4: Congestion Avoidance

Purpose: Prevents network buffer overflows and excessive packet drops.

Function: Uses mechanisms like WRED (Weighted Random Early Detection) to drop lower-priority packets before congestion occurs.

Example: If a queue reaches 80% capacity, WRED may drop low-priority packets to maintain QoS.

✅ Step 5: Traffic Shaping

Purpose: Smooths out traffic bursts to maintain a consistent transmission rate.

Function: Buffers and delays packets to prevent excessive packet drops.

Example: If outgoing traffic exceeds 50 Mbps, shaping ensures it does not exceed this limit while maintaining steady flow.

Understanding 6PE & 6VPE in MPLS Networks

6PE (IPv6 Provider Edge) and 6VPE (IPv6 VPN Provider Edge) are MPLS-based solutions that allow IPv6 traffic to be carried over an MPLS IPv4 core network without requiring the entire backbone to support IPv6.

???? 6PE (IPv6 over MPLS - No VPN)

Used for global IPv6 routing without VPN segmentation.

No need for VRFs (VPN Routing and Forwarding instances) because IPv6 prefixes are handled natively.

???? 6VPE (IPv6 VPN over MPLS - Supports VPNs)

Extends MPLS L3VPN to support IPv6 routing inside VPN instances.

Uses MP-BGP VPNv6 to distribute IPv6 prefixes inside MPLS VPNs.

Why is the Answer TRUE?

✅ No VRFs are required for 6PE:

6PE only needs BGP labeled IPv6 routes in the global routing table.

IPv6 prefixes are carried using MPLS labels without VPN segmentation.

✅ VRFs are required for 6VPE, NOT for 6PE:

6VPE requires VPN instances (VRFs) for IPv6 L3VPNs, but 6PE does not.

✅ Real-World Application:

6PE is used in large ISP networks where IPv6 deployment is needed but without VPN separation.

6VPE is used for enterprise MPLS VPNs, allowing customers to have isolated IPv6 routing tables.

✅ Reference: Huawei HCIE-Datacom Guide – MPLS IPv6 Transition Technologies (6PE & 6VPE)

Comprehensive and Detailed In-Depth Explanation:

1. Free Mobility in Huawei Campus Networks:

Free mobility allows users to move freely within a campus network while retaining their access rights and security policies. It leverages iMaster NCE-Campus as the controller to simplify the deployment and management of user policies.

2. Role of the Administrator:

Administrators are responsible for defining high-level policies and security configurations. Specifically:

Define a Policy Control Matrix:

Administrators create a matrix that specifies how users from different security groups interact.

This matrix outlines access permissions and is a part of the policy planning phase.

Define Security Groups:

Administrators categorize users, devices, or endpoints into security groups based on their roles or functions.

These groups form the basis for applying uniform policies within the network.

3. Role of iMaster NCE-Campus (Controller):

The controller handles the automatic delivery of configured policies and security settings to network devices.

Deliver IP-Security Group Entries:

Once the administrator defines the policies and groups, iMaster NCE-Campus automatically distributes the IP-Security Group Binding entries to the relevant network devices.

This ensures consistent policy enforcement across the campus.

4. Why This Mapping Is Correct:

Administrators define the structure and policies, while the controller (iMaster NCE-Campus) handles the implementation and distribution.

This division of responsibilities optimizes the network management process, reducing human error and ensuring that policies are consistently applied.

In MPLS VPN, packets are forwarded using two labels:

Outer label (Transport Label) – Used by the MPLS backbone for forwarding.

Inner label (VPN Label) – Used by the egress PE to identify the correct VPN instance.

Explanation of Correct Options:

✅ A. The egress PE sends the data packet to the correct VPN based on the inner label.

The inner label is assigned by the egress PE and determines the final destination VPN instance.

✅ B. The penultimate hop removes the outer label before forwarding the data packet to a peer egress PE.

Penultimate Hop Popping (PHP) occurs when the second-to-last router (P router) removes the outer MPLS label before forwarding to the egress PE.

This reduces the processing overhead on the egress PE.

✅ D. The penultimate-hop device receives a packet with an outer label.

The outer label is used to forward the packet across the MPLS backbone.

Before reaching the egress PE, the penultimate router still has the outer label and processes it.

Incorrect Option:

❌ C. The IP data packet received by the egress LSR is without labels.

This is incorrect because the inner label (VPN label) is still present when the packet reaches the egress PE.

Only the outer label is removed by PHP, not the inner VPN label.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS VPN Configuration Guide – Label Processing

HCIE-Datacom MPLS Traffic Engineering and PHP Mechanism

Huawei iMaster NCE-Campus MPLS VPN Implementation Guide

Comprehensive and Detailed Explanation:

✔ Portal authentication is a web-based authentication mechanism used in campus networks to control user access.

✔ Correct Statements:

✅ (A) The Portal server exchanges authentication details with the access device, which forwards them to the authentication server.

✅ (D) When using HTTP/HTTPS authentication, the client must send authentication credentials to the access device, which then forwards them to the authentication server.

✔ Incorrect Statements:

❌ (B) HTTP/HTTPS support is mandatory for web-based authentication.

❌ (C) If HTTP/HTTPS is used, Portal authentication may still be required.

???? Reference: Huawei HCIE Datacom – Portal Authentication Mechanism

Understanding Performance Measurement in Huawei CloudWAN

Huawei CloudWAN enables intelligent traffic management, real-time network monitoring, and automated operations.

???? Traditional Performance Monitoring Methods

TWAMP (Two-Way Active Measurement Protocol) → Measures latency and jitter by injecting test traffic.

Telemetry → Provides real-time network visibility, but does not measure actual service traffic performance.

BGP FlowSpec → Used for DDoS mitigation, not performance measurement.

???? iFIT (In-situ Flow Information Telemetry)

✅ iFIT is a next-generation performance monitoring technology that measures:

Real service traffic performance (latency, jitter, packet loss) in real time.

Packet forwarding behavior at each hop without injecting synthetic traffic.

Path delay and service degradation detection.

Why is Answer D Correct?

✅ iFIT provides real-time network performance monitoring based on actual service traffic.

✅ Unlike TWAMP, iFIT does not require probe packets, reducing overhead.

Real-World Application:

5G Transport Networks: Ensures low-latency paths for ultra-reliable services.

CloudWAN Optimization: Detects network congestion without affecting user traffic.

✅ Reference: Huawei HCIE-Datacom Guide – iFIT and Intelligent Performance Monitoring

EVPN Route Types:

Type 1 (MAC/IP Advertisement Route): Advertises host MAC and IP information — used.

Type 2 (MAC/IP Advertisement Route): Advertises MAC + IP binding for end hosts — used.

Type 3 (Inclusive Multicast Ethernet Tag Route): Used to advertise VXLAN multicast group info — used.

Type 4 (Ethernet Segment Route): Used in multi-homing scenarios, especially in DC (data center) environments, to coordinate DF election — typically not used in campus VXLAN.

So in campus virtualized networks, which are often single-homed, Type 4 is not required.

Correct answer: C. Type 4

Comprehensive and Detailed In-Depth Explanation:

The Huawei SD-WAN Solution uses HTTP/2 as the primary protocol to report device performance data to the controller.

HTTP/2 is chosen for its high efficiency, low latency, and enhanced data transfer speed.

It supports bidirectional communication between devices and the iMaster NCE-Campus controller.

While protocols like NetFlow and SNMP are traditionally used for monitoring, Huawei SD-WAN specifically uses HTTP/2 for real-time performance reporting and control due to its modern web-based architecture.

PQ (Priority Queuing) ensures low-latency services like voice and video are prioritized.

WFQ (Weighted Fair Queuing) fairly allocates remaining bandwidth to services like FTP.

Option B provides a balanced approach: guarantees for voice/video via PQ, and fairness for FTP via WFQ.

Exact Extract - Huawei HCIE-Datacom QoS Module:

“Voice and video traffic should be handled by PQ to minimize delay and jitter. Non-critical services such as FTP should be placed in WFQ queues to ensure bandwidth fairness.”

Understanding the Telemetry Output:

Dest-addr: 192.168.56.1 → The destination IP address is 192.168.56.1. ✅

Dest-name: Dest1 → The destination group name is Dest1. ✅

Protocol: gRPC → Data push uses the gRPC protocol. ✅

Vpn-name: - (empty) → No VPN encapsulation is used. ❌

Incorrect Answer Explanation:

❌ C. " VPN encapsulation is used for data push " → Incorrect!

The Vpn-name field is empty, indicating that VPN encapsulation is NOT enabled for telemetry data transport.

Reference from Huawei HCIE-Datacom Documentation:

Huawei Telemetry Configuration Guide – Destination and Data Push Methods

HCIE-Datacom Study Material – gRPC and Telemetry Data Streaming

Challenges of Static VXLAN Tunnel Configuration

A static VXLAN tunnel requires manual VTEP-to-VTEP configuration, making it complex to maintain.

✅ A. Heavy configuration workload in a distributed gateway scenario

Static VXLAN requires manual configuration of VTEP mappings, making it difficult to scale and adjust when adding new VTEPs.

✅ B. Remote MAC addresses are learned through data flooding

Unlike BGP EVPN-based VXLAN, which advertises MAC/IP bindings through BGP, static VXLAN relies on flooding for MAC learning, causing excessive traffic.

✅ D. N(N-1)/2 tunnels are required for full mesh connectivity

If N devices need to communicate, each must be manually configured with N(N-1)/2 VXLAN tunnels, leading to high administrative overhead.

Incorrect Statement Explanation:

❌ C. Static VXLAN tunnels use protocols on the control plane, consuming device resources.

Wrong! Static VXLAN does not use a control plane protocol like BGP EVPN.

Instead, it relies entirely on static mappings, reducing control plane usage.

Reference from Huawei HCIE-Datacom Documentation:

Huawei VXLAN Configuration Guide – Static vs. Dynamic VXLAN Tunnel Establishment

HCIE-Datacom Training Material – Manual Configuration Challenges in Static VXLAN

In the Huawei SD-WAN solution, LAN-side devices (such as CPEs and aggregation routers) use various routing protocols to connect to Layer 3 networks and exchange routes dynamically. The supported protocols include:

✅ A. IS-IS (Intermediate System to Intermediate System)

A link-state protocol often used in large enterprise networks for fast convergence and scalability.

✅ B. OSPF (Open Shortest Path First)

A widely used dynamic routing protocol for intra-domain (LAN) connectivity.

Commonly used in enterprise networks to connect SD-WAN edge routers to LAN networks.

✅ C. BGP (Border Gateway Protocol)

BGP is primarily used for WAN and internet connectivity, but it can also be used inside large enterprise networks for LAN-side routing.

BGP enables inter-domain routing and policy-based route control.

✅ D. RIP (Routing Information Protocol)

A legacy distance-vector protocol still supported in some networks for basic LAN routing.

Less preferred due to slow convergence and hop-count limitations.

Reference from Huawei HCIE-Datacom Documentation:

Huawei SD-WAN Deployment Guide – LAN-Side Routing Protocols

HCIE-Datacom Training Material – Routing Configuration in SD-WAN

Comprehensive and Detailed Explanation:

VGMP (Virtual Group Management Protocol) is used in Huawei firewalls for hot standby and high availability.

When is VGMP Activated?✔ When hot standby is enabled, firewalls must synchronize their states to maintain failover capability. ✅✔ VGMP sends packets periodically to check if the standby firewall is operational.

Why Other Options Are Incorrect?❌ Priority increase (B): Does not trigger VGMP packets directly.❌ Link detection timeout (C): Affects failover but does not initiate VGMP packets.❌ Hot standby being disabled (A): Disables VGMP, preventing packets from being sent.

Thus, the correct answer is D.

???? Reference: Huawei HCIE Datacom – Firewall Hot Standby and VGMP

Comprehensive and Detailed Explanation:

✔ Inter-VN communication allows users in different VNs (R & D and Marketing) to communicate.

✔ Correct Steps:

✅ (B) Deploy a Policy Control Matrix → Defines rules for inter-VN communication between security groups.

✅ (C) Configure Inter-VN Communication → Enables routing between VNs through the border gateway or firewall.

✔ Why Not Other Options?

❌ (A) Deploy Network Service Resources → This is for internal VN service deployment, not inter-VN communication.

❌ (D) Deploy an External Network → This is for Internet or WAN access, not internal VN-to-VN communication.

???? Reference: Huawei HCIE Datacom – Virtual Network Intercommunication

Comprehensive and Detailed Explanation:

The IS-IS peer output shows:

IPv4 Peer Address: 10.1.34.1

IPv6 Peer Address: FE80::2E0:FCFF:FE98:2576

MT IDs (Multi-Topology) Supported: 0 (IPv4), 2 (IPv6)

Since both IPv4 and IPv6 peer addresses are listed, it confirms that both IPv4 and IPv6 IS-IS neighbor relationships are established between R4 and ee8c.a0c2.baf3.

???? Reference: Huawei HCIE Datacom – IS-IS Multi-Topology Support

Comprehensive and Detailed In-Depth Explanation:

The free mobility function in iMaster NCE-Campus allows users to maintain consistent security policies regardless of their physical location within the campus network. To correctly implement this function, the administrator must:

A. Define security groups: Group users and devices based on roles or functions.

B. Deliver the inter-group policy: Apply policies that define how different security groups interact.

C. Deploy a policy control matrix: Establish a matrix that specifies the access control policies between security groups.

D. Select the policy enforcement point: Choose devices or interfaces where policies are enforced, such as switches or routers.

All four steps are crucial for achieving dynamic policy enforcement in a virtualized and mobility-oriented campus network.

From the output:

Tunnel destination IP address: Clearly shown as destination 10.0.1.1 → ✅

Tunnel interface MTU: Shown as The Maximum Transmit Unit is 1500 → ✅

Tunnel interface IP: Shown as Internet Address is 20.1.1.2/24 → ✅

Tunnel source: Tunnel source 10.0.3.3 (LoopBack0) → Not 10.0.1.1 → ❌

Therefore:

A — Correct

B — Correct

C — Correct

D — Incorrect (confuses destination as source)

Correct answers: A, B, C

Comprehensive and Detailed In-Depth Explanation:

In VXLAN encapsulation, the data frame is encapsulated as follows:

Original Ethernet Frame: The data packet to be encapsulated.

VXLAN Header: Contains the VXLAN Network Identifier (VNI) and other information.

UDP Header: VXLAN uses UDP (User Datagram Protocol) to transport the encapsulated data over an IP network.

Outer IP Header: Provides the source and destination IP addresses of the VTEPs.

Therefore, the UDP header (C) is encapsulated between the outer IP header and the VXLAN header.

Comprehensive and Detailed In-Depth Explanation:

An NVE (Network Virtualization Edge) interface is responsible for connecting physical or virtual devices to a VXLAN network. It functions as the VTEP (VXLAN Tunnel Endpoint) and supports encapsulation and decapsulation of VXLAN packets.

Layer 2 VXLAN gateway (D) is used for intra-subnet communication, but the NVE interface is the actual point where traffic enters the VXLAN network.

Layer 3 VXLAN gateway (A) is used for inter-subnet communication.

VLANIF interface (C) is used for VLAN-based communication, not directly for VXLAN.

Therefore, the NVE interface (B) is the correct answer as it serves as the traffic ingress and egress point for the VXLAN network.

Huawei SD-WAN establishes secure tunnels between SD-WAN edge devices (CPEs, AR routers, and controllers) using tunneling protocols.

✅ B. GRE over IPsec (Correct Answer)

GRE (Generic Routing Encapsulation) over IPsec is the primary tunneling method used in Huawei SD-WAN.

GRE provides multi-protocol encapsulation, while IPsec ensures encryption and security.

Used for secure communication over public WAN links (e.g., the internet, LTE, MPLS, etc.).

Understanding Route Reflectors (RRs) in Huawei SD-WAN

In Huawei’s SD-WAN Solution, BGP Route Reflectors (RRs) are used to reduce the number of BGP peer relationships and optimize routing scalability.

???? Key Functions of an RR in SD-WAN:

Centralizes BGP route distribution in large-scale SD-WAN networks.

Reduces full-mesh BGP peering complexity.

Improves network scalability and convergence time.

Analysis of Each Deployment Mode:

✅ B. Independent deployment of the RR

Correct: The RR is deployed as a standalone device, independent of the SD-WAN hub site.

Best for large-scale SD-WAN deployments requiring dedicated route control.

✅ C. Co-deployment of the RR and hub site

Correct: The RR is co-located with the SD-WAN hub site, reducing infrastructure overhead.

Best for mid-sized SD-WAN deployments where the hub and RR functions can be combined.

✅ D. Partially independent deployment of the RR

Correct: The RR is partially separated from the hub but still shares some resources.

Provides a balance between full independence and co-location.

❌ A. Multi-area deployment of the RR (Incorrect Choice)

Multi-area RR deployment is not a common Huawei SD-WAN practice.

Huawei does not require separate RRs per area, as SD-WAN is based on centralized policy-based routing.

Real-World Application:

Large Enterprise SD-WAN: Uses independent RRs to optimize global network routing.

Service Provider SD-WAN: Uses co-deployed RRs to reduce infrastructure costs while maintaining route scalability.

✅ Reference: Huawei HCIE-Datacom Guide – BGP Route Reflectors in SD-WAN Architecture

Understanding Telemetry Encoding Formats

???? What is Telemetry?

Telemetry is a real-time network monitoring method that provides high-frequency data collection.

Used in AI-driven networks for predictive analytics and automation.

???? Common Telemetry Encoding Formats:

✅ GPB (Google Protocol Buffers)

Highly efficient binary format that reduces message size and CPU overhead.

Commonly used for high-speed, real-time analytics.

✅ JSON (JavaScript Object Notation)

Human-readable format, widely used in RESTful APIs.

Less efficient than GPB in high-speed telemetry but easier to debug.

???? Why is the Answer FALSE?

❌ GPB is not mandatory; JSON can also be used in telemetry.

✅ Huawei supports both GPB and JSON telemetry encoding formats.

Real-World Application:

Cloud Networking: Uses GPB for fast data collection and JSON for API-based telemetry visualization.

AI-Driven Networks: High-speed AI analytics leverage GPB encoding for efficiency.

✅ Reference: Huawei HCIE-Datacom Guide – Telemetry Encoding Formats and Data Collection

To configure an SR-MPLS TE tunnel based on OSPF, all four options are mandatory:

A. Configure the LSR ID – LSR ID is required as the unique identifier of the router in MPLS and TE.

B. Enable segment routing in the OSPF process view – Needed to advertise segment information (SID).

C. Enable the opaque capability – Opaque LSAs are used to carry SR and TE information in OSPF.

D. Enable MPLS TE in the OSPF process view – Ensures that TE-related attributes (e.g., bandwidth) are advertised in OSPF LSAs.

Exact Extract - Huawei HCIE-Datacom SR-MPLS TE Configuration Guide:

“To support SR-MPLS TE over OSPF, it is necessary to configure the LSR ID, enable SR and MPLS TE capabilities in OSPF, and activate the OSPF opaque capability for carrying TE and SR attributes.”

Comprehensive and Detailed In-Depth Explanation:

In BGP EVPN, Type 2 routes (MAC/IP Advertisement routes) are used to advertise:

MAC addresses of endpoints.

ARP entries (MAC-to-IP bindings).

IRB (Integrated Routing and Bridging) routes, allowing the advertisement of both Layer 2 and Layer 3 reachability.

These routes are essential for enabling dynamic VXLAN tunnel establishment and seamless host mobility.

Type 1 (Ethernet Auto-Discovery): Used for multi-homing information.

Type 3 (Inclusive Multicast Ethernet Tag): Used for BUM (Broadcast, Unknown unicast, and Multicast) traffic.

Type 4 (Ethernet Segment): Used for identifying Ethernet segments in multi-homing scenarios.

Route Target (RT) is a BGP extended community attribute used in MPLS Layer 3 VPNs (L3VPNs) to control the import and export of VPN routes between different VPN instances (VRFs).

Explanation of Correct Answers:

✅ A. Each VPN instance is associated with one or more pairs of VPN Target attributes, used to control VPN routing information advertisement and reception between sites.

Each VRF (VPN Routing and Forwarding instance) has an associated RT that determines which routes are imported and exported between VPNs.

RTs enable inter-VPN communication while maintaining separation between VPN customers.

✅ B. Export Target and Import Target are independent of each other and support multiple values to implement flexible VPN routing information advertisement and reception control.

The Export RT specifies which routes should be advertised.

The Import RT specifies which routes should be accepted into a VRF.

These can be configured independently to control traffic flow between VPNs.

✅ C. RTs are classified into two types: Export Target and Import Target.

Export Target: Defines which VPN routes are advertised.

Import Target: Defines which VPN routes are accepted.

A VPN instance can have multiple RTs to allow flexibility.

✅ D. The RT value is advertised to neighbors through the BGP extended community attribute in Update messages.

RTs are carried in BGP UPDATE messages as part of the BGP extended community attribute, enabling VPN route exchange between PEs.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS VPN Configuration Guide – Route Target (RT) Concepts

HCIE-Datacom Study Material – BGP Route Advertisement in MPLS VPNs

Comprehensive and Detailed In-Depth Explanation:

The correct configuration is qos car inbound cir 50000 pir 100000.

CIR (Committed Information Rate): The guaranteed minimum bandwidth, set to 50 Mbit/s (50000 kbps).

PIR (Peak Information Rate): The maximum allowable bandwidth, set to 100 Mbit/s (100000 kbps).

This configuration ensures that during peak hours, the minimum guaranteed bandwidth is 50 Mbit/s, while during off-peak hours, the bandwidth can increase to a maximum of 100 Mbit/s. The settings align with the carrier ' s requirements for dynamic bandwidth allocation based on network load.

Understanding VGMP (Virtual Gateway Management Protocol)

???? What is VGMP?

VGMP (Virtual Gateway Management Protocol) is used in Huawei firewalls to manage hot standby (HRP - Hot Standby Routing Protocol).

Ensures that the active and standby firewalls synchronize their states for high availability.

???? How Does VGMP Work?

The Active and Standby firewalls exchange VGMP packets to maintain state synchronization.

These packets are encapsulated within UDP for transport.

The default UDP port for VGMP is 512.

Why is the Answer 512?

✅ Huawei firewalls use UDP port 512 by default for VGMP communication.

✅ This ensures that VGMP heartbeats and synchronization messages are correctly processed.

Real-World Application:

Enterprise Firewalls: VGMP ensures failover between active and standby firewalls.

Carrier-Grade Firewalls: Uses VGMP with HRP to achieve zero-downtime firewall redundancy.

✅ Reference: Huawei HCIE-Datacom Guide – VGMP and HRP High Availability Mechanisms

Comprehensive and Detailed Explanation:

✔ HTTP Status Code 401 Unauthorized indicates that authentication credentials were either:

Missing (e.g., no API key or token).

Invalid (e.g., expired session, incorrect credentials).

✔ Error Code Breakdown:

✅ (D) " Unauthorized " (Correct) → Indicates the client must authenticate first.

❌ (A) " Service Unavailable " (503) → Used when the server is down.

❌ (B) " Access Denied " (403) → Used when the client lacks permission even after authentication.

❌ (C) " Not Found " (404) → Used when the resource does not exist.

???? Reference: Huawei HCIE Datacom – iMaster NCE-Campus RESTful API Error Codes

Understanding Huawei’s Free Mobility Solution

Huawei’s Free Mobility solution is designed to ensure that users can seamlessly access the network regardless of their physical location while maintaining consistent policies.

???? Key Components in Free Mobility Solution:

1️⃣ iMaster NCE-Campus (Answer A - Core Role)

Manages network policies & user access.

Implements centralized policy control & orchestration.

2️⃣ Policy Enforcement Device (Answer B - Core Role)

Ensures that user policies (such as QoS, security, VLANs) are applied dynamically.

Typically a switch or gateway enforcing access control.

3️⃣ Policy Control Device (Answer D - Core Role)

Stores and dynamically assigns policies based on user role & device type.

Works closely with iMaster NCE-Campus.

???? Why is C (Authentication Device) NOT a Core Role?

❌ Authentication devices (such as a RADIUS or AAA server) are not a core component of Huawei’s Free Mobility solution.

They are part of the broader network security framework but not mandatory for Free Mobility.

Real-World Application:

Used in enterprise & campus networks where employees, guests, and IoT devices need seamless access while maintaining security policies.

✅ Reference: Huawei HCIE-Datacom Guide – Free Mobility Architecture & Policy Management

Comprehensive and Detailed In-Depth Explanation:

Blackhole MAC address configuration is a security feature that helps protect a network from MAC address spoofing or attacks involving untrusted MAC addresses. When you configure a MAC address as a blackhole MAC address, any packet received with that address as the source or destination will be immediately discarded by the device.

This feature is useful in scenarios where certain MAC addresses are identified as malicious or untrusted. By adding these MAC addresses to the blackhole list, the device effectively blocks communication involving these addresses, thereby mitigating security risks.

Comprehensive and Detailed In-Depth Explanation:

The regular expression 100.$ can be broken down as follows:

100: Matches the exact sequence of digits " 100 " .

. (dot): Represents any single character.

$: Indicates the end of the line.

Therefore, the pattern 100.$ matches any four-character sequence that starts with " 100 " and ends with any single character.

1000 (A): Matches because it has four digits, starting with " 100 " and ending with " 0 " .

1001 (B): Matches because it has four digits, starting with " 100 " and ending with " 1 " .

10000 (C): Does not match because it has five digits.

100 (D): Does not match because it only has three digits.

MPLS Positioning in the TCP/IP Model

MPLS (Multiprotocol Label Switching) operates between the Data Link Layer (Layer 2) and the Network Layer (Layer 3).

✅ MPLS is protocol-independent and supports various network layer protocols (IPv4, IPv6, VPN, etc.) by using labels instead of traditional IP routing.

✅ How MPLS Works:

MPLS assigns labels to packets, allowing fast forwarding based on the label rather than a routing table lookup.

Supports Layer 3 VPNs (L3VPNs), Layer 2 VPNs (L2VPNs), and MPLS Traffic Engineering (MPLS-TE).

✅ Why MPLS is Between Layer 2 and Layer 3?

MPLS adds a label between the Layer 2 (Ethernet, PPP) and Layer 3 (IP) headers, effectively creating a separate forwarding mechanism.

Label Switching Routers (LSRs) forward packets based on labels instead of IP addresses, reducing processing time.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS Technology Guide – MPLS Architecture and Label Switching

HCIE-Datacom Study Material – MPLS Positioning and Functionality in TCP/IP
