Comprehensive and Detailed In-Depth Explanation:

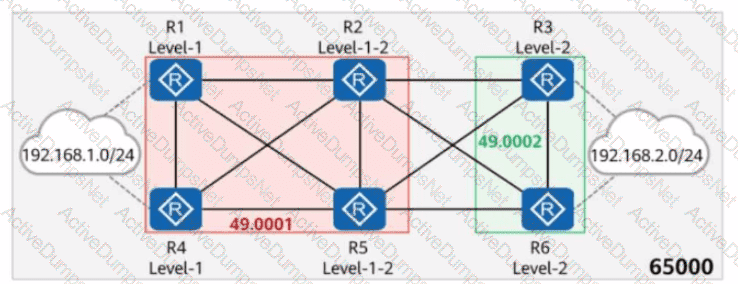

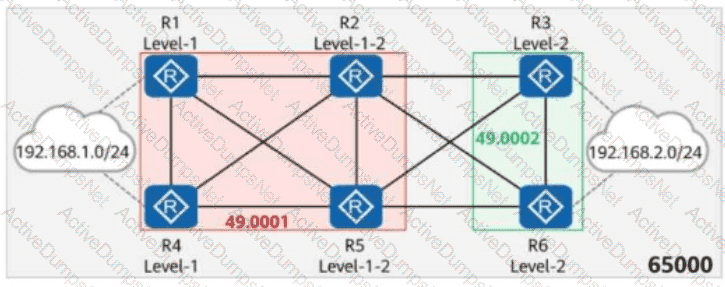

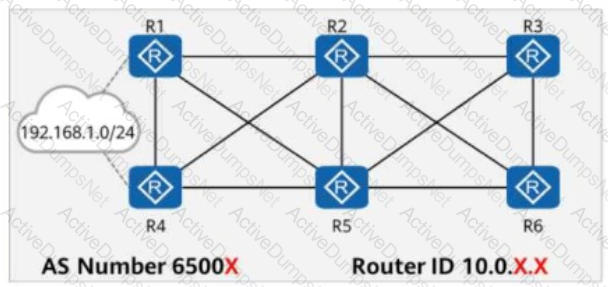

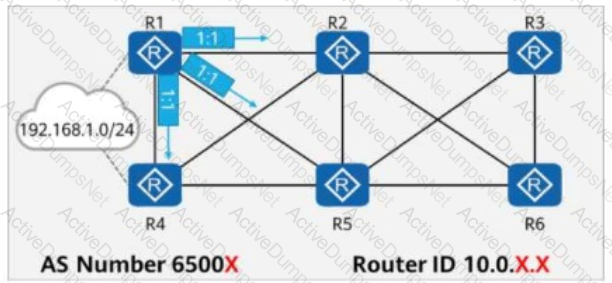

Understanding the BGP and IS-IS Network Topology in the Question:

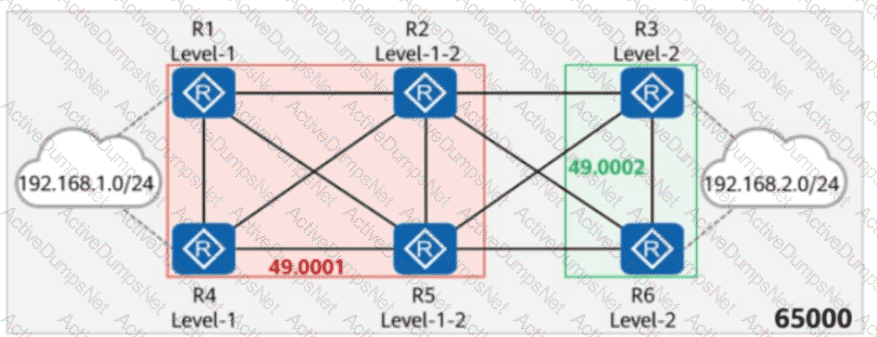

IS-IS Areas:

Area 49.0001 (Level-1 IS-IS): R1, R2, R4, R5.

Area 49.0002 (Level-2 IS-IS): R3, R6.

R2 acts as an ABR (Area Border Router) and redistributes routes between Level-1 and Level-2 using import-route isis level-2 into level-1.

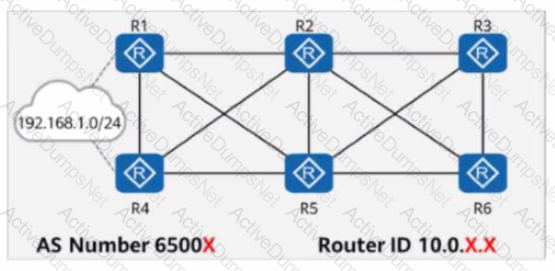

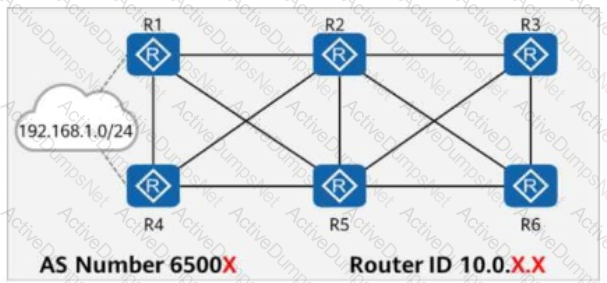

BGP Route Reflection & Peering:

R2 and R5 are Route Reflectors (RRs).

iBGP peering is established among all routers (R1, R2, R3, R4, R5, R6).

R1 and R4 import 192.168.1.0/24 into BGP, meaning this prefix will be advertised to all iBGP peers.

R3 and R6 import 192.168.2.0/24 into BGP, meaning this prefix will also be advertised to all iBGP peers.

Route Distribution Analysis:

Route to 192.168.1.0/24 (Imported by R1 & R4):

R1 and R4 advertise 192.168.1.0/24 into iBGP.

Since R2 and R5 are Route Reflectors (RRs), they will reflect these routes to all their iBGP clients (R1, R3, R4, R6).

R2 learns two valid routes to 192.168.1.0/24 (from R1 and R4).

R5, as another RR, learns both routes and advertises them as well.

R2 ultimately has three valid paths (direct from R1 and R4, plus a reflected route from R5).✅ Statement C is correct: The BGP routing table of R2 contains three valid routes to 192.168.1.0/24.

R5 also learns 192.168.1.0/24 from both R1 and R4.✅ Statement B is correct: The BGP routing table of R5 contains two valid routes to 192.168.1.0/24 (from R1 and R4).

Route to 192.168.2.0/24 (Imported by R3 & R6):

R3 and R6 import 192.168.2.0/24 into BGP.

R2 and R5 (Route Reflectors) learn this route and reflect it to their clients (R1, R3, R4, R6).

R4 receives three valid paths (directly from R3 and R6 via BGP, and one additional reflected path via R5).✅ Statement D is correct: The BGP routing table of R4 contains three valid routes to 192.168.2.0/24.

Checking Statement A:

R3 originally imports 192.168.2.0/24 and advertises it.

Since it is a Route Reflector Client of R5 and R2, it should have multiple routes via iBGP, not just one.❌ Statement A is incorrect because R3 should have multiple valid routes, not just one.

Final Conclusion:

✅ B. The BGP routing table of R5 contains two valid routes to 192.168.1.0/24.

✅ C. The BGP routing table of R2 contains three valid routes to 192.168.1.0/24.

✅ D. The BGP routing table of R4 contains three valid routes to 192.168.2.0/24.

❌ A. The BGP routing table of R3 does NOT contain only one valid route to 192.168.2.0/24 (it has multiple routes).

Thus, the correct answers are: B, C, D.

Comprehensive and Detailed In-Depth Explanation:

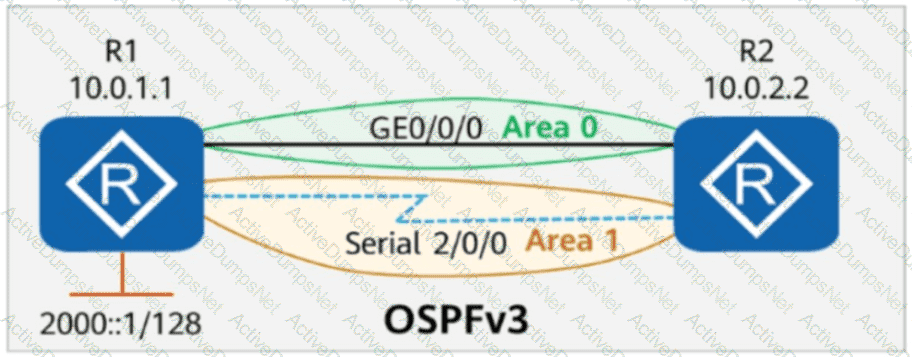

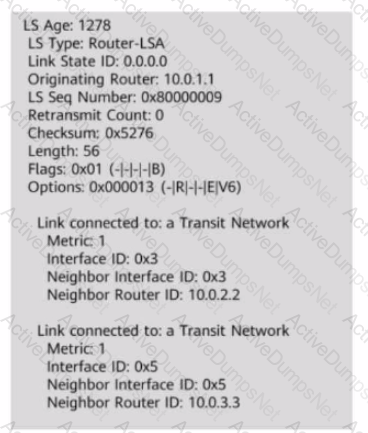

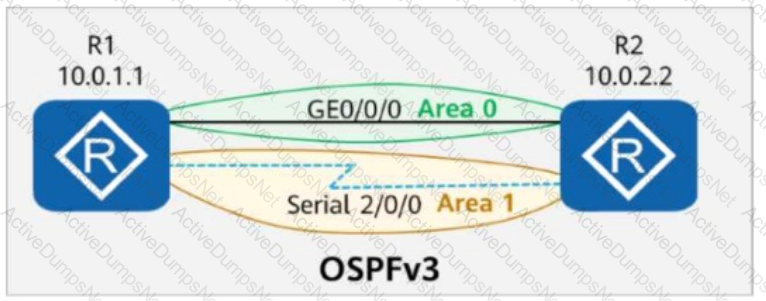

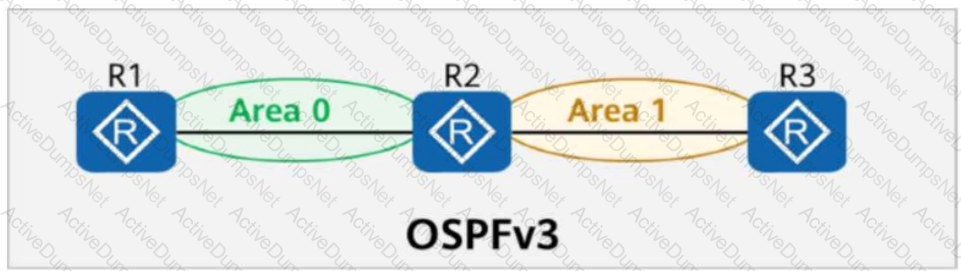

In OSPFv3, Link State Advertisements (LSAs) are used to describe the network topology and routing information. The behavior of LSAs in different area types, such as Not-So-Stubby Areas (NSSAs), is critical to understanding this question. Let’s break it down step by step:

Understanding Area 1 as an NSSA:

An NSSA (Not-So-Stubby Area) is a special type of OSPF area that allows the importation of external routes (Type 7 LSAs, also known as NSSA LSAs) while preventing the flooding of AS-External LSAs (Type 5 LSAs) from other areas into the NSSA. This is done to reduce the amount of routing information within the area while still allowing limited external route advertisement.

In an NSSA, external routes (like the one imported by R1, 2000::1/128) are advertised as Type 7 LSAs within the NSSA and are translated into Type 5 LSAs by the Area Border Router (ABR) when they need to be advertised into other areas (e.g., the backbone area, Area 0). However, Type 5 LSAs (AS-External-LSAs) are not flooded into the NSSA itself.

Analyzing the LSAs in the Options:

A. Inter-Area-Prefix-LSA: These LSAs (Type 3 LSAs in OSPFv3) are used to advertise prefixes between areas. In an NSSA, Inter-Area-Prefix-LSAs can exist because they are used by the ABR to summarize and advertise routes from other areas (like Area 0) into Area 1. Therefore, this LSA exists in Area 1.

B. NSSA LSA: These are Type 7 LSAs in OSPFv3, specific to NSSAs. They are used to advertise external routes (like the 2000::1/128 route imported by R1) within the NSSA. Since Area 1 is an NSSA and R1 is importing an external route, NSSA LSAs exist in Area 1.

C. Intra-Area-Prefix-LSA: These LSAs (Type 1 and Type 2 LSAs, or their OSPFv3 equivalents) are used to advertise prefixes within the same area. In Area 1, Intra-Area-Prefix-LSAs exist to describe the internal topology and prefixes of Area 1, so this LSA is present.

D. AS-External-LSA: These are Type 5 LSAs in OSPFv3, used to advertise external routes throughout the OSPF domain (outside the autonomous system). However, in an NSSA, Type 5 LSAs are not flooded into the area to keep it stubby-like. Instead, external routes are advertised as Type 7 LSAs (NSSA LSAs) within the NSSA and are only converted to Type 5 LSAs by the ABR when exiting the NSSA. Therefore, AS-External-LSAs (Type 5 LSAs) do not exist in Area 1.

Role of R1 and the External Route:

R1 is importing the external route 2000::1/128 into OSPFv3, which means it acts as an Autonomous System Boundary Router (ASBR) within Area 1. As an ASBR in an NSSA, R1 advertises this external route as a Type 7 LSA (NSSA LSA) within Area 1. This Type 7 LSA is then translated by the ABR (if R1 is not the ABR, or by another ABR in Area 1) into a Type 5 LSA for advertisement into other areas (e.g., Area 0). However, the Type 5 LSA (AS-External-LSA) does not exist within Area 1 itself, as NSSAs block Type 5 LSAs.

Conclusion:

Given that Area 1 is an NSSA, and Type 5 LSAs (AS-External-LSAs) are not flooded into NSSAs, the AS-External-LSA does not exist in Area 1. All other LSAs (Inter-Area-Prefix-LSA, NSSA LSA, and Intra-Area-Prefix-LSA) can exist in Area 1 based on the topology and the role of R1 as an ASBR.

Therefore, the correct answer is D, as AS-External-LSAs do not exist in Area 1.

References to HCIP-Datacom-Advanced Routing & Switching Technology Documents:

HCIP-Datacom-Advanced Routing & Switching Technology V1.0, Section on OSPFv3: OSPF Area Types and LSA Types (specifically NSSA behavior, Type 5 and Type 7 LSAs).

HCIP-Datacom-Advanced Routing & Switching Technology V1.0, Chapter on OSPF Routing Protocols: LSAs in Different Area Types and External Route Handling.

Comprehensive and Detailed In-Depth Explanation:

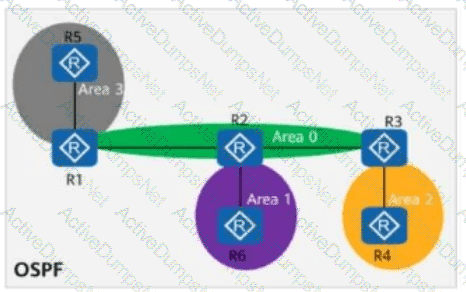

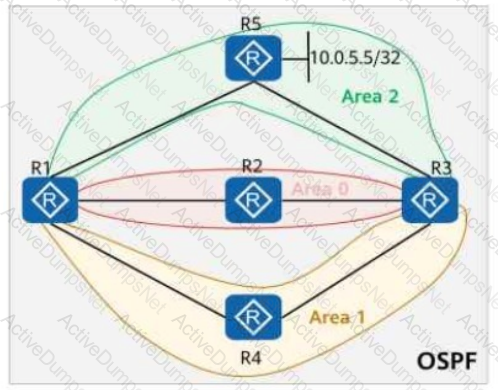

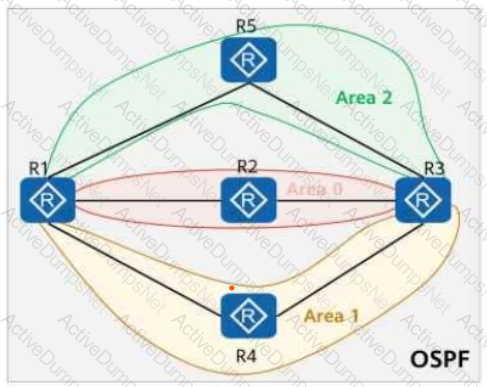

Understanding OSPF Areas and Route Propagation in the Network:

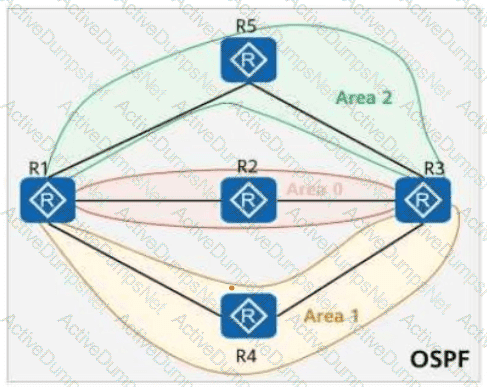

OSPF Area Types in the Question:

Area 0 (Backbone Area): Connects all areas and distributes routing information.

Area 1 (Standard Area): Regular OSPF area that can receive and forward external routes.

Area 2 (Totally NSSA - Totally Not-So-Stubby Area):

Does not allow external routes except for a default route injected by the ABR.

Area 3 (NSSA - Not-So-Stubby Area):

Allows external routes as Type 7 LSAs but does not accept Type 5 LSAs.

How External Routes Are Advertised in This Scenario:

R5 (in Area 3) imports 10.0.5.5/32 as an external route into OSPF.

Since Area 3 is an NSSA, the external route is advertised as a Type 7 LSA (not Type 5).

The ABR (R1) converts the Type 7 LSA into a Type 5 LSA and advertises it into Area 0.

Once in Area 0, this Type 5 LSA can be distributed to other areas except totally stubby or totally NSSA areas.

Route Distribution Analysis:

R5 (Area 3) → R1 (Area 0, ABR):

R5 generates a Type 7 LSA for 10.0.5.5/32.

R1 (ABR) converts this Type 7 LSA into a Type 5 LSA and injects it into Area 0.

R2 (Area 0) → R3 (Area 0):

Since Area 0 allows external Type 5 LSAs, R2 and R3 receive 10.0.5.5/32.✅ R2 and R3 have the route.

R6 (Area 1) → Connected to Area 0:

Area 1 is a common area, meaning it can receive external Type 5 LSAs.✅ R6 has the route.

R4 (Area 2 - Totally NSSA):

Totally NSSA areas do NOT accept Type 5 or Type 7 LSAs.

Instead, they receive only a default route from the ABR (R3).

Since R4 does not receive external routes explicitly, it does NOT have 10.0.5.5/32.❌ R4 does NOT have the route.

Final Conclusion:

✅ R2, R3, and R6 have the route 10.0.5.5/32.

❌ R4 does not have the route because Area 2 is a Totally NSSA and only gets a default route.

Thus, the correct answer is:

✅ R2, R3, and R6 have the route 10.0.5.5/32 in their routing tables.

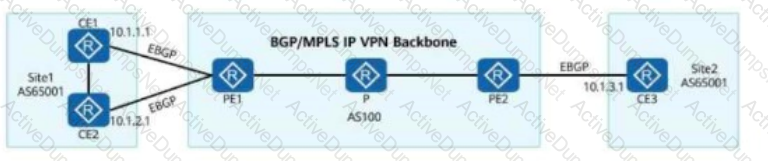

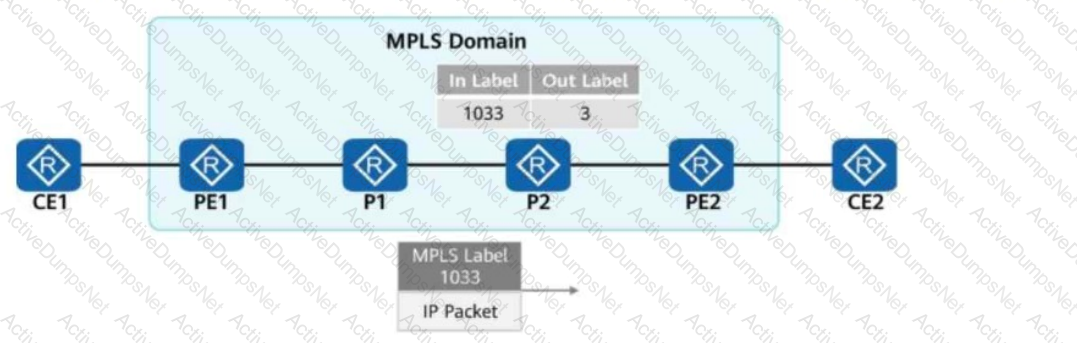

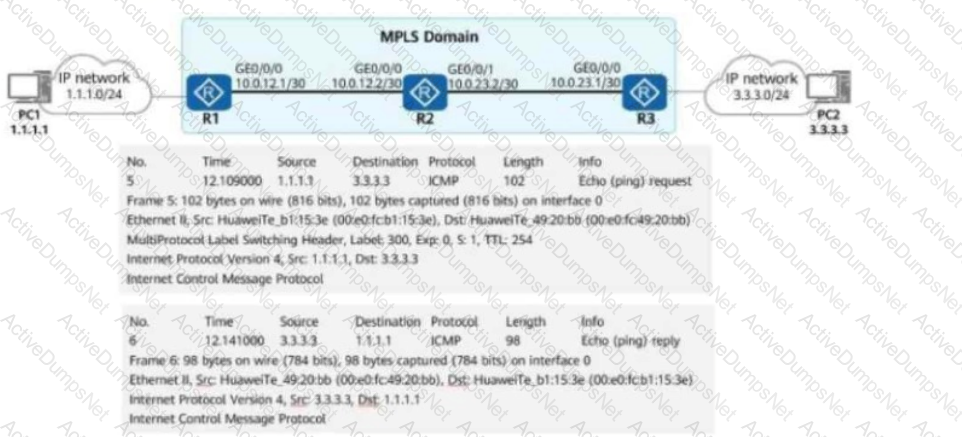

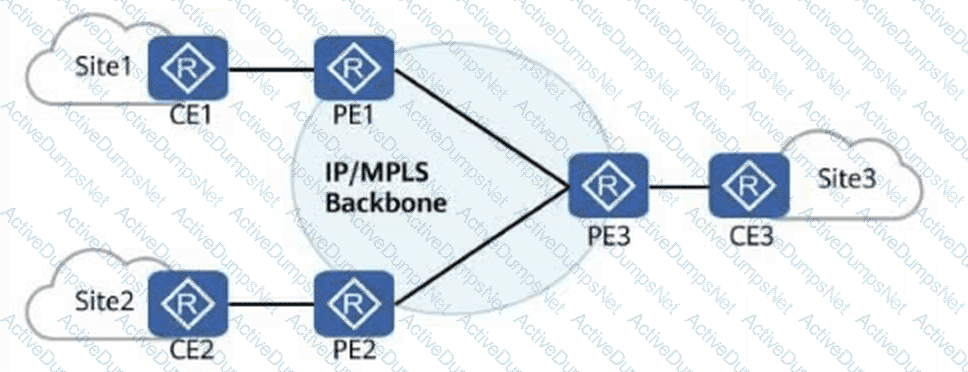

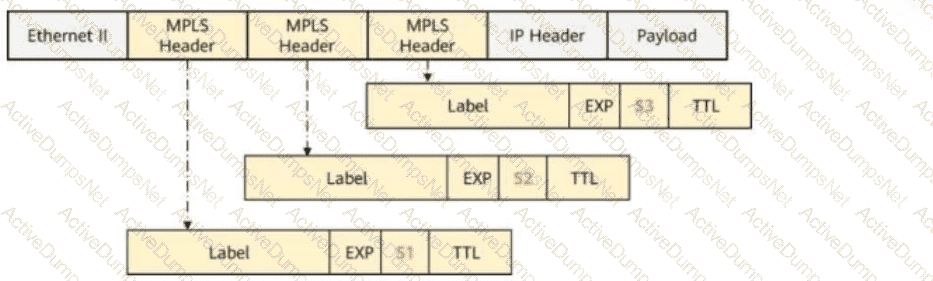

BGP/MPLS IP VPN forwarding normally uses a two-level MPLS label stack consisting of an outer transport label and an inner VPN label.

The outer label identifies the Label Switched Path (LSP) through the provider backbone. It is commonly distributed through LDP.

The inner label identifies VPN-specific forwarding information at the egress PE and is advertised through MP-BGP with VPNv4 routing information.

When Penultimate Hop Popping (PHP) is enabled, the router immediately before the egress PE removes the outer transport label. The egress PE therefore receives the packet carrying the remaining VPN label.

Option B accurately describes this process.

Options A, C, and D incorrectly describe label distribution or the role of CE routers. CE devices do not ordinarily exchange provider VPN labels through BGP Update messages.

Therefore, A, C, and D are false.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Training Material.pdf

================

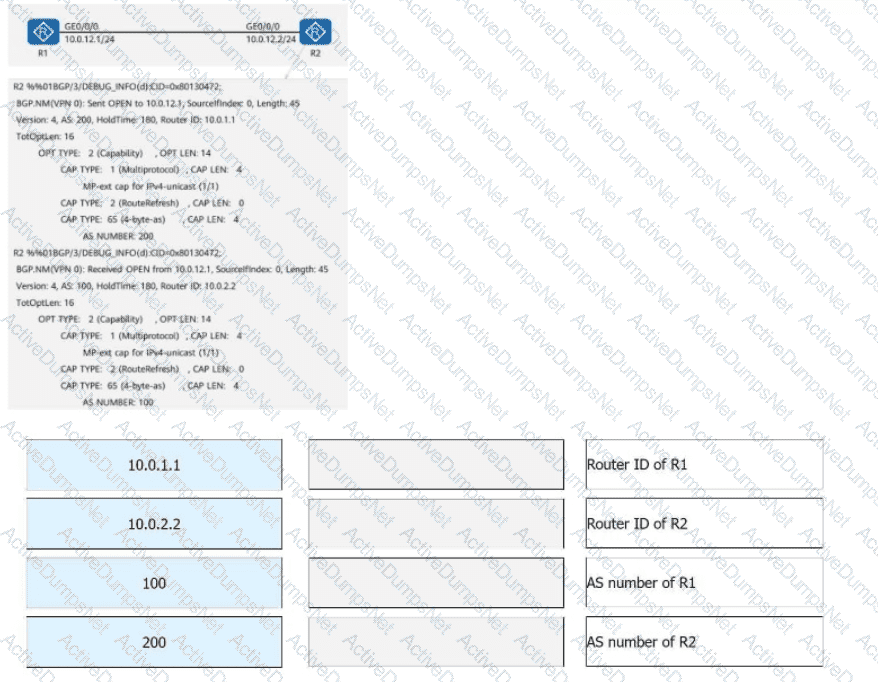

???? Debug Logs on R2:

nginx

CopyEdit

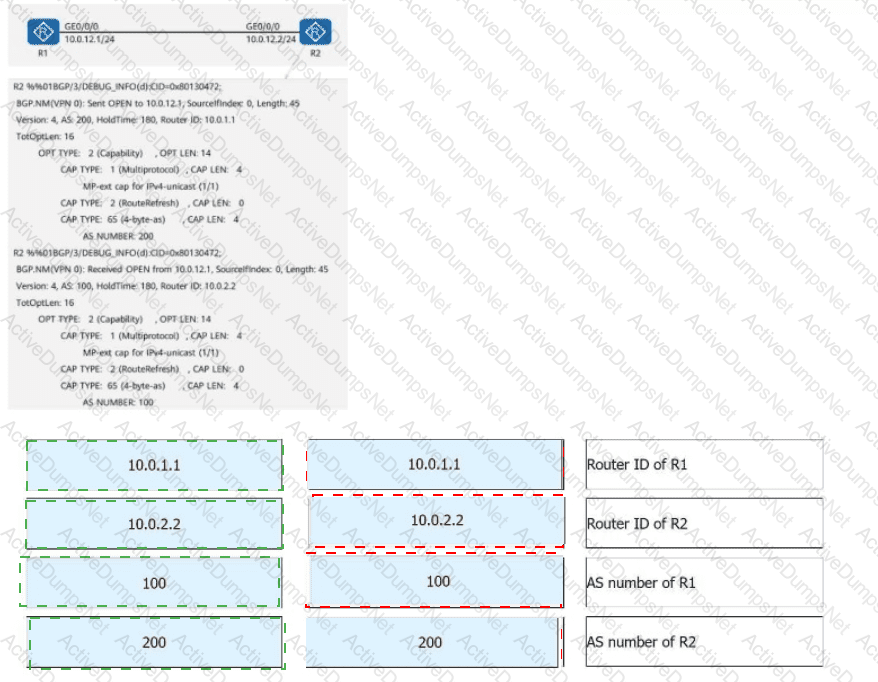

Received OPEN from 10.0.1.1...

Router ID: 10.0.1.1, AS: 100

Received OPEN from 10.0.2.2...

Router ID: 10.0.2.2, AS: 200

The OPEN message exchanged during BGP neighbor establishment contains:

Router ID of the peer

AS number

Hold time

Capabilities

From the logs:

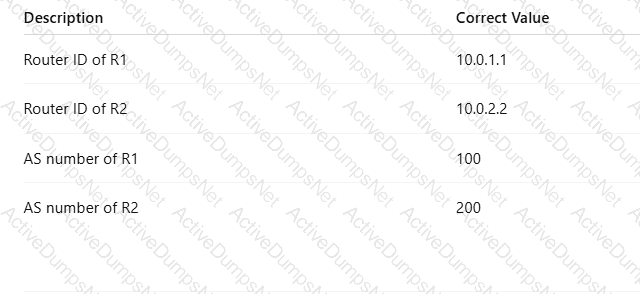

R2 received R1’s OPEN message with:

Router ID = 10.0.1.1

AS = 100

R2 ' s own OPEN message shows:

Router ID = 10.0.2.2

AS = 200

This gives us the exact matching required.

Official Huawei Extract:

" In BGP, the OPEN message contains the router ID and AS number of the sender. These values are exchanged during session establishment and are visible via debugging logs or display bgp peer outputs. "

— [Huawei HCIA-Datacom Guide – BGP Peer Establishment and Debugging]

Comprehensive and Detailed In-Depth Explanation:

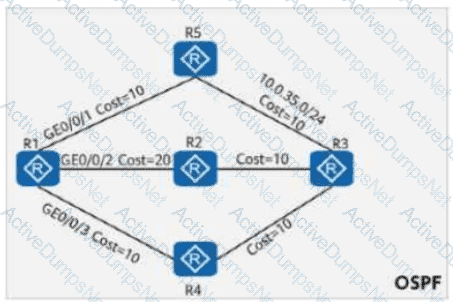

To determine the cost value of the route 10.0.35.0/24 in the routing table of R1, let ' s analyze the possible shortest paths from R1 to R3 (which owns the 10.0.35.0/24 network) based on the given OSPF link costs:

Path 1: R1 → R2 → R3

R1 to R2: Cost = 20

R2 to R3: Cost = 10

Total Cost = 20 + 10 = 30

Path 2: R1 → R4 → R3

R1 to R4: Cost = 10

R4 to R3: Cost = 10

Total Cost = 10 + 10 = 20 ✅ (Lowest cost path)

Path 3: R1 → R5 → R3

R1 to R5: Cost = 10

R5 to R3: Cost = 10

Total Cost = 10 + 10 = 20 ✅ (Equal-cost path)

Final Calculation:

The two best equal-cost paths (R1 → R4 → R3 and R1 → R5 → R3) have a cost of 20.

Since OSPF supports equal-cost multi-path (ECMP) routing and maximum load-balancing 8 is enabled, OSPF will install both routes into the routing table with the same cost of 20.

The path R1 → R2 → R3 has a higher cost (30) and will not be chosen.

Final Answer: ✅ 20 (Option C)

Comprehensive and Detailed In-Depth Explanation:

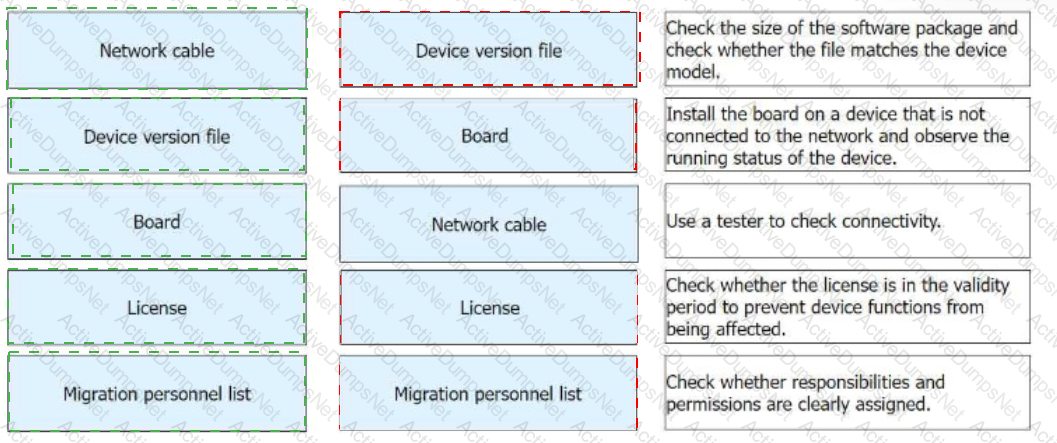

Network migration requires detailed planning to prevent service disruptions and rollback failures.

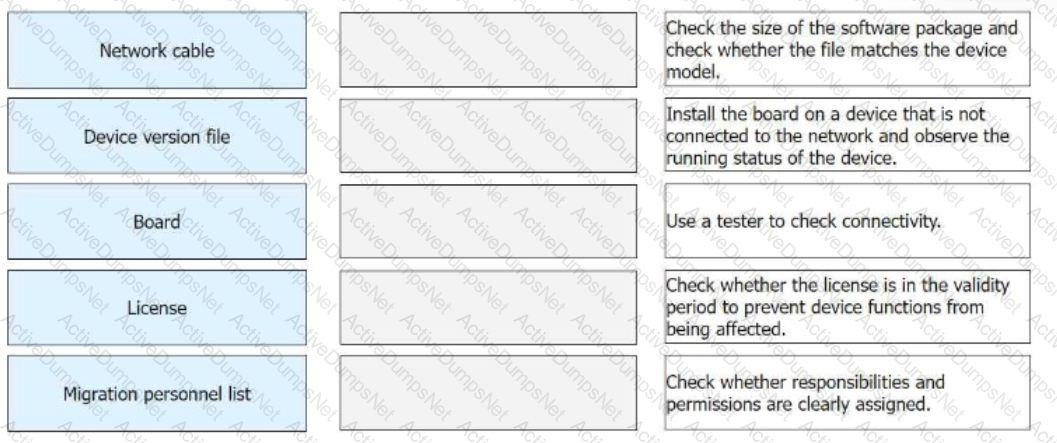

Potential issues due to poor preparation:✅ A. No network cable tester available → Hard to diagnose whether the issue is hardware or cable-related.✅ B. No backup of configuration files → If migration fails, services cannot be restored quickly.✅ C. No spare hardware available → Hardware failures may cause long service downtimes.✅ D. Engineers arriving late → Delays may lead to extended service downtime or missed migration windows.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – Migration Best Practices

Comprehensive and Detailed In-Depth Explanation:

To determine whether the statement is true or false, we need to analyze the OSPF network, the cost values of the links, the primary and backup paths, and the role of OSPF IP Fast Reroute (FRR) enabled on R1. Let’s break it down step by step:

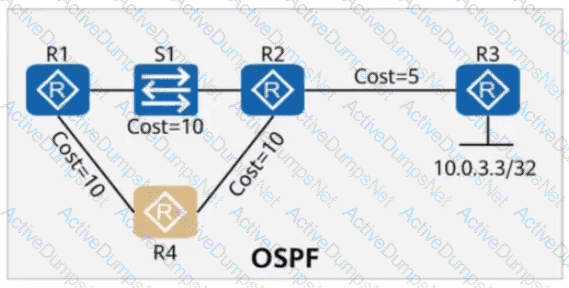

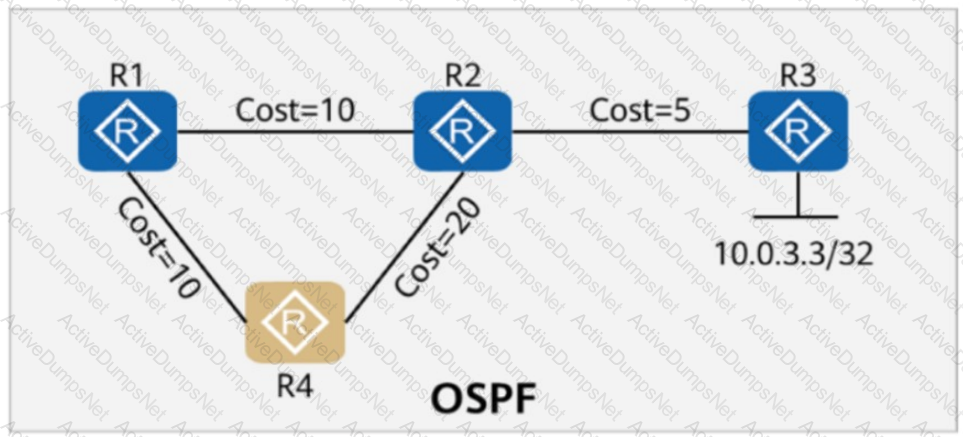

Understanding the Network Topology and Costs:

The network consists of four routers: R1, R2, R3, and R4.

The destination network is 10.0.3.3/32, located at R3.

The link costs are as follows:

R1 to R2: Cost = 10

R1 to R4: Cost = 10

R4 to R2: Cost = 20

R2 to R3: Cost = 5

The total cost of a path is the sum of the costs of all links in that path.

Calculating the Primary Path Cost (R1 - > R2 - > R3):

Path: R1 - > R2 (cost = 10) - > R3 (cost = 5)

Total cost = 10 + 5 = 15

This is the shortest path (lowest cost) from R1 to R3, as stated in the question. OSPF uses the Dijkstra algorithm to calculate the shortest path based on link costs, so R1 will naturally select R1 - > R2 - > R3 as the primary path to reach 10.0.3.3/32.

Calculating the Backup Path Cost (R1 - > R4 - > R2 - > R3):

Path: R1 - > R4 (cost = 10) - > R2 (cost = 20) - > R3 (cost = 5)

Total cost = 10 + 20 + 5 = 35

This path has a higher cost (35) compared to the primary path (15), which is expected for a backup path. The backup path is not used under normal conditions but is precomputed for fast failover in case the primary path fails.

Role of OSPF IP Fast Reroute (FRR):

OSPF IP FRR is a mechanism designed to provide fast convergence in case of link or node failures by precomputing backup paths. When enabled on R1, FRR ensures that R1 has a precomputed backup path to quickly switch traffic to an alternate route (e.g., R1 - > R4 - > R2 - > R3) if the primary path (R1 - > R2 - > R3) fails.

FRR typically uses Loop-Free Alternates (LFA) or other techniques to ensure the backup path does not create loops and is immediately available. In this case, the backup path R1 - > R4 - > R2 - > R3 is valid because:

It does not loop back to R1.

It reaches R3, the destination.

The cost (35) is higher than the primary path (15), but this is acceptable for a backup path.

The question states that OSPF IP FRR is enabled on R1, and the backup path is explicitly given as R1 - > R4 - > R2 - > R3. This aligns with FRR’s purpose of maintaining a precomputed backup path.

Verifying the Statement:

The statement claims: “The primary path from R1 to 10.0.3.3/32 is R1 - > R2 - > R3, and the backup path is R1 - > R4 - > R2 - > R3.”

We calculated that the primary path (R1 - > R2 - > R3) has a cost of 15, which is the shortest path and correct for OSPF’s behavior.

The backup path (R1 - > R4 - > R2 - > R3) has a cost of 35, which is higher but valid as a backup path, especially with OSPF IP FRR enabled on R1 to ensure fast failover.

Both paths are correctly identified in the question, and OSPF IP FRR’s presence on R1 supports the existence of a precomputed backup path. Therefore, the statement is accurate.

Conclusion:

The primary path (R1 - > R2 - > R3) and backup path (R1 - > R4 - > R2 - > R3) are correctly described, and OSPF IP FRR on R1 ensures the backup path is precomputed and ready for use. Thus, the statement is true.

References (Based on HCIP-Datacom-Advanced Routing & Switching Technology Concepts):

OSPF Path Calculation: HCIP-Datacom documentation on OSPF’s Dijkstra algorithm and cost-based path selection (e.g., Section on OSPF Routing Metrics).

OSPF IP Fast Reroute (FRR): HCIP-Datacom coverage of FRR mechanisms, including Loop-Free Alternates and backup path computation (e.g., Chapter on OSPF Advanced Features and High Availability).

Link Cost and Path Optimization: HCIP-Datacom explanation of link cost configuration and OSPF path selection (e.g., Section on OSPF Network Design and Optimization).

Based on the provided image and the context of the HCIP-Datacom-Advanced Routing & Switching Technology exam, I’ll format and answer the question you’ve shared. I’ll ensure the response is accurate, detailed, and aligned with the official HCIP-Datacom documentation, while correcting any typos and providing a comprehensive explanation. Since you’ve only provided one question in the image, I’ll address it in the requested format. If there are additional questions, please share them, and I’ll format and answer them similarly.

Comprehensive and Detailed In-Depth Explanation:

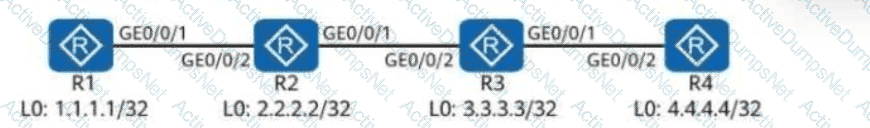

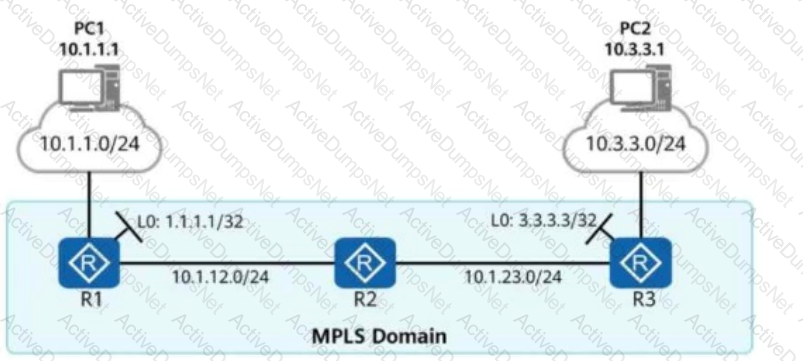

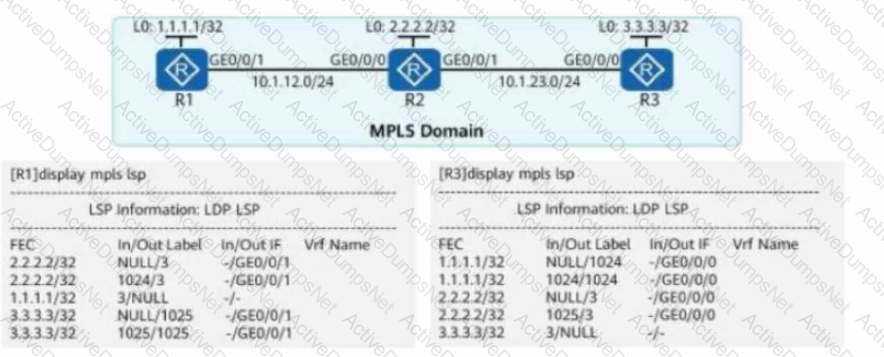

To determine the correct configuration, we need to analyze how MPLS LDP (Label Distribution Protocol) is correctly enabled on a Huawei router.

1. Required Steps to Enable MPLS LDP on R1

To enable MPLS LDP on R1 and establish LDP sessions, the following steps must be followed:

✅ Step 1: Configure the MPLS LSR ID (Loopback IP recommended)

MPLS LSR ID is a unique identifier for the Label Switch Router (LSR).

Command:

shell

CopyEdit

mpls lsr-id 1.1.1.1

Why?

The LSR ID must be configured for LDP to function properly in an MPLS network.

It is usually set to a loopback address for stability and consistency.

✅ Step 2: Enable MPLS Globally

Command:

shell

CopyEdit

mpls

Why?

This enables MPLS forwarding on the device.

✅ Step 3: Enable MPLS LDP Globally

Command:

shell

CopyEdit

mpls ldp

Why?

LDP is needed for label distribution in the MPLS domain.

Without this, routers cannot exchange MPLS labels.

✅ Step 4: Enable MPLS and LDP on the Required Interface

Command:

shell

CopyEdit

interface gigabitethernet 0/0/1

mpls

mpls ldp

Why?

MPLS must be enabled on interfaces that participate in MPLS forwarding.

LDP must also be enabled on these interfaces to distribute labels over MPLS links.

2. Analyzing the Answer Choices

✅ Option B (Correct)

shell

CopyEdit

[R1] mpls lsr-id 1.1.1.1 ✅ (Sets LSR ID)

[R1] mpls ✅ (Enables MPLS globally)

[R1-mpls] quit

[R1] mpls ldp ✅ (Enables LDP globally)

[R1-mpls-ldp] quit

[R1] interface gigabitethernet 0/0/1

[R1-GigabitEthernet0/0/1] mpls ✅ (Enables MPLS on interface)

[R1-GigabitEthernet0/0/1] mpls ldp ✅ (Enables LDP on interface)

[R1-GigabitEthernet0/0/1] quit

This configuration correctly enables MPLS LDP on R1.

All required steps are followed, including the LSR ID, MPLS, LDP, and interface activation.

❌ Option A (Incorrect)

shell

CopyEdit

[R1] mpls lsr-id 1.1.1.1

[R1] mpls

[R1-mpls] quit

[R1] mpls ldp

[R1-mpls-ldp] quit

[R1] interface gigabitethernet 0/0/1

[R1-GigabitEthernet0/0/1] mpls ✅

[R1-GigabitEthernet0/0/1] quit ❌ (Missing " mpls ldp " under interface)

Missing mpls ldp under interface configuration.

Without this, the interface will not establish an LDP session → Incorrect.

❌ Option C (Incorrect)

shell

CopyEdit

[R1] mpls

[R1-mpls] quit

[R1] mpls ldp

[R1-mpls-ldp] quit

[R1] interface gigabitethernet 0/0/1

[R1-GigabitEthernet0/0/1] mpls

[R1-GigabitEthernet0/0/1] mpls ldp

[R1-GigabitEthernet0/0/1] quit

Missing mpls lsr-id 1.1.1.1.

LSR ID is critical for LDP sessions → Incorrect.

❌ Option D (Incorrect)

shell

CopyEdit

[R1] mpls lsr-id 1.1.1.1

[R1] mpls

[R1-mpls] quit

[R1] interface gigabitethernet 0/0/1

[R1-GigabitEthernet0/0/1] mpls

[R1-GigabitEthernet0/0/1] mpls ldp

[R1-GigabitEthernet0/0/1] quit

Missing global MPLS LDP configuration (mpls ldp).

Without enabling LDP globally, labels will not be distributed.

This makes LDP sessions fail. → Incorrect.

 Network cable → Use a tester to check connectivity.

 Device version file → Check the size of the software package and check whether the file matches the device model.

 Board → Install the board on a device that is not connected to the network and observe the running status of the device.

 License → Check whether the license is in the validity period to prevent device functions from being affected.

 Migration personnel list → Check whether responsibilities and permissions are clearly assigned.

Comprehensive and Detailed In-Depth Explanation:

1. Network Cable - Connectivity Testing:

Before starting a migration project, all network cables should be tested for physical connectivity issues.

Network testers can be used to detect any breaks, shorts, or incorrect wiring.

Ensuring proper connectivity avoids delays and troubleshooting issues during the migration.

2. Device Version File - Software Compatibility Check:

Firmware and software versions must be verified before upgrading or migrating network devices.

The device version file should match the model and hardware specifications to avoid compatibility issues.

If incorrect software is used, the device may not function properly or could become inoperable.

3. Board - Installation and Hardware Verification:

Before installing new hardware modules (boards, line cards, etc.) into a production environment, they should be tested in isolation.

Testing ensures the board is operational and does not introduce faults into the system.

If a board is faulty, it can cause device failure or unexpected behavior in the migration.

4. License - Validity and Activation Check:

Some network devices require licenses for full functionality (e.g., advanced routing, security features).

If a license is expired or missing, critical functions may be disabled after migration.

Checking license status in advance prevents unexpected downtime or service disruptions.

5. Migration Personnel List - Roles and Responsibilities Assignment:

Large network migrations require clear responsibility assignments for each team member.

A migration personnel list ensures that everyone knows their role, tasks, and permissions.

Proper coordination avoids miscommunication, errors, and project delays.

Key Takeaways:

✅ Network cables should be tested for connectivity.

✅ Software versions should match the hardware model to prevent incompatibility.

✅ Hardware boards should be tested before installing into production.

✅ Licenses should be verified to prevent service disruptions.

✅ Migration personnel roles should be clearly defined for smooth execution.

HCIP-Datacom-Advanced Routing & Switching Technology References:

Huawei HCIP-Datacom Official Certification Guide, Chapter on Network Migration Best Practices.

Huawei Enterprise Networking Whitepapers, Guidelines on Software & Hardware Pre-checks for Migration.

Huawei Technical Documentation, License Management in Huawei Datacom Devices.

The label advertisement mode is Downstream-on-Demand (DoD) because the ingress node explicitly sends a Label Request message. In DoD mode, an LSR does not automatically advertise a label binding for a FEC. It waits until the upstream LSR requests the label.

The label distribution control mode is ordered because the transit LSR waits until it receives a Label Mapping message from its downstream node—the egress in this topology—before advertising a corresponding label mapping to the ingress.

The two characteristics are therefore:

DoD: A label is advertised only after an upstream Label Request is received.

Ordered control: A transit LSR advertises a label mapping only after it has received the downstream label mapping or when the local LSR itself is the egress for the FEC.

Independent control would allow the transit LSR to allocate and advertise its own label without first obtaining a label mapping from the downstream node. That contradicts the behavior described in the question. Therefore, the correct combination is DoD + ordered. Huawei LDP label advertisement modes

Comprehensive and Detailed In-Depth Explanation:

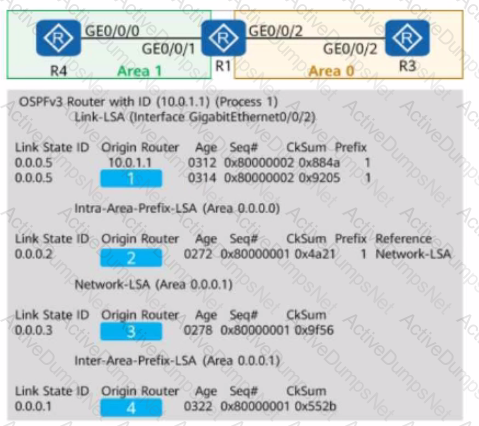

To determine which LSAs are available in Area 0, we need to analyze the OSPFv3 network, the area types, and the behavior of external routes in an NSSA, considering the possibility of multiple correct answers. Let’s break it down step by step:

Understanding the Network and Area Types:

The network has two areas: Area 0 (backbone area) and Area 1 (Not-So-Stubby Area or NSSA).

R1, located in Area 1, imports an external IPv6 route (2000::1/128) into OSPFv3.

Area 0 is the backbone area, and Area 1 is an NSSA, which allows limited external routes but has specific restrictions on LSA types.

OSPFv3 LSA Types and Their Roles:

Link-LSA (Type 8): These are link-local LSAs, flooded only within the local link and not propagated beyond the local segment. They are not flooded into Area 0 or other areas, so they are not relevant for inter-area or external route advertisement.

Inter-Area-Router-LSA (Type 4): These LSAs are used to describe routers in other areas, specifically Autonomous System Boundary Routers (ASBRs) that originate external routes. In this case, R1 is an ASBR in Area 1 (NSSA) importing the external route 2000::1/128. Type 4 LSAs are generated by the ABR (e.g., R1 or another router connecting Area 1 to Area 0) and flooded into Area 0 to provide reachability information to the ASBR (R1) for the external route. Therefore, Inter-Area-Router-LSAs can be present in Area 0 to help routers reach R1 as the ASBR.

Intra-Area-Prefix-LSA (Type 9): These LSAs advertise prefixes associated with routers or transit networks within the same area. They are not used for external routes and are confined to Area 1, so they are not available in Area 0.

Inter-Area-Prefix-LSA (Type 3): These LSAs advertise prefixes from one area to another, including routes summarized or redistributed into the OSPF domain. In an NSSA, external routes (like 2000::1/128) are advertised as Type 7 LSAs within Area 1. The ABR (e.g., R1 or another router) translates these Type 7 LSAs into Type 5 LSAs or, in OSPFv3, they may be represented as Inter-Area-Prefix-LSAs (Type 3) to flood the external route into Area 0. Thus, Inter-Area-Prefix-LSAs are available in Area 0 for the external route 2000::1/128.

Behavior of External Routes in an NSSA:

In OSPFv3, an NSSA (like Area 1) allows external routes to be imported by an ASBR (R1 in this case). NSSAs do not flood Type 5 LSAs (external LSAs) directly into the area. Instead, external routes are advertised as Type 7 LSAs within the NSSA.

The Area Border Router (ABR) connecting the NSSA (Area 1) to the backbone (Area 0)—likely R1 or another router—translates the Type 7 LSAs into Type 5 LSAs (or, in OSPFv3, they may be represented as Inter-Area-Prefix-LSAs or other appropriate LSAs for external routes). These translated LSAs are then flooded into Area 0.

Additionally, since R1 is an ASBR, Area 0 needs to know how to reach R1 to access the external route 2000::1/128. This is achieved through Inter-Area-Router-LSAs (Type 4), which are flooded into Area 0 by the ABR to describe the location of the ASBR (R1) in Area 1.

Determining LSAs Available in Area 0:

Link-LSA (Type 8): These are link-local and not flooded into Area 0, so they are not available in Area 0.

Inter-Area-Router-LSA (Type 4): Since R1 is an ASBR in Area 1 (NSSA) importing the external route, the ABR (e.g., R1 or another router) generates Inter-Area-Router-LSAs to advertise R1’s location to Area 0. This LSA is necessary for routers in Area 0 to reach the ASBR (R1) for the external route 2000::1/128. Therefore, Inter-Area-Router-LSAs are available in Area 0.

Intra-Area-Prefix-LSA (Type 9): These are confined to Area 1 and not flooded into Area 0, so they are not available in Area 0.

Inter-Area-Prefix-LSA (Type 3): This LSA is used to advertise the external prefix 2000::1/128 into Area 0 after translation from Type 7 LSAs in Area 1. Therefore, Inter-Area-Prefix-LSAs are available in Area 0.

Conclusion:

The external route 2000::1/128, imported by R1 in Area 1 (NSSA), results in both Inter-Area-Router-LSAs (Type 4) and Inter-Area-Prefix-LSAs (Type 3) being available in Area 0.

Inter-Area-Router-LSA (Type 4) is present to describe the location of the ASBR (R1) in Area 1, allowing routers in Area 0 to reach R1 for the external route.

Inter-Area-Prefix-LSA (Type 3) is present to advertise the external prefix 2000::1/128 into Area 0 after translation from the Type 7 LSA in Area 1.

Therefore, the correct answers are B (Inter-Area-Router-LSA) and D (Inter-Area-Prefix-LSA).

References (Based on HCIP-Datacom-Advanced Routing & Switching Technology Concepts):

OSPFv3 LSA Types: HCIP-Datacom documentation on OSPFv3 LSAs, including Link-LSA, Inter-Area-Router-LSA, Intra-Area-Prefix-LSA, and Inter-Area-Prefix-LSA (e.g., Section on OSPFv3 Fundamentals).

NSSA Behavior in OSPFv3: HCIP-Datacom coverage of NSSA areas, Type 7 LSAs, and their translation to Type 5 or Inter-Area-Prefix-LSAs for Area 0, as well as Inter-Area-Router-LSAs for ASBR reachability (e.g., Chapter on OSPFv3 Advanced Features and Area Types).

External Route Propagation: HCIP-Datacom explanation of external route handling in OSPFv3, including ASBR and ABR roles, and LSA types for inter-area and external route advertisement (e.g., Section on Route Redistribution and IPv6 OSPF).

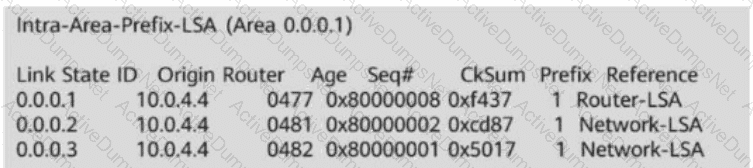

Comprehensive and Detailed In-Depth Explanation:

Understanding OSPFv3 LSA Types

OSPFv3 uses different LSA types than OSPFv2, with some being similar in function:

Link-LSA (Type 8): Generated by every router on a link to advertise link-local IPv6 information.

Intra-Area-Prefix-LSA (Type 9): Advertises IPv6 prefixes within an area.

Network-LSA (Type 2): Generated only by the Designated Router (DR) to advertise information about all routers on a multi-access network.

Inter-Area-Prefix-LSA (Type 3): Advertises network prefixes between OSPF areas (generated by ABRs).

Route Distribution Analysis:

A. Inter-Area-Prefix-LSA (Type 3) ❌ (Incorrect)

Generated by an ABR to advertise prefixes between OSPF areas.

More than one ABR can generate this LSA.

❌ Not always generated by only one router.

B. Link-LSA (Type 8) ❌ (Incorrect)

Each router generates its own Link-LSA for each link it participates in.

This means multiple routers can generate this LSA.

❌ Not generated by only one router.

C. Network-LSA (Type 2) ✅ (Correct)

Generated ONLY by the Designated Router (DR) on a multi-access network (such as an Ethernet link).

Other routers do not generate this LSA, only the DR does.

✅ Correct answer: This LSA is generated by only one router (the DR).

D. Intra-Area-Prefix-LSA (Type 9) ❌ (Incorrect)

Generated by any router to advertise IPv6 prefixes within an area.

Multiple routers in an area can generate this LSA.

❌ Not generated by only one router.

Final Conclusion:

✅ C. Network-LSA (Type 2) is the correct answer because it is generated by only one router—the Designated Router (DR).

Thus, the correct answer is: C. Network-LSA.

VLAN aggregation and MUX VLAN provide different networking functions and use distinct VLAN roles.

VLAN aggregation combines multiple sub-VLANs under a super-VLAN. The sub-VLANs share the IP subnet and default gateway of the super-VLAN, reducing IP address consumption.

MUX VLAN controls Layer 2 communication using principal, group, and separate VLANs. It allows administrators to restrict communication among hosts while maintaining access to designated resources.

However, Huawei ' s MUX VLAN configuration requirements explicitly prohibit using the VLAN ID of a principal VLAN as a super-VLAN or sub-VLAN.

Consequently, an administrator cannot assign the same VLAN ID simultaneously to a super-VLAN and the principal MUX VLAN.

Separate VLAN identifiers must be allocated for the relevant VLAN functions to avoid configuration conflicts.

Therefore, the statement is FALSE.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Training Material.pdf

================

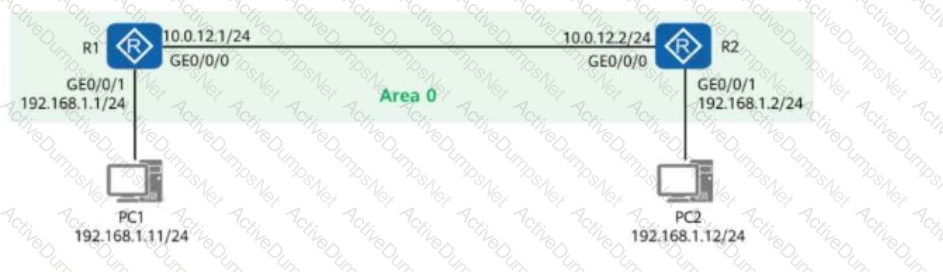

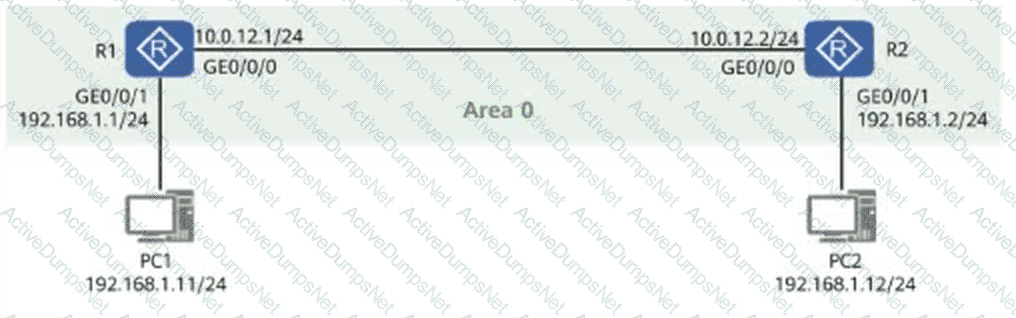

The exhibit shows that R1 and R2 use the same IPv4 subnet, 192.168.1.0/24, on separate LAN interfaces. Because these interfaces belong to different Layer 2 segments, the attached PCs cannot communicate directly despite using the same subnet.

Disabling OSPF on R1 ' s GE0/0/1 does not remove its connected 192.168.1.0/24 route. R1 therefore continues treating destinations such as 192.168.1.2 as directly reachable through that interface, making option A false.

If GE0/0/1 fails, however, the connected route is removed. Assuming R2 advertises its LAN prefix into OSPF, R1 can install the route learned through R2 over the inter-router link.

Under that assumption, R1 can reach 192.168.1.2 and 192.168.1.12.

Therefore, B, C, and D are the intended answers. The OSPF advertisement assumption is essential because the exhibit alone does not show the complete protocol configuration.

================

Comprehensive and Detailed In-Depth Explanation:

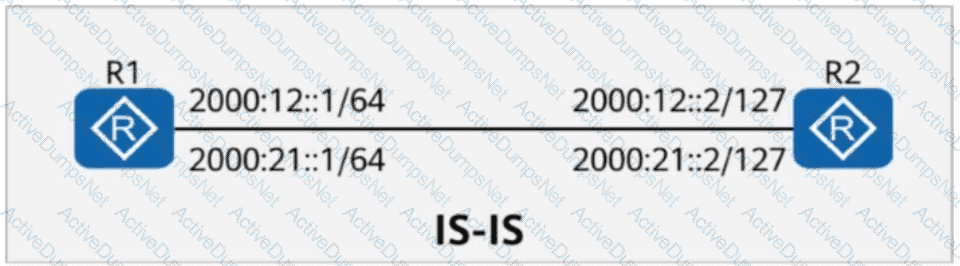

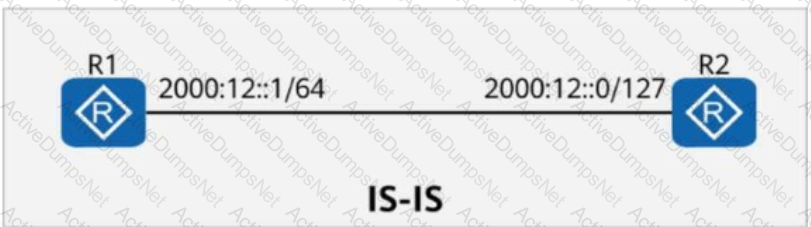

Understanding the IPv6 Addressing and IS-IS Network

IPv6 Addressing in the Figure:

R1 has the address: 2000:12::1/64

R2 has the address: 2000:12::0/127

The link between them is using a /127 subnet (2000:12::0/127).

Behavior of IPv6 /127 Subnet Mask

In IPv6, a /127 prefix is commonly used on point-to-point links to avoid the issue of subnet-router anycast (::0).

RFC 6164 recommends using /127 instead of /64 for point-to-point links to reduce unnecessary anycast behavior.

2000:12::0 is the network address (first address in the subnet) and is not assigned to an interface.

Analyzing the Two Statements in the Question

Statement 1: " R1 can ping 2000:12::0 " ❌ (Incorrect)

In IPv6, the first address (::0) in a /127 subnet is typically reserved as a network address and not assigned to any router.

R1 cannot ping 2000:12::0 because it is not assigned to R2 as an active IP.

Correct ping targets would be:

R1 pinging R2’s actual address (2000:12::1 or 2000:12::2 depending on numbering).

Statement 2: " display ipv6 neighbors command can be used to display the MAC address corresponding to 2000:12::0 " ❌ (Incorrect)

The display ipv6 neighbors command is used to show the MAC address of an active neighbor (i.e., a reachable device).

Since 2000:12::0 is not assigned to a specific router, it will not have a MAC address in the neighbor table.

Final Conclusion:

❌ R1 cannot ping 2000:12::0 because it is the network address in a /127 subnet.

❌ The display ipv6 neighbors command cannot show a MAC address for 2000:12::0 because it is not assigned to a router.

Thus, the correct answer is: B. FALSE.

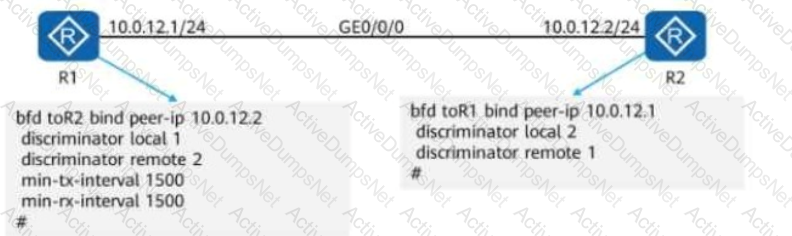

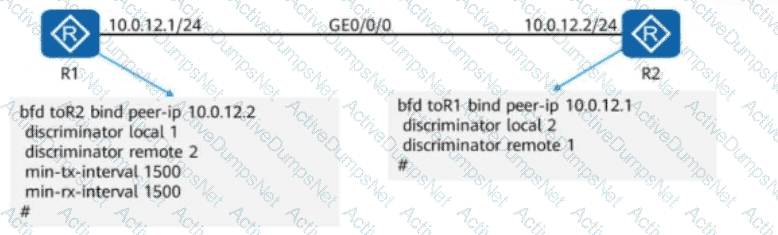

???? Configuration Snapshot:

On R1:

bash

CopyEdit

bfd toR2 bind peer-ip 10.0.12.2

discriminator local 1

discriminator remote 2

min-tx-interval 1500

min-rx-interval 1500

On R2:

bash

CopyEdit

bfd toR1 bind peer-ip 10.0.12.1

discriminator local 2

discriminator remote 1

???? Observation:

On R1, both min-tx-interval and min-rx-interval are configured: 1500ms

On R2, no timing parameters are explicitly set (defaults are used)

✅ BFD Timing Behavior (Huawei):

BFD is bidirectional and can work even if only one side configures the timers.

As long as the peer can handle the intervals (i.e. doesn’t violate capabilities), the session should still come up.

This is not a mismatch fault. It ' s valid to set time parameters only on one side.

???? Therefore, the time parameter mismatch is NOT the reason the session goes down.

✅ Final Answer: B. FALSE

Root Cause (Likely):

The real cause might be something else (e.g., interface down, ACL blocking BFD packets, wrong IP, or unidirectional loss).

But not mismatched timers — they are allowed.

Official Huawei Extract:

" If only one end of the BFD session specifies the detection intervals, the BFD session can still be established. Huawei devices accept remote minimum intervals and negotiate accordingly. "

— [Huawei HCIA-Datacom Certification Guide – BFD Session Configuration and Troubleshooting]

Comprehensive and Detailed In-Depth Explanation:

The display startup command is used to check the startup and running configuration details of a Huawei network device.

It provides information on:✅ Running system software (currently active firmware).✅ Running configuration file (current settings in use).✅ Startup system software (firmware that will load on reboot).✅ Startup configuration file (configuration that will be applied on reboot).✅ Paths of these files in the storage system.

This command helps network administrators ensure that the correct firmware and configuration files are used when the device boots.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – System Management and Configuration Files

Comprehensive and Detailed In-Depth Explanation:

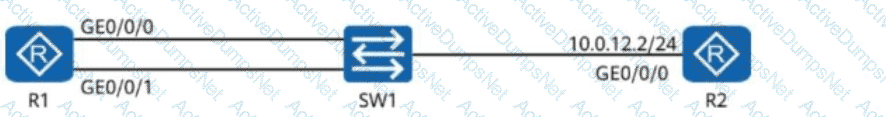

Understanding the DHCP Process in This Scenario:

DHCP Server on R2:

The DHCP server is configured on interface GE0/0/0 of R2.

The address pool is an interface address pool, meaning that IP addresses are allocated from the subnet of GE0/0/0 (i.e., 10.0.12.0/24).

DHCP Clients on R1:

Both interfaces (GE0/0/0 and GE0/0/1) on R1 are set as DHCP clients, meaning they will send DHCP DISCOVER messages to obtain an IP address dynamically.

Why Only One Interface Gets an IP Address?

Interface address pools in Huawei devices assign only one IP address per MAC address (which is typically the router’s MAC).

Since both interfaces belong to R1, they share the same MAC address when making a DHCP request.

As a result, the DHCP server on R2 only assigns one IP address to the first requesting interface.

The second request is ignored or denied by the DHCP server due to the duplicate MAC address issue.

Key Takeaways:

Huawei routers using an interface-based DHCP address pool assign only one IP per MAC address.

Since both interfaces on R1 have the same MAC, only one gets an IP.

This behavior is expected in Huawei’s HCIP-Datacom-certified DHCP configurations.

HCIP-Datacom-Advanced Routing & Switching Technology References:

Huawei HCIP-Datacom Official Certification Guide, Chapter on DHCP Server and Client Configurations.

Huawei Datacom Configuration Guide, Section on Interface Address Pools and Address Assignment Limitations.

Huawei Enterprise Networking Training Materials, DHCP Relay and DHCP Server Behavior.

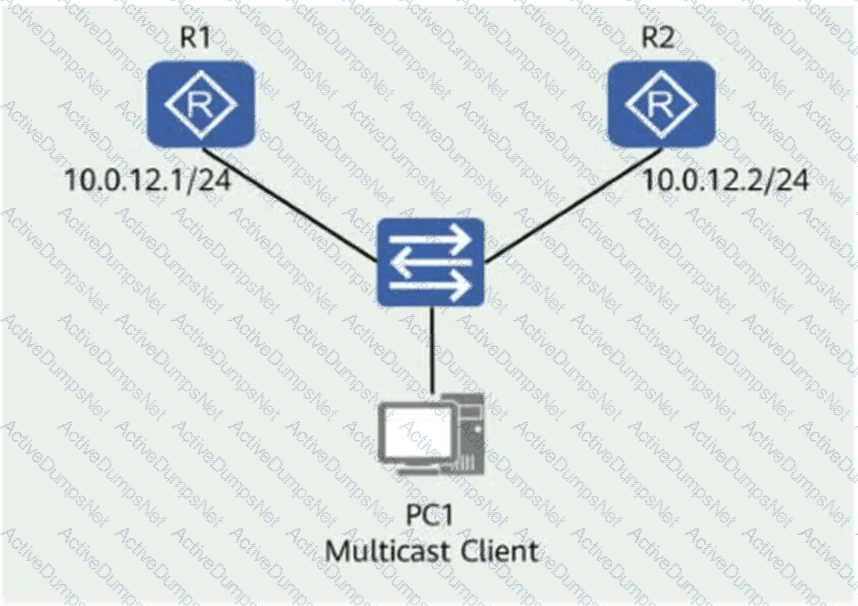

PIM Sparse Mode (PIM-SM) elects a Designated Router (DR) on a shared network segment to coordinate multicast source registration and receiver-side multicast forwarding.

The election first compares the DR priorities advertised in PIM Hello messages.

The router with the highest DR priority is selected. When routers have equal priorities, the router with the numerically highest interface IP address wins.

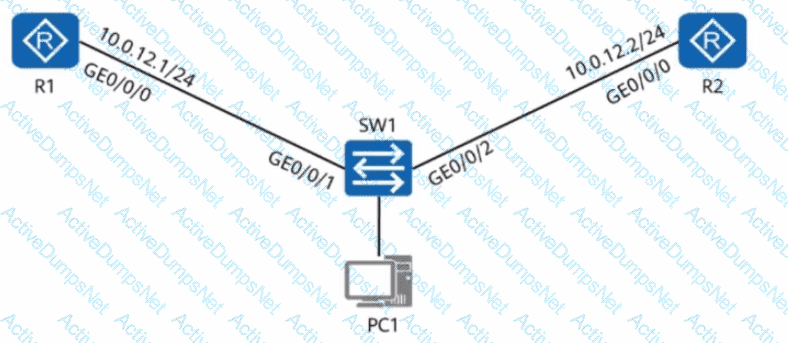

In the topology, R1 uses 10.0.12.1/24 and R2 uses 10.0.12.2/24. Both routers use default DR priority values.

Because 10.0.12.2 is higher than 10.0.12.1, R2 is elected as the PIM-SM Designated Router.

This differs from the IGMPv2 querier election, which selects the router with the lowest IP address. Thus, R1 would be the IGMP querier, but R2 is the PIM-SM DR.

BGP/MPLS IP VPN networks use Multiprotocol BGP (MP-BGP) to distribute VPNv4 routing information between Provider Edge (PE) routers.

An MP-BGP Update message carries the VPNv4 route prefix, next-hop information, VPN label, and extended community attributes, including the export Route Target (RT).

The VPNv4 prefix consists of a Route Distinguisher (RD) and an IPv4 prefix, allowing overlapping customer networks to be distinguished.

The next-hop address identifies the PE router associated with the advertised route. The RT determines which VPN instances are permitted to import the route.

However, the public network label is not distributed through the VPNv4 BGP Update message. It is normally assigned and distributed through the provider ' s MPLS label distribution mechanism, such as LDP.

Therefore, the correct answers are B, C, and D.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Training Material.pdf

================

This statement is false due to an incorrect description of how MPLS label distribution works.

✅ Upstream/Downstream Relationship:In MPLS, the upstream LSR is the one sending data toward the destination, and the downstream LSR is the one closer to the destination.

❌ Incorrect Claim:The statement says " labels are distributed from upstream to downstream " , which is wrong.

✅ Correct behavior: Labels are distributed from downstream to upstream.

Each LSR advertises a label to its upstream neighbor for a specific FEC (Forwarding Equivalence Class). This is how Label Distribution Protocol (LDP) works.

✅ Official Reference from Huawei:

" MPLS labels are distributed from the downstream LSR to the upstream LSR. Data is forwarded from the upstream to the downstream, but labels flow in the opposite direction. "

— [Huawei HCIA-Datacom Guide – MPLS Chapter]

Comprehensive and Detailed In-Depth Explanation:

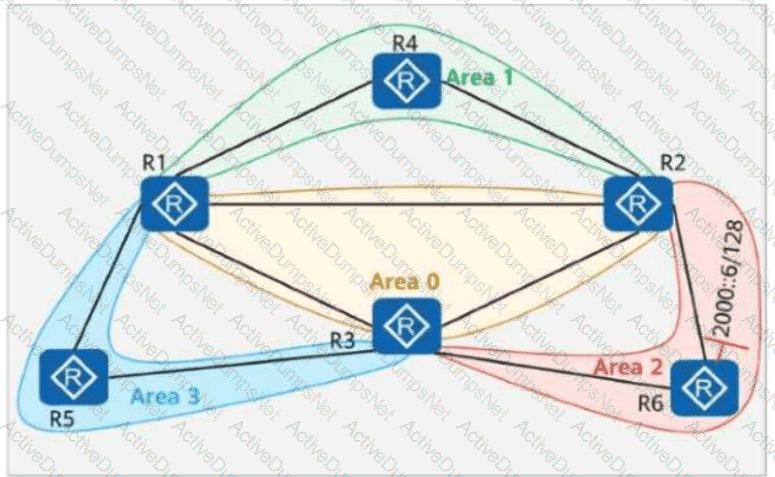

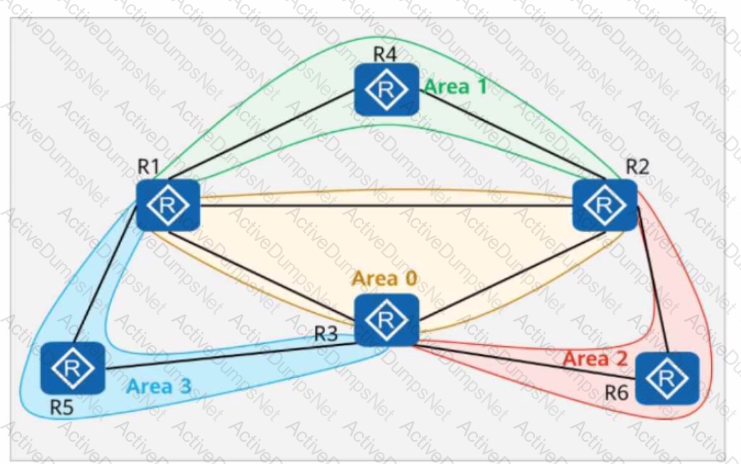

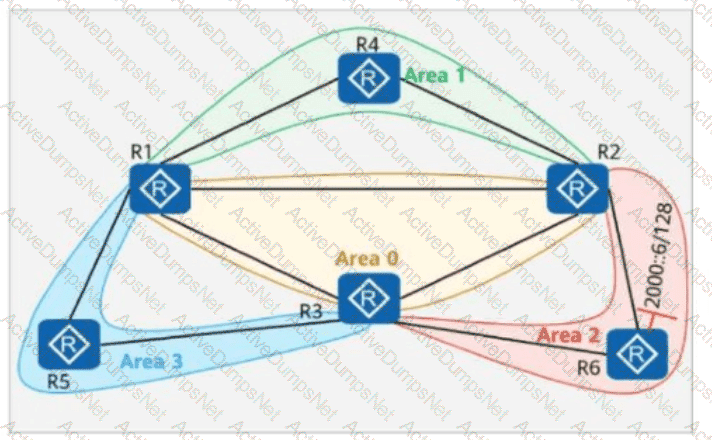

Understanding OSPFv3 Areas and Routing Behavior

OSPFv3 Area Types in the Network:

Area 1 (Stub Area): Does not accept external LSAs (Type 5) but can receive Inter-Area-Prefix-LSAs (Type 3).

Area 2 (Common Area): Fully functional area that allows both Type 3 (Inter-Area) and Type 5 (External) LSAs.

Area 3 (NSSA - Not-So-Stubby Area): Does not accept Type 5 (External) LSAs but allows ASBRs to inject external routes using Type 7 LSAs, which are later converted to Type 5 in other areas.

Effect of stub no-summary Command on Area 1 (Configured on R2):

This command prevents Type 3 LSAs from entering Area 1, meaning R4 will not learn about 2000::6/128 from other areas.

R4 only has a default route (::/0) provided by R2 but not individual routes like 2000::6/128.

Route and Packet Flow Analysis

A. " The LSDB of R4 contains the Inter-Area-Prefix-LSA that is generated by R1 and describes 2000::6/128. " ❌ (False)

R4 is in Area 1 (a totally stub area), which does not receive Type 3 LSAs.

Since 2000::6/128 is an external route from Area 2, it will not be present in R4’s LSDB.

Thus, R4 does NOT have the Inter-Area-Prefix-LSA for 2000::6/128.

❌ Statement A is incorrect.

B. " The path for data packets from R4 to 2000::6 is R4 - > R1 - > R5 - > R3 - > R6. " ❌ (False)

R4 is in a totally stub area (Area 1), and it does not have a specific route for 2000::6/128.

It only has a default route (::/0) pointing to R2.

If R4 forwards traffic, it will send it to R2, NOT via R1, R5, and R3.

❌ Statement B is incorrect.

C. " The routing table of R4 does not contain the route 2000::6/128. " ✅ (True - Correct Answer)

R4 is in a totally stub area (Area 1), meaning it only receives a default route from R2 (::/0).

It does NOT receive specific routes like 2000::6/128.

✅ Statement C is correct.

D. " The path for data packets from R4 to 2000::6 is R4 - > R2 - > R6. " ❌ (False)

While R4 does forward all unknown traffic to R2 (due to the default route), R2 will NOT directly forward to R6.

R2 is an ABR (Area Border Router), and the actual path to 2000::6 must traverse Area 2, likely through other routers.

❌ Statement D is incorrect.

Final Conclusion:

✅ C. The routing table of R4 does not contain the route 2000::6/128.

Thus, the correct answer is: C. The routing table of R4 does not contain the route 2000::6/128.

Huawei VRP requires MPLS and the Label Distribution Protocol (LDP) to be enabled at both the global and interface levels before dynamic label-switched paths can be established over an interface.

First, the mpls command enables the global MPLS function. Next, mpls ldp enables the global LDP process. These commands establish the necessary control-plane functionality.

At the interface level, mpls enables MPLS processing on GE0/0/1, and mpls ldp enables LDP neighbor discovery and label distribution through that interface.

All four commands are necessary in the configuration sequence shown in Huawei ' s training material. In a complete deployment, the administrator must also configure an appropriate MPLS LSR ID and ensure IP connectivity between neighboring devices.

Therefore, all four options are correct.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Training Material.pdf

================

Comprehensive and Detailed In-Depth Explanation:

1. Understanding Route Targets (RT) and Route Distribution in MPLS VPN

MPLS Layer 3 VPNs (L3VPNs) use BGP to distribute VPN routes across multiple Provider Edge (PE) routers.

Each VPN instance (VRF) is configured with Route Targets (RTs) to control which VPN routes are imported/exported.

Route Distinguishers (RDs) are unique per VRF but do not affect route selection.

2. Analyzing VPN1 Configuration

VPN1 is exporting routes with the following Route Targets (vpn-target values):

100:1

200:1

300:1

Remote VPNs will import these routes only if their import RT list matches one of the exported RTs.

3. Matching Exported RTs with Import RTs in Remote VPNs

Remote VPN

Import RTs

Matches VPN1 Exported RTs (100:1, 200:1, 300:1)?

Accepts the Route?

VPN1

100:1

✅ Matches 100:1

✅ Yes

VPN2

200:1, 400:1

✅ Matches 200:1

✅ Yes

VPN3

100:1, 300:1

✅ Matches 100:1, 300:1

✅ Yes

VPN4

500:1

❌ No match

❌ No

✅ VPN1, VPN2, and VPN3 accept the route.

❌ VPN4 does not accept the route because 500:1 is not in the export list of VPN1.

Final Conclusion:

✅ Correct Answer: VPN1, VPN2, and VPN3 will accept the route.

❌ VPN4 does not accept the route because there is no matching RT.

Thus, the correct answer is:

✅ A. VPN1: Import RT=100:1

✅ B. VPN2: Import RT=200:1, 400:1

✅ C. VPN3: Import RT=100:1, 300:1

❌ D. VPN4: Import RT=500:1 (No match, does not accept the route).

Comprehensive and Detailed In-Depth Explanation:

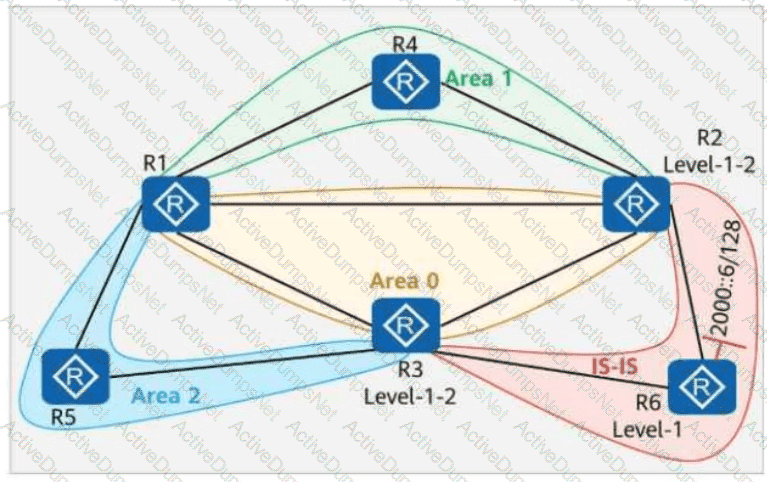

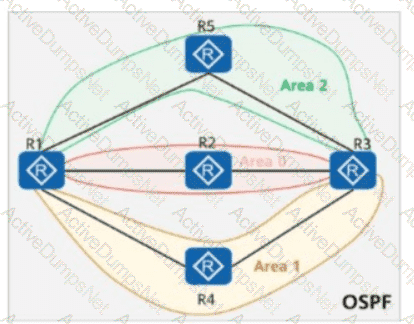

To determine which statements are false, we need to understand how OSPFv3 and IS-IS work together, and how Inter-Area-Router LSAs (Type 3 LSAs) are generated in OSPF:

1. Understanding OSPF Inter-Area LSAs (Type 3)

OSPF generates Type 3 LSAs (Inter-Area-Prefix LSAs) to advertise networks between areas.

Only Area Border Routers (ABRs) generate Inter-Area LSAs.

Type 3 LSAs allow routes to be advertised from one OSPF area to another (e.g., from Area 0 to Area 1 or Area 2).

2. Analysis of Each Answer Option:

✅ A. " R3 generates an Inter-Area-Router-LSA in Area 0. " → TRUE

R3 is an ABR (connecting IS-IS and OSPF Area 0).

Since R3 is importing IS-IS routes into OSPFv3, it must generate Type 3 LSAs to advertise those routes in Area 0.

This statement is correct.

✅ B. " R2 generates an Inter-Area-Router-LSA in Area 0. " → TRUE

R2 is also an ABR (connecting IS-IS and OSPF Area 0).

Like R3, R2 imports IS-IS routes into OSPFv3 and advertises them into Area 0 using Type 3 LSAs.

This statement is correct.

❌ C. " R1 generates an Inter-Area-Router-LSA in Area 2. " → FALSE

R1 is not an ABR.

Only ABRs generate Type 3 LSAs, and R1 is not an ABR between Area 2 and Area 0.

This statement is false.

❌ D. " R2 generates an Inter-Area-Router-LSA in Area 1. " → FALSE

Area 1 is a stub area, and stub areas do not allow Inter-Area-Router LSAs (Type 3 LSAs) for external routes.

R2 does not generate Inter-Area LSAs in Area 1 because OSPF prevents this in stub areas.

This statement is false.

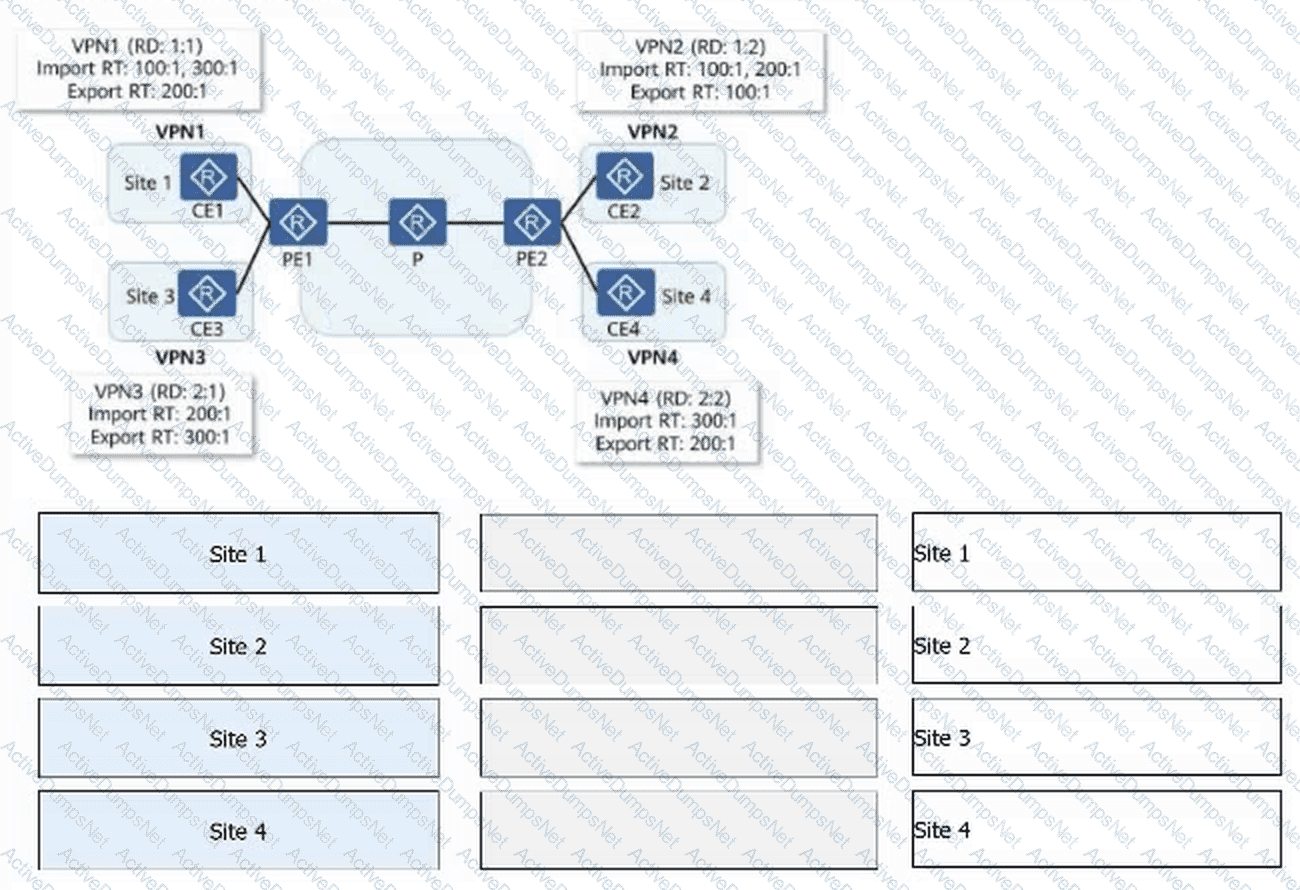

One valid mapping is:

Site 1 → Site 2

Site 2 → Site 1

Site 3 → Site 4

Site 4 → Site 3

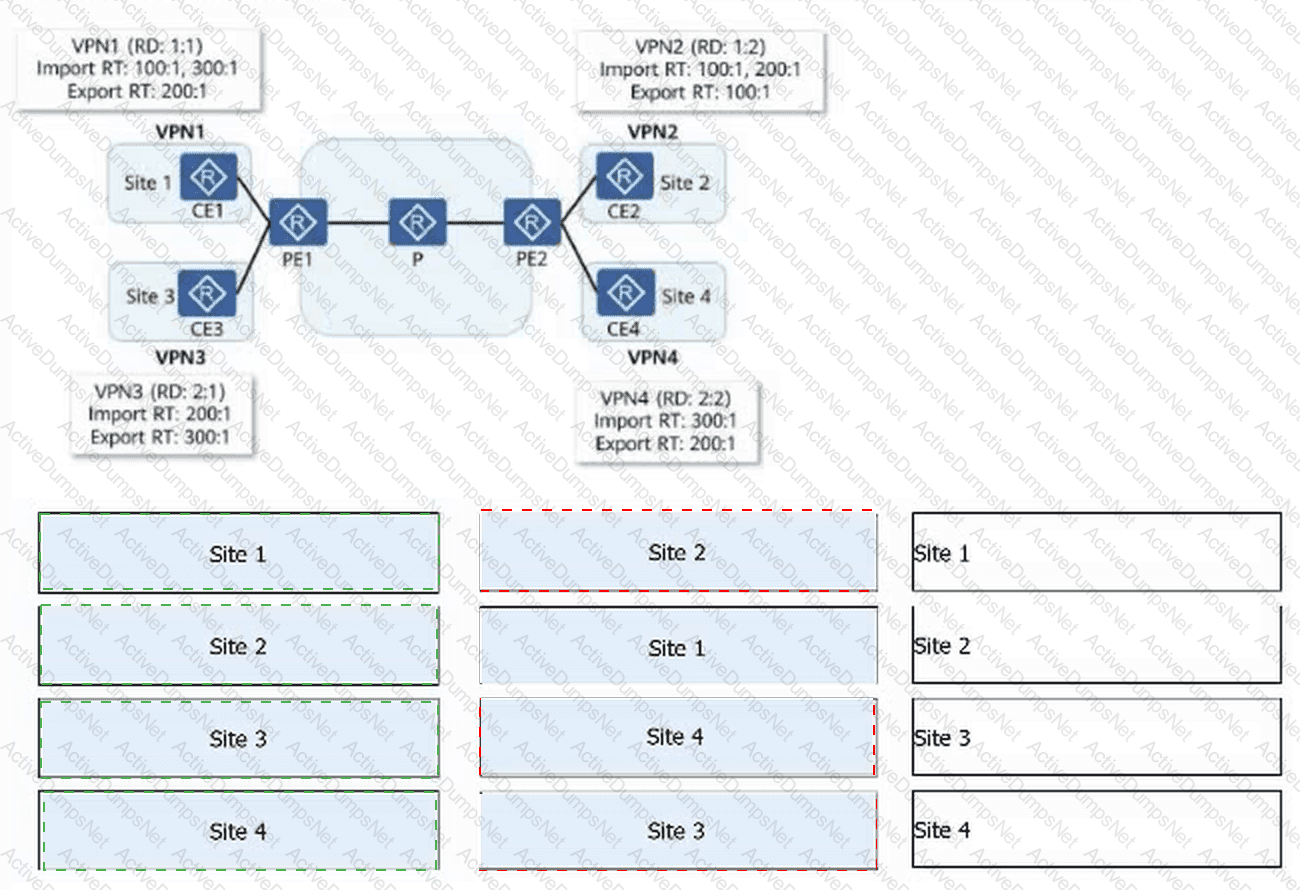

In BGP/MPLS IP VPN networks, communication between VPN sites depends on matching Route Target attributes.

A VPN instance imports a route when the advertised Export RT matches its configured Import RT. For bidirectional connectivity, the RT relationship must permit routing information in both directions.

VPN1 exports RT 200:1, which VPN2 imports. VPN2 exports RT 100:1, which VPN1 imports. Therefore, Site 1 and Site 2 can communicate.

VPN3 exports RT 300:1, which VPN4 imports. VPN4 exports RT 200:1, which VPN3 imports. Therefore, Site 3 and Site 4 can communicate.

Verification note: The exhibit also permits bidirectional communication between Site 1 and Site 3. Therefore, the drag-and-drop is not uniquely determined if only one match per site is permitted. The mapping above is valid, but it is not the only valid mapping.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Training Material.pdf

================

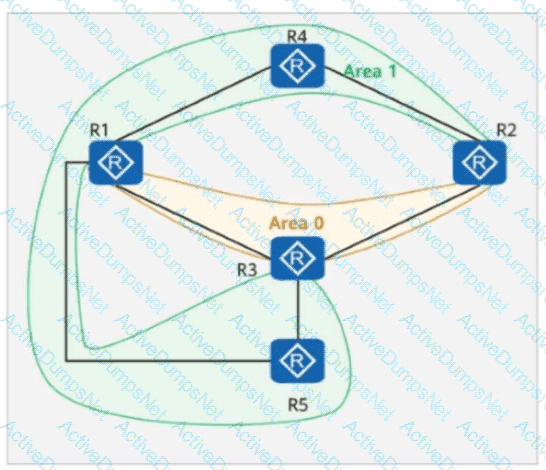

???? Topology Key Points:

Area 1 is an NSSA (Not-So-Stubby Area).

R4 is injecting an external route: 10.0.4.4/32.

The command asbr-summary 10.0.4.0 255.255.255.0 is applied on R1 and R3, which are ABRs connected to the NSSA.

???? Behavior of asbr-summary in Huawei OSPF:

The asbr-summary command summarizes external routes from an ASBR into an area.

It causes the ABR to generate a summary LSA (Type-3) for the summary prefix instead of the more specific original routes.

As a result, routers in other areas receive only the summary (e.g., 10.0.4.0/24), not the original more-specific route (10.0.4.4/32).

???? What Happens in Each Router:

✅ R4 originates route 10.0.4.4/32 as an NSSA Type-7 LSA.

✅ R1, as an ABR, translates the Type-7 LSA to Type-5 and applies the asbr-summary, advertising 10.0.4.0/24 into Area 0.

✅ R3, another ABR, learns the summarized route and advertises 10.0.4.0/24 into Area 2.

✅ R3 will NOT contain 10.0.4.4/32, only the summarized 10.0.4.0/24.

✅ Final Answer: C. The routing table of R3 contains the route 10.0.4.0/24.

Official Huawei Extract:

" When a summary route is configured using the asbr-summary command, the ABR or ASBR advertises the summary route into other areas instead of advertising specific routes. This helps reduce the size of the LSDB and routing table in large-scale networks. "

— [Huawei HCIA-Datacom Certification Guide – OSPF Route Summarization & NSSA Behavior]

A BGP/MPLS IP VPN uses a Provider Edge (PE) router to connect customer networks to a service provider ' s MPLS backbone. Customer Edge (CE) routers exchange customer routing information with their directly connected PE routers.

Depending on the network design, PE-CE routing can use static routes, OSPF, IS-IS, or BGP. However, CE routers at different sites do not need to establish MP-BGP peer relationships with one another.

Instead, the PE routers establish MP-BGP sessions to exchange VPNv4 routes, Route Targets, next-hop information, and associated VPN labels.

MP-BGP provides the routing information necessary to transport customer prefixes between separate VPN sites. The P routers in the backbone provide label switching without maintaining individual customer VPN routing tables.

Consequently, MP-BGP sessions are required between appropriate PE routers, not between the remote CEs.

Therefore, the statement is FALSE.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Training Material.pdf

================

Comprehensive and Detailed In-Depth Explanation:

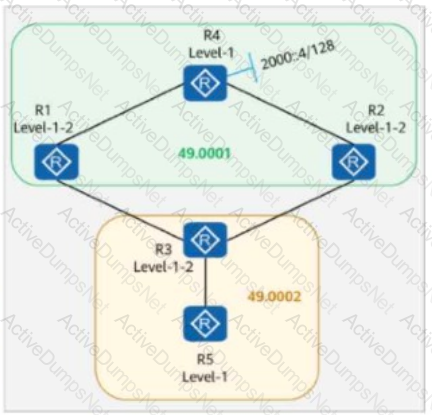

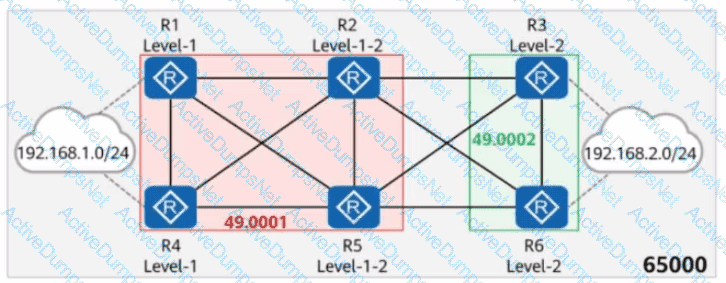

This question involves IS-IS, iBGP, and route reflection, but unlike Question 2, it does not mention the import-route isis level-2 into level-1 command. We’ll re-analyze each statement, considering the possibility of multiple correct answers, and ensure alignment with HCIP-Datacom principles.

A. The routing table of R4 contains two equal-cost default routes.

Analysis:

R4 is a Level-1/Level-2 router in area 49.0001. It can learn default routes from Level-2 routers (R2, R5) if they advertise them (e.g., via default-route-advertise).

The question does not specify default route advertisement or equal-cost paths. IS-IS prefers the closest Level-2 router, and the topology suggests a single path (e.g., via R2 or R5), not two equal-cost paths.

Without ECMP or specific configuration, R4 would not have two equal-cost default routes.

Conclusion: This statement is false.

B. The route 192.168.1.0/24 in the routing table of R3 has two next hops.

Analysis:

The route 192.168.1.0/24 is imported into BGP by R1 and R4 (in area 49.0001) and reflected by R2 and R5 to their iBGP clients, including R3 (in area 49.0002).

The next-hop for this route, as received via iBGP, would typically point to R1 or R4 unless next-hop-self is configured on R2 or R5.

R3, in area 49.0002 (Level-2), needs an IS-IS path to reach R1 or R4 (in area 49.0001). Without the import-route isis level-2 into level-1 command (not mentioned here), standard IS-IS behavior applies: Level-2 routers (R3) cannot directly learn Level-1 routes unless redistributed or via Level-2 connectivity.

R3 relies on IS-IS Level-2 routes via R2 or R5 to reach R1/R4. The question does not indicate multiple equal-cost IS-IS paths from R3 to R1 and R4 (e.g., via both R2 and R5 with the same cost).

Without ECMP or equal-cost paths, R3 would use a single next hop to reach 192.168.1.0/24.

However, if R2 and R5 both reflect the route with the same cost to R1 and R4, and IS-IS provides equal-cost paths to both next-hops, R3 could have two next hops if ECMP is enabled.

The topology and lack of cost details suggest this is unlikely without explicit configuration, making this statement false in standard scenarios.

Conclusion: This statement is false, as there’s no clear evidence of ECMP or equal-cost paths.

C. The routing table of R1 does not contain the route 192.168.2.0/24.

Analysis:

The route 192.168.2.0/24 is imported into BGP by R3 and R6 (in area 49.0002) and reflected by R2 and R5 to their iBGP clients, including R1 (in area 49.0001).

iBGP ensures the route is propagated within AS 65000, so R1, as an iBGP client, will receive 192.168.2.0/24.

R1, in area 49.0001 (Level-1/Level-2), needs an IS-IS path to the next-hop (R3 or R6). Without the import-route isis level-2 into level-1 command, standard IS-IS behavior applies: Level-1 routers (R1) cannot learn Level-2 routes (to R3, R6) unless redistributed or via Level-2 connectivity through R2 or R5.

Since R2 and R5 are Level-2 routers connecting the areas, R1 can learn IS-IS routes to R3 and R6 via Level-2, allowing it to resolve the next-hop and install 192.168.2.0/24 in its routing table.

Therefore, R1’s routing table contains 192.168.2.0/24, making this statement false.

Conclusion: This statement is false.

D. For 192.168.1.0/24, R3 preferentially selects the BGP route received from R2, and R6 preferentially selects the BGP route received from R5.

Analysis:

The route 192.168.1.0/24 is imported into BGP by R1 and R4 (in area 49.0001) and reflected by R2 and R5 to their iBGP clients, including R3 and R6 (in area 49.0002).

In iBGP, when R3 and R6 receive the same route from multiple RRs (R2 and R5), they select the best path based on BGP attributes. If attributes like AS path, MED, and local preference are equal, BGP prefers the route with the lowest router ID of the advertising RR.

The router IDs are 10.0.0.2 for R2 and 10.0.0.5 for R5. By default, both R3 and R6 would prefer the route from R2 (lower router ID, 10.0.0.2 < 10.0.0.5).

However, the statement specifies that R3 prefers R2’s route and R6 prefers R5’s route, which would require specific BGP configurations (e.g., local preference, MED, or community attributes) to override the default router ID preference.

The question does not mention such configurations, but the statement’s wording suggests an implied or configured scenario common in HCIP-Datacom exams.

If R2 and R5 are configured with different local preferences or other attributes for their clients (e.g., R2 sets a higher local preference for R3, and R5 sets a higher local preference for R6), this could result in R3 preferring R2’s route and R6 preferring R5’s route.

Given the exam context and the possibility of multiple correct answers, D is true if we interpret the statement as reflecting a configured scenario where R3 and R6 have been set up to prefer routes from R2 and R5, respectively, for 192.168.1.0/24. This aligns with typical HCIP-Datacom questions testing BGP path selection policies.

Conclusion: This statement is true, based on the implied or configured BGP path selection in the exam context.

Huawei VRP supports output filtering by appending a pipe and a filtering action to a display command. The include action retains output lines that match the specified regular expression. Therefore:

display current-configuration | include 10.0.2.*

displays the lines in the current configuration that match the 10.0.2.* expression. Any configuration line containing the text 10.0.2 satisfies the intended match, and the trailing .* allows zero or more following characters. This makes the statement true in the context of Huawei’s command-output filtering behavior.

Strictly speaking, the period is a regular-expression metacharacter representing any single character. Consequently, the expression may also match strings in which another character appears where a literal period was intended. If an administrator requires an exact literal IPv4-style match, the periods should be escaped according to the VRP regular-expression syntax. That precision does not alter the exam answer: the supplied command can display all matching current-configuration lines containing 10.0.2.

Huawei’s documentation confirms that | include regular-expression filters display-command output and shows display current-configuration | include ... as the standard usage pattern. Huawei CLI output filtering

Comprehensive and Detailed In-Depth Explanation:

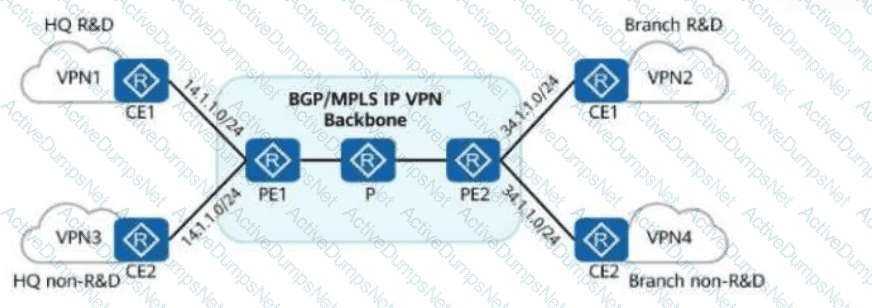

To verify the correct answers, let ' s analyze how BGP/MPLS IP VPN is used for secure communication and isolation in an enterprise network.

1. Understanding BGP/MPLS IP VPN Concepts

MPLS VPN (Multiprotocol Label Switching Virtual Private Network) is used to:

Allow communication between specific sites by using Route Targets (RTs).

Ensure isolation of specific areas (e.g., R & D vs. non-R & D) by controlling RT import/export policies.

Utilize Route Distinguisher (RD) to make overlapping IP addresses unique within the VPN.

2. Analyzing the Answer Choices

✅ A. " To enable communication between the headquarters and branch R & D areas, both the ERT and IRT of VPN1 and VPN2 can be set to 100:100. " → TRUE

Explanation:

ERT (Export Route Target) and IRT (Import Route Target) define which VPNs share routing information.

If VPN1 (HQ R & D) and VPN2 (Branch R & D) use the same RT (100:100), they will exchange routes, enabling communication.

Correct configuration:

VPN1: ERT 100:100, IRT 100:100

VPN2: ERT 100:100, IRT 100:100

✅ This is correct and enables communication between HQ and branch R & D areas.

❌ B. " To implement communication between the headquarters and branch R & D areas, the RDs of VPN1 and VPN2 need to be set to the same value. " → FALSE

Explanation:

RD (Route Distinguisher) is only used to make overlapping IP addresses unique within the MPLS VPN.

RD does NOT control route exchange between VPNs (RTs control route exchange).

VPN1 and VPN2 can have different RDs but still communicate if they share the same RT (100:100).

✅ RDs do NOT need to be the same for VPNs to communicate.

❌ This statement is false.

❌ C. " R & D areas and non-R & D areas have overlapping address spaces. Therefore, services in the two areas cannot be isolated. " → FALSE

Explanation:

Overlapping address spaces are common in MPLS VPNs and can be isolated using unique Route Targets (RTs).

As long as VPNs have different RTs, their traffic remains isolated.

For example:

VPN1 (R & D): RT 100:100

VPN3 (non-R & D): RT 200:200

Even with overlapping IPs, R & D and non-R & D areas are completely isolated.

❌ This statement is false.

✅ D. " To isolate R & D areas from non-R & D areas at the headquarters, the RTs of VPN1 can all be set to 100:100 and the RTs of VPN3 can all be set to 200:200. " → TRUE

Explanation:

Setting different RTs for R & D (100:100) and non-R & D (200:200) ensures complete isolation.

Correct configuration:

VPN1 (R & D): RT 100:100

VPN3 (non-R & D): RT 200:200

Since VPN1 and VPN3 do NOT share the same RTs, their routes remain separate.

✅ This ensures isolation between R & D and non-R & D areas.

Comprehensive and Detailed In-Depth Explanation:

To verify the correct answer, we need to analyze Bidirectional Forwarding Detection (BFD) behavior and the provided configuration.

1. Understanding BFD Configuration Parameters

BFD (Bidirectional Forwarding Detection) is a protocol used for fast failure detection between directly connected devices.

Key Configuration Parameters in BFD:

Peer IP (bind peer-ip)

This specifies the destination router’s IP address for the BFD session.

✅ Correctly configured on both R1 and R2.

Discriminator Local/Remote (discriminator local X / remote Y)

These values must match between the two routers.

✅ Correctly configured (R1: local 1, remote 2; R2: local 2, remote 1).

Min-TX Interval (min-tx-interval)

Defines the minimum transmit interval for BFD packets.

❌ Missing from R2’s configuration (could be a cause for mismatch).

Min-RX Interval (min-rx-interval)

Defines the minimum receive interval for BFD packets.

❌ Missing from R2’s configuration (could be a cause for mismatch).

2. Analyzing the Configuration on R1 and R2

✅ Configuration on R1 (Correct)

shell

CopyEdit

bfd tor2 bind peer-ip 10.0.12.2

discriminator local 1

discriminator remote 2

min-tx-interval 1500

min-rx-interval 1500

This configuration is correct.

❌ Configuration on R2 (Incomplete)

shell

CopyEdit

bfd tor1 bind peer-ip 10.0.12.1

discriminator local 2

discriminator remote 1

Missing min-tx-interval and min-rx-interval.

3. Why the Answer is FALSE?

A BFD session does NOT go down due to mismatched timing parameters.

BFD dynamically negotiates timing values, meaning even if R2 is missing min-tx/min-rx values, the session should still establish.

However, the session will fail if the peer IP or discriminator values are incorrect (which they are NOT in this case).

The actual cause of failure in this case is likely the missing min-tx and min-rx settings on R2, NOT a mismatch between R1 and R2.

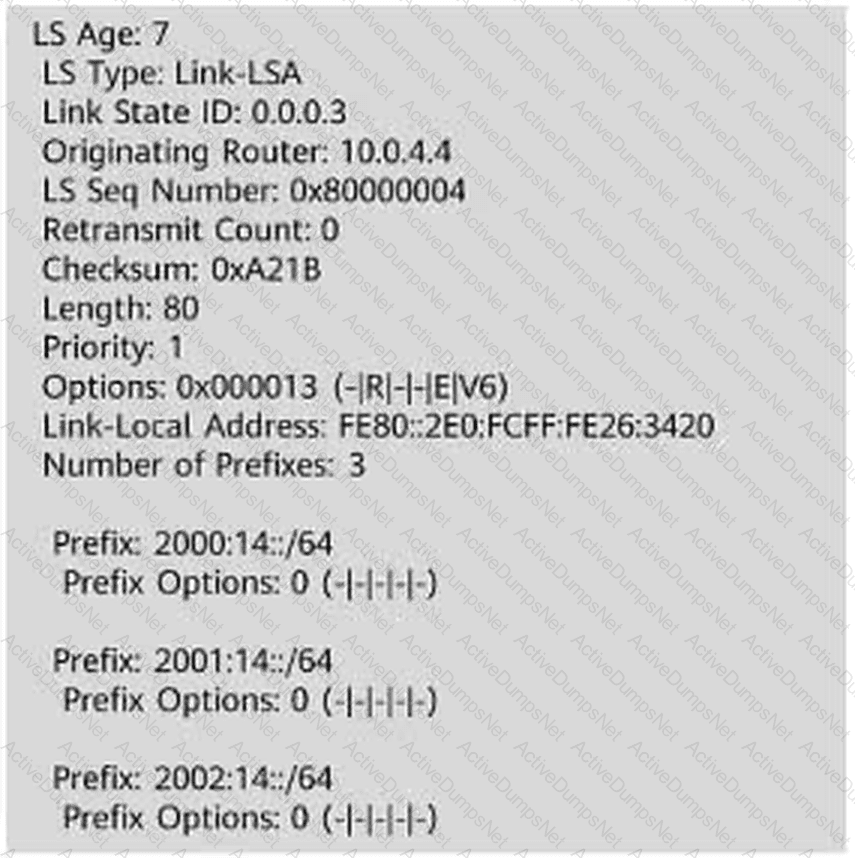

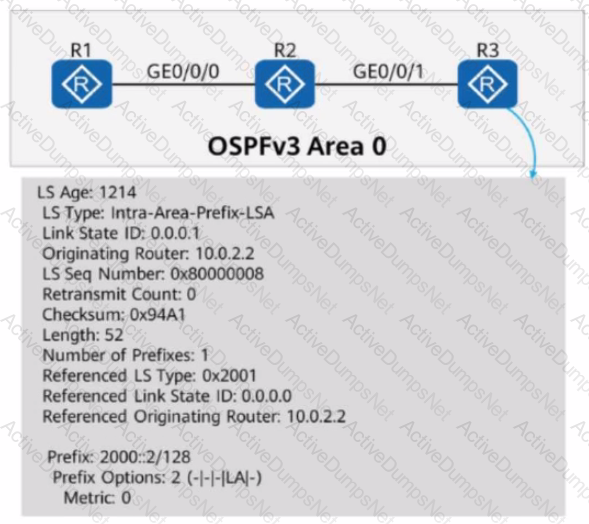

OSPFv3 introduces Link-LSAs to advertise link-local addresses, IPv6 prefixes, and relevant interface options to routers connected to the same link.

Unlike Router-LSAs and Network-LSAs, a Link-LSA provides IPv6 addressing information associated with a particular interface.

In the displayed Link-LSA, the field Number of Prefixes has a value of 3. Three IPv6 prefix entries are listed: 2000:14::/64, 2001:14::/64, and 2002:14::/64.

The exhibit also includes a link-local IPv6 address beginning with FE80::. This address belongs to the link-local address space and must not be counted as a global unicast prefix.

Therefore, the intended examination interpretation is that the interface has three global unicast address prefixes.

Strictly, an LSA ' s prefix count does not independently prove the precise number of individual interface addresses, but among the provided options, D is the intended answer.

Step 1: Understanding OSPF Areas and Summarization

Area 1 (NSSA - Not So Stubby Area)

Allows external routes but converts Type-5 LSAs into Type-7 LSAs.

External routes must be translated by an ABR into Type-5 LSAs before being propagated into other areas.

Area 2 (Common Area - Regular OSPF Area)

Supports both inter-area and external routes.

asbr-summary 10.0.4.0 255.255.255.0 Command

This command summarizes all external routes within 10.0.4.0/24 into a single summarized route.

Since it is applied on R1 and R3, these routers will advertise 10.0.4.0/24 instead of 10.0.4.4/32 to their respective areas.

Step 2: Route Distribution Analysis

R4 (Originating Router in NSSA - Area 1)

R4 injects 10.0.4.4/32 as a Type-7 LSA into Area 1.

R1 (ABR between Area 1 & Area 0, Summarizing Route)

Since R1 is an ABR, it translates Type-7 LSAs from Area 1 into a summarized Type-5 LSA (10.0.4.0/24) for Area 0.

✅ R1 has 10.0.4.0/24 in its routing table.

R2 (Inside Backbone Area 0, No ASBR Summary Applied Here)

R2 only receives Type-5 LSAs from R1 but does not summarize them.

Since R2 is not explicitly summarizing, it will likely still see 10.0.4.4/32 rather than 10.0.4.0/24.

❌ R2 does not have 10.0.4.0/24.

R3 (ABR between Area 0 & Area 2, Summarizing Route)

R3 is also an ABR and has the asbr-summary 10.0.4.0/24 command configured.

It will advertise the summarized route 10.0.4.0/24 into Area 2.

✅ R3 has 10.0.4.0/24 in its routing table.

R5 (Inside Area 2, No Direct Connectivity to External Routes)

Since R3 summarizes 10.0.4.0/24, R5 (inside Area 2) will receive only summarized routes.

✅ R5 has 10.0.4.0/24.

Final Answer: ✅ R1, R3 (Option A, C)

Comprehensive and Detailed In-Depth Explanation:

This question is based on MPLS (Multiprotocol Label Switching) and its interaction with routing protocols. The goal is to ensure PC1 (10.1.1.1) can communicate with PC2 (10.3.3.1) over MPLS. Let ' s analyze each option carefully.

1️⃣ Understanding MPLS Routing Requirements

To forward traffic using MPLS and LDP, we need:

An IGP (Interior Gateway Protocol) like OSPF or IS-IS to advertise network reachability.

Loopback interfaces advertised in OSPF to establish LDP neighbor relationships.

Consistent MPLS LDP enablement on all links in the MPLS domain.

End-to-end IP reachability between loopbacks (since LDP uses the loopback for label distribution).

2️⃣ Option A (Correct Answer) Analysis

This configuration enables OSPF on all routers (R1, R2, and R3) across the MPLS domain:

✅ All networks are advertised in OSPF area 0, ensuring IP reachability.

✅ Loopback interfaces (1.1.1.1, 2.2.2.2, 3.3.3.3) are included, which is required for MPLS LDP peer establishment.

✅ PC1 ' s network (10.1.1.0/24) and PC2 ' s network (10.3.3.0/24) are properly advertised, ensuring end-to-end connectivity.

✅ R1, R2, and R3 have OSPF neighbor relationships, meaning LDP can use OSPF routes for label switching.

???? Conclusion: Option A meets all MPLS forwarding requirements and is the correct answer.

3️⃣ Why Other Options Are Incorrect

???? Option B (Incorrect)

Uses BGP instead of OSPF, which is not optimal for MPLS forwarding in a simple MPLS domain.

LDP requires an IGP like OSPF or IS-IS to work efficiently.

BGP alone does not establish LDP label bindings between R1, R2, and R3.

???? Option C (Incorrect)

Mixes OSPF and BGP, causing routing inconsistency.

Uses ip ip-prefix and recursive lookup, which is unnecessary in a standard MPLS domain.

BGP does not distribute labels dynamically like an IGP with LDP.

???? Option D (Incorrect)

R1 does not advertise the 10.1.1.0/24 network, meaning PC1’s network is not reachable.

R3 does not advertise the 10.3.3.0/24 network, meaning PC2’s network is not reachable.

Missing essential routing entries for full end-to-end reachability.

Comprehensive and Detailed In-Depth Explanation:

Step 1: Understanding OSPF Areas and Summarization

Loopback0 on R5 has IP 10.0.5.5/32 and is advertised into OSPF.

The abr-summary 10.0.5.0 255.255.255.0 command is applied in area 2 on R1, which means:

Instead of advertising individual host routes (like 10.0.5.5/32), R1 advertises the summarized route 10.0.5.0/24 into Area 0 (Backbone).

This summarized route is then propagated into other areas via Area 0 (Backbone).

Step 2: Analyzing the Routing Table of Each Router

R5 (Originating Router in Area 2)

R5 only knows 10.0.5.5/32 because it ' s the originating router.

The abr-summary command does not affect R5 itself.

❌ R5 does not have 10.0.5.0/24.

R1 (ABR for Area 2, Summarizing the Route)

R1 creates and advertises 10.0.5.0/24 into Area 0.

This summary route is sent to other areas via Area 0.

R2 (Connected to Area 0 & Area 1)

Since R2 is part of Area 0 (Backbone), it receives 10.0.5.0/24 from R1.

✅ R2 has 10.0.5.0/24 in its routing table.

R3 (Connected to Area 0 & Area 2)

Since R3 is also connected to Area 0, it receives the summary route 10.0.5.0/24 from R1.

✅ R3 has 10.0.5.0/24 in its routing table.

R4 (In Area 1, which is not directly connected to Area 2)

R4 belongs to Area 1, and unless explicitly advertised through inter-area summarization, it will not have 10.0.5.0/24.

Since no specific mention of summary advertisement into Area 1 is made, R4 does not get 10.0.5.0/24.

❌ R4 does not have 10.0.5.0/24.

Final Answer: ✅ R2, R3 (Option B, C)

Comprehensive and Detailed In-Depth Explanation:

OSPFv3 (for IPv6) packets are directly encapsulated in IPv6 without using UDP or TCP.

The Next Header field in IPv6 is similar to the Protocol field in IPv4, indicating the protocol type of the payload.

IANA (Internet Assigned Numbers Authority) has assigned protocol number 89 to OSPF.

OSPFv3 packets always use Next Header value = 89 inside IPv6 headers.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – OSPFv3 Packet Encapsulation

Comprehensive and Detailed In-Depth Explanation:

1. Understanding Site of Origin (SoO) in MPLS VPNs

SoO (Site of Origin) is used in MPLS VPNs to prevent loops in multi-homed CE scenarios.

Routes with the same SoO value are not advertised back to the same site.

2. Analysis of Each Answer Choice

A. " To enable CE3 to receive the route, run the command peer 10.1.1.1 soo 200:1 on PE1. " (❌ False)

SoO is used to prevent loops by tagging routes that belong to the same site.

Applying SoO (200:1) on PE1 for CE1 means that any other PE (such as PE2) receiving the route will not advertise it back to the same site (CE1).

This statement is false because applying SoO here does not directly enable CE3 to receive the route. Instead, CE3 must accept routes with SoO values properly configured.

B. " If the commands peer 10.1.1.1 soo 200:1 and peer 10.1.2.1 soo 200:1 are run on PE1, CE2 accepts the route. " (❌ False)

SoO ensures that a route received from one CE is not sent back to another CE in the same site.

If SoO (200:1) is assigned to CE1 and CE2, routes will be blocked because they share the same SoO tag.

Thus, CE2 will not accept the route, making this statement false.

C. " If the command peer 10.1.3.1 substitute-as is run on PE2, CE3 accepts the route. " (✅ True)

substitute-as allows a router to replace the received AS number in the AS_PATH with another AS number, ensuring that routes are accepted even when AS_PATH filtering is in place.

This prevents CE3 from rejecting the route due to AS-Path loop prevention.

✅ Thus, this statement is true.

D. " If no additional action is taken, CE3 discards the route. " (✅ True)

By default, CE3 will discard the route because of BGP loop prevention (same AS in the AS_PATH).

To allow CE3 to receive the route, the allowas-in or substitute-as command must be configured on PE2.

✅ Thus, this statement is true.

3. Evaluating the Answer Choices

Option

Correct?

Reasoning

A

❌ False

Applying SoO does not directly enable CE3 to receive the route.

B

❌ False

If both CE1 and CE2 have the same SoO value, CE2 will reject the route.

C

✅ True

Substitute-AS allows CE3 to accept the route by modifying the AS-Path.

D

✅ True

Without additional configuration, CE3 will discard the route due to AS-Path loop prevention.

✅ Correct Answer: A and B are false.

Final Conclusion:

SoO prevents routing loops in MPLS VPN multi-homing.

CE2 will reject the route if it has the same SoO as CE1.

CE3 requires the substitute-as or allowas-in command to accept the route.

Thus, statements A and B are false.

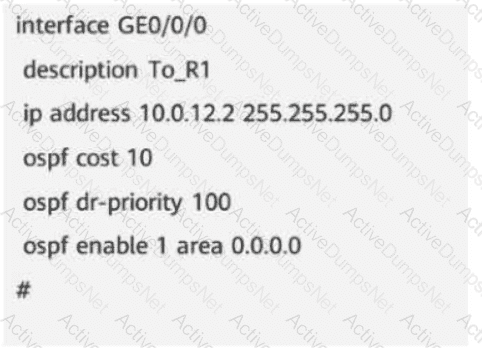

Comprehensive and Detailed In-Depth Explanation:

To determine the correct answer, we need to analyze how each command impacts OSPF neighbor relationships.

1. Understanding OSPF Neighbor Formation

OSPF routers form neighbor relationships when they meet the following conditions:

They are in the same subnet (IP addresses and subnet masks must match).

They are in the same OSPF area.

They use the same network type (e.g., Broadcast, Point-to-Point).

Authentication (if configured) must match.

Hello and Dead timers must match.

2. Analyzing Each Answer Option

❌ A. " undo ip address 10.0.12.2 24 " → Affects OSPF Neighbor Status

Removing the IP address will prevent the interface from sending and receiving OSPF Hello packets.

Without an IP address, OSPF cannot establish neighbor relationships.

Effect: Breaks OSPF neighbor status.

✅ B. " undo description " → Does NOT Affect OSPF Neighbor Status

The interface description is just a label for administrators and has no impact on OSPF functionality.

It does not affect neighbor relationships, routing, or communication.

Effect: No impact on OSPF neighbors.

❌ C. " undo ospf cost " → Affects OSPF Neighbor Status Indirectly

OSPF cost determines the path selection but does NOT break the neighbor relationship.

However, if the cost change leads to routing table recalculations, it might cause temporary convergence issues.

Effect: Does not directly break neighbor status, but affects route selection.

❌ D. " undo ospf dr-priority " → Affects OSPF Neighbor Status (Possibly Causes DR Re-Election)

OSPF DR/BDR election uses priority values.

If changed, a new election might occur, leading to a temporary loss of neighbor relationships.

Effect: Might cause OSPF neighbor reset (temporary impact on adjacency).

Comprehensive and Detailed In-Depth Explanation:

Understanding the BGP Network Topology in the Question:

EBGP Peering & Route Distribution

Each router forms EBGP peer relationships with directly connected neighbors.

BGP learns and propagates routes via EBGP neighbors.

R1 and R4 advertise the static route 192.168.1.0/24 into BGP.

Effect of the aggregate 192.168.1.0/16 detail-suppressed Command on R2

R2 performs BGP route aggregation, summarizing 192.168.1.0/24 into a larger 192.168.1.0/16 route.

The detail-suppressed option hides the more specific 192.168.1.0/24 prefix when advertising routes.

As a result, R2 does not advertise the specific 192.168.1.0/24 route to its neighbors.

Route Selection and Traffic Flow Analysis:

R1 and R4 originate 192.168.1.0/24 and advertise it via BGP.

R2 does not advertise the 192.168.1.0/24 route because of the detail-suppressed command.

R3 cannot learn the specific route from R2, so it must choose an alternative path via R5.

R5 learns 192.168.1.0/24 from R1 and advertises it to R3.

Thus, the best available path for R3 to reach 192.168.1.0/24 is R3 → R5 → R1.

✅ Correct Path: R3 → R5 → R1

Checking Each Option:

✅ Option A: R3 → R5 → R1 (Correct)

R3 learns 192.168.1.0/24 from R5, and R5 forwards traffic to R1, which has the static route.

❌ Option B: R3 → R2 → R1 (Incorrect)

R2 does not advertise 192.168.1.0/24 due to route summarization (detail-suppressed), so R3 cannot use R2 as the next hop.

❌ Option C: R3 → R6 → R5 → R1 (Incorrect)

This is an unnecessary detour.

R3 has a direct EBGP connection with R5, so it will use the shortest path (R3 → R5 → R1) instead of going through R6.

❌ Option D: R3 → R5 → R4 (Incorrect)

R3 prefers the shortest AS path to reach 192.168.1.0/24.

Since R1 and R4 both advertise the route, R3 will prefer the route via R5 to R1 rather than R4.

Final Conclusion:

✅ A. The correct path for traffic from R3 to 192.168.1.0/24 is R3 → R5 → R1.

Thus, the correct answer is: A.

Comprehensive and Detailed In-Depth Explanation:

1. Understanding MPLS Label Stack and the S (Bottom of Stack) Bit

MPLS (Multiprotocol Label Switching) packets can have multiple labels stacked on top of each other.

Each label has the following fields:

Label (20 bits): Identifies the forwarding path.

EXP (3 bits): Used for QoS/priority marking.

TTL (8 bits): Time-to-live, similar to IP TTL.

S (1 bit): Bottom of Stack (BoS) indicator:

S = 0: This is not the last label in the stack.

S = 1: This is the last label in the stack, meaning the next header is the IP header.

2. Analyzing the MPLS Packet Structure in the Figure

The diagram shows three MPLS headers (labels).

The last MPLS header before the IP header must have S = 1, indicating the bottom of the stack.

All other MPLS headers above it must have S = 0, meaning they are part of the stacked labels.

3. Evaluating the Answer Choices

Option

S1

S2

S3

Correct?

Reasoning

A

3

2

1

❌ Incorrect

S field cannot have values greater than 1.

B

2

1

0

❌ Incorrect

S field must be 0 for non-bottom labels.

C

1

1

0

❌ Incorrect

There should be only one label with S = 1 (BoS).

D

0

0

1

✅ Correct

Only the last label should have S = 1.

✅ Correct Answer: D. S1 = 0, S2 = 0, S3 = 1

Final Conclusion:

Only the last MPLS label (closest to the IP header) should have S = 1.

All previous MPLS labels should have S = 0.

Thus, the correct answer is: D. S1 = 0, S2 = 0, S3 = 1

???? Key Concept:

IS-IS is a Layer 2 routing protocol and does not rely on IP addressing to establish neighbor relationships. Unlike OSPF, IS-IS runs directly over the data link layer (CLNS - ISO 8473) and uses MAC-level communication for neighbor discovery.

???? IPv6 Addresses in the Scenario:

R1 Interface:

2000:12::1/64

2000:21::1/64

R2 Interface:

2000:12::2/127

2000:21::2/127

Even if IP prefixes on the interfaces are mismatched, IS-IS adjacency can still be formed, because:

IS-IS does not use IP address matching for adjacency formation.

What matters is that the interfaces are on the same Layer 2 segment and IS-IS is enabled on both sides.

✅ Final Answer: B. FALSE

Official Huawei Extract:

" IS-IS operates at Layer 2 and establishes neighbor relationships regardless of IP address configuration. As long as IS-IS is enabled and interfaces are connected at Layer 2, a neighbor relationship can be established—even with different IP prefixes. "

— [Huawei HCIA-Datacom Certification Guide – IS-IS over IPv6 Chapter]

Comprehensive and Detailed In-Depth Explanation:

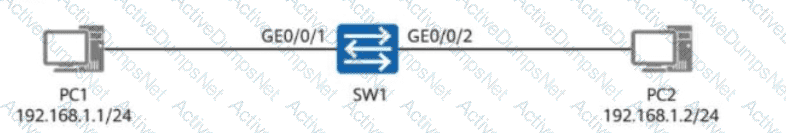

1. Understanding the Network Setup

PC1 (192.168.1.1/24) and PC2 (192.168.1.2/24) are connected to SW1.

Both PCs are in the same VLAN, meaning communication should work without routing.

If there is a communication failure, it could be due to physical, VLAN, ARP, or port security issues.

2. Evaluating Each Answer Option

Option A: " SW1’s GE0/0/2 is shut down. "

Correct.

If GE0/0/2 is shut down, PC2 cannot send or receive traffic, causing communication failure.

Even if PC1 is working, PC2 will be unreachable.

✅ A is a valid cause.

Option B: " The link of SW1’s GE0/0/1 is faulty. "

Correct.

If GE0/0/1 has a faulty link, PC1 cannot communicate with PC2, causing failure.

Even if PC2 is working, PC1 will be unreachable.

✅ B is a valid cause.

Option C: " Incorrect static ARP entries are configured on the hosts. "

Correct.

If static ARP entries are incorrectly configured, PCs will map the wrong MAC addresses to IPs.

This will result in packet delivery failures, even if the physical network is working.

✅ C is a valid cause.

Option D: " Port isolation is configured on SW1. "

Correct.

Port isolation (or private VLAN) prevents direct communication between specific ports.

If port isolation is enabled on GE0/0/1 and GE0/0/2, PC1 and PC2 will be unable to reach each other.

✅ D is a valid cause.

Final Answer:

✅ A, B, C, and D are correct.

HCIP-Datacom-Advanced Routing & Switching Technology References:

Troubleshooting VLAN and Layer 2 Communication Issues

Impact of Port Isolation and Private VLANs on Communication

Static ARP Entry Configuration and Its Effects on Network Connectivity

Comprehensive and Detailed In-Depth Explanation:

Understanding the LSA Table in the Figure

The LSDB (Link-State Database) of R4 displays an Intra-Area-Prefix-LSA for Area 0.0.0.1. The table contains:

Three LSAs originating from R4 (10.0.4.4)

Prefixes referencing both Router-LSAs and Network-LSAs

Different Sequence Numbers and Checksums, indicating multiple link-state changes

OSPFv3 LSA Types Relevant to the Question

Router-LSA (Type 1)

Generated by every router to describe its links within an area.

Network-LSA (Type 2)

Generated only by the Designated Router (DR) for multi-access networks (such as Ethernet).

Advertises all routers connected to the same segment.

Intra-Area-Prefix-LSA (Type 9)

Advertises IPv6 prefixes associated with a Router-LSA (Type 1) or Network-LSA (Type 2).

Analysis of Each Statement

A. The three LSAs belong to area 1. ✅ (True)

The table explicitly shows " Intra-Area-Prefix-LSA (Area 0.0.0.1) " , meaning all LSAs are for Area 1.

The Link State IDs also indicate intra-area advertisements.

✅ Statement A is correct.

B. Area 1 is a stub area. ❌ (False)

There is no indication that Area 1 is a stub area.

Stub areas do not receive Type 5 (External) LSAs, and the LSDB does not show Type 3 (Inter-Area) LSAs either.

Network-LSAs (Type 2) are not typically seen in stub areas unless explicitly configured.

❌ Statement B is incorrect.

C. No OSPFv3 neighbor relationship is established on at least one link of R4. ✅ (True)

One LSA references a Router-LSA, while two reference Network-LSAs.

A Router-LSA alone suggests that R4 has at least one point-to-point or unnumbered link with no OSPFv3 adjacency.

This means R4 has an interface with no neighbor (e.g., a passive interface or down link).

✅ Statement C is correct.

D. R4 is the DR on a link. ✅ (True)

The presence of Network-LSAs (Type 2) indicates that a multi-access link exists.

Since R4 is the origin of the Network-LSA, it must be the DR (Designated Router) for that link.

✅ Statement D is correct.

Final Conclusion:

✅ A. The three LSAs belong to area 1. (True)

❌ B. Area 1 is a stub area. (False)

✅ C. No OSPFv3 neighbor relationship is established on at least one link of R4. (True)

✅ D. R4 is the DR on a link. (True)

Thus, the correct answers are: A, C, D.

In BGP/MPLS IP VPN networks:

✅ A. True – The Route Distinguisher (RD) is used to differentiate overlapping IPv4 addresses in different VPNs. It is prepended to the IPv4 address to create a VPNv4 address.

✅ C. True – A VPNv4 address is 96 bits long:

64-bit RD

32-bit IPv4 address

❌ B is false – The RT (Route Target) does determine which VPN instance a route belongs to. So B is an incorrect statement.

❌ D is false – A route can have multiple RTs, allowing flexible import/export control.

✅ Official Reference from Huawei:

" A VPNv4 address consists of a 64-bit RD and a 32-bit IPv4 address. The RD makes addresses globally unique. RTs are extended BGP communities used for route import/export. A VPNv4 route may carry multiple RTs. "

— [Huawei HCIA-Datacom Guide – MPLS VPN Chapter]

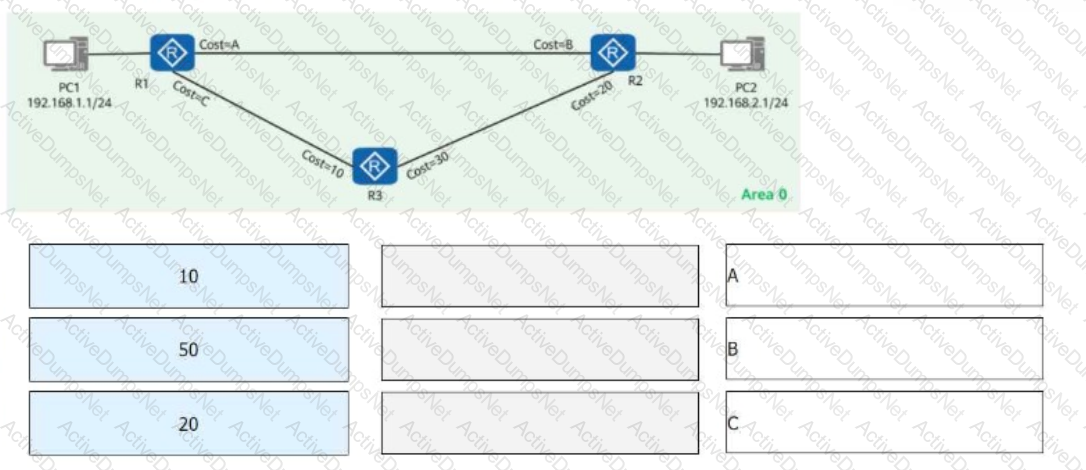

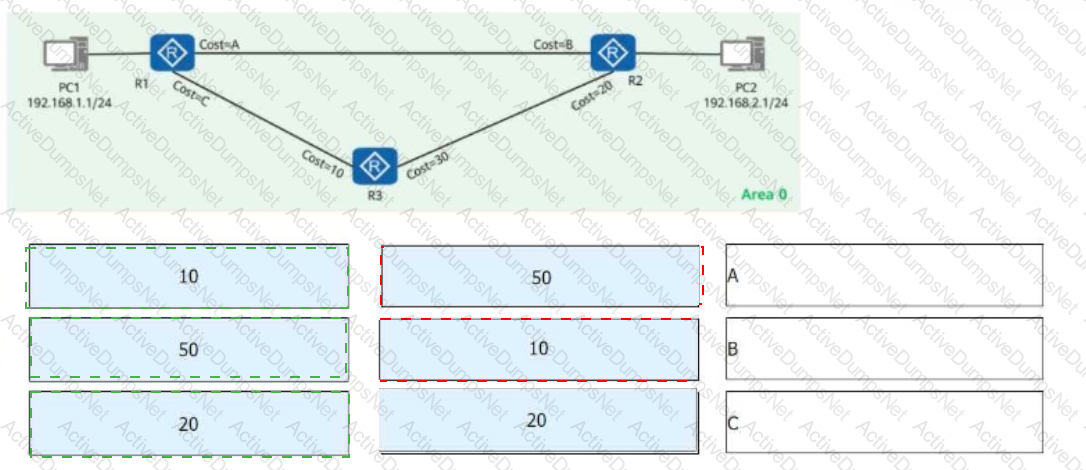

A = 50

B = 10

C = 20

Comprehensive and Detailed In-Depth Explanation:

Understanding OSPF Path Selection and Cost Calculation:

OSPF selects the shortest path (lowest cost) to the destination.

The OSPF cost is determined by the cumulative sum of interface costs along a path.

By assigning specific costs to A, B, and C, we can influence OSPF’s path selection to meet the desired routing behavior.

Step-by-Step Analysis of Required Traffic Flow:

1. Traffic from PC1 to PC2 must take the route:

PC1 - > R1 - > R3 - > R2 - > PC2

To force traffic through R3, the cost of the direct link R1 - > R2 (Cost-A) must be higher than the alternative path via R3.

We assign Cost-A = 50 (high cost) to discourage direct routing from R1 - > R2.

The cost of R1 - > R3 (Cost-C) should be lower, so we assign Cost-C = 20.

The cost of R3 - > R2 (default Cost-20) remains unchanged.

Total cost via R3: 20 (R1- > R3) + 20 (R3- > R2) = 40, which is less than the direct link of 50, so OSPF prefers this path.

✅ Traffic follows: PC1 - > R1 - > R3 - > R2 - > PC2

2. Traffic from PC2 to PC1 must take the route:

PC2 - > R2 - > R1 - > PC1

We need to make R2 - > R1 (Cost-B) the best (lowest cost) route for return traffic.

Assign Cost-B = 10 (low cost).

This ensures that R2 prefers the direct path R2 - > R1 instead of R2 - > R3 - > R1 (which costs 20+20=40).

✅ Traffic follows: PC2 - > R2 - > R1 - > PC1

Final Cost Assignments for Correct Routing Behavior:

Cost

Assigned Value

Reason

Cost-A (R1 - > R2)

50

High to discourage direct R1- > R2 routing

Cost-B (R2 - > R1)

10

Low to ensure PC2- > PC1 prefers direct R2- > R1

Cost-C (R1 - > R3)

20

Medium to encourage R1- > R3- > R2 path

Key Takeaways:

Higher OSPF cost discourages path selection.

Lower OSPF cost encourages path selection.

By manipulating OSPF cost values, we achieve asymmetric routing between PC1 and PC2.

This aligns with OSPF path selection principles covered in HCIP-Datacom certification.

HCIP-Datacom-Advanced Routing & Switching Technology References:

Huawei HCIP-Datacom Official Certification Guide, Chapter on OSPF Cost Calculation and Path Selection.

Huawei Enterprise Networking Training Materials, OSPF Path Optimization Techniques.

Huawei Datacom Configuration Guide, OSPF Cost and Traffic Engineering.

Comprehensive and Detailed In-Depth Explanation:

Enterprise networks follow a hierarchical model:✅ Access Layer: Connects end-user devices and enforces security policies.✅ Aggregation Layer: Provides traffic aggregation and policy control.✅ Core Layer: Provides high-speed backbone connectivity.

Any migration that impacts live services must be carefully planned at any layer.

Network engineers must develop a migration solution to avoid service disruptions, regardless of whether the changes are at the access, aggregation, or core layer.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – Network Migration Strategy

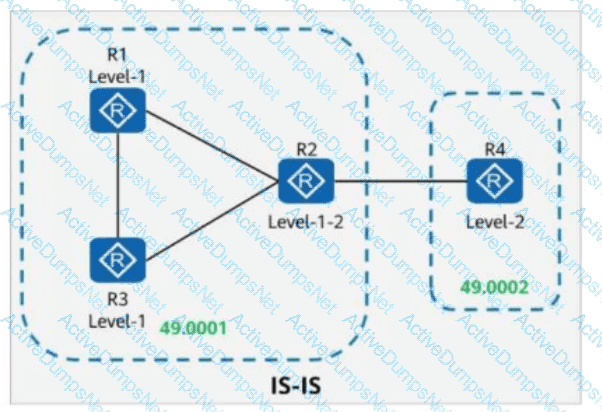

Comprehensive and Detailed In-Depth Explanation:

Understanding the IS-IS Network Structure in the Question:

Router Roles & IS-IS Levels:

R1 and R3: Level-1 routers.

R2: Level-1-2 router (interconnects Level-1 and Level-2 areas).

R4: Level-2 router.

Key Command Used: default-route-advertise always level-1

This command forces R1 to advertise a default route (0.0.0.0/0) to all Level-1 routers.

In an IS-IS network:

Level-1 routers do not see Level-2 routes unless a default route is provided.

The default route is propagated only within the Level-1 area and does not affect Level-2 routers unless explicitly redistributed.

Route Distribution Analysis:

R1 (Level-1) imports the default route and advertises it to all Level-1 routers.✅ R1 has the default route.

R3 (Level-1) is in the same Level-1 area as R1, so it receives the default route from R1.✅ R3 has the default route.

R2 (Level-1-2) connects Level-1 and Level-2. Since it participates in Level-1, it also learns the default route from R1.✅ R2 has the default route.

R4 (Level-2) is not in Level-1 and does not receive the default route unless it is explicitly redistributed from Level-1 to Level-2, which is not stated in the question.❌ R4 does NOT have the default route.

Final Conclusion:

R1, R2, and R3 have the default route.

R4 does not have the default route.

Thus, the correct answer is:

✅ R1, R2, and R3 have the default route in their routing tables.

Comprehensive and Detailed In-Depth Explanation:

To determine the correct answers, we need to analyze OSPFv3 behavior and Inter-Area-Prefix LSAs (Type 3 LSAs).

1. Understanding OSPFv3 Inter-Area-Prefix LSAs (Type 3 LSAs)

Type 3 LSAs (Inter-Area-Prefix LSAs) are generated by an ABR (Area Border Router) to advertise networks between areas.

If a router in one area learns a prefix from another area, it generates a Type 3 LSA to advertise it further.

Stub areas (Area 1) do not allow external LSAs, including Type 3 LSAs for external routes.

NSSA areas (Area 3) accept external routes but redistribute them as Type 7 LSAs before being converted to Type 5 LSAs by an NSSA ABR.

2. Analyzing Each Answer Option:

✅ A. " The Inter-Area-Prefix-LSA that is generated by R1 and describes 2000::6/128 exists in Area 0. " → TRUE

R6 has 2000::6/128 in Area 2.

R2 is the ABR that brings this prefix into Area 0 as a Type 3 LSA.

R1, being in Area 0, learns this LSA from R2.

Thus, this statement is correct.

❌ B. " The Inter-Area-Prefix-LSA that is generated by R1 and describes 2000::6/128 exists in Area 3. " → FALSE

R1 is not an ABR for Area 3, so it does not generate an LSA for 2000::6/128 in Area 3.

Instead, R3 (the ABR between Area 0 and Area 3) would be responsible for propagating routes.

This statement is false.

❌ C. " The Inter-Area-Prefix-LSA that is generated by R2 and describes 2000::6/128 exists in Area 1. " → FALSE

Area 1 is a stub area and does not accept external LSAs (including Type 3 LSAs from other areas).

R2 cannot generate and send a Type 3 LSA for 2000::6/128 into Area 1.

This statement is false.

✅ D. " The Inter-Area-Prefix-LSA that is generated by R3 and describes 2000::6/128 exists in Area 2. " → TRUE

R3 is an ABR and learns 2000::6/128 from R2 (which originally learned it from R6 in Area 2).

Since Area 2 is a normal (non-stub, non-NSSA) area, Type 3 LSAs are allowed.

R3 generates and advertises this Inter-Area-Prefix-LSA for 2000::6/128 into Area 2.

Thus, this statement is correct.

Comprehensive and Detailed In-Depth Explanation:

To analyze the correct answer, we need to break down the topology and protocol behaviors step by step:

Understanding the IS-IS and OSPFv3 Network Setup:

IS-IS IPv6 is running between R2, R6, and R3.

OSPFv3 is running on other links.

Area 1 is a stub area, which means it does not accept external routes but can have a default route (::/0).

Area 2 is an NSSA (Not-So-Stubby Area), meaning it allows external routes as NSSA external LSAs.

Analysis of Each Answer Option:

A. " The routing table of R6 contains the route ::/0. " → FALSE

R6 only participates in IS-IS (Level-1) and does not receive a default route (::/0) from Level-2 routers.

Since R6 is in IS-IS Level-1 and does not have a connection to a Level-2 router that provides a default route, it will not have a ::/0 route in its routing table.

OSPFv3 operates over IPv6 and uses the IPv6 header directly. It can transmit packets in the following modes:

Multicast: Uses standard multicast addresses such as:

FF02::5 (All OSPF routers)

FF02::6 (All DR/BDR routers)

Unicast: Used for point-to-point neighbor communication when required.

Broadcast: On broadcast-capable networks, such as Ethernet.

✅ Official Reference from Huawei:

" OSPFv3 runs directly on top of IPv6 and uses the IPv6 header for transport. It supports unicast, multicast, and broadcast modes, similar to OSPFv2 but adapted for IPv6. "

— [Huawei HCIA-Datacom Certification Guide – OSPFv3 Fundamentals]

Comprehensive and Detailed In-Depth Explanation:

1. Understanding OSPFv3 and DR/BDR Election

In OSPFv3, on broadcast and non-broadcast networks, routers elect a Designated Router (DR) and a Backup Designated Router (BDR) to reduce LSA flooding.

The DR is responsible for generating Network LSAs (Type 2 LSAs) for the subnet.

The BDR takes over if the DR fails.

Other routers (DROther) only form adjacencies with the DR and BDR but still receive LSAs.

2. Understanding the LSA Output in the Figure

The LSA shown in the figure is a Type 1 (Router LSA).

The originating router is R2 (Router ID: 10.0.2.2).

The LSA lists two " Transit Network " links connected to R2.

The Neighbor Router IDs listed are 10.0.1.1 (R1) and 10.0.2.2 (R2).

3. Why the Statement is FALSE

A transit network (broadcast network) should have only ONE DR.

R1 and R2 both being DRs is incorrect, as only one DR per subnet should exist.

The presence of two " Transit Network " entries in the LSA suggests that there are two separate OSPF broadcast networks, each with its own DR.

This means R1 and R2 are each DRs on separate networks, but not both DRs on the same network.

Final Answer:

Answer: B (FALSE)

HCIP-Datacom-Advanced Routing & Switching Technology References:

OSPFv3 DR/BDR Election Process

OSPFv3 LSA Types and Their Roles

OSPFv3 Network Topology and LSA Interpretation

Route Targets (RTs) are BGP extended communities that control the import and export of VPNv4 routes between VPN instances.

A PE exports routes with its configured Export RT (ERT). A receiving PE imports those routes only when the advertised RT matches one of its Import RTs (IRTs).

In option A, PE1 and PE2 use different RTs, preventing direct route exchange. PE3 imports and exports both RTs, enabling communication with both sites.

In option C, PE1 and PE2 export RT 200:1 and import RT 100:1. PE3 exports RT 100:1 and imports RT 200:1. This creates communication between PE3 and both spokes without allowing direct communication between the spokes.

Options B and D permit route exchange between PE1 and PE2.

Therefore, A and C satisfy the requirements.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Training Material.pdf

================

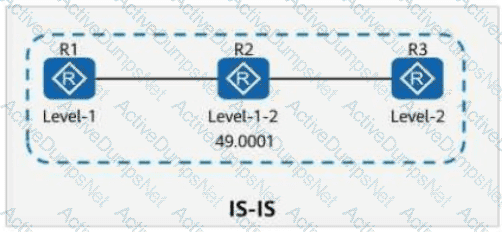

Comprehensive and Detailed In-Depth Explanation:

Understanding the IS-IS Levels and Default Route Advertisement:

R1 is a Level-1 router

R2 is a Level-1-2 router (meaning it connects both Level-1 and Level-2 areas)

R3 is a Level-2-only router

Step 1: What Does " default-route-advertise always level-1 " Do?

This command forces R1 to advertise a default route (0.0.0.0/0) to all its Level-1 IS-IS neighbors, regardless of whether R1 has a default route in its routing table.

Since R1 is a Level-1 router, it does not participate in Level-2 routing, meaning it relies on R2 (a Level-1-2 router) for external connectivity.

Step 2: Checking the Routing Tables

R1: Since it is only a Level-1 router and does not receive a default route from any higher-level router, it does not have a default route in its own routing table. ✅ (D is correct)

R2: Since R1 advertises the default route at Level-1, R2 (a Level-1-2 router) receives this default route in its Level-1 database. ✅ (B is correct)

R3: R3 is a Level-2-only router, and default routes are not automatically leaked between Level-1 and Level-2 unless explicitly configured.

Since no explicit route leaking configuration is mentioned, R3 will not have the default route ❌ (C is incorrect).

A is incorrect because the command successfully advertises a default route from R1 to Level-1 neighbors like R2.

Final Answer: ✅ B, D

Comprehensive and Detailed In-Depth Explanation:

OSPF Hello packets are used to establish and maintain neighbor relationships between routers.

Hello packets contain:✅ Router ID – Unique identifier for the OSPF router.✅ Area ID – Defines the OSPF area to which the router belongs.✅ Network Mask – Helps ensure routers are on the same subnet.

Process ID is NOT included because the OSPF Process ID is a local parameter used only within the router itself and is not exchanged between routers.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – OSPF Packet Types
