HP HPE7-J01 Advanced HPE Storage Architect Written Exam Exam Practice Test

The management of an HPE Solution with Cohesity is centered around providing a unified, global experience across hybrid and multi-cloud environments. For managing data protection policies, alerting, and operational oversight across one or more Cohesity clusters, the correct tool is Cohesity Helios.

Cohesity Helios is a SaaS-based management platform that provides a "single pane of glass" for the entire Cohesity data estate. According to HPE and Cohesity technical documentation, Helios utilizes machine learning and AI-driven analytics to offer proactive health monitoring and global search capabilities. It allows administrators to define a single set of data protection policies—covering variables like frequency, retention, and replication—and apply them universally across clusters located on-premises (on HPE Alletra 4000 servers), at the edge, or in the public cloud.

In contrast, SpanFS (Option D) is the underlying web-scale distributed file system that powers the Cohesity DataPlatform, but it is not a management tool itself. HPE GreenLake Data Ops Manager (Option B) is part of the HPE Data Services Cloud Console (DSCC) primarily used for managing native HPE Alletra Block and File storage arrays, rather than third-party software-defined platforms like Cohesity. While the solution can be procured via HPE GreenLake Flex (Option A), the operational day-to-day management of the software policies resides within the Helios console to ensure consistency with Cohesity’s broader ecosystem. Helios ensures that as the customer scales their Alletra 4000 footprint, the management of their secondary data remains simplified and policy-driven.

To provide automated orchestration and business continuity for VMware virtual machines in a disaster recovery scenario, the industry-standard solution integrated with HPE storage is VMware Live Site Recovery (formerly known as VMware Site Recovery Manager or SRM).

When a customer utilizes Asynchronous Remote Copy on HPE Alletra 9000 arrays, the storage layer handles the data replication between the production and recovery sites. However, the storage array alone cannot automate the re-registration of virtual machines, the mapping of network port groups, or the specific power-on sequencing required for complex applications at the secondary site. VMware Live Site Recovery serves as the orchestration engine that bridges this gap. It works in conjunction with a Storage Replication Adapter (SRA) provided by HPE. The HPE SRA allows the VMware software to communicate directly with the Alletra 9000 arrays to initiate tasks such as promoting recovery volumes to a read-write state, taking temporary snapshots for DR testing, and automating the "failover" and "failback" workflows.

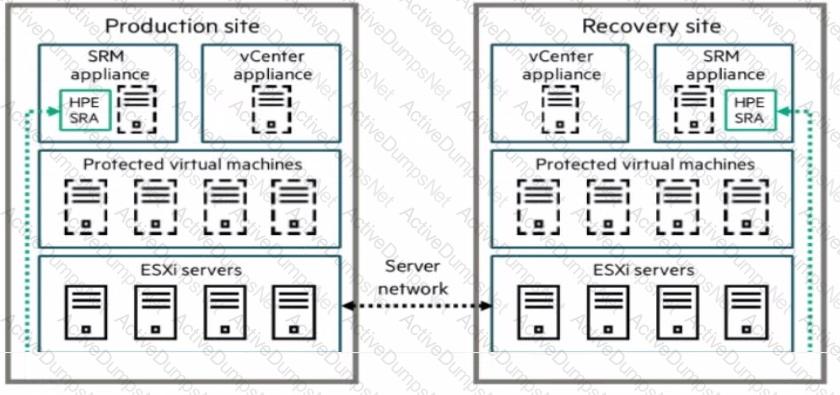

As shown in the exhibit (image_6601ef.jpg), a complete solution requires an SRM appliance and a vCenter appliance at both the production and recovery sites. This architecture ensures that even if the primary site is completely lost, the recovery site has all the necessary metadata and orchestration instructions to bring the business-critical VMs online with minimal manual intervention. Option A (Lifecycle Management) is for patching and updates, Option D (Storage DRS) is for load balancing within a cluster, and Option C refers to operational monitoring rather than disaster recovery orchestration. For a customer already invested in Alletra 9000 Remote Copy, VMware Live Site Recovery is the "Better Together" choice for achieving low Recovery Time Objectives (RTO).

HPE Morpheus Enterprise Software is a cloud-agnostic management and orchestration platform designed to enable a unified "cloud operating model" across hybrid and multi-cloud environments. It is specifically engineered to bridge the gap between traditional IT infrastructure and modern DevOps requirements.

The solution meets the customer's requirements as follows:

Self-Service Provisioning: Morpheus provides a central catalog and a powerful self-service engine that allows users to provision VMs, containers, and application stacks into any private or public cloud (including AWS, Azure, GCP, VMware, and Nutanix) on-demand.

Kubernetes Simplification: It offers a CNCF-certified Morpheus Kubernetes Service (MKS) and native integrations to deploy and manage Kubernetes clusters across bare metal, virtualized environments, and public clouds.

Normalized Service Management & Visibility: Morpheus normalizes the management experience across different providers, offering built-in FinOps capabilities for cross-cloud cost tracking, invoice synchronization, and rightsizing recommendations. It provides unified governance with fine-grained role-based access control (RBAC) and consistent insights into workload dependencies and monitoring.

While HPE GreenLake (Option A) is the overarching brand for HPE's as-a-service offerings, Morpheus is the specific software engine that powers the self-service and orchestration layers within the GreenLake private cloud portfolio. HPE OpsRamp (Option B) focuses primarily on full-stack observability and AI-driven monitoring rather than orchestration/provisioning. HPE OneView (Option C) is an infrastructure management tool focused on the hardware lifecycle of servers, storage, and networking (primarily on-premises) rather than multi-cloud service orchestration.

The HPE Timeless Program is a strategic lifecycle management offering designed to future-proof customer investments in the HPE Alletra Storage MP platform (specifically the B10000 for Block). The program provides benefits such as a non-disruptive controller refresh at no additional cost after three or more years, all-inclusive software licensing, and a 100% data availability guarantee.

To qualify for the HPE Timeless Program, the storage configuration must meet specific minimum hardware requirements to ensure it can support future generations of controller technology without a "forklift" upgrade. According to the HPE Master ASE Advanced Storage Architect training materials and program guidelines, the entry-level qualification for the Timeless benefit on Alletra MP requires the system to be configured with at least 16-core controller nodes (CNodes) and a minimum capacity threshold of 42TB RAW storage.

While the Alletra MP architecture supports 8-core, 16-core, and 32-core nodes, the 8-core "entry" models are often excluded from certain enterprise-level refresh programs because they may not provide sufficient overhead for the performance requirements of next-generation operating systems. Option C (32 cores and 92TB) represents a higher-tier mission-critical configuration but is not the minimum required for program eligibility. Option A is incorrect as the Alletra MP supports both switchless (2-node) and switched (multi-node) configurations, with switchless systems also being eligible. Option B is incorrect as the program is built into the support contract and purchase price rather than requiring a separate refundable "reservation fee".

HPE Peer Persistence is a high-availability solution that provides synchronous replication with transparent failover between two storage arrays. When integrating Veeam Backup & Replication with an HPE Alletra MP B10000 (Block) environment using Peer Persistence, the software must account for the synchronous nature of the volumes.

To maintain the integrity of the synchronous replication state and ensure that a crash-consistent or application-consistent recovery point exists at both locations, Veeam utilizes the HPE Storage Snapshot Provider. When a backup job or a snapshot-only job is triggered for a volume in a Peer Persistence relationship, the orchestration logic ensures that the snapshot is created on both the primary and the secondary array. This "dual-snapshot" approach is critical; if a site failover occurs shortly after the snapshot is taken, the backup software can still perform a recovery from the secondary array because the corresponding snapshot exists there.

Furthermore, this integration allows for Backup from Storage Snapshots (BfSS), which reduces the impact on the production virtual environment by offloading the I/O processing to the storage layer. While Option A suggests the primary array is always the source, Veeam can actually be configured to back up from the secondary array to save primary site bandwidth (though the snapshot itself must exist on both). Option B is incorrect as snapshot retention is defined by the Veeam backup policy, not a hardcoded 30-minute limit. Option D is incorrect because the synchronous link handles the data flow naturally; the snapshot is a pointer-based operation within each array's metadata layer once the synchronous write is acknowledged.

Sizing a storage solution for SAP HANA is fundamentally different from sizing general-purpose virtualization workloads. SAP HANA is an in-memory database, but it has extremely strict requirements for the underlying persistent storage layer to ensure data integrity during savepoints and log writes. SAP enforces these requirements through the SAP HANA Tailored Data Center Integration (TDI) program.

To begin the sizing process and ensure the solution will pass the SAP Hardware Configuration Check Tool (HWCCT) or the newer SAP HANA System Check, a storage architect must first determine the required IOPS rate, specifically for the /hana/data and /hana/log volumes. SAP provides specific KPIs for latency and throughput that must be met. For instance, the log volume requires extremely low-latency writes to handle the sequential redo logs, while the data volume requires high-throughput (MB/s) and specific IOPS to handle asynchronous savepoints.

While the number of nodes (Option C) and replication features (Option D) are important for the overall architecture, they do not dictate the "right-sizing" of the storage performance tier in the same way the IOPS and throughput requirements do. If the storage cannot meet the SAP-certified IOPS and latency thresholds, the entire solution will be unsupported, regardless of how many nodes are present. By identifying the IOPS and throughput needs first, the architect can determine if the customer requires an All-Flash Alletra 9000 or if an Alletra MP configuration with specific drive counts is necessary to provide the required "parallelism" to hit SAP's performance targets.

The HPE Alletra MP X10000, which powers HPE GreenLake for File Storage, utilizes a disaggregated shared-everything (DASE) architecture based on VAST Data software. Unlike traditional RAID, this architecture uses highly advanced locally decodable erasure coding.

While the system is designed to be incredibly resilient—often surviving multiple concurrent drive failures across the cluster—the removal of three drives simultaneously from a single JBOF (Just a Bunch of Flash) chassis can exceed the immediate "vertical" stripe protection thresholds, especially in smaller cluster configurations. In the Alletra MP File architecture, the metadata and data are distributed with specific redundancy parameters. Intentionally pulling three drives at once is treated as a multi-point catastrophic failure rather than a standard drive wear-out event.

When such an event occurs, the system enters a "Fail-Stop" state to protect data integrity and prevent file system corruption. Because the system cannot guarantee the consistency of the data stripes or the underlying V-Trees (metadata structures), it will cease I/O services. Simply reinserting the drives (Option B) will not automatically bring the file system back online because the system likely marked those drives as "failed" or "stale" the moment they were removed. Recovery requires HPE Level 3 Support and Engineering to perform a manual "forced mount" or metadata reconstruction process to verify that no partial writes occurred during the removal. This is a high-touch recovery scenario designed to ensure that when the data becomes available again, it is 100% consistent.

Migrating data from a non-HPE (third-party) array to an HPE storage platform requires a specialized toolset designed for interoperability. For the HPE Alletra MP B10000 (Block), the primary tool for migrating from competitive systems like Dell EMC, HDS, or IBM is the HPE Online Import Utility (OIU).

The Online Import Utility is designed to simplify and automate the migration process with minimal disruption to the host applications. Architecturally, OIU leverages the "Peer Motion" technology foundation but is specifically packaged to support "Import" workflows from non-HPE sources. When using OIU over Fibre Channel, the HPE Alletra MP array essentially acts as a "Pass-Through" or proxy. The administrator zones the Dell EMC array to the Alletra MP, and the Alletra MP presents itself as a host to the Dell system.

Once the connection is established, the data is pulled from the source array to the destination array. Because it is an Online utility, the host's I/O is redirected through the Alletra MP during the migration process. This allows the data to be moved in the background while the application remains online. Once the data copy is complete, a "cutover" is performed, and the Dell EMC array can be decommissioned. Option D (Peer Motion Utility) is technically the underlying engine, but "Online Import" is the specific utility name used for multi-vendor migrations. Options B and C are incorrect as Remote Copy and Peer Persistence are proprietary HPE-to-HPE technologies used for ongoing replication and high availability, not for one-time migrations from third-party hardware.

In Brocade Fibre Channel fabrics, ISL Trunking allows multiple physical links to behave as a single logical entity. For this to work efficiently, the switch must synchronize the delivery of frames across all physical links to ensure they arrive in the correct order. This process is managed by the Deskew mechanism.

"Skew" refers to the difference in time it takes for a signal to travel across the different physical cables within a trunk, often caused by slight variations in cable lengths. According to the Brocade Fabric OS Administration Guide, the switch hardware automatically measures these differences and applies "deskew units" to the faster (shorter) links to delay them, effectively matching the speed of the slowest (longest) link in the trunk.

A critical rule in SAN design is the distance limitation between cables in a trunk. While Brocade switches are highly capable of compensating for skew, the maximum supported difference in cable length within a single trunk is usually around 30 meters. For calculation purposes, one deskew unit is approximately equal to 20 meters of cable length. If the physical length difference between the shortest and longest cable exceeds the hardware's deskew buffer capacity (which varies by ASIC generation but is measured against this 20m/unit metric), the trunk will fail to initialize or will experience significant performance degradation. Option A is incorrect because the shortest ISL is usually the baseline, not a variable deskew value. Option B is partially true but misses the physical length constraint which is the "dependency" asked for. Option C is incorrect as the deskew unit represents the difference in time (offset), not the total travel time.

HPE Cloud Bank Storage is an extension of the StoreOnce Catalyst protocol that allows for the movement of deduplicated data to object storage in the cloud. When retrofitting this technology onto older HPE StoreOnce Gen3 hardware, there are specific hardware prerequisites that must be satisfied for the feature to be supported and performant.

The primary technical constraint on Gen3 systems (such as the StoreOnce 3100, 3500, 5100, and 5500) is the overhead required to manage the massive metadata associated with cloud-tiering. For the StoreOnce system to effectively index, deduplicate, and track data chunks residing in a remote AWS S3 bucket, it requires additional system memory. According to the HPE StoreOnce QuickSpecs and Configuration Guides, a RAM Upgrade Kit (Memory Upgrade) is a mandatory BOM component for Gen3 systems if the combined local and Cloud Bank Storage capacity will exceed the original system limits or if the Cloud Bank feature is being enabled for the first time on specific entry-to-midrange models.

Without the additional RAM, the Gen3 appliance may lack the necessary resources to run the Catalyst Cloud Bank services alongside local backup operations, leading to severe performance degradation or the inability to create a Cloud Bank store. While a Catalyst license (Option C) is technically required for Cloud Bank to function, most Gen3 customers seeking Cloud Bank already utilize Catalyst; however, the RAM upgrade is the physical hardware prerequisite that is often overlooked in "license-only" upgrades. Options A and B are incorrect as the VSA is a separate virtual product and the "Object store" is a destination, not a StoreOnce hardware component.

The deployment of the HPE CSI (Container Storage Interface) Driver involves several sequential steps to enable dynamic provisioning of storage on HPE Alletra 9000 arrays. Once the Helm repository has been added, the administrator must provide the driver with the necessary authentication and connectivity details for the storage backend.

According to the HPE Storage Container Orchestration Documentation (SCOD), the definitive next step to enable communication between the Kubernetes cluster and the Alletra 9000 is to create a Kubernetes Secret. This Secret contains critical parameters such as the storage array's IP address or FQDN, and the management credentials (username and password). Without this Secret, the CSI driver cannot authenticate against the Alletra 9000 REST API to perform volume creation, mounting, or snapshot operations.

While creating a StorageClass (Option C) is a required step, it follows the creation of the Secret. The StorageClass definition must specifically reference the name of the Secret to identify which storage backend should be used for a particular tier of service. Option A (creating a namespace) is often done as part of the helm install command itself (using the --create-namespace flag) and is a general administrative task rather than a storage-specific configuration step. Option D is incorrect as the Alletra 9000 does not pull credentials from the Kubernetes conductor; rather, the Kubernetes driver pushes requests to the array using the credentials stored in the Kubernetes Secret. Establishing this secure handshake via the Secret is the foundational step for all subsequent persistent volume (PV) and persistent volume claim (PVC) activities.

Standard SCSI write operations are inherently sensitive to distance because they require multiple round-trip handshakes before data is actually transmitted. A typical write involves: 1) the Command, 2) a Transfer Ready (XFER_RDY) response from the target, 3) the Data, and 4) the Status. In a long-distance SAN, each of these round trips adds significant "latency wait time," severely degrading performance as distance increases.

To solve this, Brocade (HPE B-series) utilizes a protocol optimization feature known as FastWrite. FastWrite works by creating a Proxy Target (PT) local to the initiator host and a Proxy Initiator (PI) local to the target storage device. When the host issues a SCSI write command, the local Brocade switch (acting as the Proxy Target) immediately sends the XFER_RDY back to the host without waiting for the signal to travel across the long-distance link. This allows the host to send the data segment immediately.

By eliminating the need for every handshake message to traverse the distance multiple times, FastWrite significantly reduces the aggregate latency felt by the application. Architecturally, this enables customers to extend their SAN fabrics over double the distance (and often much further) while maintaining performance comparable to a significantly shorter link. This is critical for asynchronous replication and remote copy applications that issue large I/O blocks. Option C (Write Acceleration) is a generic term often used by other vendors, while FastWrite is the specific, validated Brocade feature name used in HPE Master ASE documentation for this protocol optimization.

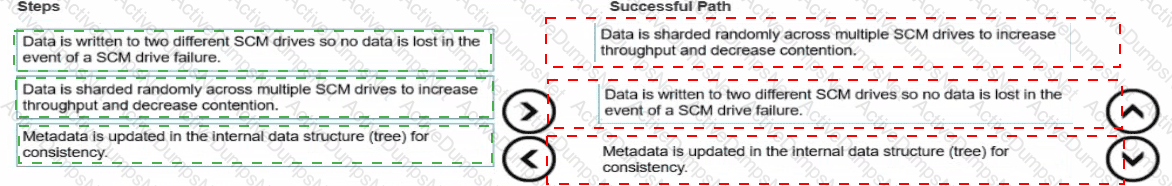

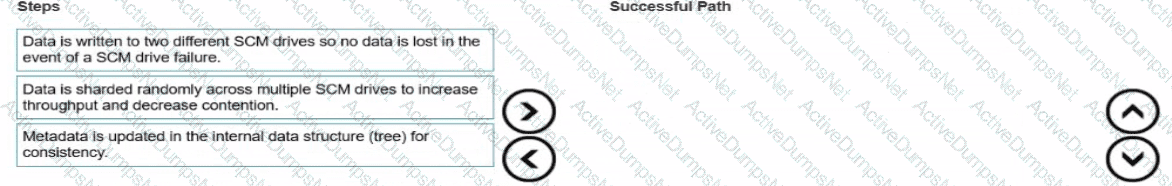

Data is sharded randomly across multiple SCM drives to increase throughput and decrease contention.

Data is written to two different SCM drives so no data is lost in the event of a SCM drive failure.

Metadata is updated in the internal data structure (tree) for consistency.

Comprehensive and Detailed 250 to 300 words of Explanation From Advanced Storage Solutions Architect documents and knowledge guide:

The write data path in HPE GreenLake for File Storage (powered by Alletra MP X10000 hardware and VAST Data software) follows a unique Disaggregated Shared-Everything (DASE) architecture. Unlike legacy NAS systems that use front-end caching or complex controller-to-controller talk, this solution leverages Storage Class Memory (SCM) as a persistent write buffer to provide high-sustained performance without the need for traditional data movement between tiers.

The process begins with sharding. When a NAS write request arrives, the system immediately shards the data randomly across multiple SCM drives in the cluster. This sharding is critical because it eliminates hot spots and contention by ensuring that no single drive or node becomes a bottleneck, effectively parallelizing the IO load across the entire storage fabric.

Once the sharding logic is determined, the data is physically written to the SCM tier. To ensure mission-critical resilience, every write is mirrored (written to two different SCM drives). Because SCM is non-volatile random-access memory (NVRAM), the write is persistent the moment it hits the media. This allows the system to send an immediate acknowledgement back to the client while protecting against a drive or node failure.

Finally, the metadata is updated in the internal data structure (the V-Tree). This step ensures the "View" of the file system remains consistent and that the global namespace reflects the newly written data. After this point, the data is asynchronously moved from SCM to high-capacity NVMe SSDs using wide-stripe erasure coding for long-term, efficient storage. This disaggregated flow allows the Alletra MP X10000 to scale performance and capacity independently while maintaining strict data integrity and consistency at AI-scale.

When designing an HPE Morpheus environment for an enterprise-scale workload (such as 1,000+ VMs), a standalone "all-in-one" installation is insufficient for high availability (HA) and performance requirements. Instead, a 3-node Distributed Architecture must be implemented to ensure redundancy across all critical service layers.

In a distributed, redundant Morpheus setup, the architecture is broken down into three primary tiers: the Application tier, the Database tier (MySQL/Percona), and the Messaging/Search tier (Elasticsearch and RabbitMQ). To achieve a basic redundant footprint, you require at least two Morpheus application nodes, three database nodes (for quorum), and a messaging cluster. According to the HPE Morpheus Architecture and Sizing Guide, a standard HA deployment starts with a minimum of six VMs to separate these functions. However, for a production environment of this size, it is recommended to have a minimum of 10 VMs. This expanded footprint typically includes 3 App nodes, 3 Database nodes, and a 3-node cluster for Elasticsearch/RabbitMQ, plus a dedicated load balancer or management node, ensuring that the loss of any single host does not impact the management plane's availability.

Option C is incorrect because a distributed installation is significantly more complex than the "all-in-one" appliance approach and requires manual configuration of externalized services. Option B is slightly inaccurate because while RabbitMQ itself is required, a dedicated "RabbitMQ load balancer" is often handled by the primary application load balancer (like an F5 or NetScaler) rather than being a specific required installation component. Option D is incorrect as upgrades in a distributed environment involve a coordinated, multi-step process across all nodes, which typically requires a scheduled maintenance window rather than "minimal" downtime.

The HPE Alletra MP B10000 (Block) utilizes a disaggregated shared-everything architecture where capacity is distributed across multiple NVMe drives and enclosures. To ensure 100% data availability, the system allows administrators to define the level of resilience required via the High Availability (HA) settings.

Architecturally, there is a direct trade-off between the level of hardware resilience and the achievable space efficiency (usable capacity).

Enclosure Level HA (Option D): This is the most resilient setting. It ensures the system can survive the total failure of an entire drive enclosure (JBOF) without losing data. To achieve this, the system must distribute parity and data stripes across different enclosures. This "vertical" redundancy requires a larger percentage of raw capacity to be reserved for parity, thereby reducing the net space efficiency.

Drive Level HA (Option A): This setting protects against individual drive failures (similar to traditional RAID 6 or RAID-TP) but assumes the enclosure itself remains operational. Because the stripes can be optimized more densely within fewer hardware boundaries, the system requires less "overhead" capacity to maintain the protection state.

By changing the High Availability option to Drive Level, the administrator instructs the Alletra MP software to prioritize usable capacity over enclosure-level fault tolerance. This is a common optimization for customers who have multi-enclosure systems but prefer to maximize their ROI on raw NVMe flash. It is important to note that changing this setting may require a re-striping of existing data and should be done in accordance with the customer’s risk profile and SLA requirements. The sparing algorithms (Options B and C) manage how much space is set aside for automatic rebuilds, but the primary driver of bulk space efficiency in a multi-enclosure MP cluster is the HA policy selection.

In Brocade B-series Fibre Channel fabrics, ISL (Inter-Switch Link) Trunking is an optional licensed feature that allows multiple physical links between two switches to be aggregated into a single logical high-bandwidth pipe. While two switches can connect via a standard ISL without a specific license, the "Trunking" capability—which enables frame-level load balancing across those links—requires the ISL Trunking license to be installed and active on both participating switches.

According to the Brocade Fabric OS Administration Guide, if the license is missing or expired, the ports will function as individual ISLs rather than a unified trunk. This leads to the "failure to initialize" as a trunk, where the ports might stay in a "Master" or "Active" state individually but never form a "Trunk port" relationship. A common troubleshooting step after installing the license is to portdisable and then portenable the affected ports to force the fabric to re-negotiate the trunking capability.

Options B and D are technically incorrect because trunking specifically requires E_ports (Expansion Ports) used for switch-to-switch connectivity; converting them to F_ports (Fabric ports) would make them intended for end-device (host/storage) connectivity, which does not support ISL trunking. Furthermore, for a trunk to form, the ports must be within the same physical port group on the ASIC (e.g., ports 0-7 or 8-15 on many fixed-port switches), making Option D the opposite of what is required for success. By ensuring the Trunking license is present, the administrator enables the hardware and software to utilize the Exchange-Based Routing (EBR) or frame-based trunking protocols necessary for the solution.

The HPE Alletra 5000 is a hybrid storage array family built on the legacy of the HPE Nimble Storage Adaptive Flash architecture. Its hardware design is optimized for a mixture of high-capacity Hard Disk Drives (HDDs) and high-performance Solid State Drives (SSDs) used for caching (CASL architecture).

The chassis is a 4U enclosure featuring 24 drive slots. To maintain consistent performance and thermal profiles, the architecture designates specific slots for different media types. According to the HPE Alletra 5000 Installation and Service Guide, the SSDs used for cache are housed in Dual Flash Carriers (DFC). Each DFC can hold either one or two SSDs, allowing for a total of 3 or 6 cache drives per shelf. These DFCs are specifically required to be installed in the last three slots of the array, which are slots 22, 23, and 24. The remaining 21 slots (slots 1 through 21) are populated with Large Form Factor (LFF) HDDs for the primary capacity tier.

Option B is incorrect because the system is flexible; it can be configured with a minimum of 3 SSDs (one in each DFC) and does not require the maximum of 6. Option C is incorrect because expansion shelves (like the HPE Alletra 2120) also support their own cache SSDs, meaning the "entire system" capacity for SSDs scales as shelves are added. Option D is incorrect because the Alletra 5000 is a SAS/SATA-based hybrid platform; it does not support NVMe SSDs in its drive slots. NVMe support is reserved for the all-flash Alletra 6000 and 9000 models. Understanding this physical slotting is crucial for site planning and field service operations to ensure the array initializes correctly.

The HPE Alletra 9000 (and its predecessor, HPE Primera) supports various Remote Copy (RC) topologies to meet different disaster recovery and data distribution requirements. These include 1-to-1, 1-to-N (fan-out), and N-to-1 (fan-in) configurations.

In an N-to-1 Remote Copy configuration, multiple source storage systems (represented by 'N') replicate their data to a single, centralized target system at a disaster recovery (DR) or secondary site. This architecture is particularly efficient for organizations with multiple regional or branch offices that wish to centralize their backup and DR operations into a single data center to reduce hardware costs and simplify management. In the scenario described, the company has three primary sites ($N = 3$), each with its own storage array. To implement an N-to-1 strategy, the administrator only needs to provide one storage array at the DR site. This single target array must be sized appropriately to handle the combined capacity and performance requirements (IOPS and throughput) of the incoming replication streams from all three source systems.

Architecturally, the Alletra 9000 uses Remote Copy Groups to manage these relationships. Each group on the source systems is mapped to a corresponding group on the single target system. It is important to note that while the hardware requirement is a single array, the administrator must ensure the target array has sufficient Remote Copy ports (RCIP or RCFC) and licensed capacity to accommodate the fan-in ratio. The Alletra 9000 management interface and HPE GreenLake Data Services Cloud Console (DSCC) provide the orchestration necessary to monitor these multiple inbound streams and ensure that the Recovery Point Objectives (RPOs) are met across all sites simultaneously.
