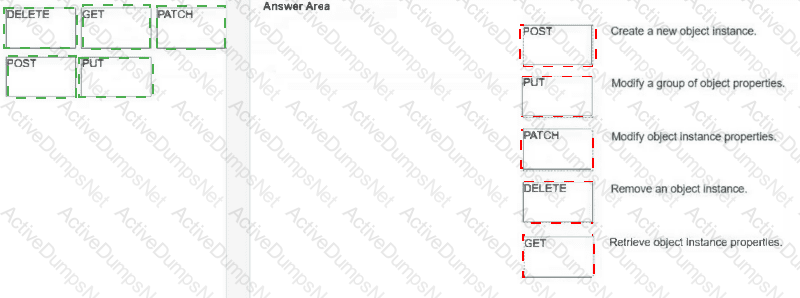

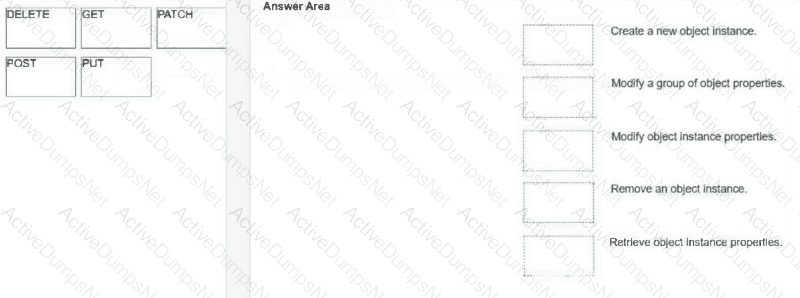

POST: Create a new object instance.

PUT: Modify a group of object properties.

PATCH: Modify object instance properties.

DELETE: Remove an object instance.

GET: Retrieve object instance properties.

AOS-CX is built with a REST-first architecture, where the Web UI and CLI both interact with the same internal database via an API. Understanding these standard HTTP methods is essential for network automation.

POST (Create): Used to create a new resource. For example, creating a new VLAN entry in the database.

GET (Read/Retrieve): Used to fetch information about a resource. It is a " read-only " operation used to check the status of a port or the contents of the routing table.

PUT (Replace/Modify Group): In the Aruba API context, PUT is used for a " complete update. " It essentially replaces the current object with a new set of properties. If you omit properties in a PUT request, they may return to default values.

PATCH (Partial Update/Modify Instance): PATCH is used for incremental changes. It allows you to modify only a specific subset of an object ' s properties (like changing only the description of a port) without having to resend the entire object configuration.

DELETE (Remove): Used to remove a specific resource instance from the switch database (e.g., deleting a VLAN or a static route).

In AOS-CX architecture, management services (such as SSH, HTTPS, and SNMP) are VRF-aware. This is a security hardening feature designed to separate management traffic from data traffic.

Default Behavior: By default, AOS-CX switches enable the HTTPS server only on the mgmt VRF (the Out-of-Band Management port). This means the Web UI and REST API are only accessible through the dedicated physical management port.

In-Band Management: When you create an SVI (Switch Virtual Interface) like SVI 100, that interface resides in the default VRF (unless you manually assign it to a custom VRF). To manage the switch " in-band " through this SVI using a web browser, you must explicitly instruct the AOS-CX operating system to listen for HTTPS requests on that specific VRF.

The Command: The command https-server vrf default tells the switch to start the web server process for the default VRF. Without this command, any attempt to access the switch ' s IP address on SVI 100 via port 443 will be dropped by the switch ' s internal control plane protection, as the service is not active for that network context.

Verification of Options:

Option A: This command is typically already part of the factory default configuration to allow OOBM access; it does nothing for an SVI in the default VRF.

Option B: Incorrect, as HTTPS is restricted to the mgmt VRF out of the box for security.

Option C: This is a true statement regarding the default state , but it describes the problem rather than providing the solution to the requirement.

Option D: This is the correct administrative action to enable the service for the data plane (where SVI 100 lives).

In a VSX cluster, certain configurations such as DHCP relay need to be synchronized between both nodes. To sync DHCP relay configuration from the primary to the secondary, the command:

vsx-sync dhcp-relay

must be added under the VSX configuration on the primary switch. This ensures that DHCP relay settings are pushed to the secondary member automatically.

Adding vsx-sync ip-helper relates to IP helper addresses, not DHCP relay specifically.

Adding the sync command on the secondary has no effect as synchronization originates from primary.

When receiving a ' 404 - Not Found ' HTTP response while attempting to configure a VLAN via REST API, the most common cause is specifying an incorrect URI endpoint. The correct approach is to specify the exact resource path for VLAN configuration, which is /rest/v1/system/vlan. Without the correct URI, the API will return a 404 error indicating the resource is not found.

Sending a POST request to login is necessary but not related to 404 after login.

Syntax errors in payload lead to 400-series errors but usually not 404.

Enabling REST API read/write is important but would result in different errors.

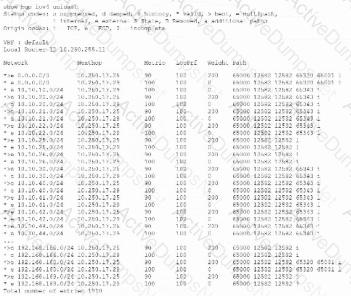

In the study of BGP (Border Gateway Protocol) for AOS-CX, understanding the differences between Internal BGP (iBGP) and External BGP (eBGP) is fundamental to the ACP-S certification.

eBGP Peering Definition: eBGP occurs when two BGP neighbors reside in different Autonomous Systems. In this scenario, the local switch is in AS 65010 and the neighbor is in AS 65100 .

The " Directly Connected " Requirement: By default, BGP assumes that eBGP neighbors are directly connected (physically connected or on the same subnet). This is because eBGP packets are sent with a Time-to-Live (TTL) of 1 . If the neighbor is more than one hop away (for example, peering via loopback interfaces without additional configuration), the packet will expire before reaching the neighbor, and the session will not establish.

Terminology Note: The term " directory connected " in the question is a common typographical error in exam materials for " directly connected. " In the context of eBGP peering, being directly connected is the default requirement to ensure the TTL 1 packet reaches the peer. If you were peering with a non-directly connected device, you would need to manually configure ebgp-multihop.

Analysis of Other Options:

Option A: This is incorrect as it uses a random AS number (65001) that does not match the local or neighbor AS provided in the prompt.

Option B: Route Reflectors are a solution used exclusively in iBGP to solve the split-horizon rule (which dictates that a prefix learned from an iBGP peer cannot be advertised to another iBGP peer). Route reflectors are never used for standard eBGP sessions.

Option D: While AOS-CX requires you to enter the address-family ipv4 unicast context to activate a neighbor, the keyword " internal " is not a valid address-family type in the AOS-CX BGP syntax for this purpose.

Key Practice Tip: When configuring BGP on AOS-CX, always remember that after defining the neighbor x.x.x.x remote-as, you must enter the address-family context and use the neighbor x.x.x.x activate command for the session to transition to the " Established " state.

If interfaces 1/1/53 and 1/1/54 connected to the primary VSX switch are disconnected and Client A experiences disruptions, configuring VSX shutdown on-split on SW-A (the primary) is necessary to prevent traffic forwarding during a split-brain scenario. This feature ensures that in case of link failure, the switch does not continue forwarding traffic independently, avoiding network loops or inconsistent states.

Configuring keepalive VLANs on downstream or upstream lags helps in monitoring but does not prevent traffic disruption.

VSX shutdown on-split must be configured on the affected primary switch to protect network integrity.

The troubleshooting methodology exemplified by comparing outputs or configurations to find discrepancies is called Spot the difference. It involves checking variations between working and non-working states or devices.

Follow the path: tracing packet flow step-by-step.

Top-down/Bottom-up: analyzing layers systematically.

Replace configuration: swapping configurations to isolate issues.

Here, comparing command outputs aligns with spot-the-difference.

Colorless Ports is a foundational concept in Aruba’s Dynamic Segmentation strategy. It refers to a switch configuration where all access ports are configured identically, and the network identity of the port changes dynamically based on the device that plugs into it.

Role of 802.1X: To achieve a colorless port, the switch must first identify the device or user. 802.1X (Port-based Network Access Control) is the industry-standard method for providing this identification. When a device connects, the switch challenges it for credentials. Based on the response, the RADIUS server tells the switch which " User Role " to apply, which then sets the VLAN, QoS, and ACLs.

Complementary Methods: While 802.1X is the primary answer here, colorless ports also frequently utilize MAC Authentication for devices that do not support 802.1X (like printers).

Evaluating Other Options:

Option A: 802.1Q is the standard for VLAN tagging. While colorless ports use VLANs, 802.1Q is a static trunking/tagging protocol and does not provide the " dynamic " intelligence required for a colorless environment.

Option C: 802.11X is a common " trick " option on exams. 802.11 is the standard for Wireless (Wi-Fi), and there is no specific " 802.11X " protocol used for wired switch port security.

Option D: 802.1AD refers to " QinQ " or double-tagging, used primarily in service provider environments to tunnel customer VLANs. It has no relevance to the colorless port security model.

To resolve this QoS mapping issue on AOS-CX , you must understand the hierarchy of Trust Levels and how they interact with Link Aggregation Groups (LAGs) .

Trust Hierarchy: AOS-CX switches use a " top-down " approach for QoS.

Global Trust: Setting qos trust dscp globally means that, by default, every port on the switch will look at the Layer 3 DSCP markings to determine queue priority.

Interface Override: You can override the global setting on a per-interface basis. If a specific device or service (like the video streaming service in this prompt) relies solely on Layer 2 CoS (802.1p) markings rather than DSCP, the switch will ignore those CoS markings under the global DSCP policy and place the traffic in a default (best-effort) queue.

LAG Configuration Logic: In the AOS-CX architecture, a LAG is a logical interface (interface lag 20).

Configuration parameters for the bundle (such as VLANs, ACLs, and QoS trust) should be applied to the logical LAG interface , not the individual physical member ports (1/1/20 and 2/1/20).

Once applied to the LAG, the settings are automatically inherited by all physical members.

Analyzing the Options:

Option D (Correct): By entering the interface lag 20 context and applying qos trust cos, you are instructing the switch to ignore the global DSCP setting for this specific bundle and instead trust the Layer 2 priority bits. This allows the video service to once again map correctly to the intended priority queues.

Option A: This is unnecessarily complex. Setting the physical member ports to qos trust none and then the LAG to cos is redundant because the LAG configuration overrides the physical port settings in this context.

Option B: qos trust dscp, cos is not a valid AOS-CX command. Unlike the older AOS-S (ProCurve) software which allowed a combined dscp-cos trust, AOS-CX requires you to choose a single trust type (DSCP, CoS, or None) per interface.

Option C: This applies the configuration to the physical ports only. In an AOS-CX VSF/LAG environment, this is considered a configuration error or " best practice " violation, as the logical LAG interface should hold the configuration.

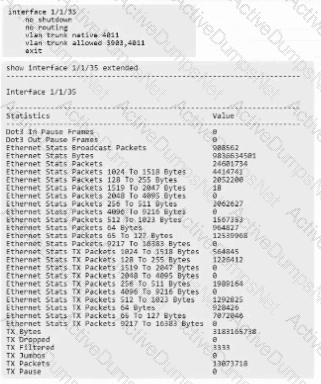

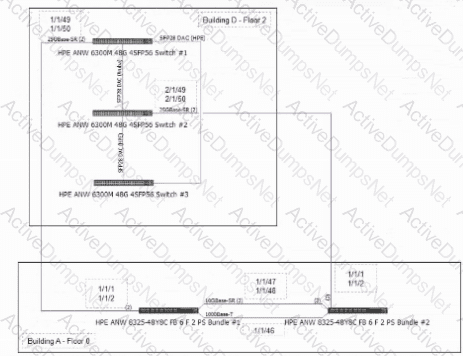

The issue is VMware vMotion traffic on VLAN 3903 failing, while other VLANs work normally. vMotion traffic requires support for larger frame sizes (jumbo frames) because vMotion packets are large and benefit from increased MTU to improve performance and reduce fragmentation.

Configuring jumbo frames on VLAN 3903 ensures that frames on this VLAN can use an MTU larger than the default 1500 bytes.

Configuring jumbo on the interface alone may not be sufficient if the VLAN itself is not set to support jumbo frames.

Setting MTU on VLAN or interface might not work unless jumbo frames are enabled.

In the HPE Aruba Networking Central monitoring framework, the platform maintains a persistent management connection (via WebSockets) to every managed AOS-CX switch.

The Connectivity Heartbeat: Central continuously monitors the status of this connection. If a switch loses power, its management processor stops functioning immediately. After a short timeout period where the heartbeat is not received, Central marks the device as " Down " and triggers the Switch Disconnected alert.

VSX Architecture in Central: It is important to note that even though two switches are in a VSX (Virtual Switching Extension) pair, Aruba Central treats them as individual managed entities for connectivity purposes. If the Primary switch goes offline, Central sees that specific device ' s management tunnel drop.

Evaluating Other Options:

Option A (Switch Reboot): A reboot alert is typically generated when a switch gracefully restarts or when it checks back into Central after an unexpected power cycle. If the switch remains powered off, it is simply " Disconnected. "

Option B (Switch Stack Conductor Change): This is a specific alert for VSF (Virtual Switching Framework) stacks (like the 6200 or 6300 series). In VSF, a failure of the master results in a role change. In VSX, there is no " Conductor " role; there is a Primary and Secondary, and they are not managed as a single " stack " object in the same way VSF is.

Option D (Switch STP Root Change): While a VSX Primary failure might trigger an STP re-election if that switch was the Root Bridge, the direct management alert from Central regarding the hardware state is " Switch Disconnected. "

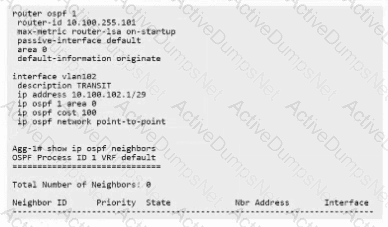

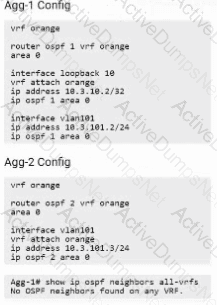

The question concerns an OSPF configuration where the interface does not come up as expected.

Common reasons for no OSPF adjacency or interface participation include:

Interfaces being passive (no adjacency formed)

Mismatched OSPF process IDs

Missing loopback interfaces (for router ID)

Layer-3 interfaces not associated with VRFs when VRFs are configured

Option D (a Layer-3 interface has not been associated with a VRF) is the root cause because in Aruba CX switches, when VRF is configured, all Layer-3 interfaces that participate in OSPF must be associated with the correct VRF instance to establish adjacency and participate correctly.

If an interface is not part of the VRF configured for OSPF, it will not appear in the OSPF interface list or form neighbors.

When managing a network through HPE Aruba Networking Central , administrators have access to specialized reporting tools designed for lifecycle management and expansion planning.

Purpose of the Switch Capacity Planning Report: This specific report is engineered to give a clear overview of physical and electrical headroom within the switching infrastructure. When preparing to add new Access Points (APs), two variables are critical:

Port Density: The report identifies the number of available (unused) ports across various speeds (1GbE, 2.5GbE, 5GbE, etc.).

PoE Budgeting: High-performance APs (such as Wi-Fi 6E or Wi-Fi 7 models) require significant Power over Ethernet (PoE) wattage (PoE+ or UPoE). The report calculates the Total PoE Budget vs. the Currently Allocated PoE , allowing you to see if the switch power supplies can handle the additional load.

Evaluating Other Options:

Option A (Infra Inventory): This report focuses on asset management. it provides details like serial numbers, MAC addresses, hardware models, and firmware versions. It does not provide real-time or historical port usage or PoE consumption data.

Option C (Network): This is a broader summary report that typically focuses on connectivity, client counts, and overall network health rather than specific hardware resource limits.

Option D (Resource Utilization): While this report is useful, it generally focuses on System Resources such as CPU usage, Memory (RAM) consumption, and temperature sensors rather than physical port availability or PoE power budgets.

Best Practice: In an Aruba Central environment, running the Switch Capacity Planning report before a hardware refresh or expansion is a mandatory step to avoid " PoE starvation " or physical port shortages during the installation phase.

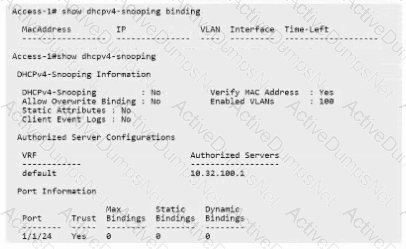

DHCP snooping requires to be enabled globally before it will function correctly. If it is not enabled globally, even if enabled on VLAN interfaces, DHCP snooping will not work.

Enabling authorized DHCP servers (A) or trusted interfaces (B) is necessary but only after global enabling.

Enabling DHCP snooping on VLAN (C) is not sufficient without global enablement.

Therefore, enabling DHCP snooping globally is the first step to activate the feature.

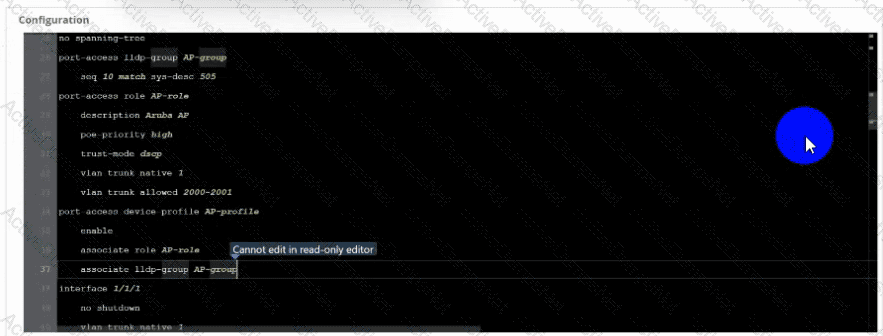

To make configuration changes using multi-edit in Aruba Central when encountering the shown condition, you must enable edit config mode using the gear icon. This unlocks the configuration for editing and allows you to make batch changes safely.

Selecting configuration status or device in multi-edit alone is not sufficient.

Overriding state is not a standard approach in Aruba Central for editing configs.

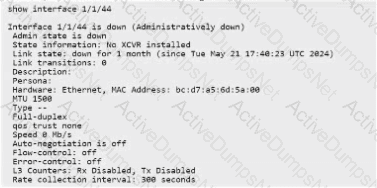

The question relates to configuring port 1/1/44 on an Aruba CX 8325 switch to connect to a 2930F switch (Aruba 2930F series). The key factor is interoperability between these two devices, especially regarding link aggregation and port channel settings.

The Aruba 2930F typically uses static or LACP link aggregation with standard settings. To connect an Aruba CX 8325 port to a 2930F port, the CX configuration must align with the 2930F settings, particularly regarding:

Enabling LACP (Link Aggregation Control Protocol) on the port.

Correct VLAN tagging or trunk mode.

Matching speed and duplex settings.

From the options given, answer A corresponds to enabling LACP with appropriate trunk configuration that matches the 2930F. The other options either have mismatches in aggregation or trunking mode or missing LACP.

In a hotel environment where a single subnet is used for wired guests, but guest devices in a conference room need to communicate with each other (and with the default gateway), while remaining isolated from other guests elsewhere, Community VLANs are appropriate.

Community VLANs allow hosts within the same VLAN community to communicate with each other and the default gateway but are isolated from hosts in other communities.

Isolated VLANs block communication between ports and only allow communication to the gateway.

Therefore, assigning conference room guests to a community VLAN and the gateway to a primary VLAN allows the desired communication model.

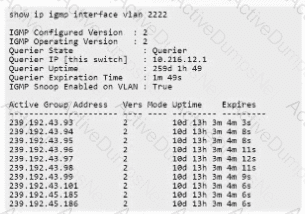

IGMP (Internet Group Management Protocol) supports several message types: Join, Leave, Query, and Report messages to manage multicast group membership.

Join messages indicate a host wants to join a multicast group.

Leave messages indicate a host is leaving a multicast group.

Query messages are sent by routers to discover group members.

Report messages are sent by hosts to indicate membership.

Therefore, the full set of IGMP message types supported includes Join, Leave, Query, and Report.

Options with only Leave and Report or only Join and Query are incomplete.

Comprehensive Detailed Explanation:

To prevent man-in-the-middle attacks based on Layer 2 (Ethernet) addressing, enabling ARP inspection in the VLAN context is recommended. ARP inspection validates ARP packets and ensures only legitimate ARP responses are forwarded.

Enabling ARP inspection at VLAN level allows granular control.

Interface-level or global context is less typical or supported for ARP inspection on Aruba CX switches.

Aruba Central Support Mode is a specialized state that allows an administrator or TAC engineer to bypass the typical " Central is the Source of Truth " write-lock on the local CLI.

The Workflow: Normally, if a switch is managed by Central, local configuration commands are blocked. By enabling aruba-central support-mode, the local CLI becomes writable.

Synchronization Logic: Once the changes are made and the support mode session is closed, the AOS-CX switch communicates the new configuration back to the Central platform. Central recognizes these changes and updates its internal database for that specific device.

Local Override: In Central ' s UI, these changes often appear as " Local Overrides. " This ensures that the next time Central performs a configuration audit or a sync, it doesn ' t view the local change as a " conflict " and overwrite it; instead, it incorporates it into the device-level record.

Key Exam Point: AOS-CX was designed specifically to handle this " bi-directional " sync during support sessions to ensure that troubleshooting done by TAC is not lost the moment the switch reconnects to the cloud.

Comprehensive Detailed Explanation:

When a recent configuration change causes a spike in CPU utilization that negatively impacts users, the fastest way to restore normal operation is to revert the change. This rollback immediately removes the offending configuration, potentially stabilizing the CPU and restoring service.

Rebooting the switch (Option A) is disruptive and takes more time.

Disabling debug logging (Option C) may help if debug is causing high CPU, but it doesn ' t undo config changes.

Pausing NAE monitoring (Option D) only suspends monitoring and doesn’t address the root cause.

Hence, reverting the recent config change is the best immediate action.

Downloadable User Roles (DUR) are a key component of Aruba ' s Dynamic Segmentation. Instead of manually defining roles on every switch, the switch downloads the role definition (VLAN, ACLs, QoS) dynamically from Aruba ClearPass via HTTPS .

The HTTPS Connection: When a user authenticates, ClearPass sends a RADIUS attribute containing the role name. The switch then initiates an HTTPS connection to the ClearPass server to fetch the full details of that role.

Certificate Trust: Because this download happens over HTTPS, the AOS-CX switch acts as an HTTPS Client . For the connection to be established, the switch must trust the SSL/TLS certificate presented by ClearPass.

Validation Requirement: If the switch does not have the correct CA Certificate installed, or if the HTTPS client certificate configuration is missing or incorrect, the TLS handshake will fail. The switch will be unable to download the role, and the user will typically be placed in a " denyall " or " initial " role. Therefore, verifying the HTTPS/TLS certificate configuration on the switch is a primary troubleshooting step for DUR.

Why other options are incorrect:

Option B: DUR does not use the REST API of the switch; it uses a standard HTTPS GET request to ClearPass.

Option C: SNMP is for monitoring and is not involved in the real-time delivery of user roles.

Option D: While the user-role name must match, the reason a DUR fails to load is almost always the transport mechanism (RADIUS or HTTPS), not the role name configuration itself.

The concept of Colorless Ports is central to Aruba ' s Dynamic Segmentation strategy. A colorless port is one where the configuration is not static but is instead determined dynamically based on the identity of the device that connects to it.

The Role of Authentication: To achieve a colorless port, the switch must first identify the connecting device. This is done through Port Access Control mechanisms.

MAC Authentication (MAC Auth): While 802.1X is the preferred method for devices with a supplicant (like laptops), MAC Authentication is used for " headless " devices (like printers, cameras, or IoT sensors) that cannot perform 802.1X. By configuring MAC Auth, the switch sends the device ' s MAC address to a RADIUS server (like ClearPass), which then instructs the switch on which User Role to apply to that port.

Why other options are incorrect:

Option A and C: Port-security and Sticky MAC are static security features. They lock a port to a specific MAC address but do not dynamically assign VLANs, ACLs, or QoS based on identity, which is the definition of a colorless port.

Option D: Virtual MAC is a component of Active Gateway or VRRP, used for default gateway redundancy in a VSX or high-availability environment. It has no role in edge port " colorless " provisioning.

The customer wants to tunnel traffic from APs through CX switches, similar to what they currently do with a gateway cluster. Aruba’s User-Based Tunneling (UBT) is designed specifically for this use case. UBT allows traffic from wireless and wired clients to be tunneled to a centralized gateway or controller for policy enforcement and traffic inspection.

IPSec and GRE are general tunneling protocols but not Aruba’s recommended solution for AP traffic.

VNBT relates to colorless ports and dynamic segmentation, not tunneling client traffic.

Thus, UBT is the correct tunneling solution for AP traffic through CX switches.

After enabling ARP protection, many users lose network access because ARP protection relies on DHCP snooping to build IP-to-MAC binding tables. Without DHCP snooping enabled and correctly configured, ARP inspection cannot verify ARP packets, causing legitimate traffic to be dropped.

Enabling DHCP snooping allows ARP inspection to validate ARP requests and responses.

Other options like dynamic IP lockdown, IGMP snooping, or DHCP reservations are unrelated or secondary.

https://arubanetworking.hpe.com/techdocs/AOS-CX/10.16/HTML/high_availability/Content/Chp_BFD/cnf-bfd-bgp-10.htm

Comprehensive Detailed Explanation:

For live upgrading a VSX cluster, the correct procedure is to use the vsx update-software option, which allows in-service software upgrade (ISSU) with minimal disruption by upgrading switches one at a time while maintaining synchronization.

issu update-software is not a recognized command in Aruba CX.

Reloading the primary first risks service disruption.

Compatibility mode is not required prior to reboot.

In a high-security " Colorless Ports " environment using AOS-CX, we often run both 802.1X (Dot1x) and MAC Authentication (MAC-auth) on the same port to handle a mix of corporate laptops and " dumb " IoT devices (printers, cameras).

The Default Behavior: By default, the switch usually attempts 802.1X first. When a device like a printer is plugged in, it does not have an 802.1X " supplicant " to respond to the switch ' s EAPOL-Request packets. The switch will wait for a series of timeouts and retries (EAPOL timeouts) before it gives up on 802.1X and moves on to the next method (MAC-auth). This waiting period is what causes the " few minutes " delay the user is experiencing.

Auth-Precedence vs. Auth-Priority:

Auth-Precedence: This defines the order in which the switch attempts the authentication methods.

Auth-Priority: This defines which method " wins " if multiple methods succeed (relevant for a PC that might trigger both).

The Solution: By changing the auth-precedence to mac-auth dot1x, the switch immediately captures the device ' s MAC address and sends it to the RADIUS server (like Aruba ClearPass) for authentication.

For a printer, MAC-auth succeeds immediately, and the port is authorized without waiting for 802.1X timeouts.

For a corporate laptop, MAC-auth happens first (granting basic or initial access), and then the 802.1X process can trigger immediately after to provide higher-level " User " access.

Why other options are incorrect:

Option A: Disabling 802.1X removes the security for corporate devices on those ports; it is not a " secure configuration " maintenance.

Option B: Increasing the timeout would make the delay worse , not better.

Option D: There is no specific " MAC auth start value " timer in AOS-CX that would solve a multi-minute delay caused by the 802.1X failure wait.

CLI Example:

Bash

interface 1/1/1

aaa authentication port-access auth-precedence mac-auth dot1x

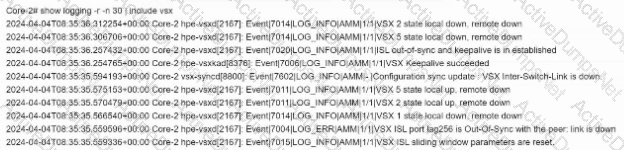

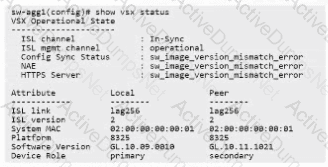

The output indicates that the ISL (Inter-Switch Link) has failed, which in a VSX environment leads to a split-brain condition because the two VSX switches can no longer synchronize their state. Split-brain occurs when the VSX members lose communication over the ISL but continue forwarding traffic independently, causing network inconsistencies.

The device does not have the highest VSX priority (Option A).

VSX health cannot be confirmed as healthy due to ISL failure (Option C).

ISL configuration in the management VRF (Option D) is unrelated to split-brain detection.

Thus, ISL failure resulting in split-brain is the correct assessment.

The Audit Trail in HPE Aruba Networking Central serves as the primary ledger for compliance and accountability across the entire managed estate.

Accountability (The " Who " ): The fundamental purpose of an audit trail is to provide a record of " who, what, and when. " When a configuration is modified—whether it’s a VLAN change, a port shutdown, or a global routing update—the Audit Trail logs the Username of the administrator or the API key identity that initiated the task.

Validating Changes: In the Global view, the Audit Trail allows a Lead Engineer to verify that changes were authorized. If a network outage occurs, the trail is used to correlate the timing of the outage with the specific user who pushed the last set of changes.

Evaluating Other Options:

Option A: Central typically retains Audit Trail data for up to 90 days (standard) or longer with specific data retention subscriptions, but 7 years is not the standard architectural default for these logs.

Option B: While you can see that a " Config Push " occurred, the detailed Configuration Difference (the " Diff " ) is usually viewed in the Configuration Status or Audit Event Details page, rather than being the primary defining attribute of the basic Audit Trail list.

Option C: The Audit Trail identifies the action (e.g., " Update Switch Configuration " ), but it doesn ' t always distinguish the specific UI workflow (like Multi-edit vs. Standard GUI) used within the Central platform.

Key Exam Tip: Whenever you see " Audit Trail " in an Aruba exam, think Accountability . It is the tool used to track administrator actions.

The LACP state event Actor state: ALFNCD, Partner state: ASFNCD indicates that the LACP negotiation between the local (actor) and peer (partner) is successful with all flags matching and no errors.

ALFNCD and ASFNCD are standard LACP states indicating Active, Long timeout, Aggregation capable, Not synchronized, Collecting, and Distributing flags set as expected.

Also, the log shows the LACP rate is set to slow, which is the default.

Thus, the output shows the LAG 253 has a matching LACP configuration with its peer.

In AOS-CX QoS architecture, the switch uses a scheduler to determine which hardware queues receive service. A common best practice is to use a Hybrid Queuing Model .

Strict Priority (SP) and Starvation: By default, if a queue is set to Strict Priority (usually Queue 7 for voice), the switch will service that queue exclusively as long as it has data. If the high-priority traffic is sustained (due to a burst or a misconfiguration/attack), the lower-priority queues (Queues 0–5) will never be serviced. This is known as starvation .

The Role of Shaping: To prevent an SP queue from monopolizing the entire link bandwidth, you can apply a shaper to that specific high-priority queue. A shaper sets a maximum bandwidth limit (in kbps or as a percentage) that the queue is allowed to consume.

Mechanism: By shaping Queue 7, even if it has a constant stream of traffic, it will be " throttled " once it hits the shaper limit. This forced " quiet time " allows the scheduler to move down and service the lower-priority queues using DWRR (Deficit Weighted Round Robin) logic, ensuring that data traffic (like web or email) is not completely dropped.

Evaluating Other Options:

Option A: You can only apply one queuing profile per interface in AOS-CX.

Option B: Replacing SP with DWRR entirely would solve starvation, but it would remove the low-latency guarantee required for Voice traffic.

Option D: " Weight " applies only to DWRR/WFQ queues. SP queues do not have a weight because they are always " first in line " by definition.

LACP (Link Aggregation Control Protocol) modes can be active or passive. When two switches are both configured in passive mode, no LACP packets are initiated, causing the link aggregation to fail or go into a block state.

Changing one side from passive to active causes that switch to initiate LACP negotiation, resolving the block state.

Changing to static mode disables LACP negotiation, which is not recommended unless both sides are static.

Changing timeout does not solve LACP block issues caused by mode mismatches.

Therefore, changing one switch’s LACP mode from passive to active is necessary to resolve the block.

Capacity management in a high-density wireless environment (especially with Wi-Fi 6E APs like the AP-615 ) focuses on two finite resources: Bandwidth and Power .

Switch PoE Utilization (Option D): AP-615s are high-performance devices that typically require PoE+ (802.3at) power. As more APs are added to a switch, the total power draw approaches the switch ' s PoE Budget . Enabling this alert ensures that Central notifies the administrator when the total power consumed by the APs reaches a critical threshold, preventing a scenario where new APs fail to power up or existing APs reboot due to power starvation.

Switch Uplink Port Usage (Option A): This alert monitors the aggregate traffic flowing through the switch ' s uplinks to the core or distribution layer. Since multiple APs share these uplinks, high wireless client activity can saturate the backhaul. Monitoring the " Uplink Port Usage " (measured in GB over a duration) allows the customer to identify when they need to upgrade to higher-speed transceivers (e.g., from 10G to 25G) or add more links to the LAG.

Why other options are incorrect:

Options C and E: Port Tx/Rx rates are useful for monitoring individual ports, but " Capacity Issues " for a group of APs is better represented by the aggregate Uplink usage.

Option B: Link Status Change notifies you of a down/up event, which is a connectivity/fault issue rather than a capacity/utilization issue.

In the world of IP Multicast, the address range is strictly categorized by the IANA. Understanding these boundaries is a core requirement for the ACP-S switching exam.

Link-Local Multicast (224.0.0.0/24): The address used in the scenario, 224.0.0.100 , falls within the " Local Network Control Block " (224.0.0.0 to 224.0.0.255). These addresses are reserved for protocol traffic that is intended to stay within a single broadcast domain (Layer 2). Examples include OSPF (224.0.0.5) and RIPv2 (224.0.0.9).

The Routing Restriction: By design and industry standard, Layer 3 switches and routers do not forward traffic addressed to the 224.0.0.0/24 range. This is a hard-coded behavior to prevent control plane protocols from leaking into other parts of the network. Even if you enable PIM (Protocol Independent Multicast) and IGMP on all SVIs, the switch will drop these packets at the Layer 3 boundary.

The Solution: To route multicast traffic between VLAN 100 and VLANs 200/300, the application must use a group address from the administratively scoped or globally scoped ranges (e.g., 239.0.0.0/8 or 224.0.1.0 and above).

Why Option D is insufficient: While enabling IGMP and PIM on the SVIs is a necessary step for routable multicast, it will not overcome the fundamental architectural block placed on the 224.0.0.0/24 link-local range.

This scenario highlights a common conflict between Port Access Control and WLAN architectures in AOS10.

Tunnel Mode vs. Bridge Mode: * In Tunnel Mode , client traffic is encapsulated (GRE/IPsec) from the AP to the Gateway. The switch port only sees the MAC address of the AP itself. Once the AP authenticates via 802.1X, all tunneled client traffic passes through the authenticated " tunnel " unnoticed by the switch ' s port security.

In Bridge Mode , the AP bridges wireless client traffic directly onto the local VLAN. The switch port now sees the MAC addresses of the wireless clients.

The Conflict: By default, an 802.1X port expects only one authenticated device. When the AP authenticates, the port is " open " for the AP ' s MAC. However, when a wireless client’s bridged MAC appears on the same port, the switch treats it as an unauthenticated intruder and drops its DHCP requests.

The Solution (Device Mode): You must configure the User Role assigned to the AP (after it authenticates) with device-mode (often referred to as dev-conf-mode or device auth-mode in exam contexts). This tells the switch: " The device that just authenticated is a trusted infrastructure device (an AP). Please allow all subsequent MAC addresses seen on this port to pass without requiring individual authentication. "

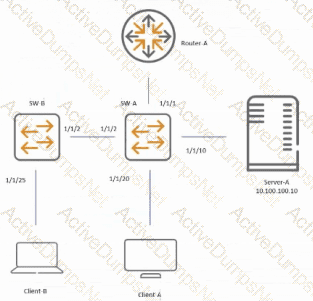

In the Aruba/HPE troubleshooting framework, the methodology is selected based on the information provided at the start of the engagement.

Follow the Path: Since you have the Source IP and Destination IP , you have a clear starting and ending point. This methodology involves identifying every hop (switches, routers, firewalls) between the client and the SQL server.

Execution: You would typically use tools like traceroute, check interface statistics for errors/drops on each switch in the path, and look for specific buffer or congestion issues that could cause " intermittent " loss.

Why others are less ideal: * Divide and Conquer: Better for situations where you don ' t know the full path but know the issue is likely at a specific layer (e.g., Layer 3).

Spot the Difference: Used when one server works and another doesn ' t; here, we are troubleshooting a single, specific intermittent path.

Top-down/Bottom-up: These are systematic but time-consuming. When you have the IPs, " Follow the path " is the most direct and efficient diagnostic choice.

In OSPF, when an Autonomous System Boundary Router (ASBR) redistributes routes into the OSPF domain, it assigns them a " Type. " Understanding the difference between Type 1 (E1) and Type 2 (E2) is fundamental for controlling traffic flow out of the network.

Type 2 (E2) Routes (Default): The cost of an E2 route is only the external cost (seed metric) assigned by the ASBR. OSPF does not add the internal path cost to reach the ASBR when comparing two E2 routes.

Tie-Breaking: If two ASBRs advertise the same prefix with the same E2 metric , OSPF then uses the internal cost to the ASBR as a tie-breaker. It will choose the path to the ASBR that is mathematically " closest " in terms of OSPF cost.

Closest Exit Point Strategy (Option D): This is a very common design in Aruba campus networks with multiple Internet or Data Center exits. By configuring all ASBRs to use the same E2 seed metric (the " appropriate " metric), you ensure that every switch in the network will automatically choose its own closest exit point based on the local topology.

Type 1 (E1) Routes: These routes calculate the total cost as External Cost + Internal Path Cost . Use E1 when you want the internal network ' s performance/hops to always influence the path choice, even if external costs differ.

Why other options are incorrect:

Option B: This is the definition of an E1 route, not E2.

Option C: While E2 with the same metric can result in ECMP (Equal Cost Multi-Path), this only happens if the internal costs to both ASBRs are also identical. The more fundamental architectural goal for E2 is favoring the closest exit.

Option A: You can achieve primary/backup with either E1 or E2; it is not a requirement to use E1.

To find which changes were made on an HPE Aruba CX switch from the GUI, the correct command is:

show checkpoint diff — this compares the running configuration with stored saved-config revisions.

Using " saved-config revisions " as the comparison base allows the GUI to show what has changed since the last saved configuration.

Other options mix checkpoint and saved-config terminology incorrectly.
