Fortinet NSE6_FMG_AD-7.6 Fortinet NSE 6 - FortiManager 7.6 Administrator Exam Practice Test

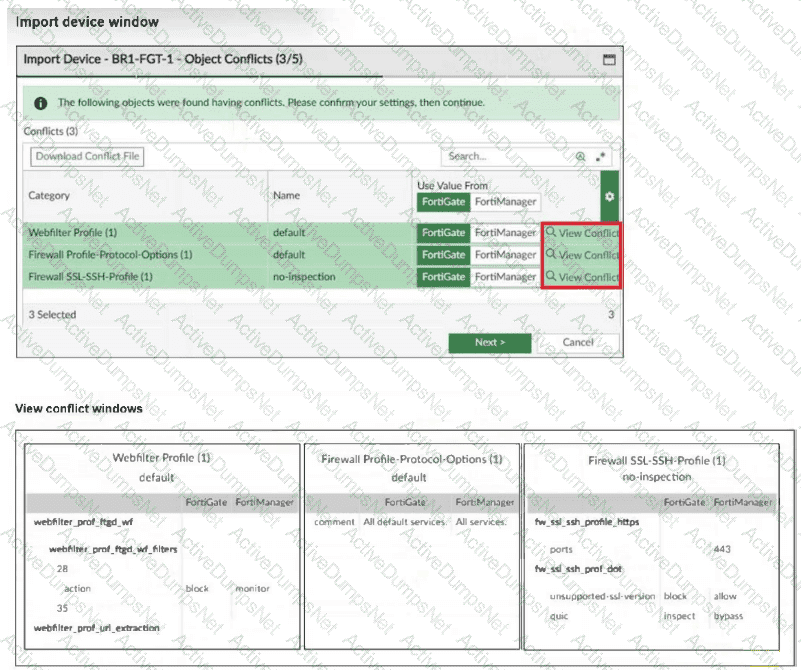

The exhibits are directly supported by the lab guide’s troubleshooting section. It states: “The only profile that can be replaced is the Firewall Profile-Protocol-Options profile, because the only difference is a change in the comment field.” It then explains that for the other two profiles, “Whether you accept the value from BR1-FGT-1 or FortiManager, it will cause changes on different devices.”

That exactly matches C. The conflict window is not primarily showing a firmware mismatch, and the guide does not say BR1-FGT-1 lacks HTTPS 443 support. It also does not describe this as a FortiGuard database mismatch for QUIC. Instead, the key point is that only the default Firewall Profile-Protocol-Options conflict is minor enough to safely take from FortiManager because the difference is only in the comment field. The web filter and SSL/SSH profiles would cause real configuration differences if replaced.

The command set workspace-mode normal enables Workspace (ALL ADOMs). The study guide explicitly states that with this mode, “Workspace (ALL ADOMs): All ADOMs can be locked” and that enabling workspace mode “Disables concurrent read/write access to locked items” with “Read/write access for only one administrator—all others have read-only access.” That directly proves D.

A is also verified by the lab guide, which states: “If an administrator locked one or more ADOMs, and then logs out of FortiManager, all of those ADOMs are unlocked.” The phrase “one or more ADOMs” confirms that the same administrator can lock more than one ADOM at the same time.

C is incorrect because approval is required only in workflow mode, not in workspace normal.

=========

Meta fields in FortiManager can be added to objects as custom attributes, allowing administrators to categorize and add additional information to firewall objects for easier management and identification.

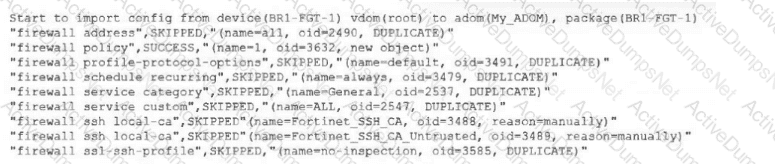

The import report clearly shows: " firewall profile-protocol-options " , SKIPPED, " (name=default, oid=3491, DUPLICATE) " . In FortiManager import reporting, SKIPPED means the object was not imported or updated, and DUPLICATE means an object with that identity already exists in the ADOM database. So FortiManager did not update its database with the imported value for the object default, which makes C correct.

The lab guide reinforces this behavior in the conflict-handling workflow. It explains that during import, FortiManager checks for duplicate names and conflicts, and for conflicting objects the administrator may need to choose whether to keep the value from FortiGate or FortiManager. For the default Firewall Profile-Protocol-Options object, the guide specifically discusses keeping the existing FortiManager value to avoid unnecessary changes.

=========

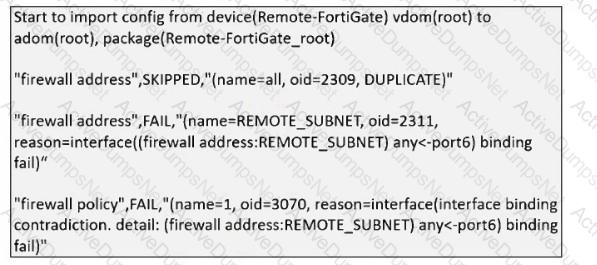

The import report shows that a new policy package named Remote-FortiGate_root will be created in the FortiManager ADOM database, but some firewall addresses and policies failed to import due to interface binding conflicts.

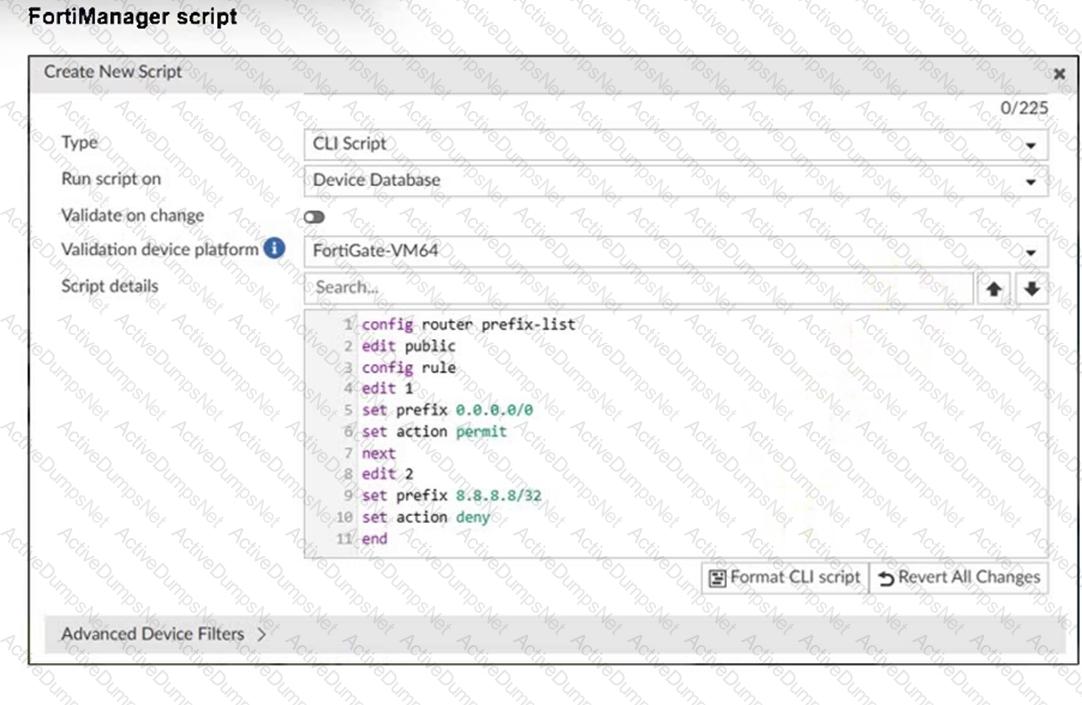

Running a script on the Device Database marks the configuration as modified but does not immediately apply changes to the device.

The administrator must use the Install Wizard to push and install these changes from the Device Database onto the managed device.

ADOM revisions save the current state of all policy packages and objects within an ADOM, allowing administrators to track changes over time and revert to previous configurations if needed.

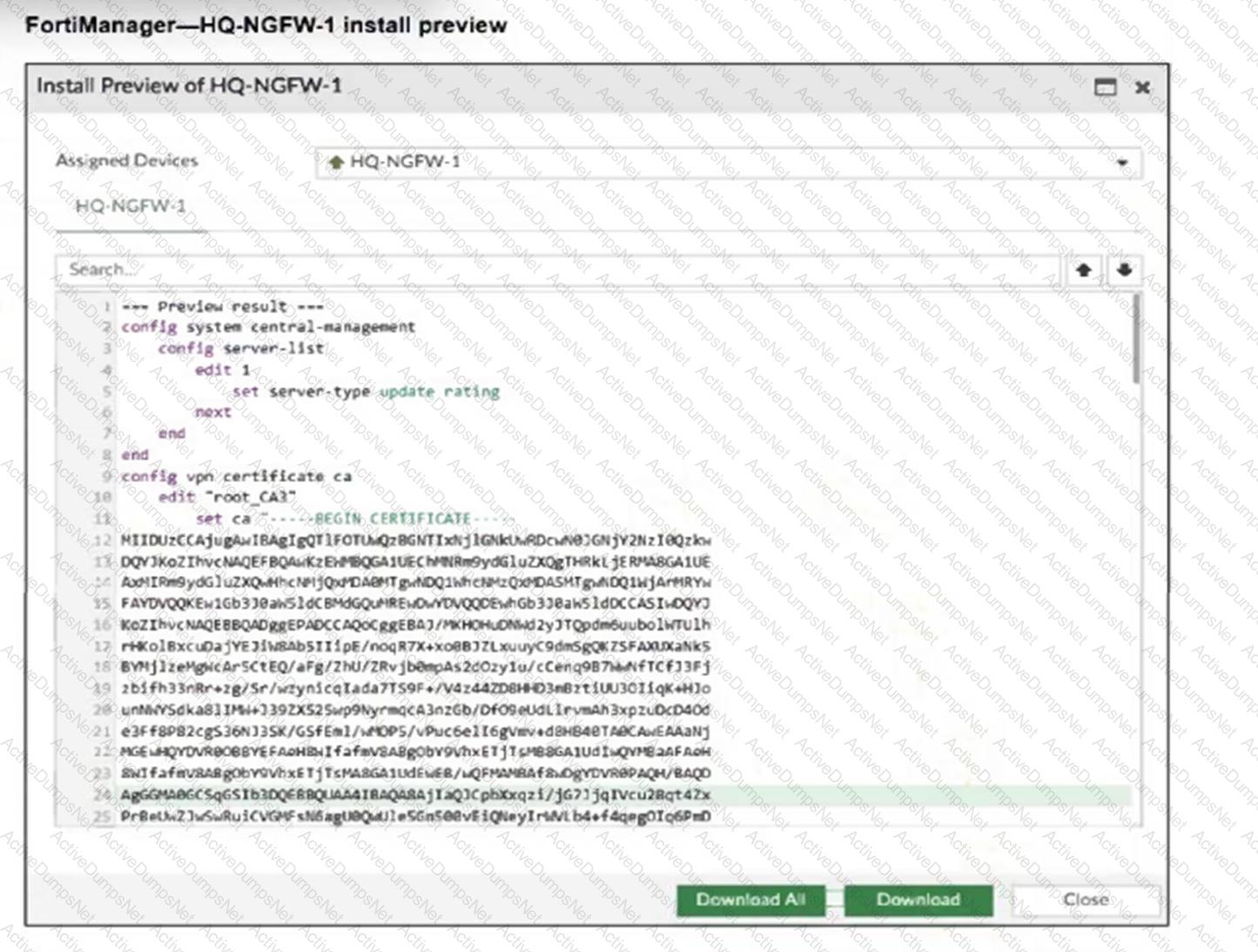

The configuration includes a server-list with server-type set to " update rating, " which enables FortiGate HQ-NGFW-1 to contact FortiManager as a FortiGuard Distribution Server (FDS) for FortiGuard updates.

The installation includes a root_CA3 certificate, which FortiManager will install on FortiGate HQ-NGFW-1 to authenticate FGFM tunnel connections between the devices.

The global policy package is managed only from the global ADOM by the service provider administrator. Customer administrators with access solely to their ADOM (My_ADOM) cannot edit the global header policy; such changes must be made by the service provider administrator in the global ADOM.

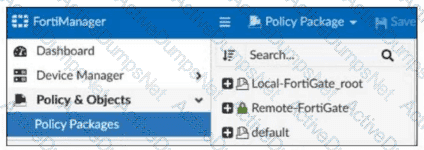

The exhibit shows Remote-FortiGate with a green closed lock icon, which indicates a locked policy package. The FortiManager 7.6 Administrator Study Guide states: “Policy locking is available in workspace normal and per-ADOM modes” and “Policy locking allows administrators to work on and lock a single policy package instead of locking the whole ADOM.” This confirms that a package such as Local-FortiGate_root can also be locked, so A is correct.

B is incorrect because the study guide and lab guide describe snapshots as ADOM revisions, not policy package snapshots: “An ADOM revision creates a snapshot of the policy and object configuration for the ADOM.”

D is incorrect because in workflow mode, sessions and approval are required before installation. The exhibit shows a normal save/lock state, not a workflow session state.

=========

If a BGP template is assigned to the FortiGate device on FortiManager, device-level BGP configurations made directly in the device-level database are overridden by the template settings, so the changes do not get pushed to the device.

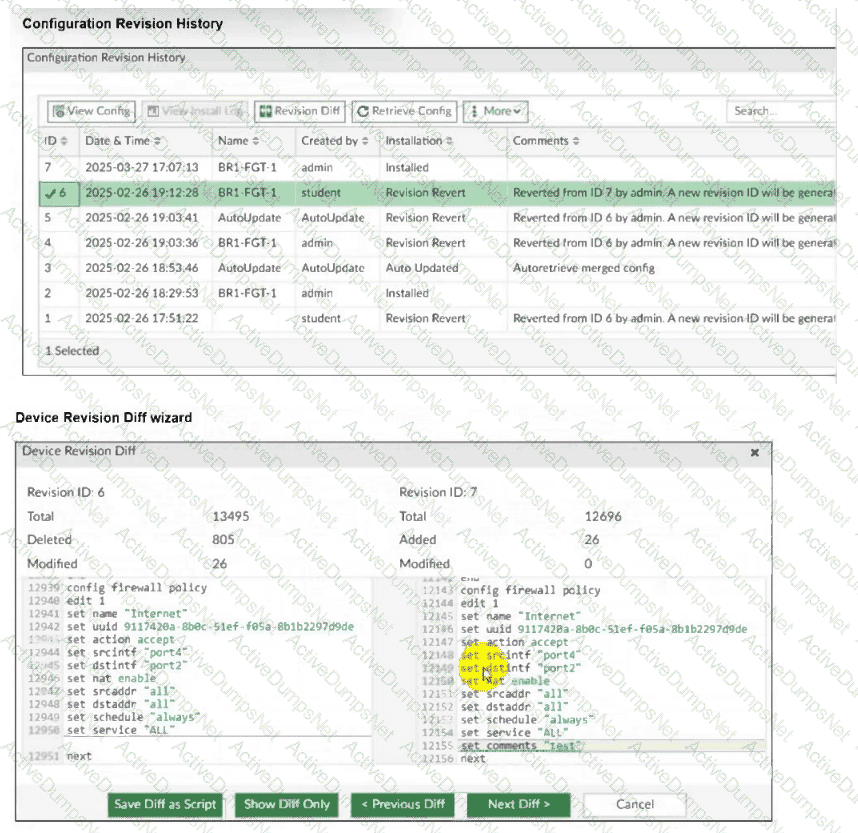

The correct answer is B. The FortiManager 7.6 Administrator Study Guide gives the exact extract: “Performing a revert operation followed by an installation only reverts device-level changes and does not revert policy packages. To achieve full synchronization, you must run the Import Configuration tool on FortiManager to synchronize the policy package.”

The guide also states: “After every retrieve, auto-update, or revert operation, you must use Import Configuration to ensure the policy information is synchronized.”

In the exhibit, the missing unset comment for policy ID 1 is a policy package issue, not just a device-level revert issue. Reinstalling the existing policy package does not automatically rebuild it from the reverted revision. The administrator must import the firewall policies again so the policy package reflects the reverted policy state. That is why the comment was not removed.

=========

The command set workspace-mode normal enables Workspace (ALL ADOMs). The study guide states that in this mode “All ADOMs can be locked” and workspace mode lets administrators lock ADOMs, devices, policy packages, and objects. The lab guide then gives the exact behavior for ungraceful session closure: “If a session is not closed gracefully … FortiManager does not close the administrator session until it times out or the session is deleted. Until this time, the ADOM remains in a locked state.” That directly proves A.

C is also verified by the lab guide statement: “If an administrator locked one or more ADOMs, and then logs out of FortiManager, all of those ADOMs are unlocked.” The phrase “one or more ADOMs” confirms the same administrator can lock multiple ADOMs at once.

D is a workflow mode approval concept, not workspace normal.

The correct answer is B. The FortiManager 7.6 Administrator Study Guide explicitly states: “CLI scripts use the FGFM tunnel and the FGFM tunnel is authenticated using the FortiManager and FortiGate serial numbers.” It also states: “Tcl scripts do not run through the FGFM tunnel like CLI scripts do. Tcl scripts use SSH to tunnel through FGFM and they require SSH authentication to do so.”

This is the exact reason CLI scripts can run without prompting for SSH authentication every time: they use the existing secure FGFM management tunnel, not a separate interactive SSH login. The FGFM section of the study guide also confirms that this is a secure communication tunnel established between FortiManager and managed FortiGate devices.

So the enabler is not legacy login, script location, or the “Remote FortiGate Directly” option by itself. It is the FGFM secure management tunnel.

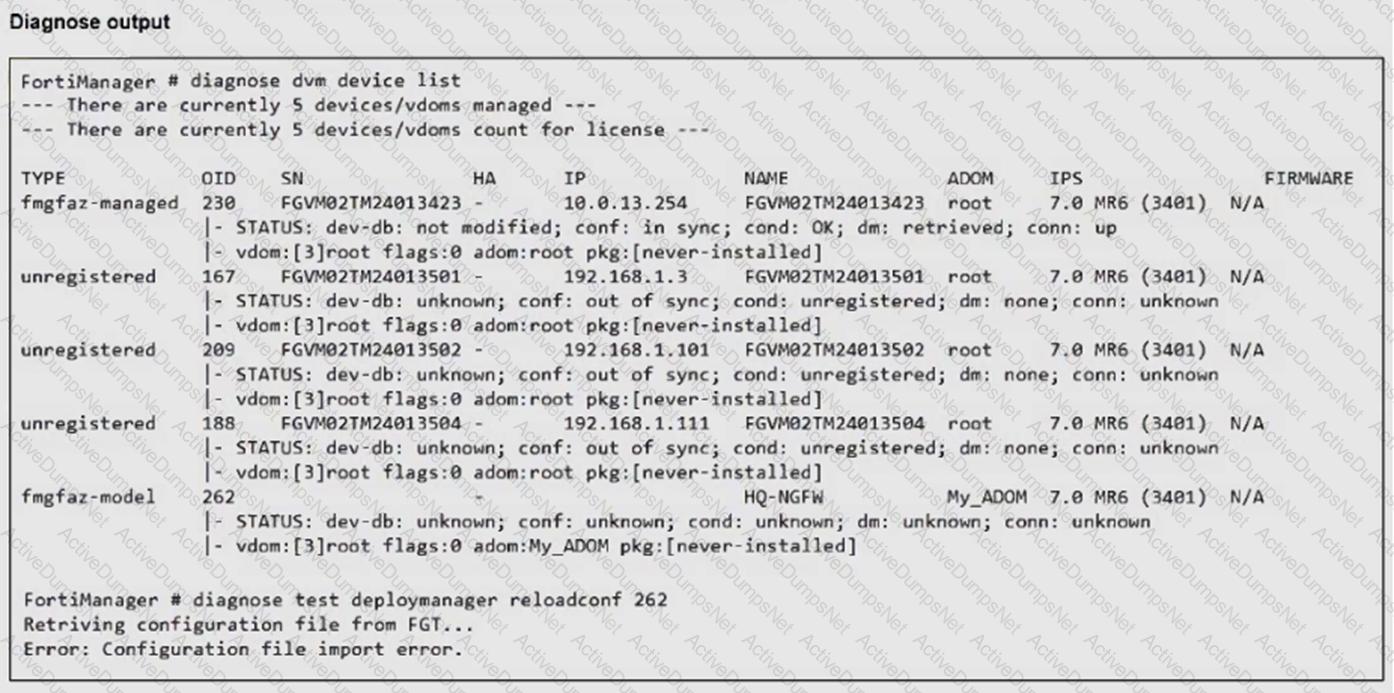

The error occurs because the FortiGate HQ-NGFW device with ID 262 is a newly added model device and has not yet been fully synchronized or installed with a configuration package, which causes the reload configuration command to fail.

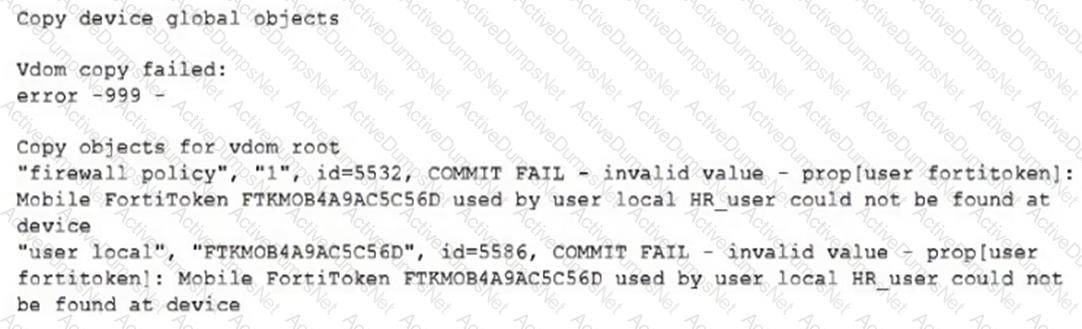

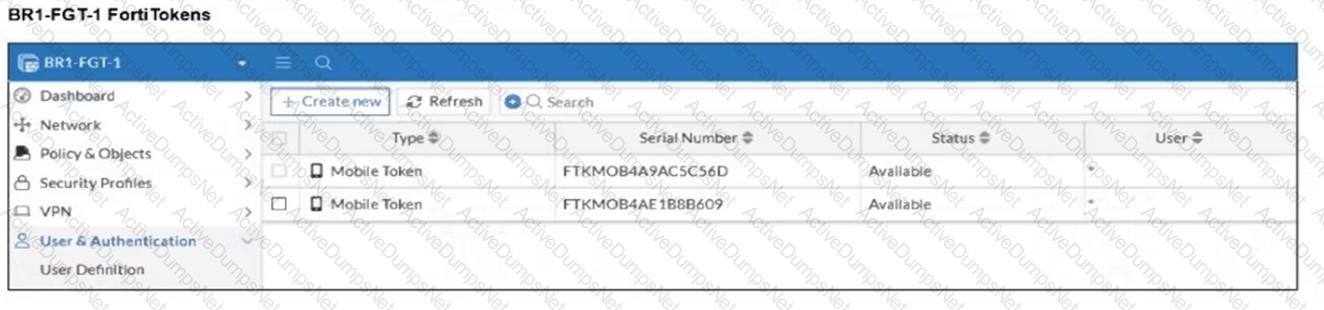

The error occurs because the FortiToken used (FTKM0B4A9AC5C56D) must already exist and be registered on the FortiGate device HQ-NGFW-1. FortiManager cannot push or create new FortiTokens on the device; the token must be valid and present on the FortiGate before it can be assigned to a user.

FortiManager must have the NAT device ' s IP address and correct ports configured to communicate properly with the FortiGate behind NAT.

The NAT device must have the correct virtual IP address and ports configured to allow push updates to reach the FortiGate device.

Adding and managing FortiAnalyzer from FortiManager is recommended for handling a high volume of logs, as FortiAnalyzer is designed specifically for centralized log management, analysis, and reporting, which offloads this workload from FortiManager.
