Fortinet NSE5_FSW_AD-7.6 Fortinet NSE 5 - FortiSwitch 7.6 Administrator Exam Practice Test

It provides benefits that can be obtained when using 802.1X authentication (C): MAC, IP, and protocol-based VLANs on FortiSwitch are beneficial in network environments where additional granularity is needed in traffic segmentation and security, similar to what can be achieved through 802.1X authentication. These VLAN types allow for dynamic assignment of ports to VLANs based on the characteristics of the incoming traffic, enhancing both security and network efficiency.

In dynamic routing on FortiSwitch, certain types of interfaces are utilized to participate in the routing processes. The types of interfaces that can be used include:

Loopback Interfaces (B):Loopback interfaces are virtual interfaces that are always up, making them ideal for use in routing protocols where a stable interface is necessary. They are commonly used to establish router IDs and manage routing information more reliably.

Switch Virtual Interfaces (C):Switch Virtual Interfaces (SVIs) are assigned to VLANs and can have IP addresses assigned to them, making them capable of participating in Layer 3 routing. SVIs are essential for routing between different VLANs on a switch and can participate in dynamic routing protocols to advertise networks or make routing decisions.

Physical Interfaces (D)andDetected Management Interfaces (A)are not typically used directly by dynamic routing protocols for their operations in the context of FortiSwitch.

Pag 232, FortiSwitch_7.6_Study_Guide-Online " However, if you want to authenticate each device behind a port, and optionally, grant each device a different access level based on the credentials provided, then MAC-based is required. "

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink Guide (FortiOS 7.6), FortiSwitch supports two primary modes for 802.1X authentication:port-basedandMAC-based.

In802.1X port-based authentication, once a single supplicant (user or device) successfully authenticates, the physical port is transitioned to an " authorized " state, allowing all traffic from any device connected to that port (e.g., through a hub or unmanaged switch) to pass through. This is summarized by Option D, which is incorrect for MAC-based mode.

In contrast,802.1X MAC-based authentication(Option B) treats each device ' s MAC address as a distinct session. The switch maintains a table of authenticated MAC addresses for each port and applies security policies to each one individually. This granular approach allows the FortiSwitch to grantdifferent access levelsto different devices on the same physical port. For example, a laptop might be assigned to a corporate VLAN with a specific Dynamic Access Control List (DACL), while an IP phone on the same port is assigned to a Voice VLAN.

Furthermore, FortiSwitchOS 7.6 documentation specifies that MAC-based mode can support up to20 devices per port. Each device must provide its own credentials (or be validated via MAC Authentication Bypass), enabling the switch to enforce specific security attributes—such as VLAN IDs, QoS marking, and ingress ACLs—tailored to each uniquely identified device. While the switch typically communicates with aRADIUS server(Option C) for these credentials, MAC-based mode ' s primary functional advantage is this individual session management and authorization flexibility.

Switch-controller-dhcp-snooping-verify-mac verifies the destination MAC address to protect against DHCP exhaustion attacks (B): This feature of DHCP snooping helps prevent DHCP exhaustion attacks by ensuring that the destination MAC addresses in DHCP packets match the MAC addresses learned by the switch. This check helps prevent attackers from overwhelming the DHCP server with requests from spoofed MAC addresses.

Settings related to DHCP option 82 are only configurable through the CLI (D): DHCP Option 82 is used for " agent information, " and it ' s typically used in network environments where additional information between DHCP clients and servers is necessary for policy and billing purposes. Configuration of these settings in FortiSwitch is only available through the Command Line Interface (CLI), not the Graphical User Interface (GUI).

According to theFortiSwitchOS 7.6 Administration Guideand theNSE 5 FortiSwitch Study Guide, Access Control Lists (ACLs) are used to provide granular control over the traffic entering or leaving a switch port. ACLs function by definingclassifiers(to match specific traffic based on criteria like MAC address, IP address, or VLAN ID) and then applying specificactionsto that matched traffic.

The documentation explicitly categorizes ACL actions into three distinct groups:

Traffic Processing:This category includes actions that dictate the physical handling of the frame. Valid actions listed in the official documents under this header includecount(to track packet volume),drop(to block the traffic),redirect(to forward the frame to a specific physical port or interface instead of its original destination), andmirror(to send a copy to a monitoring port).

Quality of Service (QoS):This category focuses on traffic prioritization and bandwidth management. It includes actions such asrate limiting,remarking CoS/DSCP values, andsetting the egress queue(e.g., assigning a packet to a specific queue number from 0 to 7).

VLAN:This allows for modifications such as setting anouter VLAN tagon frames.

The question specifically asks for " traffic processing actions. " Based on the 7.6 documentation,Redirect frames to another port(Option A) andDrop frames(Option D) are explicitly defined under the " Traffic Processing " action header. While " Assign traffic to a high-priority egress queue " (Option B) is a valid action an ACL can perform, it is technically categorized as aQoS action, not a traffic processing action.Encrypt frames(Option C) is not a supported ACL action on FortiSwitch hardware, as encryption is typically handled at higher layers or via dedicated MACsec configurations on specific models.

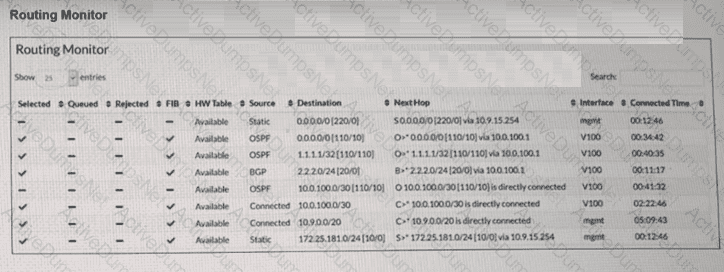

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the Routing Monitor provides a comprehensive view of the Routing Information Base (RIB), which includes all routes learned via static configuration or dynamic protocols (OSPF, BGP, etc.). However, not every route present in the RIB is active for traffic forwarding. The switch must select the " best " path for any given destination to be installed into theForwarding Information Base (FIB).

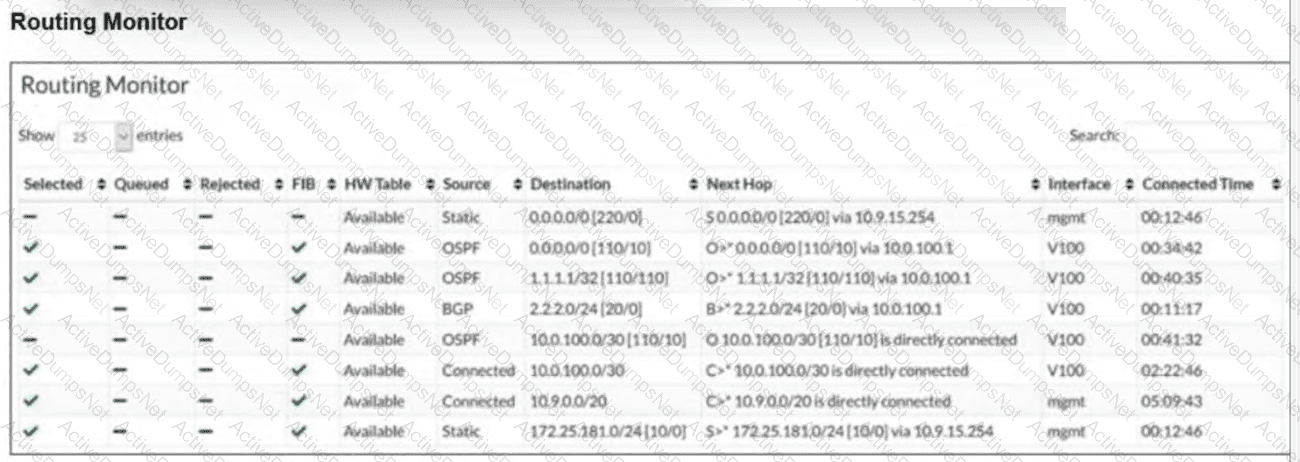

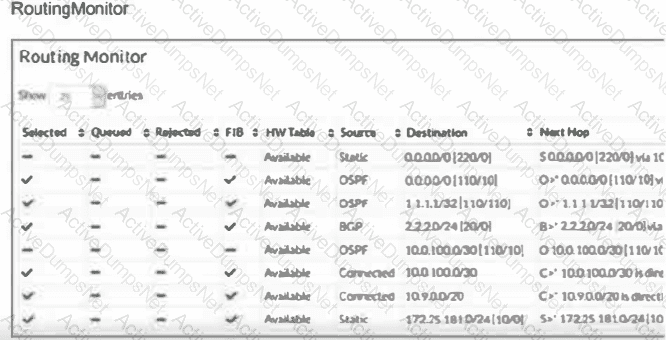

The provided exhibit shows a routing table with multiple sources for the same destination. Specifically, there is aStaticdefault route ($0.0.0.0/0$) with an administrative distance of 220, and anOSPFdefault route ($0.0.0.0/0$) with an administrative distance of 110. In FortiSwitchOS routing logic, when multiple routes to the exact same destination exist, the system compares theirAdministrative Distance (AD). The route with the lowest AD is considered the most " preferred " or " trustworthy " .

In this case, the OSPF route ($AD 110$) is more preferred than the Static route ($AD 220$). Consequently, the OSPF route is marked with a green checkmark in theFIBcolumn, while the Static route—despite being " Available " in the RIB—is excluded from the FIB. The same logic applies to the $10.0.100.0/30$ subnet, where theConnectedroute is preferred over the OSPF learned route for the same destination. Therefore, the status reflects standard route selection behavior where less-preferred routes remain in the RIB as backups but are not used for active forwarding.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the Routing Information Base (RIB) contains all potential routes discovered by the switch, but theForwarding Information Base (FIB)only includes the " best " active routes used for hardware packet forwarding. When the routing process receives multiple paths to the exact same destination (in this case, the default route 0.0.0.0/0), it must select the most reliable source based on a specific hierarchy.

The primary tie-breaker for routes from different protocols is theAdministrative Distance (AD). AD is a value from 1 to 255 that represents the trustworthiness of the routing source, where alower value is more preferred. In the provided exhibit:

TheOSPFroute has an AD of110(shown as [110/10]).

TheStaticroute has been configured with an AD of220(shown as [220/0]).

Because the OSPF route ' s AD (110) is lower than the Static route ' s AD (220), the system considers the OSPF route to be superior. Consequently, only the OSPF route is " Selected " and installed into theFIB. The static route remains in the RIB as a " backup " or floating static route; it will only be moved to the FIB if the preferred OSPF route becomes unavailable. Option D is incorrect because having identical prefixes is not a " conflict " but a standard part of route selection where AD decides the winner. Option A is incorrect because metric is only compared if the AD is identical.

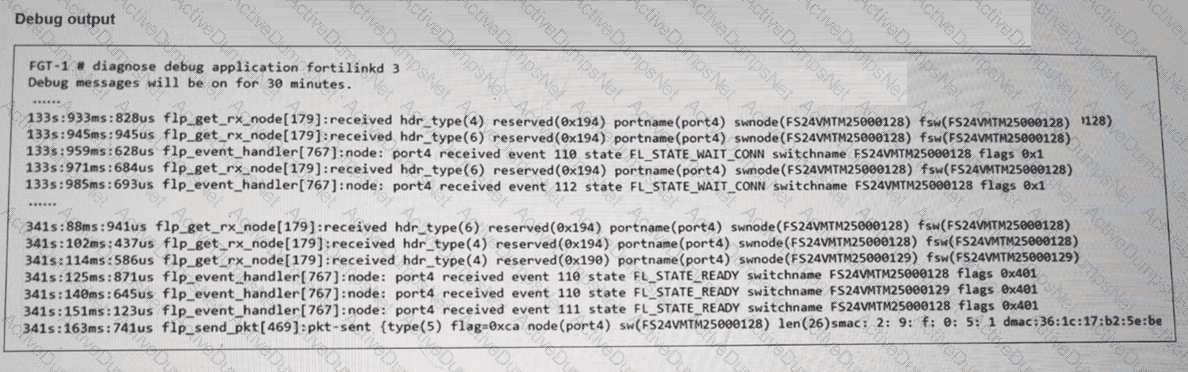

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the health and stability of the control plane between a FortiGate and a managed FortiSwitch are maintained through a continuous keepalive mechanism. Once a FortiSwitch is authorized and transitions to theFL_STATE_READYstate (as shown in the debug output in the exhibit), the devices must ensure the management tunnel remains active.

The primary mechanism for this is theFortiLink heartbeat. The documentation specifies that a managed FortiSwitch sends heartbeat messages to the FortiGate every few seconds over the FortiLink interface. The FortiGate, acting as the controller, must acknowledge these heartbeats to confirm that the switch is still reachable and responding to management commands. If the FortiGate fails to receive a certain number of consecutive heartbeats, it will consider the switch " offline " in the GUI, even if physical link lights remain green.

Checking for these heartbeat exchanges is a critical troubleshooting step to verify that theCAPWAP(Control and Provisioning of Wireless Access Points) based management tunnel is functioning correctly without intermittent drops. Option A is incorrect as port disabling is a configuration choice, not a health check. Option C is incorrect because firmware updates are manual or scheduled, not automatic upon authorization. Option D is a logging function that relies on a healthy management tunnel but is not a direct measure of the FortiLink ' s operational health.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, DHCP snooping is a security feature that prevents rogue DHCP servers from distributing incorrect IP addresses on a network. Once enabled for a specific VLAN, the switch differentiates betweentrustedanduntrustedports to regulate DHCP traffic.

Trusted Ports and DHCP Replies (Option A):In a managed FortiSwitch environment, all ports areuntrusted by default. To allow a DHCP server (such as a FortiGate or an external server) to provide IP addresses, the administrator must explicitly set the connecting port astrusted. DHCP snooping validates incoming packets; it allowsDHCP server messages(such as DHCPOFFER and DHCPACK) only on these trusted ports. Any DHCP server reply arriving on an untrusted port is identified as coming from a potentially rogue source and is discarded by the switch.

Option 82 Data Insertion (Option C):FortiSwitch supportsDHCP Option 82(also known as the Relay Information Option), which provides additional security by appending location-specific information (such as the Circuit ID and Remote ID) toDHCP request packets. When DHCP snooping is active, the switch can be configured to insert this data into client requests as they enter untrusted ports. This allows the upstream DHCP server to identify the specific physical port or VLAN from which the request originated, even if the server is located in a different subnet.

Regarding the incorrect options:Option Bis false as DHCP snooping only inspects and filters DHCP-specific traffic, not general unicast data.Option Dis incorrect because DHCP requests (client-to-server) are generally permitted on all ports to ensure clients can find a server, though some configurations allow dropping requests from untrusted sources if they do not meet specific security criteria.

From the exhibit and the details given about the routes not installed in the FIB:

These two routes have a higher administrative distance value available to the destination networks (Option A): Administrative distance is a measure used by routers to select the best path when there are two or more different routes to the same destination from two different routing protocols. A higher administrative distance means that the route is considered less trustworthy, thus not selected for the FIB unless the more preferred routes fail.

These two routes will become primary, if the best routes are removed (Option B): In routing, if the currently installed routes (which are considered the best due to reasons like lower administrative distance) are removed or become unavailable, the next best routes based on administrative distance will be used. This behavior ensures redundancy and maintains network connectivity in diverse scenarios.

" MSTP is based on RSTP " , so the same port role election and the same root bridge selection. Reference: FortiSwitch 7.6 Study Guide, page 187

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, DHCP snooping is a security feature that acts as a firewall between untrusted hosts and trusted DHCP servers. It validates DHCP messages from untrusted sources and filters out invalid messages.

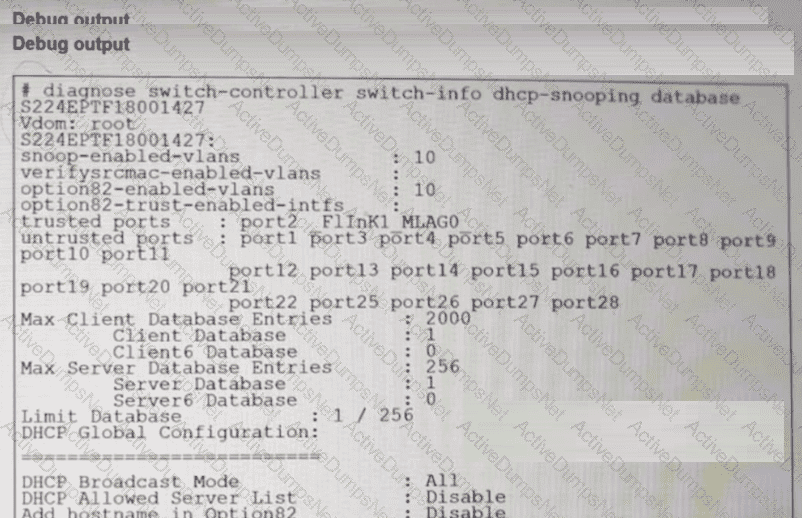

The provided debug output reveals specific configuration details that support the correct answers:

Option 82 Support (Option C):The output line option82-enabled-vlans : 10 explicitly indicates that DHCP Option 82 is active for that specific VLAN. When Option 82 is enabled on a VLAN, the FortiSwitch (acting as a relay agent or snooping device) inserts information about the physical port and VLAN into the DHCP request packet before it is forwarded to the server. This allows the server to apply location-based IP address allocation policies.

Broadcast Traffic Handling (Option D):In the " DHCP Global Configuration " section, theDHCP Broadcast Modeis set toAll. In FortiSwitchOS 7.6, the default behavior for DHCP snooping is to forward DHCP broadcast traffic to all ports in the VLAN unless explicitly restricted. Setting the mode to " All " means the switch does not limit the propagation of DHCP broadcast packets solely to trusted interfaces; instead, they are flooded to both trusted and untrusted ports within the broadcast domain. To restrict broadcasts, the mode would need to be changed to " Trusted-Only " .

Regarding the incorrect options:Option Ais false because the output shows snoop-enabled-vlans : 10, confirming it is active.Option Bis incorrect because the trusted ports list includes port2, FlInK1, and MLAG0, meaning multiple interfaces are trusted, not just port2.

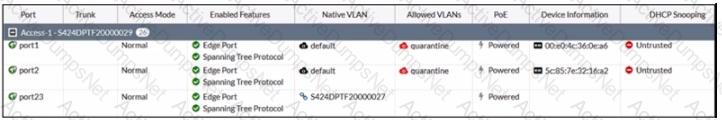

The information in the " Native VLAN " column for port23 on the FortiSwitch indicates that a standalone switch is connected to it. This is because the column displays " $424MPTF20000027, " which matches the format of a Fortinet device serial number.

Here ' s a breakdown of the evidence in the image:

Native VLAN:The " Native VLAN " column typically displays the VLAN ID for untagged traffic on a trunk port. However, in this case, it shows a serial number format ( " $424MPTF20000027 " ).

No Trunk Information:The " Trunk " column is blank for port23, indicating it ' s not configured as a trunk member.

Other Ports:Port1 and port2 show " default " in the " Native VLAN " column, which is the expected behavior for access ports.

Fortinet FortiSwitch devices typically don ' t display the serial number of adjacent FortiSwitch devices in the " Native VLAN " column. This column is reserved for VLAN information on trunk ports.

According to theFortiSwitchOS 7.6 FortiLink Guideand theFortiSwitch 7.6 Study Guide, managed FortiSwitch units support a feature calledInter-VLAN Routing Offload. Traditionally, in a FortiLink deployment, traffic between VLANs is " hair-pinned " back to the FortiGate for routing and security inspection. However, to increase performance and reduce latency, the FortiGate can program the managed FortiSwitch to handle Layer 3 routing of trusted traffic locally.

The technical mechanism behind this performance gain is the use of theForwarding Information Base (FIB)programmed directly into the switch ' sASIC (Application-Specific Integrated Circuit). When routing offload is enabled (specifically using the set switch-controller-offload enable command on the VLAN interface), the FortiGate pushes the necessary routing table and gateway information to the switch hardware. This allows the FortiSwitch to perform packet lookups and forwarding decisions at wire speed within the silicon, bypassing the general-purpose CPU and the FortiLink control plane for that specific traffic flow.

The documentation notes that this feature requires anAdvanced Features Licenseon the tier-1 FortiSwitch and is typically applied to the switch closest to the FortiGate.2While dynamic routing (Option B) is supported on FortiSwitch, it is not theonlything offloaded; static routes and inter-VLAN gateway traffic are the primary use cases for this offload mechanism. Therefore, the correct architectural description is that the switch utilizes its hardware-based FIB to accelerate inter-VLAN communication.

In FortiSwitchOS 7.6,IGMP snooping proxyis an enhancement to standard IGMP snooping that optimizes multicast control-plane traffic between hosts, switches, and the upstream IGMP querier. Its primary purpose is toreduce the number of IGMP membership reportsthat the querier must process, thereby improving scalability and efficiency in multicast-enabled networks.

Without an IGMP snooping proxy, every multicast receiver on a VLAN independently sends IGMP membership reports to the querier. In environments with many hosts subscribing to the same multicast groups, this behavior can generate a large volume of redundant IGMP reports, unnecessarily increasing control-plane load on both the querier and intermediate network devices.

When the IGMP snooping proxy feature is enabled, the FortiSwitch acts as anIGMP proxy agenton behalf of hosts within the VLAN. The switch tracks multicast group membership locally andsuppresses individual IGMP reports from downstream hosts. Instead, the FortiSwitch forwards an IGMP report upstreamonly when the first host joins a multicast group. Likewise, when hosts leave the group, the switch sends an IGMP leave message or reportonly when the last remaining member leaves.

This aggregation mechanism dramatically reduces IGMP signaling traffic while preserving correct multicast forwarding behavior. Importantly, the switch does not alter IGMP packet types or convert them to broadcast or unicast traffic. It simply optimizes reporting behavior based on group membership state.

Therefore, the correct explanation is that IGMP snooping proxy reduces IGMP report processingby forwarding IGMP reports only when the first member joins and the last member leaves, makingOption Dthe correct and fully verified answer according to FortiSwitchOS 7.6 documentation.

While FortiSwitch can collect all the listed LLDP-MED TLVs (Network Policy, Power Management, Location, and Inventory Management), the primary focus for tracking and identifying network devices is on theInventory ManagementTLV.

This TLV carries critical details such as:

Manufacturer

Model

Hardware/Firmware versions

Serial/Asset numbers

This information provides a granular understanding of the devices on your network.

When transitioning the management of a FortiSwitch from standalone mode to being managed by FortiGate via FortiLink, it is critical to ensure that the existing configurations are preserved. The best practice involves:

FortiGate ' s Role in Configuration Preservation:FortiGate has the capability to automatically preserve the existing configuration of a FortiSwitch when it is integrated into the network via FortiLink. This feature helps ensure that the transition does not disrupt the network ' s operational settings.

Configuration Integration:As FortiSwitch is integrated into FortiGate ' s management via FortiLink, FortiGate captures and integrates the existing switch configuration, enabling a seamless transition. This process involves FortiGate recognizing the FortiSwitch and its current setup, then incorporating these settings into the centralized management interface without the need for manual reconfiguration or the use of additional tools.

In a hierarchical network model, the role of a device functioning simultaneously as both the distribution and core is most accurately described as " FortiGate managing FortiSwitch (B). " In this setup, FortiGate acts as the central unit managing multiple FortiSwitch units, thereby functioning both as a distribution layer—handling traffic between network segments—and as a core layer—managing traffic within the network on a broader scale. This setup is typical in medium-sized networks where a single device is capable enough to handle both roles effectively.

FortiSwitch determines how traffic is routed by leveraging atwo-tier routing lookup mechanismthat prioritizes hardware-based forwarding before software-based processing. According to theFortiSwitchOS 7.6 Administrator Guide, FortiSwitch first checks thehardware routing table, which is populated with a subset of routes installed from the Forwarding Information Base (FIB) and programmed directly into the switch ASIC.

The hardware routing table contains routes that are eligible for ASIC acceleration. When a packet arrives on a FortiSwitch interface, the switch performs a lookup in this hardware routing table. If a matching route is found, the packet is forwarded at wire speed using ASIC-based forwarding, which provides optimal performance and minimal latency. This process is referred to ashardware-based routing.

If no matching route exists in the hardware routing table, FortiSwitch then performs a lookup in theForwarding Information Base (FIB), which resides in the kernel. Routes in the FIB are handled by the CPU and processed throughsoftware-based routing. This fallback mechanism ensures correct forwarding behavior even when routes cannot be offloaded to hardware.

The FortiSwitchOS documentation explicitly states that the hardware routing table indicates which routes in the FIB are installed in hardware. This confirms that routing decisions are not exclusively offloaded to FortiGate, nor are they limited to CPU-based processing alone. Instead, FortiSwitch uses ahierarchical lookup order: hardware routing table first, followed by the FIB.

Therefore, the correct and fully documented answer isC. FortiSwitch looks up the hardware routing table and then the forwarding information base (FIB).

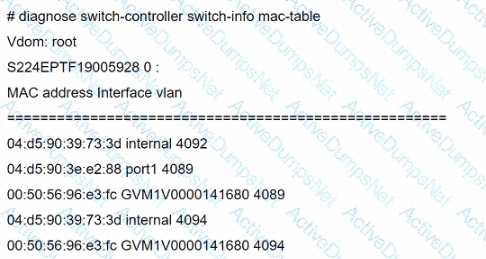

The MAC address " 00:50:56:96:e3:fc " appearing in two different VLANs (4089 and 4094) in the diagnostic output indicates it is a MAC address associated with a device that supports traffic from multiple VLANs. Such a behavior is typical of network infrastructure devices like switches or routers, which are configured to allow traffic from various VLANs to pass through a single physical or logical interface. This is essential in network designs that utilize VLANs to segregate network traffic for different departments or use cases while using the same physical infrastructure.

Comprehensive and Detailed Explanation From Exact Extract of knowledge of FortiAnalyzer 7.6 Study guide documents:

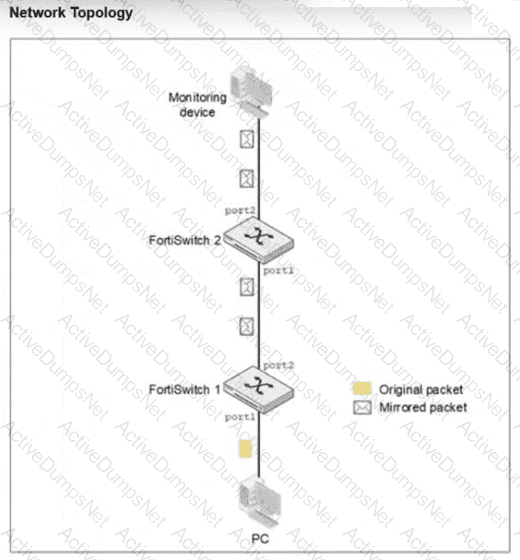

Standard SPAN Limitation: Switched Port Analyzer (SPAN) is a local port mirroring technology. By design, SPAN copies traffic from one or more source ports (or VLANs) to a destination port on thesame physical switch.

Traffic Forwarding: Standard SPAN traffic is not encapsulated and does not have the necessary headers to be routed or switched across a network fabric or trunk links between multiple switches. Therefore, if the source port is on FortiSwitch 1 and the monitoring device is on FortiSwitch 2, the mirrored frames will not reach the destination.

Alternative Solutions: To monitor traffic across multiple switches (multi-hop), technologies such asRemote SPAN (RSPAN)orEncapsulated Remote SPAN (ERSPAN)must be used. RSPAN uses a specific VLAN to carry the mirrored traffic across switches, while ERSPAN encapsulates the traffic in GRE packets so it can be routed across Layer 3 boundaries.

Troubleshooting Conclusion: Since the scenario describes a standard SPAN configuration and the traffic is failing to traverse from FortiSwitch 1 to FortiSwitch 2, the most likely reason is that basic SPAN does not support forwarding mirrored traffic across multiple switches.

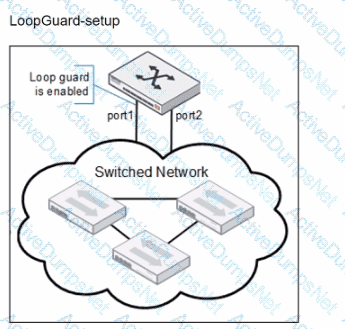

When loop guard is enabled on port1 and port2 configured with the same native VLAN (VLAN 10), there are specific scenarios under which port1 can be shut down due to loop guard operation:

A.port1 was shut down by loop guard protection.Loop guard is a specific feature used in network environments to prevent alternative or redundant loops. When loop guard is active, it can shut down a port if it stops receiving BPDU (Bridge Protocol Data Units) on a port that is expected to receive them, assuming a loop or link failure and putting the port into an inconsistent state to prevent potential loops.

B.STP triggered a loop and applied loop guard protection on port1.If the Spanning Tree Protocol (STP) detects a loop or loss of BPDU transmissions while loop guard is enabled, it will proactively shut down the port to prevent network instability or a broadcast storm. This is an essential function of loop guard within the context of STP, providing additional protection against topology changes that could introduce loops.

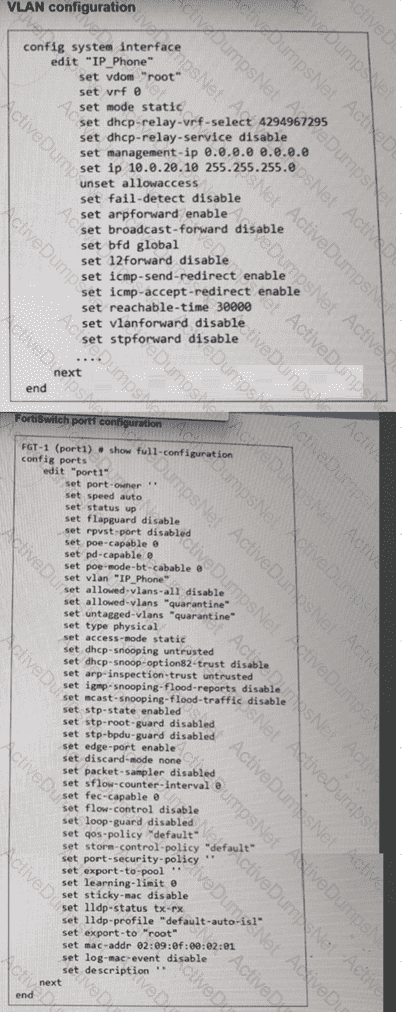

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Link Layer Discovery Protocol-Media Endpoint Discovery (LLDP-MED) is an enhancement to standard LLDP that provides advanced discovery and configuration for endpoints li1ke IP phones. While the current configuration in the exhibit correctly handlesNetwork Policy TLVsto advertise QoS2and VLAN settings to the phones, it is missing the specific component required for data collection.34

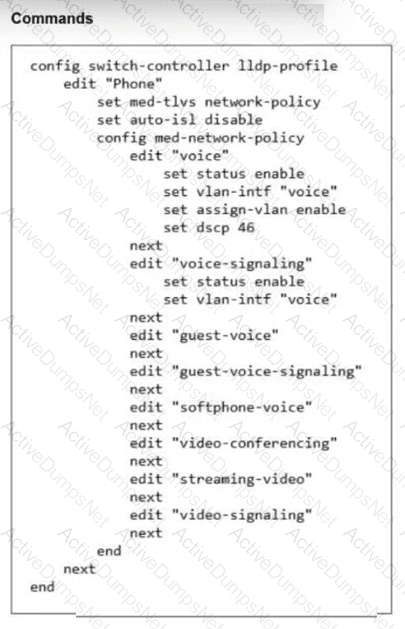

To coll5ect detail6ed information such as themanufacturer, software version, hardware version, and serial or asset numbers, you mustEnable LLDP-MED inventory management TLVs (Option C). The documentation specifies that when the inventory-management TLV is active, the switch can retrieve these extensive device characteristics from the connected Media Endpoints. This information is then visible to the administrator through the FortiGate or FortiSwitch monitoring tools, providing a complete hardware inventory of the voice network.

Regarding the other options:Option Ais unnecessary because a single LLDP profile can support multiple TLV types simultaneously by adding them to the med-tlvs string.Option Bis already partially implemented in the exhibit ' s network policy but does not contribute to device detection or data collection.Option Dis used for automatic trunking between FortiSwitches and is unrelated to endpoint device information. Therefore, the addition of the inventory-management TLV is the specific requirement to fulfill the goal of collecting detailed IP phone data.

Layer 2 flooding caused by Ethernet frames with all bytes in the destination MAC address set to FF refers to broadcast frames.Here’s why:

Broadcast Ethernet Frame (A):

Address Specification:In Ethernet networking, a broadcast frame has a destination MAC address ofFF:FF:FF:FF:FF:FF, which instructs network devices to forward the frame to all devices within the broadcast domain.

Network Behavior:This causes Layer 2 flooding as the frame is sent to all ports in the VLAN, except the originating port, ensuring that the broadcast reaches all network segments.

Other Frame Types:

Unicast (B)targets a single device.

Multicast (C)targets a group of devices.

Anycast (D)is not used in Ethernet but rather in IP-based routing to route to the nearest of multiple destinations, typically in internet addressing.

Time synchronization between FortiGate and its managed FortiSwitch devices is essential for several reasons:

A. FortiSwitch does not retain its time after a reboot, which gets reset after each reboot.This characteristic of FortiSwitch underlines the importance of time synchronization with FortiGate. Since FortiSwitch loses its time settings upon reboot, synchronizing with FortiGate ensures that its system clock is accurate, which is vital for logging, troubleshooting, and security timestamping.

C. FortiSwitch cannot complete the DTLS handshake used in the CAPWAP tunnel.Accurate time synchronization is crucial for security protocols such as DTLS, which rely on timestamped certificates for establishing a secure connection. If the time on FortiSwitch is not synchronized with FortiGate, the DTLS handshake used in the CAPWAP tunnel for secure communication may fail due to time discrepancies, impacting the management and operation of the switch.

The issue described pertains to the establishment of a tunnel (likely a CAPWAP tunnel for management purposes between FortiGate and FortiSwitch).Based on typical error analysis in tunnel setup scenarios:

The CAPWAP tunnel failed to come up due to a mismatch in time (Option C): This answer is plausible because time synchronization is crucial for security protocols that underpin tunnel establishments, such as DTLS (Datagram Transport Layer Security) used within CAPWAP tunnels. If the clocks on FortiGate and FortiSwitch are significantly out of sync, the security handshake (which can include timestamp validation) could fail, preventing the tunnel from coming up.

To enable access to the FortiSwitch management interface from the network, certain configuration adjustments need to be made, particularly considering the VLAN settings displayed in the exhibit:

Adding port24 native VLAN to the allowed VLANs on internal (Option A): The management VLAN (VLAN 4094 in this case, as it is set as the native VLAN on the ' internal ' interface of the FortiSwitch) must be included in the allowed VLANs on the interface that provides management connectivity. Since port24 is set with a different native VLAN (VLAN 100), VLAN 4094 (the management VLAN) should be allowed through to ensure connectivity.

Allow VLAN ID 4094 on port24 if management traffic is tagged (Option C): Management traffic is tagged on VLAN 4094. Since port24 is connected to the network and serves as an uplink, allowing VLAN 4094 ensures that management traffic can reach the management interface of the FortiSwitch through this port.

The changes align with Fortinet’s best practices for setting up management VLANs and ensuring they are permitted on the relevant switch ports for proper management traffic flow.

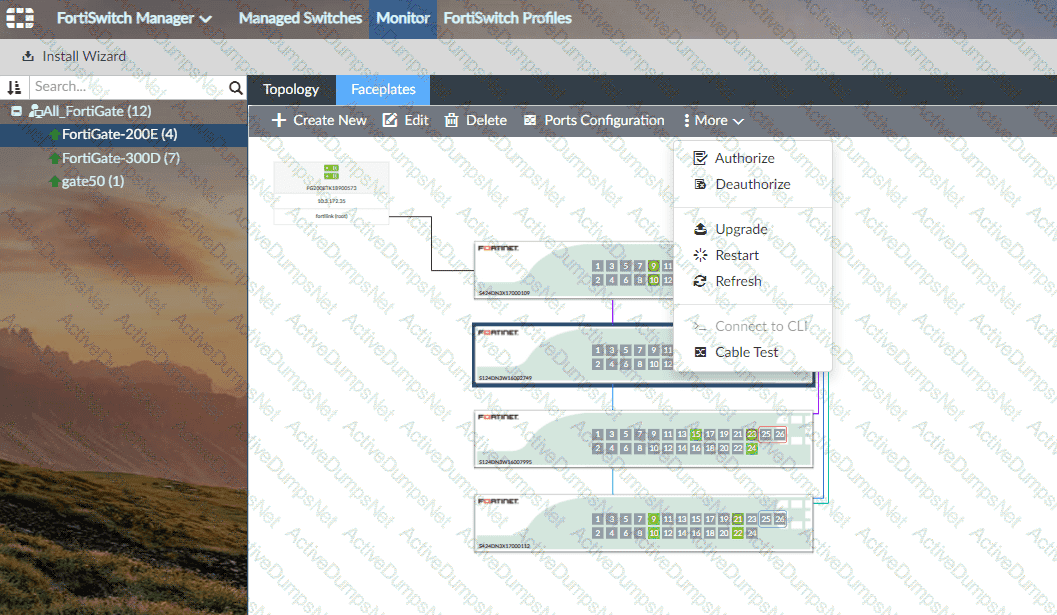

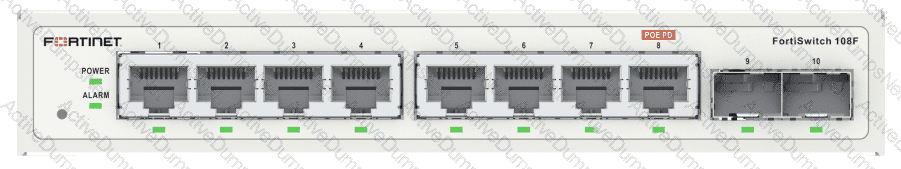

In a FortiLink-managed switching architecture, the FortiGate firewall acts as the centralized controller for downstream FortiSwitch devices. TheFortiSwitch Faceplatesview in the FortiGate GUI provides a physical-style representation of switch ports, including port numbers, operational status, link state, speed, duplex, and connected neighbor information. According to FortiOS 7.6 and FortiSwitchOS 7.6 documentation fromFortinet, this port-level intelligence is derived fromLink Layer Discovery Protocol (LLDP)advertisements received from the FortiSwitch.

LLDP is an IEEE 802.1AB standard protocol used for vendor-neutral Layer 2 neighbor discovery. FortiSwitch periodically sends LLDP frames that include detailed port descriptors such as chassis ID, port ID, port description, system name, system capabilities, and VLAN-related attributes. When FortiGate receives these LLDP advertisements over the FortiLink interface, it correlates the information with the managed FortiSwitch inventory and renders accurate port details in the Faceplates view.

Other options are incorrect for the following reasons. The FortiSwitch model alone is insufficient to populate per-port operational details. Cisco Discovery Protocol (CDP) is a Cisco-proprietary protocol and is not used by FortiGate for Faceplates visualization. FortiLink discovery frames are used to establish and maintain the FortiLink management relationship, but they do not carry the granular per-port metadata required for the Faceplates display.

Therefore, the Faceplates view relies specifically onLLDP advertisements received from the FortiSwitch, making optionCthe correct and fully verified answer based on FortiOS 7.6 and FortiSwitchOS 7.6 behavior.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the classification of untagged traffic entering a switch port is determined by the port ' s hierarchy of VLAN assignment rules.

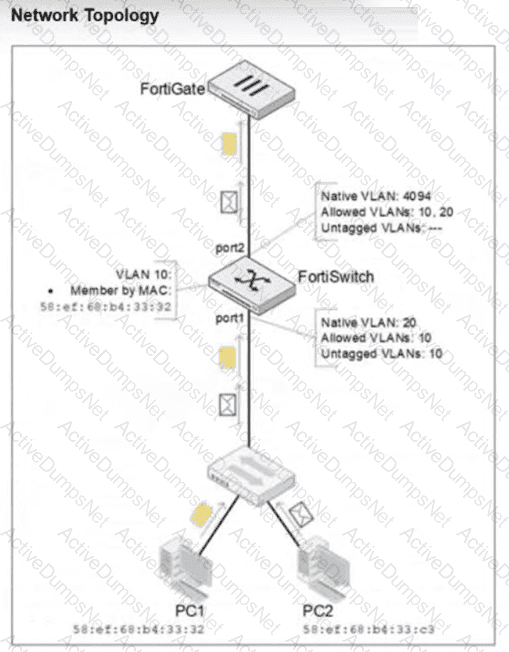

For the traffic arriving atport1:

PC1 (MAC 58:ef:68:b4:33:32):The exhibit shows an explicitMAC-based VLAN assignmentrule for this specific MAC address, placing it intoVLAN 10. In FortiSwitchOS, dynamic assignments like MAC-based or protocol-based rules take precedence over the port ' s static native VLAN. Therefore, PC1 ' s traffic is internally associated with VLAN 10.

PC2 (MAC 58:ef:68:b4:33:c3):There is no MAC-based rule for this device. As a result, the switch falls back to the default behavior and assigns the traffic to the port ' sNative VLAN, which isVLAN 20.

For the traffic exiting port2:

The egress behavior depends on the VLAN tagging configuration of the outgoing interface. On port2, the Native VLAN is 4094, and VLANs 10 and 20 are listed as Allowed VLANs. According to Fortinet documentation, any traffic belonging to an allowed VLAN that does not match the native VLAN ID of the egress port must be sent as tagged 802.1Q frames. Since neither VLAN 10 nor VLAN 20 matches the native ID of 4094, the FortiSwitch will apply a VLAN 10 tag to PC1 ' s traffic and a VLAN 20 tag to PC2 ' s traffic as they are forwarded to the FortiGate.

The ' by VLAN redirect MAC address quarantine ' mode and the ' by redirect MAC address quarantine ' mode on FortiGate share specific similarities:

Quarantine VLAN Assignment (A):

Common Feature:Both modes utilize a designated quarantine VLAN to isolate quarantined devices. This helps in mitigating the risk of spreading potential security threats within the network.

Operational Impact:Moving devices to a specific quarantine VLAN restricts their network access, effectively isolating them until further action or remediation is taken.

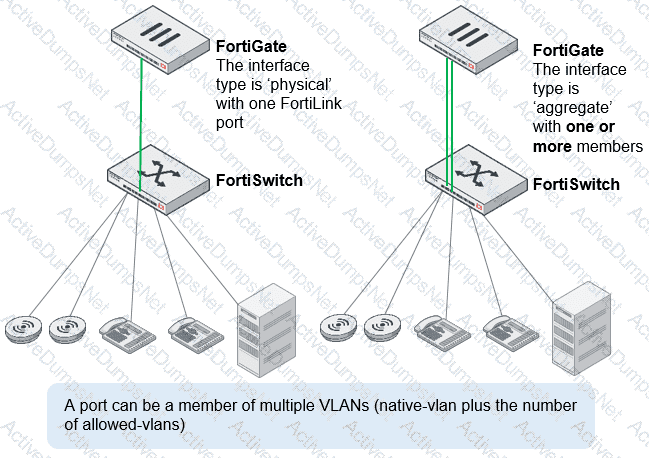

According to theFortiGate Switch Best Practicesand theFortiSwitch 7.6 FortiLink Guide, the recommended best practice for a scalable and high-performance FortiLink deployment is to use alink aggregation group (LAG)interface, also known as an802.3ad aggregate.3

While ahardware-based switch interface (Option A)offers low latency by switching traffic directly in the ASIC, it has significant limitations regardingscalability and redundancy. Hardware switches are restricted by the number of physical ports on the Integrated Switch Fabric (ISF) and cannot be easily expanded to include additional redundant links as the network grows. Conversely,software-based switch interfaces (Option B)are processed by the system CPU, leading to higher utilization and a lack ofNPU hardware acceleration, which makes them unsuitable for high-performance or growing environments.4

By configuring FortiLink as aLAG (Option C), the administrator ensures that the network can support future growth seamlessly. A LAG interface allows for the addition of multiple physical ports to increase bandwidth between the FortiGate and the switch fabric while providing link-level redundancy.5This configuration is the default for modern FortiOS versions because it supports NPU offloading and serves as the technical prerequisite for more advanced topologies, such asMCLAG (Option D). While MCLAG is an excellent solution for high availability in multi-switch environments, it is a topology feature rather than the primary interface type used to define the FortiLink connection on the FortiGate unit itself. Therefore, starting with an aggregate (LAG) interface provides the most flexible foundation for migrating to more complex infrastructures as additional switches are added.

Based on the DHCP snooping configuration details provided in the exhibit:

B. FortiSwitch is configured to trust DHCP replies coming on FortiLink interface.The configuration segment shows " trusted ports : port2 FlInK1 MLAG0, " indicating that the FortiSwitch is configured to trust DHCP replies coming from the specified ports, including the FortiLink interface labeled FlInK1. This setup is critical in environments where the FortiLink interface connects directly to a trusted device, such as a FortiGate appliance, ensuring that DHCP traffic on these ports is considered legitimate.

D. Global configuration for DHCP snooping is set to forward DHCP client requests on all ports in the VLAN.The " DHCP Broadcast Mode " set to ' All ' under the DHCP Global Configuration indicates that DHCP client requests are allowed to broadcast across all ports within the VLAN. This setting is essential for environments needing broad DHCP client servicing across multiple access ports without restriction, facilitating network connectivity and management.

According to theFortiOS 7.6 Administration Guideand theFortiSwitch 7.6 FortiLink Guide, managing FortiSwitch units in a multi-VDOM environment allows for granular control over physical switch resources. By default, when a FortiSwitch is discovered and authorized via FortiLink, its ports reside in the same VDOM as the FortiLink interface (typically the root or a dedicated management VDOM).

To allocate these ports to other VDOMs, administrators have two primary methods. The first method isdirect assignment(Option A). Using the FortiGate CLI or GUI, an administrator can export a specific physical port directly to a target VDOM. For example, the command set export-to < VDOM_name > under the config switch-controller managed-switch port settings physically isolates that port for use only by the specified VDOM. This is ideal for multi-tenant scenarios where a specific physical connection must be dedicated to a single business unit.

The second method involves using aVirtual Port Pool (VPP)(Option D). This method provides a layer of virtualization for switch ports. An administrator first creates a pool (VPP) in the management VDOM and assigns physical ports to it. Then, from the tenant VDOM, an administrator can " request " a port from that specific pool. This allows for a more flexible " shared " infrastructure where ports are not permanently tethered to a single VDOM until they are claimed from the pool. Both methods ensure that traffic remains logically and physically isolated between VDOMs, supporting the security requirements of complex enterprise deployments. Options B and C are incorrect as they relate to traffic routing and device identification rather than the foundational assignment of hardware ports to virtual domains.
