Maintaining an accurate and synchronized clock across all members of a device group is a fundamental requir5ement for the BIG-IP Control P6lane to establis7h and maintain device tru8st9.

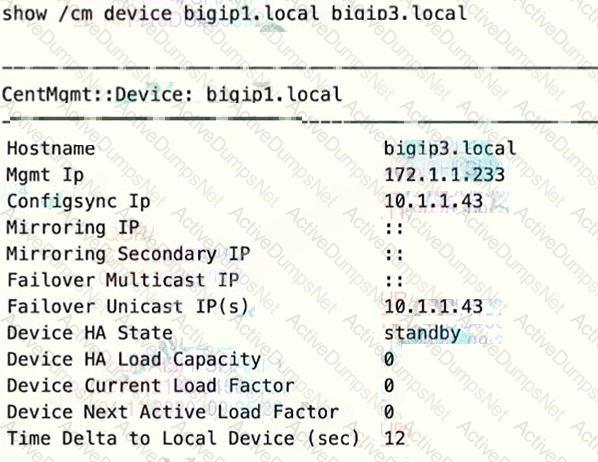

Time Delta Impact : As shown in the exhibit, the " Time Delta to Local Device (sec) " is 12 .

Trust Mechanism : Device trust relies on secure certificate-based communication (SSL/TLS) . If the time difference between devices is too large (typically more than a few seconds), the Control Plane cannot validate the certificates, leading to a failure in the trust relationship .

ConfigSync Failure : When device trust is broken due to time drift, the systems cannot verify the identity of the peer, which directly prevents the ConfigSync process from executing on the affected device, such as bigip3.local in this scenario.

Resolution : Administrators must ensure that all devices in a high availability pair are configured to use the same reliable NTP servers to keep their system clocks aligned.

The correct command for restoring an encrypted UCS archive via the command line is D. load /sys ucs < filepath > passphrase < password > .

Reporting device status includes monitoring physical resource exhaustion, such as memory. The Control Plane provides both a command-line method via TMSH (show /sys memory) and a graphical method under Statistics > Module Statistics > Memory to report on how memory is allocated across TMM and the Linux host 494949494949494949 . This is essential for identifying potential " Aggressive Mode " triggers or hardware performance bottlenecks 50 .

Comprehensive and Detailed Explanation From BIG-IP Administration Control Plane Adminis44tration documents: In a45n Active/Standby HA pair, application traffic only flows through the Active device. If an administrator makes a change on the Standby device (which has no traffic), they must synchronize the configuration to the Active device to test it. The procedural step is to log into the Active device and " pull " the configuration from the Standby device (or push from Standby) so the Active device can process traffic using the new iRule

The User Configuration Set (UCS) is a flexible tool designed by the Control Plane to handle various lifecycle management scenarios, including upgrades and hardware migrations.

Version Compatibility (Option B): TMOS is designed to be backward compatible. The Control Plane can ingest a UCS file created on an older version of software and automatically upgrade the configuration objects to match the current, later version during the restore process.

Platform Portability (Option C): While a UCS archive contains platform-specific information, the BIG-IP system allows for " platform-independent " restores. This is a vital procedural concept for migrating from one hardware model to another or from physical hardware to a Virtual Edition (VE).

Management of State: When restoring to a different platform or a later version, the administrator often uses specific flags (such as no-license or platform-migrate in later versions) to ensure that only the portable configuration data is applied while preserving the new platform ' s unique identifiers.

The correct command is tmsh show /cm sync-status because the displayed output is operational synchronization status, not configuration data. In TMSH, show is used to display runtime or current operational state, while list is used to display saved configuration objects and configured properties. The output contains status fields such as Color , Status , Summary , and Details , showing that the BIG-IP device is In Sync and that both the sync-fail-test device group and device trust group have all devices consistent. This is live ConfigSync/device-group state information under the configuration management module /cm . Therefore, the command that generates this status output is tmsh show /cm sync-status . Option A is incorrect because tmsh list /cm sync-status would attempt to list configuration, not display the operational sync status shown in the exhibit.

=========

Traffic Groups are the mechanism BIG-IP uses to control which device owns specific application traffic in a high-availability (HA) configuration. When maintenance is required on a device that is currently active for a traffic group , the correct and recommended action is to fail over that traffic group to another device in the device group.

Failing over the traffic group moves ownership of that traffic group (and the virtual servers associated with it) to another available device without forcing the entire device into standby.

This allows targeted maintenance while minimizing impact to other traffic groups that may still be active on the device.

Why the other options are incorrect:

A is unnecessary and incorrect; traffic groups are not recreated for routine maintenance.

C forces the entire device to standby, which may move more traffic than intended.

D (Demote) affects device trust/priority behavior and is not the standard or recommended method for moving traffic group ownership.

Therefore, selecting the Traffic Group and choosing Failover is the correct solution.

Comprehensive and Detailed Explanation From BIG-IP Administration Control Plane Administration do38cuments: While HA state is managed under " Device Management, " the specific failover behavior of a traffic object is linked to its configuration. A Virtual Address must be associated with a " Traffic Group " (usually traffic-group-1) to fail over. This association and the resulting floating status can be verified by viewing the Virtual Server or Virtual Address list under Local Traffic > Virtual Servers.

Restoring system states from backups is a fundamental Control Plane administrative task2. When a User Configuration Set (UCS) archive is created with encryption, it requires the correct passphrase to be decrypted and loaded during the restoration process.

UCS Command Structure: The tmsh load /sys ucs command is the specific utility for restoring these comprehensive configuration archives.

Encrypted Restores: If the archive was encrypted during creation, the passphrase argument must be appended to the command followed by the actual password used to encrypt the file.

Comparison with Other Options:

load /sys config file is used for loading text-based configuration files (like bigip.conf), not full UCS archives 6 .

The no-license flag is used when you want to restore a configuration without overwriting the existing license (common during RMA replacements), but it does not provide the mechanism for entering an encryption passphrase.

The best answers are /var/log/kern.log and /var/log/boot.log . Hardware-related issues often surface through kernel-level messages because the kernel interacts directly with hardware drivers, storage devices, interfaces, platform components, and low-level system resources. That makes /var/log/kern.log a valid place to investigate hardware or driver-related symptoms. /var/log/boot.log is also relevant because it records messages generated during system startup. If a hardware component, driver, module, storage device, or platform dependency has a problem during boot, boot-time logging can expose the failure sequence. /var/log/racoon.log is not hardware-focused; it is associated with IPsec/IKE daemon activity. /var/log/user.log is also not the correct hardware troubleshooting log, because it is not the primary source for platform, driver, or boot-level events. From the provided options, kernel and boot logs are the correct hardware investigation files.

=========

Management of the device ' s identity and primary out-of-band connectivity is a central Control Plane responsibility.

Platform Settings : The System > Platform section of the Configuration Utility is used to manage global hardware and system parameters, including the hostname, management IP address, and time zone.

Management vs. Data Plane : It is critical to distinguish between the management interface and TMM data interfaces. While data plane IPs (Self IPs) are configured under Network > Self IPs , the dedicated management port settings are grouped with other platform-level configurations.

Access Control : This area is also used to manage administrative security, such as restricting SSH or HTTPS access to specific management subnets or IP addresses.

Impact of Change : Changing the management IP will immediately disconnect any active GUI or SSH sessions using the current management IP. The administrator must reconnect using the newly assigned address.

When BIG-IP is configured to use remote authentication (such as LDAP), all authentication and authorization attempts —including successes and failures—are logged to /var/log/secure .

For LDAP-based administrative login issues, /var/log/secure contains:

LDAP authentication failures

PAM authentication errors

Authorization and access-denied messages

Details explaining why a remote user could not log in

Why the other options are incorrect:

/var/log/user.log is not a standard BIG-IP log file for authentication.

/var/log/ltm logs traffic management events, not user authentication.

/var/log/messages contains general system messages but not detailed authentication failure information.

Therefore, the correct log file to troubleshoot LDAP administrative login failures is /var/log/secure .

===========

On BIG-IP systems, Local Traffic Manager (LTM) is responsible for:

Pool and pool member management

Health monitor execution

Marking pool members UP or DOWN based on monitor results

Events related to health monitor status changes , including when pool members transition between UP and DOWN , are logged in /var/log/ltm .

Why the other options are incorrect:

/var/log/audit records administrative configuration changes, not runtime health status.

/var/log/secure logs authentication and authorization events.

/var/log/monitors is not a standard BIG-IP log file.

Therefore, the correct log file for pool member health monitor status events is /var/log/ltm .

===========

When restoring a UCS file to replacement hardware (RMA device) , the license from the original device is not valid on the new system. If the UCS restore attempts to load the old license, BIG-IP reports license errors such as “License is not operational” , which can prevent traffic objects (including pools and virtual servers) from loading correctly.

To avoid this issue, F5 documentation recommends restoring the UCS without the license , using the following command:

tmsh load /sys ucs < ucs filename > no-license

This approach:

Restores all configuration objects (LTM, networking, certificates, keys, etc.)

Excludes the invalid license tied to the old hardware

Allows the administrator to activate a new license separately on the replacement device

Why the other options are incorrect:

A. Remove the license information from the UCS archive Not supported or recommended; UCS files should not be manually modified.

B. Revoke the license prior to restoring License revocation does not prevent the UCS from attempting to load license data.

D. Reactivate the license on the new device using the manual activation method This must be done after restoring the UCS and does not prevent the restore failure itself.

Therefore, the correct and supported method to avoid this error is C .

===========

In the BIG-IP Configuration Utility , all system backup and restore operations—including UCS (User Configuration Set) file restoration —are performed from the Archives section.

The correct navigation path is:

System > Archives

From this location, the administrator can:

Upload UCS files

Restore UCS backups

Manage system archive files used for backup and recovery

Why the other options are incorrect:

A. System > Configuration is used for general system settings, not backup restoration.

C. Local Traffic > Virtual Servers is used for application traffic objects.

D. Local Traffic > Policies manages traffic policies, not system backups.

Therefore, the correct section to restore a UCS file using the Configuration Utility is System > Archives .

===========

To determine the current failover (HA) status of a BIG-IP system using tmsh, F5 documentation explicitly states that the administrator should use the following command:

show /cm failover-status

This command displays:

The current failover state (active, standby, or offline)

Detailed failover status information

The operational HA condition of the device within a device group

According to F5 Knowledge Base Article K08452454, the documented procedure for checking failover status is:

Log in to the TMOS Shell (tmsh)

Run show /cm failover-status

Why the other options are incorrect:

A. list /cm failover shows configuration settings, not operational HA status.

B. show /sys failover is not the documented command for checking current failover status and does not align with F5’s recommended procedure.

The audit log (/var/log/audit) records configuration changes made on the BIG-IP system, including:

Who made the change (user account)

What was changed (for example, a virtual server modification)

When the change occurred

How it was performed (GUI, TMSH, or API)

Why the other options are incorrect:

/var/log/secure logs authentication events such as login successes and failures, not configuration changes.

/var/log/ltm logs traffic-management and runtime LTM events, not administrative configuration modifications.

Therefore, the correct log file for tracking who changed a virtual server is /var/log/audit .

Managing the state of a device often involves restoring configuration backups known as User Configuration Set (UCS) files These archives contain the full system configuration, including licenses and SSL certificates. The Control Plane provides a dedicated management area for these files under System > Archives, where administrators can upload, create, and restore configuration snapshots

Generating a QKView is a standard procedure for identifying device health and upgrade readiness 42 . Within the Configuration Utility, this Control Plane diagnostic tool is located under System > Support 43 . This utility collects configuration and state data into a single file used by the iHealth ' Upgrade Advisor ' to report on known bugs or compatibility issues prior to a version change.

When a BIG-IP Administrator changes module provisioning (for example, enabling ASM on a system previously provisioned only for LTM ), the BIG-IP system must restart the Traffic Management Microkernel (TMM) process.

The TMM process is responsible for:

Traffic handling

LTM, ASM, and other traffic-processing modules

Enforcing security and application policies

Provisioning changes affect how traffic modules are loaded and integrated into TMM. As a result, TMM is restarted , which causes a temporary interruption of traffic processing . This is expected behavior and is why module provisioning changes should be planned during a maintenance window .

Why the other options are incorrect:

A. bd is related to blade/platform management, not module provisioning.

C. sshd handles SSH access and is not affected by provisioning changes.

D. httpd supports the Configuration Utility (GUI) and does not restart due to module provisioning.

Therefore, the correct answer is B. tmm .

===========

The recommended and supported method for creating BIG-IP users from the CLI is through TMSH , using the authentication subsystem.

tmsh create auth user < username > prompt-for-password:

Properly creates the user within BIG-IP’s AAA/authentication framework

Encrypts the password securely

Ensures the user is stored and managed correctly in the BIG-IP configuration database

Is fully supported and documented

Why the other options are incorrect:

B is unsafe and unsupported because editing bigip.conf directly and storing clear-text passwords violates security and configuration management best practices.

C (f5adduser / f5passwd) is deprecated and not recommended for modern BIG-IP versions.

D creates a Linux system user only , not a BIG-IP administrative user, and will not allow access to the Configuration Utility or TMSH roles.

A QKView is a comprehensive snapshot of the device ' s Control Plane state, configuration, and logs used for troubleshooting. By default, the qkview utility stores its generated output file in the /var/tmp/ directory. Administrators must know this path to retrieve the file for upload to F5 iHealth or Support.
