F5 F5CAB2 BIG-IP Administration Data Plane Concepts (F5CAB2) exam Exam Practice Test

When handling high-volume UDP traffic where the BIG-IP does not need to maintain any session history or relationship between packets, aStatelessvirtual server is the appropriate choice.

No Connection Tracking:A stateless virtual server does not create or maintain entries in the BIG-IP connection table. This means the system processes each packet as an individual event, without "considering previous connections" or packets from the same source.

High Performance:Because the system bypasses the overhead of state management, stateless virtual servers provide the highest possible throughput for UDP and ICMP traffic.

Use Cases:This is ideal for services like DNS (stateless queries) or some types of syslog traffic where each packet is independent and doesn't require the persistence or protocol inspection typically provided by a full-proxy.

Why other options are incorrect:

Forwarding:While a Forwarding (IP) virtual server can handle UDP, it still maintains a state entry in the connection table to ensure return traffic is handled correctly.

Standard:This is a full-proxy virtual server. It is inherently stateful and requires a connection table entry for every flow it manages.

Reject:This is a special virtual server type that simply drops incoming traffic and, in the case of TCP, sends a reset (RST) or, for UDP, sends an ICMP unreachable message. It is not a load balancing type.

When establishing a redundant pair, each device must know where to send its health heartbeats and sync data.

The Peer IP:TheFailover Peer IPis the IP address belonging to theotherBIG-IP device in the HA pair. This is typically a34Self-IP on a dedicated "HA" or "Internal" VLAN, or the Management IP.

Purpose:It identifies the destination for the "Heartbeat" (the "Are you alive?" check).

Setup Context:During the initial setup, you tell Device A to look for Device B at its "Failover Peer IP," and you tell Device B to look for Device A at its respective "Failover Peer IP."

In a BIG-IP high availability (HA) configuration,Auto-Syncis a device trust feature that automatically synchronizes configuration changesfrom the Active device to the Standby devicewithin a Sync-Failover device group.

Key principles from BIG-IP Administration Data Plane Concepts:

TheActive device is always the authoritative source of configuration

Configuration changes are intended to be madeonly on the Active device

WithAuto-Sync enabled, any time the Active device configuration changes, the system automatically pushes the configuration to all Standby members of the device group

Configuration changes made directly on aStandby device are not preserved

In this scenario:

The administrator modifies a Virtual Server on theStandbydevice

That change islocal onlyand does not alter the device group’s synchronized configuration

When Auto-Sync next runs (triggered by a change on the Active device or an internal sync event), theActive device configuration overwrites the Standby configuration

As a result, the configuration change made on the Standby device isundone.

Why the Other Options Are Incorrect:

A– The change is not undone only when another change is made; it is undone during the next Auto-Sync operation

B– Changes made on the Standby device are never propagated to the Active device

D– Auto-Sync does not merge or promote Standby changes into the HA pair configuration

Best Practice Reinforced:

Always perform configuration changes on theActive BIG-IP devicewhen Auto-Sync is enabled to ensure consistent and predictable HA behavior.

===========

When managing a large environment with hundreds of Virtual Servers, the most efficient way to identify the relationship between an iRule and the objects it manages is to view the properties of the iRule itself.

iRule Properties:Within the BIG-IP Configuration Utility, navigating toLocal Traffic > iRulesand selecting a specific iRule provides a "Statistics" or "Usage" tab (depending on the version). This view explicitly lists all Virtual Servers currently associated with that specific iRule.

Centralized Management:Instead of manually checking 235 individual Virtual Servers under the "Virtual Servers" menu, the iRules menu acts as a central point of reference for that specific logic.

Data Plane Impact:Because iRules can modify traffic flow, headers, and load balancing decisions, seeing the full list of affected Virtual Servers is critical before making adjustments to avoid unintended side effects across the application portfolio.

In BIG-IP architecture,link aggregation and redundancyat Layer 2 are implemented usingTrunks, not virtual servers or pools.

According to BIG-IP Administration Data Plane Concepts:

Interfacesare the physical network ports on the BIG-IP device

ATrunkis a logical grouping of multiple interfaces

Trunks can be configured to useLACP (Link Aggregation Control Protocol)to:

Provide link redundancy

Increase aggregate bandwidth

Allow automatic detection of link failures

VLANs are thenassigned to the trunk, not directly to individual interfaces, once aggregation is in place

Correct Design for the Scenario:

To connect BIG-IP totwo upstream switcheswith LACP:

One physical interface from BIG-IP connects toSwitch A

Another physical interface from BIG-IP connects toSwitch B

Both interfaces are placed intothe same trunk

LACP is enabled on the trunk and on the switches

This configuration allows:

Traffic to continue flowing if one interface or switch fails

Proper LACP negotiation between BIG-IP and the upstream switches

Clean separation of responsibilities (Layer 2 handled by trunking, Layer 4–7 by virtual servers)

Why Option D Is Correct:

ATrunk containing an interface connected to each switchis exactly how BIG-IP implements LACP-based interface binding

The trunk handles link state, load distribution, and failover at the data plane

Why the Other Options Are Incorrect:

A & B– Virtual servers operate at Layers 4–7 and have nothing to do with physical link aggregation or LACP

C– VLAN IDs and MAC addresses are not configuredinsidea trunk definition; trunks aggregate interfaces, and VLANs are appliedtotrunks

Key Data Plane Concept Reinforced:

On BIG-IP systems,LACP is always configured on a Trunk, which aggregates physical interfaces to provideLayer 2 resiliency and bandwidth aggregation. Virtual servers and pools are not involved in physical interface binding.

===========

iRules are event-driven scripts that allow for advanced traffic manipulation.

Universality of Events:Every packet that passes through t21he BIG-IP data plane triggers events. Even non-HTTP traffic triggers events such as CLIENT_ACCEPTED (when the TCP connection is established22) or CLIENT_DATA (when raw data is received). Therefore, all client traffic—regardless of protocol—has data that can trigger an iRule event.

Event Specificity:Events are not universal (Option C is false). For example, HTTP_REQUEST only occurs after a full HTTP header is parsed. You cannot trigger an HTTP_RESPONSE event before a request has been sent to a server.

Protocol Agnostic:iRules are not limited to HTTP (Option A is false); they can handle TCP, UDP, DNS, FTP, SIP, and more.

Error Handling:If an iRule references an event that never triggers (e.g., an HTTP_REQUEST event in a purely TCP virtual server), the iRule code for that event simply never executes. It doesnotterminate the connection (Option D is false).

In a BIG-IPdevice service cluster, configuration objects such asvirtual servers, pools, profiles, and iRulesare maintained throughconfiguration synchronization (config-sync).

Key BIG-IP concepts involved:

Device Service Cluster (DSC)A cluster is a group of BIG-IP devices that share configuration data. One device is typically used to make changes, which are then synchronized to the rest of the group.

Config-Sync Direction Matters

Changes are made on alocal device

Those changes must bepushed to the group

The correct operation is“Sync Device to Group”

WhyCis correct:

The virtual server was createdonly on device 1

Other devices in the cluster do not yet have this object

To propagate the new virtual server to all cluster members, the administrator mustsynchronize device 1 to the group

Why the other options are incorrect:

A. Synchronize the settings of the group to device 1This would overwrite device 1’s configuration with the group’s existing configuration and mayremove the newly created virtual server.

B. Create a new cluster on device 1The cluster already exists. Creating a new cluster is unnecessary and disruptive.

D. Create a new virtual server on device 2This defeats the purpose of centralized configuration management and risks configuration drift.

Conclusion:

After creating a new virtual server on a BIG-IP device that is part of a cluster, the administrator mustsynchronize the configuration from that device to the groupso all devices share the same ADC application objects.

In BIG-IP high availability (HA) deployments, one of the primary causes of traffic disruption during failover isLayer 2 and Layer 3 relearningby upstream network devices (switches and routers). When traffic groups move from the Active device to the Standby device, the network must quickly associate the IP addresses with the new device.

Why MAC Masquerading Minimizes Failover Impact:

MAC masqueradingallows a traffic group to use afloating, shared MAC addressfor its Self IPs. This MAC address moves with the traffic group during failover.

Key benefits:

TheMAC address does not changewhen failover occurs

Upstream switches donot need to relearn ARP entries

Traffic resumes almost immediately after failover

Dramatically reduces packet loss and connection interruption

From BIG-IP Administration Data Plane Concepts:

MAC masquerade is specifically designed to providefast failover

It is a best practice for HA pairs, especially in environments sensitive to latency and connection loss

Why the Other Options Are Incorrect:

A. External monitors

Used to check the availability of external resources

Do not reduce network convergence or failover disruption

B. Clone pool

Used for traffic mirroring or security analysis

Has no impact on failover behavior

C. OneConnect profile

Optimizes server-side TCP connections

Does not address ARP or MAC relearning during failover

Key HA Concept Reinforced:

To minimize failover impact on live traffic, BIG-IP administrators should ensureLayer 2 continuity.MAC masqueradingis the primary mechanism that enables near-instant failover by preventing ARP and MAC table reconvergence delays.

===========

F5 BIG-IP uses aConfigSyncmechanism to ensure that all members of a Device Service Cluster (DSC) share the same configuration.

Manual Synchronization:By default, configuration changes made on one device (the "source") do not automatically propagate to other members.

Direction of Sync:Once a Virtual Server is created on device 1, that device's configuration is now "newer" than the rest of the group. The administrator must initiate a synchronization from themodified device (device 1) to the Sync-Failover group.

Consistency:This ensures that if a failover occurs, device 2 (the standby) will have the exact same Virtual Server configuration and can take over traffic immediately without interruption.

The BIG-IP system supports various remote authentication methods like LDAP, Active Directory, and RADIUS.

Fallback to Local:This is a specific security and availability feature within theSystem > Users > Authenticationconfiguration.

Redundancy:When "Fallback to Local" is enabled, the BIG-IP will first attempt to authenticate a user against the configured remote server. If that remote server is unreachable or fails to respond, the system will then check its internalLocal User databasefor credentials.

Administrative Access:This is standard practice for the "admin" or emergency accounts to ensure the system remains accessible even if the corporate directory service (e.g., AD) is offline.

6

TheEnd7User Diagnostics (EUD)utility is a software tool designed to test the hardware components of a BIG-IP system. Because the EUD must run when the standard Traffic Management Microkernel (TMM) and Operating System (TMOS) are not fully loaded (especially in "fail to boot" scenarios), it is accessed at the boot level.

Access Requirements:To run the EUD, the administrator must reboot the BIG-IP system and select the EUD option from theGRUB boot menu. Because the network interfaces (Internal, External, and Management) require a running operating system and drivers to function, they are unavailable during this pre-boot phase.

The Console Port:TheConsole Portprovides a direct out-of-band serial connection to the hardware's BIOS and bootloader. This is the only interface that allows an administrator to interact with the system during the early stages of the power-on self-test (POST) and boot sequence to initiate diagnostic tests.

Purpose:The EUD performs a series of tests on the CPU, memory, hard drives, and physical interfaces to identify hardware-level failures before the data plane is even initialized.

For BIG-IP to send or receive traffic on a VLAN, that VLANmust be bound to a physical interface or a trunk. Creating a VLAN object and a Self IP alone isnot sufficientto establish data-plane connectivity.

From the exhibit:

The VLAN (vlan_1033) exists and has a tag defined.

A Self IP is configured and associated with the VLAN.

However, traffic cannot reach servers on that VLAN.

This indicates aLayer 2 connectivity issue, not a Layer 3 or HA issue.

Whyassigning a physical interfacefixes the problem:

BIG-IP VLANs do not carry traffic unless they are explicitly attached to:

Aphysical interface(e.g., 1.1), or

Atrunk

Without an interface assignment, the VLAN is effectively isolated and cannot transmit or receive frames, making servers unreachable regardless of correct IP addressing.

Why the other options are incorrect:

A. Set Port Lockdown to Allow AllPort Lockdown controls which services can be accessedon the Self IP(management-plane access), not whether BIG-IP can reach servers on that VLAN.

B. Change Auto Last Hop to enabledAuto Last Hop affects return traffic routing for asymmetric paths. It does not fix missing Layer 2 connectivity.

D. Create a Floating Self IP addressFloating Self IPs are used for HA failover. They do not resolve reachability issues on a single device when the VLAN itself is not connected to an interface.

Conclusion:

The servers are unreachable because the VLAN hasno physical interface assigned. To restore connectivity, the BIG-IP Administrator mustassign a physical interface (or trunk) to the VLAN, enabling Layer 2 traffic flow.

ATraffic Groupis a collection of related configuration objects that fail over together from one BIG-IP device to another. Only "floating" objects can be members of a traffic group.

Virtual Addresses (C):A virtual address (the IP part of a Virtual Server) is a floating object. It is assigned to a traffic group so that the entire IP moves to the standby unit during a failover.

Floating Self IPs (E):These are used as gateways for backend servers or SNAT addresses. By associating them with a traffic group, they remain reachable by the backend network regardless of which BIG-IP is currently active.

Why other options are incorrect:

iRules (A):iRules are configuration logic files; they are synchronized across devices but are not "hosted" by a traffic group.

VLANs (D):VLANs are local to the hardware interfaces/trunks of each specific device and do not fail over.

To select the correct virtual server type, an administrator must balance the need for L7 intelligence versus raw throughput and hardware offloading:

Performance (Layer 4) Virtual Server:This type is designed for maximum speed. It uses thefastL4profile, which allows the BIG-IP system to leverage theePVA (Embedded Packet Velocity Accelerator)hardware chip. When a Performance (L4) virtual server is used, the system processes packets at the network layer (L4) without looking into the application payload (L7). This fulfills the requirement for hardware acceleration and avoids the overhead of HTTP optimization features, which are not needed in this scenario.

Performance (HTTP) Virtual Server:While fast, this type uses thefasthttpprofile to provide some L7 awareness and optimization (like header insertion or small-scale multiplexing). Since the requirement specifically states HTTP optimization isnotrequired, the L4 variant is more efficient.

Standard Virtual Server:This is a full-proxy type. While it offers the most features (SSL offload, iRules, Compression), it processes traffic primarily in the TMOS software layer (or via high-level hardware assistance), which is "slower" than the pure hardware switching path of the Performance (L4) type.

Stateless Virtual Server:This is typically used for specific UDP/ICMP traffic where the system does not need to maintain a connection table. It is not appropriate for standard HTTP (TCP) applications requiring persistent sessions or stateful load balancing.

By choosingPerformance (Layer 4)with thefastL4profile, the organization ensures that the traffic is handled by the hardware acceleration chips, providing the lowest latency and highest throughput possible for their HTTP application.

In the BIG-IP system object hierarchy, health monitors can be applied at three levels:Node,Pool, andPool Member.

Pool Level (Properties):Applying a monitor at thePool > Propertieslevel is the most common and efficient administrative practice. When applied here, the monitor is inherited by all members of that pool. If the monitor fails for a specific member, that member is marked "down" specifically for that pool.

Node Level:If a monitor is applied at the Node level (Local Traffic > Nodes), it checks the health of the physical IP address itself. If it fails, that node (and all pool members associated with it) is marked down globally across the entire system.

Member Level:Applying a monitor at thePool > Memberslevel allows for specific "per-member" monitoring, which is usually only done if different members in the same pool require different health checks.

The Specific Case:For a standard database pool like DB_Pool, the administrator should navigate toLocal Traffic > Pools > DB_Pool > Propertiesand select the appropriate monitor (e.g., a custom TCP or Oracle monitor) from the "Health Monitors" configuration section.

To meet the requirement offault tolerance when one interface goes down, BIG-IP must uselink aggregationso that loss of a single physical link does not isolate the VLAN(s).

How the objects relate (data plane view)

Interfaces= physical links.

Trunk (LACP)= bundles multiple interfaces into one logical link that providesredundancy(and possibly bandwidth aggregation).

VLANsare assigned to interfaces or trunks. If you needmultiple VLANs on the same trunk, they must use802.1Q tagging(because you can only have one untagged VLAN per interface/trunk).

Self IPsare then placed on the VLANs to provide BIG-IP presence and routing/ARP functions, but self IPs are not what provides link resiliency—the trunk does.

Why Option D is correct

You havetwo physical interfacesand you want resiliency if one fails → put both interfaces intoone trunk with LACP enabled.

You needboth external and internal VLANson those same two links → both VLANs should be configured astaggedon that trunk, so they can coexist on the same aggregated link.

If either physical interface fails, the trunk remains up via the remaining interface, keepingboth VLANs operational.

Why the other options are incorrect

A: Two VLANs cannot both beuntaggedon the same trunk/interface. Only one untagged VLAN is possible; additional VLANs must be tagged.

B: Two trunks “each with one VLAN” would typically mean splitting VLANs across separate trunks. With only two interfaces total, that becomes one interface per trunk—if one interface goes down, the VLAN on that interface is down (no redundancy for that VLAN).

C: Same redundancy problem as B, and disabling LACP removes the negotiated aggregation behavior expected when the switch engineer specifically requested LACP.

===========

In the BIG-IP system, VLANs are the logical entities that group physical interfaces or trunks together. To modify how a VLAN interacts with an interface, the administrator must navigate to the specific VLAN configuration object.

VLAN List:This section displays all existing VLANs configured on the system.

Interface Association:Within the properties of a specific VLAN (in this case, "external"), there is anInterfacessection. This is where physical ports or trunks are assigned to the VLAN.

Tagging Status:For each associated interface, the administrator can choose betweenTagged(802.1Q) orUntagged.

Untagged:The interface will treat incoming traffic without a VLAN header as part of this VLAN, and outgoing traffic will not have a VLAN tag added. An interface can only be "Untagged" for one VLAN.

Tagged:Allows an interface to carry traffic for multiple VLANs simultaneously by using 802.1Q headers.

In BIG-IP LTM,health monitorsare used to determine the availability of pool members and directly influence traffic flow decisions in the data plane.

Key characteristics of thedefault HTTP monitoraccording to BIG-IP Administration Data Plane Concepts:

Sends an HTTP request (typically GET /)

Expects an HTTP response code of200 OK

Any responseother than 200is treated as amonitor failure

A failed monitor causes the pool member to be markedoffline (down)

In this scenario:

Two pool members return404 Not Found

A 404 response indicates that the requested object was not found

This doesnotmeet the success criteria of the default HTTP monitor

These two members are therefore markedoffline

One pool member returns200 OK

This matches the expected response

The member is markedonline

Resulting Pool Member Availability:

2 members: Offline

1 member: Online

Why the Other Options Are Incorrect:

B– 404 responses are not considered healthy by the default HTTP monitor

C– At least one member responds with the expected 200 OK

D– Members returning 404 responses fail the monitor and cannot be marked online

Key Data Plane Concept Reinforced:

BIG-IP health monitors makebinary availability decisionsbased strictly on configured success criteria. For HTTP monitors, response codes matter—404 is a failure, even if the service is technically reachable.

===========

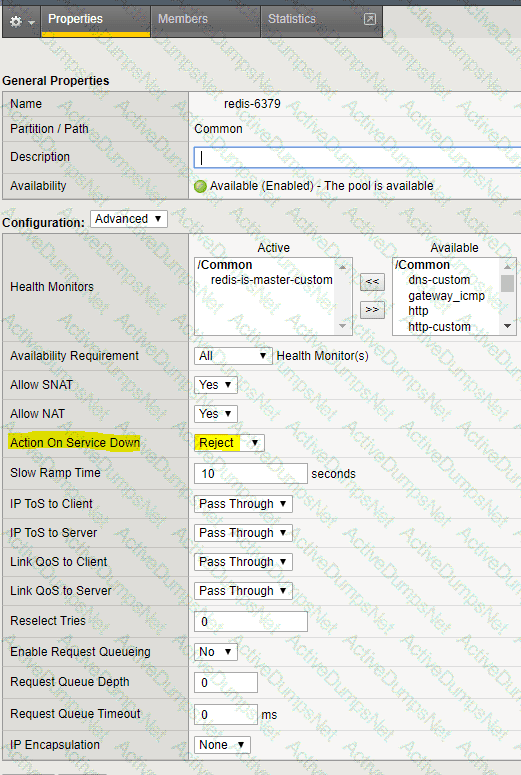

This question focuses onconnection behavior when pool members transition from down to up, which is a classic data plane consideration in BIG-IP environments.

What problem is being solved?

When a pool member:

Recovers from a failure

Is enabled after maintenance

Transitions frominactivetoactive

…it can suddenly receive alarge burst of new connections, especially when using load-balancing methods such asLeast Connections. This sudden surge can overload the server.

Why Slow Ramp Time is the correct solution:

Slow Ramp Timeis a pool-level setting that:

Gradually increases the number of connections sent to a newly available pool member

Prevents sudden spikes in traffic

Allows the server to warm up (application cache, JVM, DB connections, etc.)

From BIG-IP Administration Data Plane Concepts:

Slow Ramp Time controls therate at which BIG-IP increases loadto a pool member that has just become available

During the ramp period, BIG-IP artificially increases the member’s connection count, making it appear “busier” and therefore less attractive for new connections

This directly satisfies the requirement toavoid overloading pool members when they become active.

Why the Other Options Are Incorrect:

B. Different Ratio for each member

Ratios controlrelative distributionunder normal operation

They do not prevent a sudden surge when a member becomes active

C. Action On Service Down to Reselect

Controls persistence behavior when a member goes down

Has no impact on connection ramp-up when a member comes back online

D. Same Priority Group to each member

Affects failover logic between priority groups

Does not control connection rate or ramp-up behavior

Key Data Plane Concept Reinforced:

To protect backend servers during recovery events, BIG-IP providesSlow Ramp Time, ensuringgraceful reintroduction of trafficand preventing connection storms that can occur during high-load scenarios.

===========
