Unisphere for PowerMax and Solutions Enabler have different ways of managing user permissions. Unisphere has a more explicit authentication mechanism for users, where each user must have a username and password to log in to the Unisphere interface. Unisphere also supports role-based access control (RBAC), where each user can be assigned one or more roles that define their level of access to the storage system resources and operations. Unisphere maintains the user and role information in a symauth database, which can be shared with Solutions Enabler. Solutions Enabler, on the other hand, uses the operating system user credentials to authenticate users. Solutions Enabler does not require users to have a username and password to run commands, but it checks the symauth database to verify if the user has the appropriate role to perform the requested operation. Solutions Enabler also supports RBAC, where each user can be assigned up to four roles that define their level of access to the storage system resources and operations.

References:

• Unisphere for PowerMax User Management
• Solutions Enabler User Management

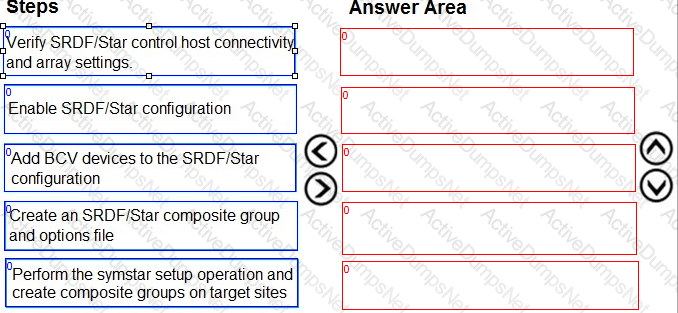

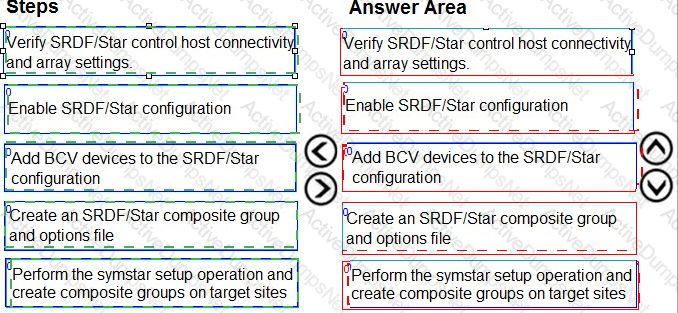

The correct sequence of steps to configure and bring up an SRDF/Star environment is as follows:

• Verify SRDF/Star control host connectivity and array settings. This step involves checking the network connectivity between the control host and the three arrays involved in the SRDF/Star configuration, as well as verifying the array settings such as RDF mode, RDF consistency, and RDF emulation. The control host is the host that runs the Solutions Enabler SYMCLI commands to manage the SRDF/Star configuration.The three arrays are the primary array, the secondary array, and the tertiary array.1
• Enable SRDF/Star configuration. This step involves enabling the SRDF/Star feature on the primary array using the symstar enable command. This command also creates a STAR control device group on the primary array, which contains a single device that acts as a control point for the SRDF/Star configuration.The STAR control device group must have a unique name and number across all arrays.1
• Add BCV devices to the SRDF/Star configuration. This step involves adding Business Continuance Volume (BCV) devices to the STAR control device group on the primary array using the symstar add bcv command. BCV devices are local copies of data that can be used for backup, restore, or testing purposes. BCV devices are required for SRDF/Star configurations to enable fast recovery in case of a disaster.The number of BCV devices must match the number of R1 devices in the SRDF/Star configuration.1
• Create an SRDF/Star composite group and options file. This step involves creating an SRDF/Star composite group on the control host using the symstar create command. An SRDF/Star composite group is a logical grouping of devices that span across three arrays and have different SRDF roles: R11, R21, and R22. An R11 device is an R1 device that is paired with another R1 device in a different SRDF group. An R21 device is an R2 device that is paired with another R1 device in a different SRDF group. An R22 device is an R2 device that is paired with another R2 device in a different SRDF group.The symstar create command also creates an options file that contains various parameters for the SRDF/Star configuration, such as RDF mode, RDF consistency, RDF emulation, and bias setting.1
• Perform the symstar setup operation and create composite groups on target sites. This step involves performing the symstar setup operation on the control host using the symstar setup command. This command establishes the SRDF/Star configuration by creating RDF pairs between devices in different arrays, creating RDF groups on each array, creating composite groups on each array, and synchronizing data across all devices.The symstar setup command also creates composite groups on the secondary and tertiary arrays using the same name and number as the composite group on the primary array.1

References:

• Dell EMC Solutions Enabler 9.2 SRDF Family CLI User Guide

An SRDF/Metro device pair was in an ActiveActive state, meaning that both the R1 and R2 devices were read/write accessible to the host or hosts. A link failure between arrays occurs, causing the device pair to become Not Ready (NR) on the SRDF link. SRDF/Metro responds by making the non-biased or R2 paired device inaccessible (not ready) to the host or host cluster, while keeping the biased or R1 paired device accessible (ready). This ensures that there is no data inconsistency or split-brain scenario between the two sites. The device pair enters an Active Bias state, which indicates that only one side of the pair is active and has a bias attribute set. The bias attribute determines which side of the pair remains accessible in case of a link failure. By default, the bias is set to the R1 side of the pair, but it can be changed using the symrdf set bias command. The application continues running on the R1 side, and the link failure is addressed. Once the link is restored, the device pair resumes the ActiveActive state and both devices become accessible again.

References:

• SRDF/Metro overview
• VMware vSphere Metro Storage Cluster (vMSC) with Dell PowerMax and Dell EMC VMAX SRDF/Metro
• Understanding bias

Fast Write is a Dell EMC technology that improves Fibre Channel (FC) replication between sites in a SRDF/S configuration. When a write I/O is issued by the host to the R1 device, SRDF with Fast Write acknowledges the write to the host as soon as the data is stored in the R1’s cache and transmitted to the R2’s cache. This results in reduced latency and improved performance for FC replication between sites.

https://www.delltechnologies.com/asset/en-us/products/storage/industry-market/h17118_dell_emc_powermax_family_overview.pdf

https://infohub.delltechnologies.com/l/dell-emc-powermax-and-vmax-all-flash-srdf-metro-overview-and-best-practices-1/srdf-metro-overview/

The minimum number of samples that must be collected via a single Real Time Trace collection process in Unisphere for PowerMax is 1040. This is because the Real Time Trace feature allows the user to collect performance data at 30-second intervals for up to 8 hours, which results in 1040 samples (8 x 60 x 60 / 30 = 1040). The Real Time Trace feature can be used to monitor the performance of storage groups, directors, ports, or devices at a granular level and identify any potential issues or bottlenecks.

References:

• PowerMax Real Time SG Monitoring in Unisphere 9 0
• VMAX Performance Troubleshooting with Unisphere - Run a real time trace at the system level

 When the cache space fills up, I/O will be queued until an empty cache slot is available. This is because PowerMax operates as a cache-centric architecture, where all data is passed through cache before being stored on disk. Cache is used to buffer incoming and outgoing data, as well as to support various functions such as replication and data reduction. When cache is full, the array cannot accept any more data until some cache slots are freed up by flushing data to disk or invalidating stale data. Therefore, answer B is correct.

A, C, and D are incorrect because they do not describe what happens when cache space fills up. I/O will not be serviced at the speed of the destination device (A), as this would bypass the cache and degrade performance. Cache is not permanently flushed © or temporarily disabled (D), as this would result in data loss or corruption.

The correct answer is D. When an SRDF/A MSC trip event occurs, the Receive Delta Set on the target arrays is checked for completeness. If the Receive Delta Set is incomplete on any of the target arrays, the session is marked as Cleanup required. This means that the data on the target arrays is not consistent and needs to be cleaned up before resuming SRDF/A replication. The symstar cleanup command can be used to discard the incomplete Receive Delta Set data and resume SRDF/A replication from the last consistent point1

 In an SRDF/Metro configuration with bias setting, if there is a failure at the R1 array (which is configured as the bias side), the R2 device automatically becomes the active device. This means that even if there’s a failure on the R1 side, operations can continue on the R2 side without interruption, ensuring high availability.

https://infohub.delltechnologies.com/l/dell-emc-powermax-and-vmax-all-flash-srdf-metro-overview-and-best-practices-1/understanding-bias

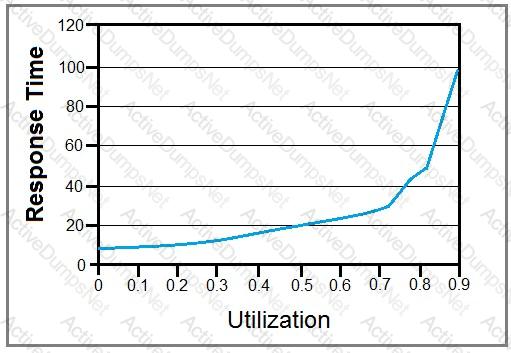

 If utilization increases by 10% for both systems A and B, where system A has a current utilization of 10% and system B has a current utilization of 70%, the response times for systems A and B would not necessarily increase linearly with utilization. The exact impact on response times would depend on various factors including workload characteristics, system configuration, and resource contention among others34. However, without specific details on these factors, it’s not possible to provide an accurate prediction for the new response times. References: PowerMax and VMAX All Flash: Storage Resource Pool (SRP) Effective Used Capacity threshold alert, Service levels and eNAS | Dell EMC PowerMax and VMAX All Flash: eNAS Best Practices

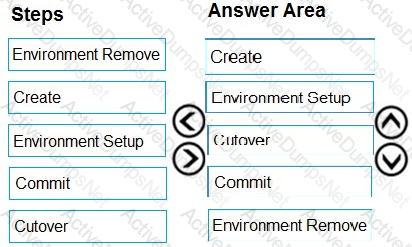

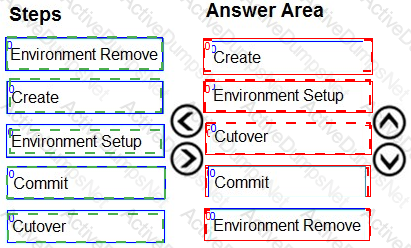

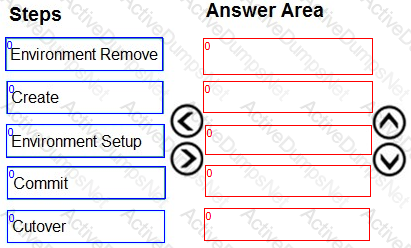

During a Non-Disruptive Migration (NDM), issuing the ReadyTgt SYMCLI command to the migrating Storage Group completes the migration by removing the migrated application resources from the source array2. This command is typically issued after all data has been synchronized from the source to the target array and application I/O has been switched to thetarget array2. References: NDM overview | Dell EMC PowerMax and VMAX: Non-Disruptive Migration Best Practices and Operational Guide | Dell Technologies Info Hub

An application owner is experiencing performance issues for their application. Unisphere for PowerMax is showing the storage group is compliant with the current Service Level. A Service Level is a predefined set of performance attributes that can be applied to a storage group to ensure consistent and predictable performance. A Service Level specifies a target response time, an upper response time limit, and a lower response time limit for the storage group. If the application owner wants to improve theperformance of their application, they can adjust the Service Level to a higher level of service, which will provide lower response times and higher priority for the storage group. Unisphere for PowerMax provides five predefined Service Levels: Diamond, Platinum, Gold, Silver, and Bronze, as well as an Optimized option that automatically adjusts the Service Level based on workload characteristics. The application owner can choose a higher Service Level from these options or create a custom Service Level with their own performance parameters.

References:

• Dell EMC PowerMax: Service Levels for PowerMaxOS
• Dell Unisphere for PowerMax 10.0.0 Product Guide

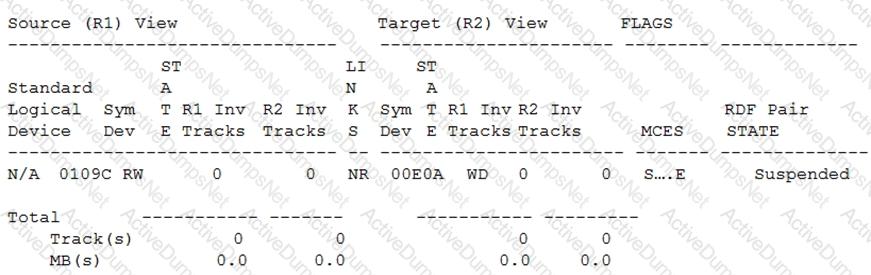

 The symrdf split command is used to suspend SRDF/A replication and make both R1 and R2 devices read/write enabled. This is useful for testing purposes or for creating point-in-time copies of data on both sides. The symrdf establish command can be used to resume SRDF/A replication after a split operation. The exhibit shows that both R1 and R2 devices are read/write enabled and have a Split status, which indicates that a symrdf split command was issued next2

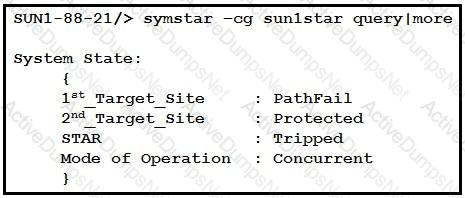

In a Concurrent SRDF/Star configuration failure, the first step to recover is to switch to the 1st Target Site. This is because in a Concurrent SRDF/Star configuration, there are two target sites and one source site. If there’s a failure, the source site can switch to either of the target sites based on the business continuity plan1. References: Dell EMC Solutions Enabler 9.2 SRDF Family CLI User Guide

 In PowerMax, each RAID group is divided into 64 logical blocks known as TDATs (Thin Device Addressable Tracks). Each TDAT is configured to hold data at a given data reduction level, from 1:1 uncompressed data all the way to 16:11. References: Data Protection Schemes | Dell PowerMax: Reliability, Availability, and Serviceability | Dell Technologies Info Hub

https://infohub.delltechnologies.com/l/dell-emc-powermax-and-vmax-non-disruptive-migration-best-practices-and-operational-guide-1/ndm-overview

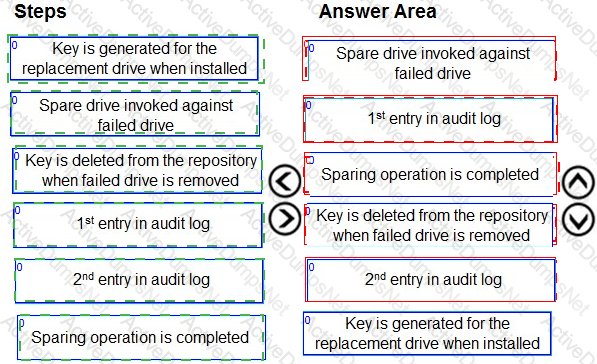

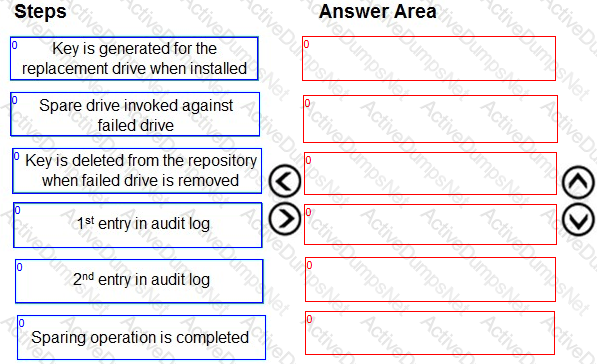

The steps in sequence as part of key management for a drive failure on a PowerMax array are as follows:

• Spare drive invoked against failed drive. This step involves the system automatically selecting a spare drive and starting the sparing operation to rebuild the data from the failed drive.The spare drive is encrypted with a temporary key that is stored in the embedded key manager.1
• 1st entry in audit log.This step involves the system logging the sparing operation and the temporary key generation in the audit log, which records all key management activities and events.1
• Sparing operation is completed. This step involves the system completing the data rebuild and marking the spare drive as a permanent replacement for the failed drive.The spare drive becomes part of the RAID group and inherits the same properties as the failed drive.1
• Key is deleted from the repository when failed drive is removed. This step involves the system deleting the Data Encryption Key (DEK) of the failed drive from the embedded key manager when the failed drive is physically removed from the array.The DEK is a unique 256-bit AES-XTS key that is used to encrypt and decrypt data on each drive.1
• 2nd entry in audit log.This step involves the system logging the DEK deletion and the failed drive removal in the audit log.1
• Key is generated for the replacement drive when installed. This step involves the system generating a new DEK for the replacement drive when it is installed in the array.The new DEK is stored in the embedded key manager and used to encrypt and decrypt data on the replacement drive.1

References:

• Dell EMC PowerMax and VMAX All Flash: Data at Rest Encryption
