Cisco 350-801 Implementing Cisco Collaboration Core Technologies (350-801 CLCOR) Exam Practice Test

Page: 1 / 36
Total 361 questions

Implementing Cisco Collaboration Core Technologies (350-801 CLCOR) Questions and Answers

Question 1

Due to service provider restriction. Cisco UCM cannot send video in the SDR Which two options on Cisco UCM are configured to suppress video in the SDP in outgoing invites? (Choose two.)

Options:

A.

Add the audio forced command to voice service VoIP on the Cisco Unified Border Element.

B.

Check the Retry Video Call as Audio on the SIP trunk.

C.

Set Video Bandwidth in the Region settings to 0.

D.

Change the Video Capabilities dropdown on the endpoint to Disabled.

E.

Check the Send send-receive SDP in mid-call INVITE check box on the SIP trunk SIP profile.

Question 2

Which Cisco UCM service parameter is enabled to disconnect a multiparty call when the call initiator hangs up?

Options:

A.

H.225 Block Setup Destination

B.

Drop Ad Hoc Conference

C.

Enterprise Feature Access Code for Conference

D.

Block OffNet To OffNet Transfer

Question 3

Refer to the exhibit.

Question # 3

An engineer must modify the existing QoS policy-map statement to implement LLQ for voice traffic. Which change must the engineer make in the configuration?

Options:

A.

bandwidth 170 to reserve 170

B.

bandwidth 170 to LL1 170

C.

bandwidth 170 to priority 170

D.

bandwidth 170 to percent 170

Question 4

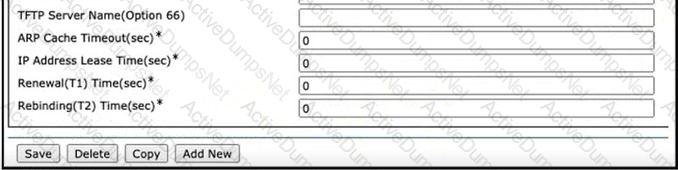

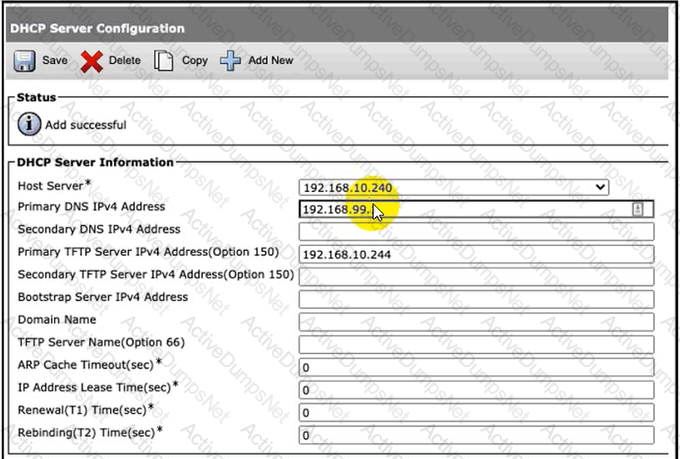

During the Cisco IP Phone registration process the TFTP download fails. What are two reasons for this issue? (Choose two)

Options:

A.

The DNS server was not specified, which is needed to resolve the DHCP server IP address.

B.

Option 100 string was not specified, or an incorrect Option 100 string was specified.

C.

The Cisco IP Phone does not know the IP address of the TFTP server.

D.

The Cisco IP Phone does not know the IP address of any of the Cisco UCM Subscriber nodes.

E.

Option 150 string was not specified, or an incorrect Option 150 string was specified.

Question 5

What is a capability of the call forwarding feature in a Cisco Webex dial plan?

Options:

A.

device pool selection

B.

Call Admission Control

C.

business continuity

D.

ringtone selection

Question 6

Question # 6

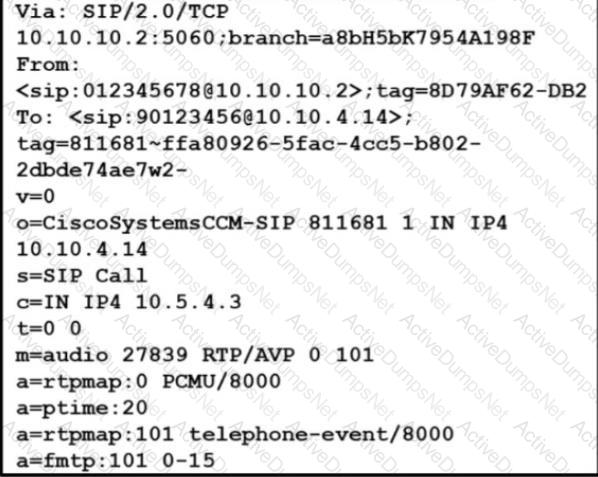

Refer to the exhibit. The SDP offer/answer has been completed successfully but there is no DTMF when users press keys. What is the cause of the issue?

Options:

A.

Payload type 110 was negotiated rather than type 101.

B.

DTMF was negotiated property in these messages.

C.

DTMF was not negotiated on the call.

D.

G.729 rather than G.711ulaw was negotiated.

Question 7

Refer to the exhibit.

Question # 7

You deploy Mobile and Remote Access for Jabber and discover that Jabber for Windows does not register to cisco Unified Communications Manager while outside of the office. What is a cause of this issue?

Options:

A.

The DNS record should be created for _ cisco-uds._tcp example.com.

B.

The DNS record should be changed from _collab-edge._tls example.com.

C.

The DNS record type should be changed from SRV to A.

D.

Server 4.2.2.2 is not a valid DNS server.

Question 8

What is required when deploying co-resident VMs by using Cisco UCM?

Options:

A.

Provide a guaranteed bandwidth of 10 Mbps.

B.

Deploy the VMs to a server running Cisco UCM.

C.

Avoid hardware oversubscription.

D.

Ensure that applications will perform QoS.

Question 9

An engineer configures a SIP trunk for MWI between a Cisco UCM cluster and Cisco Unity Connection. The Cisco UCM cluster fails to receive the SIP notify messages. Which two SIP trunk settings resolve this issue? (Choose two.)

Options:

A.

accept out-of-dialog refer

B.

accept out-of-band notification

C.

transmit security status

D.

allow changing header

E.

accept unsolicited notification

Question 10

Which Cisco Unity Connection call management element can be used to answer calls, provide callers with a list of menu options, and transfer calls?

Options:

A.

directory handler

B.

call routing table

C.

interview handler

D.

call handler

Question 11

Question # 11

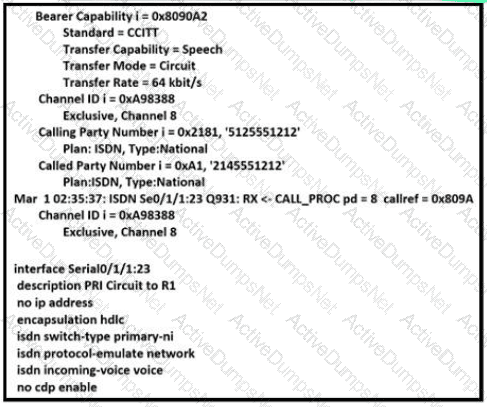

Refer to the exhibit. An engineer is troubleshooting why PSTN phones are not receiving the caller's name when called from a remote Cisco UCM site. An ISDN PRI connection is being used to reach the PSTN What must the administrator select to resolve the issue?

Options:

A.

isdn supp-service name calling

B.

isdn outgoing display-ie

C.

isdn enable did

D.

isdn send display le

Question 12

What is a reason for using a Diffserv value of AF41 for video traffic?

Options:

A.

Video traffic cannot tolerate any packet loss and has a latency of 150 miliseconds

B.

Video traffic can tolerate up to 10% packet loss and latency of 10 seconds

C.

Video trafic can tolerate up to 5% packet loss and latency of 5 seconds

D.

Video traffic can tolerate a packet loss of up to 1% and latency of 150 milliseconds

Question 13

Which Webex Calling dial plan settings restrict a user from placing a particular outbound call type?

Options:

A.

Block

B.

Transfer to Number

C.

Reject

D.

Restrict

Question 14

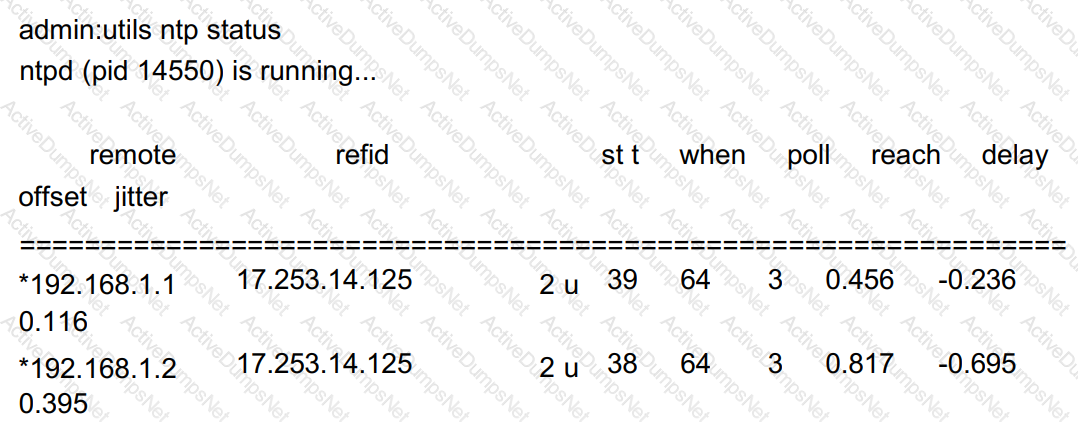

Exhibit.

Question # 14

Refer the exhibit. A collaboration engineer needs to replace the original, single NTP

server that was configured during the inital install of a Cisco UCM server. What is the first

step to accomplish this task?

Options:

A.

Restart the NTP service on Cisco UCM

B.

Delete the original NTP server from Cisco UCM

C.

Stop the NTP service on Cisco UCM

D.

Enable NTP authentication for the new NTP server on Cisco UCM

Question 15

Question # 15

Refer to the exhibit. The translation rule is configured on the voice gateway to translate DNIS. What is the outcome if the gateway receives 0255-343-1234 as DNIS?

Options:

A.

The translation rule is not matched because DNIS does not end with a "$".

B.

The translation rule is matched and the translated number is 02553431234.

C.

The translation rule is matched and the translated number is 025553431234.

D.

The translation rule is not matched because DNIS contains"-".

Question 16

An engineer troubleshoots a Cisco Jabber login problem on a Windows PC. The login fails with the error message "Cannot find your services automatically. Click advanced settings to set up manually " Which action should the engineer take first?

Options:

A.

Verify whether the cup-xmpp certificates are valid.

B.

Verify the username and password and try again.

C.

Perform a manual DNS lookup of SRV record _cisco-uds._tcp.domain.com.

D.

Perform a manual DNS lookup of SRV record _collab-edge._tls.domain.com.

Question 17

How does an administrator make a Cisco IP phone display the last 10 digits of the calling number when the call is in the connected state, and also display the calling number in the E.164 format within call history on the phone?

Options:

A.

Change the service parameter Apply Transformations On Remote Number to True.

B.

Configure a translation pattern that has a Calling Party Transform Mask of XXXXXXXXXX.

C.

On the inbound SIP trunk, change Significant Digits to 10.

D.

Configure a calling party transformation pattern that keeps only the last 10 digits.

Question 18

Why does Cisco UCM use DNS?

Options:

A.

lt provides certificate-based security for media

B.

lt resolves FQDN to IP address resolution for trunks

C.

it connects endpoints to single sign-on services.

D.

lt provides SRV resolution to the endpoints registered

Question 19

An engineer must manually provision a Cisco IP Phone 8845 using SIP. Which two fields must be configured for a successful provision? (Choose two.)

Options:

A.

media resources group list

B.

CSS

C.

location

D.

device security profile

E.

SIP profile

Question 20

What is the maximum one-way packet loss and jitter for voice before quality issues arise?

Options:

A.

< 10 percent packet loss and < 10 ms jitter

B.

< 1 percent packet loss and < 30 ms jitter

C.

< 9 percent packet loss and < 30 ms jitter

D.

< 3 percent packet loss and < 60 ms jitter

Question 21

An engineer roust deploy the Cisco Wet*x app to a Windows Virtual Desktop Infrastructure environment that has a roaming database named spark roaming_store stored In a user's AppData\Roaming directory, Which two command line arguments must be used when running the installer? (Choose two.)

Options:

A.

ALLUSERS=0

B.

ENABLEVDI=1

C.

ALLUSERS=1

D.

ENABLEVDI=2

E.

ROAMINGENABLED=1

Question 22

An employee of company ABC just quit. The IT administrator deleted the employee’s user id from the active directory at 10 a m. on March 4th The nightly sync occurs at 10 p.m. daily. The IT administrator wants to troubleshoot and find a way to delete the user id as soon as possible How is this issue resolved?

Options:

A.

Wart until 10 pm on March 4th when the user is automatically removed from Cisco UCM.

B.

Wait until 10 pm on March 5th when the user is automatically removed from Cisco UCM.

C.

Wait until 3 15 a.m. on March 6th for garbage collection to remove the user from Cisco UCM.

D.

Wait until 315am on March 5th for garbage collection to remove the user from Cisco UCM.

Question 23

What happens to voice packets from a Cisco 8845 IP phone in the QoS trust boundary?

Options:

A.

The voice packets are not trusted, and the access layer switch reclassifies the packets.

B.

The voice packets are classified by the phone, and the classification is accepted

C.

The voice and access layer switch negotiate the classification of packets

D.

Cisco UCM determines how the voice packers are classified.

Question 24

By default. IP phones upgrade their images using the HTTP Service from the TFTP Server integrated into one or more of the call processing platforms. Which Port / Transport Protocol does this service use?

Options:

A.

8080 / TCP

B.

6970 / UDP

C.

443 /TCP

D.

6970 / TCP

Question 25

A customer is deploying a SIP IOS gateway for a customer who requires that in-band DTMF relay is first priority and out-of-band DTMF relay is second priority. Which 10$ entry sets the required priority?

Options:

A.

dtmf-relay cisco-rtp

B.

dtmf-relay sip-kpml cisco-rtp

C.

sip-notify dtmf-relay rtp-nte

D.

dtmf-relay rtp-nte sip-notify

Question 26

Which two types of trunks can be used when configuring a hybrid Local Gateway for Cisco Webex Calling? (Choose Two.)

Options:

A.

TLS-based

B.

certificate-based

C.

registration-based

D.

authentication-based

E.

OAuth-based

Question 27

Question # 27

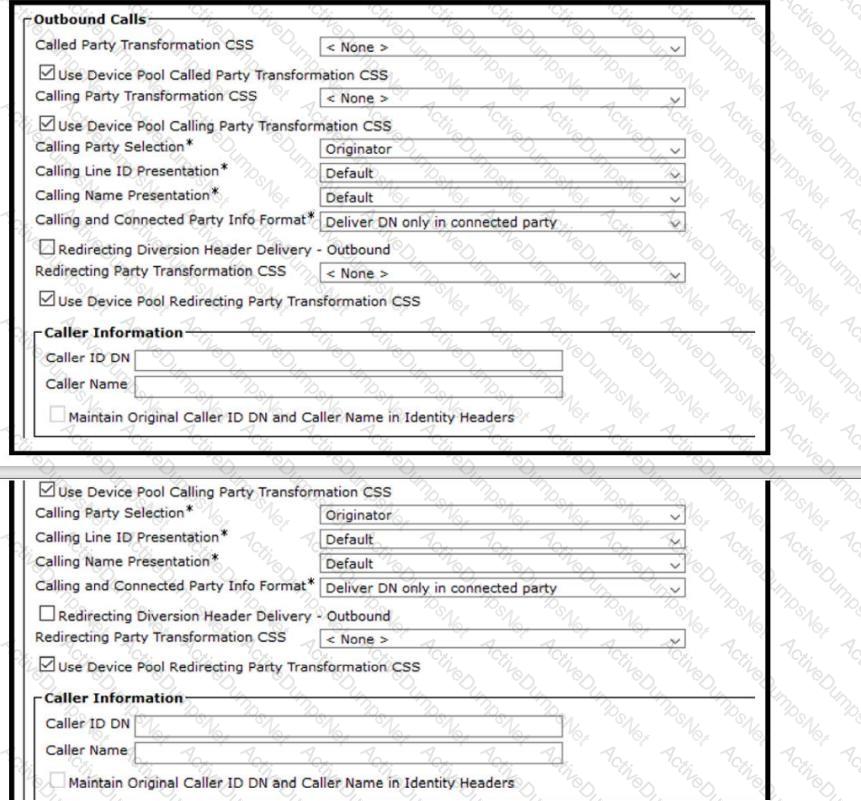

Refer to the exhibit. Unanswered calls do not reach the voicemail associated with the phones Instead, callers receive the default greeting Which action fixes the configuration?

Options:

A.

Reboot Cisco Unity Connection.

B.

Check the box "Redirecting Diversion Header Delivery - Outbound", then reset the trunk.

C.

Check the box 'Redirecting Diversion Header Delivery - Outbound".

D.

Review the conversation manager logs on Cisco Unity Connection.

Question 28

Which information is needed to restore the backup of a Cisco UCM publisher successfully?

Options:

A.

the TFTP server details

B.

the application credentials for Cisco UCM

C.

the security password for Cisco UCM

D.

the FTP server details

Question 29

What must be configured on a Cisco Unity Connection voice mailbox to access the mailbox from a secondary device?

Options:

A.

mobile user

B.

alternate names

C.

alternate extensions

D.

Attempt Forward routing rule

Question 30

Which external DNS SRV record must be present for Mobile and Remote Access?

Options:

A.

_cisco-uds.Jcp.example.com

B.

_collab-edge._tls.example.com

C.

_collab-edge._tcp.example.com

D.

_cisco-uds._tls.example.com

Question 31

Question # 31

Refer to the exhibit. What is the registration state of the analog port in this debug output?

Options:

A.

The analog port failed to register to Cisco UCM with an error code 200.

B.

The MGCP Gateway is not communicating with the Cisco UCM.

C.

The analog port is currently shut down.

D.

The analog port is registered to Cisco UCM.

Question 32

The security department will audit an IT department to ensure that the proper guidelines are being followed. The reports of the call detail records show unauthorized access to PSTN. Which two actions should an administrator check to prevent the unauthorized use of the telephony system? (Choose two.)

Options:

A.

Ensure that ad hoc conference calls are dropped if an external user is add.

B.

Call forward settings (ALL/Busy/No Answer) are restricted to internal extensions in the network

C.

Add an additional firewall between the Cisco UCM server and the Expressway Core server.

D.

For extension mobility, logged-out CSS is restricted to internal extensions and emergencies.

E.

Forced authorization code is used to recognize a dialing extension and authorize an international call.

Question 33

What are the last two bits of a DS field in DiffServe Byte used for?

Options:

A.

INC

B.

AFxy

C.

ECN

D.

RMI

Question 34

Users dial a 9 before a 10-digit phone number to make an off-net call All 11 digits are sent to the Cisco Unified Border Element before going out to the PSTN The PSTN provider accepts only 10 digits. Which configuration is needed on the Cisco Unified Border Element for calls to be successful?

Options:

A.

voice translation-rule 1 rule 1 /^9/ //

B.

voice translation-rule 1 rule 1 /^9(..........)/ //

C.

voice translation-rule 1 rule 1 /^9.+/ //

D.

voice translation-rule 1 rule 1 /^9........./ //

Question 35

What are two key features of the Expressway series? (Choose two.)

Options:

A.

VPN connection toward the internal UC resources

B.

SIP header modification

C.

B2B calls

D.

device registration over the Internet

E.

IP to PSTN call connectivity

Question 36

An engineer is configuring a Cisco Unified Border Element to allow the video endpoints to negotiate without the Cisco Unified Border Element interfering in the process. What should the engineer configure on the Cisco Unified Border Element to support this process?

Options:

A.

Configure path-thru content sdp on the voice service.

B.

Configure a hardcoded codec on the dial peers.

C.

Configure a transcoder for video protocols.

D.

Configure codec transparent on the dial peers.

Question 37

Which SNMP service must be active manually after Cisco UCM is installed?

Options:

A.

Connection SNMP Agent

B.

Host Resources Agent

C.

SNMP Master Agent

D.

Cisco CallManager SNMP

Question 38

What is the purpose of Mobile and Remote Access with Cisco Jabber in the cisco UCM?

Options:

A.

to allow Cisco Jabber to register with Cisco UCM without trie use of a VPN from outside the corporate network

B.

to allow Cisco Jabber to register with Cisco UCM via a remote access VPN from a branch office

C.

to allow Cisco Jabber to register with Cisco UCM via a remote access VPN from outside the corporate network

D.

to allow Cisco Jabber to register with Cisco UCM via a site-to-srte VPN from a branch office

Question 39

An administrator must implement toll fraud prevention on Cisco UCM using these parameters:

• Enable Forced Authorization Code 112211.

• Set an authorization level of 3 for the route pattern 8005551212.

• Require no access code to dial 10-digit numbers.

How must the route pattern be implemented?

Options:

A.

Pattern = 1122113.8005551212

B.

Pattern = 8005551212.1122113

C.

Pattern = 8005xxxxxx

D.

Pattern = 3.800xxxxxxx

Question 40

An engineer must deploy the Cisco Webex app to a Virtual Desktop Infrastructure (VDI) environment and support full-featured meetings. Which action must the engineer take to meet these requirements?

Options:

A.

Configure the VDI thin client and install the Webex app

B.

From Control Hub. configure VDI optimization for the Webex app

C.

Install three separate VDI plugins on the VDI thin client

D.

Install two separate VDI plugins on the VDI thin client

Question 41

A customer wants a video conference with five Cisco Telepresence 1X5000 Series systems. Which media resource is necessary in the design to fully utilize the immersive functions?

Options:

A.

Cisco Webex Meetings Server

B.

software conference bridge on Cisco UCM

C.

Cisco Meeting Server

D.

Cisco PVDM4-128

Question 42

An administrator needs to stop the leading 9 from outbound calls on an IOS Voice Gateway and ensure that the system handles 911 emergency calls Which configuration is needed to accomplish this task?

Question # 42

Options:

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Question 43

Which characterstic of distributed class- based weighted fair queueing addresses jitter

prevention?

Options:

A.

It provides additional granularity by allowing a user to create classes

B.

It minimizes jitter by implementing a priority queue for voice traffic

C.

It uses a priority queue for voice traffic to avoid jitter.

D.

It provides additional granularity by allowing a user to define custom class

Question 44

A customer asked to integrate Unity Connection with Cisco UCM using SIP protocol. Which two features must be enabled on SIP security profiles? (Choose two.)

Options:

A.

accept presence subscription

B.

allow changing header

C.

accept unsolicited notification

D.

enable application-level authorization

E.

accept replaces header

Question 45

Question # 45

Refer to the exhibit. Which outgoing m-line SDP is sent to Cisco UCM after matching the appropriate dial peers via Cisco Unified Border Element?

Options:

A.

Option A45

B.

Option B45

C.

Option C45

D.

Option D45

Question 46

Which two technical reasons make QoS a necessity in a video deployment? (Choose Two)

Options:

A.

Low response time between endpoints

B.

Provisioned bandwidth of the link

C.

Variable bit rate of the video stream

D.

Bursly behavior of video traffic

Question 47

On a Cisco Catalyst Switch, which command is required to send CDP packets on a switch port that configures a Cisco IP phone to transmit voice traffic in 802.10 frames, tagged with the voice VLAN ID 221?

Options:

A.

Device(config-if)# switchport voice vlan 221

B.

Device(config-if)# switchport vlan voice 221

C.

Device(config-if)# switchport access vlan 221

D.

Device(config-if)# switchport trunk allowed vlan 221

Question 48

An engineer must enable onboarding of on-premises devices by using activation to a Cisco UCM server The engineer activated the CISCO Device Activation Service and set the default registration method to use the codes. Which action completes the configuration?

Options:

A.

Set Enable Activation Code enterprise parameter to True-

B.

Manually provision new phones that have an activation code requirement

C.

Create a Bulk Administration Tool provisioning template.

D.

Generate 16-digit codes by using the Bilk Administration Tool

Question 49

An administrator is trying to change the default LINECODE for a voice ISDN T1 PRI. Which command makes this change?

Options:

A.

linecode ami

B.

linecode b8zs

C.

linecode hdb3

D.

linecode esf

Question 50

What is a benefit of Easy/QoS?

Options:

A.

It configures QoS on the network.

B.

It provisons QoS for Layer 3 devices automatically.

C.

It expresses business relevance for applications.

D.

It allows single command QoS deployment.

Question 51

What is a characteristic of Cisco UCM translation patterns?

Options:

A.

Configure routing based on the calling party number for the next hop.

B.

When there is a match, the call is routed to the specified destination in the translation pattern.

C.

When a dialed number is manipulated in a translation pattern, the dialed number is written to the call detail record.

D.

Never configure a partition for a translation pattern.

Question 52

An engineer must configure a new route pattern. When a user dials 9-555-555-5555, only the last 10 digits must be sent to the gateway. All transformations must be done at the route pattern level. Which route pattern must the engineer use?

Options:

A.

Route pattern: 9.@

Called party transformation discard digits: PreDot

B.

Route pattern: 9.(2-9].. [2-9]......

Called party transformation discard digits: Nine

C.

Route pattern: 9.(5-5] [5-5]...

Called party transformation discard digits: PreDot

D.

Route pattern: 9T

Called party transformation discard digits: Nine

Question 53

What is a description of the DiffServ model used for implementing QoS?

Options:

A.

AF41 has higher drop precedence than AF42. which has higher drop precedence than AF43.

B.

Voice and video calls are marked with different DSCP values and placed in different queues.

C.

AF43 has higher drop precedence than AF42 but lower drop precedence than AF41.

D.

RTP traffic from voice and video calls is marked EF and placed in the same queue.

Question 54

An engineer is deploying the Webex app on a Microsoft Windows computer that has multiple user accounts. Which CLI argument allows the engineer to Install the application as a "per machine" Installation?

Options:

A.

ACCEPT_EULA

B.

INSTALL ROOT

C.

ALLUSERS

D.

FORCELOCKDOVN

Question 55

Question # 55

Question # 55

Refer to the exhibit. Endpoint A calls endpoint B. What is the only audio codec that is used for the call?

Options:

A.

G722/8000

B.

Telephone-event/8000

C.

G7221/16000

D.

PCMA/8000

Question 56

An engineer must configure switch port 5/1 to send CDP packets to configure an attached Cisco IP phone to trust tagged traffic on it’s access port. Which command is required to complete the configuration?

Question # 56

Options:

A.

platform qos trust extend cos 3

B.

platform qos trust extend

C.

platform qos extend trust

D.

platform qos trust extend cos 5

Question 57

Question # 57

Refer to the exhibit. An administrator is attempting to register a SIP phone to a Cisco UCM but the registration is failing. The IP address of the SIP Phone is 10.117.34.222 and the IP address of the Cisco UCM is 10.0.101.10. Pings from the SIP phone to the Cisco UCM are successful. What is the cause of this issue and how should it be resolved?

Options:

A.

An NTP mismatch is preventing the connection of the TCP session between the SIP phone and the Cisco UCM. The SIP phone and Cisco UCM must be set with identical NTP sources.

B.

The certificates on the SIP phone are not trusted by the Cisco UCM. The SIP phone must generate new certificates.

C.

DNS lookup for the Cisco UCM FQDN is failing. The SIP phone must be reconfigured with the proper DNS server.

D.

An network device is blocking TCP port 5060 from the SIP phone to the Cisco UCM. This device must be reconfigured to allow traffic from the IP phone.

Question 58

An administrator needs to create a partial PRI consisting of the first seven timeslots available. Which configuration snippet configures the ISDN E1 PRI for this task?

Options:

A.

Option A58

B.

Option B58

C.

Option C58

D.

Option D58

Question 59

A network engineer must convert an inbound number 14085551111 when it reaches Cisco UCM and then converts it to an internal extension 3022, so it can ring to a specific desk. Which action meets this requirement?

Options:

A.

Create a route group and route list and assign it to the translation pattern.

B.

Create translation pattern 14085551111, called party transform mask 3022.

C.

Change the partition and calling search space on the DID for the specific desk.

D.

Create a route pattern 9.1XXXXXXXXXX and assign it to the trunk.

Question 60

What are two reasons that AF41 is marked for the audio and video channels of a video call? (Choose two.)

Options:

A.

to prioritize video over other high -priority traffic classes

B.

to give video calls a higher priority than AP41 in the QoS policy

C.

to allow high-definition quality calls over low-speed links

D.

to preserve lip synchronization between the audio and video channels

E.

to provide separate classes for audio calls and video calls

Question 61

What are two access management mechanisms in Cisco Webex Control Hub? (Choose two.)

Options:

A.

multifactor authentication

B.

Active Directory synchronization

C.

attribute-based access control

D.

single sign-on with Google

E.

Client ID/Client Secret

Question 62

An administrator troubleshoots a DNS issue with Cisco UCM and observes that the hostname resolution returns the wrong IP address The DNS team Informs the administrator that the A'AAA record was recently updated on the DNS server Which action must be taken on Cisco UCM to reflect the correct entries?

Options:

A.

Flush the current cache using this CLl command admin utils network name-service hosts cache Invalidate

B.

Delete me arp entry of the host utils network arp delete

C.

Flush the current cache vising this CLl command admin:utils network name-service hosts cache validate

D.

Restart the DNS server to Hush any stale entries

Question 63

Why is an end user’s PC device not included in a QoS trust boundary?

Options:

A.

The end user could incorrectly tag their traffic to advertise their PC as a default gateway.

B.

The end user may Incorrectly tag their traffic k> be prioritized over other network traffic.

C.

The end user could incorrectly tag their traffic to bypass firewalls.

D.

There is no reason not to include an end user's PC device in a QoS trust boundary.

Question 64

Question # 64

An engineer is trying to add a new subscriber to the cluster of Cisco UCM. and the synchronization is failing. The engineer obtained the output from the publisher and noticed the error Based on the output, what is the issue?

Options:

A.

The NTP server is running out of space in the hard drive, which prevents the cluster service from starting.

B.

The NTP service is pointing to the wrong publisher.

C.

The NTP server for Cisco UCM must be stratum 6 or higher.

D.

The NTP server must be replaced by another server with NTP stratum 1, 2, or 3 running version NTPv4.

Question 65

How many minutes does it take for automatic fallback to occur in a Presence Redundancy Group if the primary node lost a critical service?

Options:

A.

5 min

B.

10 min

C.

30 min

D.

60 min

Question 66

An administrator needs to help a remote employee make a free call to an international destination. The administrator calls the employee, then conferences in the international party. The administrator drops the call, and the employee and the international party continue their conversation. Which action prevents this type of toll fraud in the Cisco UCM?

Options:

A.

Set service parameter 'Advanced Ad Hoc Conference" to FALSE.

B.

Set service parameter "Drop Ad Hoc Conference" to "When Conference Controller leaves."

C.

Set service parameter "Advanced Ad Hoc Conference" to 2.

D.

Set service parameter "Drop Ad Hoc Conference" to "Do not allow outside parties."

Question 67

To provide high-quality voice and take advantage of the full voice feature set, which two access layer switches provide support?

Options:

A.

Use multiple egress queues to provide priority queuing of RTP voice packet streams and the ability to classify or reclassify traffic and establish a network trust boundary.

B.

Use 802, 1Q trunking and 802.1p for proper treatment of Layer 2 CoS packet marking on ports with phones connected.

C.

Implement IP RTP header compression on the serial Interface to reduce the bandwidth required per voice call on point-to-point links.

D.

Deploy RSVP to improve VoIP QoS only where it can have a positive impact on quality and functionality where there is limited bandwidth and frequent network congestion.

E.

Map audio and video streams of video calls (AF41 and AF42) to a class-based queue with weighted random early detection.

Question 68

Refer to the exhibit.

https://i.postimg.cc/C57TkczG/image.png

Question # 68

A call is falling to establish between two SIP Devices The called device answers with these SOP Which SOP parameter causes issue?

Options:

A.

The calling device did not offer a ptime value

B.

The media stream is set to send only

C.

The payload for G.711ulaw must be 18.

D.

The RTP port is set to 0.

Question 69

Question # 69

Refer to the exhibit. Cisco Unified element is attempting to establish a call with Subcribers1, but the call fails. Cisco Unified Border Element then retries the same call with Subcribers2, and the call proceeds normally.

Which action resolves the issue?

Options:

A.

Verify that the correct calling search space is selected for the inbound Calls section

B.

Verify that the run on all active United CM Nodes checkbox is enabled

C.

Verify that the Significant Digits field for inbound Calls is set to All.

D.

Verify that the PSTN Access checkbox is enabled.

Question 70

How are E.164 called-party numbers normalized on a globalized call-routing environment in Cisco UCM?

Options:

A.

Call ingress must be normalized before the call being routed.

B.

Normalization is not required.

C.

Normalization is achieved by stripping or translating the called numbers to internally used directory numbers.

D.

Normalization is achieved by setting up calling search spaces and partitions at the SIP trunks for PSTN connection.

Question 71

An administrator troubleshoots call flows and suspects that there are issues with the dial plan. Which tool enables a quick analysis of the dial plan and provides call flows of dialled digits?

Options:

A.

Cisco Dial Plan Analyzer

B.

Dial Plan Analyzer

C.

Digit Analysis Analyzer

D.

Dialed Number Analyzer

Question 72

The chief technology officer at a company must onboard devices to the cloud A workspace is created in Cisco Webex Control Hub for every device. What must be generated to complete the on boarding process?

Options:

A.

16-digit activation code to share with all the devices

B.

16-digit activation code for each devices

C.

15-digit activation code for each devices

D.

15-digit activation code to share with at all devices

Question 73

Which location must be assigned to the SIP trunk to replicate enhanced location information via a SIP trunk?

Options:

A.

phantom

B.

replica

C.

hub_none

D.

shadow

Question 74

Which method is used to avoid toll fraud with Cisco Unified Communications Manager calls?

Options:

A.

Call policy service

B.

Default zone access rules

C.

TOLLFRAUD_APP

D.

Class of service

Question 75

Question # 75

Refer to the exhibit. When making a call to a Mobile and Remote Access client, what are the combinations of protocol on each of the different sections A-B-C?

Options:

A.

IP TCP/TLS (A) + SIP TCP/TLS (B) + SIP TLS (C)

B.

SIP TCP/TLS (A) + SIP TCP/TLS (B) + SIP TCP/TLS (C)

C.

SIP TLS (A) + SIP TLS (B) + SIP TLS (C)

D.

SIP TCP/TLS (A) + SIP TLS (B) + SIP TLS (C)

Question 76

Question # 76

Refer to the exhibit. A user takes a phone from San Francisco to New York for a short reassignment. The phone was set up to use the San Francisco device pool, and device mobility is enabled on the Cisco UCM. The user makes a call that matches a route pattern in a route list that contains the Standard Local Route Group. To where does the call retreat?

Options:

A.

The call fails because device mobility is turned on, and the phone is not configured in New York. The engineer must configure which sites the device should be roaming to.

B.

The call egresses in San Francisco because the user uses device mobility and is allowed to roam while still keeping the number and resources assigned in San Francisco.

C.

The call fails because the Standard Local Route Group is being used only it no configuration is set for the device pools.

D.

The call egresses in New York because the device automatically is assigned a New York device pool and uses the local gateway.

Question 77

What are two features of Cisco Expressway that the customer gets if Expressway-C and Expressway-E are deployed?(Choose two.)

Options:

A.

highly secure real-traversal technology to extend organizational reach.

B.

additional visibility of the edge traffic in an organization.

C.

complete endpoint registration and monitoring capabilities for devices that are local and remote.

D.

session-based access to comprehensive collaboration for remote workers, without the need for a separate VPN client.

E.

utilization and adoption metrics of all remotely connected devices.

Question 78

A DTMF mismatch is occurring between an MGCP gateway registered FXS port and a Cisco Unified communications Manager SIP trunk. Which media resource can be leveraged to interwork this mismatch?

Options:

A.

Media Termination point

B.

Conference Bridge

C.

Annunciator

D.

Trust relay point

Question 79

In Cisco UCM, an engineer must create a new SIP route pattern to allow ccnp.cisco com for all internal callers The internal callers have a calling search space named CSSJNTERNAL that includes the partition named PTJNTERNAL If allowed, the calls must be routed to a SIP trunk named SIP_CISCO_TRK. Drag and drop the values from the left onto the corresponding fields on the right.

Question # 79

Options:

Question 80

Which value should be changed when each Cisco UCM node does not allow for more than 5000 phones to be registered?

Options:

A.

Maximum Number of Registered and Unregistered Devices service parameter on each node

B.

Minimum Number of Phones service parameter on each node

C.

Maximum Number of Registered Devices service parameter on each node

D.

Maximum Number of Phones service parameter on the Publisher

Question 81

Which command in the MGCP gateway configuration defines the secondary Cisco UCM server?

Options:

A.

ccm-manager redundant-host

B.

ccm-manager fallback-mgcp

C.

mgcpapp

D.

mgcp call-agent

Question 82

Refer to the exhibit. An engineer is confining class of control for a user in Cisco UCM. Which change will ensure that the user is unable to call 2143?

Options:

A.

Change line partition to Partition_A

B.

Change line CSS to only contain Partition_B

C.

Set the user's line CSS to

D.

Set the user's device CSS to

Question 83

Which transport protocol does the application layer protocol SNMP use?

Options:

A.

HTTP

B.

XML

C.

UDP

D.

SIP

Question 84

Which Cisco Unified communications manager configuration is required for SIP MWI integration?

Options:

A.

Select “Redirecting Diversion Header Delivery— Inbound’ on the SIP trunk

B.

Enable “Accept presence subscription” on the SIP trunk security profile

C.

Select “Redirecting Diversion Header Delivery – outbound” on the SIP trunk

D.

Enable “Accept unsolicited notification” on the SIP Trunk security profile

Question 85

Which action prevents toll fraud in Cisco UCM?

Options:

A.

Implement route patterns in Cisco UCM.

B.

Implement toll fraud restriction in the Cisco IOS router.

C.

Allow off-net to off-net transfers.

D.

Configure ad hoc conference restriction.

Question 86

Which configuration concept allows for high-availability on IM and Presence services in a UC environment?

Options:

A.

IM and Presence subclusters (configured on Cisco UCM)

B.

Presence Redundancy Groups (configured on Cisco Unified IM and Presence)

C.

IM and Presence subclusters (configured on Cisco Unified IM and Presence)

D.

Presence Redundancy Groups (configured on Cisco UCM)

Question 87

Which field is configured to change the caller ID information on a SIP route pattern?

Options:

A.

Route Partition

B.

Calling Party Transformation Mask

C.

Called Party Transformation Mask

D.

Connected Line ID Presentation

Question 88

An administrator has been asked to implement toll fraud prevention in Cisco UCM Which tool is used to begin this process?

Options:

A.

Cisco UCM class of service

B.

Cisco Unified Mobility

C.

Cisco UCM Access Control Group restrictions

D.

Cisco Unified Real-Time Monitoring Tool

Question 89

End users report bad video quality and voice choppiness on Cisco Collaboration endpoints. The engineer changed the device pool the users were in but did not correct the problem. Which action should be taken to troubleshoot this issue?

Options:

A.

Use direct IP address calls between two endpoints to troubleshoot call quality issues.

B.

Restart the Cisco Location Bandwidth Manager service on the Cisco UCM publisher.

C.

Check for duplex/speed mismatches between the network port settings of the system and network switch.

D.

Set the service parameter Use Video Bandwidth Pool for Immersive Video Calls to "false".

Question 90

Which behavior occurs when Cisco UCM has a CallManager group that consists of two subscribers?

Options:

A.

Endpoints attempt to register with the bottom subscriber in the list.

B.

Endpoints attempt to register with the top subscriber in the list.

C.

Endpoints attempt to register with both subscribers in a load-balanced method.

D.

If a subscriber is rebooted, endpoints deregister until the rebooted system is back in service.

Question 91

An engineer is asked to implement on-net/off-net call classification in Cisco UCM. Which two components are required to implement this configuration? (Choose two.)

Options:

A.

CTI route point

B.

SIP route patterns

C.

route group

D.

route pattern

E.

SIP trunk

Question 92

Which two configuration elements are part of the Cisco UCM toll-fraud prevention?(Choose two.)

Options:

A.

feature control policy

B.

partition

C.

SIP trunk security profile

D.

SUBSCRIBE Calling Search Space

E.

Calling Search Space

Question 93

Question # 93

Refer to the exhibit. An administrator is asked to allow new phones to use self-provisioning Interactive Voice Response. Which change to the Universal Device Template implements this feature?

Options:

A.

Configure Idle URL with default.

B.

Configure Authentication Server URL to the authentication server.

C.

Configure the Directory URL to a valid directory.

D.

Configure Secure Information URL to info URL.

Question 94

How many dial patterns can a Webex Calling dial plan support?

Options:

A.

1,000

B.

2,000

C.

10,000

D.

12,000

Question 95

For Webex Calling, how are outbound transfers and forwards restricted for a particular call type?

Options:

A.

together on an organization-by-organization basis

B.

together on a site-by-site basis

C.

independently on an organization-by-organization basis

D.

independently on a site-by-site basis

Question 96

Where in Cisco UCM is restrictions on audio bandwidth configured?

Options:

A.

location

B.

partition

C.

region

D.

serviceability

Question 97

A remote office has a less-than-optimal WAN connection and experiences packet loss, delay and jitter. Which VoIP codec is used in this situation?

Options:

A.

G722.1

B.

iLBC

C.

G.711alaw

D.

G.729A

Question 98

What are two characteristics of jitter in voice and video over IP communications? (Choose two.)

Options:

A.

The packets arrive with frame errors.

B.

The packets arrive at varying time intervals.

C.

The packets arrive out of sequence.

D.

The packets never arrive due to tail drop.

E.

The packets arrive at uniform time intervals.

Question 99

A collaboration engineer must optimize the dial plan within Cisco UCM. There are multiple remote sites. And each site has its own route patterns and local gateways. What should the engineer do on the cisco UCM to optimize the dial plan?

Options:

A.

Configure a Standard Local Route Group to use a single route pattern for all calls within the cluster.

B.

Create a centralized dial plan with a Cisco UCM Session Management Edition cluster or a Cisco gatekeeper.

C.

Implement ILS with GDPR so the dial plan can dynamically replicate across clusters.

D.

Leverage Cisco UCM Express as SRST so the phones can have more features at each remote site

Question 100

An engineer must configure a SIP integration between cisco UCM and cisco Unity Connection. These components are configured already:

Question # 100

Drag and drop the components from the left into the order they must be configured on the right.

Question # 100

Options:

Question 101

Refer to the exhibit.

Question # 101

Which Codec is negotiated?

Options:

A.

G.729

B.

ILBC

C.

G.711ulaw

D.

G.728

Question 102

What is the major difference between the two possible Cisco lM and Presence high-availability modes?

Options:

A.

Balanced mode provides user load balancing and user failover in the event of an outage. Active/standby mode provides an always on standbynode in the event of an outage, and it also provides load balancing.

B.

Balanced mode provides user load balancing and user failover only for manually generated failovers. Active/standby mode provides anunconfigured standby node in the event of an outage, but it does not provide load balancing.

C.

Balanced mode provides user load balancing and user failover in the event of an outage. Active/standby mode provides an always on standbynode in the event of an outage, but it does not provide load balancing.

D.

Balanced mode does not provide user load balancing, but it provides user failover in the event of an outage. Active/standby mode provides analways on standby node in the event of an outage, but it does not provide load balancing.

Question 103

A customer reports that the load balancing solution is not working (or two Cisco Unified Border Element routers. The (cube1.abc.com) router should take 60% of the calls, and the (cube2 abc.com) router should take 40% of the calls. Assuming all DNS A records are present, which two SRV configurations would provide the desired outcome? (Choose two.)

Question # 103

Options:

A.

Option A

B.

Option B

C.

Option C

D.

Option D

E.

Option E

Question 104

An engineer is notified that the Cisco TelePresence MX800 that is registered in Cisco Unified communications Manager shows an empty panel, and the Touch 10 shows a corresponding icon with no action when pressed. Where does the engineer go to remove the inactive custom panel?

Options:

A.

The phone configuration page in CUCM Administration

B.

The SIP Trunk security profile page in CUCM Administration

C.

The software Upgrades page in CUCM OS Administration

D.

The In-Room control Editor on the webpage of the MX800

Question 105

What happens to voice packets from an 8845 Cisco IP Phone at a properly configured QoS trust boundary?

Options:

A.

The phone and access layer switch negotiate the classification of packets.

B.

Cisco UCM determines how the voice packets are classified.

C.

The voice packets are classified by the phone and the classification is accepted.

D.

The voice packets are not trusted, and the access layer switch reclassifies the packets.

Question 106

An administrator works with an ISDN PRI that is connected to a third-party PBX. The ISDN link does not come up. and the administrator finds that the third-party PBX uses the OSIG signaling method. Which command enables the Cisco IOS Gateway to use QSIG signaling on the ISDN link?

Options:

A.

isdn incoming-voice voice

B.

isdn switch-type basic-ni

C.

isdn switch-type basic-qsig

D.

isdn switch-type primary-qsig

Question 107

What is the cisco UCM service parameter default value for DSCP for Telepresence calls ?

Options:

A.

CS4

B.

EF

C.

AF41

D.

CS3

Question 108

A company has an excessive number of call transfers to local and long-distance PSTN from Cisco Unity Connection voicemail. Which action in the Cisco Unity Connection restriction table resolves this issue?

Options:

A.

Block PSTN patterns on Default Transfer. Default Outdial. and Default System Transfer.

B.

Implement password complexity on voicemail boxes to prevent accounts from being compromised.

C.

Create a custom restriction table ??????????? and block it.

D.

Create a custom restriction table **********and block it.

Page: 1 / 36
Total 361 questions
