Cisco 300-625 Implementing Cisco Storage Area Networking (DCSAN) Exam Practice Test

Note! Following 300-625 Exam is Retired now. Please select the alternative replacement for your Exam Certification.
Page: 1 / 6
Total 60 questions
Get 300-625 Full Access Download 300-625 PDF

Implementing Cisco Storage Area Networking (DCSAN) Questions and Answers

Question 1

Which condition requires using a device alias rather than a Fibre Channel alias?

Options:

A.

The zone database must be distributed over the fabric.

B.

The same alias must be used in zoning as well as DPVM.

C.

All aliases being used are being configured in the same VSAN.

D.

Aliases must be saved within a central database on the fabric.

Question 2

A network engineer is configuring a Cisco MDS switch for FCoE. Which two conditions must be considered during the implementation phase? (Choose two.)

Options:

A.

On Cisco MDS switches, system-defined class maps for class-FCoE and class-default are enabled but can be deleted.

B.

The QoS policy must be identical to other Cisco FCoE switches in the network.

C.

On the Cisco MDS, the MTU is set equal to 2112.

D.

VLAN 1 or the native VLAN can be mapped to an FCoE VSAN.

E.

FCoE is already enabled on a Cisco MDS switch.

Question 3

Which two components are required for successful MDS USB POAP (Choose two.)

Options:

A.

NTFS formatted USB drive

B.

USB drive in port 1

C.

script named poap_script pl

D.

ENTERPRISE_PKG license

E.

system and kickstart images

Question 4

A storage network engineer is implementing SAN telemetry for a SAN infrastructure using Cisco DCNM for SAN. Which command is used to check the session status for telemetry operation?

Options:

A.

show telemetry pipeline stats

B.

show telemetry transport

C.

show telemetry control stats

D.

show analytics system-load

Question 5

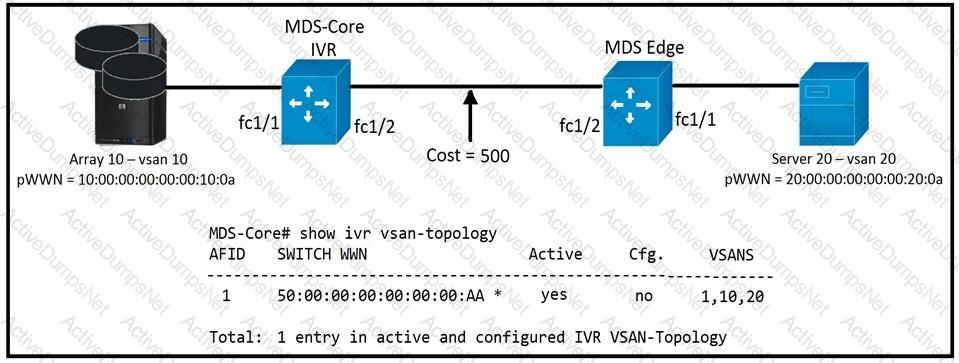

Refer to the exhibit.

Question # 5

An engineer is configuring Inter-VSAN routing for two Cisco MDS switches. The FSPF cost between the switches is 500, and the Cisco MDS core virtualizes an IVR NAT domain as shown. Which statement about the topology is correct?

Options:

A.

The MDS-Core simulates an IVR NAT, and the FSPF cost is 500.

B.

The MDS-Core simulates an IVR NAT, and increases the cost to 501.

C.

The MDS-Core simulates an IVR NAT, and decreases the cost to 400.

D.

The MDS-Core simulates an IVR NAT, and increases the cost to 600.

Question 6

Refer to the exhibit.

Question # 6

Which configuration change improves the ability of the link to recover from frame loss?

Options:

A.

Increase the reset timeout.

B.

Enable selective acknowledgment.

C.

Increase the send buffer size to 15000 KB.

D.

Disable PMTU discovery.

Question 7

Which EtherType is used by the FCoE Initialization Protocol?

Options:

A.

0×8913

B.

0×8914

C.

0×xfc0e D. 0×8906

Question 8

A domain ID conflict is detected on a switch. Which action resolves the issue in the shortest possible time after the preferred domain ID is changed to a static domain ID?

Options:

A.

Issue an fcdomain disruptive restart.

B.

Issue an fcdomain nondisruptive restart.

C.

Enter the commands for a VSAN suspend / no-suspend.

D.

Enter the commands to complete a domain manager fast restart.

Question 9

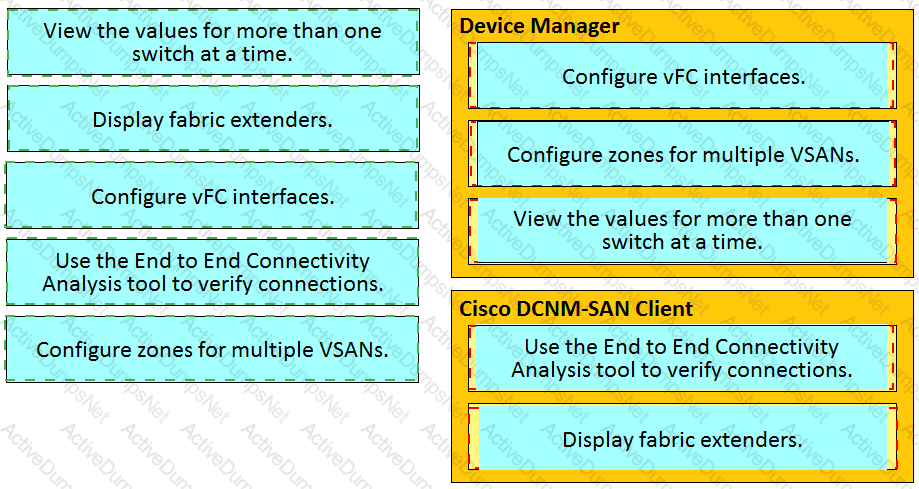

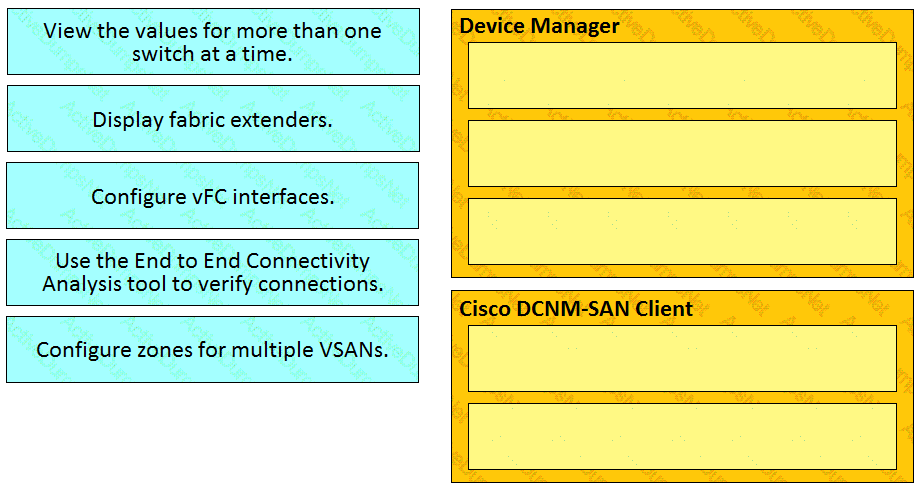

Drag and drop the DCNM configuration tasks from the left onto the correct tools on the right.

Question # 9

Options:

Load More 300-625 Questions
Page: 1 / 6
Total 60 questions
Get 300-625 Full Access Download 300-625 PDF
