Cisco 300-445 Designing and Implementing Enterprise Network Assurance (300-445 ENNA) Exam Practice Test

56

In the Designing and Implement 7 ing Enterpr 8 ise Network Assurance (300-445 ENNA) framework, configuring effective alert rules is critical for distinguishing between standard network noise and actionable application-layer failures. For Web - HTTP Server tests, ThousandEyes allows engineers to monitor both network-level metrics (like Connect time) and application-level indicators (like HTTP response codes).

The requirement is to trigger an alert specifically when the HTTP server responds with a server error . In the HTTP protocol, server errors are categorized as the 5XX series of status codes (e.g., 500 Internal Server Error, 503 Service Unavailable, 504 Gateway Timeout). To meet this requirement, the engineer must configure a location alert condition where the Metric is set to Response Code and the condition value is server error(5XX) (Option D).

Reviewing the other options:

Error type is any (Option A): While this would capture server errors, it would also trigger for 4XX client errors (like 404 Not Found) and network-layer timeouts, making it too broad for a specific " server error " requirement.

Wait Time is Dynamic (Option B): This monitors the time-to-first-byte using statistical baselining. While high wait times often precede 5XX errors, this condition only alerts on latency, not on the actual error code itself.

Response Time (Option C): Similar to wait time, this monitors performance speed rather than the logical success or failure of the server ' s response.

By specifically selecting Response Code: server error(5XX) , the engineer ensures that the operations team is only notified when the application backend is experiencing a functional failure, rather than just a slow response or a client-side misconfiguration.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, ThousandEyes WAN Insights is a predictive analytics solution designed to transform network management from a reactive to a proactive model. 10 In the scenario provided, the voice quality issues are recurring and peak-hour dependent, indicating a need for optimization rather than just standard real-time alerting. 11

The most relevant capability for this scenario is analyzing historical SD-WAN performance data to generate path recommendations (Option B). WAN Insights integrates with Cisco Catalyst SD-WAN Manager (vManage) and vAnalytics to ingest massive volumes of telemetry. 12 It uses advanced statistical models to analyze the performance of all active circuits (MPLS, Internet, etc.) over time. If the system identifies that a different available path consistently delivers a higher Quality of Experience (QoE) or better adherence to the voice SLA during those peak windows, it generates a recommendation to adjust the Application-Aware Routing (AAR) policy. 1314

This predictive approach allows the administrator to fine-tune network policies in advance, ensuring that sensitive traffic like voice is automatically rerouted to the most stable path before the congestion impacts the users. Option A describes standard ThousandEyes synthetic testing, while Option C is incorrect because WAN Insights specifically uses existing SD-WAN telemetry rather tha 15 n generating its own synthetic voice 16 probes. Option D and E describe general NMS or security features not specific to WAN Insights ' predictive mission. Thus, the proactive recommendation of alternative paths based on historical SLA adherence is the core function of WAN Insights for improving voice quality. 171819

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) guidelines, troubleshooting widespread performance issues for a public or data center-hosted app 17 lication requires an " outside-in " perspective. When reports are widespread, 18 the goal is to determine if the issue is global, regional, or specific to certain ISP paths leading to the data center.

The Cloud Agent (Option D) is the most effective tool for this task because these agents are maintained by Cisco ThousandEyes in over 240+ locations worldwide within Tier 1, 2, and 3 ISPs and cloud provider regions. 19 Because they are pre-deployed and immediately available , a network engineer can instantly run tests from multiple global locations toward the data center-hosted application without having to install any software or manage any infrastructure. This allows the engineer to quickly compare performance metrics (latency, loss, and page load times) across different geographies. If Cloud Agents in London report no issues while those in New York report high packet loss, the engineer can immediately pinpoint the root cause as a regional ISP or peering issue rather than a failure within the data center itself.

Enterprise Agent (Option B): While these could be used if they were already installed in various branch offices, they require ownership of the infrastructure and deployment time. They are better suited for " inside-out " monitoring.

Endpoint Agent (Option C): These are useful for troubleshooting individual user experience but are not the " quickest " way to baseline global performance against a data center application during a widespread event.

Synthetic Agent (Option A): As noted previously, this is a generic term describing the underlying technology used by all ThousandEyes agent types.

Therefore, Cloud Agents provide the necessary breadth and immediate availability to perform rapid root cause analysis for widespread application performance issues.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) best practices, the goal of a successful endpoint assurance rollout is to maximize coverage while minimizing the burden on both IT staff and end-users. The most effective strategy for achieving this is to use a centralized software deployment tool (e.g., GPOs, Intune) that supports silent installation (Option B).

Centralized deployment tools allow administrators to push the ThousandEyes Endpoint Agent to thousands of machines simultaneously from a single management console. 12 By using silent installation parameters (such as /quiet or /qn for MSI packages), the agent is installed in the background without requiring any user interaction or even showing a setup wizard. 13 This " minimally disruptive " approach ensures that business operations are not interrupted. Furthermore, centralized tools provide a " secure " deployment method because the IT team retains control over the version of the agent being installed and can ensure that the Account Group Token is correctly embedded, which is necessary for the agent to register with the ThousandEyes dashboard.

Contrasting this with other methods:

Manual Installation (Option A): This is not scalable and is highly labor-intensive, making it unsuitable for large enterprises.

Emailing links (Option C) or Web Portals (Option D): These methods rely on the end-user to perform the installation correctly and to have the necessary local administrative privileges. This often leads to low adoption rates, inconsistent configurations, and security risks associated with users running installers manually.

By leveraging existing enterprise infrastructure like Active Directory GPOs or Microsoft Intune , organizations can ensure a 100% compliant deployment that immediately begins providing the " user-centric " visibility required for modern network assurance.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, isolating performance issues on end-user machines requires a combination of application-layer experience data and local system telemetry. When an architect suspects that local hardware constraints, such as high CPU usage, are degrading the digital experience, the Endpoint Agent is the required vantage point.

The correct combination is Real User Tests > Endpoint, CPU utilization ≥ % (Option C). This alert configuration is effective for several reasons:

Targeted Visibility: It directly monitors the user ' s device (Endpoint) where the hardware bottleneck is suspected to reside.

Real-Time Context: By utilizing Real User Tests (RUM) , the agent gathers performance data during actual user activity (e.g., browsing the web application). This ensures that the CPU spikes are correlated with active application usage, providing a representative view of the impact on experience.

Threshold Alerting: The condition monitors for CPU utilization exceeding a defined percentage threshold (≥ %). This allows IT teams to be notified only when the CPU load reaches problematic levels that are known to cause application sluggishness or browser " freezing " .

Alternative options are less effective for this specific troubleshooting goal:

Option A: Monitors network loss, which would not identify a local CPU bottleneck.

Option B: Monitors path length (hops), which is a routing metric irrelevant to local hardware performance.

Option D: Monitors memory load during scheduled tests. While memory is a factor, the specific suspicion in this scenario is CPU utilization, and scheduled tests do not always capture the same load impact as a real user interacting with the browser.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, the native integration of ThousandEyes within the Meraki portfolio is specifically focused on the Meraki MX security and SD-WAN appliances. This integration allows users to install ThousandEyes Enterprise Agents directly on supported Meraki MX hardware, providing critical visibility into the performance of services that distributed users rely on. 4

The Meraki MX (Option A) supports the ThousandEyes Enterprise Agent as a containerized service that can be activated with a single click within the Meraki Dashboard. 5 This integration is designed to provide better monitoring and testing capabilities for customers interested in improving the quality of their experience and adding the appropriate SD-WAN policies to optimize network performance. By running the agent natively on the MX, administrators can monitor the performance of external applications and services directly from the SD-WAN sites, bridging the gap between local branch health and global internet performance. 6

While Cisco continues to expand its assurance integrations across the portfolio, the MR (Wireless) , MS (Switching) , MV (Camera) , and MG (Cellular) series do not currently support the native, " on-box " execution of the ThousandEyes Enterprise Agent. For these other platforms, visibility is typically achieved through passive monitoring via Meraki Insight (MI) or by deploying ThousandEyes agents on connected client devices (Endpoint Agents) or nearby infrastructure. Therefore, the Meraki MX is the only verified platform supporting native ThousandEyes agent deployment in this context.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) data analysis guidelines, identifying the underlying test type is the first step in interpreting a dashboard. By observing the metrics displayed across both the Executive and IT Operations dashboards, we can definitively identify the test type as Page Load (Option B).

A Page Load test is a Web-layer test that uses a browser engine (Chromium) to fully render a page and collect advanced metrics beyond simple availability. Evidence for this test type in the dashboards includes:

Page Completion Time: Displayed on the Executive dashboard map, this metric is specific to how much of the page successfully rendered.

DOM Load Time: Found in the IT Operations dashboard, the Document Object Model (DOM) time is a browser-centric metric that measures when the page structure has finished loading.

Waterfall Charts: While not a specific answer option, these are the foundation of Page Load tests, allowing for the timing of individual web components.

Simple HTTP Server tests (Option A) only measure availability and response codes, missing the rendering metrics seen here. Agent to server (Option C) is a network-layer test that provides path visualization but no browser-level data. FTP (Option D) is a protocol-specific test not used for web application monitoring. Therefore, the presence of DOM and Page Completion metrics confirms the Page Load test type.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) best practices for collaboration monitoring, Microsoft Teams (as well as Webex and Zoom) is monitored using a combination of Scheduled and Dynamic tests (Option D).

Scheduled Tests: These are used to proactively monitor the reachability and performance of the Microsoft Teams infrastructure. The Teams template typically includes scheduled HTTP Server tests to teams.microsoft.com and login.microsoftonline.com, along with network-layer tests to the Teams Transport Relay (e.g., worldaz.tr.teams.microsoft.com). These provide a continuous baseline of connectivity regardless of whether a user is currently in a call.

Dynamic Tests: These are a unique feature for collaboration monitoring. When an Endpoint Agent detects that the Teams application has initiated a real-time media session (audio or video call), it automatically triggers a Dynamic Test to the specific IP and port being used for that call. This allows IT teams to see the exact network path—including hop-by-hop latency and loss—of the actual call traffic while the session is active.

Real User Tests (Option C) are generally not used for Teams monitoring in the same way they are for web-based SaaS apps. Because most users utilize the Teams desktop client rather than the browser, the RUM browser extension cannot capture the rich telemetry of the desktop application ' s internal signaling and media streams. Therefore, the specialized " Automated Session Testing " provided by Dynamic Tests , combined with the proactive health checks of Scheduled Tests , constitutes the complete assurance strategy for Microsoft Teams.

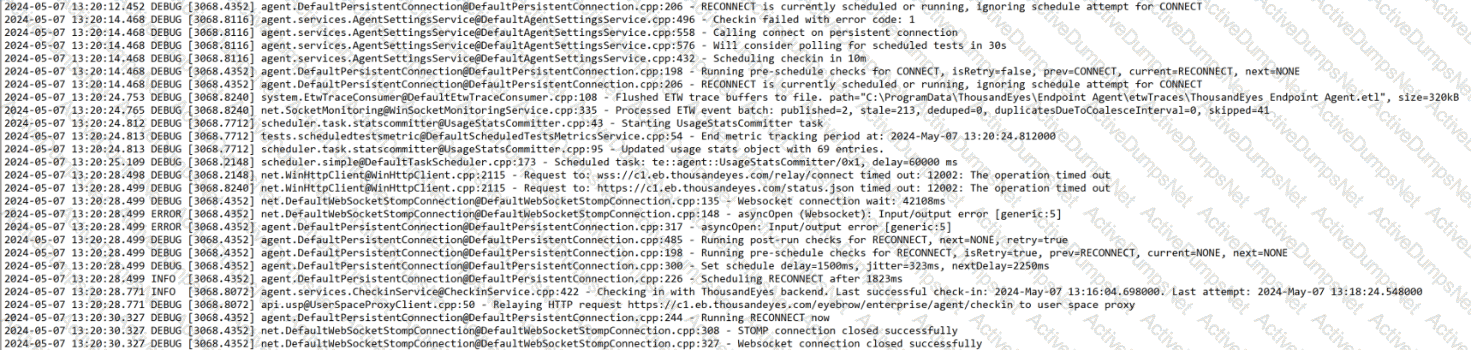

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, troubleshooting endpoint connectivity requires a systematic analysis of local device logs and network environment changes. According to the log message provided in Exhibit there was a specific timeout error when the agent attempted to reach the ThousandEyes backend. The logs explicitly state: Request to: wss://c1.eb.thousandeyes.com/relay/connect timed out: 12002: The operation timed out.

Since the endpoint was relocated to a new network utilizing static IP assignment , and other endpoints on the same network are functioning correctly, the issue is highly localized to this specific device ' s configuration. In a static IP environment, human error during the manual entry of the IP address, subnet mask, default gateway, or DNS server is a common root cause of connectivity failure. If the gateway is incorrect, the agent cannot reach the internet; if the DNS is incorrect, it cannot resolve c1.eb.thousandeyes.com. Therefore, the best way to bring the endpoint online is to verify the accuracy of the IP settings and test direct connectivity to the ThousandEyes relay URL.

The alternative options do not address the technical evidence found in the logs:

Option A: Moving the device back is a regressive step that does not resolve the need for the device to function in its new location.

Option B: Reinstalling software is a " brute force " method that rarely fixes underlying network-layer misconfigurations like an incorrect static IP.

Option C: A timeout error (12002) indicates a persistent connectivity blockage that will not resolve itself without administrative intervention.

Checking the static IP credentials ensures the device has a valid path to the internet to establish its secure websocket (WSS) connection to the ThousandEyes platform.

In the framework of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , selecting the appropriate ThousandEyes agent type is critical to balancing visibility requirements with infrastructure constraints. For Branch A, the primary objective is to gain network-layer metrics (such as latency, packet loss, and jitter) and path visualization for a SaaS application while strictly avoiding any performance impact on employee endpoints.

The Enterprise Agent (Option C) is the correct choice because it is designed for " inside-out " monitoring from within the corporate network environment. These agents are lightweight software probes that can be deployed on existing network infrastructure, such as Cisco Catalyst 9300/9400 switches or Catalyst 8000 Edge Platforms , using Docker containers or virtual machines. By hosting the agent on the branch router or a dedicated local server, the engineer can execute synthetic tests to the SaaS provider ' s destination. This approach provides the necessary network vantage point from Branch A without requiring any software installation or resource consumption on the individual employee workstations (endpoints).

Other agent types do not satisfy the specific constraints of this scenario:

Endpoint Agents are installed directly on user devices (Windows/macOS) to provide " last-mile " visibility. However, they use the endpoint ' s CPU and memory, which contradicts the requirement to not affect endpoint performance.

Cloud Agents are maintained by Cisco in global ISP data centers. While they provide " outside-in " visibility, they cannot capture internal branch network characteristics or the specific path from Branch A ' s internal local area network.

Application Agent is a non-standard term and does not exist as a standalone agent type within the ThousandEyes architecture.

Therefore, deploying an Enterprise Agent within the branch infrastructure ensures that the network engineer obtains high-fidelity network metrics while keeping employee devices entirely unburdened.

Introduction to ThousandEyes

This video provides an essential overview of how ThousandEyes agents function within a CCNP-level enterprise network assurance strategy.

In the framework of Designing and Implementing En 8 terprise Network Assurance (300-445 ENNA) , selecting the correct agent type depends heavily on the vantage point required for the specific observation. For this scenario, the architect must collect metrics from the internal network access layer —the point closest to where the users or devices reside within the corporate perimeter—towards a cloud-hosted destination.

The Enterprise Agent (Option B) is the most appropriate choice because it is specifically designed to be deployed on infrastructure owned and managed by the organization. These agents are " inside-out " vantage points that can be installed directly on Cisco Catalyst 9300 or 9400 Series switches at the access layer using Docker containers. By deploying an Enterprise Agent at the access layer, the architect gains visibility into the entire network path, starting from the internal LAN, traversing the edge/WAN, and reaching into the cloud-hosted web server. This allows for the identification of issues such as local congestion, ISP peering problems, or cloud provider latency.

Other options do not meet the criteria:

Synthetic Agent (Option A): This is a distractor term. All ThousandEyes agents (Cloud, Enterprise, and Endpoint) are synthetic agents because they all perform active synthetic testing.

Cloud Agent (Option C): These are pre-deployed by Cisco in global ISP data centers and provide an " outside-in " view. 14 While useful for monitoring public-facing availability, they cannot provide visibility into the internal network or the access layer of the organization.

Endpoint Agent (Option D): While these are installed on end-user machines and provide a " user-centric " view, they are generally not used for infrastructure-level path analysis from the access layer switches themselves.

Thus, the Enterprise Agent is the definitive choice for monitoring from the access layer to the cloud.

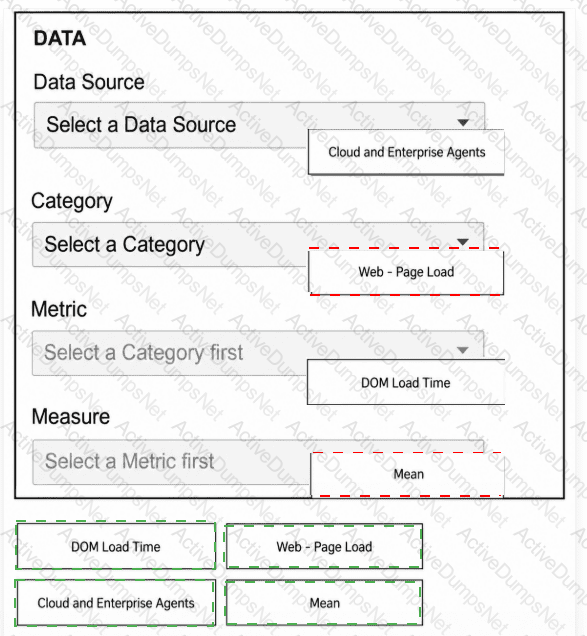

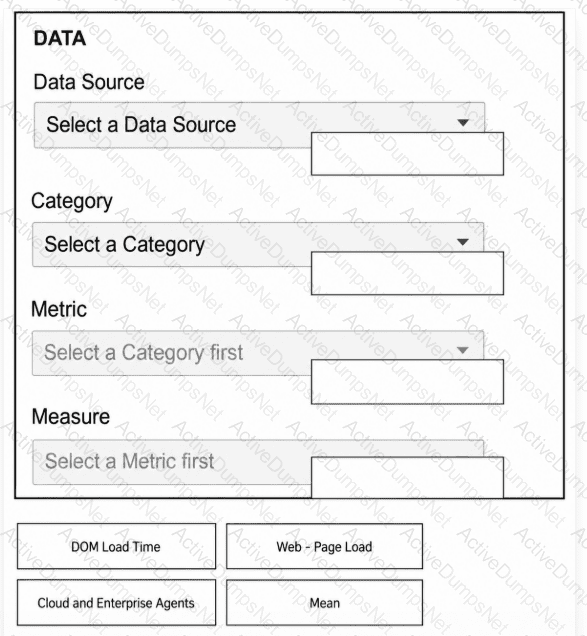

Cloud and Enterprise Agents → Web - Page Load → DOM Load Time → Mean

The Designing and Implementing Enterprise Network Assurance (300-445 ENNA) certification emphasizes that the primary value proposition of the Cisco " Assurance Stack " is the reduction of Mean Time to Identification (MTTI) and Mean Time to Resolution (MTTR) . The integration of ThousandEyes across Cisco ' s portfolio—including Catalyst, Meraki, and SD-WAN— allows for quick identification and resolution of performance issues (Option D). 12

By embedding ThousandEyes agents into the existing network infrastructure, Cisco enables " end-to-end visibility " that spans domains the enterprise traditionally does not control, such as the public internet and SaaS environments. 13 During troubleshooting, this cross-platform visibility allows network engineers to immediately correlate internal network health (from Catalyst Center or Meraki Dashboard) with external path visualization (from ThousandEyes). For example, when a user experiences poor video quality in a Webex meeting, the integration allows the engineer to " cross-launch " from the Webex Control Hub directly into a ThousandEyes path view. 14 This pinpoint accuracy avoids the " blame game " between network, application, and ISP teams by providing a " single source of truth " regarding where the packet loss or latency is occurring.

While some automation exists (Option C), the core benefit isn ' t automatic configuration changes based on feedback, but rather providing the actionable insights required for manual or policy-based remediation. Similarly, while it streamlines data gathering, its ultimate purpose is the speed of resolution in complex, hybrid environments.

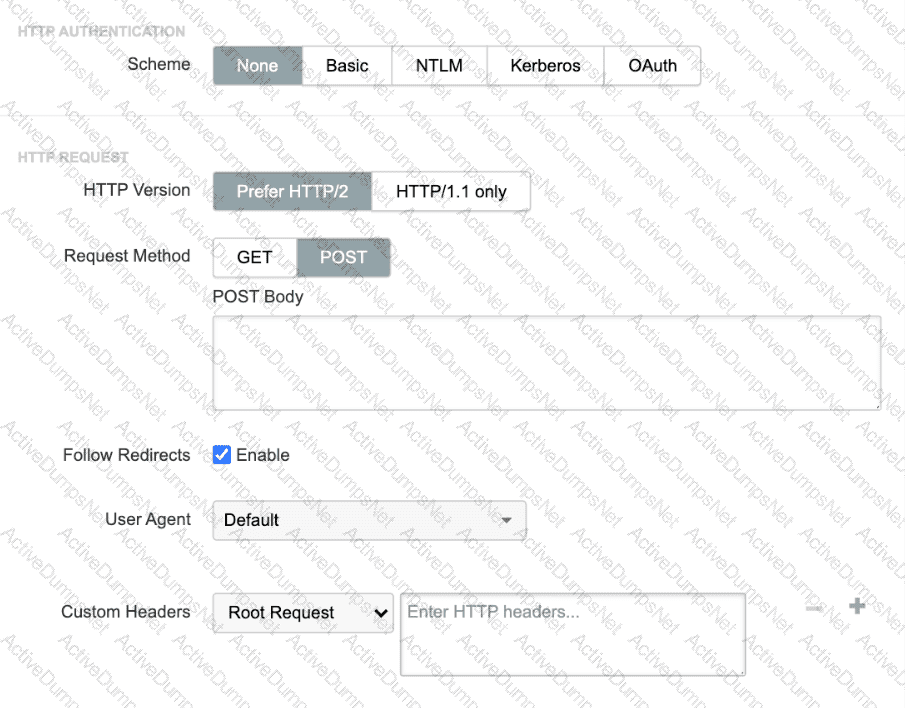

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, monitoring modern APIs often requires handling complex authentication flows, such as OAuth 2.0 with specific client credential parameters. The provided exhibit illustrates the HTTP Authentication options available within a standard HTTP Server test: None, Basic, NTLM, Kerberos, and OAuth.

According to the ENNA implementation standards, while the HTTP Server test type supports OAuth (Option C), its native implementation is limited. Specifically, it is designed to use a pre-existing token or a simple token refresh flow; it does not support the injection of custom parameters in the initial POST request required to obtain a token in many enterprise client-credential scenarios. Basic and NTLM (Options A and B) are legacy protocols that rely on simple username/password headers and cannot facilitate the multi-step token exchange process described.

To fulfill the requirement of a two-step flow (POST for token, followed by GET for resource), engineers must use more flexible test types:

Transaction scripts (Option D): These allow the engineer to write custom JavaScript using the ThousandEyes transaction library to programmatically handle the POST request, parse the resulting JSON token, and then pass that token into the subsequent GET request ' s header.

API tests (Option E): These are purpose-built for API monitoring and natively support the definition of variables and multi-step requests where the output of one call (the token) serves as the input for the next.

By utilizing these advanced test types, the engineer can successfully navigate complex authentication requirements that the standard HTTP Server test cannot accommodate.

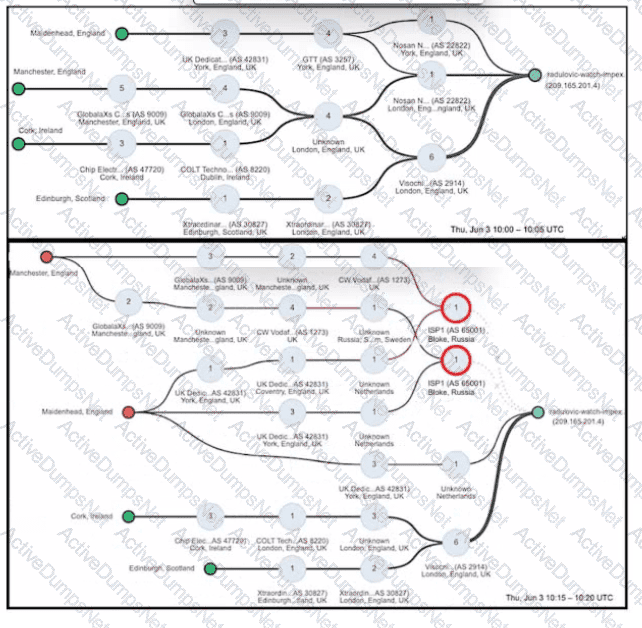

The Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework emphasizes that the goal of internet intelligence is to enable rapid and accurate escalation to the party responsible for a service degradation. Based on the evidence of a BGP Hijack identified in the previous question, the issue is occurring entirely within the public internet ecosystem.

The most appropriate next step is to reach out to the Internet Service Provider (ISP) to report the suspected BGP hijacking incident (Option B). Since the traffic is being misdirected by an external Autonomous System (AS 10297) before it reaches the intended destination (AS 16509), the fix must occur at the routing policy level of the major transit providers. The network administrator should provide the ISP with the ThousandEyes " Share Link " or screenshots showing the path change and the unauthorized AS announcement, as this data serves as proof to accelerate the ISP ' s mitigation efforts, such as implementing prefix filters or contacting the offending network.

Other options are ineffective for this specific scenario:

Option A: The path visualization shows that traffic is successfully leaving the local network and reaching the public internet; the problem is many hops away from the internal routers.

Option C: Blocking traffic from AS 10297 does not solve the problem of your traffic being attracted to it. The hijack affects how the rest of the world (including your ISP) sees the route to your destination.

Option D: DNS is not the issue; the agent successfully resolved the hostname to the correct IP, but the BGP layer misdirected the packets at the routing level.

By identifying the issue as an external routing event, the administrator avoids wasting internal resources and directly triggers the necessary external remediation.

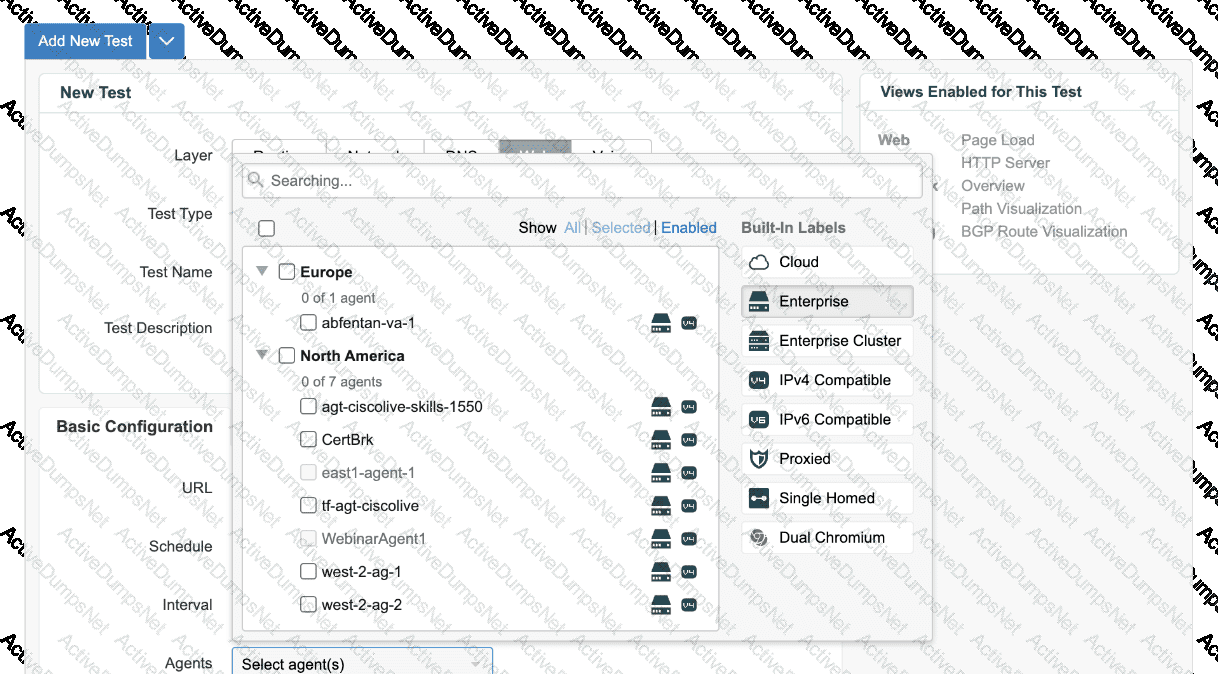

In the framework of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , selecting the appropriate agent for specific test types is a critical configuration step. The ThousandEyes platform utilizes different agent binaries and capabilities depending on the underlying hardware and software environment. Specifically, Page Load tests and Transaction tests require the agent to have a browser engine (Chromium) installed and functional to render web content and measure DOM-related metrics.

According to the ENNA implementation guidelines, not all Enterprise Agents support these browser-based tests. The exhibit displays a " New Test " configuration screen where the engineer is searching for " east1-agent-1 " . While other agents like " west-2-ag-1 " are visible, the designated agent is missing because it does not support Page load tests (Option D). This common occurrence happens when an Enterprise Agent is deployed on resource-constrained hardware—such as certain Cisco Catalyst 9000 switches or Cisco ISR 4000 series routers —where the Chromium browser package is either not supported or has not been enabled due to memory and CPU limitations.

When an agent lacks the required capabilities for a specific test layer (e.g., Web layer tests), it is automatically filtered out from the selection list in the ThousandEyes portal to prevent invalid test configurations. To identify compatible agents, an engineer can look for the " Browser " or " Dual Chromium " labels in the agent settings. If the " east1-agent-1 " were merely offline (Option A), disabled (Option B), or still registering (Option C), it would typically still appear in the list but with a status indicator showing its unavailability, rather than being entirely hidden from the test assignment menu. Therefore, the absence of the agent in a web-layer test configuration explicitly indicates a lack of functional support for the required browser-based metrics.

Within the framework of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , network monitoring is categorized into two primary methodologies: active and passive monitoring. 1 Active monitoring (Option C) is characterized by the generation of synthetic or " probes " traffic specifically designed to measure network performance. 2 These probes simulate real-world user activity, such as HTTP requests, DNS queries, or ICMP pings, to baseline performance metrics like latency, jitter, and packet loss.

The core benefit of the active approach is its independence from actual user traffic. By sending a continuous ping or synthetic HTTP probe, an engineer can verify path availability and performance even during off-peak hours when no real users are on the network. In the context of Cisco ThousandEyes—a central platform in the ENNA certification—this is the primary mode of operation for Cloud, Enterprise, and Endpoint agents. For instance, a ThousandEyes network test proactively sends packets to a target IP or URL to visualize the hop-by-hop underlay and overlay paths.

Conversely, options A, B, and D represent passive monitoring techniques. Passive monitoring involves observing and analyzing traffic that is already traversing the network. 3 Methods such as SNMP (Option A) provide device-level health data like CPU load and interface utilization, while packet captures (Option B) and NetFlow (Option D) analyze the characteristics of existing user flows to determine top talkers or traffic patterns. While passive monitoring is excellent for volume and utilization analysis, it lacks the proactive capability to test a path ' s performance before a user encounters a failure. Therefore, sending a synthetic probe like a continuous ping is the definitive example of active monitoring.

Detailed Explanation:

The IT Operations Dashboard includes a section at the beginning that explicitly displays active alert rules and their status. According to the dashboard configuration, the reason for the current alert trigger is Network packet loss. This indicates that the underlying network path for the application is experiencing packet drops exceeding the defined threshold, even if the application layer remains partially functional.

Alert fatigue is a major operational challenge in network assurance. To make a CPU utilization alert for Endpoint Agents less sensitive and reduce " noise, " an engineer must implement statistical filters that ignore transient spikes or isolated events.

The two most effective methods are:

Increase the agent count (Option A): By requiring a higher number or percentage of agents to simultaneously exceed the threshold, the system ensures the alert represents a widespread environmental issue rather than a single user running a CPU-intensive background process.

Require more rounds of data (Option C): Instead of alerting on a single measurement (1 of 1 round), the engineer can configure the rule to require the threshold to be breached for multiple consecutive checks (e.g., 2 of 3 rounds). This filters out brief, non-impactful CPU spikes that occur naturally during OS updates or browser startups.

Other options would have the opposite effect:

Option B: Lowering the percentage threshold (e.g., from 90% to 50%) would cause the alert to trigger much more frequently, increasing noise.

Option D: Enabling the alert on more agents increases the pool of potential triggers, which typically leads to more notifications unless the logic in Option A is also applied.

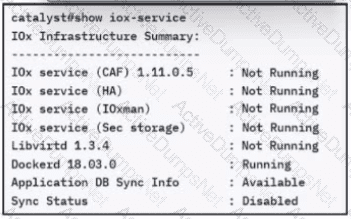

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, the deployment of ThousandEyes Enterprise Agents on switching infrastructure is designed to be highly flexible, catering to different management styles and network scales. Modern Cisco switches, specifically the Catalyst 9300 and 9400 Series , support the execution of containerized applications directly on the switch ' s hardware through the Cisco IOS XE Application Hosting framework. 1

Application Hosting (Option A) refers to the manual method using the Cisco IOS XE Command Line Interface (CLI). An engineer can use app-hosting commands to install, configure, and manage the Docker-based Enterprise Agent. 2 This provides granular control over resource allocation and networking for the container. Catalyst Center (Option B) provides a GUI-driven, automated workflow to deploy agents at scale across an entire campus fabric. 3 It simplifies the lifecycle management by handling the installation and activation across multiple switches simultaneously. For switches acting as edge devices in an SD-WAN fabric, Catalyst SD-WAN Manager (Option C) orchestrates the deployment through centralized policies and templates, allowing the agent to be pushed as part of a device configuration. Finally, while the ThousandEyes Portal (Option D) is the management plane for tests, it is also where the Docker image and Account Group Token are obtained for any of the aforementioned deployment methods.

Each method provides the same end result: an Enterprise Agent running " on-box " to provide deep visibility into the network path starting directly from the access or core layer. Therefore, All of the above (Option E) is the correct answer as it encompasses the manual, automated, and orchestrated methods available for switch-based deployment as per the 300-445 ENNA official guidelines.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, monitoring site-to-site connectivity between managed locations requires vantage points at both ends of the connection. In this scenario, the organization needs to measure performance between branch offices (San Francisco and Texas) and a central data center (North Virginia).

The most appropriate combination is using Enterprise Agents with the Agent-to-agent test type (Option C). Enterprise Agents are software probes deployed on infrastructure owned or controlled by the organization, such as switches or routers in the branch offices and servers in the data center. Unlike Agent-to-server tests, which only provide one-way metrics and approximate path data, an Agent-to-agent test provides bi-directional network metrics. This includes detailed throughput, packet loss, latency, and jitter measurements in both directions, which is critical for identifying asymmetric routing or link saturation that might affect application performance.

Alternative options are less suitable for this specific internal monitoring requirement:

Cloud Agents (Options A and B): These are located in global ISP data centers and cannot be placed inside the organization ' s private data center or branch LAN to measure internal path characteristics.

HTTP/DNS Server tests (Options B, D, and E): These target specific services but do not provide the granular, bi-directional network-layer performance data (like throughput or path visualization) that an Agent-to-agent test delivers.

Agent-to-server (Option E): While useful for reaching a target that cannot host an agent, it loses the benefit of the destination agent ' s ability to measure the " return " path independently.

By deploying Enterprise Agents at each site and configuring Agent-to-agent tests, the engineer gains the highest level of visibility into the health of the private WAN or SD-WAN fabric connecting the branches to the data center.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework, application health is not just about reachability, but about the functionality of business-critical paths. For an e-commerce checkout process, which involves multiple interactive steps such as " Add to Cart, " " Enter Shipping Info, " and " Finalize Payment, " Transaction monitoring (Option B) is the most beneficial functionality.

Transaction tests provide a high-level view of application performance by executing a script that simulates a real user ' s interaction with the site ' s various components. Unlike HTTP server monitoring (Option A), which merely verifies that a single URL returns a specific status code (like 200 OK), Transaction monitoring validates that the underlying application logic and database transactions are working as expected across the entire session. If a user can reach the homepage but the " Checkout " button fails due to a slow backend API call or a JavaScript error, only a Transaction test will identify the failure and provide a granular waterfall chart to show exactly where the process broke down.

While DNS monitoring (Option C) and Routing visibility (Option D) are crucial for identifying foundational connectivity issues, they are insufficient for monitoring complex transactional workflows. A DNS failure would prevent access to the site entirely, but a " broken " checkout process often occurs while the network and DNS appear perfectly healthy. Transaction monitoring bridges this gap by providing " layer 7 " visibility into the end-to-end user experience, making it the definitive choice for e-commerce performance assurance.
