Enhanced Policy-Based Routing (ePBR) is used to direct packets that arrive at an interface to a specified next-hop. It is very useful in managing a large number of configured access lists more efficiently. In ePBR, the router drops the traffic packets if the next hop configured in the PBR policy is not reachable. To avoid packet loss in such scenarios, you must configure multiple next hops for each access control entry.

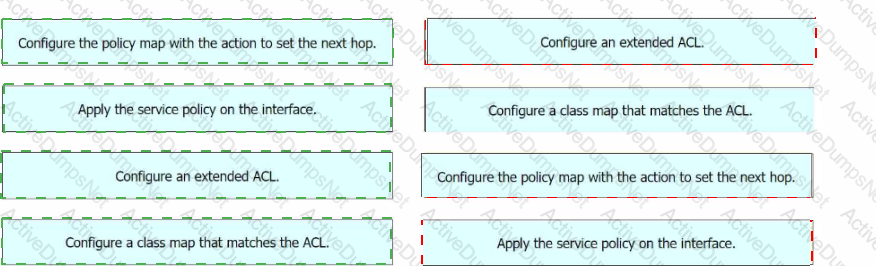

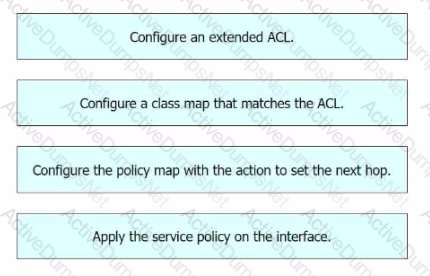

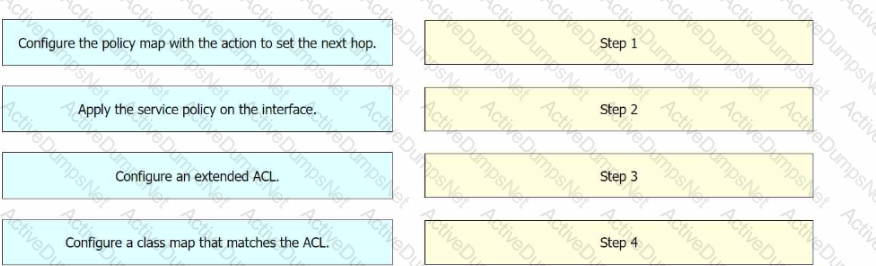

Here are the steps to configure ePBR for IPv4 using Cisco vManage:

• Configure an extended ACL: This step involves defining the network or the host. For example, you can permit IPv4 traffic from any source to specific hosts.
• Configure a class map that matches the ACL: Class maps match the parameters in the ACLs. For instance, you can create a class map of type traffic and match it with the previously created ACL.
• Configure the policy map with the action to set the next hop: Policy maps with ePBR then take detailed actions based on the set statements configured. You can configure an ePBR policy map with the class map and set the next hop.
• Apply the service policy on the interface: Finally, you apply the ePBR policy map to the interface. For example, you can apply the policy map to a GigabitEthernet interface.

References :=

• Implementing Enhanced Policy Based Routing - Cisco
• Cisco Catalyst SD-WAN Policies Configuration Guide, Cisco IOS XE
• How to configure PBR - Cisco Community

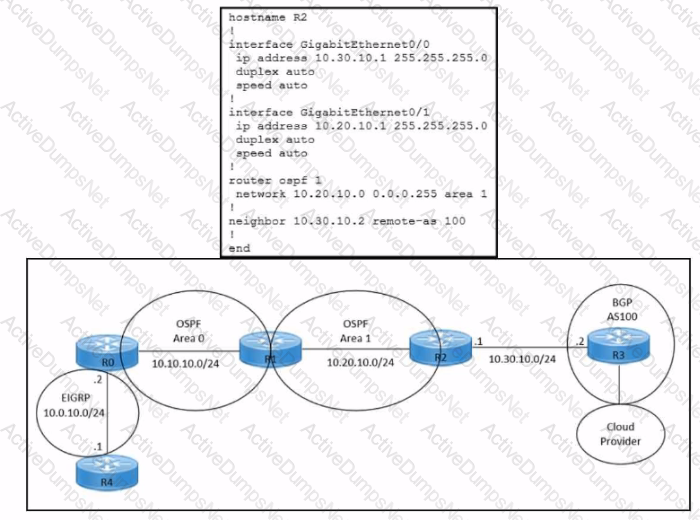

To redistribute OSPF internal routes into BGP, the engineer needs to configure two commands on router R2. The first command is router bgp 100, which enables BGP routing process and specifies the autonomous system number of 100. The second command is redistribute ospf 1 match internal external, which redistributes the routes from OSPF process 1 into BGP, and matches both internal and external OSPF routes. This way, the engineer can avoid introducing extra routes that are not part of OSPF process 1, such as the default route or the connected routes. References: = Designing and Implementing Cloud Connectivity (ENCC) v1.0, [ENCC: Configuring IPsec VPN from Cisco IOS XE to AWS], [Deploying Cisco IOS VTI-Based Point-to-Point IPsec VPNs]

 Security groups are a feature in AWS that allow you to control the inbound and outbound traffic to your instances. They act as a virtual firewall that can filter the traffic based on the source, destination, protocol, and port. You can assign one or more security groups to your instances, and each security group can have multiple rules. Security groups are stateful, meaning that they automatically allow the response traffic for any allowed inbound traffic, and vice versa. Security groups are essential for securing your nodes in the AWS EKS cluster, as they can prevent unauthorized access to your Mongo Atlas database or other resources. You can also use security groups to isolate your nodes from other instances in the same VPC or subnet, or to allow communication between nodes in different clusters or regions. References :=

• AWS Security Groups
• Security Groups for Your VPC
• Security Groups for Your Amazon EC2 Instances
• Security Groups for Your Amazon EKS Cluster

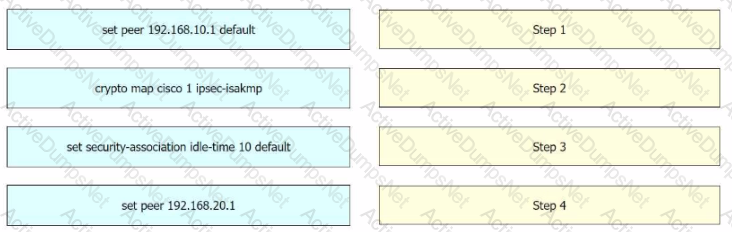

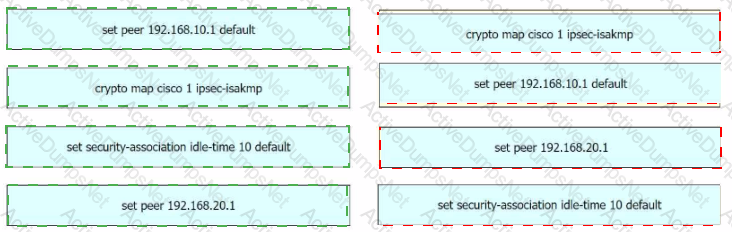

Step 1 = crypto map cisco 1 ipsec-isakmp Step 2 = set peer 192.168.10.1 default Step 3 = set peer 192.168.20.1 Step 4 = set security-association idle-time 120 default

The process of editing the settings of a site-to-site IPsec VPN connection between an on-premises Cisco IOS XE router and Amazon Web Services (AWS), and configuring IPsec to support multiple peers and failover after 120 seconds of idle time on the first entry of the crypto map named Cisco involves several steps123456.

• crypto map cisco 1 ipsec-isakmp: This command is used to create a new entry in the crypto map named “cisco”. The “1” is the sequence number of the entry, and “ipsec-isakmp” specifies that the IPSec security associations (SAs) should be established using the Internet Key Exchange (IKE) protocol13.
• set peer 192.168.10.1 default: This command is used to specify the IP address of the default peer for the crypto map entry. In this case, the default peer is at IP address 192.168.10.115.
• set peer 192.168.20.1: This command is used to add an additional peer to the crypto map entry. In this case, the additional peer is at IP address 192.168.20.1. This allows the IPsec VPN to support multiple peers56.
• set security-association idle-time 120 default: This command is used to set the idle time for the security association. If no traffic is detected over the VPN for the specified idle time (in this case, 120 seconds), the security association is deleted, and the VPN connection fails over to the next peer46.

References :=

• Configure a Site-to-Site IPSec IKEv1 Tunnel Between an ASA and a Cisco IOS Router - Cisco
• Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community
• Configuring Site to Site IPSec VPN Tunnel Between Cisco Routers
• Configure Failover for IPSec Site-to-Site Tunnels with Backup ISP Links on FTD Managed by FMC - Cisco
• Does Setting Multiple Peers in a Crypto Map Also Support Parallel IPSec Connections - Cisco Community
• Multiple WAN Connections — IPsec in Multi-WAN Environments | pfSense Documentation
• Multiple Set Peer for VPN Failover - Server Fault

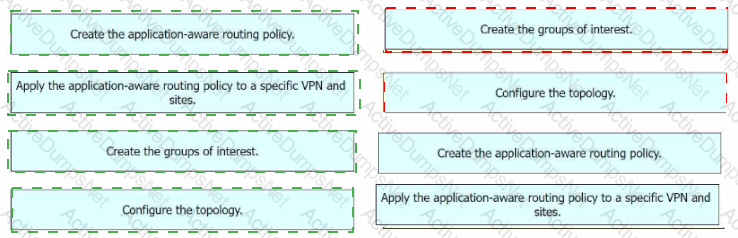

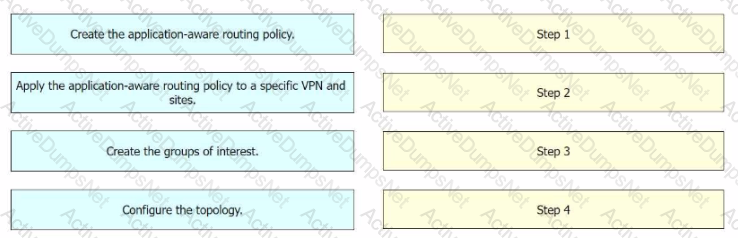

Step 1 = Create the groups of interest. Step 2 = Configure the topology. Step 3 = Create the application-aware routing policy. Step 4 = Apply the application-aware routing policy to a specific VPN and sites.

The process of configuring an application-aware routing policy in Cisco vManage involves several steps12.

• Create the groups of interest: This is the first step where you define the applications or groups that the policy will affect1.
• Configure the topology: This involves setting up the network topology that the policy will operate within1.
• Create the application-aware routing policy: After setting up the groups and topology, you then create the application-aware routing policy. This policy tracks network and path characteristics of the data plane tunnels between Cisco SD-WAN devices and uses the collected information to compute optimal paths for data traffic31.
• Apply the application-aware routing policy to a specific VPN and sites: Finally, the created policy is applied to a specific VPN and sites. This allows the policy to affect the desired network traffic1.

References :=

• Designing and Implementing Cloud Connectivity (ENCC) v1.0
• Learning Plan: Designing and Implementing Cloud Connectivity v1.0 (ENCC 300-440)
• Information About Application-Aware Routing - Cisco
• Configuring Application-Aware Routing (AAR) Policies | NetworkAcademy.io
• Policies Configuration Guide, Cisco IOS XE SD-WAN Releases 16.11, 16.12

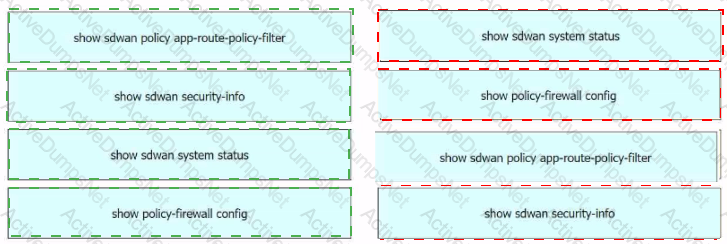

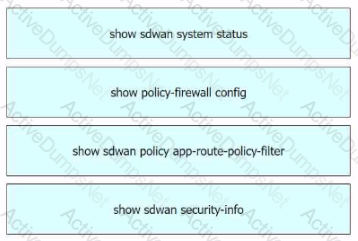

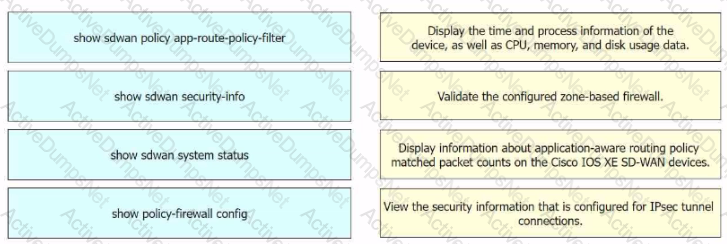

• Display the time and process information of the device, as well as CPU, memory, and disk usage data. = show sdwan system status1
• Validate the configured zone-based firewall. = show policy-firewall config1
• Display information about application-aware routing policy matched packet counts on the Cisco IOS XE SD-WAN devices. = show sdwan policy app-route-policy-filter1
• View the security information that is configured for IPsec tunnel connections. = show sdwan security-info

The commands used to identify issues on a Cisco IOS XE SD-WAN device are as follows1:

• show sdwan system status: This command is used to display the time and process information of the device, as well as CPU, memory, and disk usage data1.
• show policy-firewall config: This command is used to validate the configured zone-based firewall1.
• show sdwan policy app-route-policy-filter: This command is used to display information about application-aware routing policy matched packet counts on the Cisco IOS XE SD-WAN devices1.
• show sdwan security-info: This command is used to view the security information that is configured for IPsec tunnel connections1.

References :=

• Cisco IOS XE Catalyst SD-WAN Qualified Command Reference
• Cisco Catalyst SD-WAN Command Reference
• Cisco Catalyst SD-WAN Systems and Interfaces Configuration Guide, Cisco IOS XE
• SD-WAN Tunnel Interface Commands - Cisco

A fully meshed topology with SD-WAN technology, using dynamic routing and BGP as the routing protocol, meets the requirements of the company because it provides the following benefits:

• It allows direct and secure connectivity between any two branch offices, without the need for a central hub or intermediary devices12. This reduces the latency and improves the performance of the critical business applications.
• It leverages SD-WAN technology to optimize the traffic flow and application quality of service (QoS) across the WAN13. SD-WAN can dynamically select the best path for each application based on the network conditions and policies13. SD-WAN can also provide redundancy, security, and visibility for the WAN13.
• It uses dynamic routing and BGP as the routing protocol to exchange routing information and establish connectivity between the branch offices14. BGP is a scalable and flexible protocol that can support multiple address families, such as IPv4 and IPv6, and multiple routing policies, such as local preference and route filtering14. BGP can also enable seamless integration with the cloud service providers (CSPs) and internet service providers (ISPs)14.

References :=

• 1: Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5) (Cisco U. login required)
• 2: Cisco SD-WAN Design Guide

The connectivity model that meets the requirements of high availability, redundancy, and low latency for the company’s business applications is ExpressRoute with private peering using SDCI.

• ExpressRoute is a service that provides a dedicated, private, and high-bandwidth connection between the customer’s on-premises network and Microsoft Azure cloud network1.
• Private peering is a type of ExpressRoute circuit that allows the customer to access Azure services that are hosted in a virtual network, such as virtual machines, storage, and databases2.
• SDCI (Secure Data Center Interconnect) is a Cisco solution that enables secure and scalable connectivity between multiple data centers and cloud providers, using technologies such as MPLS, IPsec, and SD-WAN3.
• By using ExpressRoute with private peering and SDCI, the company can achieve the following benefits:

References:

• What is Azure ExpressRoute?
• Azure ExpressRoute peering
• Cisco Secure Data Center Interconnect
• ExpressRoute circuit and routing domain

 A centralized internet gateway is a network design that routes all internet-bound traffic from the on-premises infrastructure through a single point of egress, typically located at the data center or a regional hub1. This approach allows the enterprise to apply consistent security policies and access controls for SaaS applications, as well as optimize the bandwidth utilization and performance of the WAN links2. A centralized internet gateway can use various technologies to provide connectivity to SaaS applications, such as proxy servers, firewalls, web filters, and WAN optimizers3. However, a cloud-based proxy server (option A) is not a part of the centralized internet gateway, but rather a separate service that can be used to route traffic from the on-premises infrastructure to the SaaS provider data center4. VPN connections (option C) and dedicated, private connections (option D) are also not related to the centralized internet gateway, but rather alternative ways of providing secure and reliable access to SaaS applications from the on-premises infrastructure5. Therefore, the correct answer is option B, which describes the basic function of a centralized internet gateway. References := 1: Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 1: Cloud Connectivity Overview, Lesson 1: Cloud Connectivity Concepts, Topic: Centralized Internet Gateway 2: Cloud OnRamp for SaaS, Cisco IOS XE Catalyst SD-WAN Release 17.3.1a and Later, Topic: Centralized Internet Gateway 3: Architect and optimize your internet traffic with Azure routing preference, Microsoft Azure Blog, Topic: Routing via the premium Microsoft global network 4: What is SaaS? Softwareas a Service, Microsoft Azure, Topic: How SaaS works 5: How an application gateway works, Microsoft Learn, Topic: Application gateway components

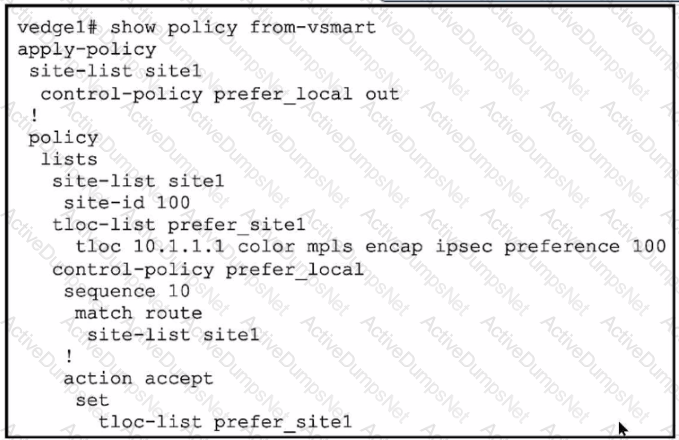

 A centralized data policy is a policy that is applied to all devices in the overlay network, regardless of the site list. A localized data policy is a policy that is applied only to the devices that are listed in the site list. In this case, the network engineer wants to apply the policy to all devices in the overlay network, not just the specific devices in the site list. Therefore, a centralized data policy must be configured on the on-premises Cisco WAN edge router. References :=

• Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 3: Implementing Cisco SD-WAN Cloud OnRamp for Colocation, Topic: Centralized Data Policy
• [Cisco SD-WAN Cloud OnRamp for Colocation Deployment Guide], Chapter: Configuring Centralized Data Policy

 Cisco SD-WAN IPsec tunnels are different from native IPsec VPN tunnels in several ways. One of the unique features of Cisco SD-WAN IPsec tunnels is that they support real-time dynamic path selection, which means that they can automatically choose the best path for each application based on the network conditions and policies. This feature improves the performance, reliability, and efficiency of the network traffic. Native IPsec VPN tunnels, on the other hand, do not have this capability and rely on static routing or manual configuration to select the path for each tunnel. This can result in suboptimal performance, increased latency, and higher costs. References := Traditional IPsec Versus Cisco SD-WAN IPsec, SD-WAN vs IPsec VPN’s - What’s the difference?, SD-WAN vs. VPN: How Do They Compare?, Traditional IPSEC Versus SD-WAN IPSEC
