Brocade 143-085 Brocade Certified Fabric Professional Gen 5 Exam Practice Test

Page: 1 / 9
Total 91 questions
Get 143-085 Full Access Download 143-085 PDF

Brocade Certified Fabric Professional Gen 5 Questions and Answers

Question 1

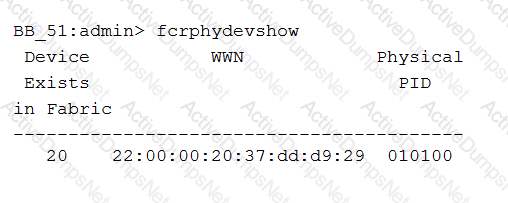

You are using FC routing to allow a host in the edge fabric FID 10 to communicate with a target in the edge fabric FID 20. The backbone FID is 100. The host is unable to communicate with the target.

Question # 1

Which statement is true?

Options:

A.

The host is offline.

B.

The target is offline.

C.

LSAN zones have not been configured on the edge fabric FID 30.

D.

LSAN zones have not been configured on the backbone fabric.

Question 2

FC-FC routing is taking too long to present and set up paths for the proxy devices. This is causing some servers to time out.

Which action would solve this problem?

Options:

A.

Run a Superping.

B.

Use the speed tag feature.

C.

Use the enforce tag feature.

D.

Decrease the R_RDY mode.

Question 3

Which three protocols does the Brocade 1860 Fabric Adapter with Gen 5 Fibre Channel allow? (Choose three.)

Options:

A.

FCoE

B.

Native FC

C.

TCP/IP

D.

FCIP

E.

FICON

Question 4

When configuring Flow Generator, which two statements are true? (Choose two.)

Options:

A.

SIM-Ports can be configured on 8 Gbps and 16 Gbps platforms.

B.

SIM-Ports must be configured on a Gen 5 FC port.

C.

The source port for the flow can be on 8 Gbps and 16 Gbps platforms.

D.

The source port for the flow must be a Gen 5 port.

Question 5

Within your Monitoring and Alerting Policy Suite (MAPS) environment, you are required to implement port fencing.

Which statement about this implementation is true?

Options:

A.

It is enabled by default.

B.

The port fencing global action settings on the switch take precedence over the actions defined in the rules.

C.

The port fencing actions defined in the rules take precedence over the global action settings on the switch.

D.

E_Ports, F_Ports, and D_Ports are supported port types.

Question 6

Your existing fabric has Brocade switches using Fabric OS v7.1 with Fabric Watch and Advanced Performance Monitor licenses already installed. You want to upgrade to v7.2 and run Flow Vision.

Which statement is true?

Options:

A.

You will need to install the Fabric Vision license in addition to the existing licenses on all switches in the fabric.

B.

You will need to install the Fabric Vision license only on the switches which are the source and destination for the flow.

C.

You do not need a Fabric Vision license on the switches.

D.

The existing Fabric Watch and Advanced Performance Monitor licenses on the switches will be deprecated after the upgrade.

Question 7

You are configuring a 10 km long distance ISL between a Brocade DCX 8510 and a Brocade 5300 with no additional license.

Which two configurations are needed? (Choose two.)

Options:

A.

Configure the ISL ports at both ends for LE.

B.

Configure the ISL ports at both ends for LD.

C.

Configure the fill word to ARB on the ISL port of the 5300.

D.

Configure the fill word to ARB on the ISL ports on both ends of the ISL.

Question 8

You need to implement an FCIP solution with one 10 Gbps FCIP tunnel.

Which Brocade product will provide the solution?

Options:

A.

Brocade DCX 8510-4 with an FC6-10 blade

B.

Brocade DCX with an FX8-24 blade

C.

Brocade 7800 Extension Switch

D.

Brocade DCX 8510-8 with an FCoE10-24 blade

Question 9

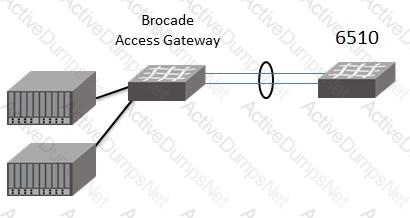

Refer to the exhibit.

Question # 9

In the exhibit, what is required to configure the trunk?

Options:

A.

On the 6510, you must statically assign an Area_ID to the trunk group.

B.

On the Access Gateway, statically assign an Area_ID to the trunk group.

C.

Ensure that F_Port trunking is enabled on both devices.

D.

Ensure all ports on the Access Gateway reside in the same quad.

Question 10

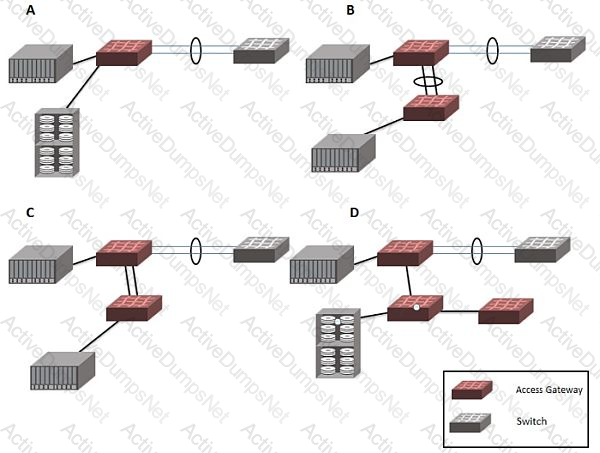

Refer to the exhibit.

Question # 10

Referring to the exhibit, which two Access Gateway topologies are valid? (Choose two.)

Options:

A.

A

B.

B

C.

C

D.

D

Question 11

You have configured the edge fabric and backbone fabric devices to communicate.

Which two conditions are true? (Choose two.)

Options:

A.

The backbone fabric must not have any phantom domain for edge fabrics.

B.

The shared devices must be presented to each other’s native fabric.

C.

The shared devices must be presented to the backbone fabric.

D.

At least one translate phantom domain is created in the backbone fabric.

Question 12

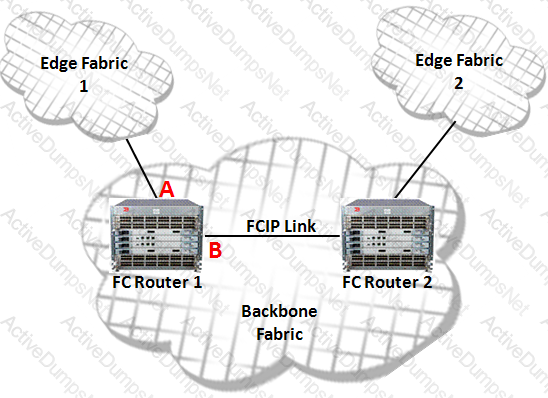

Refer to the Exhibit.

Question # 12

Referring to the exhibit, port A and port B must be configured as which port types?

Options:

A.

Port A = EX_Port and Port B = VE_Port

B.

Port A = EX_Port and Port B = VEX_Port

C.

Port A = E_Port and Port B = VEX_Port

D.

Port A = E_Port and Port B = VE_Port

Question 13

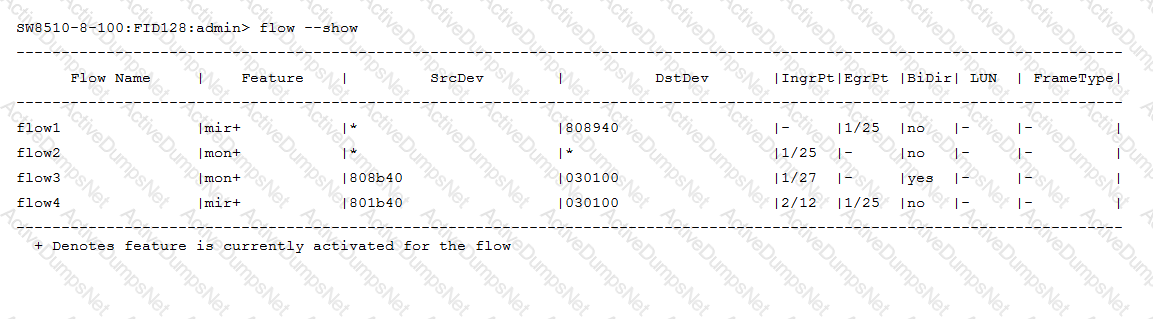

You are monitoring a flow using MAPS in Brocade Network Advisor.

Question # 13

Referring to the exhibit, which two flows would be imported into MAPS? (Choose two.)

Options:

A.

flow1

B.

flow2

C.

flow3

D.

flow4
