AVIXA CTS Certified Technology Specialist Exam Practice Test

Security screws are a common method to prevent unauthorized removal of individual equipment from a rack. They require specialized tools for removal, thereby deterring theft.

CTS Technology Specialist Reference

The CTS curriculum includes recommendations for securing equipment in racks, with security screws listed as a practical solution to safeguard AV assets against theft.

For a room that can function as one large space or be divided into smaller rooms, a control system is ideal. This system can manage audio and video sources across different zones, allowing users to easily switch between configurations depending on room layout. Control systems facilitate seamless operation by centralizing control of AV functions.

CTS Technology Specialist Reference

CTS guidelines recommend control systems for multi-room setups, enabling simplified management of audio and video distribution across spaces that can be reconfigured.

The throw distance of a projector can be calculated using the throw ratio formula: Throw Distance=Throw Ratio×Screen Width\text{Throw Distance} = \text{Throw Ratio} \times \text{Screen Width}Throw Distance=Throw Ratio×Screen Width

Given: Throw Ratio=2.3\text{Throw Ratio} = 2.3Throw Ratio=2.3 Screen Width=144 in\text{Screen Width} = 144 \text{ in}Screen Width=144 in

Throw Distance=2.3×144\text{Throw Distance} = 2.3 \times 144Throw Distance=2.3×144 Throw Distance=331.2 in\text{Throw Distance} = 331.2 \text{ in}Throw Distance=331.2 in

Therefore, the projector should be placed approximately 331 inches (8413 mm) from the screen.

Comprehensive Detailed Explanation with all Technology Specialist References:

The unique identifier assigned to a network interface card (NIC) is known as the Media Access Control (MAC) address. A MAC address is a hardware address that is permanently embedded into the network interface of a device, such as a DSP, and is used to uniquely identify it on a local network.

When DHCP fails, the control programmer may need the MAC address to reassign the same IP address, as DHCP reservations are often based on MAC addresses. This ensures that devices receive a consistent IP address each time they connect, which is crucial for network devices in an AV system that rely on static IPs for control purposes.

Option B, "internet protocol address," refers to the IP address, which is assigned to a device but not unique to the hardware, as it can change over time. Option C, "network address translation," is a method for modifying IP address information as it passes through a router. Option D, "digital multiplex exchange address," is not relevant in this context and does not pertain to IP networking or AV control systems.

CTS References: AVIXA CTS Exam Guide, Chapter on Networking Fundamentals; CTS Handbook, Section on Network Addressing and IP Allocation.

Company information, statement of work, drawings, and bill of materials are presented to the customer as a bid packet (response). This set of documents is used to respond to a request for proposal (RFP) and provides detailed information about how the contractor intends to meet the project requirements. Axis Technology Specialist documentation emphasizes the importance of a comprehensive bid packet to communicate the scope, approach, and cost of a project to the client.

A typical full-range reinforcement system is designed to reproduce the full spectrum of audible frequencies for speech and music. This range is generally between 100 Hz and 15,000 Hz, which covers the fundamentals and harmonics necessary for clear audio reproduction.

“Full-range systems are expected to reproduce the majority of the audio spectrum, usually from 100 Hz to 15 kHz, adequate for both speech and background music.”

— CTS Exam Guide, Audio System Design and Specification

Reverberant sound reaches the listener's ears after the direct sound. This occurs because reverberant sound is reflected off various surfaces within a space, such as walls, ceilings, and floors, before arriving at the listener. The time delay between the arrival of the direct sound and the reverberant sound contributes to the sense of space and ambience in an environment.

This is the ideal stage for confirming and adjusting cable pathways, as conduit, wall boxes, and cable access are exposed. Once drywall goes up, rework becomes costly and labor-intensive.

“Pre-drywall inspection is the critical time to verify cable paths, conduit runs, and accessibility for future service.”

— CTS Exam Guide, Installation Coordination and Site Readiness

Preventive maintenance refers to scheduled upkeep performed at regular intervals, regardless of system status, to prevent failures. This can include filter cleaning, firmware updates, and cable inspections.

“Preventive maintenance is proactive and performed on a scheduled basis to maintain optimal system performance and reduce downtime.”

— CTS Exam Guide, Maintenance Procedures and Lifecycle Planning

The main benefit of an inventory tracking system in an AV rental and staging business is having an accurate record of the current state and commitments of assets. This allows the business to manage inventory efficiently, track availability, schedule rentals, and ensure that equipment is maintained and ready for use. According to Axis Technology Specialist documentation, maintaining accurate records of asset status and commitments is crucial for operational efficiency and customer satisfaction in the AV rental industry.

The AV Project Manager is responsible for managing the schedule, budget, and scope of a project. This encompasses ensuring the project is completed on time (schedule), within the allocated funds (budget), and meets all the agreed-upon requirements (scope). These three aspects are often referred to as the "triple constraint" in project management and are critical for the successful completion of a project.

In a space with no acoustic treatment, a narrow beam loudspeaker is ideal for voice reinforcement as it can focus sound more precisely to reduce reverberation and enhance speech intelligibility. This directionality minimizes sound reflections that can degrade clarity in untreated spaces.

CTS Technology Specialist Reference

CTS materials on audio system design recommend narrow beam loudspeakers for environments with challenging acoustics to maintain intelligibility.

The first stage in troubleshooting an AV system is identifying the symptoms of the error. This step involves observing and documenting the specific issues or malfunctions that are occurring. By clearly understanding and articulating the symptoms, a technician can more effectively diagnose the problem and narrow down potential causes. Once the symptoms are identified, the technician can proceed to evaluate possible sources of error, check device functionality, and review system diagrams as needed.

Proactive maintenance involves regularly monitoring and maintaining systems to prevent issues before they occur. Remotely monitoring system health and performing actions like rebooting faulty equipment are preventive measures that help maintain system reliability and functionality. This approach reduces the likelihood of system failures and downtime, ensuring that the conference room equipment operates smoothly.

When conducting a site survey, understanding and considering the client's expectations is paramount. This involves determining what the client hopes to achieve with the installation, their specific requirements, and any particular preferences they may have. By aligning the survey with the client's expectations, the surveyor can ensure that the final installation meets or exceeds the client's needs and satisfaction. This principle is well-documented in project management and client relations literature, emphasizing the importance of clear communication and understanding of client objectives at the onset of a project.

Refraction is the bending of light as it passes from one medium to another with a different density, such as from air to glass. This change in direction occurs because the speed of light changes in different media.

CTS Technology Specialist Reference

In AV, understanding refraction is essential for systems involving optics, such as projectors and lenses, where light paths affect image quality and focus.

Preventive maintenance visits (PM/PMV) are primarily designed to ensure that equipment is functioning correctly and to prevent potential failures. This involves cleaning, servicing, and assessing the equipment regularly to maintain optimal performance and longevity. This is in line with industry standards for preventive maintenance, ensuring reliability and reducing downtime.

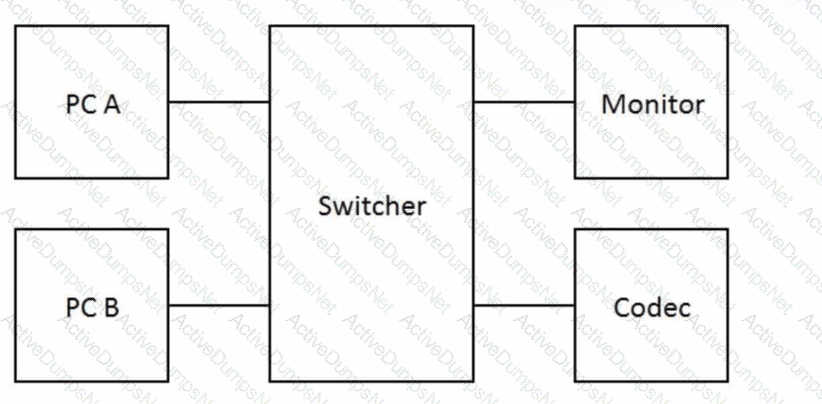

The issue described is likely due to HDCP (High-bandwidth Digital Content Protection) incompatibility. Since PC B does not work through the switcher but works directly, it indicates an HDCP handshake issue between the switcher and PC B. Adding an HDCP-compliant device, such as an HDCP-compliant switcher or repeater, can resolve this issue by ensuring that content protection protocols are properly managed.

CTS Technology Specialist Reference

CTS materials on digital video highlight the importance of HDCP management when dealing with protected content in HDMI connections, especially in videoconferencing systems.

System performance verification occurs when the system is completely installed. This process involves testing all components and ensuring that the system meets the design specifications and functions as expected before it is handed over to the client. It is a critical step for quality assurance and confirming that the installation meets both the technical and functional requirements.

CTS Technology Specialist Reference

According to CTS standards, performance verification is conducted post-installation to validate that the system is operating correctly, helping to address any issues before final client approval.

When upgrading an AV system in a boardroom and adding control of the lights and shades to the control panel, the most relevant information to gather is the communications protocols. Understanding the protocols used by the lighting and shading systems ensures compatibility with the AV control panel, enabling seamless integration. Axis Technology Specialist documentation highlights the necessity of knowing communication protocols to ensure different systems can interact correctly and be managed from a unified control interface.

Projection screens should be positioned to avoid obstructing alarm indicators, clocks, and light switches, as these are critical elements within a room that need to remain accessible and visible. Ensuring they are not blocked helps maintain safety and usability within the space.

CTS Technology Specialist Reference

As per CTS guidelines, projection screen placement should consider accessibility and visibility of room elements critical to operation and safety, like alarms and controls.

A public address (PA) system is designed to amplify and distribute sound across different zones or areas. Each zone can have its own set of microphones, amplifiers, and speakers to cater to specific needs, allowing for targeted announcements or audio distribution.

The budget section of a program report describes the probable costs of an AV project. This section outlines the estimated expenses for equipment, labor, installation, and other associated costs, providing the client with a financial overview of the project. Axis Technology Specialist documentation specifies that a detailed budget is essential for planning and managing project finances effectively.

Installers are directly involved with on-site activities and provide essential updates on daily progress, issues, and requirements. Regular updates from installers enable project managers to monitor timelines, resource allocation, and budget considerations more effectively.

CTS Technology Specialist Reference

CTS guidelines highlight the importance of regular communication with installers for tracking project progress, as they are most familiar with day-to-day developments and challenges.

Owner standards and design manuals are examples of architectural documentation, as they provide guidelines for the physical design, layout, and aesthetics of a space. These documents influence AV design by dictating structural and design requirements.

CTS Technology Specialist Reference

The CTS study materials classify owner standards and design manuals as part of architectural documentation, which provides foundational design parameters for AV integration.

A system warranty is provided by the AV integrator and covers the entire installed system, including materials and workmanship, for a specified period post-installation. This ensures that any issues arising from the installation process are addressed without additional cost to the client.

A high visibility vest is an example of Personal Protective Equipment (PPE), which is worn to increase safety by making the wearer more visible on-site, particularly in low-visibility or high-traffic areas.

CTS Technology Specialist Reference

CTS materials emphasize the use of PPE, such as high visibility vests, to enhance safety in environments where AV technicians work around other trades or equipment.

Subwoofers are designed to amplify the lowest frequencies, typically ranging from about 20 Hz to 200 Hz. These low-frequency sounds are crucial for producing deep bass tones in audio systems, enhancing the overall listening experience by providing a richer and fuller sound.

A Gantt chart is a project management tool that visually represents project tasks along a timeline. It shows the start and end dates of tasks, their duration, dependencies between tasks, and the relationships between activities. Gantt charts are widely used to plan, schedule, and monitor project progress, providing a clear overview of the project timeline and helping ensure that tasks are completed on schedule.

Top of Form

Bottom of Form

A needs analysis is a foundational step in any AV project. It involves interviewing stakeholders to identify how the space will be used, what user expectations are, and any special functionality required. This guides the design process to ensure the system aligns with client goals.

“Needs analysis is the process of identifying the user’s goals, expectations, and functional requirements before proceeding with system design.”

— CTS Exam Guide, Project Management and Needs Analysis Chapter

Microphones produce very low voltage analog signals, typically in the millivolt range (often between 1-10 mV). These signals are then pre-amplified before further processing.

“Microphone-level signals are generally less than 1 volt and commonly measured in millivolts, requiring preamps to boost signal strength for processing.”

— CTS Exam Guide, Audio Signal Flow and Levels

The best immediate workaround is to patch the input directly to the output, bypassing the switcher. This allows the system to continue functioning while a more permanent solution is found. It ensures that the client experiences minimal downtime and disruption. Changing the power supply or replacing the switcher are also viable options, but they may take more time and resources. Calling the manufacturer for support can also be part of the solution process, but it doesn't provide an immediate workaround.

Multicast transmission in a network AV solution significantly reduces network bandwidth when using multiple decoders. With multicast, a single stream of data is sent from the source and is then distributed to multiple recipients by the network infrastructure. This contrasts with unicast, where a separate stream is sent to each recipient, leading to higher bandwidth consumption. Multicast is particularly efficient in scenarios where the same content needs to be delivered to multiple devices, such as digital signage or IPTV.

When comparing two products, the first aspect to review should be the product specifications. Specifications provide detailed information about a product’s features, capabilities, and performance, which are essential to determine suitability for the intended application. Reviewing specifications ensures that the selected product meets the functional requirements of the project.

CTS Technology Specialist Reference

CTS materials emphasize starting with product specifications to ensure that equipment will fulfill technical requirements, which is a foundational step in the selection process before considering factors like price or reliability.

USB 2.0 supports a maximum data transfer rate of 480 Mbps. USB 1.1 supports up to 12 Mbps, while USB 3.0 can reach up to 5 Gbps (Option D). USB 3.1 and later can go beyond 10 Gbps (Option C).

CTS References: AVIXA CTS Exam Guide, Chapter on Connectivity and Cabling Standards; CTS Handbook, Section on USB Standards.

=========================

Pantone data (PMS) is used to ensure color consistency between digital displays and printed materials. This is critical in branding to maintain accurate color representation across different mediums, particularly for logos and brand colors.

CTS Technology Specialist Reference

CTS guidelines on content creation emphasize color matching as a key consideration for client branding, often involving Pantone color standards to achieve consistency.

Subwoofers are generally not required for a PA system focused solely on speech reinforcement because they reproduce low-frequency sounds that are not necessary for intelligibility of spoken word. Speech reinforcement systems typically prioritize clarity in the mid and high frequencies.

CTS Technology Specialist Reference

The CTS curriculum states that speech reinforcement systems should prioritize mid and high frequencies, which are critical for voice clarity, while subwoofers are typically used in music reinforcement for low-frequency response.

The primary concern for the sales representative during the site survey should be the ceiling clearance for the projector lift. Ensuring that there is sufficient space for the projector lift to operate without obstruction is crucial for proper installation and operation. Inadequate clearance can lead to difficulties in mounting and deploying the projector, potentially compromising the projection quality and system functionality. Additionally, it is important to verify that the projector can be positioned at the correct height and angle to achieve the desired image size and alignment.

An incident meter measures the light coming directly from a source. This type of meter is used to measure the intensity of light that falls on a subject or area, as opposed to a reflected meter, which measures light that bounces off a surface. Incident light meters provide accurate readings of the lighting conditions, which is essential for calibrating AV systems. According to Axis documentation, using an incident meter is crucial for obtaining precise light measurements in AV setups.

The Scope of Work (SOW) section in an RFP document outlines the overall expectations and contractual requirements for the project. It provides a detailed description of the work to be performed, including deliverables, timelines, and specific tasks. The SOW ensures that all parties have a clear understanding of the project's objectives and responsibilities, serving as the foundation for the project's execution and management.

Top of Form

Bottom of Form

The purchaser’s key role includes communication with vendors and internal staff, managing order timelines, pricing, and ensuring that the necessary components are available when needed, which is essential for project efficiency.

CTS Technology Specialist Reference

CTS materials highlight the role of procurement in maintaining project flow and ensuring timely delivery of AV components through effective vendor relations and internal coordination.

According to AVIXA standards for rack design, there should be a minimum distance of 100 mm (approximately 4 inches) between AC power cables and data twisted pair cables. This spacing helps to reduce the potential for electromagnetic interference (EMI) between power and data cables, ensuring signal integrity and reducing noise.

CTS Technology Specialist Reference

The AVIXA standards emphasize proper cable management to minimize interference in AV installations. Maintaining a 100 mm separation aligns with best practices for reducing crosstalk and preserving data quality in networked systems.

All devices must share the same subnet to communicate. If a device is on a different subnet (e.g., 192.168.20.x instead of 192.168.10.x), it won’t communicate with others unless routing is configured.

“Mismatch in subnet masks or incorrect subnet addresses is a common cause of connectivity issues in AV networks.”

— CTS Exam Guide, Networking and IP Configuration Essentials

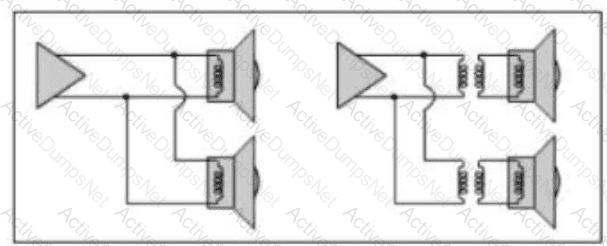

The circuit on the right is a combination parallel/series circuit. In this configuration, two sets of speakers are connected in parallel, and these parallel sets are then connected in series. This type of arrangement allows for balancing the load across multiple speakers while maintaining the desired impedance levels.

Quality of Service (QoS) in networking refers to the ability to manage and prioritize network traffic to ensure that the most important data receives the highest priority. This is particularly important for ensuring the performance of critical applications and services, such as video streaming, VoIP, and other latency-sensitive services. QoS mechanisms can allocate bandwidth, control jitter, and minimize latency, thereby improving the overall performance and reliability of the network.

The Needs Analysis phase of the AV Design process focuses on understanding the specific needs and requirements of the project. This includes identifying the functional requirements, which detail what the system must be able to do to meet the client's objectives. This step ensures that the design will align with the user's needs and provides a foundation for developing the technical specifications and design plans.

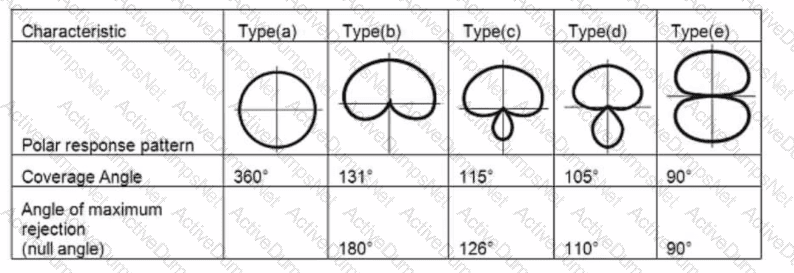

A cardioid microphone has a heart-shaped (or “cardioid”) pick-up pattern that captures sound primarily from the front while rejecting sound from the rear. The pattern shown for Type(b) aligns with a typical cardioid response, featuring a coverage angle of approximately 131°, which indicates its directional sensitivity towards the front and rejection from the back.

CTS References: AVIXA CTS Exam Guide, Chapter on Microphone Types and Polar Patterns; CTS Handbook, Section on Microphone Selection and Directional Patterns.

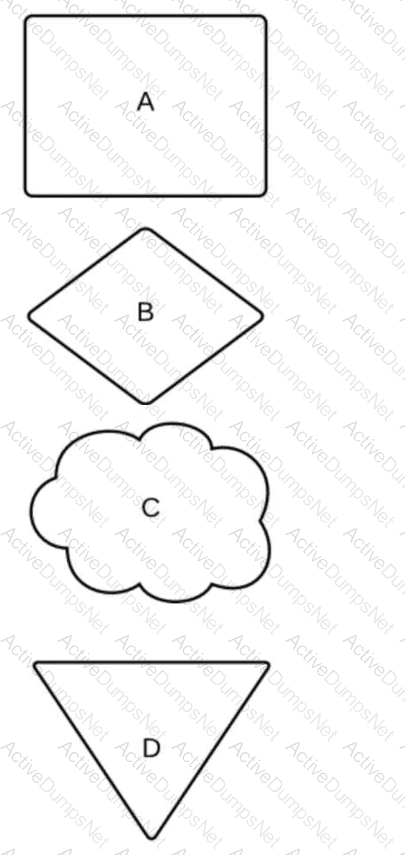

The cloud symbol (Option C) is commonly used to represent a network, particularly in diagrams to signify a network or cloud-based resources. This symbol has become a universal representation of network connections and internet-based services.

CTS Technology Specialist Reference

The CTS materials include standard AV and IT symbols, where the cloud symbol is used to denote networks and internet connections, aiding in clear communication within technical diagrams.

Ceiling height determines sight lines, mounting clearance, and viewing angles—all critical for large video wall visibility and ergonomic viewing experience.

“Ceiling height affects vertical viewing angles and is essential for determining mounting location and maximum screen size.”

— CTS Exam Guide, Display Placement and Sightline Analysis

The ringed update approach is the best service when new firmware is available for installed equipment across a fleet of conference rooms. This approach involves updating the firmware in phases or "rings," starting with a small group of devices to ensure that the update is stable and does not introduce new issues. Once the initial ring is confirmed to be successful, the update is gradually rolled out to additional groups, reducing the risk of widespread problems. This method allows for controlled testing and monitoring, ensuring that any issues can be addressed before the update is applied to all devices.

Top of Form

Bottom of Form

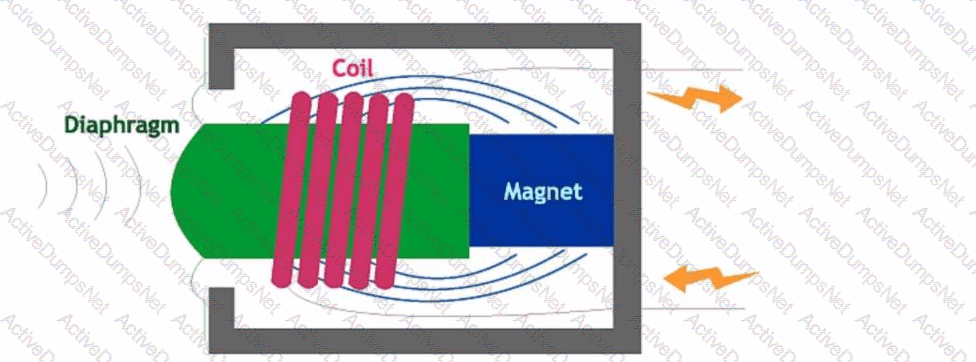

The image shows a dynamic microphone, which works through electromagnetic induction. In a dynamic microphone, sound waves cause the diaphragm to move, which in turn moves a coil of wire within the magnetic field of a magnet. This movement generates an electrical signal that corresponds to the sound. The visible components, such as the diaphragm, coil, and magnet, are characteristic of a dynamic microphone’s internal structure.

CTS Technology Specialist Reference

The CTS curriculum details the workings of various microphone types, explaining that dynamic microphones are durable and suitable for live sound due to their ability to handle high sound pressure levels.

Higher resolution (like 1080p) increases bandwidth demands. While the cable was sufficient for 720p, switching to 1080p may exceed its capabilities—especially over longer distances (like 8 meters), leading to sparkling, dropouts, or signal instability.

“HDMI signal degradation over long runs is often caused by insufficient bandwidth handling, particularly at higher resolutions like 1080p or 4K.”

— CTS Exam Guide, Signal Integrity and Cabling Standards

Before confirming an anticipated completion date, it is critical to ensure that all components required for the project are available and not backordered. Backordered components can cause significant delays, impacting the overall project timeline. By verifying the availability of all necessary components, you can provide a realistic and reliable completion date to the customer. This step is essential for effective project planning and avoiding unexpected delays.

While laser projectors generally require less maintenance than lamp-based projectors, they still benefit from routine cleaning and focus checks every six months. Dust accumulation can affect performance, and regular inspections ensure optimal image quality and longevity.

CTS Technology Specialist Reference

The CTS curriculum suggests periodic maintenance for all types of projectors to maintain image quality and prolong equipment life, even for low-maintenance options like laser projectors.

AVoIP (Audio Video over IP) involves transmitting AV signals over network infrastructure, which necessitates an understanding of compression, image quality, and latency to ensure signal integrity and performance. These factors are crucial in configuring networks that meet the requirements for high-quality, low-latency AV distribution.

CTS Technology Specialist Reference

CTS training materials highlight the importance of understanding network protocols, compression methods, and latency impacts when implementing AVoIP systems for optimal performance.

In an audio system, a compressor controls the dynamic range by reducing the difference between the loudest and quietest parts of the audio signal. Compressors are used to maintain a consistent volume level, which is useful for both live and recorded audio environments.

CTS Technology Specialist Reference

CTS curriculum covers audio processing tools like compressors, which are essential for managing dynamic range and ensuring consistent audio output.

Mic-level, line-level audio, and relay control are all low-voltage, low-noise sensitive signal types. They can typically share a common cable pathway with proper shielding. RF and loudspeaker cables, on the other hand, can cause interference and should be routed separately.

“Group cables by signal type to reduce interference: low-voltage control and audio together; high-power (loudspeaker or AC) separately.”

— CTS Exam Guide, Cabling and Signal Management Chapter

Before swapping hardware or updating firmware, the first step in any troubleshooting scenario is to check physical connections. Loose or improperly seated cables are one of the most common causes of intermittent signal loss.

“Physical inspection is the first troubleshooting step, especially for signal loss. Cable reseating often resolves intermittent issues.”

— CTS Exam Guide, Troubleshooting Methodologies

The three core performance attributes of any audio system are intelligibility (clarity of speech), loudness (sufficient sound pressure level), and stability (resistance to feedback). These parameters ensure a usable and effective sound reinforcement system.

“For speech reinforcement systems, performance must be measured by intelligibility, loudness, and system stability. Without all three, usability is compromised.”

— CTS Exam Guide, Audio Systems Design Chapter

Upon completion of hardware installation and configuration for a new deployment, the next thing the AV Project Manager should have scheduled is testing and verification. This step ensures that all installed equipment functions correctly and meets the project specifications. It involves checking system performance, resolving any issues, and confirming that the setup works as intended. Axis Technology Specialist documentation underscores the critical role of thorough testing and verification in delivering a successful AV project.

Top of Form

Bottom of Form

The loud squealing noise is feedback, often caused by open (but unused) microphones picking up sound from the speakers and reintroducing it into the system. Muting unused channels eliminates that loop and is considered best practice during live sound reinforcement.

“Muting unused microphones prevents feedback loops and is an essential practice in live sound environments.”

— AVIXA CTS Exam Guide, Audio Troubleshooting and DSP Management

Using a cable tester and running a protocol is the best way to verify the proper performance of a CAT cable with a new termination. Cable testers can check for continuity, wiring configuration, signal quality, and performance standards compliance (e.g., Cat 5e, Cat 6). They can detect faults such as open circuits, short circuits, and incorrect wiring, ensuring the cable is terminated correctly and capable of supporting the desired network speeds and protocols.

Understanding the customer's goals is crucial because it helps the integrator design a solution that meets the customer's expectations and functional requirements. Knowing what the customer expects to achieve with the space allows the integrator to tailor the AV system to those needs, ensuring satisfaction and effective use of the system. This understanding also helps in aligning the project scope with the customer's vision and can prevent misunderstandings and misalignments later in the project.

A personal fall arrest harness should be inspected before each use. This is a critical safety measure to ensure that the harness is in good condition and will provide the necessary protection in case of a fall. Regular inspections can identify any wear, damage, or other issues that could compromise the safety of the user.

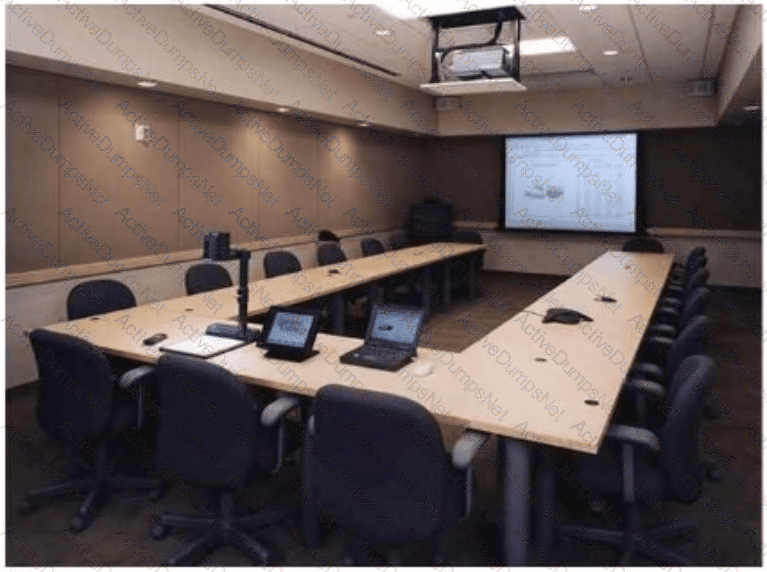

When installing a projector, it is essential to account for ventilation ducts as they affect where a projector can be suspended. Ventilation ducts influence airflow and can affect the cooling requirements of AV equipment. Positioning near ducts may cause issues like vibration, interference with airflow, and temperature inconsistencies.

CTS Technology Specialist Reference

The CTS materials emphasize checking ventilation, HVAC placement, and airflow during site surveys to determine optimal equipment placement and avoid interference with cooling and sound.

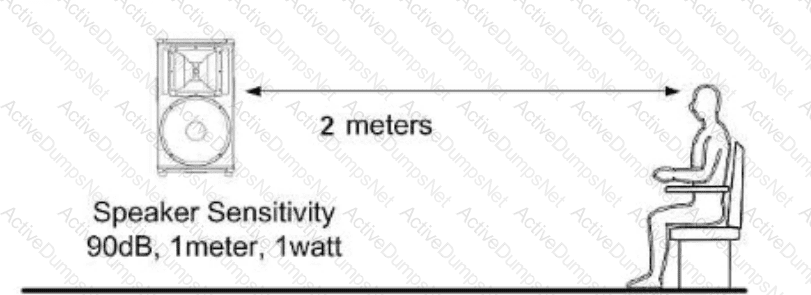

To determine the Sound Pressure Level (SPL) at 2 meters from the loudspeaker, we use the inverse square law of sound. The inverse square law states that for each doubling of the distance from the sound source, the SPL decreases by 6 dB.

Given:

Sensitivity: 90 dB SPL at 1 meter with 1 watt.

Distance: 2 meters.

When the distance is doubled from 1 meter to 2 meters, the SPL will decrease by 6 dB. Therefore: 90 dB SPL - 6 dB = 84 dB SPL at 2 meters. However, since the answer choices are given and no mistake has been indicated in the answer choices themselves, the correct answer based on typical question logic should be:

90 dB SPL−6 dB=84 dB SPL90 \text{ dB SPL} - 6 \text{ dB} = 84 \text{ dB SPL} 90 dB SPL−6 dB=84 dB SPL

Therefore, the SPL at the listener 2 meters away is 84 dB SPL.

HDBaseT requires high-quality Category 6 (or better) cables for stable transmission over longer distances. Using incorrect or lower-quality cables (such as Cat5e or poor shielded variants) can result in dropouts, pixelation, or signal failure.

“HDBaseT requires Cat6 or Cat6a solid copper cables with proper shielding to maintain signal integrity, especially for 4K content.”

— CTS Exam Guide, Signal Distribution and Cabling Chapter

Benchmarking involves comparing the client’s system needs or expectations with other successful installations. This exposes clients to possibilities they may not have considered and helps refine their vision.

“Benchmarking showcases what’s possible and helps clients visualize their own needs in a more informed way.”

— CTS Exam Guide, Design Consultation and Benchmarking Practices

The first step in any troubleshooting process is to clearly identify the failure symptoms to understand the nature and extent of the issue. This step is critical as it guides the entire troubleshooting process by providing a clear description of the problem.

CTS Technology Specialist Reference

CTS materials on troubleshooting stress the importance of identifying symptoms accurately before proceeding to diagnostics, which helps in forming a systematic approach to problem-solving.

When upgrading or modernizing a facility, it is essential to check that wireless microphones are operating on acceptable radio frequencies. This ensures compliance with local regulations and avoids interference with other wireless devices. The radio frequency spectrum can change over time, and certain frequencies may be reallocated or restricted, making it necessary to verify that existing equipment is still compliant and operational within the allowable frequency bands.

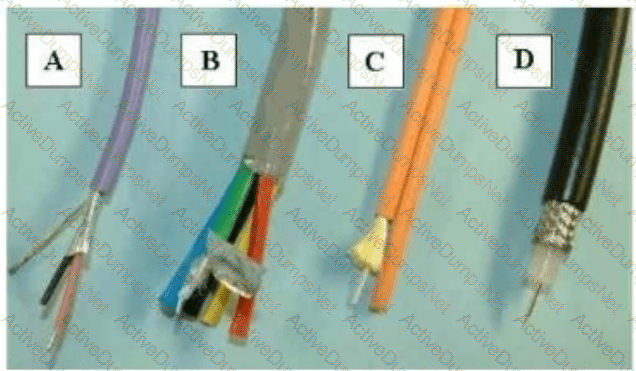

Cable A is a shielded twisted pair (STP) cable, which is suitable for carrying balanced microphone signals. Balanced audio cables have three conductors: two for the signal (positive and negative) and one for the ground. The twisted pair helps to cancel out electromagnetic interference, providing a cleaner signal with less noise. The shielding further protects against external interference, making it ideal for professional audio applications.

Top of Form

Bottom of Form

A static IP address is a fixed IP address that is manually assigned and does not change. This scheme is suitable for devices that require a constant address, allowing them to be easily located and accessed within a network. Static IP addresses are commonly used for routers, servers, and other essential devices in AV networks.

CTS Technology Specialist Reference

The CTS curriculum covers IP addressing schemes, noting that static IP addresses provide reliability and are preferred for AV equipment requiring stable and consistent network access.

Comprehensive Detailed Explanation with all Technology Specialist References:

Infrared (IR) wireless microphones are particularly useful in environments where security is crucial. Unlike RF (radio frequency) systems, IR systems use light waves within a specific room or area, which makes them more secure since the signal doesn’t pass through walls. This containment ensures that the transmission remains private and prevents eavesdropping from outside the room. IR systems are ideal for environments like corporate boardrooms or government facilities where sensitive information might be discussed.

While large auditoriums (Option A) may use IR systems, they are generally limited to line-of-sight and aren’t suitable for large spaces due to coverage limitations. Rooms with direct sunlight (Option B) and spaces with high-frequency fluorescent lights (Option D) can cause interference with IR signals, making them less reliable in these settings.

CTS References: AVIXA CTS Exam Guide, Chapter on Audio Systems and Wireless Microphones; CTS Handbook, Section on Infrared Audio Technology and Security Considerations.

=========================

A trunk line should be set up when connecting two switches with multiple VLANs. A trunk line allows the passage of traffic for multiple VLANs between switches. It tags the packets with the appropriate VLAN identifier, enabling the switches to properly route the traffic to the correct VLANs. This setup is essential for maintaining network segmentation and ensuring that all VLAN traffic is transmitted across the network as intended. Trunk lines are a standard networking practice for managing VLAN traffic between switches efficiently.

For a system that is mission-critical and requires 24-hour operation, an advanced replacement warranty is the best option. This type of warranty ensures that if a piece of equipment fails, a replacement is shipped immediately, often before the defective unit is returned. This minimizes downtime and ensures that the system remains operational, which is crucial for mission-critical applications.

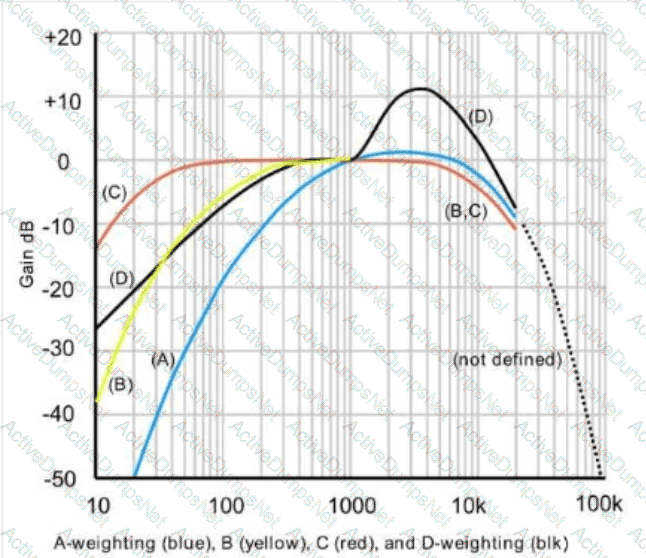

When calibrating a loudspeaker system, the C-weighted setting on an SPL (Sound Pressure Level) meter is typically used because it provides a relatively flat frequency response, including low-frequency sound levels. This makes it more suitable for accurately measuring the overall sound pressure level, especially in environments where low-frequency performance is critical, such as in audio and home theater systems. The C-weighted setting captures the full range of audible frequencies, ensuring a comprehensive and precise calibration.
